Model Whirlpool KEBS276WBL2 – Common Parts & Diagrams

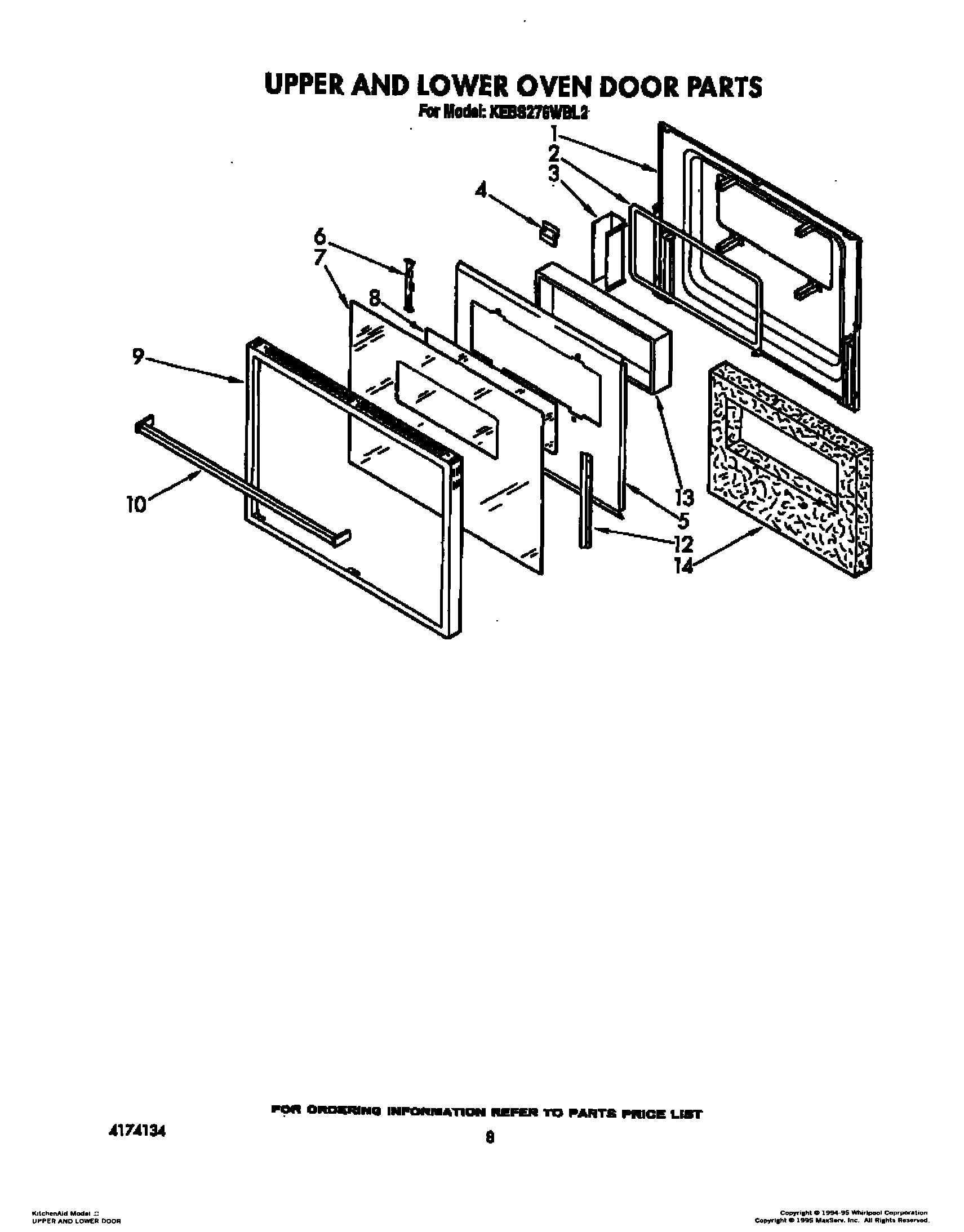

05 - UPPER AND LOWER DOOR

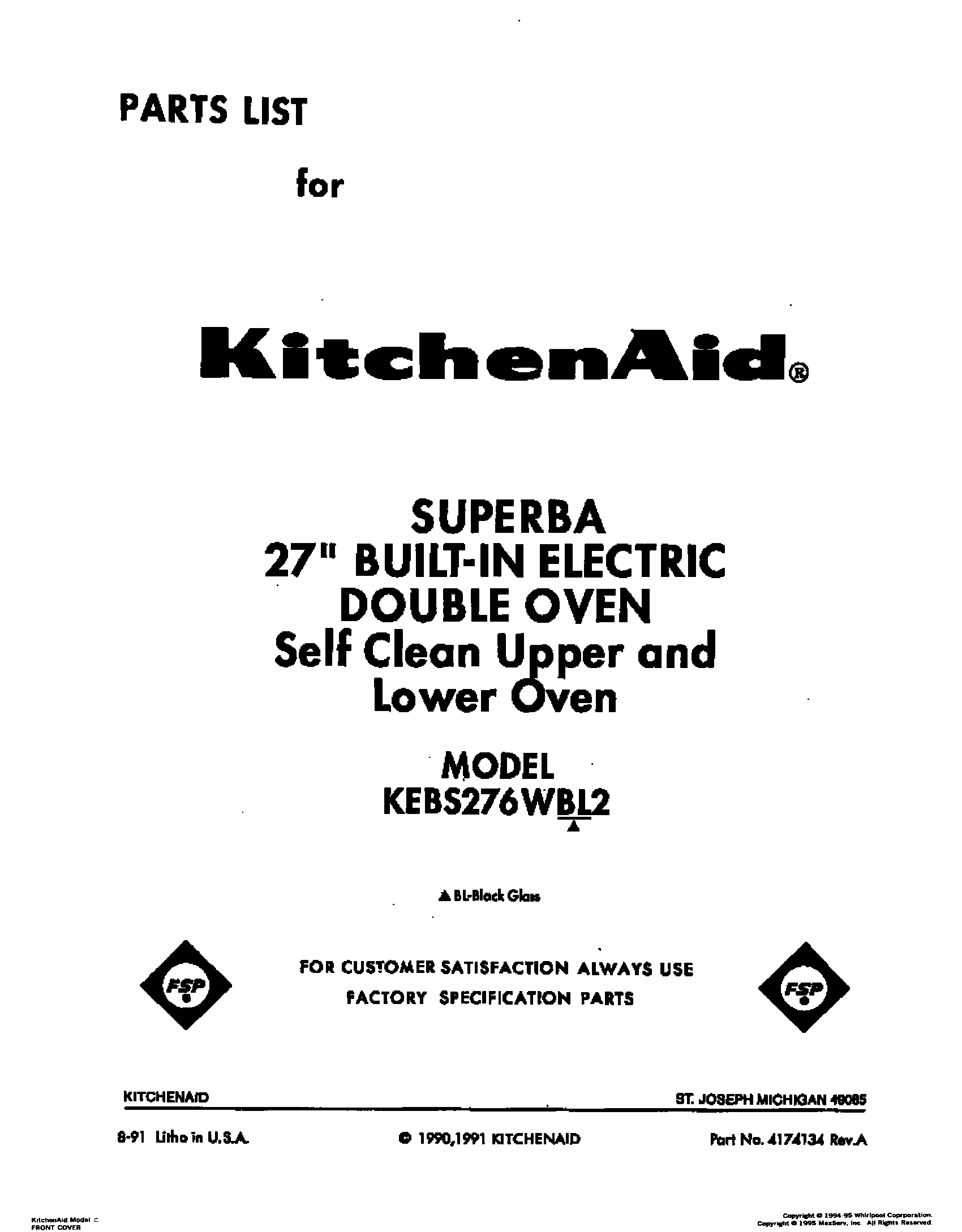

01 - COVER

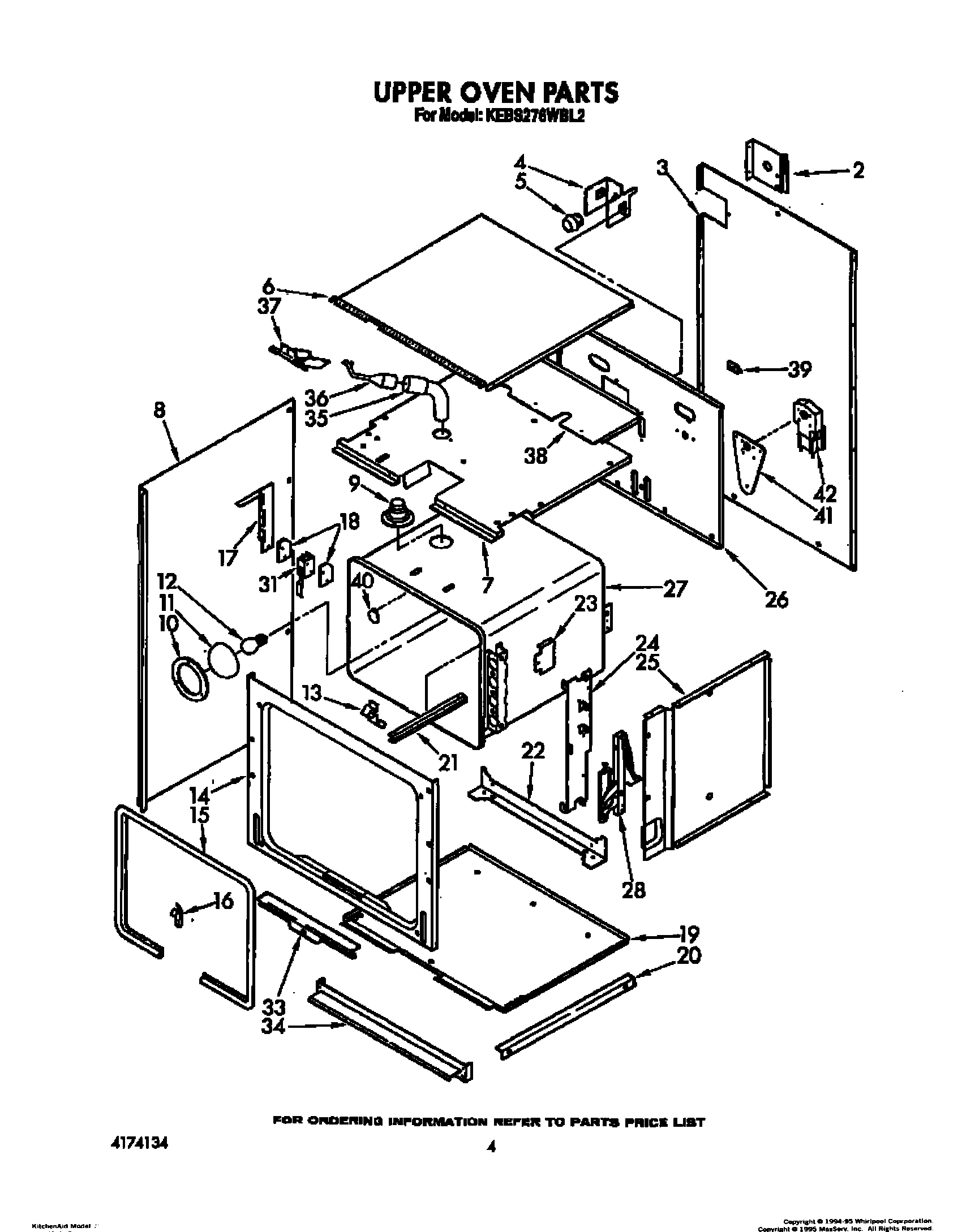

03 - UPPER OVEN

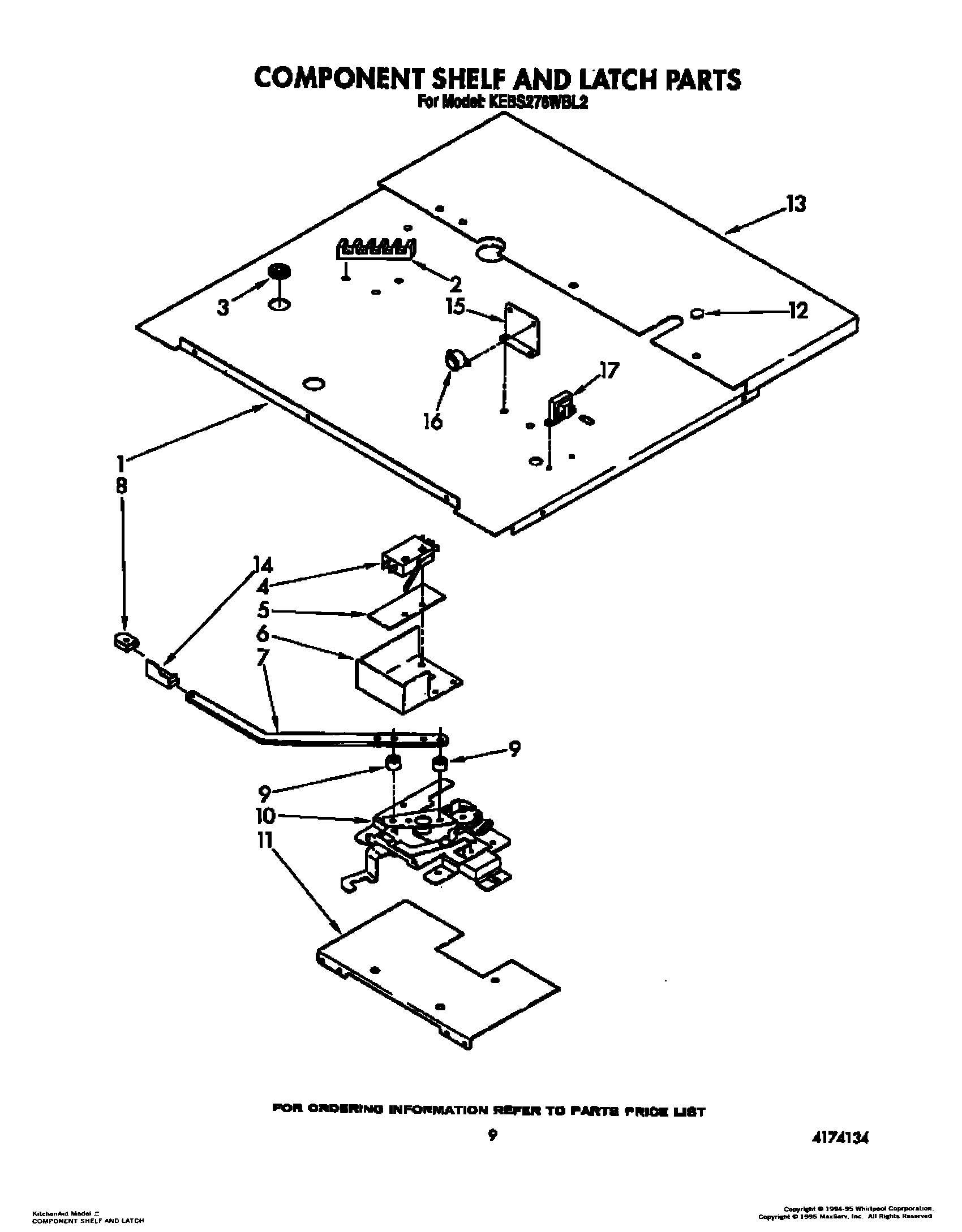

06 - COMPONENT SHELF AND LATCH

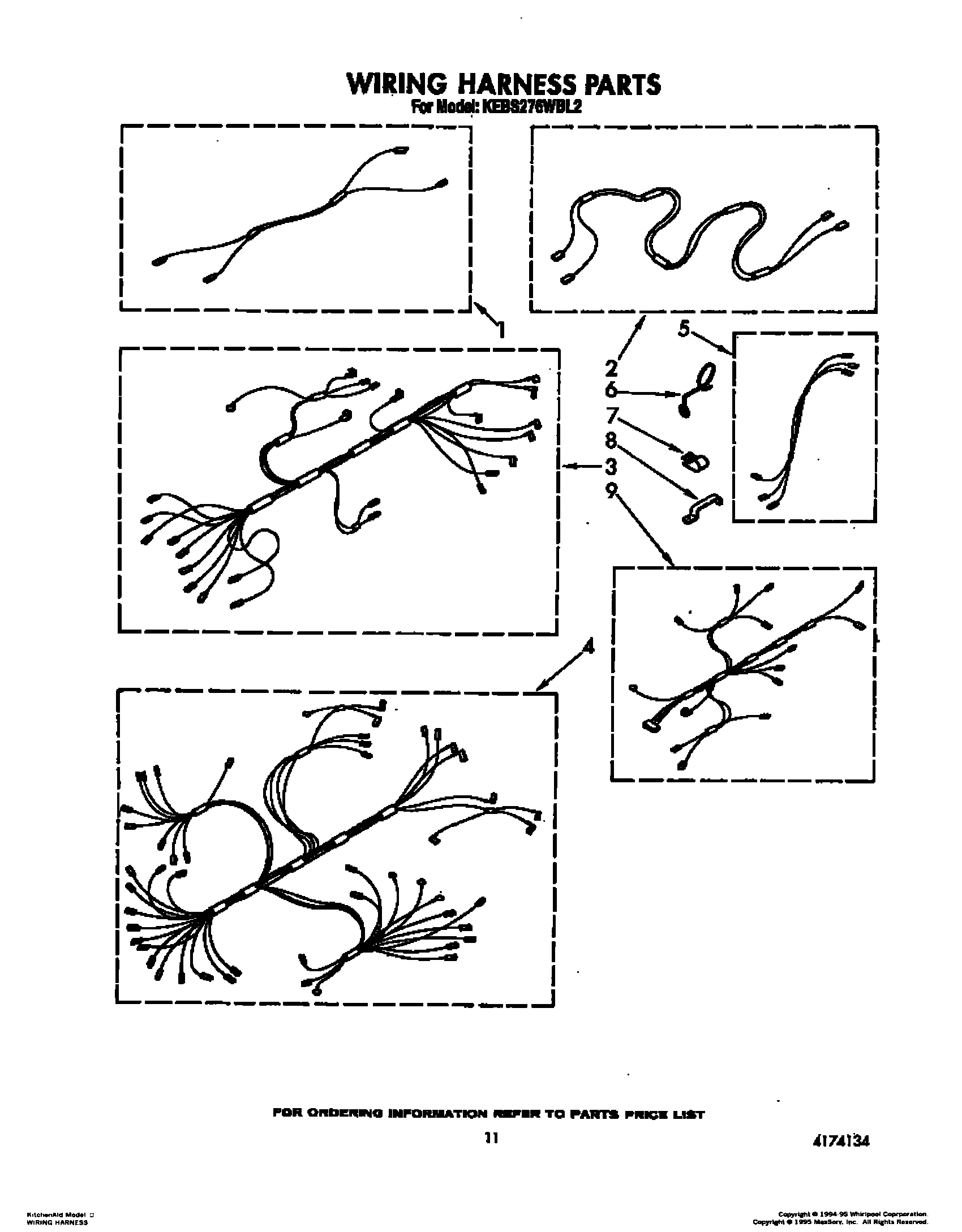

08 - WIRING HARNESS

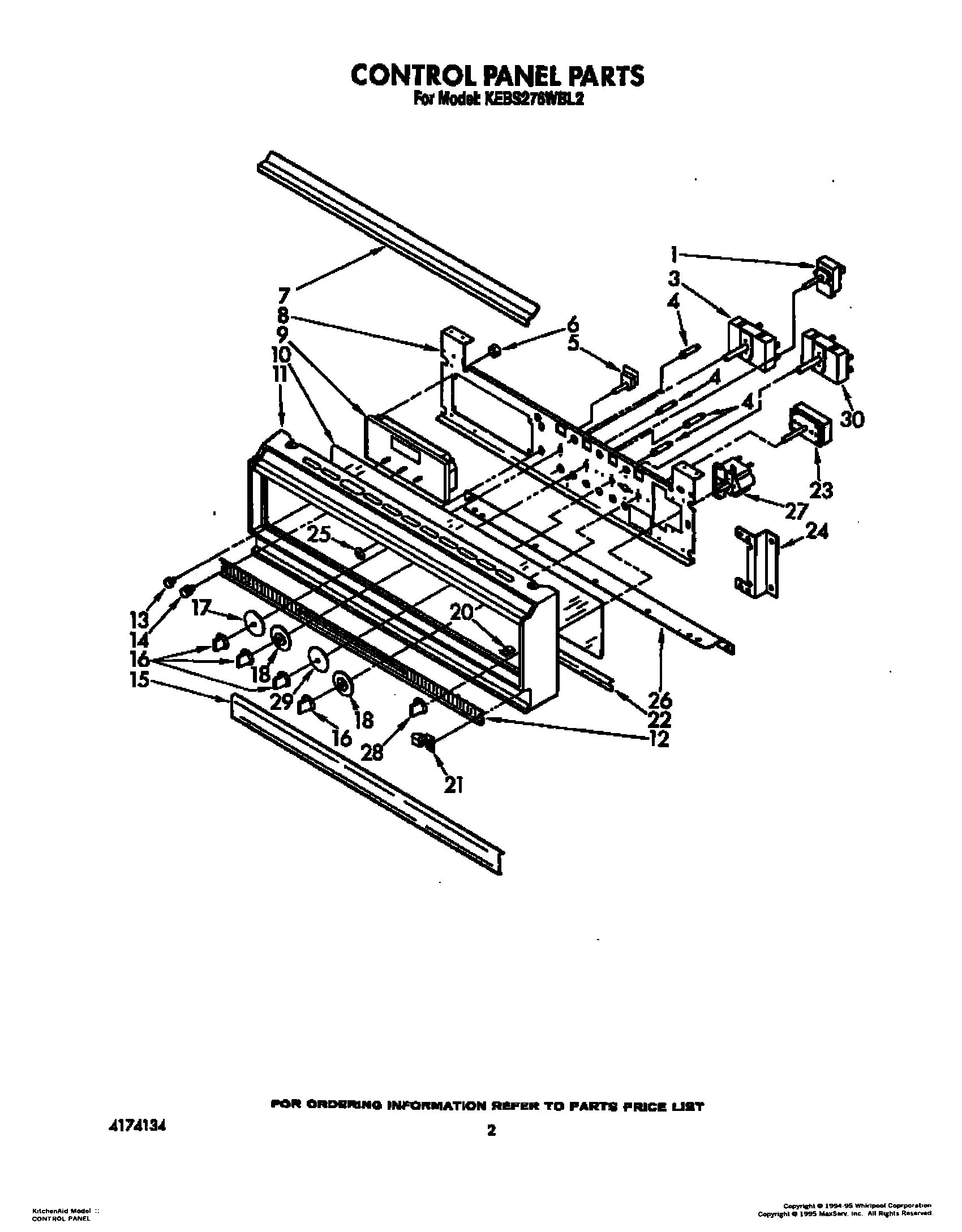

02 - CONTROL PANEL, LIT/OPTIONAL

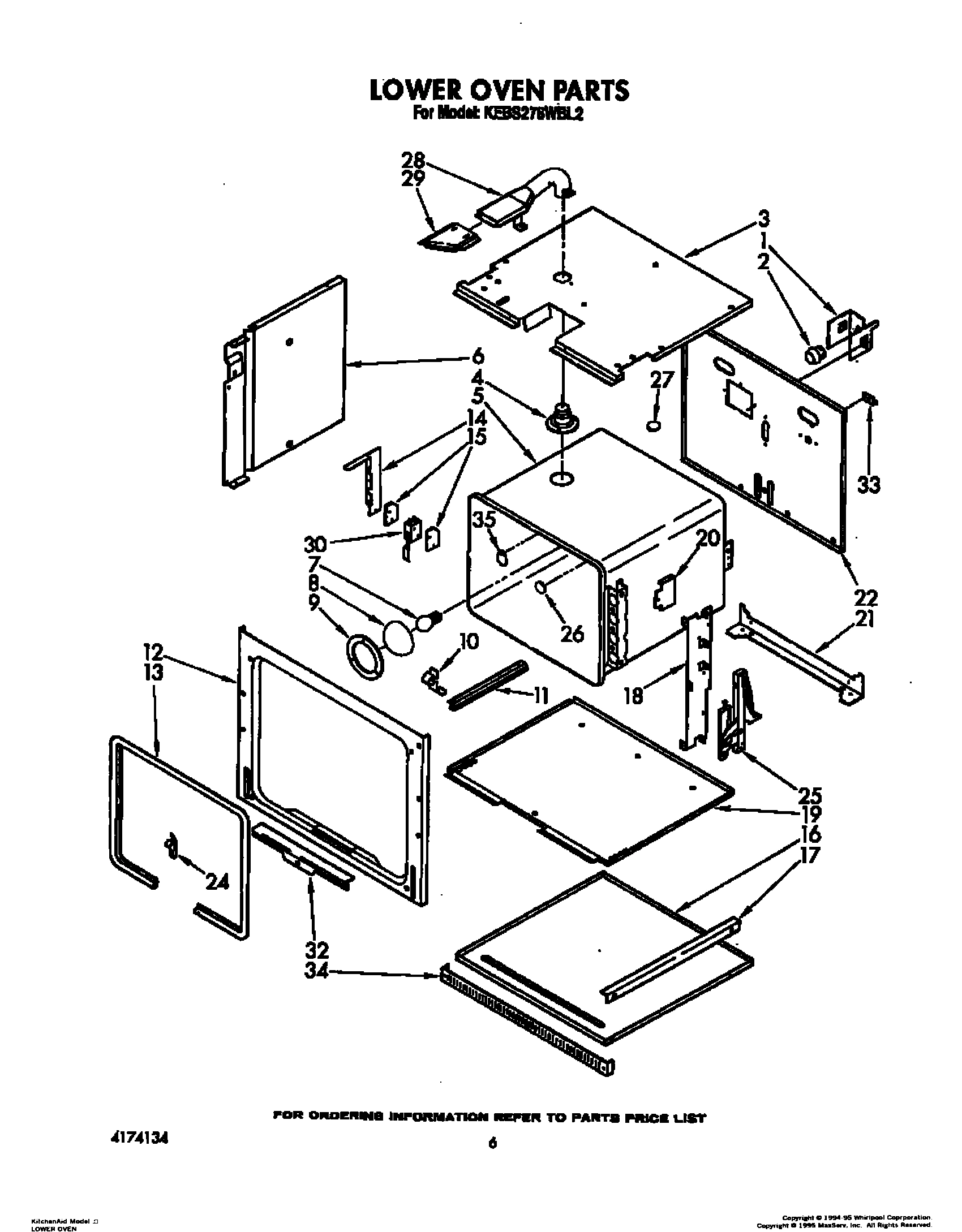

04 - LOWER OVEN, OPTIONAL

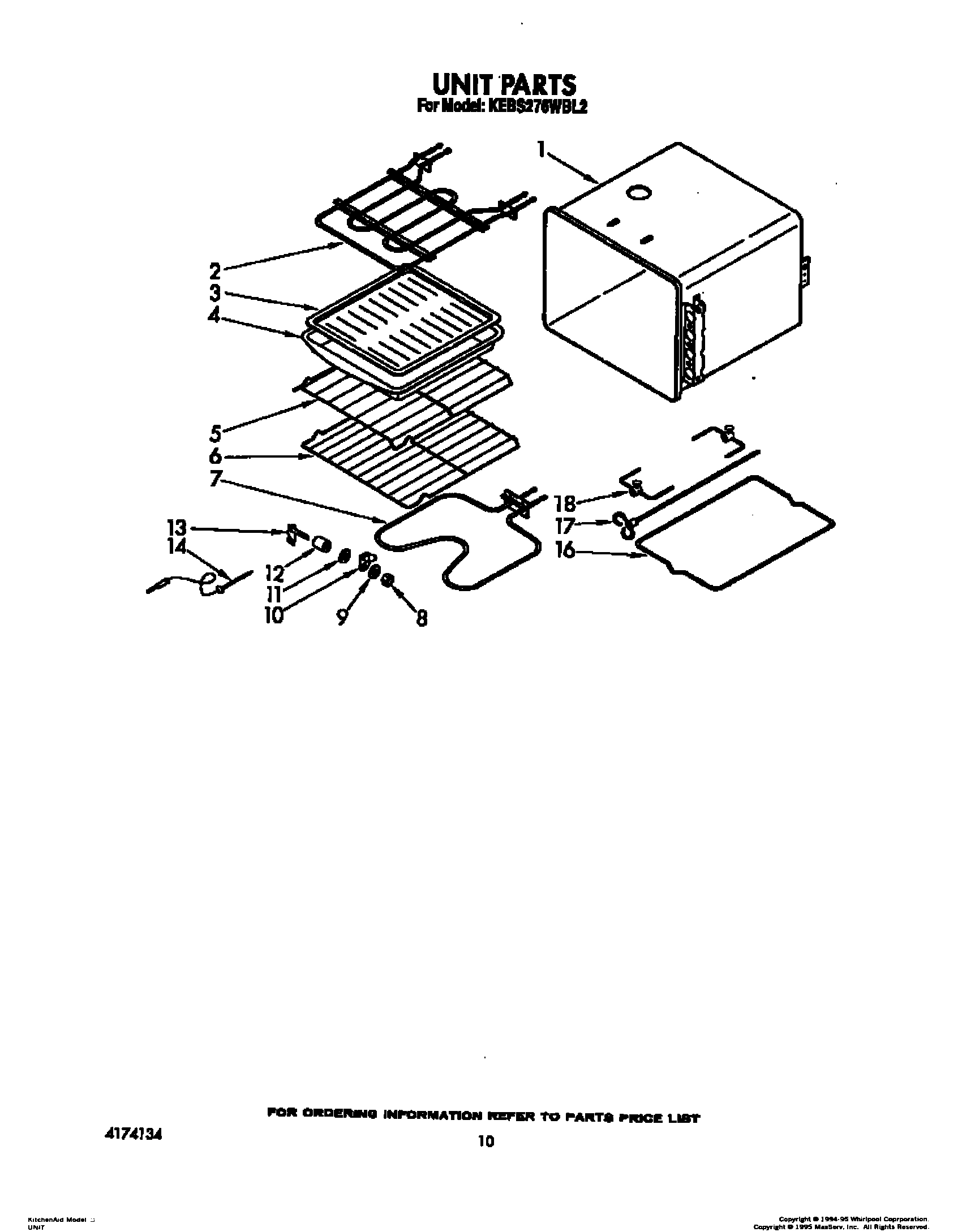

07 - UNIT
Common parts from model Whirlpool KEBS276WBL2
Guide, Use & Care WPL LIT3177059 Contact Us For Availability
Installation Instructions WPL LIT3178195 Contact Us For Availability
Tech Sheet WPL LIT3178198 Contact Us For Availability
Repair Parts List WPL LIT4174134 Contact Us For Availability
1
Liner, Oven WPL 3177466 Contact Us For Availability
1
Shelf, Component WPL 3178089 Contact Us For Availability
1
Harness Wire (Door Switch Upper) WPL 3179941 Contact Us For Availability
1
Thermostat Upper Oven WPL 3178273 Contact Us For Availability
1
Housing, Light WPL 3177446 Contact Us For Availability
2
Socket, Light WPL 3177981 Contact Us For Availability
2
Harness Wire (Door Switch Lower) WPL 3179962 Contact Us For Availability
2
Element, Broil WPL 3180164 Contact Us For Availability
2
Retainer (2) WPL 4168674 Contact Us For Availability
3
Top, Module WPL 3177436 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
3
Harness Wire (Lower Oven) WPL 3179919 Contact Us For Availability
3
Switch, Selector Upper Oven WPL 3178233 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Harness Wire (Upper Oven) WPL 3179918 Contact Us For Availability
4
Light, Indicator WPL 4168598 Contact Us For Availability
4
Tube, Vent WPL 4168492 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Harness Adapter (Meat Probe) WPL 3179940 Contact Us For Availability
5
Switch, Oven Light WPL 3179891 Contact Us For Availability
5
Rack, Offset WPL 3178093 Contact Us For Availability
6
Cabinet, Top WPL 3178136 Contact Us For Availability
6
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
6
Nut, Timer (4) WPL 98788 Contact Us For Availability
6
Rack, Oven WPL 3178105 Contact Us For Availability
7
Screw (2) WPL 3179117 Contact Us For Availability
7
Handle, Latch (Upper) WPL 3177969 Contact Us For Availability
7
Handle, Latch (LOWER) WPL 3177970 Contact Us For Availability
7
Handle, Latch (Screw (4)) WPL 3179116 Contact Us For Availability
7
Handle, Latch (Screw (2)) WPL 4159187 Contact Us For Availability
7
Insert, Top WPL 4173385 Contact Us For Availability
8
Side, Cabinet (Right Hand) WPL 3177438 Contact Us For Availability
8
Side, Cabinet (Left Hand) WPL 3177440 Contact Us For Availability
8
Glass, Oven Light WPL 4166866 Contact Us For Availability
8
Knob, Latch Handle WPL 311253 Contact Us For Availability
8
Bracket, Control WPL 3177804 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
9
Tube, Vent WPL 4168126 Contact Us For Availability
9
Retainer, Glass WPL 3177447 Contact Us For Availability
9
Spacer, Handle WPL 3177986 Contact Us For Availability
9
Harness, Wire Meat Probe WPL 3179939 Contact Us For Availability
9
Timer, Electronic WPL 3148111 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Glass, Control Panel WPL 3177935 Contact Us For Availability
10
Probe Cover WPL 4167266 Contact Us For Availability
11
Support, Element (2) WPL 4168217 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Frame, Control Panel WPL 3177760 Contact Us For Availability
11
Washer WPL 4159557 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Insert, Vent WPL 3179916 Contact Us For Availability
12
Frame, Front WPL 3177684 Contact Us For Availability
12
Spacer - Tubing WPL 3179672 Contact Us For Availability
13
Seal, Door WPL 3179813 Contact Us For Availability
13
Extension, Shelf WPL 3178132 Contact Us For Availability
13
Knob, Timer (2) WPL 3177122 Contact Us For Availability
13
Meat Probe Jack WPL 4164293 Contact Us For Availability
14
Frame, Front WPL 3177682 Contact Us For Availability
14
Bracket, Switch WPL 3177681 Contact Us For Availability
14
Support, Latch WPL 3178232 Contact Us For Availability
14
Knob, Timer WPL 3177121 Contact Us For Availability
14
Meat Probe WPL 4167267 Contact Us For Availability
15
Insulator, Switch WPL 3177923 Contact Us For Availability
15
Screw (2) WPL 313806 Contact Us For Availability
15
Bracket, Buzzer WPL 3179695 Contact Us For Availability
15
Door, Latch Handle WPL 3177972 Contact Us For Availability
16
Knob, Control (4) WPL 3178400 Contact Us For Availability
16
Buzzer, Meat Probe WPL 3179914 Contact Us For Availability
16
Bottom, Oven WPL 3177551 Contact Us For Availability
16
Rack, Rotisserie WPL 4168412 Contact Us For Availability
17
Rail, Support (2) WPL 3179220 Contact Us For Availability
17
Transformer WPL 3179532 Contact Us For Availability
17
Disc, Selector Lower Oven WPL 3178262 Contact Us For Availability
17
Spear, Rotisserie WPL 4168724 Contact Us For Availability
18
Bracket, Hinge (2) WPL 3177433 Contact Us For Availability
18
Disc, Thermostat Upper & Lower Oven WPL 3178477 Contact Us For Availability
18
Skewer WPL 4166352 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
20
Shield, Radiation WPL 3178612 Contact Us For Availability
20
nut (3) WPL 4168838 Contact Us For Availability
21
Support, Oven WPL 3177434 Contact Us For Availability
21
Screw (2) WPL 3179847 Contact Us For Availability
21
Hinge, Door (2) WPL 3177971 Contact Us For Availability
22
Screw (6) WPL 4159456 Contact Us For Availability
22
Retainer, Glass WPL 4167590 Contact Us For Availability
22
Back, Module WPL 3177920 Contact Us For Availability
23
Thermostat Lower Oven WPL 3178274 Contact Us For Availability
24
Clip, Seal (3) WPL 3179848 Contact Us For Availability
24
Bracket, Control Panel WPL 3177747 Contact Us For Availability
25
Screw (4) WPL 3179795 Contact Us For Availability
25
Hinge, Door (2) WPL 3178298 Contact Us For Availability
25
Bezel, Switch WPL 4169372 Contact Us For Availability
26
Back, Module WPL 3177556 Contact Us For Availability
26
Support, Frame WPL 3177650 Contact Us For Availability
26
Button, Plug WPL 3185108 Contact Us For Availability
27
screw (2) WPL 254225 Contact Us For Availability
27
Indicator, Meat Probe WPL 3180156 Contact Us For Availability
27
Button, Plug WPL 3185109 Contact Us For Availability
28
Knob, Meat Probe WPL 4163840 Contact Us For Availability
28
Tube, Vent WPL 3179945 Contact Us For Availability
29
Disc. Selector Upper Oven WPL 3178264 Contact Us For Availability
29
Tube, Vent WPL 3179944 Contact Us For Availability
30
Screw (2) WPL 313489 Contact Us For Availability
30
Nut (2) WPL 4159117 Contact Us For Availability
30
Switch, Door WPL 4173553 Contact Us For Availability
30
Switch, Selector Lower Oven WPL 3178234 Contact Us For Availability
32
Retainer, Seal WPL 3179587 Contact Us For Availability
32
Screw (4) WPL 3179776 Contact Us For Availability
33
Screw WPL 4159445 Contact Us For Availability
33
Cover, Cap Tube WPL 4168203 Contact Us For Availability
34
Vent, Middle Trim WPL 3177755 Contact Us For Availability
34
Screw (4) WPL 3180022 Contact Us For Availability
34
Screw (2) WPL 4168863 Contact Us For Availability
34
Trim, Lower Vent WPL 3177787 Contact Us For Availability
35
WPL 799344 WPL 799344 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
35
WPL 4167518 WPL 4167518 Contact Us For Availability
35
WPL 4168874 WPL 4168874 Contact Us For Availability
35
WPL 3177862 WPL 3177862 Contact Us For Availability
35
WPL 3177868 WPL 3177868 Contact Us For Availability
35
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
35
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
35
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
35
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
35
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
35
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
35
18 Ga. 80~c Rating (White) WPL 242826 Contact Us For Availability
35
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
35
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
35
18 Ga. 80~c Rating (Blue 14 Ga. 150~c Rating) WPL 242829 Contact Us For Availability
35
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
35
WPL 242832 WPL 242832 Contact Us For Availability
35
WPL 261890 WPL 261890 Contact Us For Availability
35
WPL 261891 WPL 261891 Contact Us For Availability
35
WPL 285365 WPL 285365 Contact Us For Availability
35
WPL 285366 WPL 285366 Contact Us For Availability
35
WPL 285367 WPL 285367 Contact Us For Availability
35
WPL 285368 WPL 285368 Contact Us For Availability
35
WPL 350806 WPL 350806 Contact Us For Availability
35
WPL 350941 WPL 350941 Contact Us For Availability
35
WPL 591014 WPL 591014 Contact Us For Availability
35
WPL 72112 WPL 72112 Contact Us For Availability
35
WPL 786020 WPL 786020 Contact Us For Availability
35
WPL 786032 WPL 786032 Contact Us For Availability
35
WPL 799832 WPL 799832 Contact Us For Availability
35
WPL 978883 WPL 978883 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3180891 Contact Us For Availability
37
Shield, Vent WPL 3180890 Contact Us For Availability
41
Plate, Mounting Rotisserie WPL 4167469 Contact Us For Availability
42
Washer, Lock Tooth WPL 4159501 Contact Us For Availability
42
Motor, Rotisserie WPL 4163836 Contact Us For Availability
× ![]()
