Model Whirlpool KEBS276SBL3 – Common Parts & Diagrams

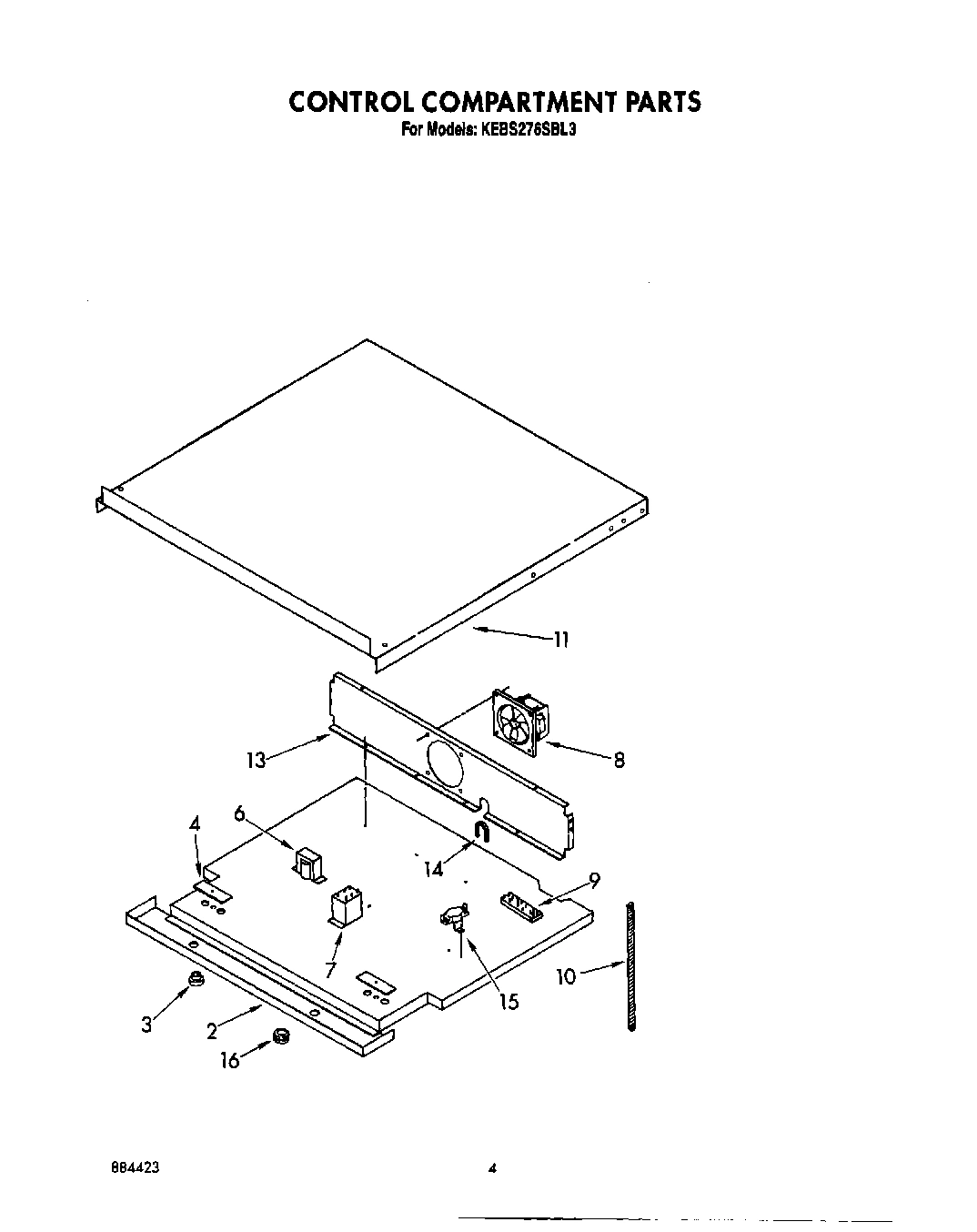

04 - CONTROL COMPARTMENT

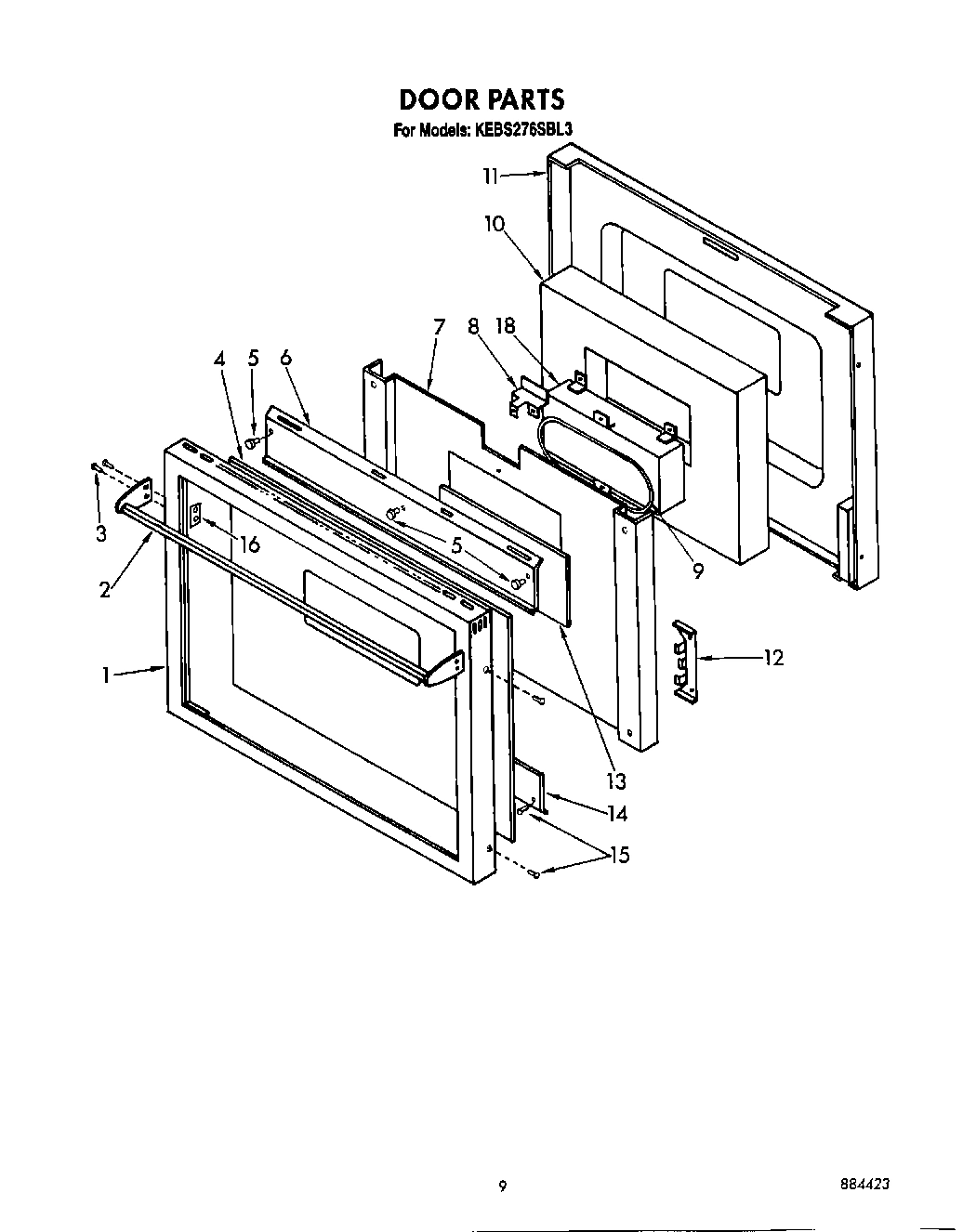

08 - DOOR

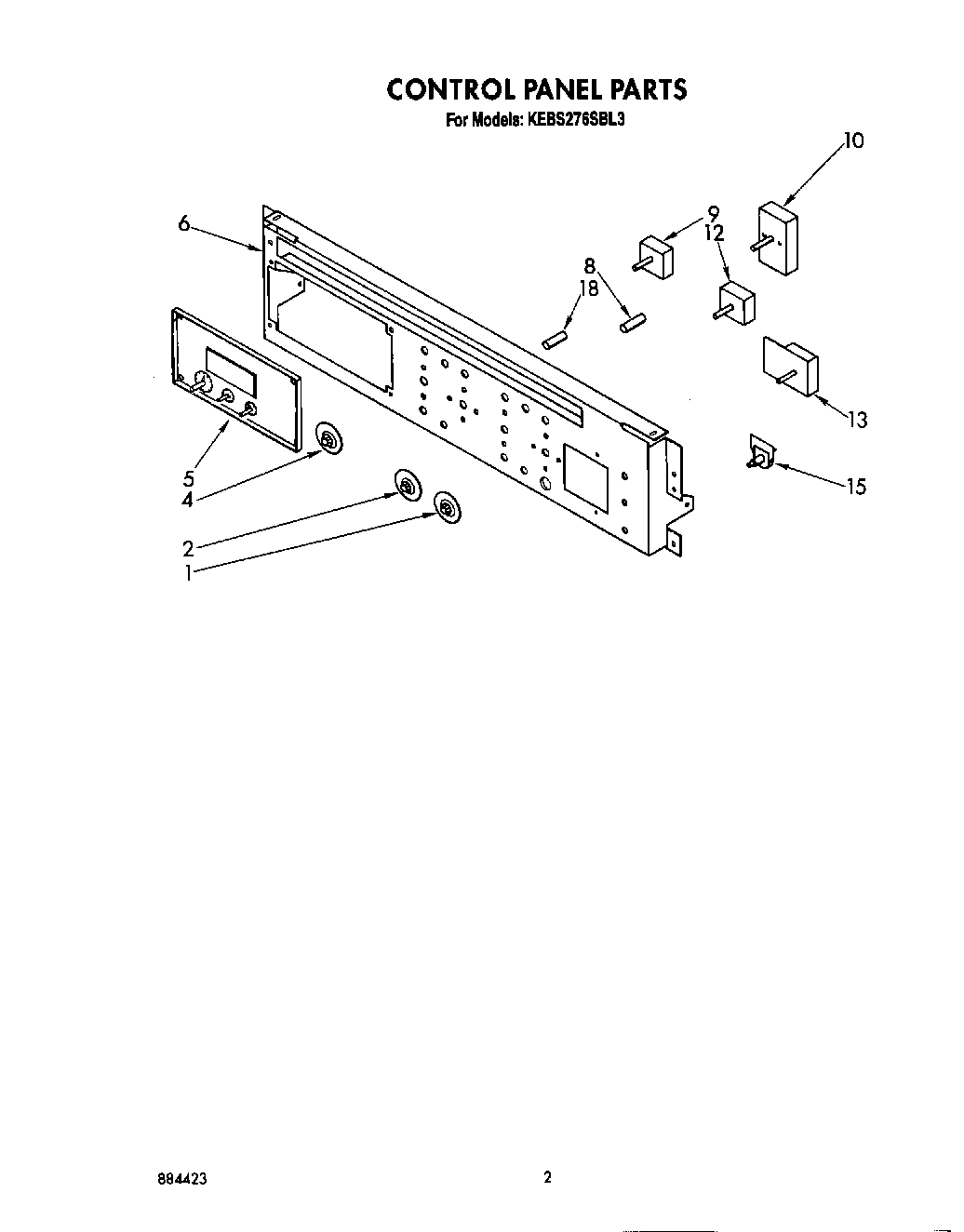

02 - CONTROL PANEL , LIT/OPTIONAL

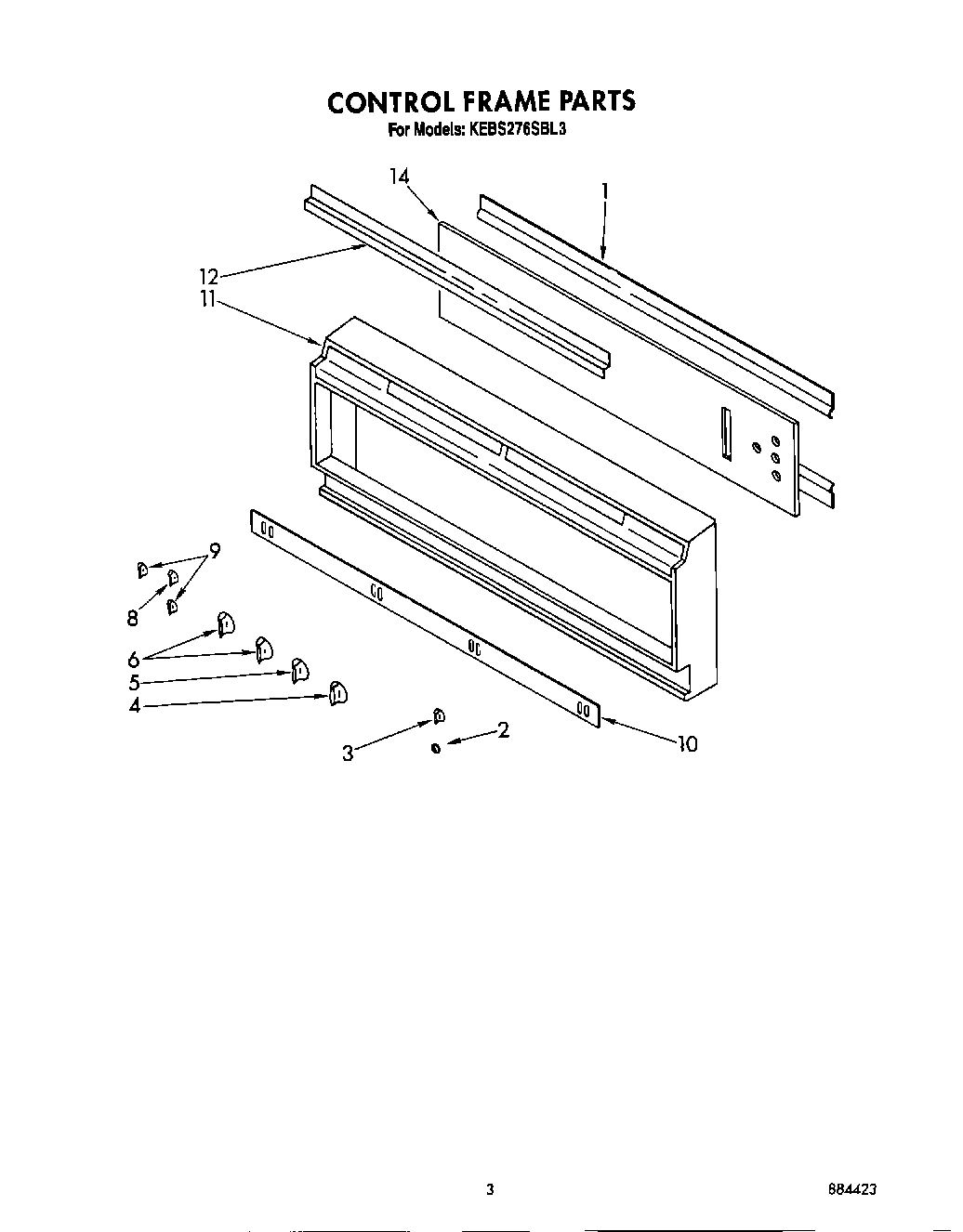

03 - CONTROL FRAME

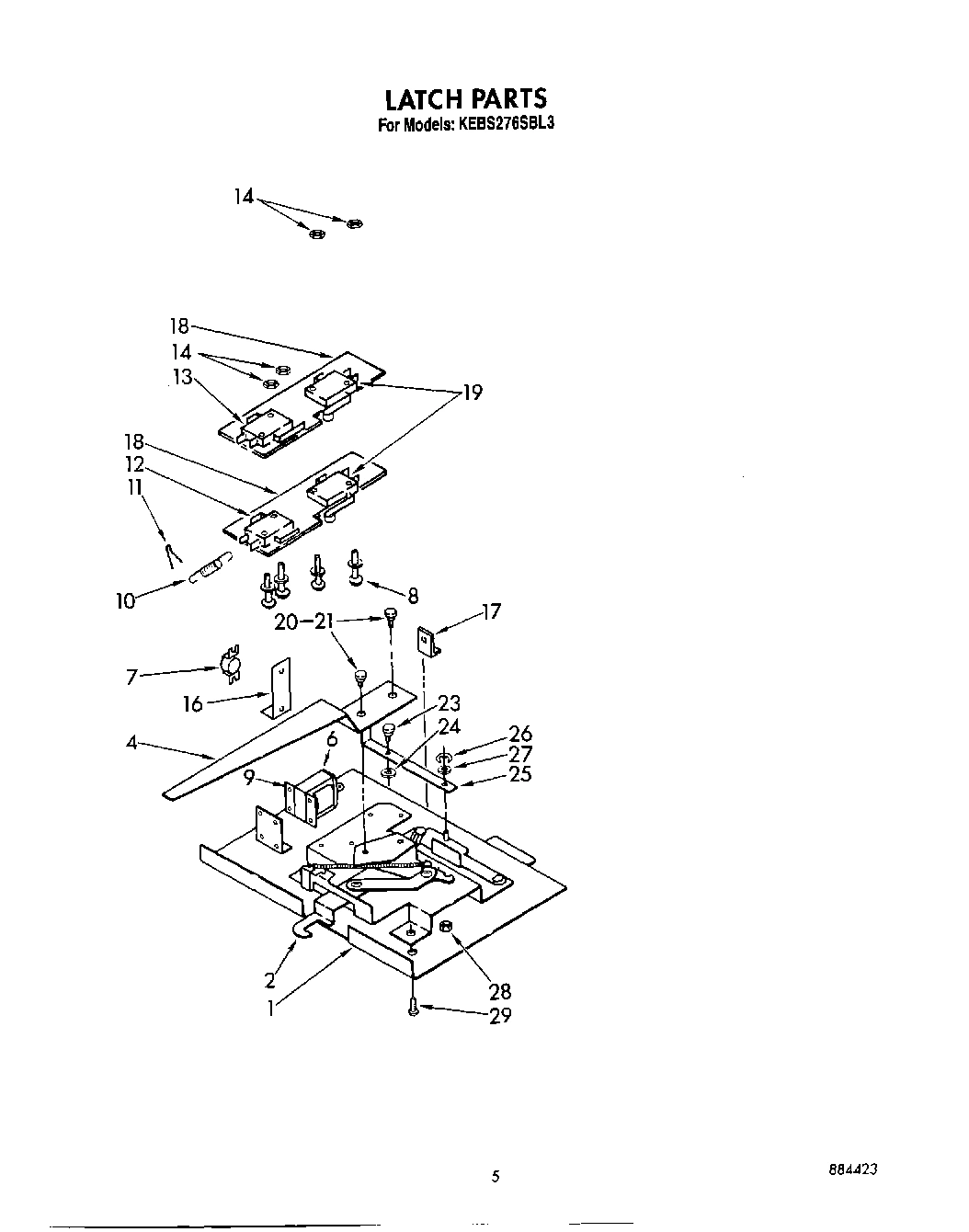

05 - LATCH

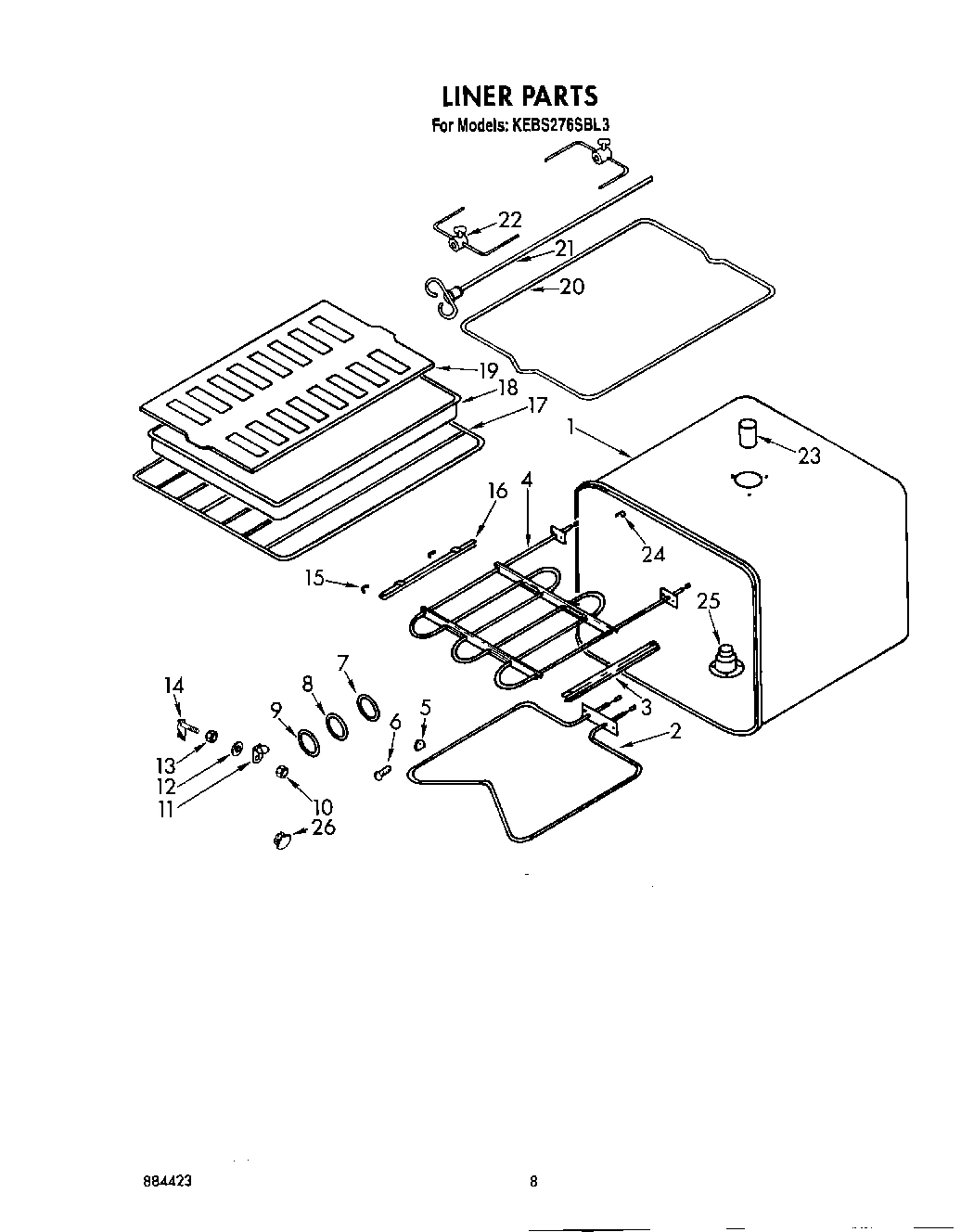

07 - LINER

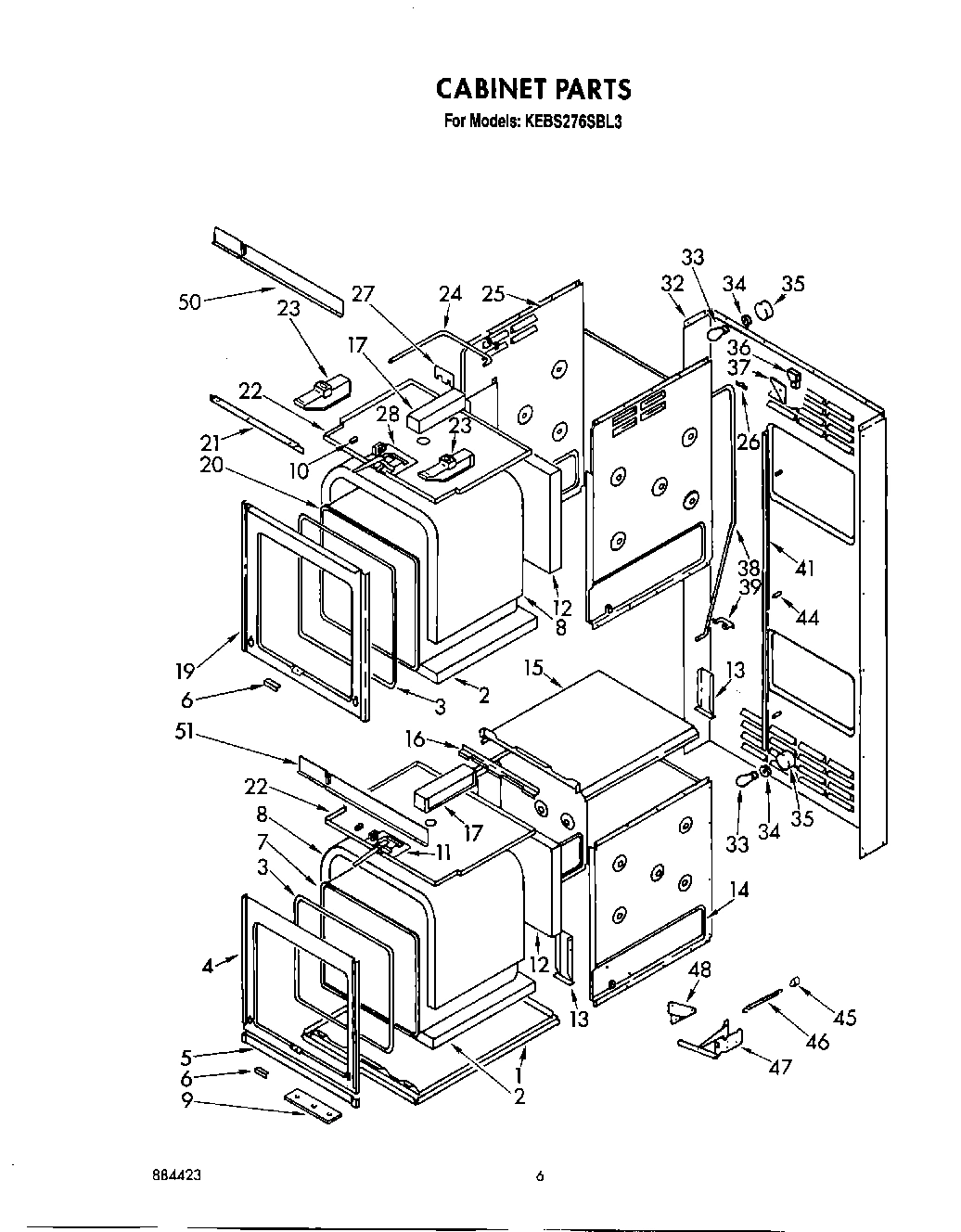

06 - CABINET
Common parts from model Whirlpool KEBS276SBL3
Installation Instructions WPL LIT3177123 Contact Us For Availability
Use & Care Guide WPL LIT4177639 Contact Us For Availability
List, Repair Parts WPL LIT884423 Contact Us For Availability
1
Door Frame WPL 4164391 Contact Us For Availability
1
Disc, Thermostat (2) WPL 3179678 Contact Us For Availability
1
Retainer WPL 4167590 Contact Us For Availability
1
Latch Mounting Plate WPL 4178063 Contact Us For Availability
1
Liner, Oven WPL 3178745 Contact Us For Availability
1
Main Bottom WPL 4169334 Contact Us For Availability
2
Door Handle WPL 4173018 Contact Us For Availability
2
Selector Disc Lower Oven WPL 4163799 Contact Us For Availability
2
Bezel, Oven Light Switch WPL 4169372 Contact Us For Availability
2
Screw (4) WPL 4159186 Contact Us For Availability
2
Mechanism, Latch WPL 4168538 Contact Us For Availability
2
Insulation, Bottom WPL 4164191 Contact Us For Availability
3
Knob, Meat Probe Indicator WPL 4163840 Contact Us For Availability
3
Broiler Element Support-Right WPL 4168217 Contact Us For Availability
3
Door Gasket WPL 4168829 Contact Us For Availability
4
Door Glass WPL 4164241 Contact Us For Availability
4
Disc, Selector (Upper Oven) WPL 4163800 Contact Us For Availability
4
Latch Lever (Upper Oven) WPL 3177965 Contact Us For Availability
4
Latch Lever (Lower Oven) WPL 3177966 Contact Us For Availability
4
Element, Broil WPL 4164185 Contact Us For Availability
4
Screw (2) WPL 4168414 Contact Us For Availability
4
Front Frame, Lower Oven WPL 4173184 Contact Us For Availability
5
Rubber Bumper (8) WPL 4168826 Contact Us For Availability
5
nut (4) WPL 4164360 Contact Us For Availability
5
Electronic Timer WPL 4173071 Contact Us For Availability
5
Rotisserie Cover WPL 4167518 Contact Us For Availability
5
Bottom Trim WPL 4164196 Contact Us For Availability
6
Transformer, Meat Probe WPL 4166561 Contact Us For Availability
6
Air Baffle WPL 4163857 Contact Us For Availability
6
Panel, Control WPL 4164218 Contact Us For Availability
6
Solenoid WPL 4173081 Contact Us For Availability
6
Shoulder Screw WPL 4168874 Contact Us For Availability
6
Cover, Seal End WPL 4167588 Contact Us For Availability
7
Relay, Meat Probe WPL 4163731 Contact Us For Availability
7
Retainer, Insulation WPL 4169357 Contact Us For Availability
7
Thermal Switch (Upper) WPL 3179691 Contact Us For Availability
7
Thermal Switch (Lower) WPL 4173007 Contact Us For Availability
7
Light Lens Gasket WPL 4166868 Contact Us For Availability
7
Oven Liner (See Parts Page For Breakdown) WPL ARI83483A2 Contact Us For Availability
8
Blower WPL 4173004 Contact Us For Availability
8
Bracket, Lock WPL 4163852 Contact Us For Availability
8
Light, Indicator (4) WPL 4163869 Contact Us For Availability
8
Knob, Timer (Rotary Control) WPL 3177122 Contact Us For Availability
8
Light Lens WPL 4166866 Contact Us For Availability
8
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
9
Terminal Block, Power Supply WPL 4168735 Contact Us For Availability
9
Gasket, Window Package WPL 3178584 Contact Us For Availability
9
Selector Switch Upper Oven WPL 3177174 Contact Us For Availability
9
Knob, Timer (Push Button Control) WPL 3177121 Contact Us For Availability
9
Plate, Solenoid WPL 4168292 Contact Us For Availability
9
Light Lens Retainer WPL 4167938 Contact Us For Availability
9
Plate, Cover WPL 3179688 Contact Us For Availability
10
Conduit, 1/2`` X 56`` WPL 4167614 Contact Us For Availability
10
Insulation WPL 4163987 Contact Us For Availability
10
Nut (4) WPL 4168838 Contact Us For Availability
10
Thermostat, Upper Oven WPL 4164361 Contact Us For Availability
10
Thermostat, Lower Oven WPL 4164362 Contact Us For Availability
10
Nut (2) WPL 4166262 Contact Us For Availability
10
Vent Insert WPL 4168717 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Nut, Meat Probe WPL 4167277 Contact Us For Availability
10
Screw (2) WPL 4159201 Contact Us For Availability
10
Knob, Latch Lever (2) WPL 4163821 Contact Us For Availability
11
Cabinet Top, Front WPL 4173290 Contact Us For Availability
11
Door Liner WPL 4164237 Contact Us For Availability
11
Control Frame WPL 4164363 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Probe, Jack Cover WPL 4167266 Contact Us For Availability
11
Latch Assembly (See Parts Page For Further Br WPL ARI83484A7 Contact Us For Availability
12
Glass Mounting Bracket WPL 4163855 Contact Us For Availability
12
Selector Switch Lower Oven WPL 3177173 Contact Us For Availability
12
Screw (5) WPL 4170323 Contact Us For Availability
12
Insert, Top WPL 4173385 Contact Us For Availability
12
Latch Switch With Roller WPL 4168514 Contact Us For Availability
12
Washer WPL 4173438 Contact Us For Availability
12
Insulation, Rear WPL 4164192 Contact Us For Availability
13
screw WPL 4159461 Contact Us For Availability
13
Panel, Blower Mounting WPL 4173166 Contact Us For Availability
13
Glass Panel WPL 4164243 Contact Us For Availability
13
Indicator, Probe WPL 4163730 Contact Us For Availability
13
Latch Switch, Normally Open WPL 4164366 Contact Us For Availability
13
Nut, Hex Jam (2) WPL 4173084 Contact Us For Availability
13
Rear Anchor WPL 4167526 Contact Us For Availability
14
Flexible Bushing WPL 4173165 Contact Us For Availability
14
Air Baffle, Bottom WPL 4163859 Contact Us For Availability
14
Control Panel Glass WPL 4164346 Contact Us For Availability
14
Locknut WPL 4159117 Contact Us For Availability
14
Meat Probe Jack WPL 4164293 Contact Us For Availability
14
Cabinet Side (Lower Oven) WPL 4173080 Contact Us For Availability
15
Fan Switch, Auxillary WPL 4173008 Contact Us For Availability
15
screw (2) WPL 254225 Contact Us For Availability
15
Oven Light Switch WPL 4167332 Contact Us For Availability
15
Thermostat Bulb Clip (2) WPL 4173275 Contact Us For Availability
15
Upper Oven Support WPL 4164295 Contact Us For Availability
16
Bushing WPL 4173043 Contact Us For Availability
16
Insert (4) WPL 3179716 Contact Us For Availability
16
Bracket, Switch WPL 4173170 Contact Us For Availability
16
Broiler Element Support-Left WPL 4168218 Contact Us For Availability
16
Front Frame Support WPL 4168266 Contact Us For Availability
17
Bracket, Harness WPL 4173168 Contact Us For Availability
17
Oven Rack (4) WPL 4168401 Contact Us For Availability
17
Collector Box WPL 4168681 Contact Us For Availability
18
Window Package WPL 4164235 Contact Us For Availability
18
Harness, Wiring (Low Temp) WPL 3178619 Contact Us For Availability
18
Harness, Wiring (High Temp) WPL 3178620 Contact Us For Availability
18
Light, Indicator (3) WPL 4168597 Contact Us For Availability
18
Insulator WPL 4168522 Contact Us For Availability
19
Screw (2) WPL 4173053 Contact Us For Availability
19
Latch Switch (2) WPL 4168517 Contact Us For Availability
19
Front Frame (Upper Oven) WPL 4164204 Contact Us For Availability
20
Shoulder Screw, Latch Lever (2) (Single Oven WPL 4168578 Contact Us For Availability
20
Rotisserie Rack WPL 4168412 Contact Us For Availability
20
Oven Liners (Single Or Upper Oven) (See Parts WPL ARI83485A1 Contact Us For Availability
21
Shoulder Screw, Latch Lever (2) (Lower Oven) WPL 4168579 Contact Us For Availability
21
Rotisserie Spear WPL 4168724 Contact Us For Availability
21
Control Frame Support WPL 4169336 Contact Us For Availability
22
Rotisserie Skewer (2) WPL 4166352 Contact Us For Availability
22
Compartment Top (Upper Oven) WPL 4156315 Contact Us For Availability
22
Compartment Top (Lower Oven) WPL 4169314 Contact Us For Availability
23
Shoulder Screw, Actuator Arm WPL 4168554 Contact Us For Availability
23
Vent Tube Extension WPL 4168126 Contact Us For Availability
23
Vent Box WPL 4163941 Contact Us For Availability
24
Screw, (2) WPL 4159445 Contact Us For Availability
24
Spacer, Actuator Arm WPL 4168553 Contact Us For Availability
24
Washer (4) WPL 4159599 Contact Us For Availability
24
Capillary Cover WPL 4168203 Contact Us For Availability
24
Vent Tube (Single Or Upper Oven) WPL 4168494 Contact Us For Availability
25
Actuator Arm WPL 4168058 Contact Us For Availability
25
Smoke Eliminator WPL 4168492 Contact Us For Availability
25
Cabinet Side (Single Or Upper Oven) WPL 4173055 Contact Us For Availability
26
Retaining Ring WPL 4159160 Contact Us For Availability
26
Plug Button (3/8`` Hole) WPL 4159120 Contact Us For Availability
26
Plug Button (5/8`` Hole) WPL 4159122 Contact Us For Availability
26
Gasket, Meat Probe Jack WPL 4163975 Contact Us For Availability
26
Meat Probe WPL 4167267 Contact Us For Availability
26
Clamp, Conduit WPL 4167593 Contact Us For Availability
27
Washer, Flat WPL 4159603 Contact Us For Availability
27
Vent Tube Mounting Bracket WPL 4168242 Contact Us For Availability
28
Nut, 10-24 Hex Kep (3) WPL 4159109 Contact Us For Availability
28
Latch Parts (See Parts Page For Further Break WPL ARI83486A3 Contact Us For Availability
29
Harness, Wiring Latch (Lower) WPL 3178616 Contact Us For Availability
29
Screw, 10-24 X 3/8 (3) WPL 4159287 Contact Us For Availability
32
Cabinet Back WPL 4173060 Contact Us For Availability
34
Socket, Lamp WPL 4168755 Contact Us For Availability
35
Light Shield WPL 4167579 Contact Us For Availability
36
Rotisserie Motor WPL 4163836 Contact Us For Availability
37
Washer (4) WPL 4159501 Contact Us For Availability
37
Rotiss WPL 4167469 Contact Us For Availability
38
WPL 4168592 WPL 4168592 Contact Us For Availability
39
WPL 4168140 WPL 4168140 Contact Us For Availability
41
WPL 4159456 WPL 4159456 Contact Us For Availability
41
WPL 4159470 WPL 4159470 Contact Us For Availability
41
WPL 4163763 WPL 4163763 Contact Us For Availability
41
WPL 4163764 WPL 4163764 Contact Us For Availability
44
WPL 4168590 WPL 4168590 Contact Us For Availability
45
WPL 4167599 WPL 4167599 Contact Us For Availability
46
WPL 4173048 WPL 4173048 Contact Us For Availability
47
WPL 4167596 WPL 4167596 Contact Us For Availability
48
WPL 4159188 WPL 4159188 Contact Us For Availability
48
WPL 4167597 WPL 4167597 Contact Us For Availability
48
WPL 4167598 WPL 4167598 Contact Us For Availability
50
WPL 4173061 WPL 4173061 Contact Us For Availability
51
WPL 4159465 WPL 4159465 Contact Us For Availability
51
WPL 4168863 WPL 4168863 Contact Us For Availability
51
WPL 4163752 WPL 4163752 Contact Us For Availability
51
WPL 4163753 WPL 4163753 Contact Us For Availability
51
WPL 4163754 WPL 4163754 Contact Us For Availability
51
WPL 4163755 WPL 4163755 Contact Us For Availability
51
WPL 4163883 WPL 4163883 Contact Us For Availability
51
WPL 4173016 WPL 4173016 Contact Us For Availability
51
WPL 4173017 WPL 4173017 Contact Us For Availability
51
WPL 4173171 WPL 4173171 Contact Us For Availability
× ![]()
