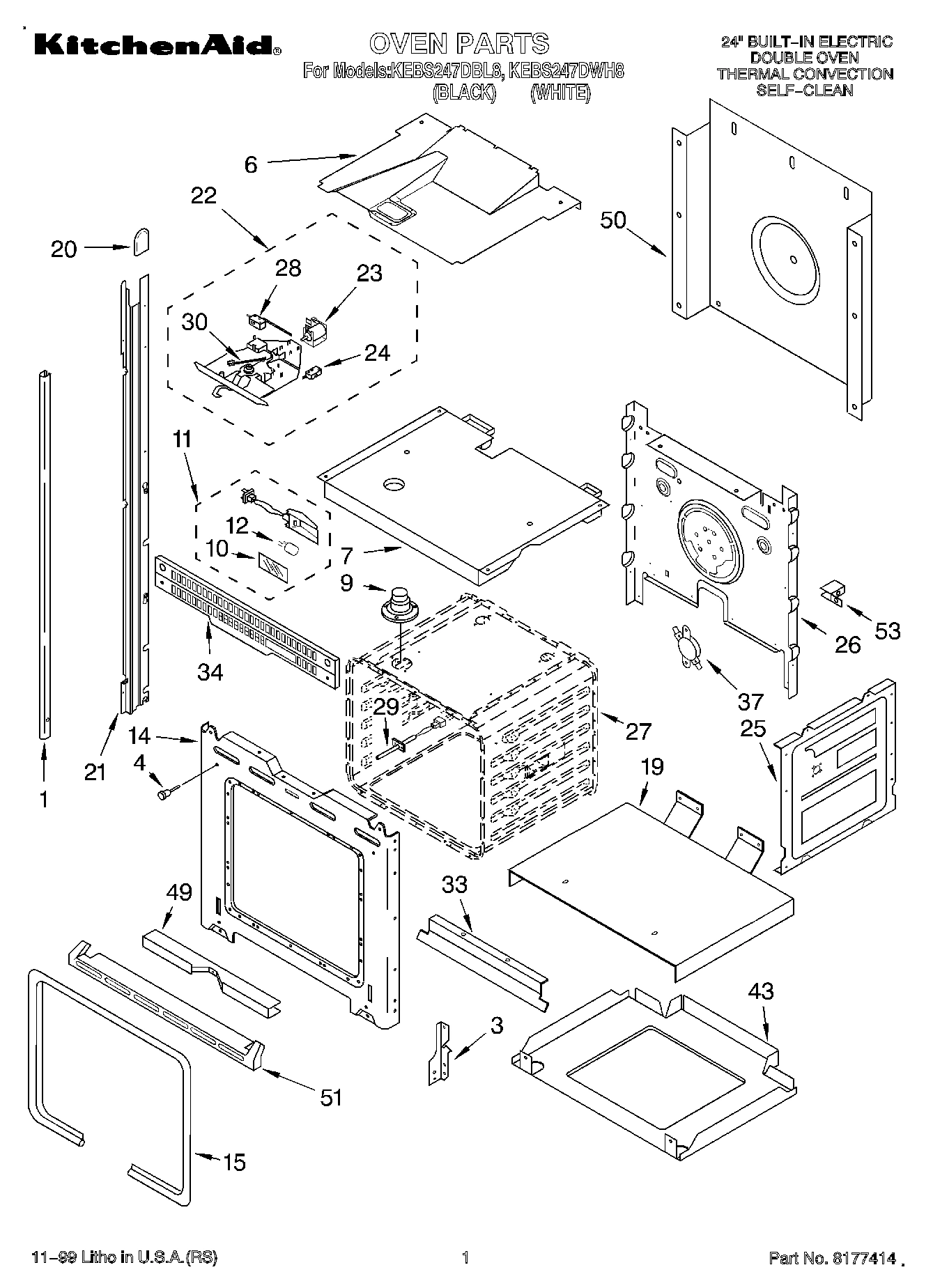

Model Whirlpool KEBS247DWH8 – Common Parts &amp; Diagrams

1

WP8303698 Whirlpool Door Liner Backorder WPL WP8303698 $177.38

2

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455523 Whirlpool Oven Door Hinge In Stock WPL WP4455523 $31.90

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $118.34

2

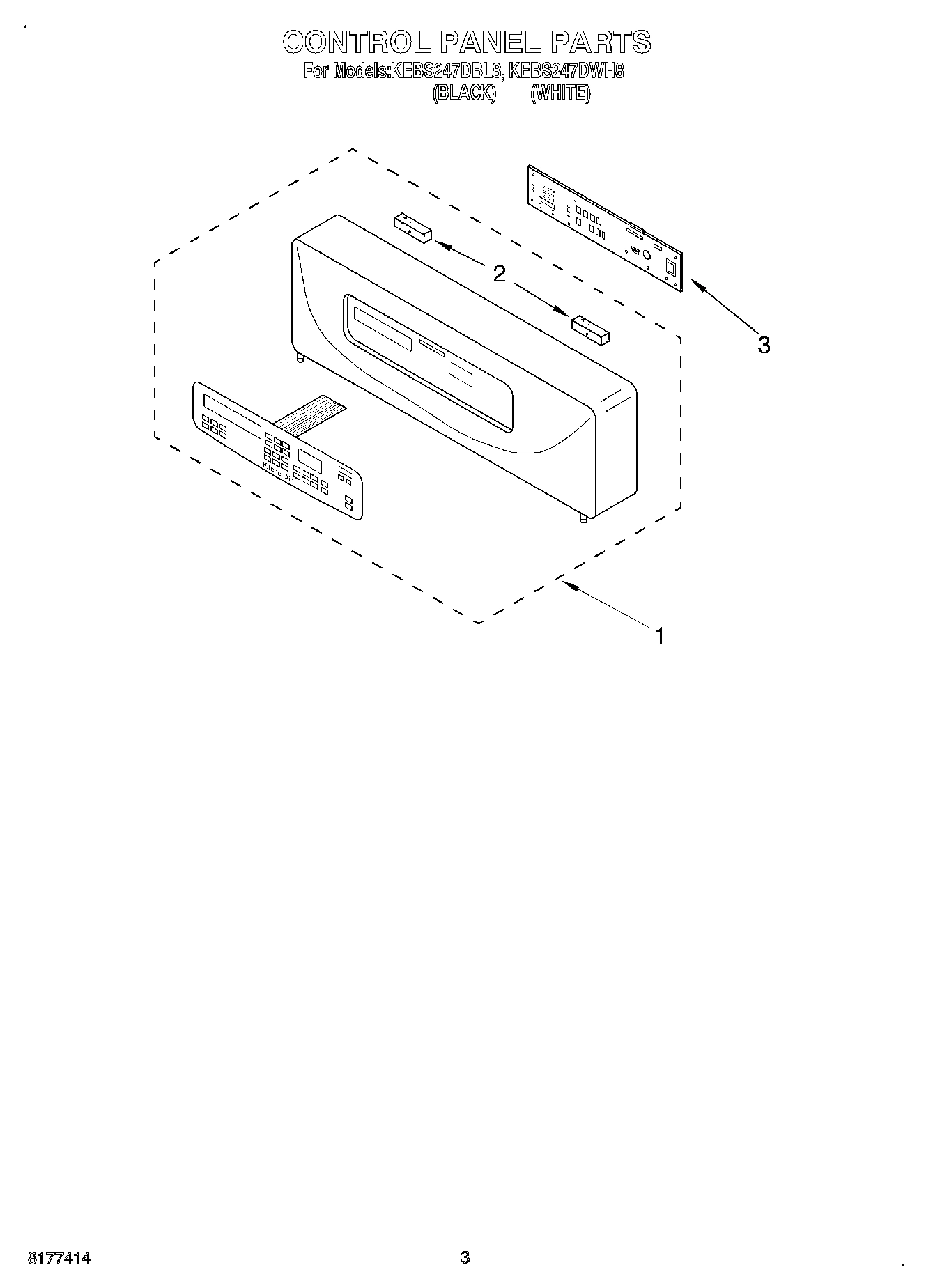

Gasket, Control Panel WPL 4451032 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449247 Whirlpool Inner Door Glass In Stock WPL WP4449247 $64.91

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

3

Blower, Upper WPL 4455334 Contact Us For Availability

3

Microcomputer WPL 4451986 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

W11688413 Whirlpool Insulation Backorder WPL W11688413 $9.10

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $116.84

5

Retainer, Glass WPL 4451669 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

6

4448716 Whirlpool Oven Rack 24" Backorder WPL 4448716 $39.95

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

Glass, Inner WPL 4449251 Contact Us For Availability

7

Plate, Mounting WPL 4451789 Contact Us For Availability

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

8

Transformer, Control WPL 4451929 Contact Us For Availability

9

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

9

Convection Motor WPL 4451583 Contact Us For Availability

10

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

10

Lens, Light WPL 4452163 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

Door Glass, Assy (Black Model) WPL 4452068 Contact Us For Availability

Door Glass, Assy (White Model) WPL 4452069 Contact Us For Availability

Nut WPL 4452227 Contact Us For Availability

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

Door Handle (Black Model) WPL 4448408 Contact Us For Availability

Door Handle (White Model) WPL 4448409 Contact Us For Availability

Vent, (Control Panel) WPL 4448550 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

4455035 Whirlpool Bake Tray Backorder WPL 4455035 $36.34

15

Back, Control WPL 4452244 Contact Us For Availability

16

4450549 Whirlpool Oven Top Cover Backorder WPL 4450549 $26.21

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

18

Spacer, Foam WPL 4452260 Contact Us For Availability

18

Cover, Top Front WPL 4452365 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

4455191 Whirlpool Oven Mounting Plate Backorder WPL 4455191 $8.69

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

WP4456654 Whirlpool Thermal Fuse In Stock WPL WP4456654 $13.65

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Conduit, Double WPL 4450953 Contact Us For Availability

Shield, Heat WPL 4450360 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Harness, Wire (Main) WPL 4451863 Contact Us For Availability

Harness, Wire (Latch) WPL 4451926 Contact Us For Availability

WPL 4452222 WPL 4452222 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

20

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

20

Retainer, Glass WPL 4451668 Contact Us For Availability

21

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

21

Seal, Door Top WPL 4451672 Contact Us For Availability

22

Latch Assembly WPL 4451896 Contact Us For Availability

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

24

Glass, Inner WPL 4455255 Contact Us For Availability

29

Sensor WPL 4451665 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

53

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51
