Model Whirlpool KEBS246YWH3 – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

white WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Red WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Yellow 12 Ga. 150~c Rating WPL 242832 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum WPL 285368 Contact Us For Availability

18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability

Leveler (Primer) WPL 350941 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 832985 WPL 832985 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3182133 WPL LIT3182133 Contact Us For Availability

WPL LIT3183659 WPL LIT3183659 Contact Us For Availability

WPL LIT3185644 WPL LIT3185644 Contact Us For Availability

1

Harness Wire (Door Switch Upper) WPL 3183655 Contact Us For Availability

1

Membrane, Switch (Black Model) WPL 3181775 Contact Us For Availability

1

Membrane, Switch (White Model) WPL 3184777 Contact Us For Availability

1

Module, Top WPL 3183747 Contact Us For Availability

1

Button, Plug (2) WPL 3185085 Contact Us For Availability

2

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

2

Harness Wire (Door Switch Lower) WPL 3183656 Contact Us For Availability

2

Bracket, Mounting Switch Membrane WPL 3181889 Contact Us For Availability

2

Bracket, Conduit WPL 3177545 Contact Us For Availability

2

Screw WPL 4159372 Contact Us For Availability

2

Screw (2) WPL 308043 Contact Us For Availability

3

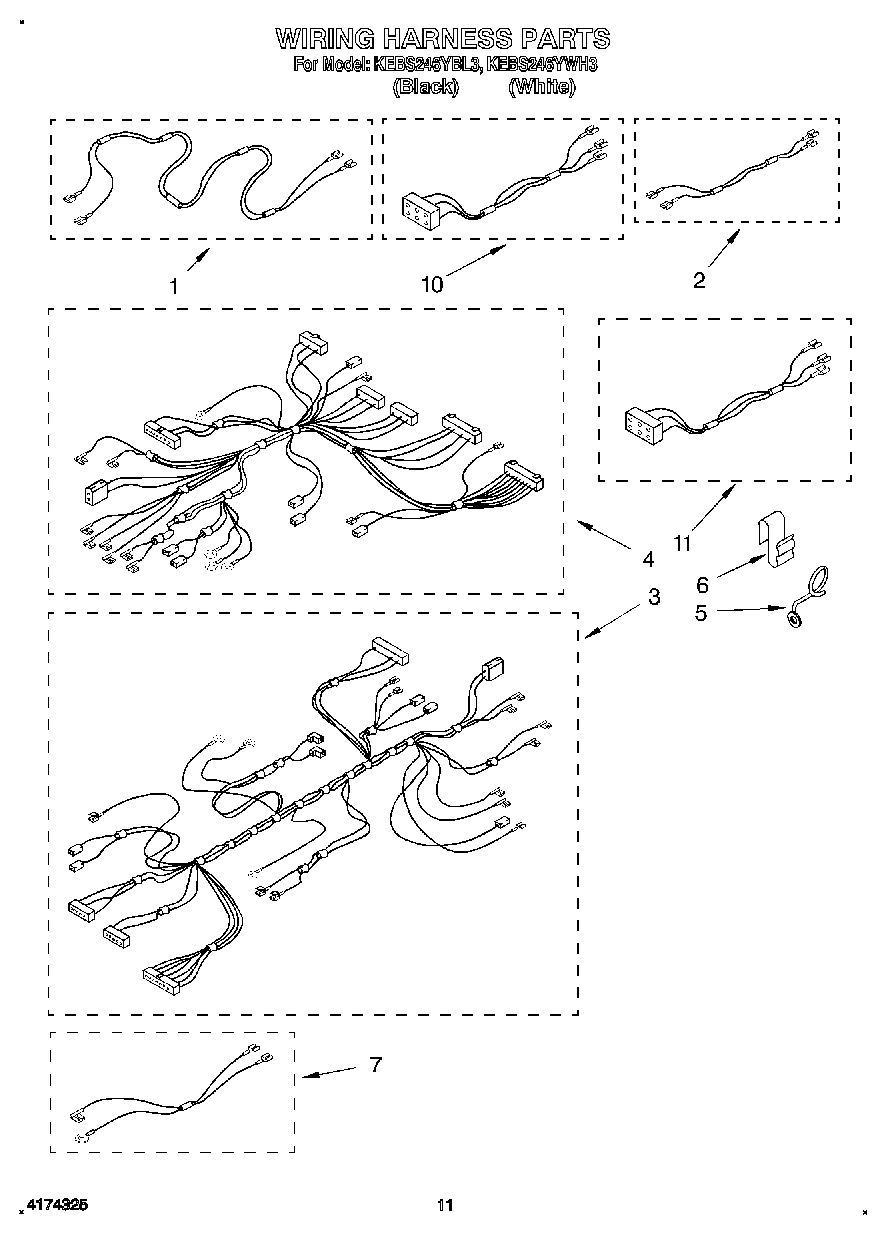

Harness Wire (Lower Oven) WPL 3183359 Contact Us For Availability

3

Screw (2) WPL 3179117 Contact Us For Availability

3

Microcomputer WPL 3181706 Contact Us For Availability

3

Cabinet, Back WPL 3177624 Contact Us For Availability

3

Screw WPL 311773 Contact Us For Availability

3

Baffle WPL 3185455 Contact Us For Availability

4

Harness Wire (Upper Oven) WPL 3185552 Contact Us For Availability

4

Retainer, Bracket WPL 3183705 Contact Us For Availability

4

Switch, Latch WPL 3178668 Contact Us For Availability

4

Screw (2) WPL 98106 Contact Us For Availability

5

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

5

Screw, WPL 254225 Contact Us For Availability

5

Standoff, Wire WPL 3179668 Contact Us For Availability

5

Clip, Retainer WPL 3182985 Contact Us For Availability

5

Insulator, Switch WPL 3178185 Contact Us For Availability

6

16515 Whirlpool Clip Backorder WPL 16515 $11.62

6

Trim, Door (2) WPL 3182162 Contact Us For Availability

6

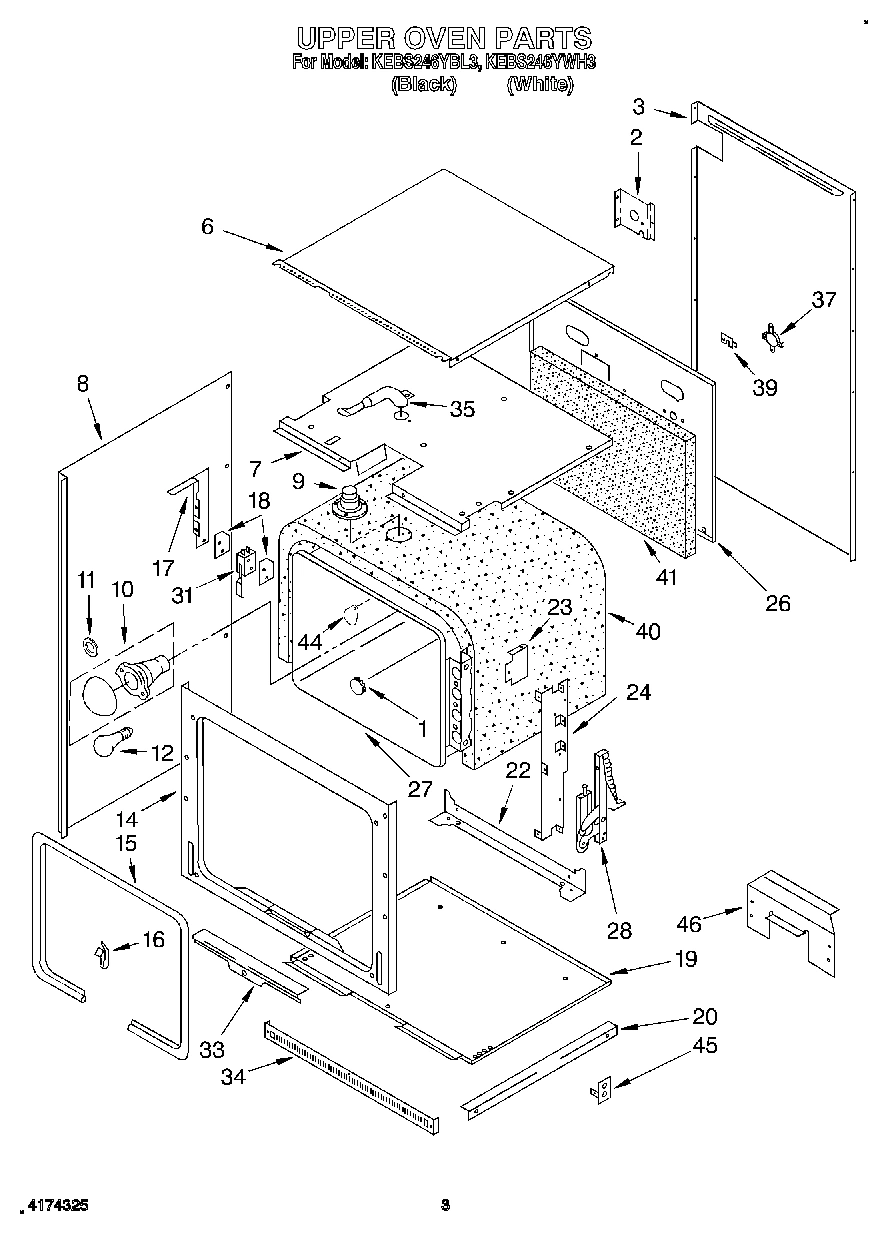

Cabinet, Top WPL 3178141 Contact Us For Availability

6

Guard, Latch WPL 3177662 Contact Us For Availability

7

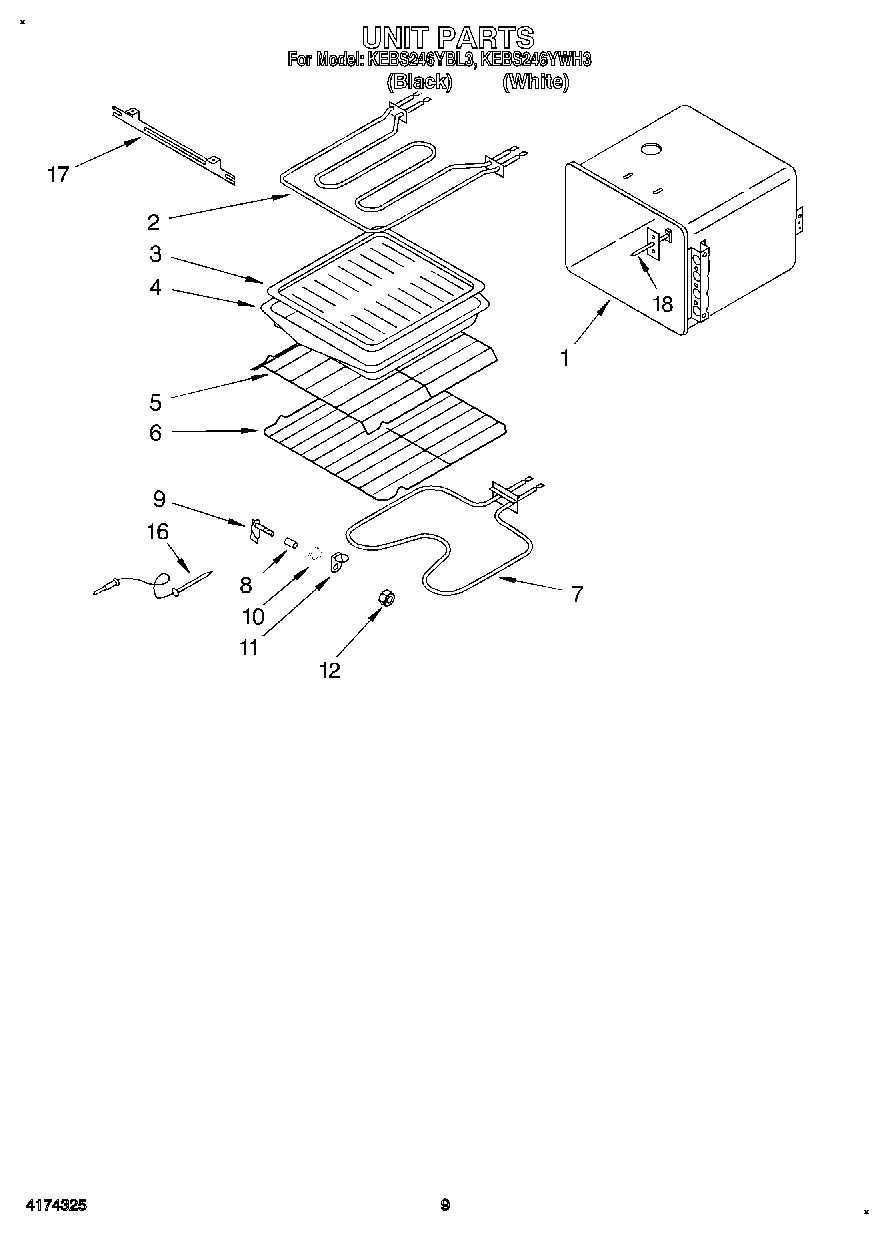

WP661416 Whirlpool Bake Element In Stock WPL WP661416 $69.30

7

Glass, Door (Black Model) WPL 3185475 Contact Us For Availability

7

Glass, Door (White Model) WPL 3185477 Contact Us For Availability

7

Harness, Wire (Switch) WPL 3185920 Contact Us For Availability

7

Door, Latch Handle (Screw (2)) WPL 3179847 Contact Us For Availability

7

Door, Latch Handle (Black Model) WPL 3182150 Contact Us For Availability

7

Door, Latch Handle (White Model) WPL 3182153 Contact Us For Availability

7

Handle, Latch (Clamp, Tube) WPL 313570 Contact Us For Availability

7

Handle, Latch (Upper Oven) WPL 3177969 Contact Us For Availability

7

Handle, Latch (Lower Oven) WPL 3181963 Contact Us For Availability

7

Handle, Latch (Screw, 10-24 (2)) WPL 3185414 Contact Us For Availability

8

Glass, Reflective WPL 3185458 Contact Us For Availability

8

Trim, Panel WPL 3183701 Contact Us For Availability

8

Side, Cabinet (Left Hand) WPL 3177438 Contact Us For Availability

8

Side, Cabinet (Right Hand) WPL 3177440 Contact Us For Availability

8

Screw WPL 3183294 Contact Us For Availability

8

Knob, Latch Handle WPL 3184039 Contact Us For Availability

9

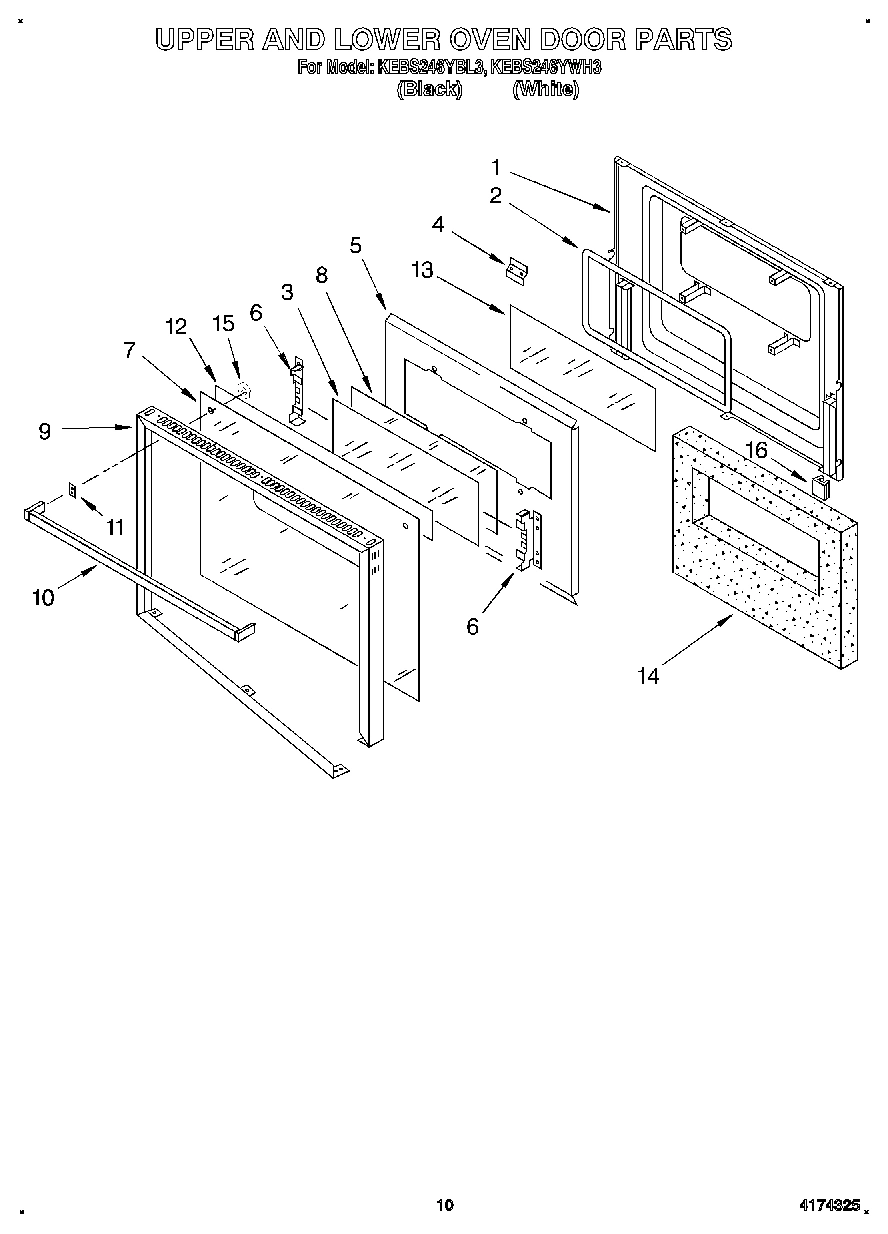

Frame, Door WPL 3181403 Contact Us For Availability

9

Screw (2) WPL 3182939 Contact Us For Availability

9

Bracket (2) WPL 3184321 Contact Us For Availability

9

Tube, Vent WPL 3181699 Contact Us For Availability

9

Screw (3) WPL 3185648 Contact Us For Availability

9

Screw (2) WPL 3184037 Contact Us For Availability

9

Spacer, Latch Handle WPL 3184040 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

Handle, Door (Screw (2)) WPL 3181637 Contact Us For Availability

Handle, Door (Black Model) WPL 3182164 Contact Us For Availability

Handle, Door (White Model) WPL 3182167 Contact Us For Availability

Harness, Wire Latch Assy. (Lower Oven) WPL 3183361 Contact Us For Availability

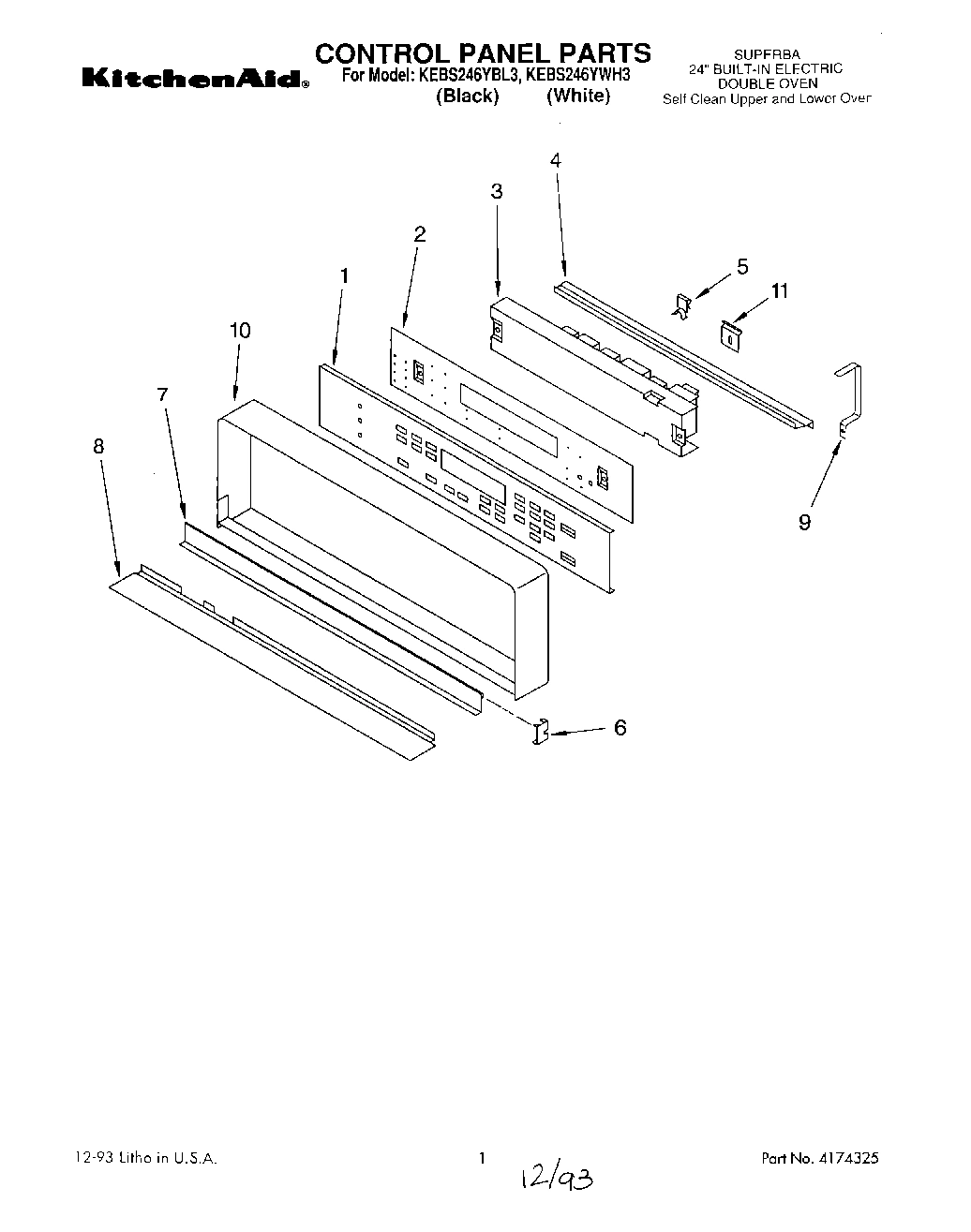

Frame, Control Panel WPL 3182147 Contact Us For Availability

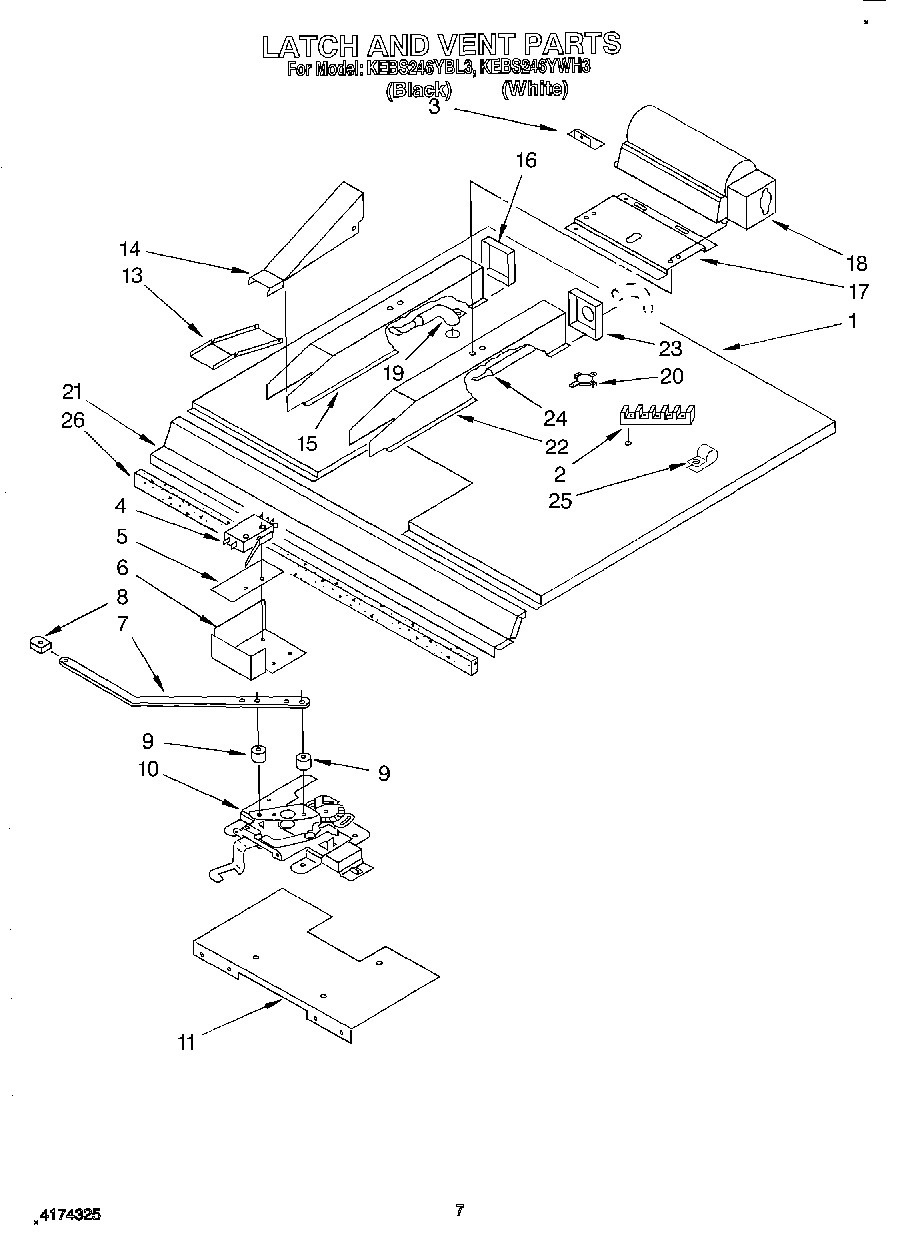

Latch, Mechanism WPL 3178410 Contact Us For Availability

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $3.70

Screw, Black (4) WPL 3178001 Contact Us For Availability

Spacer (2) WPL 3182138 Contact Us For Availability

Harness, Wire Latch Assy. (Upper Oven) WPL 3183976 Contact Us For Availability

Clip, Control Frame WPL 3184567 Contact Us For Availability

Plate, Mounting WPL 3177496 Contact Us For Availability

12

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

12

Foil, Adhesive WPL 3185471 Contact Us For Availability

12

Frame, Door WPL 3177700 Contact Us For Availability

13

Glass, Clear WPL 3185457 Contact Us For Availability

13

Nozzle, Vent Bottom (2) WPL 3183954 Contact Us For Availability

14

Insulation WPL 3185460 Contact Us For Availability

14

Frame, Front WPL 3185863 Contact Us For Availability

14

Nozzle, Vent Top (2) WPL 3183955 Contact Us For Availability

Screw, 10-24 x 1/2 WPL 247326 Contact Us For Availability

Bushing, Door Handle WPL 3185456 Contact Us For Availability

Seal, Door WPL 3179814 Contact Us For Availability

Box, Vent Upper Oven WPL 3183999 Contact Us For Availability

Plug & Probe Assy. WPL 3150144 Contact Us For Availability

Bumper, Door Glass WPL 3181701 Contact Us For Availability

Bottom, Oven WPL 3177552 Contact Us For Availability

Clip, Oven Seal WPL 3179848 Contact Us For Availability

End, Vent Box WPL 3183964 Contact Us For Availability

17

Bracket, Switch WPL 3177681 Contact Us For Availability

17

Bracket, Mounting Fan WPL 3183533 Contact Us For Availability

18

Insulator, Switch WPL 3177923 Contact Us For Availability

18

Blower, fan WPL 3183720 Contact Us For Availability

19

Bottom, Module WPL 3177622 Contact Us For Availability

19

Tube, Vent Upper Oven WPL 3183791 Contact Us For Availability

20

Rail, Support (2) WPL 3179220 Contact Us For Availability

20

SPST Thermostat WPL 3149650 Contact Us For Availability

21

Shield, Heat WPL 3183799 Contact Us For Availability

21

Bushing WPL 4159035 Contact Us For Availability

Support, Oven WPL 3177434 Contact Us For Availability

Screw WPL 4173231 Contact Us For Availability

Screw, 8-18 WPL 3179116 Contact Us For Availability

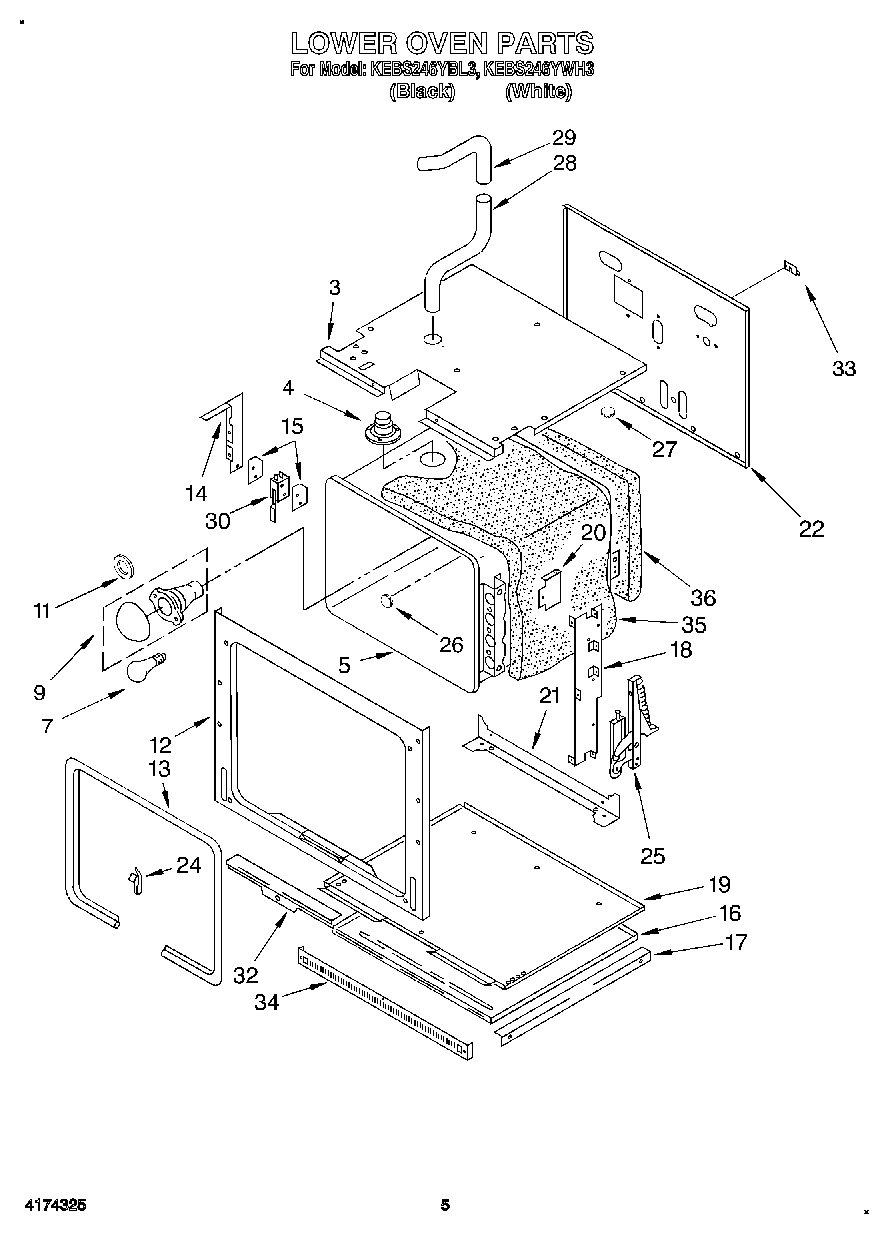

Box, Vent Lower Oven WPL 3183953 Contact Us For Availability

23

Shield, Radiation WPL 3178612 Contact Us For Availability

23

End, Vent Box WPL 3183965 Contact Us For Availability

24

Bracket, Hinge WPL 3177433 Contact Us For Availability

24

Tube, Vent Lower Oven WPL 3183793 Contact Us For Availability

25

Screw WPL 3185647 Contact Us For Availability

25

Clamp, Tube WPL 3183532 Contact Us For Availability

26

Back, Module WPL 3177559 Contact Us For Availability

26

Seal, foam WPL 313755 Contact Us For Availability

27

Liner, Oven WPL 3185561 Contact Us For Availability

27

Button, Plug WPL 3182814 Contact Us For Availability

28

Screw (4) WPL 3179795 Contact Us For Availability

28

Hinge, Door (2) WPL 3178298 Contact Us For Availability

28

Tube, Vent WPL 3182159 Contact Us For Availability

29

Tube, Vent WPL 3182160 Contact Us For Availability

31

Screw (2) WPL 313489 Contact Us For Availability

31

Nut (2) WPL 4159117 Contact Us For Availability

31

Switch, Door WPL 4173553 Contact Us For Availability

33

Retainer, Seal WPL 3179587 Contact Us For Availability

33

Screw (4) WPL 3179776 Contact Us For Availability

Vent, Middle Trim (Screw (2)) WPL 4168863 Contact Us For Availability

Trim, Lower Vent (White Model) WPL 3177786 Contact Us For Availability

Trim, Lower Vent (Black Model) WPL 3177788 Contact Us For Availability

Vent, Middle Trim (Screw (4)) WPL 3180022 Contact Us For Availability

Vent, Middle Trim (Black Model) WPL 3181966 Contact Us For Availability

Vent, Middle Trim (White Model) WPL 3181969 Contact Us For Availability

37

SPST Thermostat WPL 3149652 Contact Us For Availability

39

Screw WPL 4159445 Contact Us For Availability

39

Cover, Cap Tube WPL 4168203 Contact Us For Availability

40

Insulation, Wrap WPL 3185550 Contact Us For Availability

41

Insulation, Back WPL 3177870 Contact Us For Availability

44

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

44

Cover Plate, Rotisserie WPL 4163883 Contact Us For Availability

45

Insert, Middle Vent Trim (2) WPL 3181733 Contact Us For Availability

45

Screw (2) WPL 4173601 Contact Us For Availability

46

Bracket, Mounting Control Panel WPL 3182584 Contact Us For Availability
