Model Whirlpool KEBS246YWH0 – Common Parts & Diagrams
01 - CONTROL PANEL, LIT/OPTIONAL
06 - UNIT

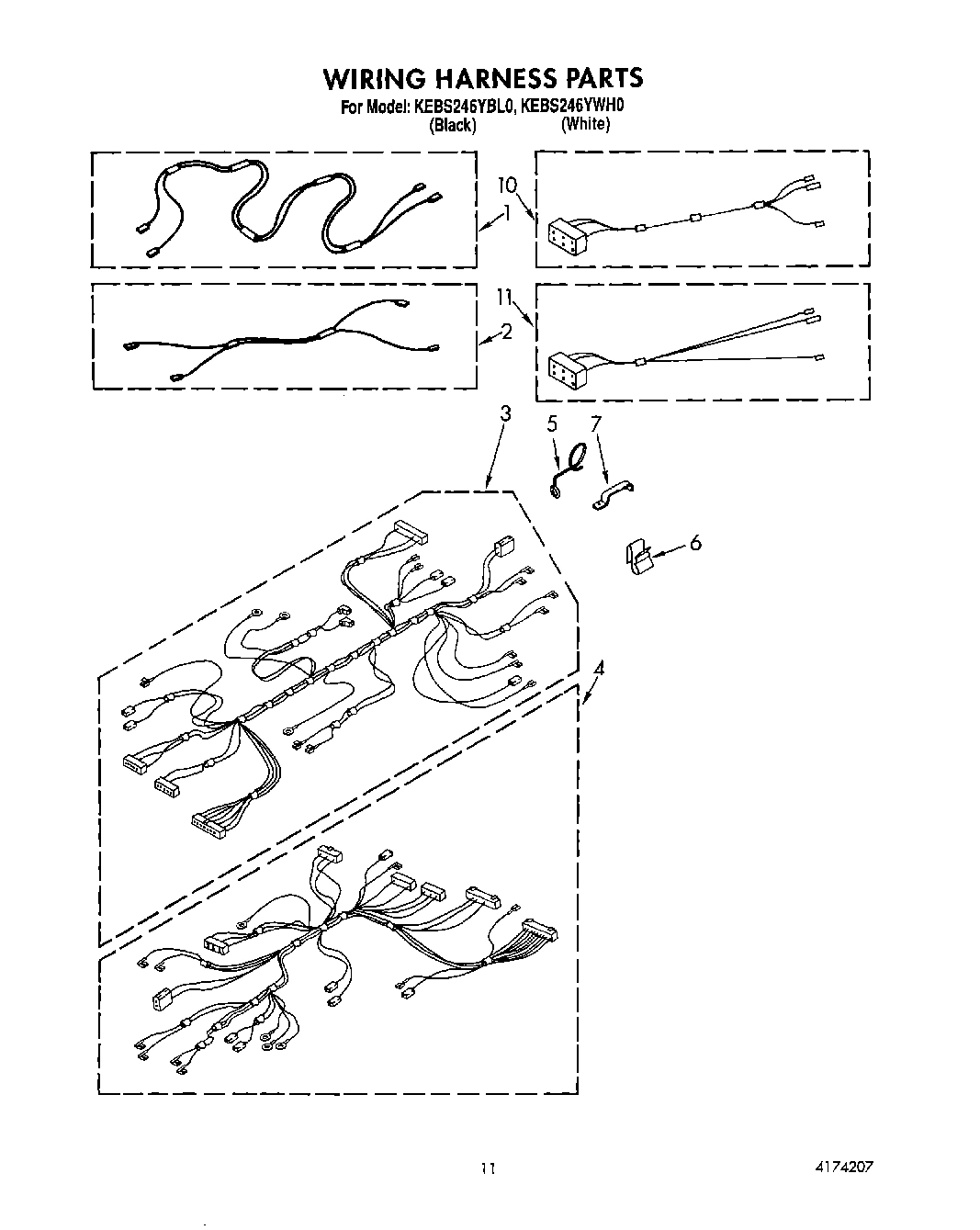

07 - WIRING HARNESS
04 - LOWER OVEN, OPTIONAL

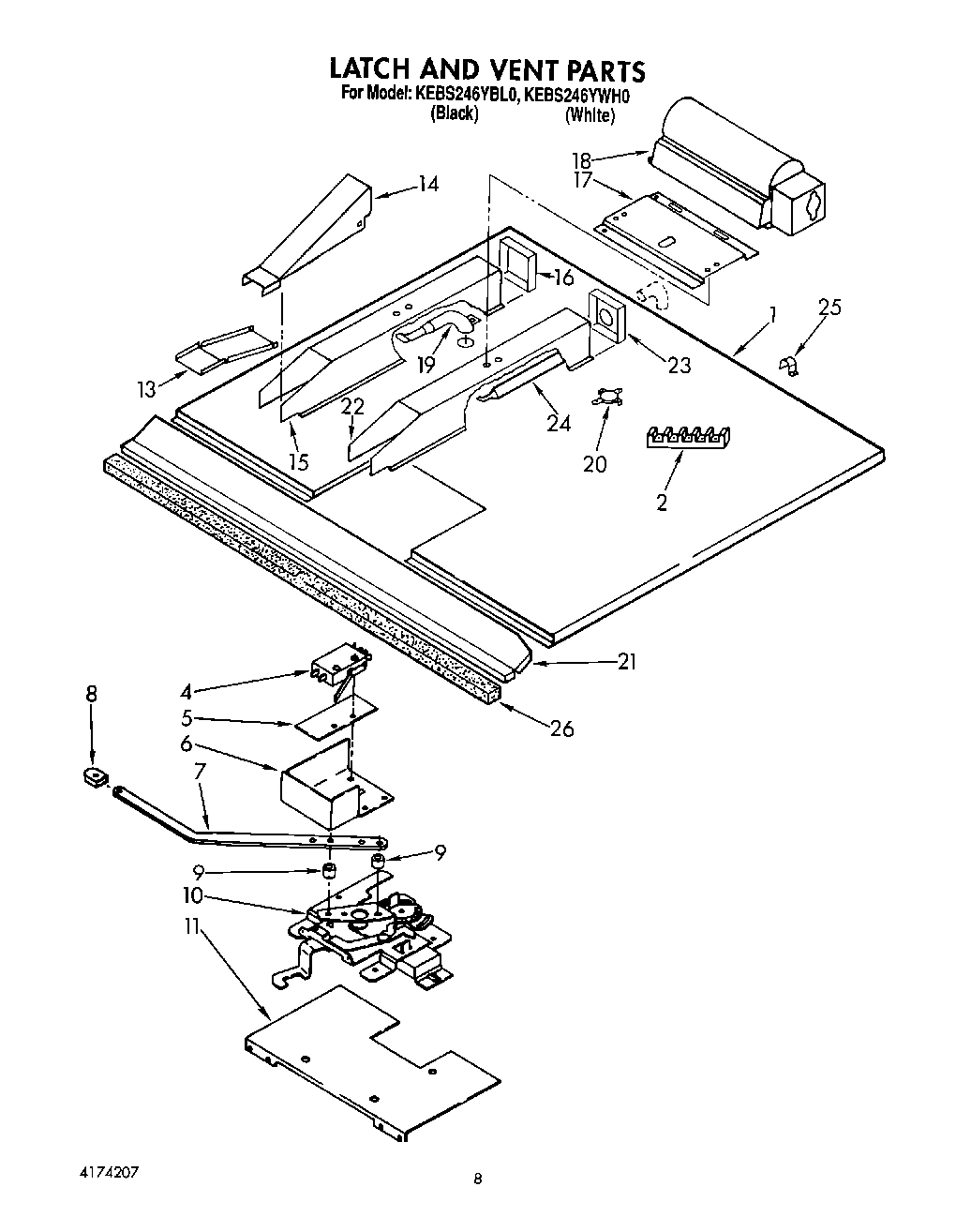

05 - LATCH AND VENT

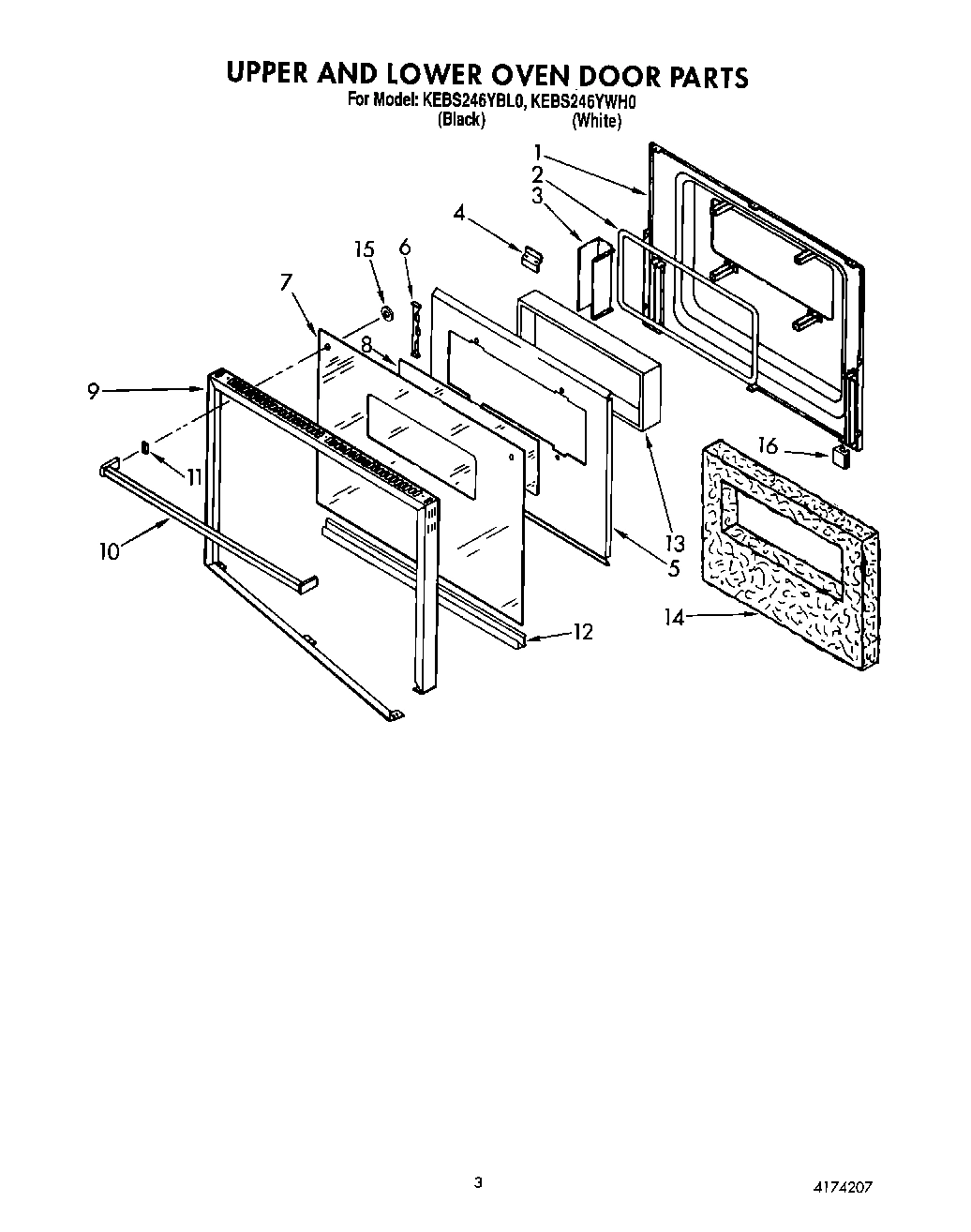

02 - UPPER AND LOWER OVEN DOOR

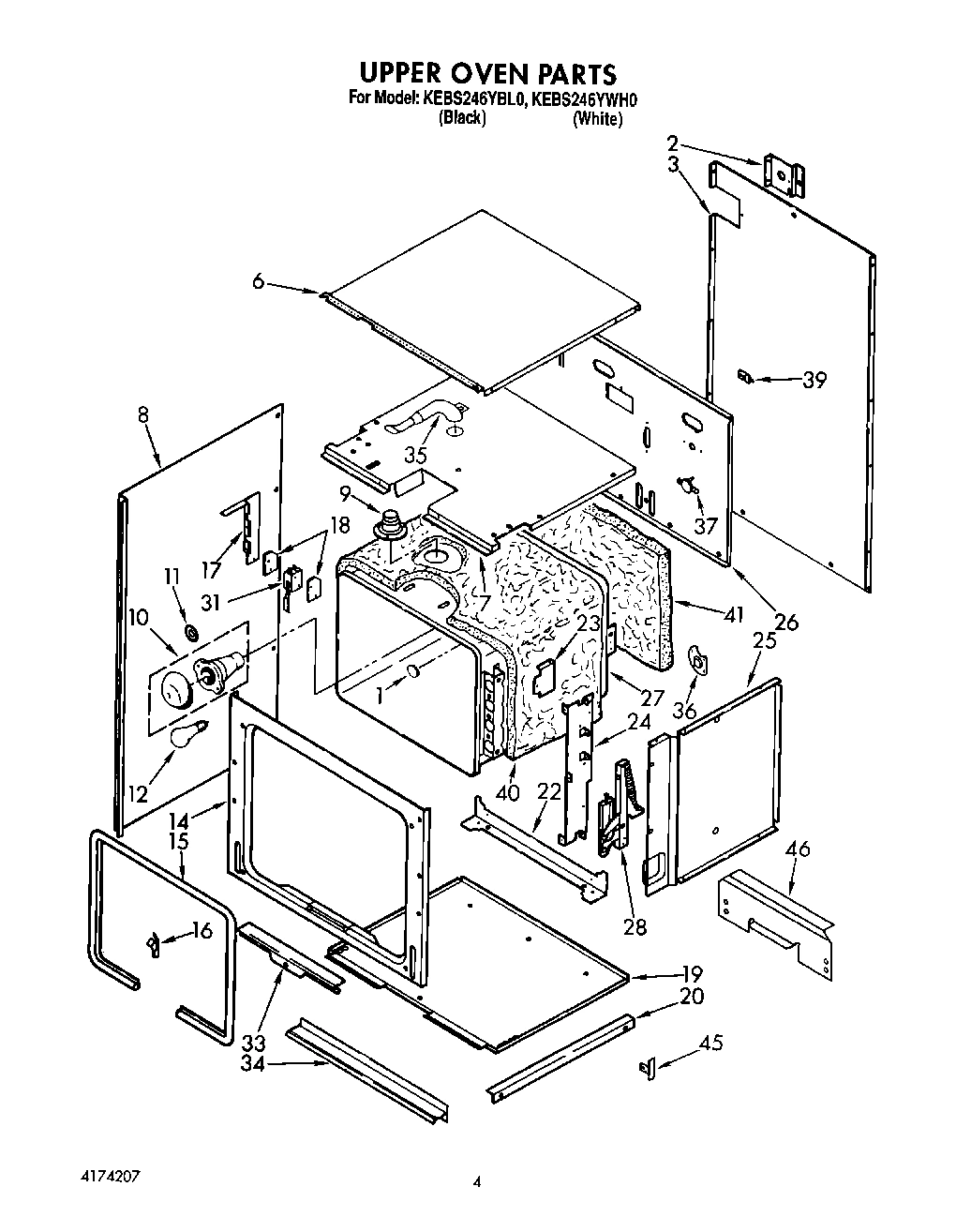

03 - UPPER OVEN
Common parts from model Whirlpool KEBS246YWH0
1
Liner, Oven (White) WPL 3177491 Contact Us For Availability
1
Harness Wire (Door Switch Upper) WPL 3183655 Contact Us For Availability
1
Button, Plug (2) WPL 3185085 Contact Us For Availability
1
Liner, Door WPL 3177597 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Harness Wire (Door Switch Lower) WPL 3183656 Contact Us For Availability
2
Screw (2) WPL 308043 Contact Us For Availability
2
Seal, Window WPL 3178584 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Screw WPL 4159372 Contact Us For Availability
3
Harness Wire (Lower Oven) WPL 3183359 Contact Us For Availability
3
Spacer, Window WPL 3179694 Contact Us For Availability
3
Cabinet, Back WPL 3177624 Contact Us For Availability
4
Harness Wire (Upper Oven) WPL 3182193 Contact Us For Availability
4
Switch, latch WPL 3183784 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
5
Rack, Offset (Black Model) WPL 3180867 Contact Us For Availability
5
Rack, Offset (White Model) WPL 3185309 Contact Us For Availability
5
Screw, WPL 254225 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Retainer, Insulation WPL 3177719 Contact Us For Availability
6
Rack, Oven (Black Model) WPL 3180866 Contact Us For Availability
6
Rack, Oven (White Model) WPL 3185310 Contact Us For Availability
6
Screw WPL 3148443 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
6
Cabinet, Top WPL 3178139 Contact Us For Availability
7
Module, Top WPL 3183747 Contact Us For Availability
7
Handle, Latch (Clamp, Tube) WPL 313570 Contact Us For Availability
7
Handle, Latch (Upper Oven) WPL 3177969 Contact Us For Availability
7
Handle, Latch (Screw, 10-24 (2)) WPL 3179950 Contact Us For Availability
7
Handle, Latch (Lower Oven) WPL 3181963 Contact Us For Availability
7
Screw WPL 3183294 Contact Us For Availability
7
Glass, Door WPL 3181549 Contact Us For Availability
8
Spacer - Tubing WPL 3179672 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
Side, Cabinet (Left Hand) WPL 3177438 Contact Us For Availability
8
Side, Cabinet (Right Hand) WPL 3177440 Contact Us For Availability
9
Receptacle, Meat Probe WPL 4173575 Contact Us For Availability
9
Screw (3) WPL 3179117 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Screw (2) WPL 3184037 Contact Us For Availability
9
Spacer, Latch Handle WPL 3184040 Contact Us For Availability
9
Frame, Door WPL 3181403 Contact Us For Availability
10
Frame, Control Panel WPL 3182147 Contact Us For Availability
10
Gasket WPL 4163975 Contact Us For Availability
10
Harness, Wire Latch Assy. (Lower Oven) WPL 3183361 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Screw (2) WPL 3181637 Contact Us For Availability
10
Handle, Door WPL 3182164 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
11
Harness, Wire Latch Assy. (Upper Oven) WPL 3183976 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Screw, Black (4) WPL 3178001 Contact Us For Availability
11
Spacer (2) WPL 3182138 Contact Us For Availability
12
Cover, Jack- Lock Nut WPL 4167277 Contact Us For Availability
12
Frame, Door WPL 3177700 Contact Us For Availability
13
Nozzle, Vent Bottom (2) WPL 3183954 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Nozzle, Vent Top (2) WPL 3183955 Contact Us For Availability
14
Insulation WPL 3180094 Contact Us For Availability
14
Frame, Front WPL 3177698 Contact Us For Availability
15
Seal, Door WPL 3179814 Contact Us For Availability
15
Box, Vent Upper Oven WPL 3183999 Contact Us For Availability
15
Screw, 10-24 x 1/2 WPL 247326 Contact Us For Availability
15
Bushing, Door Handle WPL 3181651 Contact Us For Availability
16
Plug & Probe Assy. WPL 3150144 Contact Us For Availability
16
Bottom, Oven WPL 3177552 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
16
Bumper, Door Glass WPL 3181701 Contact Us For Availability
17
Bracket, Element WPL 3180694 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Sensor, Heat WPL 3148440 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
19
Bottom, Module WPL 3177622 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
21
Shield, Heat WPL 3183799 Contact Us For Availability
21
Bushing WPL 4159035 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
22
Screw WPL 4173231 Contact Us For Availability
22
Screw, 8-18 WPL 3179116 Contact Us For Availability
22
Box, Vent Lower Oven WPL 3183953 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
End, Vent Box WPL 3183965 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Screw (6) WPL 3178000 Contact Us For Availability
24
Tube, Vent Lower Oven WPL 3183793 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
25
Clamp, Tube WPL 3183532 Contact Us For Availability
26
Back, Module WPL 3177559 Contact Us For Availability
26
Seal, foam WPL 313755 Contact Us For Availability
27
Liner, Oven WPL 3177470 Contact Us For Availability
27
Button, Plug WPL 3185109 Contact Us For Availability
28
Screw (4) WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
28
Tube, Vent WPL 3182159 Contact Us For Availability
29
Tube, Vent WPL 3182160 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw (4) WPL 3179776 Contact Us For Availability
34
Trim, Lower Vent WPL 3177788 Contact Us For Availability
34
Screw (2) WPL 4168863 Contact Us For Availability
34
Screw (4) WPL 3180022 Contact Us For Availability
34
Vent, Middle Trim WPL 3181966 Contact Us For Availability
35
Vent, Tube WPL 3183791 Contact Us For Availability
36
WPL 799344 WPL 799344 Contact Us For Availability
36
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
36
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
36
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
36
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
36
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
36
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
36
14 Ga. 150~c Rating (White) WPL 242826 Contact Us For Availability
36
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
36
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
36
16 Ga. 80~c Rating (Blue) WPL 242829 Contact Us For Availability
36
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
36
14 Ga. 200~c Rating (Yellow) WPL 242832 Contact Us For Availability
36
Harvest Gold WPL 261890 Contact Us For Availability
36
Harvest Gold WPL 261891 Contact Us For Availability
36
Toast WPL 285365 Contact Us For Availability
36
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
36
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
36
Platinum WPL 285368 Contact Us For Availability
36
WPL 350806 WPL 350806 Contact Us For Availability
36
WPL 350941 WPL 350941 Contact Us For Availability
36
WPL 591014 WPL 591014 Contact Us For Availability
36
WPL 72112 WPL 72112 Contact Us For Availability
36
WPL 799832 WPL 799832 Contact Us For Availability
36
WPL 832985 WPL 832985 Contact Us For Availability
36
WPL 978883 WPL 978883 Contact Us For Availability
37
SPST Thermostat WPL 3149652 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Insulation, Wrap WPL 3177865 Contact Us For Availability
41
Insulation, Back WPL 3177870 Contact Us For Availability
44
Cover Plate, Rotisserie WPL 4163883 Contact Us For Availability
45
Insert, Middle Vent Trim (2) WPL 3181733 Contact Us For Availability
45
Screw (2) WPL 4173601 Contact Us For Availability
46
Bracket, Mounting Control Panel WPL 3182584 Contact Us For Availability
× ![]()
