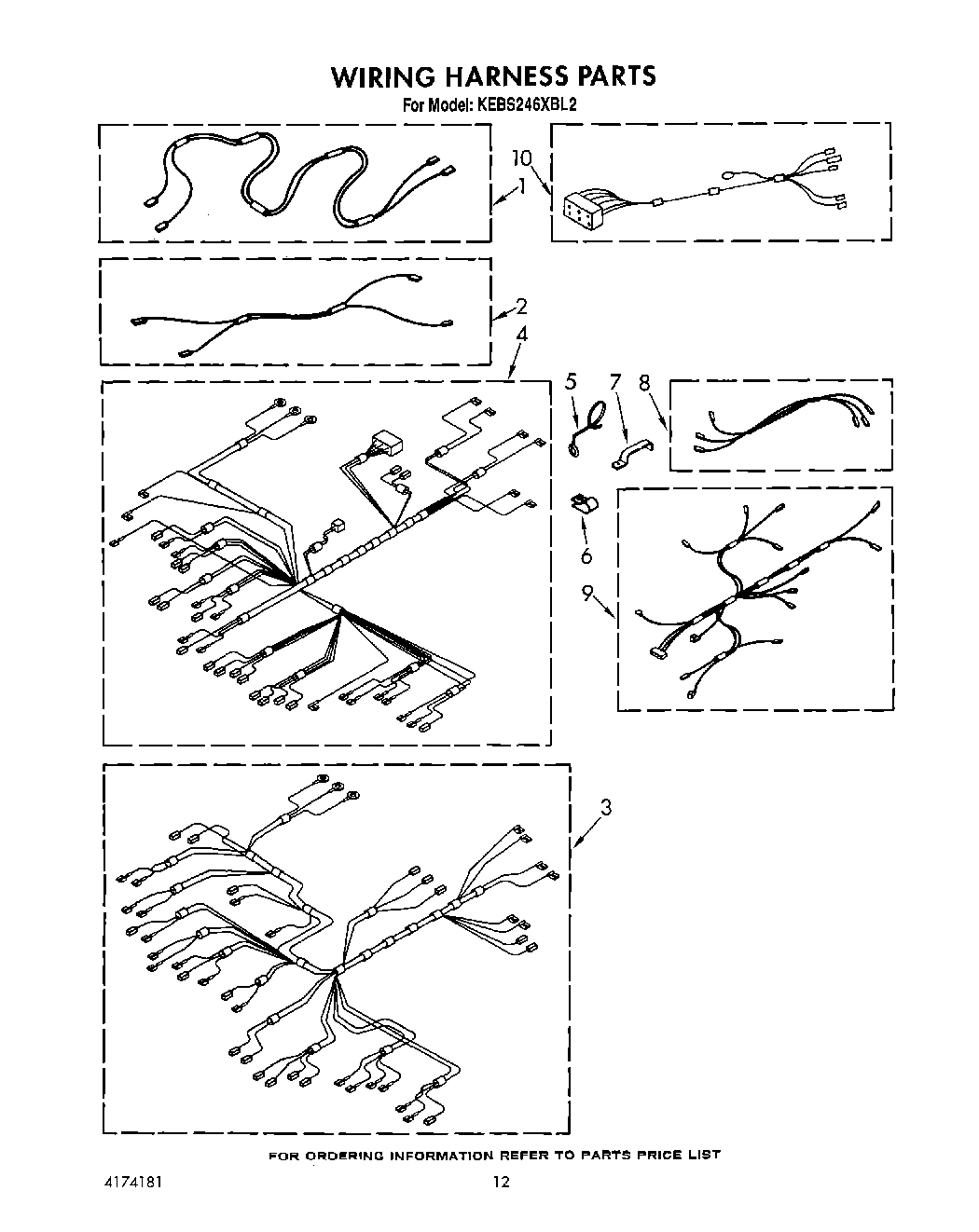

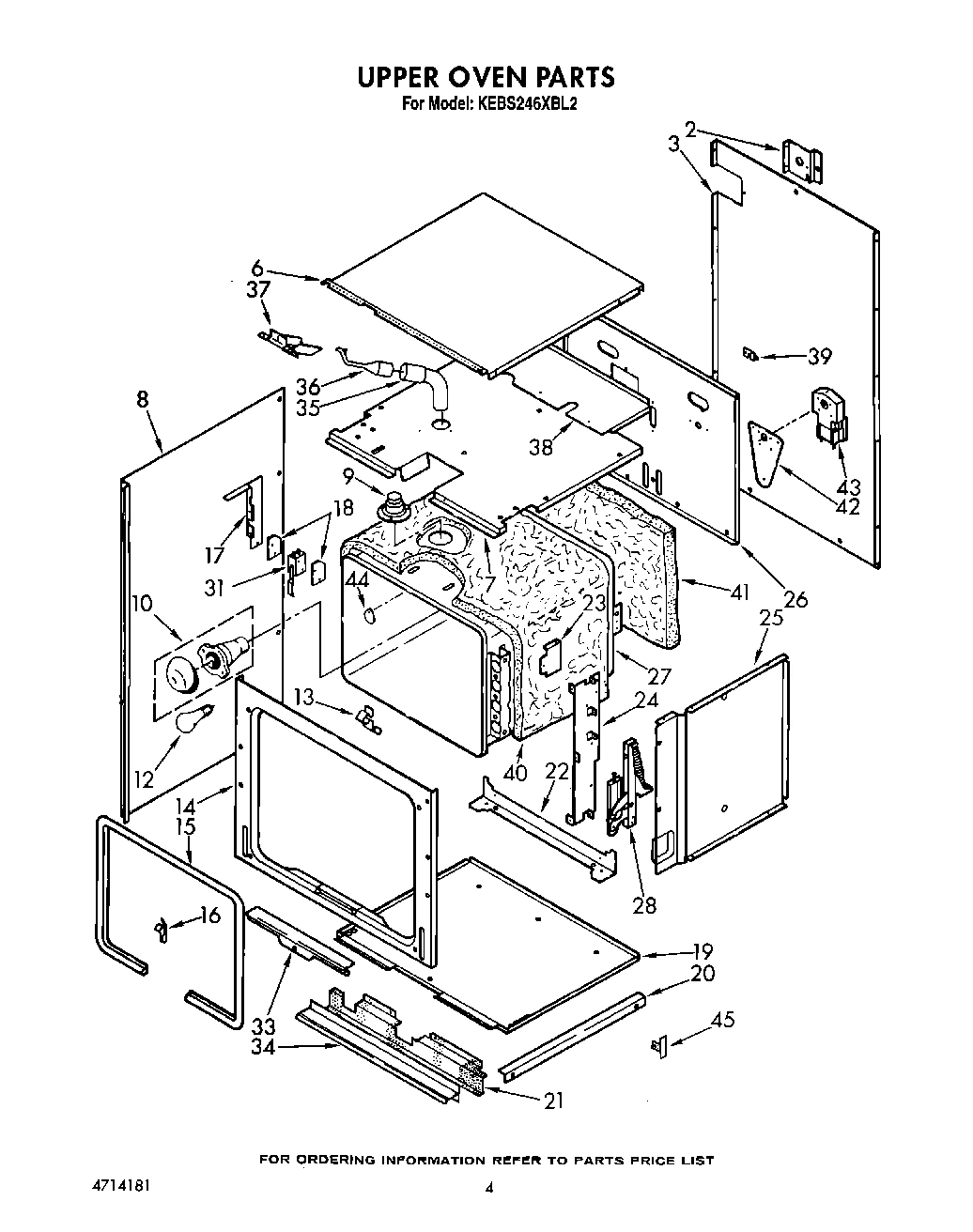

Model Whirlpool KEBS246XBL2 – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 799344 WPL 799344 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

18 Ga. 80~c Rating (White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

18 Ga. 80~c Rating (Blue 14 Ga. 150~c Rating) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

18 Ga. 80~c Rating ( WPL 242832 Contact Us For Availability

WPL 261881 WPL 261881 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350806 WPL 350806 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 832985 WPL 832985 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3178195 WPL LIT3178195 Contact Us For Availability

WPL LIT3181351 WPL LIT3181351 Contact Us For Availability

WPL LIT3185200 WPL LIT3185200 Contact Us For Availability

WPL LIT4174181 WPL LIT4174181 Contact Us For Availability

1

Screw (6) WPL 4168863 Contact Us For Availability

1

Shelf, Component WPL 3178090 Contact Us For Availability

1

Liner, Door WPL 3177597 Contact Us For Availability

1

Thermostat Upper Oven WPL 3178273 Contact Us For Availability

2

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

2

Element, Broil WPL 661415 Contact Us For Availability

2

Seal, Window WPL 3178584 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

3

Bushing WPL 4159035 Contact Us For Availability

3

Top, Module WPL 3177437 Contact Us For Availability

3

Spacer, Window WPL 3179694 Contact Us For Availability

3

Switch, Selector Lower Oven WPL 3178234 Contact Us For Availability

4

Screw (3) WPL 3179117 Contact Us For Availability

4

Switch, Latch WPL 3178668 Contact Us For Availability

4

Screw (2) WPL 98106 Contact Us For Availability

4

Tube, Vent WPL 3181699 Contact Us For Availability

4

Latch, Strike WPL 3177831 Contact Us For Availability

4

Light, Indicator (6) WPL 4168598 Contact Us For Availability

5

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

5

Liner, Oven WPL 3180803 Contact Us For Availability

5

Rack, Offset WPL 3180867 Contact Us For Availability

5

Insulator, Switch WPL 3178185 Contact Us For Availability

5

Retainer, Insulation WPL 3177719 Contact Us For Availability

5

Switch, Oven Light WPL 3179891 Contact Us For Availability

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

6

Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability

6

Rack, Oven WPL 3180866 Contact Us For Availability

6

Guard, Latch WPL 3177662 Contact Us For Availability

6

Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability

6

Nut, Timer (4) WPL 98788 Contact Us For Availability

7

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

7

WP661416 Whirlpool Bake Element In Stock WPL WP661416 $72.76

7

Handle, Latch (Upper Oven) WPL 3177969 Contact Us For Availability

7

Handle, Latch (Lower Oven) WPL 3181963 Contact Us For Availability

7

Handle, Latch (Screw (2)) WPL 4159187 Contact Us For Availability

7

Glass, Door WPL 3181549 Contact Us For Availability

7

Insert, Top WPL 4173298 Contact Us For Availability

8

Spacer - Tubing WPL 3179672 Contact Us For Availability

8

Knob, Latch Handle WPL 3183293 Contact Us For Availability

8

Screw WPL 3183294 Contact Us For Availability

8

Glass, Reflective WPL 4164243 Contact Us For Availability

8

Bracket, Control WPL 3177804 Contact Us For Availability

9

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

9

Receptacle, Meat Probe WPL 4173575 Contact Us For Availability

9

Spacer, Handle WPL 3177986 Contact Us For Availability

9

Frame, Door WPL 3181403 Contact Us For Availability

9

Timer, Electronic WPL 3148111 Contact Us For Availability

Gasket WPL 4163975 Contact Us For Availability

Latch, Mechanism WPL 3178410 Contact Us For Availability

Handle, Door WPL 3178647 Contact Us For Availability

Screw (2) WPL 3181637 Contact Us For Availability

Glass, Control Panel WPL 3181284 Contact Us For Availability

Jack Cover WPL 4167266 Contact Us For Availability

Plate, Mounting WPL 3177496 Contact Us For Availability

Screw, Black (4) WPL 3178001 Contact Us For Availability

Spacer (2) WPL 3178740 Contact Us For Availability

Frame, Control Panel WPL 3177761 Contact Us For Availability

Cover, Jack- Lock Nut WPL 4167277 Contact Us For Availability

Plug, Button WPL 3179777 Contact Us For Availability

Frame, Door WPL 3177700 Contact Us For Availability

Screw (4) WPL 3179847 Contact Us For Availability

Insert, Vent WPL 3179915 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

Seal, Door WPL 3179814 Contact Us For Availability

Extension, Shelf WPL 3178133 Contact Us For Availability

Rack, Rotisseris WPL 4168411 Contact Us For Availability

Window Package WPL 4164235 Contact Us For Availability

Knob, Timer WPL 3179704 Contact Us For Availability

Frame, Front WPL 3177698 Contact Us For Availability

Bracket, Switch WPL 3177681 Contact Us For Availability

Spear, Rotisseris WPL 4168724 Contact Us For Availability

Support, Latch WPL 3178232 Contact Us For Availability

Insulation WPL 3180094 Contact Us For Availability

Knob, Timer (2) WPL 3179705 Contact Us For Availability

W10841059 Whirlpool Screw Backorder WPL W10841059 $0.90

Insulator, Switch WPL 3177923 Contact Us For Availability

Skewer WPL 4166352 Contact Us For Availability

Screw WPL 3179950 Contact Us For Availability

Transformer WPL 3179532 Contact Us For Availability

Bushing, Door Handle WPL 3181651 Contact Us For Availability

Door, Latch Handle WPL 3177973 Contact Us For Availability

Knob, Control (4) WPL 3178400 Contact Us For Availability

Plug & Probe Assy. WPL 4167267 Contact Us For Availability

Bottom, Oven WPL 3177552 Contact Us For Availability

Bumper, Door Glass WPL 3181701 Contact Us For Availability

17

Rail, Support (2) WPL 3179220 Contact Us For Availability

17

Bracket, Element WPL 3180694 Contact Us For Availability

17

Disc, Selector Lower Oven WPL 3178262 Contact Us For Availability

18

Bracket, Hinge (2) WPL 3177433 Contact Us For Availability

18

Disc, Thermostat Upper and Lower Oven WPL 3178477 Contact Us For Availability

19

Bottom, Module WPL 3177622 Contact Us For Availability

19

Buzzer, Meat Probe WPL 3179914 Contact Us For Availability

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

Shield, Radiation WPL 3178612 Contact Us For Availability

Screw (6) WPL 3179795 Contact Us For Availability

Screw (2) WPL 313806 Contact Us For Availability

Bracket, Buzzer Mounting WPL 3179695 Contact Us For Availability

nut (3) WPL 4168838 Contact Us For Availability

Screw (4) WPL 3179116 Contact Us For Availability

Screen, Wire Mesh WPL 3180889 Contact Us For Availability

Support, Oevn WPL 3177434 Contact Us For Availability

Hinge, Door (2) WPL 3177971 Contact Us For Availability

Screw (2) WPL 4170323 Contact Us For Availability

22

Back, Module WPL 3177558 Contact Us For Availability

22

Screw (6) WPL 4159456 Contact Us For Availability

22

Retainer, Glass WPL 4167590 Contact Us For Availability

23

Thermostat Lower Oven WPL 3178274 Contact Us For Availability

24

Clip, Seal (3) WPL 3179848 Contact Us For Availability

24

Bracket, Control Panel WPL 3177747 Contact Us For Availability

25

Screw (4) WPL 3178000 Contact Us For Availability

25

Hinge, Door (2) WPL 3178298 Contact Us For Availability

25

Bezel, Switch WPL 4169372 Contact Us For Availability

26

Button, Plug WPL 3185108 Contact Us For Availability

26

Support, Frame WPL 3177651 Contact Us For Availability

27

screw (2) WPL 254225 Contact Us For Availability

27

Button, Plug WPL 3185109 Contact Us For Availability

27

Indicator, Meat Probe WPL 3180156 Contact Us For Availability

28

Tube, Vent Male WPL 3179945 Contact Us For Availability

28

Knob, Meat Probe WPL 4163840 Contact Us For Availability

29

Tube, Vent Female WPL 3181964 Contact Us For Availability

29

Disc. Selector Upper Oven WPL 3178264 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Screw (2) WPL 313489 Contact Us For Availability

Nut (2) WPL 4159117 Contact Us For Availability

Switch, Door WPL 4173553 Contact Us For Availability

Switch, Selector Upper Oven WPL 3178233 Contact Us For Availability

32

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

32

Retainer, Seal WPL 3179587 Contact Us For Availability

32

Screw (4) WPL 3179776 Contact Us For Availability

33

Screw WPL 4159445 Contact Us For Availability

33

Cover, Cap Tube WPL 4168203 Contact Us For Availability

34

Screw (4) WPL 3180022 Contact Us For Availability

34

Vent, Middle Trim WPL 3181966 Contact Us For Availability

34

Trim, Lower Vent WPL 3177788 Contact Us For Availability

35

Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability

35

Insulation, Wrap WPL 3177865 Contact Us For Availability

36

Vent, Tube (Upper, Male) WPL 3180891 Contact Us For Availability

36

Insulation, Back WPL 3177870 Contact Us For Availability

37

Shield, Vent WPL 3180890 Contact Us For Availability

38

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

42

Mounting Plate, Rotisserie WPL 4167469 Contact Us For Availability

43

Motor, Rotisserie WPL 4163836 Contact Us For Availability

Clamp, Tube WPL 313570 Contact Us For Availability

Washer (4) WPL 4159501 Contact Us For Availability

Cover Plate (Rotisserie) WPL 4167518 Contact Us For Availability

Screw WPL 4168874 Contact Us For Availability

45

Insert, Middle Vent Trim (2) WPL 3181733 Contact Us For Availability
