Model Whirlpool KEBS246SBL2 – Common Parts & Diagrams
03 - CONTROL FRAME
07 - LINER , LITERATURE AND OPTIONAL

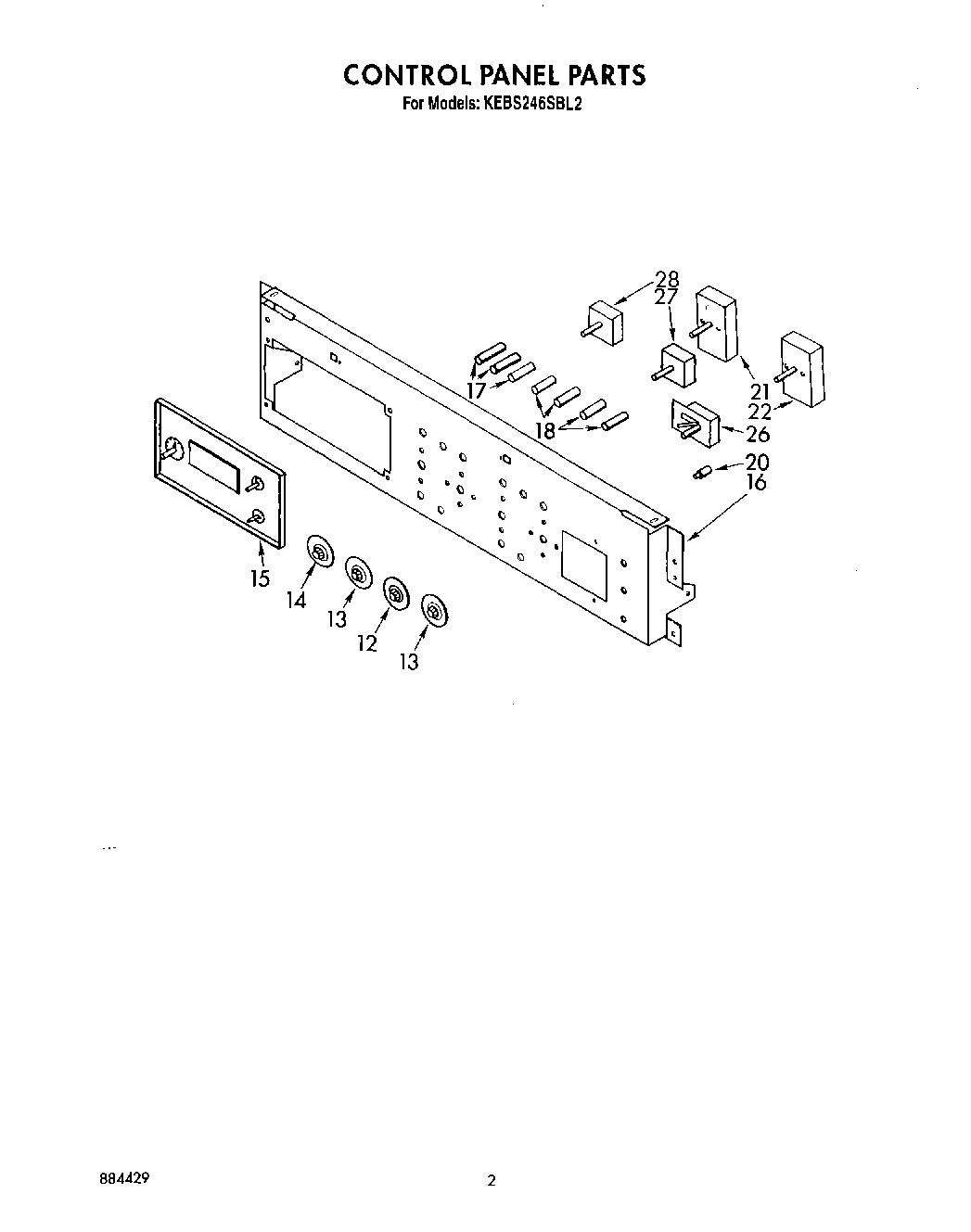

02 - CONTROL PANEL

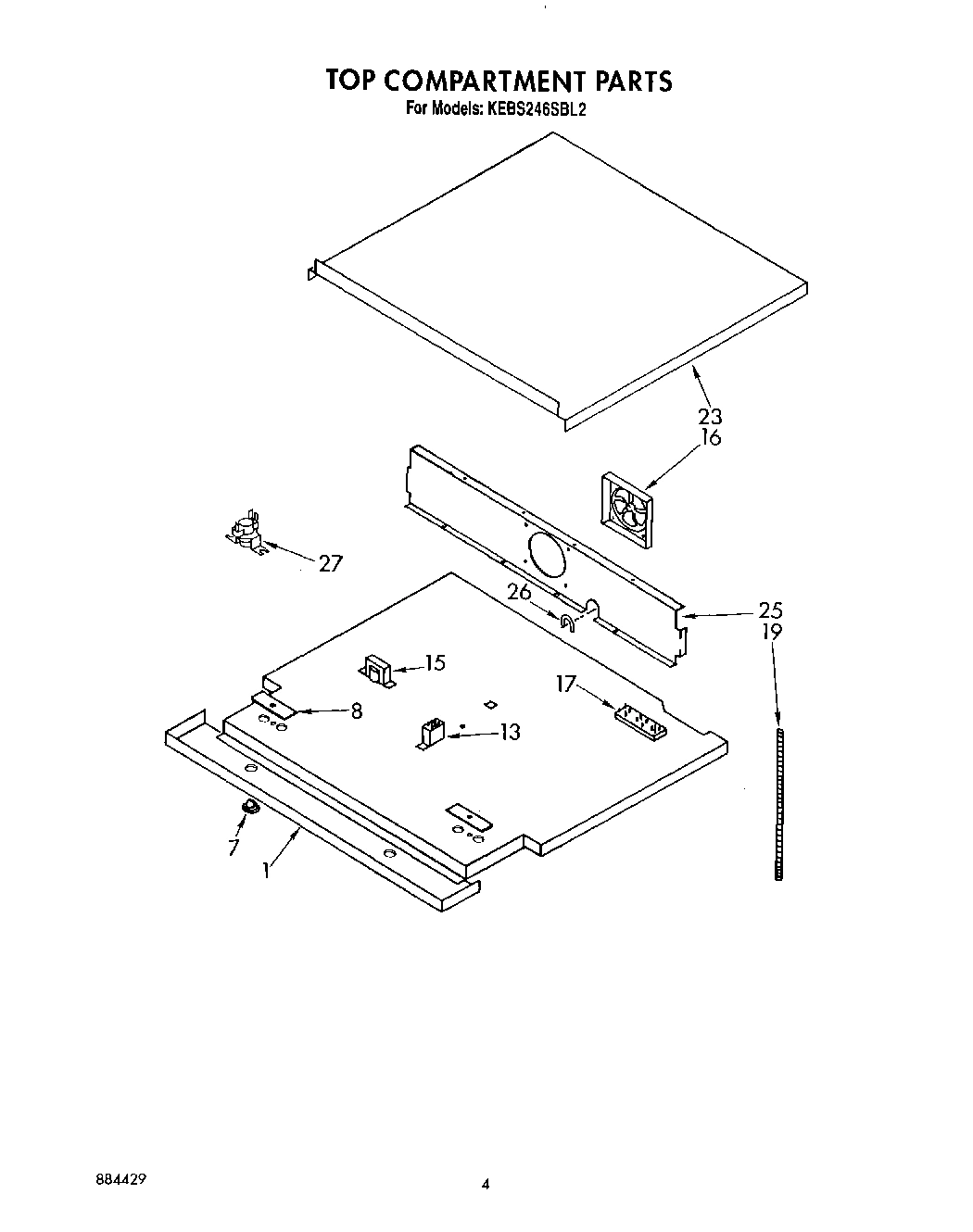

04 - TOP COMPARTMENT

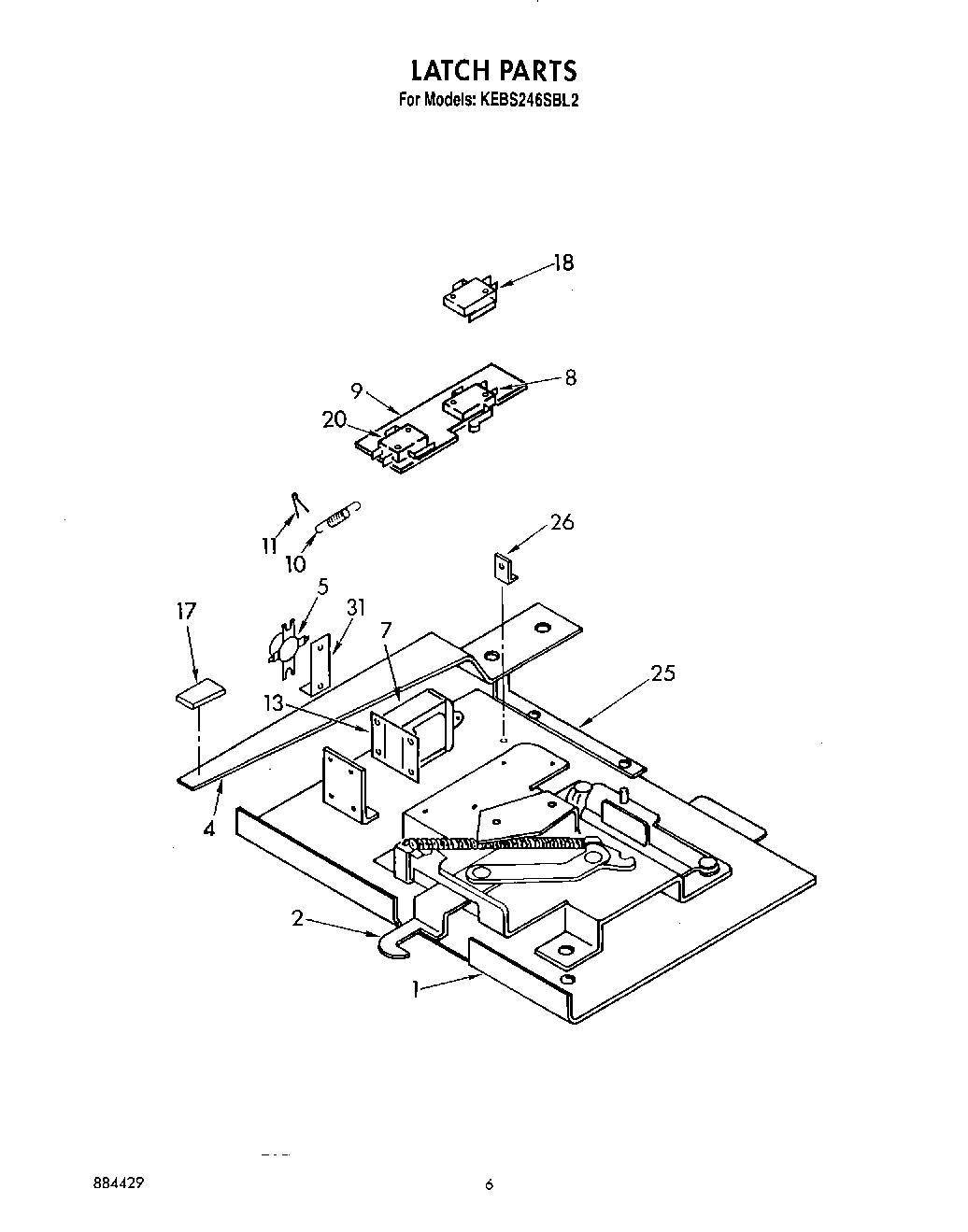

06 - LATCH

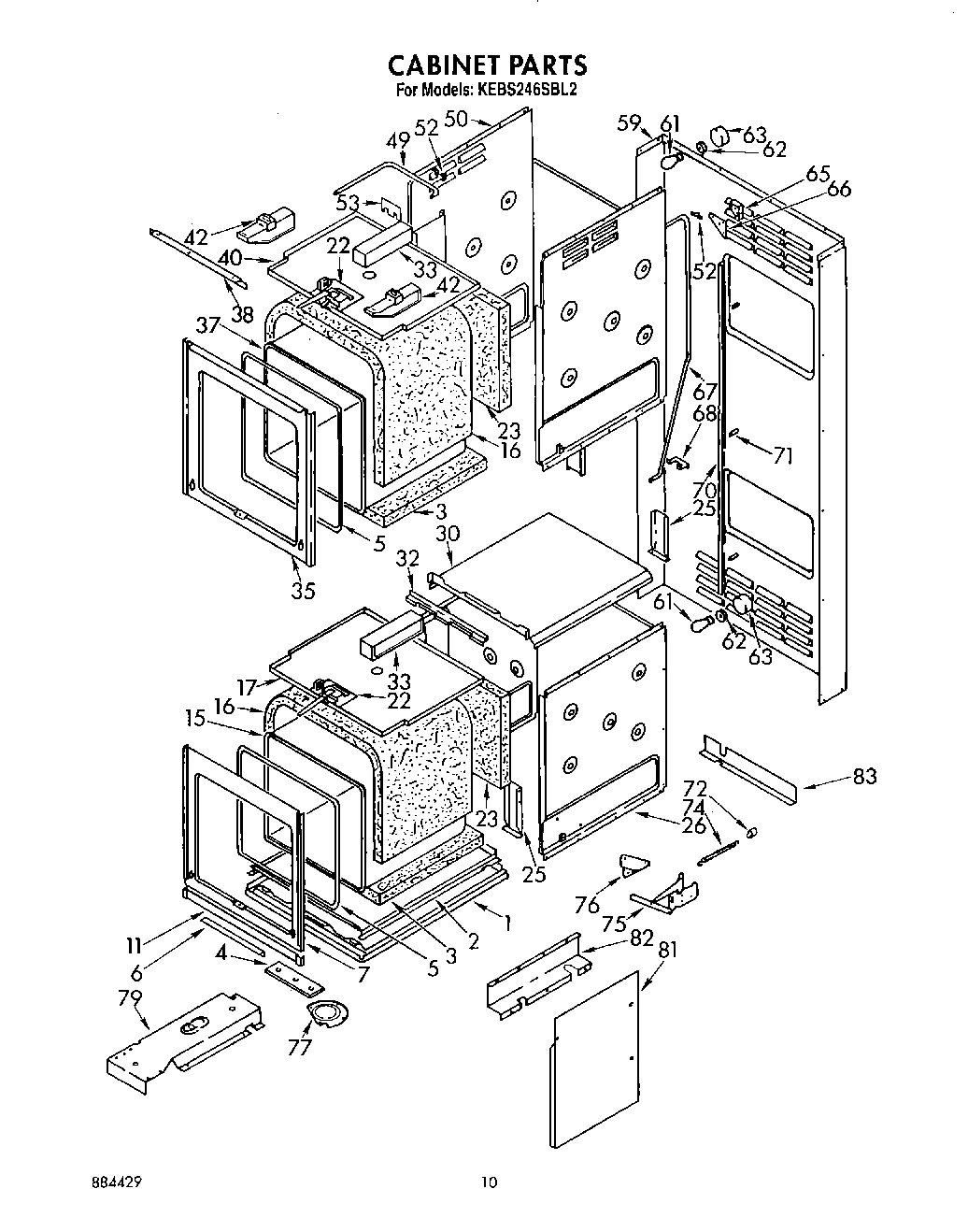

08 - CABINET

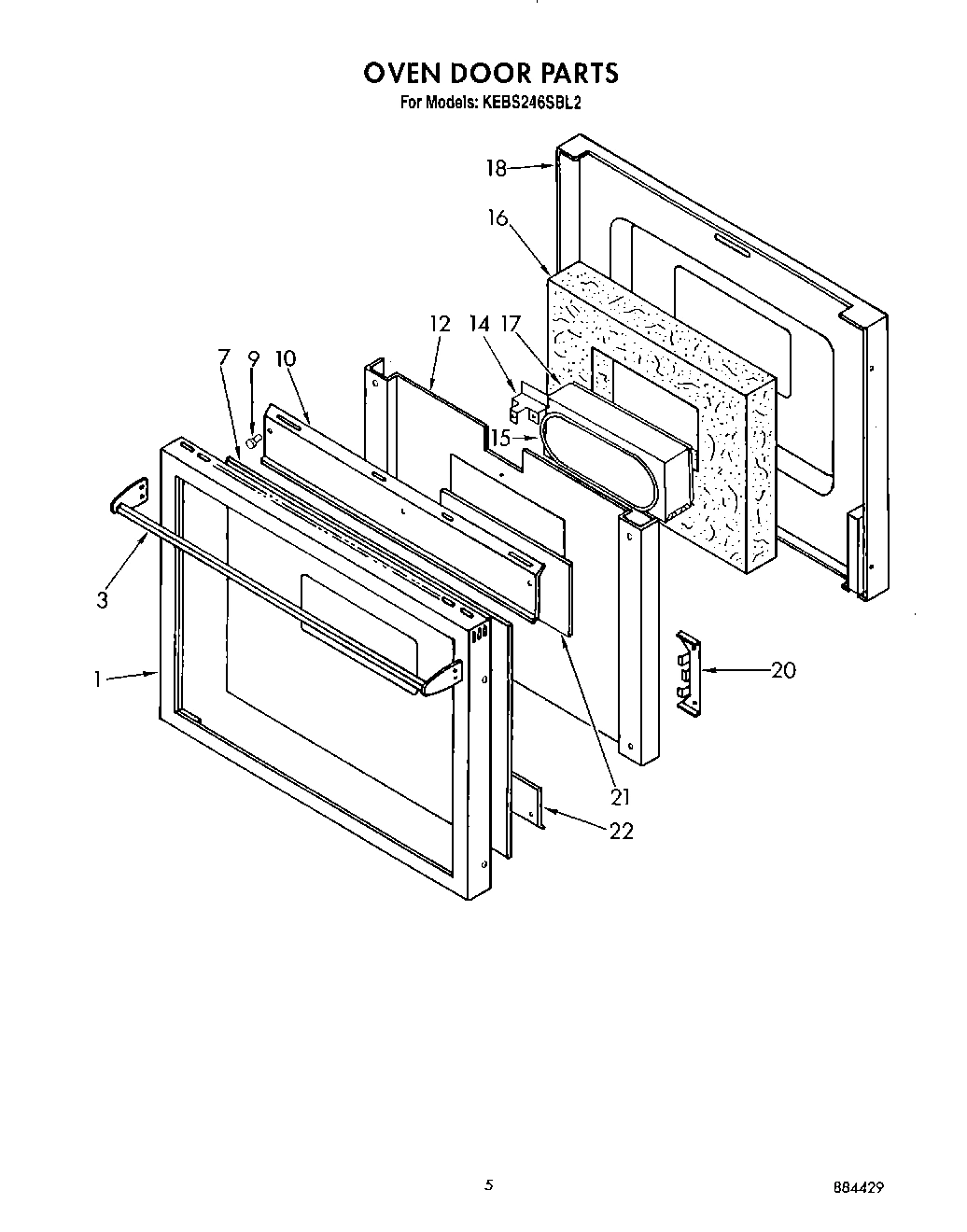

05 - OVEN DOOR
Common parts from model Whirlpool KEBS246SBL2
Use & Care Guide WPL LIT3177054 Contact Us For Availability
Installation Instructions WPL LIT3177123 Contact Us For Availability
Cookbook WPL LIT4177808 Contact Us For Availability
List, Repair Parts WPL LIT884429 Contact Us For Availability
1
Sandwich Panel WPL 4173011 Contact Us For Availability
1
Screw (4) WPL 4159186 Contact Us For Availability
1
Plate, Latch WPL 4178063 Contact Us For Availability
1
Main Bottom WPL 4164379 Contact Us For Availability
1
Door Frame WPL 4169519 Contact Us For Availability
2
Screw (3) WPL 4159287 Contact Us For Availability
2
Mechanism, Latch WPL 4168538 Contact Us For Availability
2
Support, Oven Bottom WPL 4168212 Contact Us For Availability
3
Insulation, Bottom WPL 4169309 Contact Us For Availability
3
Screw (4) WPL 4159330 Contact Us For Availability
3
Door Handle WPL 4173020 Contact Us For Availability
4
Lever, Latch WPL 3177966 Contact Us For Availability
4
Screw (2) WPL 4168579 Contact Us For Availability
4
Plate, Cover WPL 3179688 Contact Us For Availability
5
Thermal Switch, Safty (Screw (2)) WPL 4159445 Contact Us For Availability
5
Thermal Switch, Safty (Lower) WPL 3179691 Contact Us For Availability
5
Thermal Switch, Safty (Upper) WPL 4173007 Contact Us For Availability
5
Door Gasket, Upper And Lower Oven WPL 3178581 Contact Us For Availability
6
Retainer-Gasket WPL 3177549 Contact Us For Availability
7
Bushing WPL 4173043 Contact Us For Availability
7
Solenoid WPL 4169323 Contact Us For Availability
7
Front Frame, Lower Oven WPL 3178729 Contact Us For Availability
7
Door Glass WPL 4164240 Contact Us For Availability
8
Hole Cover WPL 4168257 Contact Us For Availability
8
Latch Switch With Roller WPL 4168514 Contact Us For Availability
9
Insulator WPL 4168522 Contact Us For Availability
9
Bumper, Rubber (8) WPL 4168826 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Air Baffle WPL 4163856 Contact Us For Availability
11
Element, Broil WPL 4164185 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Bottom Trim WPL 4164197 Contact Us For Availability
12
Selector Disc Lower Oven WPL 4163799 Contact Us For Availability
12
Insulation Retainer WPL 4169356 Contact Us For Availability
13
Thermostat Disc (2) Upper Oven WPL 3179678 Contact Us For Availability
13
Relay, Meat Probe WPL 4163731 Contact Us For Availability
13
Plate, Solenoid WPL 4168292 Contact Us For Availability
14
Gasket, Lens WPL 4166868 Contact Us For Availability
14
Nut (2) WPL 4175379 Contact Us For Availability
14
Selector Disc Upper Oven WPL 4163800 Contact Us For Availability
14
Bracket, Lock WPL 4163852 Contact Us For Availability
15
Lens, Light WPL 4166866 Contact Us For Availability
15
nut (4) WPL 4164360 Contact Us For Availability
15
Nut (2) WPL 4168838 Contact Us For Availability
15
Clock WPL 4173071 Contact Us For Availability
15
Transformer, Meat Probe WPL 4166561 Contact Us For Availability
15
Oven Liner (Lower Oven) (See Liner Parts Page WPL ARI83448A4 Contact Us For Availability
15
Gasket, Window WPL 3178584 Contact Us For Availability
16
Retainer, Lens WPL 4167938 Contact Us For Availability
16
Plate, Control WPL 4173293 Contact Us For Availability
16
Blower WPL 4173004 Contact Us For Availability
16
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
16
Insulation WPL 4163986 Contact Us For Availability
17
Indicator Light (3) (Upper Oven) WPL 4168597 Contact Us For Availability
17
Terminal Block, Power Supply WPL 4168735 Contact Us For Availability
17
Screw WPL 4159201 Contact Us For Availability
17
knob, latch WPL 4163821 Contact Us For Availability
17
Window Package WPL 4164235 Contact Us For Availability
18
Cover, Jack WPL 4167266 Contact Us For Availability
18
Nut WPL 4167277 Contact Us For Availability
18
Indicator Light (4) WPL 4163869 Contact Us For Availability
18
Latch Switch WPL 4164366 Contact Us For Availability
18
Liner, Door WPL 3178760 Contact Us For Availability
19
Conduit, 1/2`` X 56`` WPL 4167614 Contact Us For Availability
20
Screw (4) WPL 4159465 Contact Us For Availability
20
Oven Light Switch WPL 4167332 Contact Us For Availability
20
Nut (2) WPL 4159117 Contact Us For Availability
20
Screw (2) WPL 4173053 Contact Us For Availability
20
Latch Switch WPL 4168517 Contact Us For Availability
20
Bracket, Glass WPL 4163855 Contact Us For Availability
21
Jack, Probe WPL 4163971 Contact Us For Availability
21
Gasket WPL 4163975 Contact Us For Availability
21
Nut (2) WPL 4173084 Contact Us For Availability
21
Washer WPL 4173438 Contact Us For Availability
21
Thermostat, Oven (Lower) WPL 4164362 Contact Us For Availability
21
Glass Panel WPL 4164243 Contact Us For Availability
22
Clip, Bulb (2) WPL 4173275 Contact Us For Availability
22
Thermostat, Oven (Upper) WPL 4164361 Contact Us For Availability
22
Screw, (4) WPL 4168863 Contact Us For Availability
22
Latch Assembly (See Latch Parts Page For Furt WPL ARI83449A9 Contact Us For Availability
22
Air Baffle WPL 4163858 Contact Us For Availability
23
Cabinet Top WPL 4173290 Contact Us For Availability
23
Insulation, Rear WPL 4169311 Contact Us For Availability
24
Rack, Oven WPL 4168400 Contact Us For Availability
25
Panel, Blower Mounting WPL 4173005 Contact Us For Availability
25
Nut WPL 4159109 Contact Us For Availability
25
Ring WPL 4159160 Contact Us For Availability
25
Washer WPL 4159603 Contact Us For Availability
25
Actuator Arm WPL 4168058 Contact Us For Availability
25
Spacer WPL 4168553 Contact Us For Availability
25
Screw WPL 4168554 Contact Us For Availability
25
Rear Anchor (2) WPL 4167526 Contact Us For Availability
26
Indicator, Probe WPL 4163730 Contact Us For Availability
26
Bushing, Flexible WPL 4173165 Contact Us For Availability
26
Bracket, Harness WPL 4173168 Contact Us For Availability
26
Cabinet Side WPL 4173057 Contact Us For Availability
27
Selector Switch Lower Oven WPL 3177173 Contact Us For Availability
27
Switch, Fan WPL 4173008 Contact Us For Availability
28
Rotisserie Rack WPL 4168411 Contact Us For Availability
28
Selector Switch Upper Oven WPL 3177174 Contact Us For Availability
28
Lower Oven WPL 3178619 Contact Us For Availability
28
Upper Oven WPL 3178620 Contact Us For Availability
30
Rotisserie Spear WPL 4168724 Contact Us For Availability
30
Upper Oven Support WPL 4164294 Contact Us For Availability
31
Rotisserie Skewer WPL 4166352 Contact Us For Availability
31
Harness, Wiring Latch Switch (Upper Oven) WPL 3178615 Contact Us For Availability
31
Harness, Wiring Latch Switch (Lower Oven) WPL 3178616 Contact Us For Availability
31
Harness, Wiring Latch Switch (Latch Switch (u WPL 4173051 Contact Us For Availability
31
Breacket, Switch WPL 4173170 Contact Us For Availability
32
Extension, Tube WPL 4168126 Contact Us For Availability
32
Front Frame Support WPL 4168266 Contact Us For Availability
33
Capillary Cover WPL 4168203 Contact Us For Availability
33
Collector Box WPL 4168681 Contact Us For Availability
34
Smoke Eliminator (Vent Tube Lower Oven) WPL 4168491 Contact Us For Availability
34
Smoke Eliminator (Upper Oven) WPL 4168492 Contact Us For Availability
35
Front Frame, Upper Oven WPL 3178722 Contact Us For Availability
37
Probe, Meat WPL 4167267 Contact Us For Availability
37
Oven Liners (Upper Oven) (See Liner Parts Pag WPL ARI83450A3 Contact Us For Availability
38
WPL 799344 WPL 799344 Contact Us For Availability
38
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
38
Paint, Touch-Up 1 Oz. (Oven Liner) (Light Gra WPL 242757 Contact Us For Availability
38
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
38
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
38
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
38
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
38
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
38
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
38
White 14 Ga. 150~c Rating WPL 242826 Contact Us For Availability
38
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
38
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
38
Red 12 Ga. 150~c Rating WPL 242829 Contact Us For Availability
38
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
38
Yellow 12 Ga. 200~c Rating WPL 242832 Contact Us For Availability
38
Blue Gray WPL 242860 Contact Us For Availability
38
G WPL 261582 Contact Us For Availability
38
WPL 261890 WPL 261890 Contact Us For Availability
38
WPL 261891 WPL 261891 Contact Us For Availability
38
WPL 282831 WPL 282831 Contact Us For Availability
38
WPL 285365 WPL 285365 Contact Us For Availability
38
WPL 285366 WPL 285366 Contact Us For Availability
38
WPL 285367 WPL 285367 Contact Us For Availability
38
WPL 285368 WPL 285368 Contact Us For Availability
38
WPL 350806 WPL 350806 Contact Us For Availability
38
WPL 350941 WPL 350941 Contact Us For Availability
38
WPL 4159120 WPL 4159120 Contact Us For Availability
38
WPL 4159122 WPL 4159122 Contact Us For Availability
38
WPL 591014 WPL 591014 Contact Us For Availability
38
WPL 72112 WPL 72112 Contact Us For Availability
38
WPL 786020 WPL 786020 Contact Us For Availability
38
WPL 786032 WPL 786032 Contact Us For Availability
38
WPL 799832 WPL 799832 Contact Us For Availability
38
WPL 832985 WPL 832985 Contact Us For Availability
38
WPL 978849 WPL 978849 Contact Us For Availability
38
WPL 978883 WPL 978883 Contact Us For Availability
38
Control Frame Support WPL 4169335 Contact Us For Availability
40
Compartment Top (Upper Oven) WPL 4169315 Contact Us For Availability
42
Vent Box WPL 4163941 Contact Us For Availability
49
Vent Tube (Upper Oven) WPL 4168494 Contact Us For Availability
50
Cabinet Side (Upper Oven) WPL 4173047 Contact Us For Availability
52
Clamp, Conduit WPL 4167593 Contact Us For Availability
53
Vent Tube Mounting Bracket WPL 4168242 Contact Us For Availability
59
Cabinet Back WPL 4173058 Contact Us For Availability
62
Socket, Lamp WPL 4168755 Contact Us For Availability
63
Light Shield WPL 4167579 Contact Us For Availability
65
Washer (4) WPL 4159501 Contact Us For Availability
65
Rotisserie Motor WPL 4163836 Contact Us For Availability
66
Plate, Mounting Rotisserie Motor WPL 4167469 Contact Us For Availability
67
Vent Tube, Lower Oven WPL 4168592 Contact Us For Availability
68
Vent Tube, Retainer WPL 4168140 Contact Us For Availability
70
WPL 4159470 WPL 4159470 Contact Us For Availability
70
WPL 4163763 WPL 4163763 Contact Us For Availability
70
WPL 4163764 WPL 4163764 Contact Us For Availability
71
WPL 4168590 WPL 4168590 Contact Us For Availability
72
WPL 4167599 WPL 4167599 Contact Us For Availability
74
WPL 4173048 WPL 4173048 Contact Us For Availability
75
WPL 4167596 WPL 4167596 Contact Us For Availability
76
WPL 4159188 WPL 4159188 Contact Us For Availability
76
WPL 4167597 WPL 4167597 Contact Us For Availability
76
WPL 4167598 WPL 4167598 Contact Us For Availability
77
WPL 4163883 WPL 4163883 Contact Us For Availability
79
WPL 4163752 WPL 4163752 Contact Us For Availability
79
WPL 4163753 WPL 4163753 Contact Us For Availability
79
WPL 4163754 WPL 4163754 Contact Us For Availability
79
WPL 4163755 WPL 4163755 Contact Us For Availability
81
WPL 4173016 WPL 4173016 Contact Us For Availability
81
WPL 4173017 WPL 4173017 Contact Us For Availability
82
WPL 4173015 WPL 4173015 Contact Us For Availability
83
WPL 4173171 WPL 4173171 Contact Us For Availability
× ![]()
