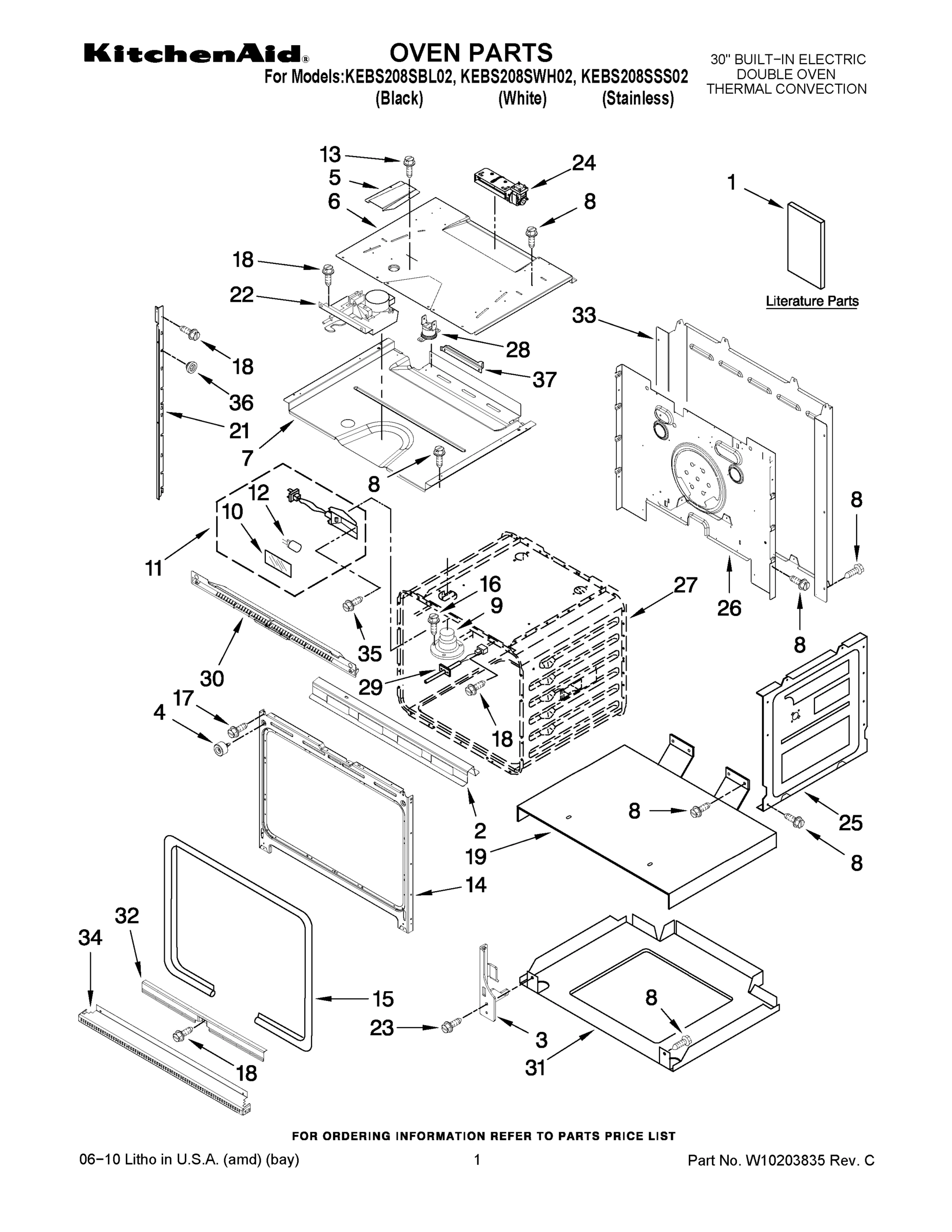

Model Whirlpool KEBS208SWH02 30`` BUILT-IN ELECTRIC DOUBLE OVEN THERMAL CONVECT – Common Parts &amp; Diagrams

1

WP9760774 Whirlpool Oven Broil Element In Stock WPL WP9760774 $108.35

2

Hinge, Door (2) WPL W10174285 Contact Us For Availability

2

Duct, Air Outlet WPL 8304643 Contact Us For Availability

3

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

4

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

4

Vent, Door Top WPL 8304581BL Contact Us For Availability

4

Control Panel, Glass Touch WPL 8303880 Contact Us For Availability

5

8304378 Whirlpool Oven Support Bracket Backorder WPL 8304378 $27.18

5

USER INFERFACE WPL W10312205 Contact Us For Availability

6

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $32.13

6

Tray, Bake WPL 4455037 Contact Us For Availability

6

COVER,HINGE (RIGHT) WPL W10137044 Contact Us For Availability

7

WPW10111628 Whirlpool Transformer In Stock WPL WPW10111628 $105.29

7

Glass, Inner WPL 8303731 Contact Us For Availability

9

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

9

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

9

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

8303962BU Whirlpool Convection Baffle Backorder WPL 8303962BU $124.72

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

W10754409 Whirlpool Seal Backorder WPL W10754409 $27.12

Appliance Manager WPL W10119142 Contact Us For Availability

Screw WPL 3400080 Contact Us For Availability

8303684 Whirlpool Oven Vent Control Backorder WPL 8303684 $29.43

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

Resistor, Drop WPL 8304441 Contact Us For Availability

Bracket, Handle WPL 8304360BL Contact Us For Availability

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

DOOR GLASS, ASSY LOWER INCLUDES No.17 (STAINL WPL 8303991 Contact Us For Availability

Door Glass, Assy Upper No Nameplate (Stainles WPL 8303992 Contact Us For Availability

DOOR GLASS, ASSY LOWER INCLUDES No.17 (BLACK) WPL 8303993 Contact Us For Availability

Door Glass, Assy Upper No Nameplate (Black) WPL 8303994 Contact Us For Availability

DOOR GLASS, ASSY LOWER INCLUDES No.17 (WHITE) WPL 8303995 Contact Us For Availability

Door Glass, Assy Upper No Nameplate (White) WPL 8303996 Contact Us For Availability

Side, Control Top (Right) WPL 8303518 Contact Us For Availability

Side, Control Top (Left) WPL 8304255 Contact Us For Availability

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

DOOR HANDLE (STAINLESS) WPL W10292380 Contact Us For Availability

DOOR HANDLE (BLACK) WPL W10292381 Contact Us For Availability

DOOR HANDLE (WHITE) WPL W10292382 Contact Us For Availability

Back, Control WPL 8303520 Contact Us For Availability

14

Cover, Top WPL 8304219 Contact Us For Availability

15

WP8304493 Whirlpool Door Gasket In Stock WPL WP8304493 $60.13

15

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

15

Frame, Door Side (2) WPL 8303745BL Contact Us For Availability

16

8303746 Whirlpool Bracket Support Backorder WPL 8303746 $27.18

Nameplate (Lower Door) (Stainless) WPL 8304603SS Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Nameplate (Lower Door) (Black) WPL 8304603BL Contact Us For Availability

Nameplate (Lower Door) (White) WPL 8304603WH Contact Us For Availability

18

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

18

Bumper, Glass WPL 8304522 Contact Us For Availability

19

W10754473 Whirlpool Seal Backorder WPL W10754473 $8.80

21

Mounting Rail, Side Right (Black) WPL 8303677BL Contact Us For Availability

21

Mounting Rail, Side Left (Black) WPL 8303678BL Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

24

WP8303972 Whirlpool Blower In Stock WPL WP8303972 $149.43

28

WP8304452 Whirlpool Range Thermal Fuse In Stock WPL WP8304452 $65.32

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Vent, Center WPL 8303685 Contact Us For Availability

35

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10237644 Whirlpool Wire Harness Backorder WPL WPW10237644 $54.26

Harness, Main WPL 8304051 Contact Us For Availability
