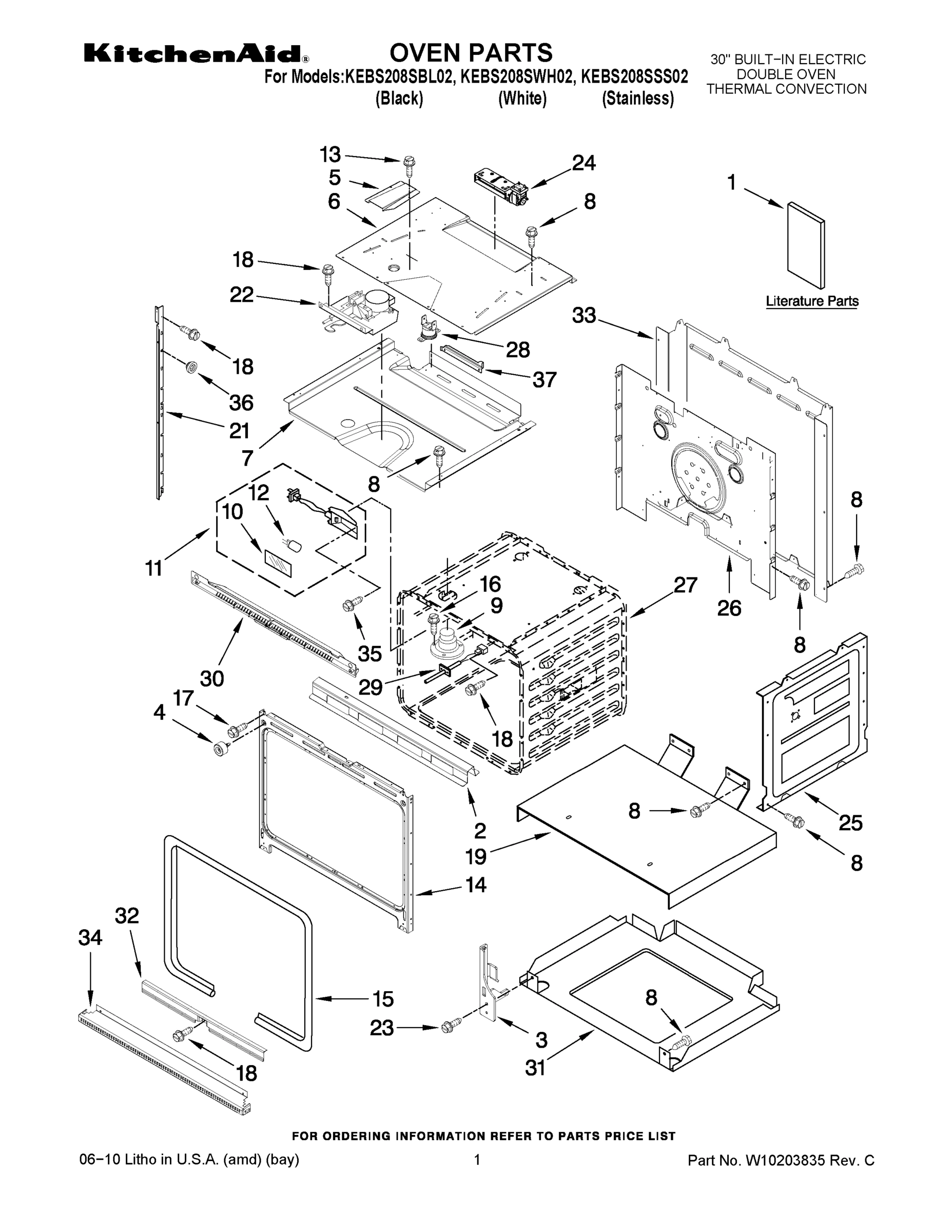

Model Whirlpool KEBS208SSS02 30`` BUILT-IN ELECTRIC DOUBLE OVEN THERMAL CONVECT – Common Parts &amp; Diagrams

1

WP9760774 Whirlpool Oven Broil Element In Stock WPL WP9760774 $111.87

2

Hinge, Door (2) WPL W10174285 Contact Us For Availability

2

Duct, Air Outlet WPL 8304643 Contact Us For Availability

3

WP3196183 Whirlpool Screw Backorder WPL WP3196183 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

4

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

4

Vent, Door Top WPL 8304581BL Contact Us For Availability

4

Control Panel, Glass Touch WPL 8303880 Contact Us For Availability

5

8304378 Whirlpool Oven Support Bracket Backorder WPL 8304378 $28.53

5

USER INFERFACE WPL W10312205 Contact Us For Availability

6

Tray, Bake WPL 4455037 Contact Us For Availability

7

WPW10111628 Whirlpool Transformer In Stock WPL WPW10111628 $112.09

7

Glass, Inner WPL 8303731 Contact Us For Availability

9

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

8303962BU Whirlpool Convection Baffle Backorder WPL 8303962BU $124.72

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $27.80

Appliance Manager WPL W10119142 Contact Us For Availability

Screw WPL 3400080 Contact Us For Availability

11

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $133.70

11

Resistor, Drop WPL 8304441 Contact Us For Availability

12

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $29.12

12

DOOR GLASS, ASSY LOWER INCLUDES No.17 (STAINL WPL 8303991 Contact Us For Availability

12

Door Glass, Assy Upper No Nameplate (Stainles WPL 8303992 Contact Us For Availability

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $58.23

DOOR HANDLE (STAINLESS) WPL W10292380 Contact Us For Availability

DOOR HANDLE (BLACK) WPL W10292381 Contact Us For Availability

15

WP8304493 Whirlpool Door Gasket In Stock WPL WP8304493 $63.13

15

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

16

Door, Top Bracket WPL 8303746 Contact Us For Availability

17

Nameplate (Lower Door) (Stainless) WPL 8304603SS Contact Us For Availability

17

Screw WPL 4449040 Contact Us For Availability

18

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

18

Bumper, Glass WPL 8304522 Contact Us For Availability

21

Mounting Rail, Side Right (Black) WPL 8303677BL Contact Us For Availability

21

Mounting Rail, Side Left (Black) WPL 8303678BL Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

24

WP8303972 Whirlpool Blower In Stock WPL WP8303972 $163.10

26

Back, Chassis WPL 8304303 Contact Us For Availability

27

LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability

28

WP8304452 Whirlpool Range Thermal Fuse In Stock WPL WP8304452 $68.58

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Vent, Center WPL 8303685 Contact Us For Availability

31

Base, Chassis WPL 8303516 Contact Us For Availability

32

Retainer, Gasket WPL 8304478 Contact Us For Availability

33

Cover, Back WPL 8303517 Contact Us For Availability

34

Trim, Bottom Vent (Black) WPL 8303705BL Contact Us For Availability

34

Trim, Bottom Vent (White) WPL 8303705WH Contact Us For Availability

34

Trim, Bottom Vent (Stainless) WPL W10165443 Contact Us For Availability

35

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

36

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

37

BRACKET, THERMOSTAT WPL W10169348 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

W10231531 Whirlpool Wire Harness Backorder WPL W10231531 $67.77

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10237644 Whirlpool Wire Harness Backorder WPL WPW10237644 $56.35

Harness, Main WPL 8304051 Contact Us For Availability

Insulation, Wrap WPL 8303965 Contact Us For Availability

Insulation, Back WPL 8303967 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

Conduit, Double WPL 8304439 Contact Us For Availability

Harness, GOC WPL W10171560 Contact Us For Availability
