Model Whirlpool KEBS207YBL2 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams
06 - UPPER AND LOWER OVEN DOOR
01 - CONTROL PANEL, LITERATURE

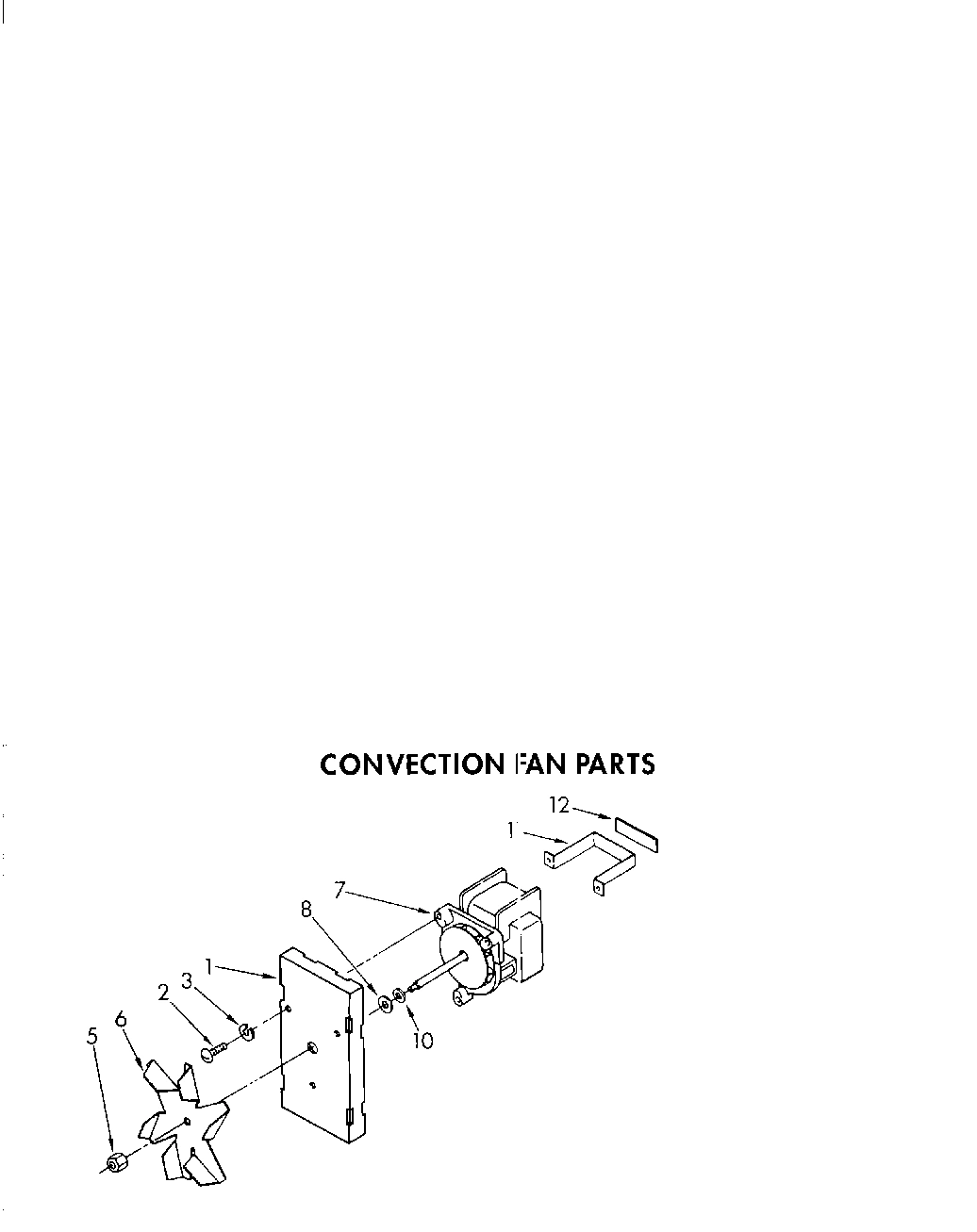

04 - CONVECTION FAN

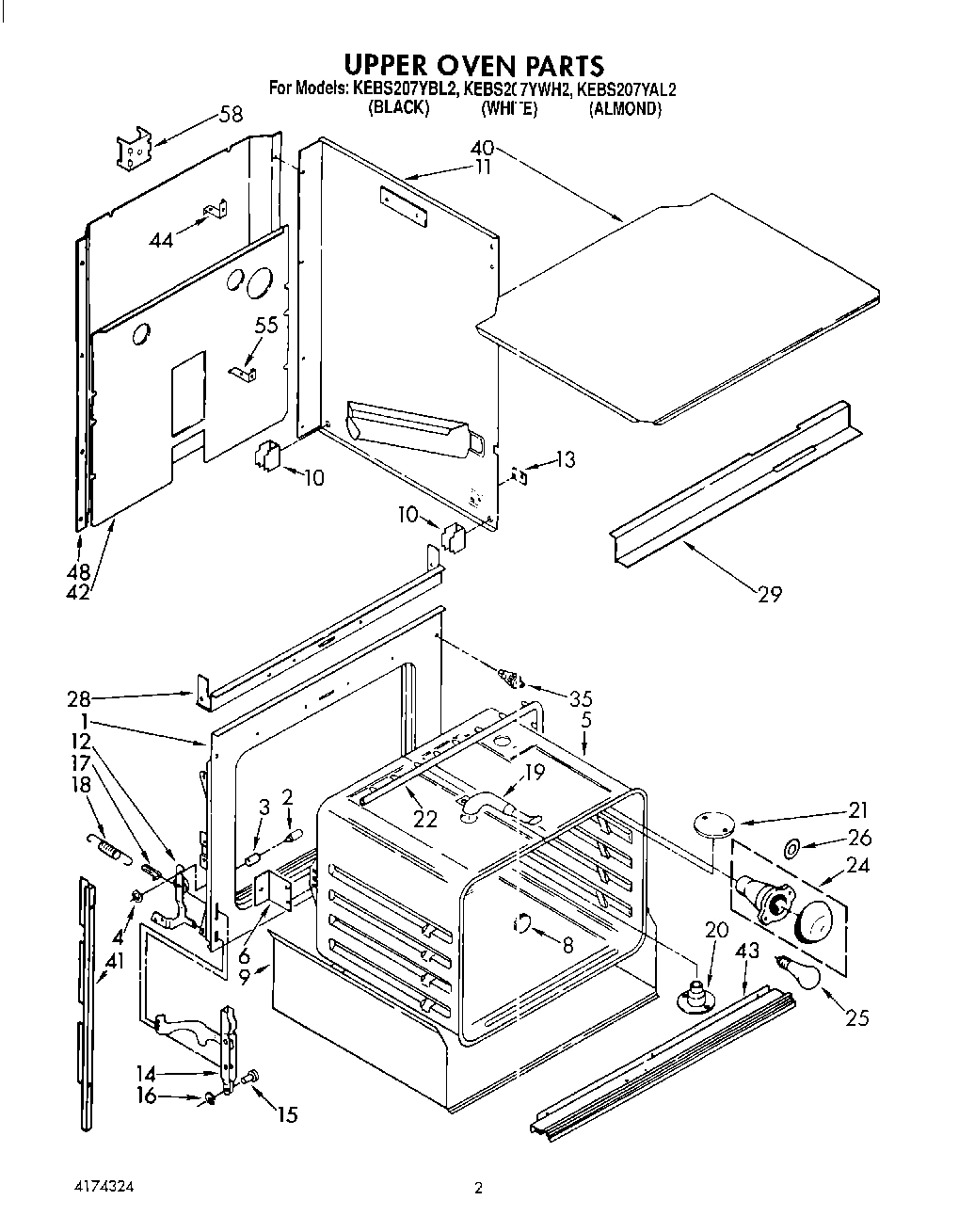

02 - UPPER OVEN

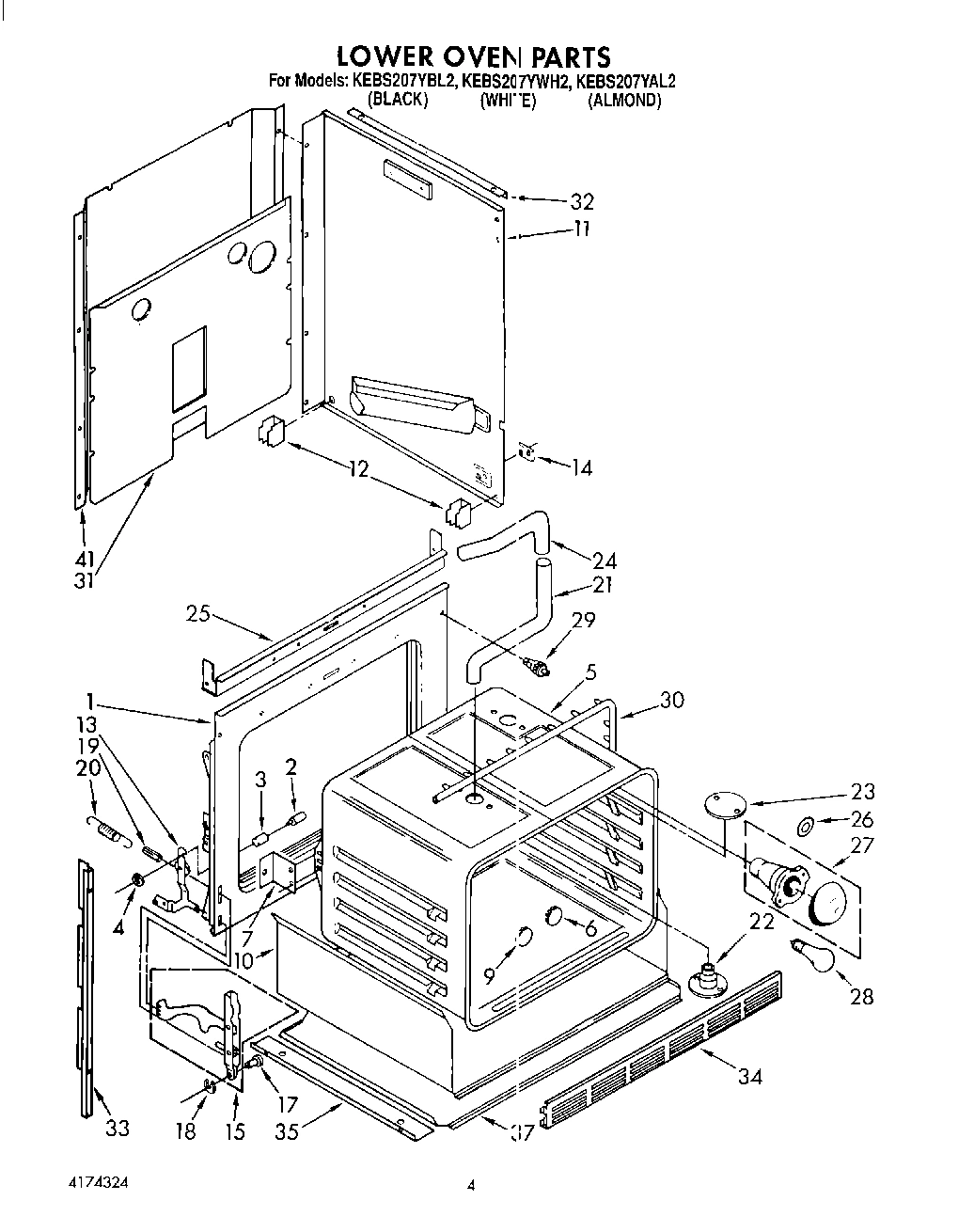

03 - LOWER OVEN

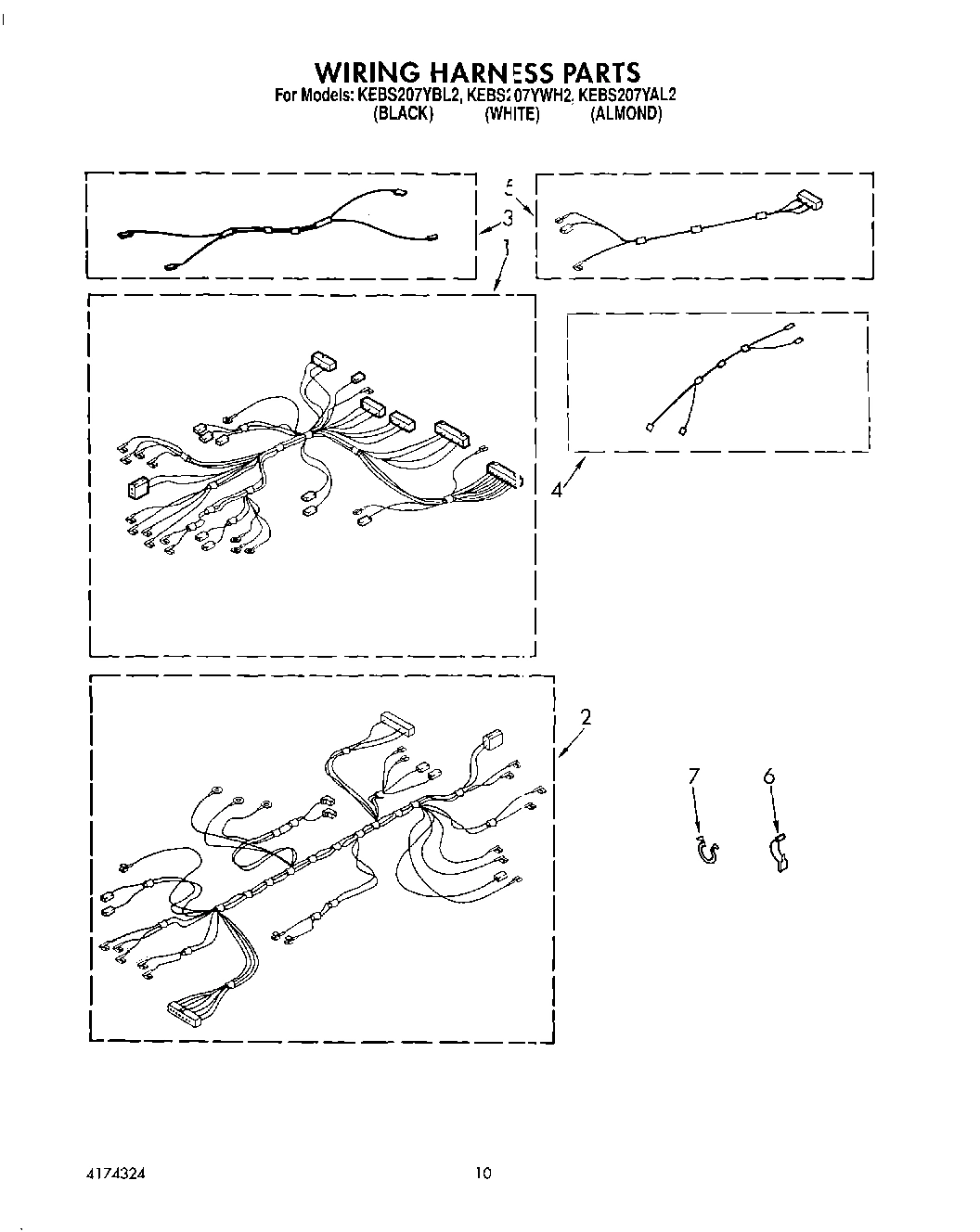

08 - WIRING HARNESS

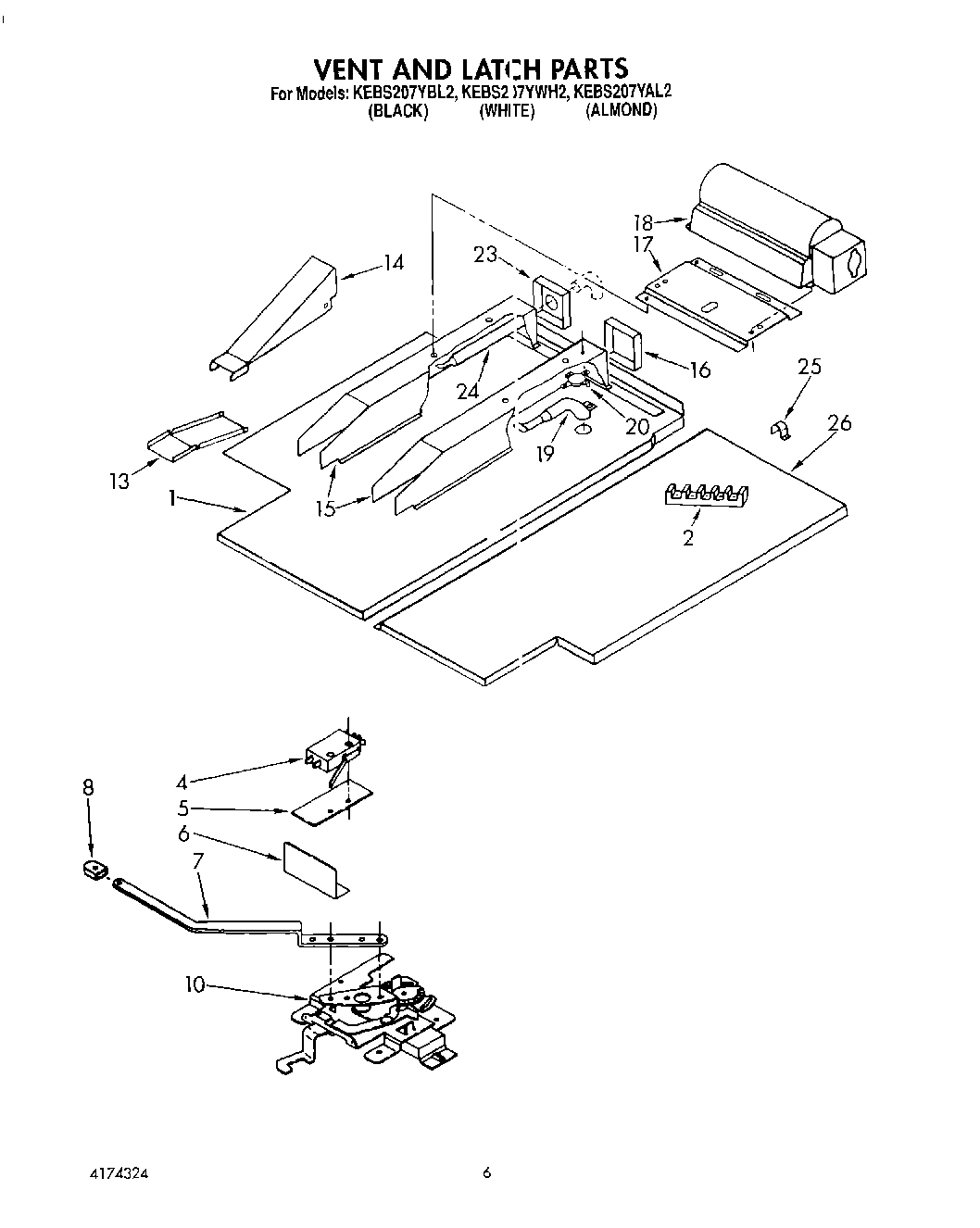

05 - VENT AND LATCH

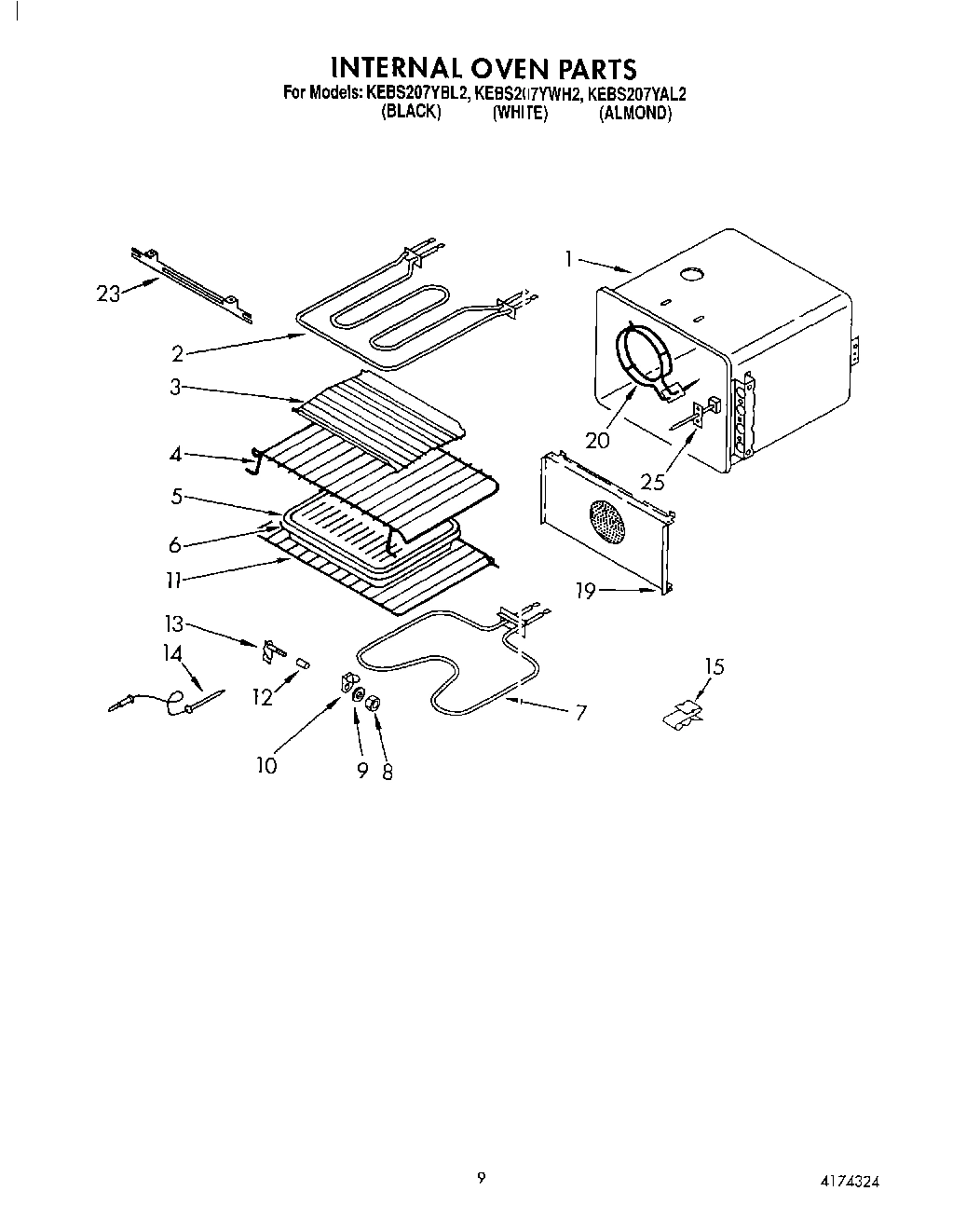

07 - INTERNAL OVEN
Common parts from model Whirlpool KEBS207YBL2 BUILT-IN ELECTRIC DOUBLE OVEN
Cookbook WPL LIT3150693 Contact Us For Availability
Tech Sheet WPL LIT3182131 Contact Us For Availability
Installation Instructions WPL LIT3182137 Contact Us For Availability
Guide-Quickset WPL LIT3183739 Contact Us For Availability
Guide, Auto Set WPL LIT3183987 Contact Us For Availability
Use & Care Guide WPL LIT3185643 Contact Us For Availability
1
Membrane, Switch (Black) WPL 3183529 Contact Us For Availability
1
Membrane, Switch (White) WPL 3183530 Contact Us For Availability
1
Membrane, Switch (Almond) WPL 3183531 Contact Us For Availability
1
Mounting Plate WPL 3182045 Contact Us For Availability
1
Frame, Front WPL 3176719 Contact Us For Availability
1
Liner, Oven (Convection) WPL 3182031 Contact Us For Availability
1
Liner, Oven (Self Clean) WPL 3182032 Contact Us For Availability
1
Wire Harness Upper Oven WPL 3183985 Contact Us For Availability
1
Baffle, Vent Mtg. WPL 3183948 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3181889 Contact Us For Availability
2
Screw (3) WPL 4173193 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Wire Harness Lower Oven WPL 3184033 Contact Us For Availability
2
Screw WPL 308043 Contact Us For Availability
2
Element, Broil WPL 3182451 Contact Us For Availability
3
Microcomputer WPL 3181705 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Wire Harness Lower Oven Light WPL 3183751 Contact Us For Availability
3
Rack, Roaster WPL 3181534 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Harness, Wire (Switch) WPL 3185920 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw WPL 98106 Contact Us For Availability
4
Rack, Offset WPL 3181639 Contact Us For Availability
5
Seal, Door WPL 3148183 Contact Us For Availability
5
Clip, Retainer WPL 3182985 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
5
Screw (3) WPL 311056 Contact Us For Availability
5
Harness, Wire Lower Latch WPL 3183361 Contact Us For Availability
5
Insulator, Switch WPL 309245 Contact Us For Availability
6
Trim, Door WPL 3182162 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Button, Plug WPL 3185086 Contact Us For Availability
6
Screw (2) WPL 309258 Contact Us For Availability
6
Shield, Terminal WPL 313035 Contact Us For Availability
7
Door, Latch Handle (Black) WPL 3182152 Contact Us For Availability
7
Door, Latch Handle (White) WPL 3182155 Contact Us For Availability
7
Door, Latch handle (Almond) WPL 3182158 Contact Us For Availability
7
Motor WPL 3183220 Contact Us For Availability
7
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
7
Handle, Latch (Screw (2)) WPL 308422 Contact Us For Availability
7
Handle, Latch (Lower Oven) WPL 3183637 Contact Us For Availability
7
Handle, Latch (Upper Oven) WPL 3184002 Contact Us For Availability
8
Trim, Panel WPL 3183703 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch WPL 3184039 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
9
Screw WPL 3182939 Contact Us For Availability
9
Bracket WPL 3185424 Contact Us For Availability
9
Button, Plug WPL 3182814 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
10
Frame, Control Panel WPL 3182149 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Insulation Tray WPL 3185944 Contact Us For Availability
10
Latch Assembly WPL 3183800 Contact Us For Availability
10
Probe Cover WPL 4167266 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
11
Bracket, Guard WPL 3181750 Contact Us For Availability
11
Side Wrapper (R.H.) WPL 311005 Contact Us For Availability
11
Side Wrapper (L.H.) WPL 311008 Contact Us For Availability
11
Side Wrapper (Right Side) WPL 311007 Contact Us For Availability
11
Side Wrapper (Left Side) WPL 311010 Contact Us For Availability
11
Rack, Straight Oven WPL 3181638 Contact Us For Availability
12
Gasket, Foam WPL 3179790 Contact Us For Availability
12
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
12
Spacer - Tubing WPL 3179672 Contact Us For Availability
13
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
13
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
13
Nozzle, Vent Bottom WPL 3183954 Contact Us For Availability
13
Receptacle, Probe WPL 3150107 Contact Us For Availability
14
Channel Arm (2) WPL 3185664 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
14
Nozzle, Vent Top WPL 3183955 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Box, Vent WPL 3184078 Contact Us For Availability
15
Screw WPL 4173231 Contact Us For Availability
15
Clip, Tubing WPL 313570 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Retainer, Ring WPL 307594 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
19
Screw WPL 3179117 Contact Us For Availability
19
Tube, Vent WPL 3183792 Contact Us For Availability
19
Cover, Fan WPL 3181724 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
20
Element, Convection WPL 3183003 Contact Us For Availability
21
Tube, Vent (Lower) WPL 3182159 Contact Us For Availability
22
Eliminator, Smoke WPL 310839 Contact Us For Availability
23
Plate, Cover WPL 310662 Contact Us For Availability
23
Screw WPL 3150532 Contact Us For Availability
23
End, Vent Box Lower Oven WPL 3183965 Contact Us For Availability
23
Bracket, Element WPL 3180694 Contact Us For Availability
24
Tube, Vent (Upper) WPL 3182161 Contact Us For Availability
24
Tube, Vent Lower Oven WPL 3183793 Contact Us For Availability
25
Screw WPL 3148443 Contact Us For Availability
25
Baffle, Top WPL 3183796 Contact Us For Availability
25
Clamp, Tube WPL 3183532 Contact Us For Availability
25
Sensor, Heat WPL 3148440 Contact Us For Availability
26
Extension, Baffle WPL 3183949 Contact Us For Availability
29
screw WPL 312713 Contact Us For Availability
29
Screw WPL 3179847 Contact Us For Availability
29
Bracket, Mounting Control Frame WPL 3182585 Contact Us For Availability
30
Seal, Door WPL 3185197 Contact Us For Availability
31
Panel, Back WPL 3182052 Contact Us For Availability
32
Support Angle (2) WPL 255095 Contact Us For Availability
33
Side Trim (Left Side) WPL 310685 Contact Us For Availability
33
Side Trim (Right Side) WPL 310689 Contact Us For Availability
34
Grill, Bottom (Screw, 8-15 x 1/2 Black (3)) WPL 309029 Contact Us For Availability
34
Grill, Bottom (Black) WPL 3150349 Contact Us For Availability
34
Grill, Bottom (White) WPL 3150350 Contact Us For Availability
34
Grill, Bottom (Almond) WPL 3150351 Contact Us For Availability
35
Switch, Door WPL 310345 Contact Us For Availability
35
Angle, Support (2) WPL 311592 Contact Us For Availability
37
Cover, Bottom WPL 3185945 Contact Us For Availability
40
Cover, Top WPL 3184099 Contact Us For Availability
41
Side Trim (Left Side) WPL 310686 Contact Us For Availability
41
Side Trim (Right Side) WPL 310690 Contact Us For Availability
41
Insulation, Wrap WPL 310433 Contact Us For Availability
41
Insulation, Oven WPL 310435 Contact Us For Availability
41
Cover, Rear WPL 311013 Contact Us For Availability
43
Trim, Center vent (Screw (3)) WPL 309133 Contact Us For Availability
43
Trim, Center vent (Black) WPL 3183633 Contact Us For Availability
43
Trim, Center vent (Aluminum) WPL 3183644 Contact Us For Availability
44
Stand Off WPL 311582 Contact Us For Availability
48
Cover, Rear WPL 311011 Contact Us For Availability
55
Bracket Stand Off WPL 309102 Contact Us For Availability
58
Insulation, Top WPL 3149328 Contact Us For Availability
58
Bracket, Motor WPL 3182042 Contact Us For Availability
× ![]()
