Model Whirlpool KEBS207BWH1 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams
03 - LATCH AND VENT
08 - WIRING HARNESS

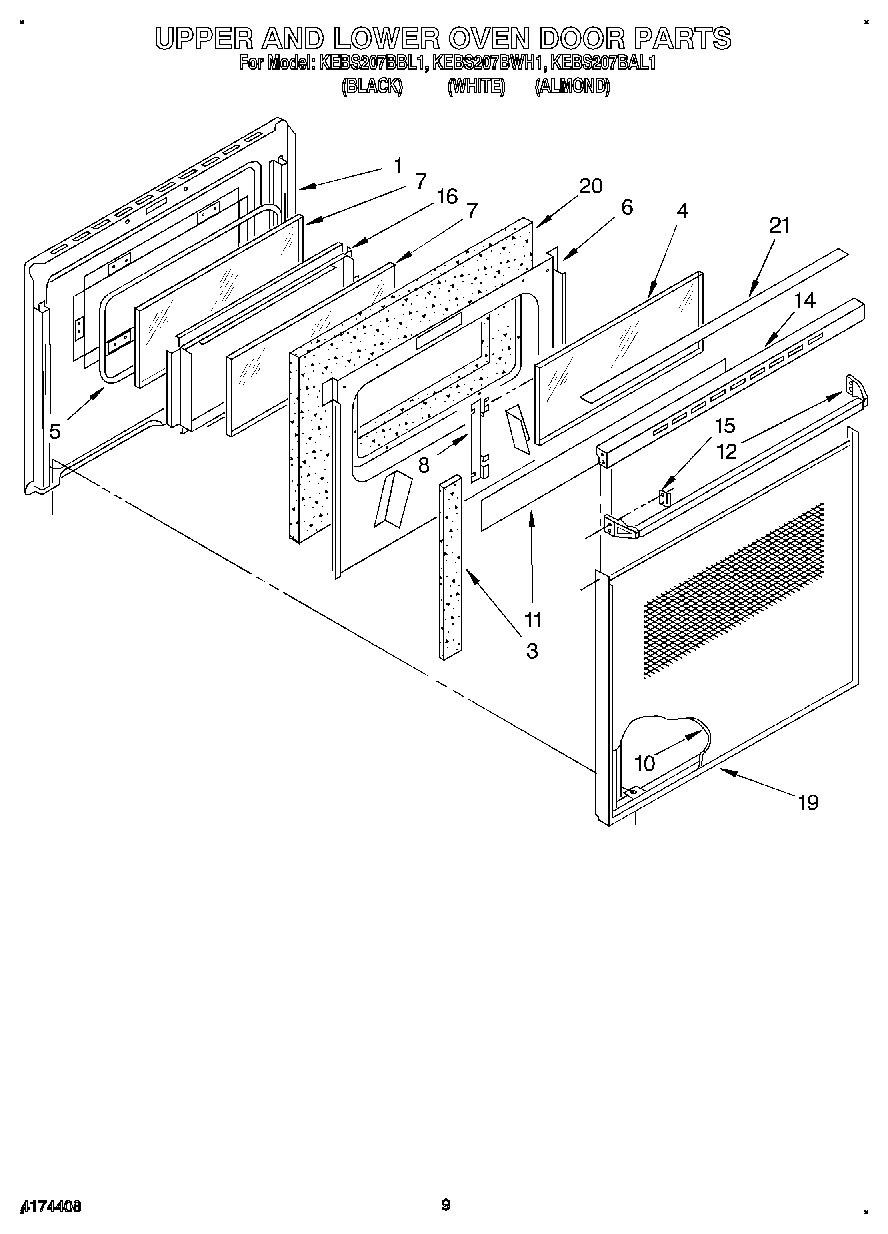

06 - UPPER AND LOWER OVEN DOOR

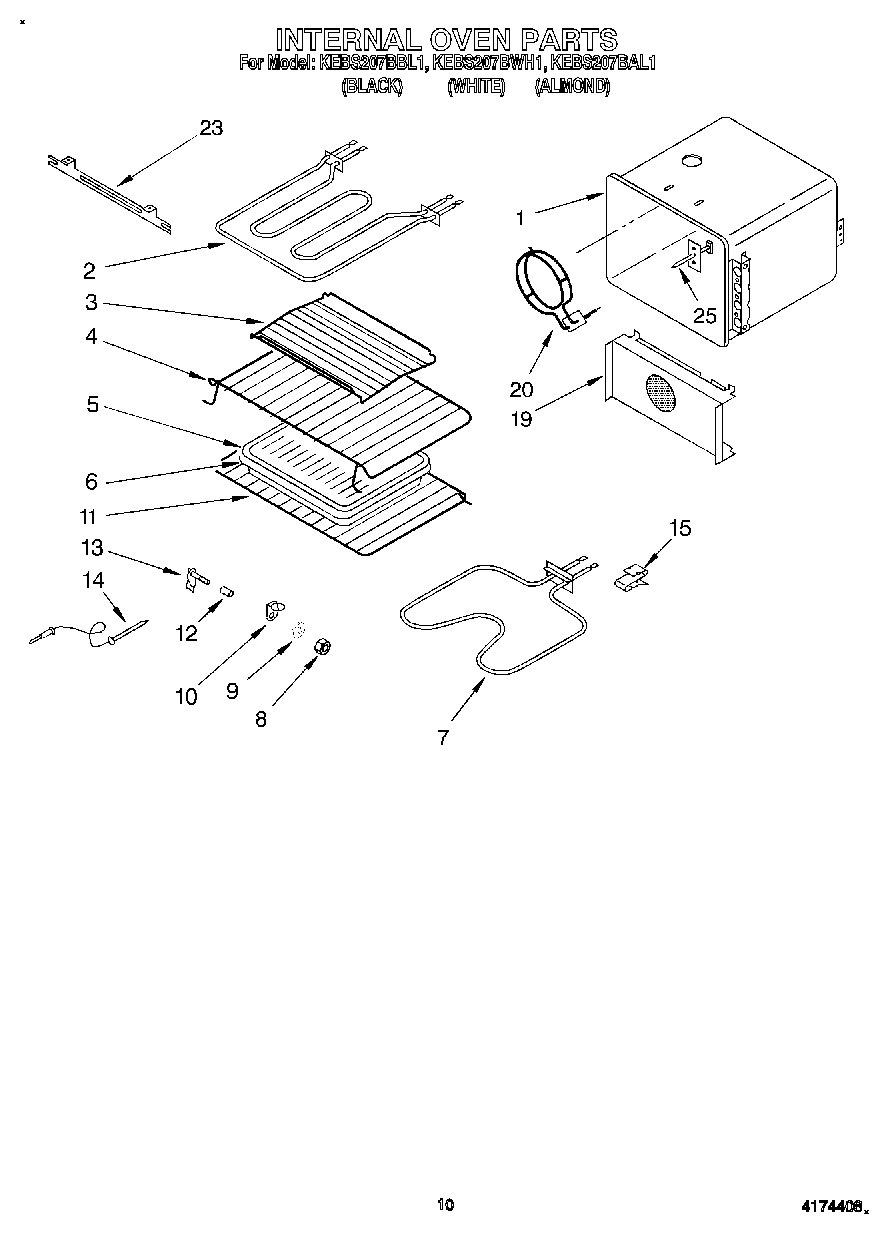

07 - INTERNAL OVEN

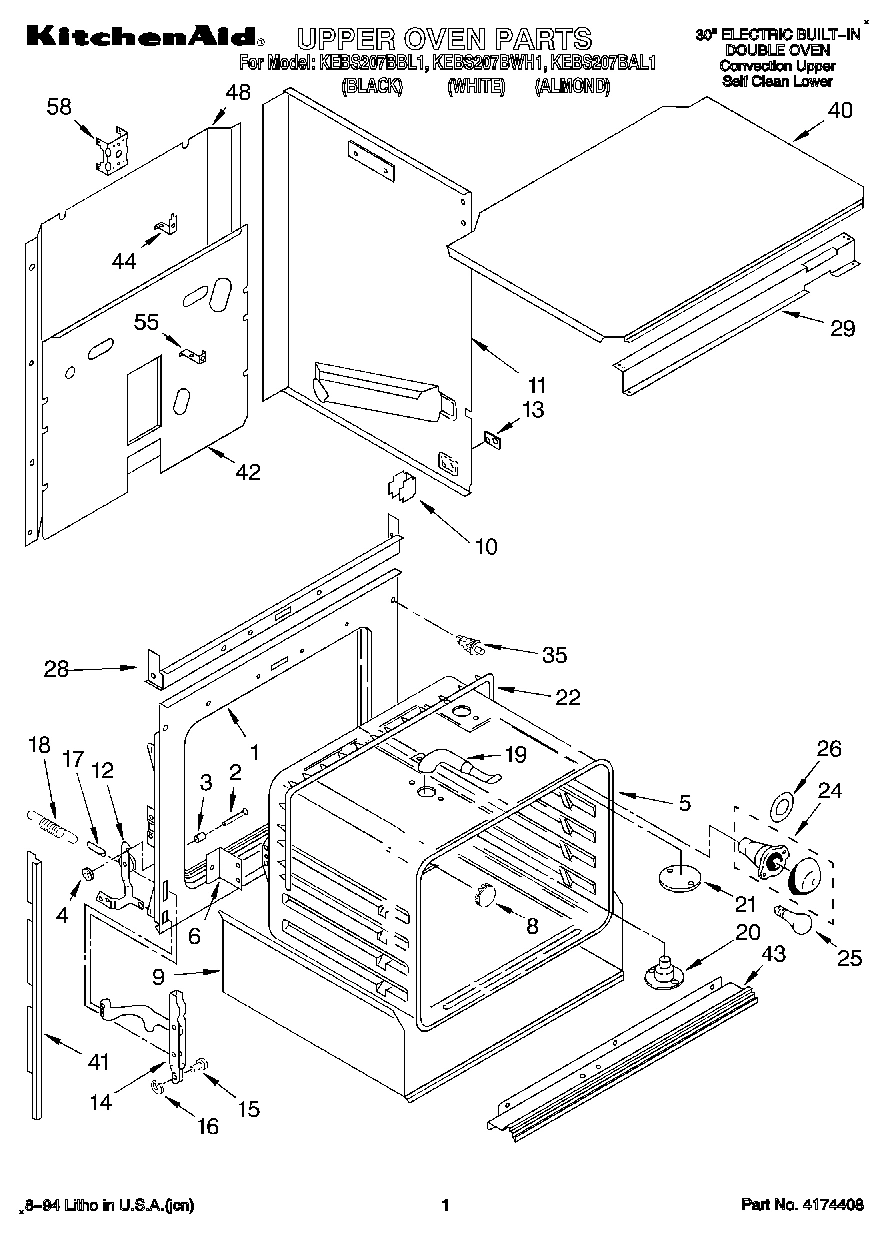

01 - UPPER OVEN

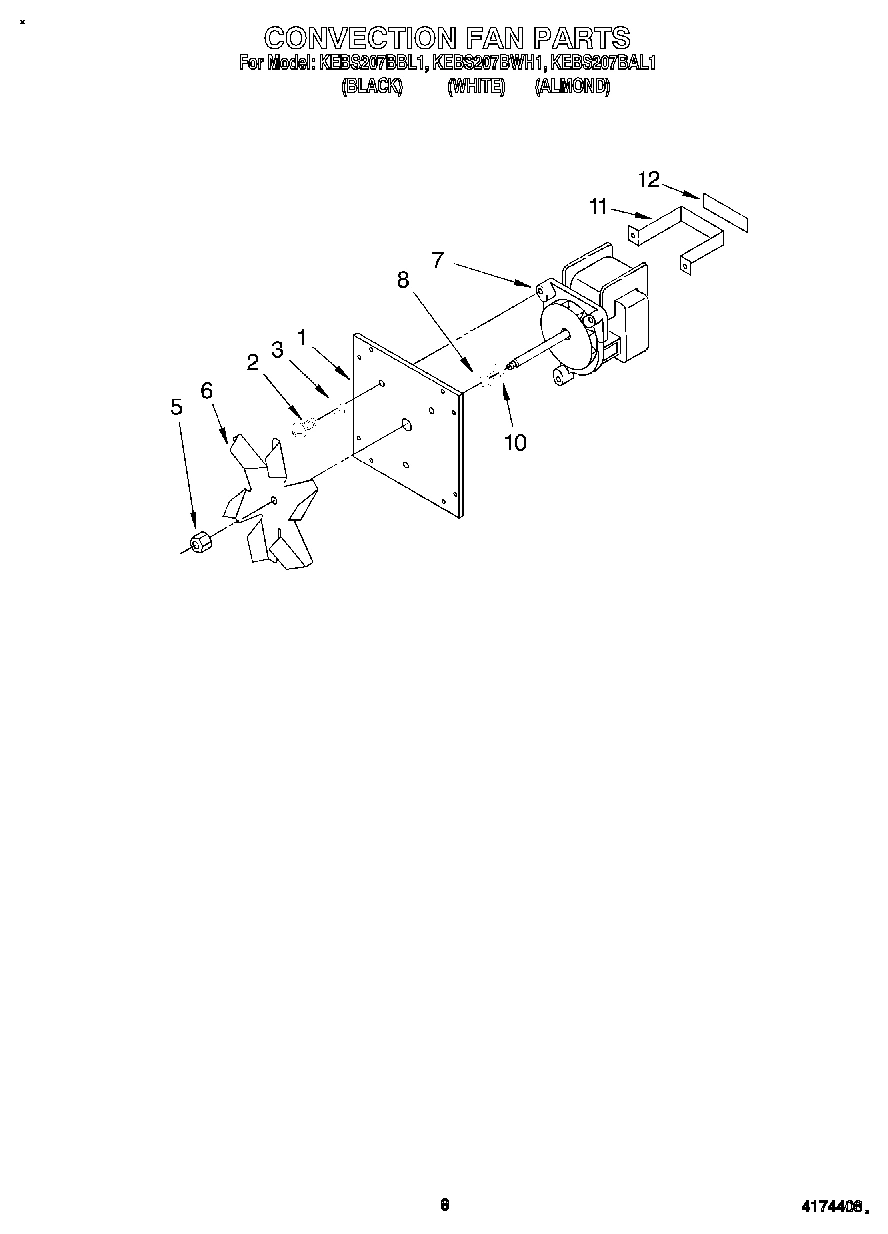

05 - CONVECTION FAN

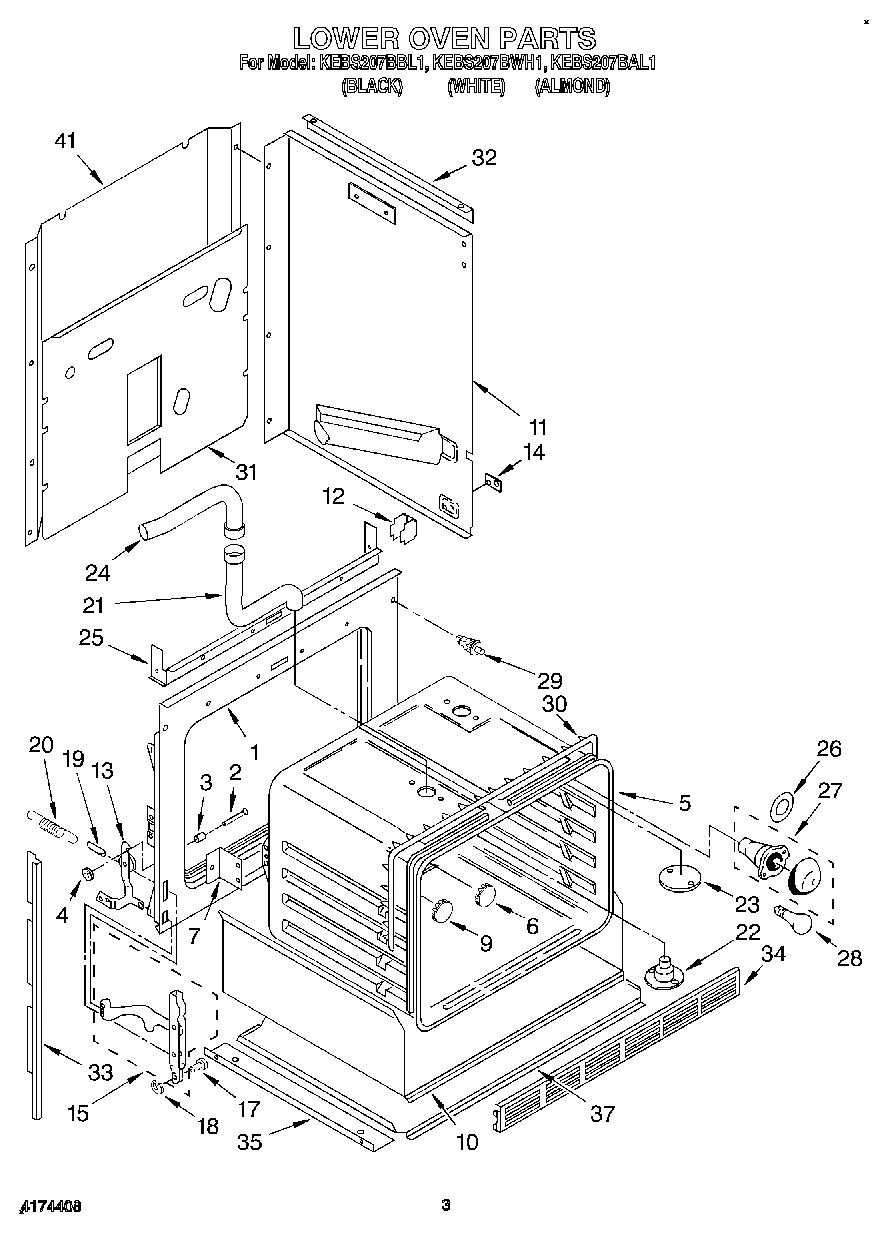

02 - LOWER OVEN

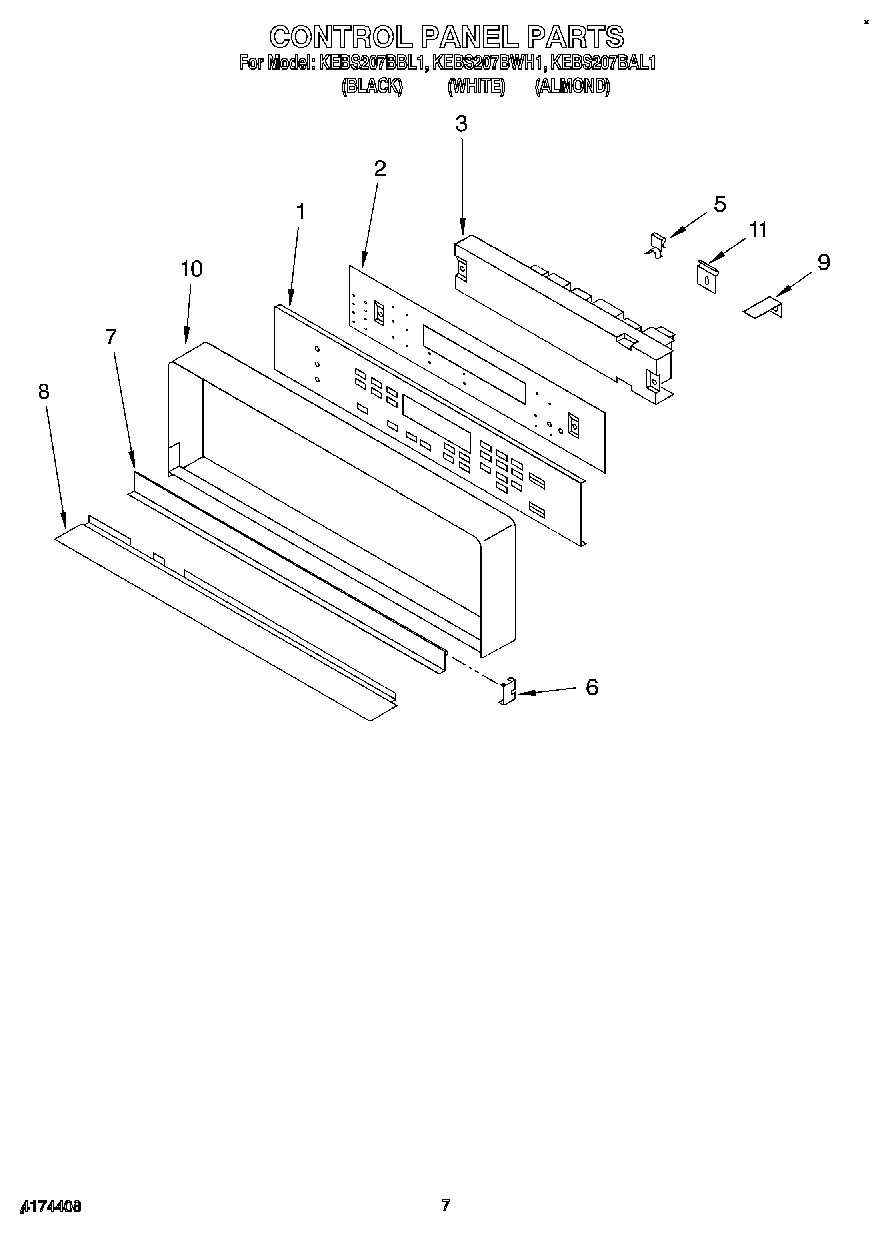

04 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool KEBS207BWH1 BUILT-IN ELECTRIC DOUBLE OVEN
Cookbook WPL LIT3150693 Contact Us For Availability
Installation Instructions WPL LIT3182137 Contact Us For Availability
Guide-Quickset WPL LIT3183739 Contact Us For Availability
Guide, Auto Set WPL LIT3183987 Contact Us For Availability
Tech Sheet WPL LIT3185962 Contact Us For Availability
Use & Care Guide WPL LIT3188199 Contact Us For Availability
1
Wire Harness Upper Oven WPL 3185942 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Frame Front WPL 3186975 Contact Us For Availability
1
Mounting Plate WPL 3182045 Contact Us For Availability
1
Membrane, Switch (Black) WPL 3183529 Contact Us For Availability
1
Membrane, Switch (White) WPL 3183530 Contact Us For Availability
1
Membrane, Switch (Almond) WPL 3183531 Contact Us For Availability
2
Wire Harness Lower Oven WPL 3185943 Contact Us For Availability
2
Element, Broil WPL 3182451 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Screw (3) WPL 4173193 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3181889 Contact Us For Availability
3
Wire Harness Lower Oven Light WPL 3183751 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Rack, Roaster WPL 3181534 Contact Us For Availability
3
Screw WPL 3179117 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
3
Microcomputer WPL 3181705 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Rack, Offset WPL 3181639 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
5
Seal, Door WPL 3148183 Contact Us For Availability
5
Harness, Wire Lower Latch WPL 3183361 Contact Us For Availability
5
Oven 30`` WPL 3182031 Contact Us For Availability
5
Oven 30`` WPL 3182032 Contact Us For Availability
5
Screw (3) WPL 311056 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
5
Clip, Retainer WPL 3182985 Contact Us For Availability
6
Retainer, WPL 3148159 Contact Us For Availability
6
Screw WPL 4173601 Contact Us For Availability
6
Button, Plug WPL 3185086 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Trim, Door WPL 3182162 Contact Us For Availability
7
Screw, WPL 254225 Contact Us For Availability
7
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
7
Motor WPL 3183220 Contact Us For Availability
7
Door, Latch Handle (Black) WPL 3182152 Contact Us For Availability
7
Door, Latch Handle (White) WPL 3182155 Contact Us For Availability
7
Door, Latch handle (Almond) WPL 3182158 Contact Us For Availability
8
Retainer, Glass (2) WPL 3188553 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Screw WPL 3148443 Contact Us For Availability
8
Trim, Panel WPL 3183703 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
9
Button, Plug WPL 3182814 Contact Us For Availability
9
Screw WPL 3182939 Contact Us For Availability
9
Bracket WPL 3185424 Contact Us For Availability
10
Glass, Panel (White Model) WPL 3188050 Contact Us For Availability
10
Glass, Panel (Almond Model) WPL 3188051 Contact Us For Availability
10
Glass, Panel (Black Model) WPL 3188052 Contact Us For Availability
10
Probe Cover WPL 4167266 Contact Us For Availability
10
Insulation Tray WPL 3185944 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Frame, Control Panel (Black Model) WPL 3187948 Contact Us For Availability
10
Frame, Control Panel (White Model) WPL 3187949 Contact Us For Availability
10
Frame, Control Panel (Almond Model) WPL 3187950 Contact Us For Availability
11
Foil, Door WPL 3188706 Contact Us For Availability
11
Rack, Straight Oven WPL 3181638 Contact Us For Availability
11
Side Wrapper (R.H.) WPL 3185953 Contact Us For Availability
11
Side Wrapper (L.H.) WPL 3185956 Contact Us For Availability
11
Bracket, Guard WPL 3181750 Contact Us For Availability
11
Side Wrapper (Right Side) WPL 3185955 Contact Us For Availability
11
Side Wrapper (Left Side) WPL 3185958 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
12
Handle, Door (Screw (4)) WPL 3149253 Contact Us For Availability
12
Handle, Door (Black) WPL 3186524 Contact Us For Availability
12
Handle, Door (White) WPL 3186525 Contact Us For Availability
12
Handle, Door (Almond) WPL 3186526 Contact Us For Availability
12
Spacer - Tubing WPL 3179672 Contact Us For Availability
12
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
12
Gasket, Foam WPL 3179790 Contact Us For Availability
13
Receptacle, Probe WPL 3150107 Contact Us For Availability
13
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
13
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Top, Door (Black Model) WPL 3148223 Contact Us For Availability
14
Top, Door (White/Almond Model) WPL 3149355 Contact Us For Availability
14
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
15
Channel Arm (2) WPL 3185664 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Screw WPL 3185918 Contact Us For Availability
15
Clip, Tubing WPL 313570 Contact Us For Availability
16
Screw (6) WPL 3185647 Contact Us For Availability
16
Frame, Inner WPL 3148234 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
18
Retainer, Ring WPL 307594 Contact Us For Availability
19
Tube, Vent WPL 3183792 Contact Us For Availability
19
Frame, Panel (Black Model) WPL 3171530 Contact Us For Availability
19
Frame, Panel (White Model) WPL 3187920 Contact Us For Availability
19
Frame, Panel (Almond Model) WPL 3187921 Contact Us For Availability
19
Cover, Fan WPL 3181724 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
20
Insulation, Door WPL 3147951 Contact Us For Availability
20
Element, Convection WPL 661460 Contact Us For Availability
21
Cap, Top (Black Model) WPL 3181366 Contact Us For Availability
21
Cap, Top (White Model) WPL 3181367 Contact Us For Availability
21
Cap, Top (Almond Model) WPL 3188375 Contact Us For Availability
21
Tube, Vent (Lower) WPL 3182159 Contact Us For Availability
22
Eliminator, Smoke WPL 310839 Contact Us For Availability
23
End, Vent Box Lower Oven WPL 3183965 Contact Us For Availability
23
Bracket, Element WPL 3180694 Contact Us For Availability
23
Plate, Cover WPL 310662 Contact Us For Availability
24
Tube, Vent Lower Oven WPL 3183793 Contact Us For Availability
24
Tube, Vent (Upper) WPL 3182161 Contact Us For Availability
25
Clamp, Tube WPL 3183532 Contact Us For Availability
25
Sensor, Heat WPL 3148440 Contact Us For Availability
25
Baffle, Top WPL 3183796 Contact Us For Availability
26
Extension, Baffle WPL 3183949 Contact Us For Availability
26
Screw (4) WPL 3150532 Contact Us For Availability
29
Switch, Door WPL 310345 Contact Us For Availability
29
screw WPL 312713 Contact Us For Availability
29
Screw WPL 3179847 Contact Us For Availability
29
Bracket, Mounting Control Frame WPL 3182585 Contact Us For Availability
30
Seal, Door WPL 3185197 Contact Us For Availability
31
Panel, Back WPL 3182052 Contact Us For Availability
32
Support Angle (2) WPL 255095 Contact Us For Availability
33
Side Trim (Black Model, R.H.) WPL 3187905 Contact Us For Availability
33
Side Trim (White Model, R.H.) WPL 3187906 Contact Us For Availability
33
Side Trim (Almond Model, RH) WPL 3187907 Contact Us For Availability
33
Side Trim (Black Model, L.H.) WPL 3187911 Contact Us For Availability
33
Side Trim (White Model, LH) WPL 3187912 Contact Us For Availability
33
Side Trim (Almond Model, LH) WPL 3187913 Contact Us For Availability
34
Grill, Bottom (Screw, 8-15 x 1/2 Black (3)) WPL 309029 Contact Us For Availability
34
Grill, Bottom (Black) WPL 3150349 Contact Us For Availability
34
Grill, Bottom (White) WPL 3150350 Contact Us For Availability
34
Grill, Bottom (Almond) WPL 3150351 Contact Us For Availability
35
Angle, Support (2) WPL 311592 Contact Us For Availability
37
Cover, Bottom WPL 3185945 Contact Us For Availability
40
Cover, Top WPL 3184099 Contact Us For Availability
41
Side Trim (Black Model, R.H.) WPL 3187902 Contact Us For Availability
41
Side Trim (White Model, RH) WPL 3187903 Contact Us For Availability
41
Side Trim (Almond Model, RH) WPL 3187904 Contact Us For Availability
41
Side Trim (Black Model, L.H.) WPL 3187908 Contact Us For Availability
41
Side Trim (White Model, LH) WPL 3187909 Contact Us For Availability
41
Side Trim (Almond Model, LH) WPL 3187910 Contact Us For Availability
41
WPL 3185961 WPL 3185961 Contact Us For Availability
41
Insulation, W WPL 310433 Contact Us For Availability
41
WPL 310435 WPL 310435 Contact Us For Availability
43
Trim, Center vent (Screw (3)) WPL 309133 Contact Us For Availability
43
Trim, Center vent (Black Model) WPL 3188144 Contact Us For Availability
43
Trim, Center vent (White Model) WPL 3188145 Contact Us For Availability
43
Trim, Center vent (Almond Model) WPL 3188146 Contact Us For Availability
44
Stand Off WPL 311582 Contact Us For Availability
55
Bracket WPL 309102 Contact Us For Availability
58
WPL 3149328 WPL 3149328 Contact Us For Availability
58
WPL 3182042 WPL 3182042 Contact Us For Availability
× ![]()
