Model Whirlpool KEBS177WWH1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
02 - CONTROL PANEL, LIT/OPTIONAL
04 - COMPONENT SHELF AND LATCH

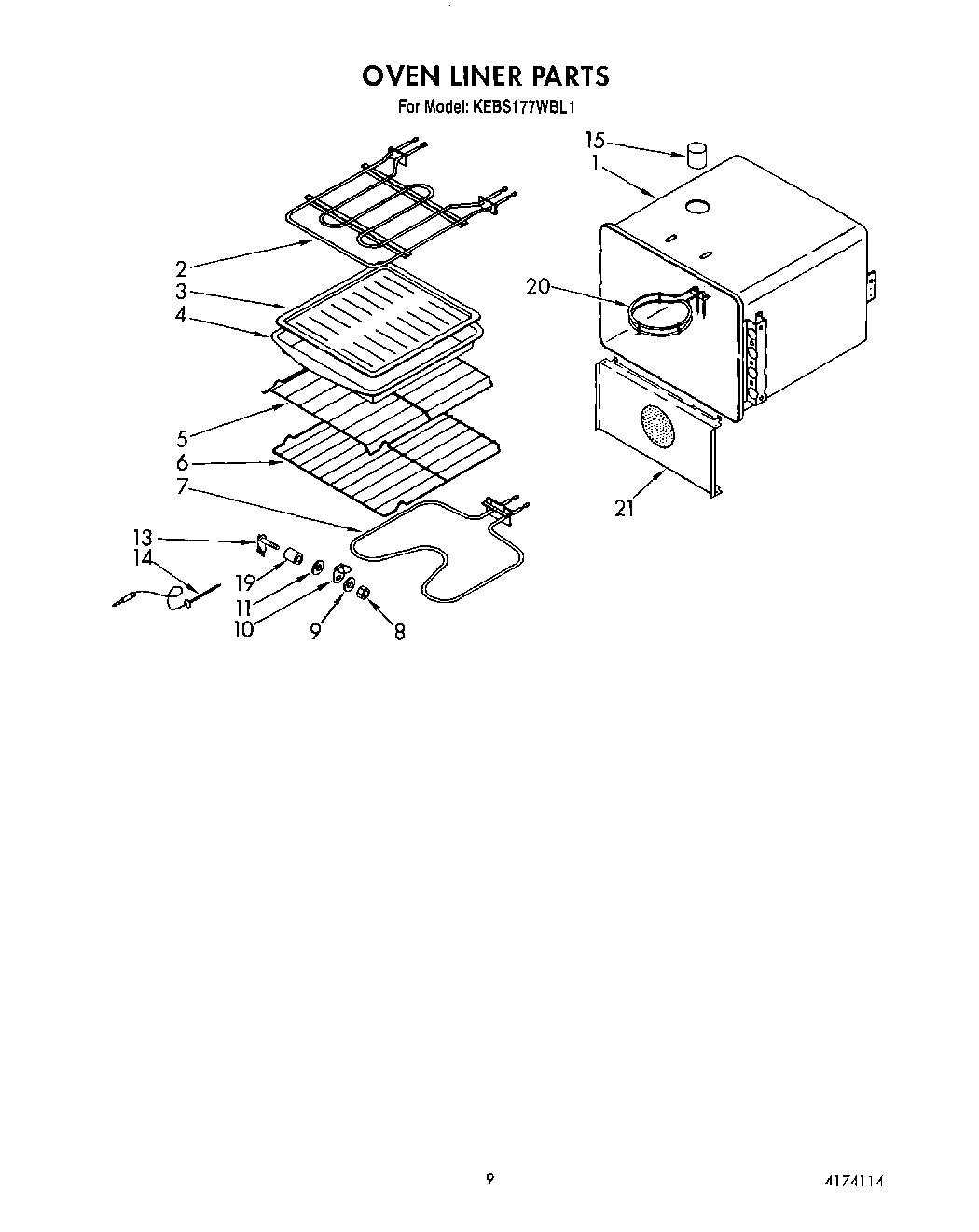

06 - OVEN LINER

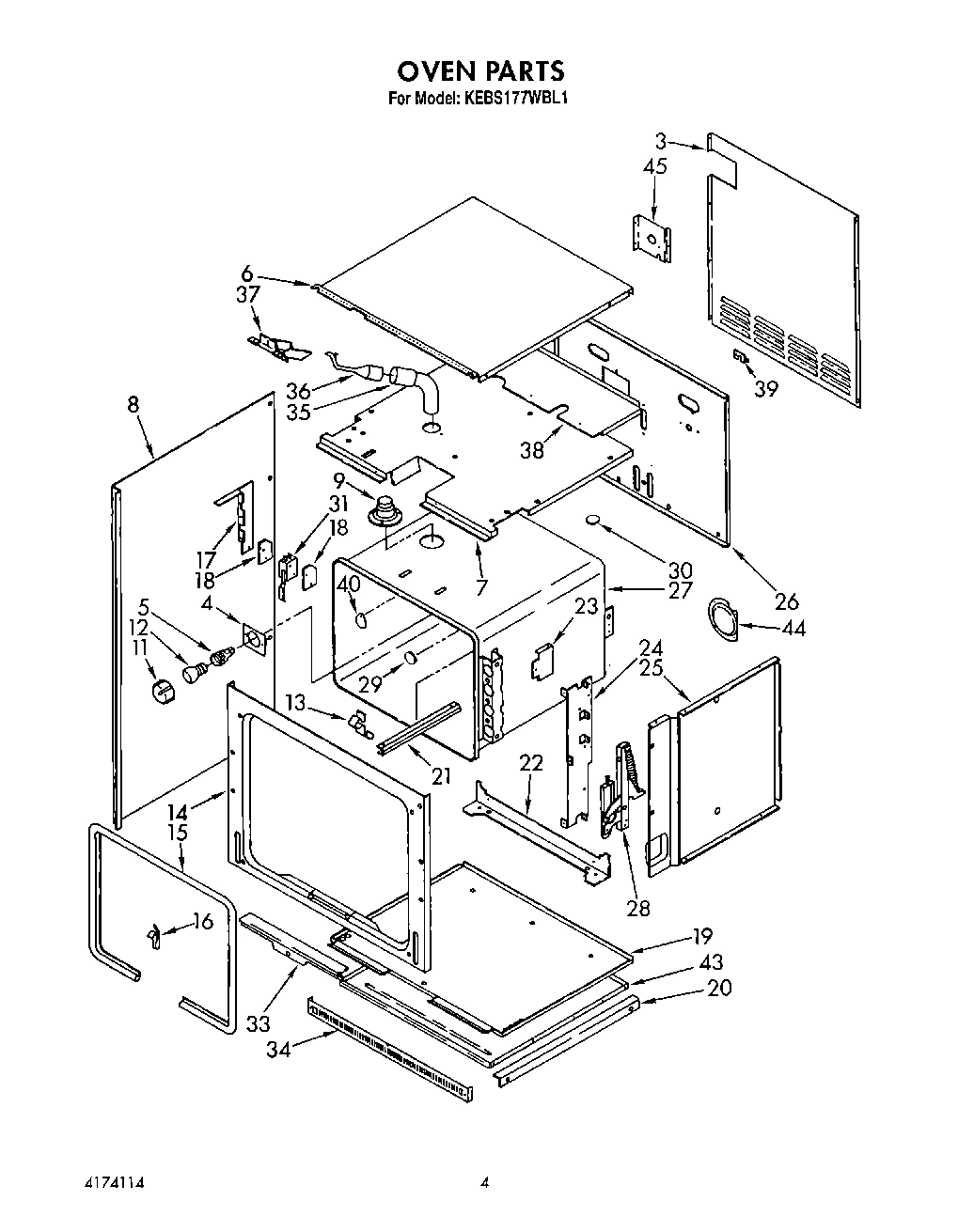

03 - OVEN

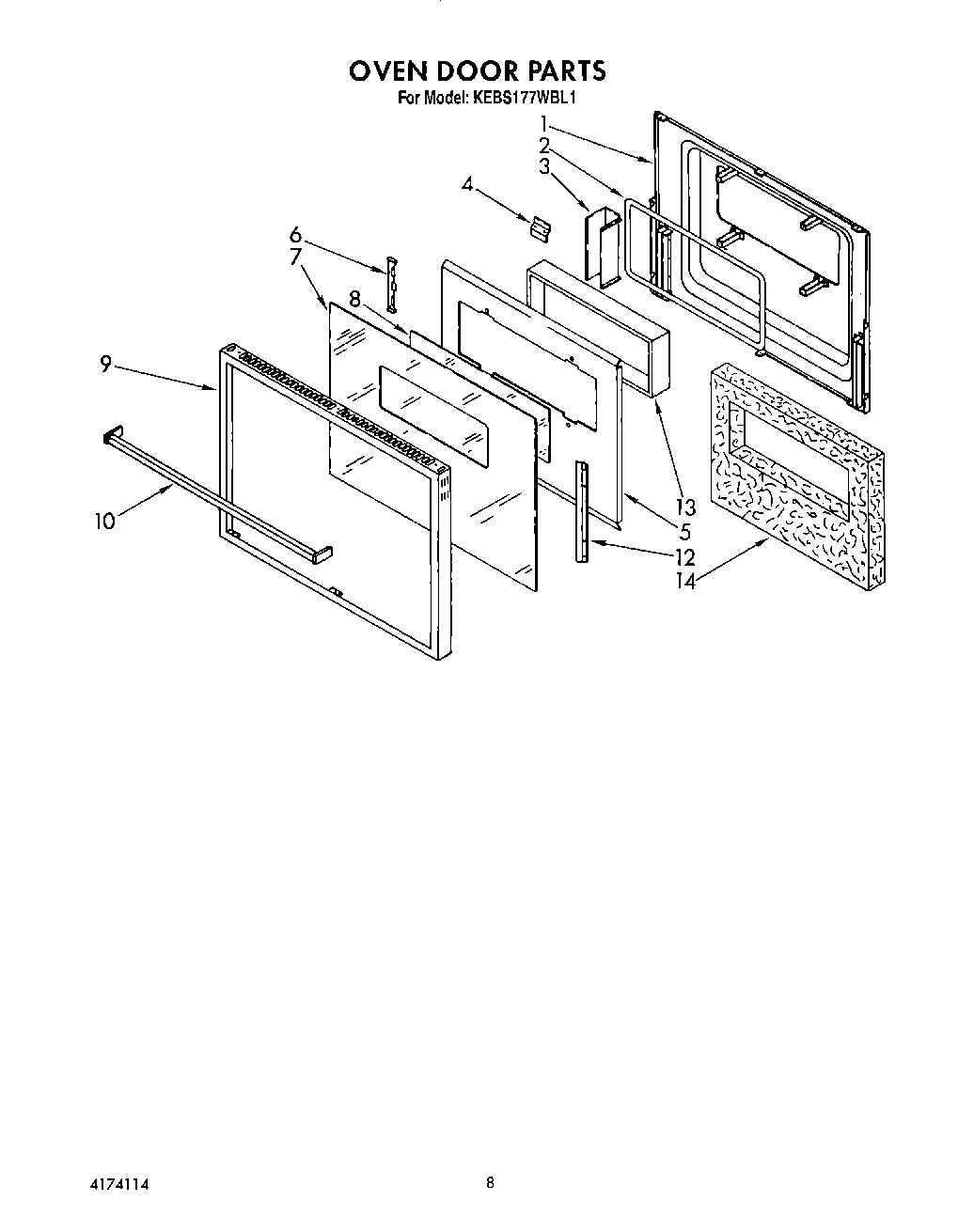

05 - OVEN DOOR

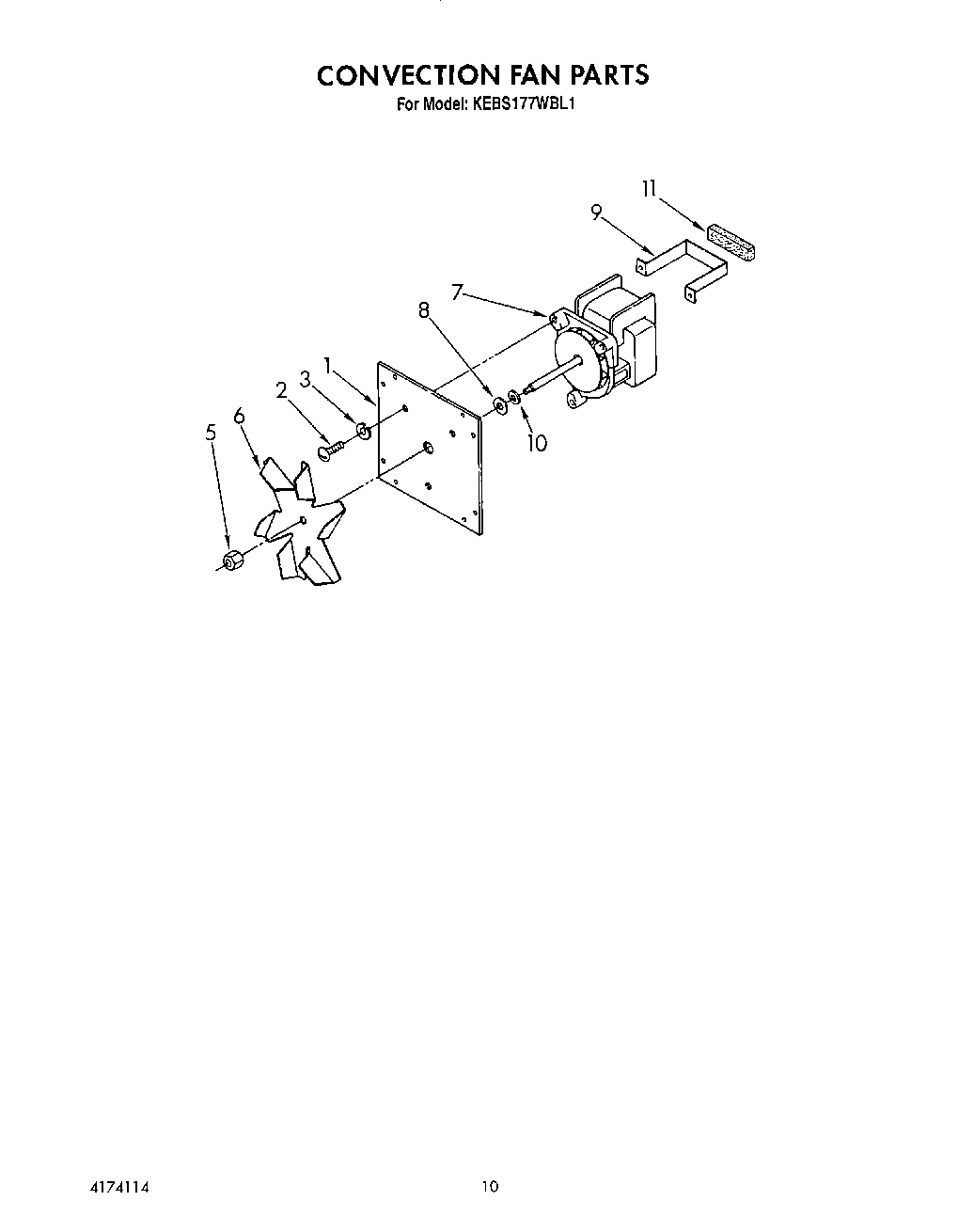

07 - CONVECTION FAN

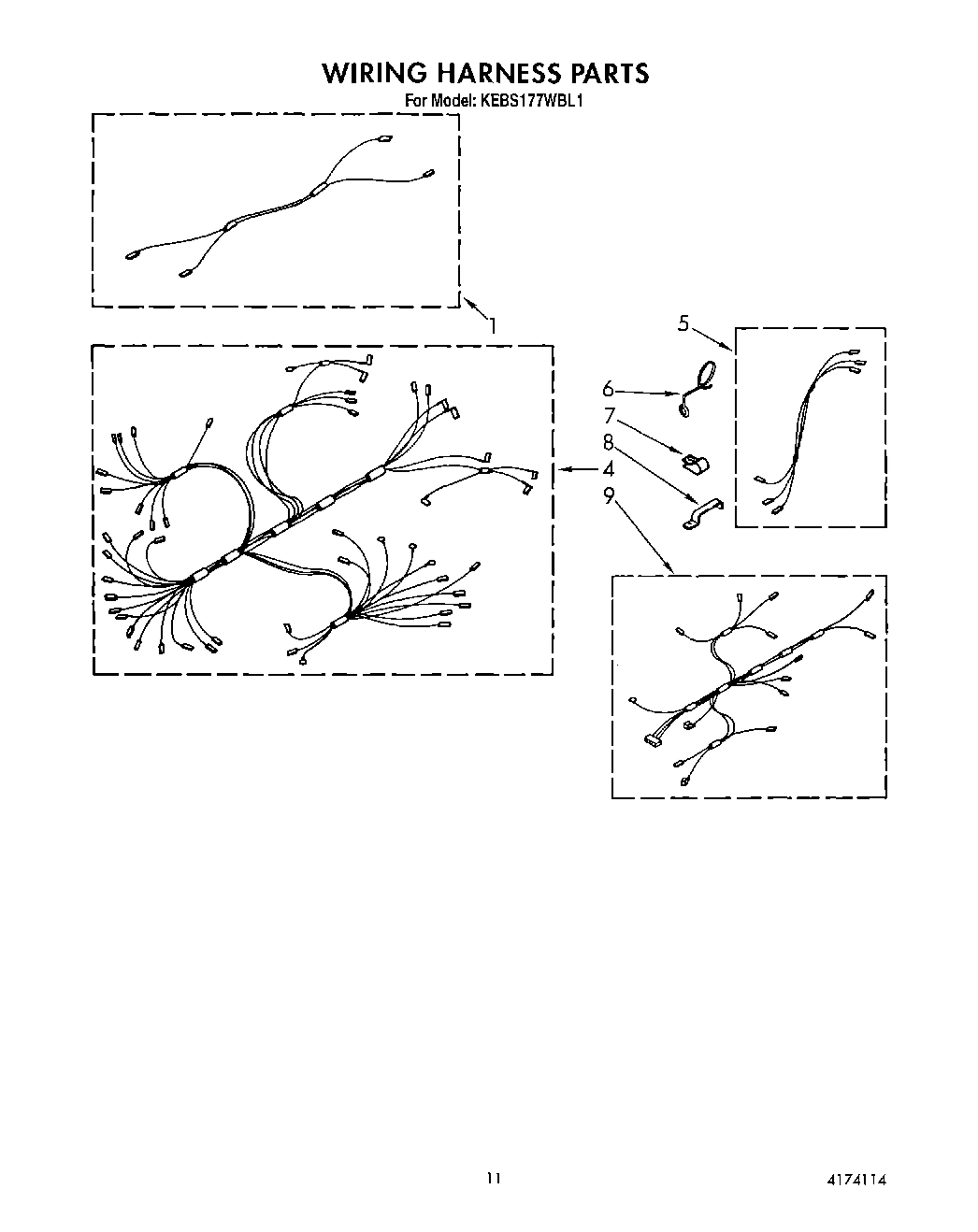

08 - WIRING HARNESS
Common parts from model Whirlpool KEBS177WWH1 BUILT-IN ELECTRIC SINGLE OVEN
1
Shelf, Component WPL 3178089 Contact Us For Availability
1
Liner, Door WPL 3177599 Contact Us For Availability
1
Plate, Mounting WPL 3178512 Contact Us For Availability
1
Harness Wire Door Switch WPL 3179941 Contact Us For Availability
2
Element, Broil WPL 3180164 Contact Us For Availability
2
Gasket, Window WPL 3178584 Contact Us For Availability
2
Screw, Fan Mounting WPL 4173193 Contact Us For Availability
3
Bushing, Electric WPL 4159035 Contact Us For Availability
3
Cabinet, Back WPL 3177738 Contact Us For Availability
3
Spacer, Window WPL 3179693 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
4
Light, Indicator WPL 4168598 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Plate, Oven Light WPL 3178040 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Harness Wire WPL 3179920 Contact Us For Availability
5
Switch, Oven Light (White or Almond Model) WPL 3179708 Contact Us For Availability
5
Switch, Oven Light (Black) WPL 3179891 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Rack, Offset WPL 3178093 Contact Us For Availability
5
Base, Oven Light WPL 4173173 Contact Us For Availability
5
Insulation, Retainer WPL 3177718 Contact Us For Availability
5
Nut (Left Hand) WPL 4173196 Contact Us For Availability
5
Harness Adapter Meat Probe WPL 3179938 Contact Us For Availability
6
Nut, Timer (4) WPL 98788 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Rack, Oven WPL 3178105 Contact Us For Availability
6
Cabinet, Top WPL 3178136 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
7
Insert, Top (Almond) WPL 3180130 Contact Us For Availability
7
Insert, Top (White) WPL 3180131 Contact Us For Availability
7
Insert, Top (Black) WPL 4173163 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
7
Top, Module WPL 3177436 Contact Us For Availability
7
Glass, Door (Black) WPL 3177768 Contact Us For Availability
7
Glass, Door (White) WPL 3179699 Contact Us For Availability
7
Glass, Door (Almond) WPL 3179700 Contact Us For Availability
7
Motor WPL 4173198 Contact Us For Availability
8
Control Panel WPL 3177804 Contact Us For Availability
8
Knob, Latch Handle WPL 311253 Contact Us For Availability
8
Cover, Jack- Lock Nut WPL 4167277 Contact Us For Availability
8
Side, Cabinet (Left Hand) WPL 3177441 Contact Us For Availability
8
Side, Cabinet (Right Hand) WPL 3177442 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
9
Timer, Electronic WPL 4173071 Contact Us For Availability
9
Spacer, Handle WPL 3177986 Contact Us For Availability
9
Screw (2) WPL 3179116 Contact Us For Availability
9
Screw (2) WPL 3179950 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
9
Tube, Vent WPL 4168492 Contact Us For Availability
9
Frame, Door (Black) WPL 3177671 Contact Us For Availability
9
Frame, Door (White) WPL 3177673 Contact Us For Availability
9
Frame, Door (Almond) WPL 3177674 Contact Us For Availability
9
Bracket Guard WPL 4173185 Contact Us For Availability
9
Harness, Wire Meat Probe WPL 3179937 Contact Us For Availability
10
Glass, Control Panel (Black) WPL 3177937 Contact Us For Availability
10
Glass, Control Panel (White) WPL 3179711 Contact Us For Availability
10
Glass, Control Panel (Almond) WPL 3179712 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Probe Cover WPL 4167266 Contact Us For Availability
10
Handle, Door (Black) WPL 3178642 Contact Us For Availability
10
Handle, Door (White) WPL 3178644 Contact Us For Availability
10
Handle, Door (Almond) WPL 3178645 Contact Us For Availability
10
Handle, Door (Screw (2)) WPL 3179114 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
11
Frame, Control Panel (Black) WPL 3177758 Contact Us For Availability
11
Frame, Control Panel (White) WPL 3178573 Contact Us For Availability
11
Frame, Control Panel (Almond) WPL 3178574 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Washer WPL 4159557 Contact Us For Availability
11
Lens, Oven Light WPL 4173174 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
12
Insert, Vent WPL 3179916 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Nut, Hex Jam WPL 4173084 Contact Us For Availability
12
Screw (12) WPL 3179795 Contact Us For Availability
12
Retainer, Glass WPL 4167975 Contact Us For Availability
13
Knob, Timer (2) (Black) WPL 3177122 Contact Us For Availability
13
Knob, Timer (2) (White or Almond Model) WPL 3179705 Contact Us For Availability
13
Receptacle, Lighted Probe WPL 4173189 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Knob, Timer (Black) WPL 3177121 Contact Us For Availability
14
Knob, Timer (White or Almond Model) WPL 3179704 Contact Us For Availability
14
Support, Latch WPL 3178232 Contact Us For Availability
14
Meat Probe WPL 4167267 Contact Us For Availability
14
Frame, Front WPL 3177682 Contact Us For Availability
14
Screw (6) WPL 4168863 Contact Us For Availability
14
Screw, Black (2) WPL 3178001 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
15
Door, Latch Handle (Black) WPL 3177972 Contact Us For Availability
15
Door, Latch Handle (White) WPL 3179709 Contact Us For Availability
15
Door, Latch Handle (Almond) WPL 3179710 Contact Us For Availability
15
Door, Latch Handle (Screw (5)) WPL 4170323 Contact Us For Availability
15
Screw, WPL 254225 Contact Us For Availability
15
Screw (2) WPL 313806 Contact Us For Availability
15
Bracket, Buzzer WPL 3179695 Contact Us For Availability
15
Vent Tube WPL 4168126 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
16
Knob, Control (4) WPL 3178400 Contact Us For Availability
16
Buzzer, Meat Probe WPL 3179914 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
17
Disc, Selector WPL 3178254 Contact Us For Availability
17
Transformer WPL 3179532 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
18
Disc, Thermostat (Self Clean) (2) WPL 3178473 Contact Us For Availability
18
Switch, Latch WPL 3178187 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Knob WPL 4163840 Contact Us For Availability
19
Screw (2) WPL 3177988 Contact Us For Availability
19
Spacer - Tubing WPL 3179672 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
20
nut (3) WPL 4168838 Contact Us For Availability
20
Element, Convection WPL 3178517 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
Screw (2) WPL 3179847 Contact Us For Availability
21
Hinge, Door (2) WPL 3177971 Contact Us For Availability
21
Screw (4) WPL 3179117 Contact Us For Availability
21
Cover, Fan WPL 3180815 Contact Us For Availability
21
Support, Element (2) WPL 4168217 Contact Us For Availability
22
Screw (6) WPL 4159456 Contact Us For Availability
22
Retainer, Glass WPL 4167590 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Clip, Spacer WPL 3180844 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Bracket, Control Panel WPL 3177747 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
25
Bezel, Switch (White or Almond Model) WPL 3179707 Contact Us For Availability
25
Bezel, Switch (Black) WPL 4169372 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Support, Frame WPL 3177650 Contact Us For Availability
26
Back, Module WPL 3177557 Contact Us For Availability
27
Liner, Oven WPL 3177467 Contact Us For Availability
28
Indicator, Light Meat WPL 4173153 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
WPL 3179778 WPL 3179778 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw (4) WPL 3179776 Contact Us For Availability
34
Vent, Lower Trim (Black) WPL 3177787 Contact Us For Availability
34
Vent, Lower Trim (Brushed Chrome) WPL 3177789 Contact Us For Availability
34
Vent, Lower Trim (Screw (4)) WPL 3180022 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3179923 Contact Us For Availability
37
Shield, Vent WPL 3178614 Contact Us For Availability
38
Extension, Shelf WPL 3178132 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Plate, Cover WPL 4167518 Contact Us For Availability
43
Bottom, Oven WPL 3177551 Contact Us For Availability
44
Plate, Cover WPL 4163883 Contact Us For Availability
45
Bracket, Conduit WPL 3177545 Contact Us For Availability
45
Insulation, Wrap WPL 3177862 Contact Us For Availability
45
Insulation, WPL 3177872 Contact Us For Availability
× ![]()
