Model Whirlpool KEBS177SWH2 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

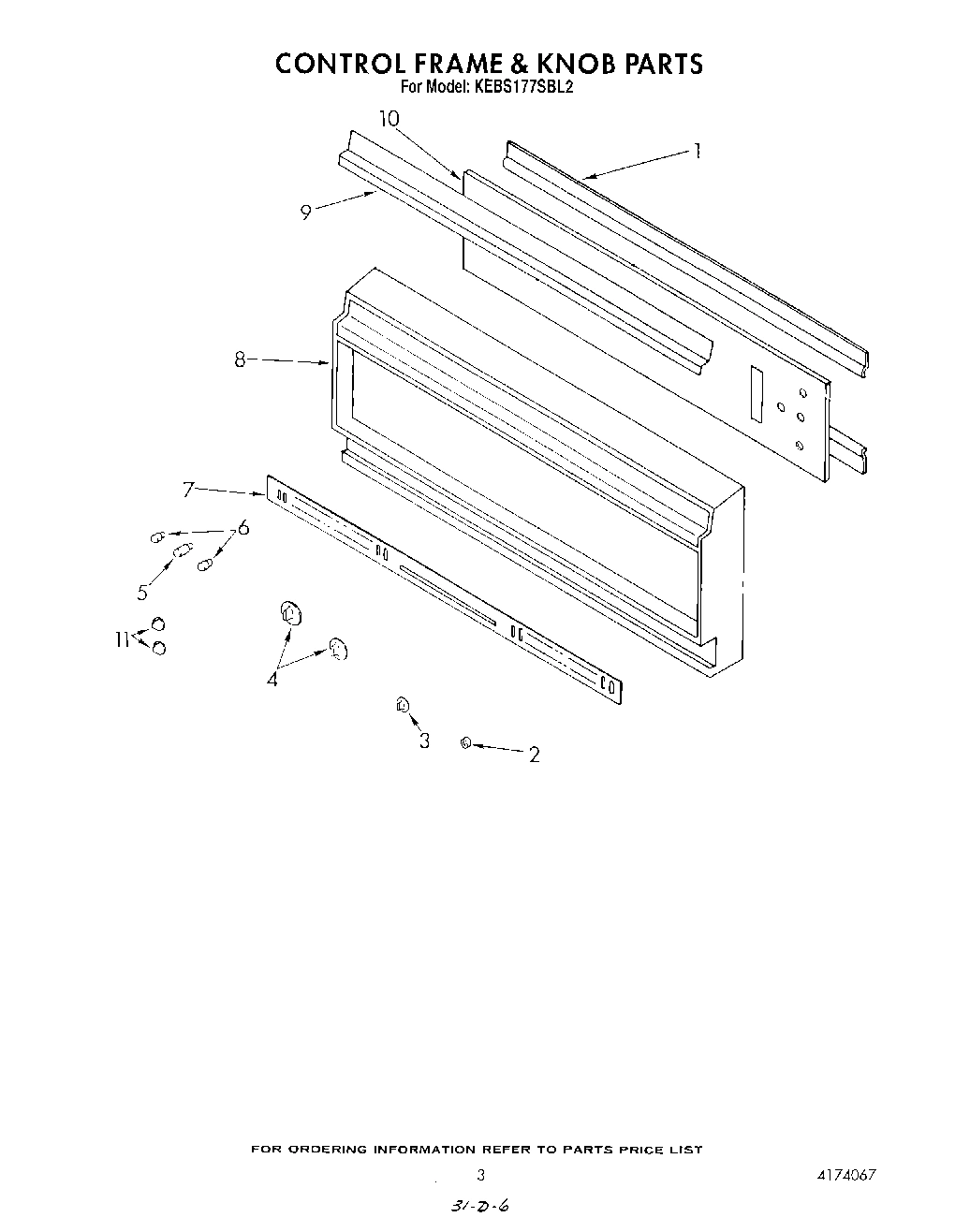

03 - CONTROL FRAME AND KNOB

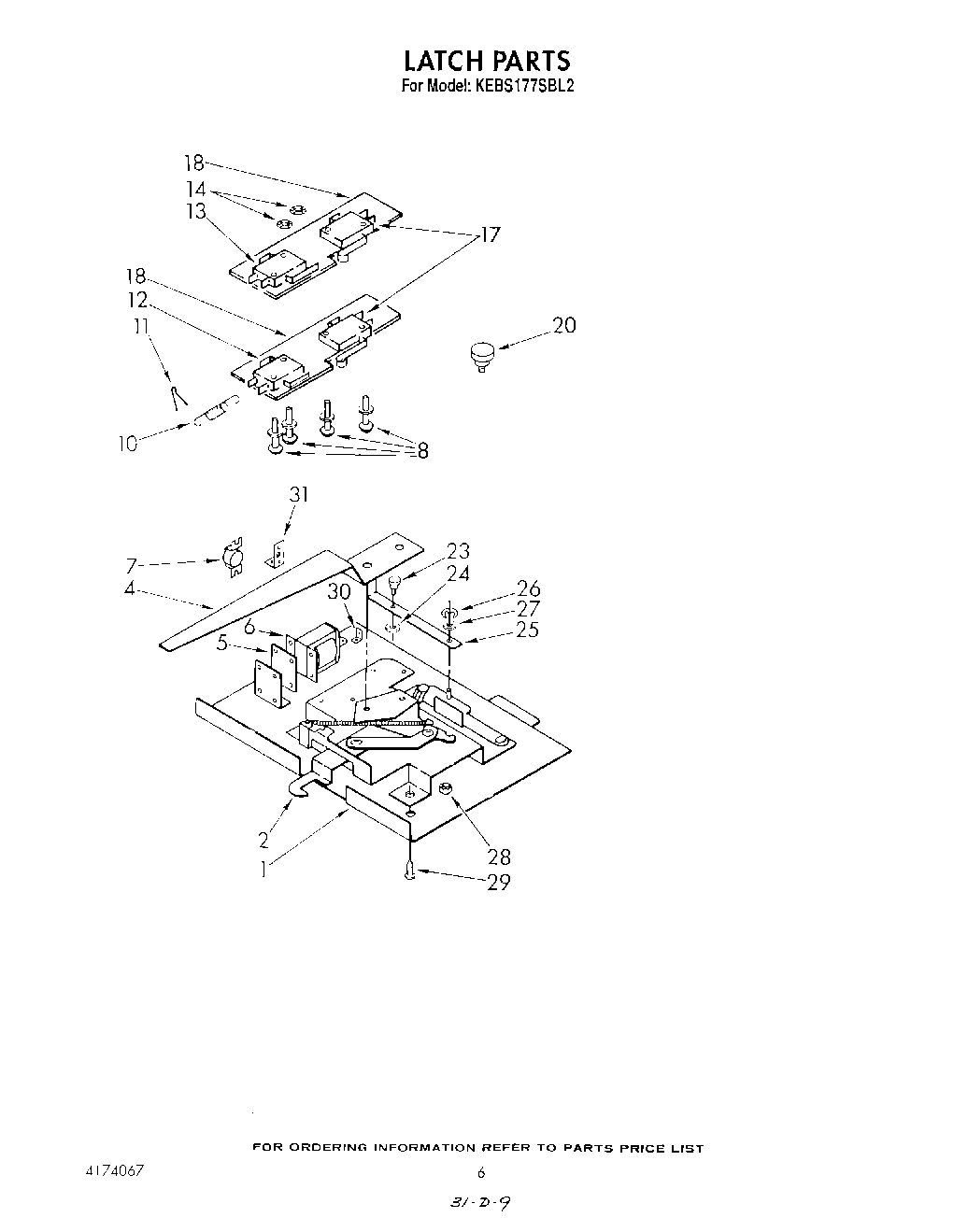

05 - LATCH

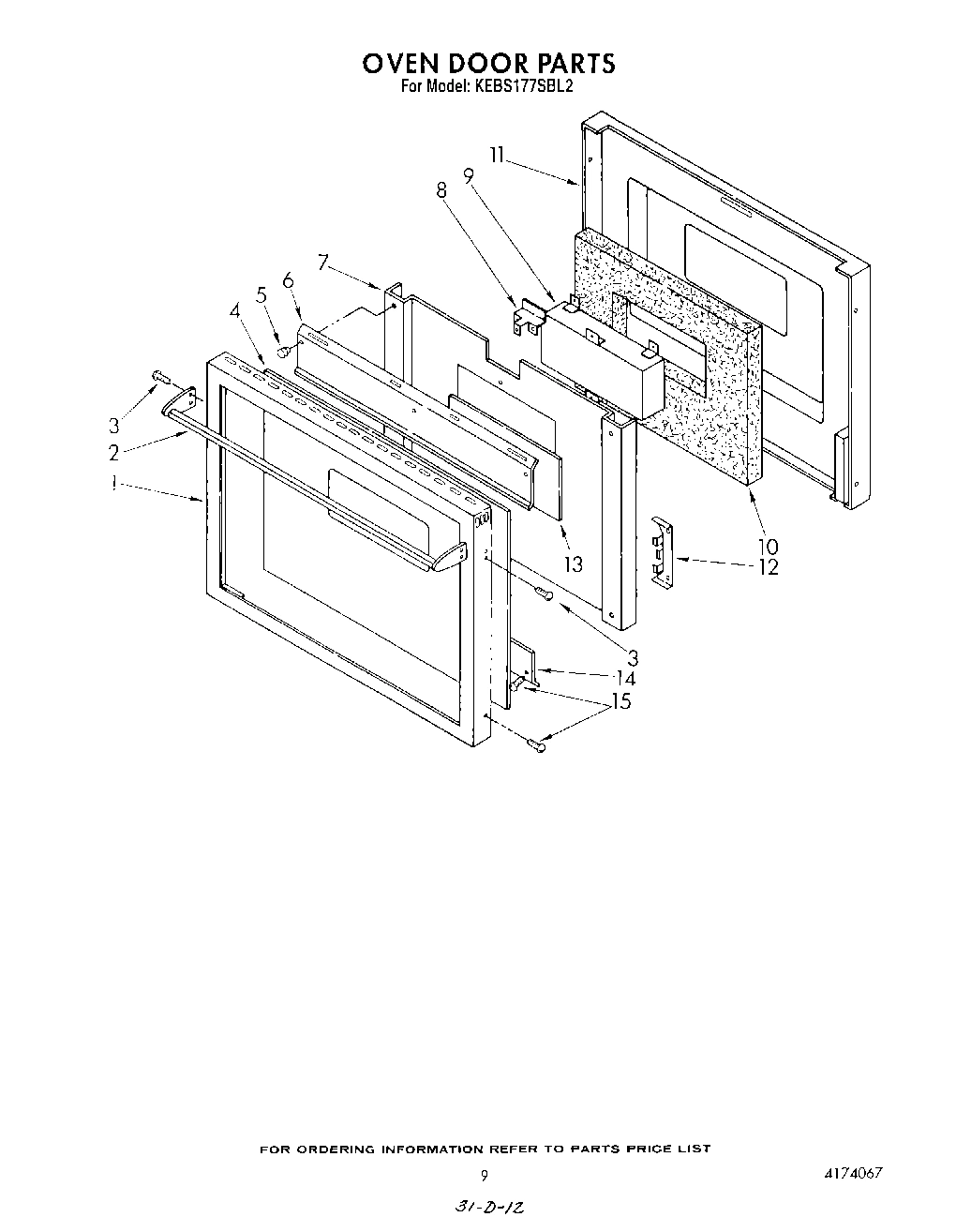

08 - OVEN DOOR , LIT/OPTIONAL

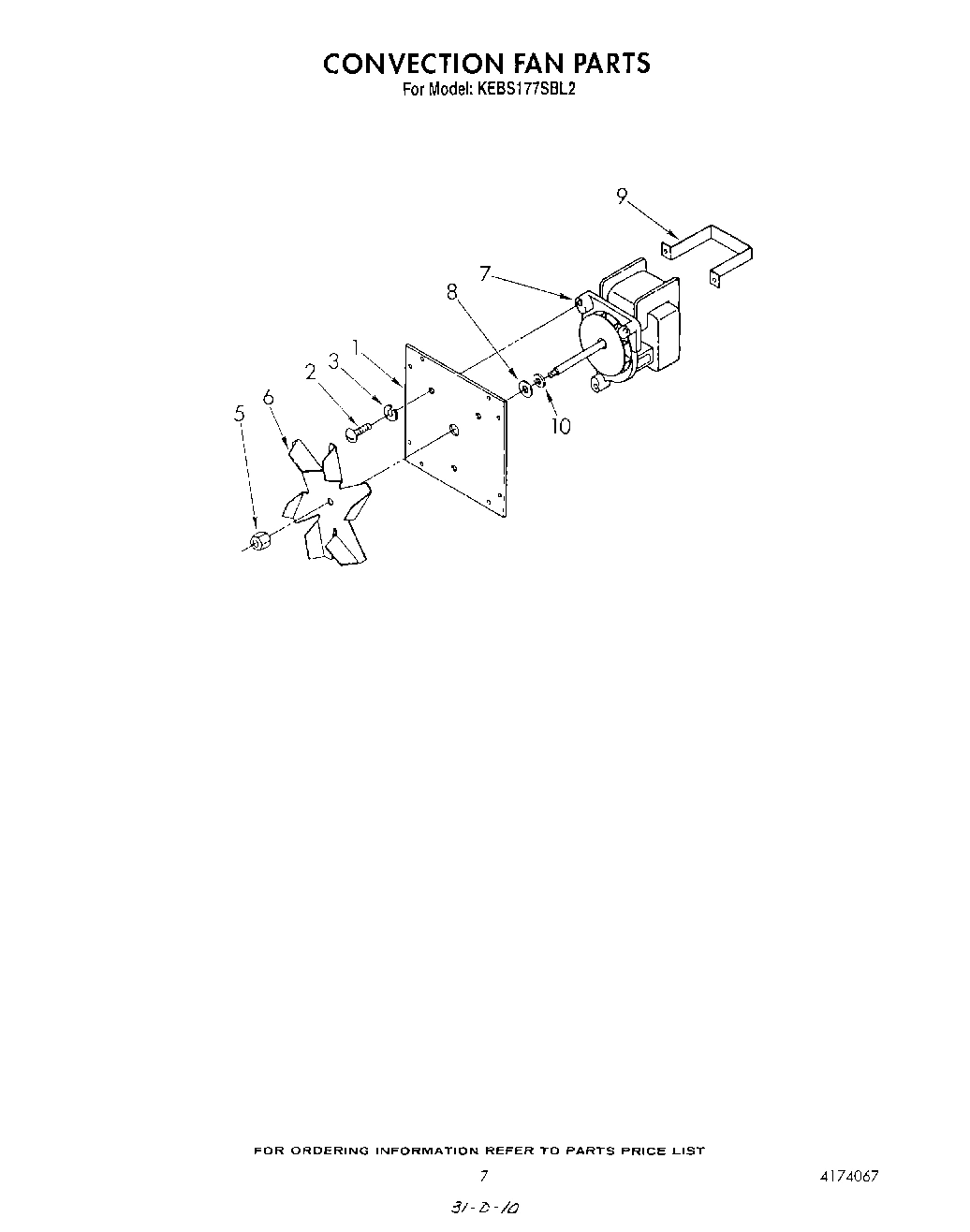

06 - CONVECTION FAN

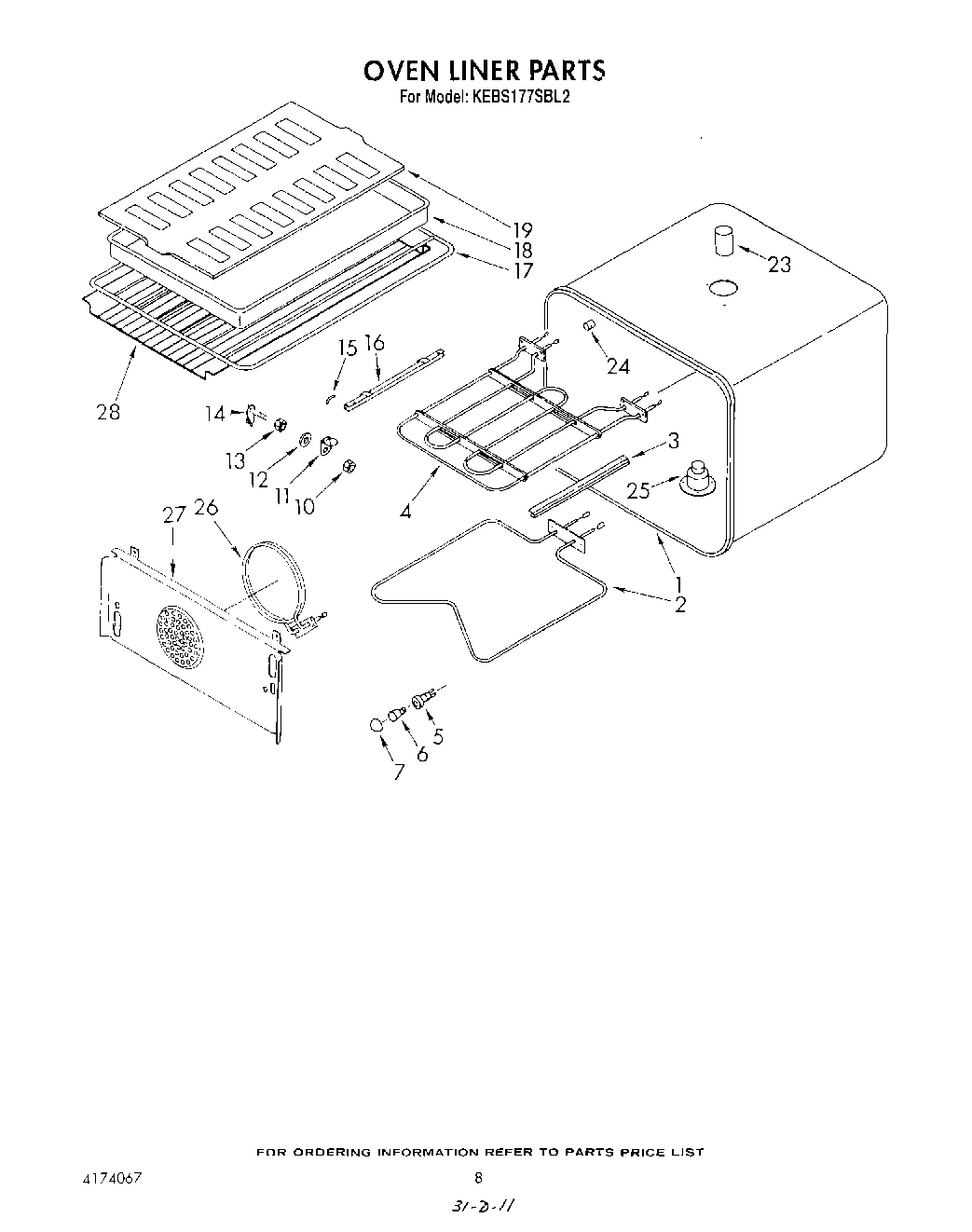

07 - OVEN LINER

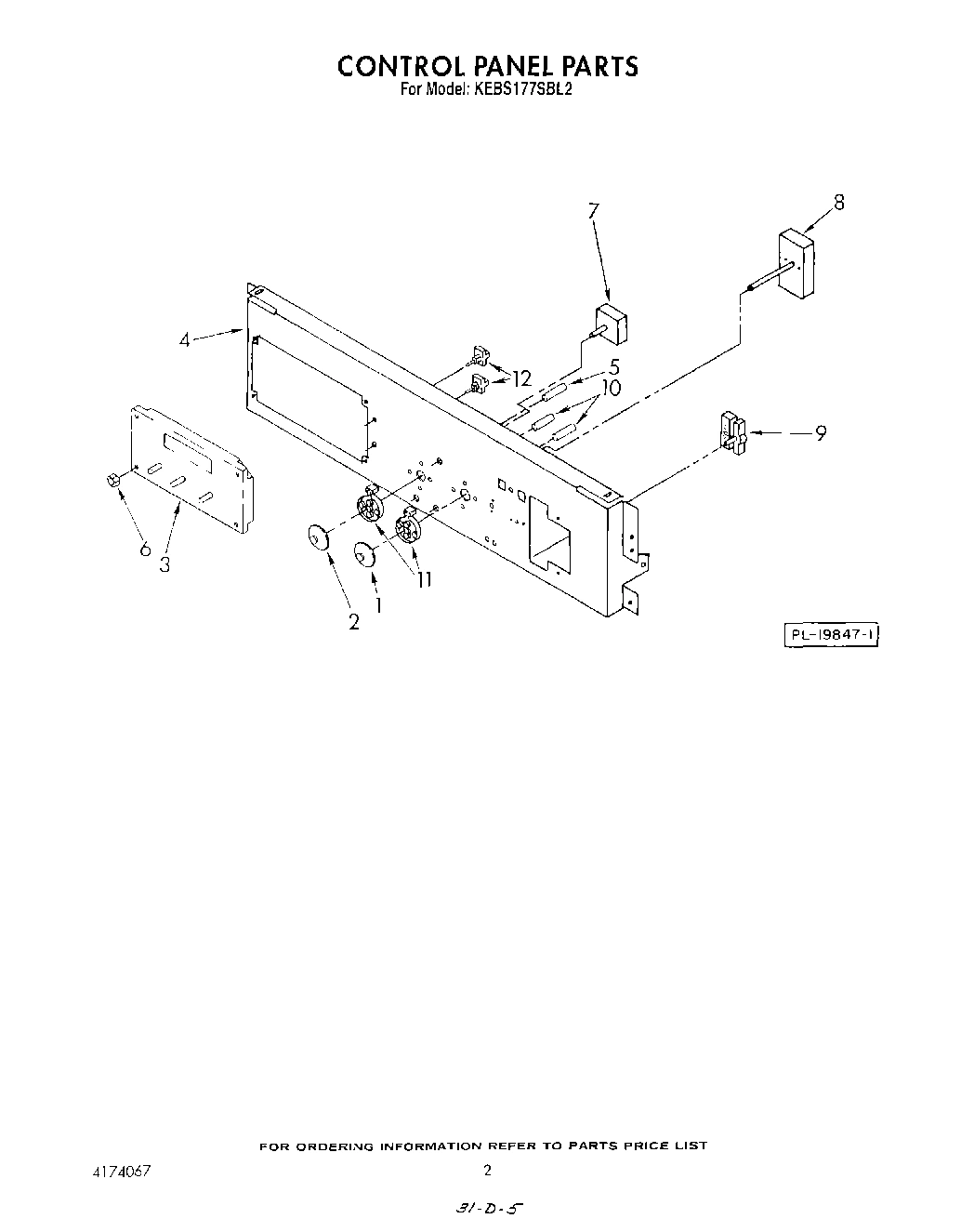

02 - CONTROL PANEL

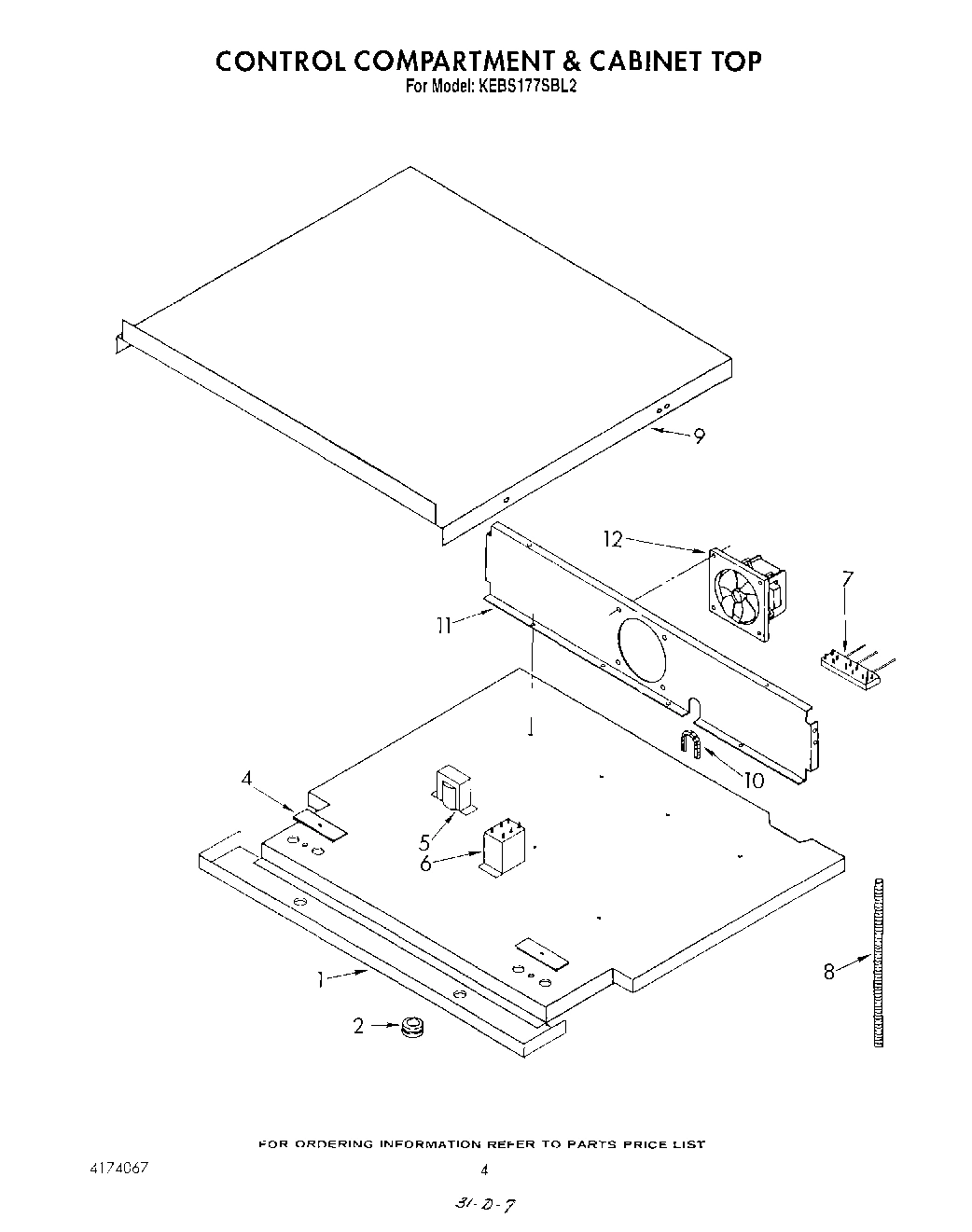

04 - CONTROL COMPARTMENT AND CABINET TOP

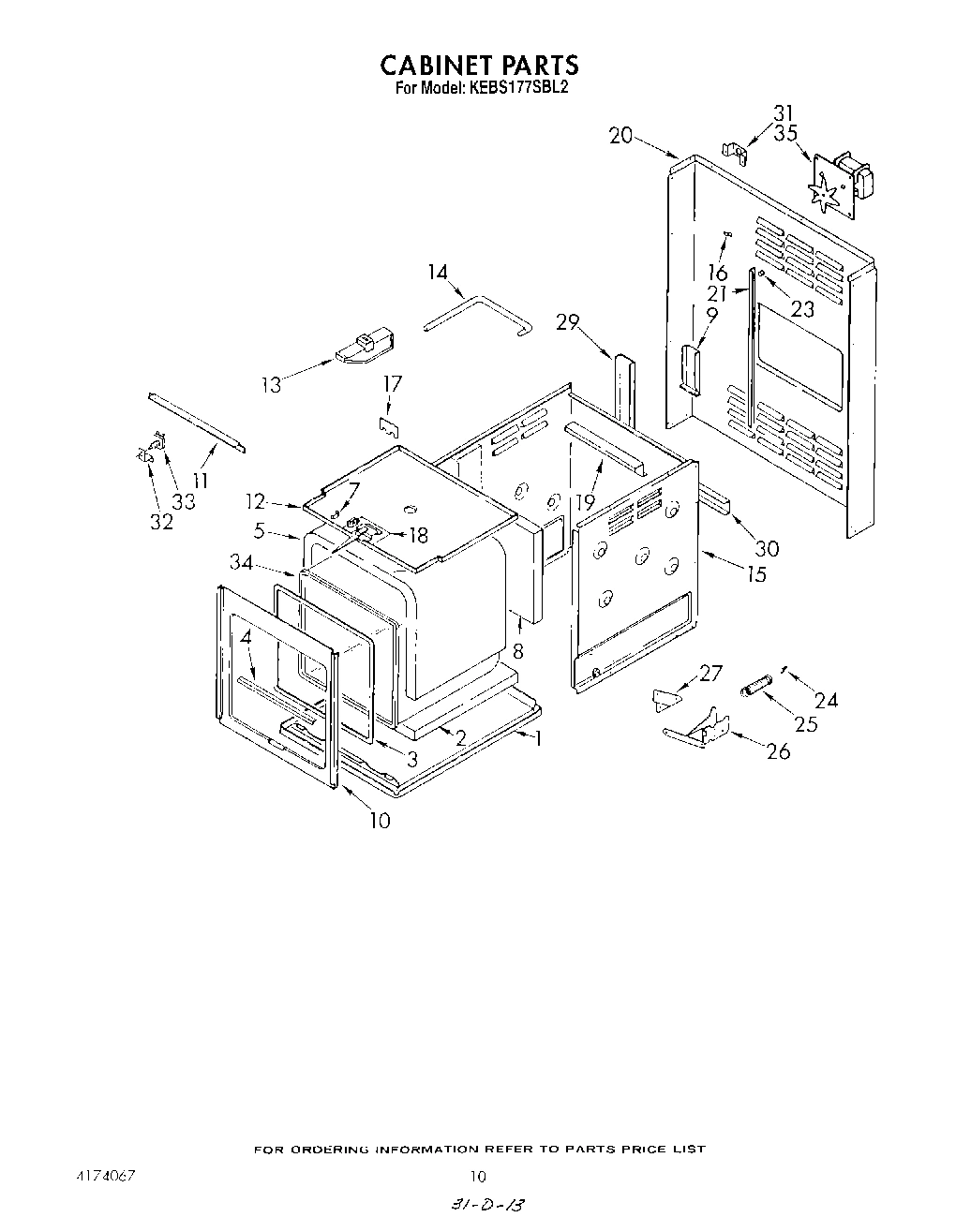

09 - CABINET
Common parts from model Whirlpool KEBS177SWH2 BUILT-IN ELECTRIC SINGLE OVEN
Installation Instructions WPL LIT3177123 Contact Us For Availability
Installation Inst. Trim Kit WPL LIT4174015 Contact Us For Availability
Use & Care Guide WPL LIT4174029 Contact Us For Availability
Repair Parts List WPL LIT4174067 Contact Us For Availability
1
Mounting Plate WPL 4168063 Contact Us For Availability
1
Door Frame (Black) WPL 4164391 Contact Us For Availability
1
Door Frame (White) WPL 4173432 Contact Us For Availability
1
Door Frame (Almond) WPL 4173433 Contact Us For Availability
1
Plate, Mounting WPL 3178512 Contact Us For Availability
1
Liner, Oven WPL 4173095 Contact Us For Availability
1
Thermostat Disc WPL 4173159 Contact Us For Availability
1
Sandwich Panel WPL 4173054 Contact Us For Availability
1
Main Bottom WPL 4163966 Contact Us For Availability
2
Mechanism, Latch WPL 4168538 Contact Us For Availability
2
Door Handle WPL 4164240 Contact Us For Availability
2
Door Handle (Black) WPL 4173018 Contact Us For Availability
2
White WPL 4173434 Contact Us For Availability
2
Almond WPL 4173435 Contact Us For Availability
2
Screws, Mounting WPL 4173193 Contact Us For Availability
2
Selector Disc WPL 4173160 Contact Us For Availability
2
Bushing, Electrical WPL 4173043 Contact Us For Availability
2
Insulation, Bottom WPL 4164191 Contact Us For Availability
3
Knob, Meat Probe Indicator WPL 4163840 Contact Us For Availability
3
Screw, (4) 8-32 x 3/8 WPL 4159330 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
3
Support-Right Broiler Element WPL 4168217 Contact Us For Availability
3
Clock Electronic WPL 4173071 Contact Us For Availability
3
Door Gasket Hi-Temp WPL 3178580 Contact Us For Availability
4
Latch Lever WPL 3177965 Contact Us For Availability
4
Glass, Door (Black) WPL 4164241 Contact Us For Availability
4
Glass, Door (White) WPL 4173430 Contact Us For Availability
4
Glass, Door (Almond) WPL 4173431 Contact Us For Availability
4
Broiler Element WPL 3178520 Contact Us For Availability
4
Mounting, Control Panel WPL 4173148 Contact Us For Availability
4
Hole Cover WPL 4168257 Contact Us For Availability
4
Cover, Seal End WPL 3177549 Contact Us For Availability
5
Knob, Clock WPL 3177122 Contact Us For Availability
5
Solenoid Plate WPL 4168292 Contact Us For Availability
5
Manual Reset WPL ARI83302A8 Contact Us For Availability
5
Rubber Bumper (8) WPL 4168826 Contact Us For Availability
5
Nut (Left Hand) WPL 4173196 Contact Us For Availability
5
Light Base WPL 4173173 Contact Us For Availability
5
Indicator Light, WPL 4168597 Contact Us For Availability
5
Control Panel, WPL 313135 Contact Us For Availability
5
Transformer, Probe WPL 4166561 Contact Us For Availability
5
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
6
Knob (2) Clock WPL 3177121 Contact Us For Availability
6
Solenoid WPL 4169323 Contact Us For Availability
6
Air Baffle WPL 4163857 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Nut, Washer Type (4) WPL 4164360 Contact Us For Availability
6
Relay, Meat Probe WPL 4163731 Contact Us For Availability
7
Vent Insert (Black) WPL 3178516 Contact Us For Availability
7
Vent Insert (Almond - White) WPL 3178980 Contact Us For Availability
7
Safety Switch WPL 4173007 Contact Us For Availability
7
Retainer, Insulation WPL 4169357 Contact Us For Availability
7
Motor WPL 4173198 Contact Us For Availability
7
Lens, Light WPL 4173174 Contact Us For Availability
7
Selector Switch WPL 3178514 Contact Us For Availability
7
Terminal Block, Power Supply WPL 4168295 Contact Us For Availability
7
Knob, Latch Lever WPL 4163821 Contact Us For Availability
8
Control Frame (White) WPL 3178571 Contact Us For Availability
8
Control Frame (Almond) WPL 3178572 Contact Us For Availability
8
Control Frame (Black) WPL 4164363 Contact Us For Availability
8
Screw, (Rd. Hd.) 4-40 X 1 1/4 WPL 4173053 Contact Us For Availability
8
Bracket, Lock WPL 4163852 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Thermostat, Self Clean WPL 4164361 Contact Us For Availability
8
Conduit, 1/2`` X 56`` WPL 4167614 Contact Us For Availability
8
Insulation, Rear WPL 4164192 Contact Us For Availability
9
Insert, Top (Black) WPL 4173163 Contact Us For Availability
9
Insert, Top (White) WPL 4173436 Contact Us For Availability
9
Insert, Top (Almond) WPL 4173437 Contact Us For Availability
9
Window Package WPL 4164235 Contact Us For Availability
9
Bracket Guard WPL 4173185 Contact Us For Availability
9
Meat Probe Indicator Assy. WPL 4173153 Contact Us For Availability
9
Cabinet Top WPL 4173276 Contact Us For Availability
9
Rear Anchor WPL 4167526 Contact Us For Availability
10
Control Panel Glass (Almond) WPL 3179612 Contact Us For Availability
10
Control Panel Glass (White) WPL 3179613 Contact Us For Availability
10
Control Panel Glass (Black) WPL 4173161 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Insulation WPL 4163987 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Nut, Meat Probe WPL 4167277 Contact Us For Availability
10
Indicator Light (2) Lock - Clean WPL 4163869 Contact Us For Availability
10
Flexible Bushing WPL 4173165 Contact Us For Availability
10
Front Frame WPL 4163823 Contact Us For Availability
11
Screw, 8-18 X 3/8 WPL 4159456 Contact Us For Availability
11
Knob, (2) Retained Heat WPL 4168571 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Door Liner WPL 4164237 Contact Us For Availability
11
Cover, Probe Jack WPL 4167266 Contact Us For Availability
11
Housing, Back Light (2) WPL 4173150 Contact Us For Availability
11
Panel, Blower Mounting WPL 4173166 Contact Us For Availability
11
Support Control Frame WPL 4169336 Contact Us For Availability
12
Latch Switch With Roller WPL 4168514 Contact Us For Availability
12
Bracket, Glass Mounting WPL 4164234 Contact Us For Availability
12
Washer WPL 4173438 Contact Us For Availability
12
Wiring Harness Low Temp WPL 3178497 Contact Us For Availability
12
Wiring Harness High Temp WPL 3178523 Contact Us For Availability
12
Switch, Retained Heat (2) WPL 4168533 Contact Us For Availability
12
Blower Assembly WPL 4173004 Contact Us For Availability
12
Compartment Top WPL 4169314 Contact Us For Availability
13
Latch Switch WPL 4164366 Contact Us For Availability
13
Glass Panel WPL 4164243 Contact Us For Availability
13
Nut, Hex Jam WPL 4159113 Contact Us For Availability
13
Vent Box (2) WPL 4163941 Contact Us For Availability
14
Locknut WPL 4159117 Contact Us For Availability
14
Air Baffle, Bottom WPL 4163859 Contact Us For Availability
14
Meat Probe Jack, Lighted WPL 4173189 Contact Us For Availability
14
Vent Tube WPL 4168494 Contact Us For Availability
15
Screw No.8 x 3/8 WPL 4168863 Contact Us For Availability
15
Clip, (2) Thermostat Bulb WPL 4173275 Contact Us For Availability
15
Side, Cabinet WPL 4173176 Contact Us For Availability
16
Support-Left, Broiler Element WPL 4168218 Contact Us For Availability
16
Clamp, Conduit WPL 4167593 Contact Us For Availability
17
Latch Switch (2) WPL 4168517 Contact Us For Availability
17
Oven Rack WPL 3178639 Contact Us For Availability
17
Mounting Bracket Vent Tube WPL 4168242 Contact Us For Availability
18
Insulator WPL 4168522 Contact Us For Availability
18
Latch Parts (See Latch Parts On Page 6 For Fu WPL ARI83303A4 Contact Us For Availability
19
Channel, Air Baffle WPL 4173061 Contact Us For Availability
20
Shoulder Screw, Latch Lever (2) WPL 4168579 Contact Us For Availability
20
Cabinet Back WPL 4169313 Contact Us For Availability
21
Cabinet Support (Right) WPL 4163759 Contact Us For Availability
21
Cabinet Support (Left) WPL 4163760 Contact Us For Availability
23
Shoulder Screw, Actuator Arm WPL 4168554 Contact Us For Availability
23
Extension, Vent Tube WPL 4168126 Contact Us For Availability
23
Spacer WPL 4168590 Contact Us For Availability
24
Spacer, Actuator Arm WPL 4168553 Contact Us For Availability
24
Capillary Cover WPL 4168203 Contact Us For Availability
24
Anchor, Spring WPL 4167599 Contact Us For Availability
25
Actuator Arm WPL 4168058 Contact Us For Availability
25
Smoke Eliminator WPL 4168492 Contact Us For Availability
25
Spring, Door WPL 4168877 Contact Us For Availability
26
Retaining Ring WPL 4159160 Contact Us For Availability
26
Element, Convection WPL 3178517 Contact Us For Availability
26
Hinge Assembly WPL 4167596 Contact Us For Availability
27
Washer, Flat WPL 4159603 Contact Us For Availability
27
Cover, Fan WPL 3178519 Contact Us For Availability
27
Cam Plate (Right) WPL 4167597 Contact Us For Availability
27
Cam Plate (Left) WPL 4167598 Contact Us For Availability
28
Nut, 10-24 Hex Kep WPL 4159109 Contact Us For Availability
28
Oven Rack, Offset WPL 3178638 Contact Us For Availability
28
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
28
Meat Probe WPL 4167267 Contact Us For Availability
29
Screw, 10-24 X 3/8 WPL 4159287 Contact Us For Availability
29
Bracket, Support (2) WPL 4173177 Contact Us For Availability
30
Bracket, Harness WPL 4173168 Contact Us For Availability
30
Bracket, Support WPL 4173178 Contact Us For Availability
31
Insulator Sleeve, Safety Switch WPL 3178555 Contact Us For Availability
31
Harness, Latch WPL 4173169 Contact Us For Availability
31
Mounting Bracket, Safety Switch WPL 4173170 Contact Us For Availability
31
Retainer, Insulation WPL 4173179 Contact Us For Availability
32
Bracket, Oven Light Switch WPL 4173182 Contact Us For Availability
33
Switch, Oven Light WPL 4167332 Contact Us For Availability
34
Oven Liner (See Page 8 For Breakdown) WPL ARI83304A3 Contact Us For Availability
35
Air Duct (Left) WPL 4163752 Contact Us For Availability
35
Air Duct (Right) WPL 4163753 Contact Us For Availability
35
Probe Cover WPL 4163883 Contact Us For Availability
35
TRIM KIT WPL 4169410 Contact Us For Availability
35
Air Duct Extension (Left) WPL 4173016 Contact Us For Availability
35
Air Duct Extension (Right) Pocket Door Trim WPL 4173017 Contact Us For Availability
35
Convection Fan (See Page 7 for Further Breakd WPL ARI83305A5 Contact Us For Availability
× ![]()
