Model Whirlpool KEBS177SSS04 27`` BUILT-IN ELECTRIC SINGLE OVEN THERMAL CONVECT – Common Parts & Diagrams
06 - OPTIONAL PARTS (NOT INCLUDED)
01 - OVEN PARTS

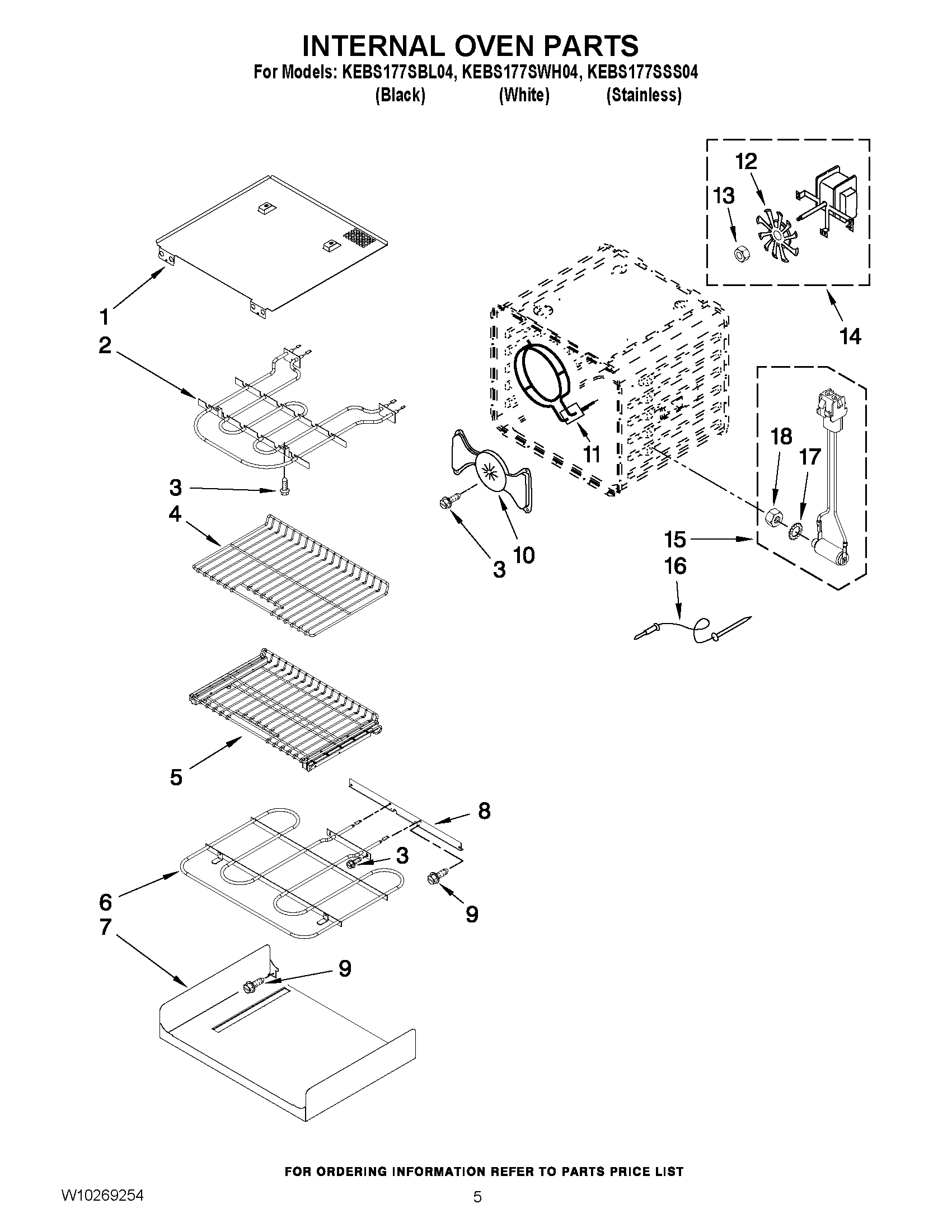

04 - INTERNAL OVEN PARTS

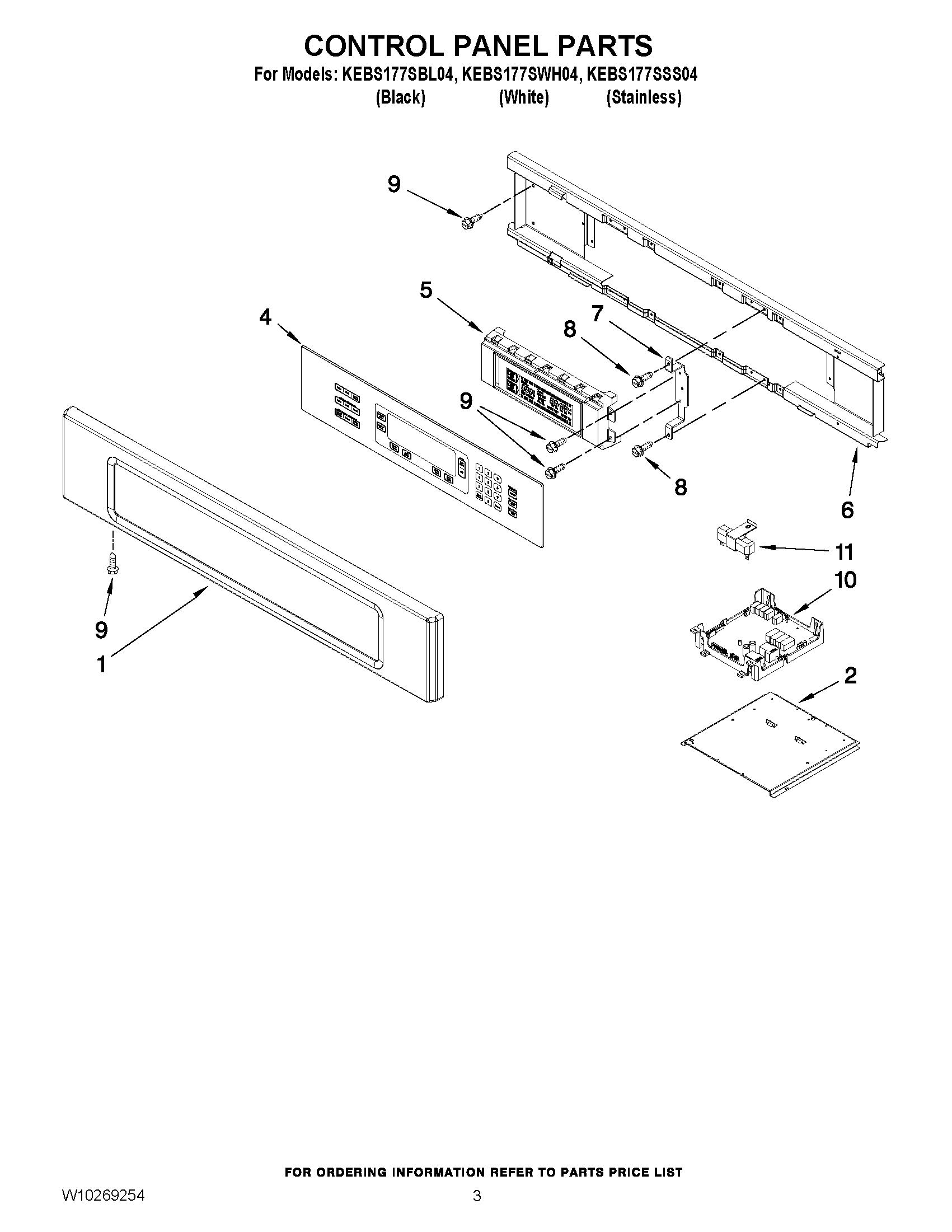

02 - CONTROL PANEL PARTS

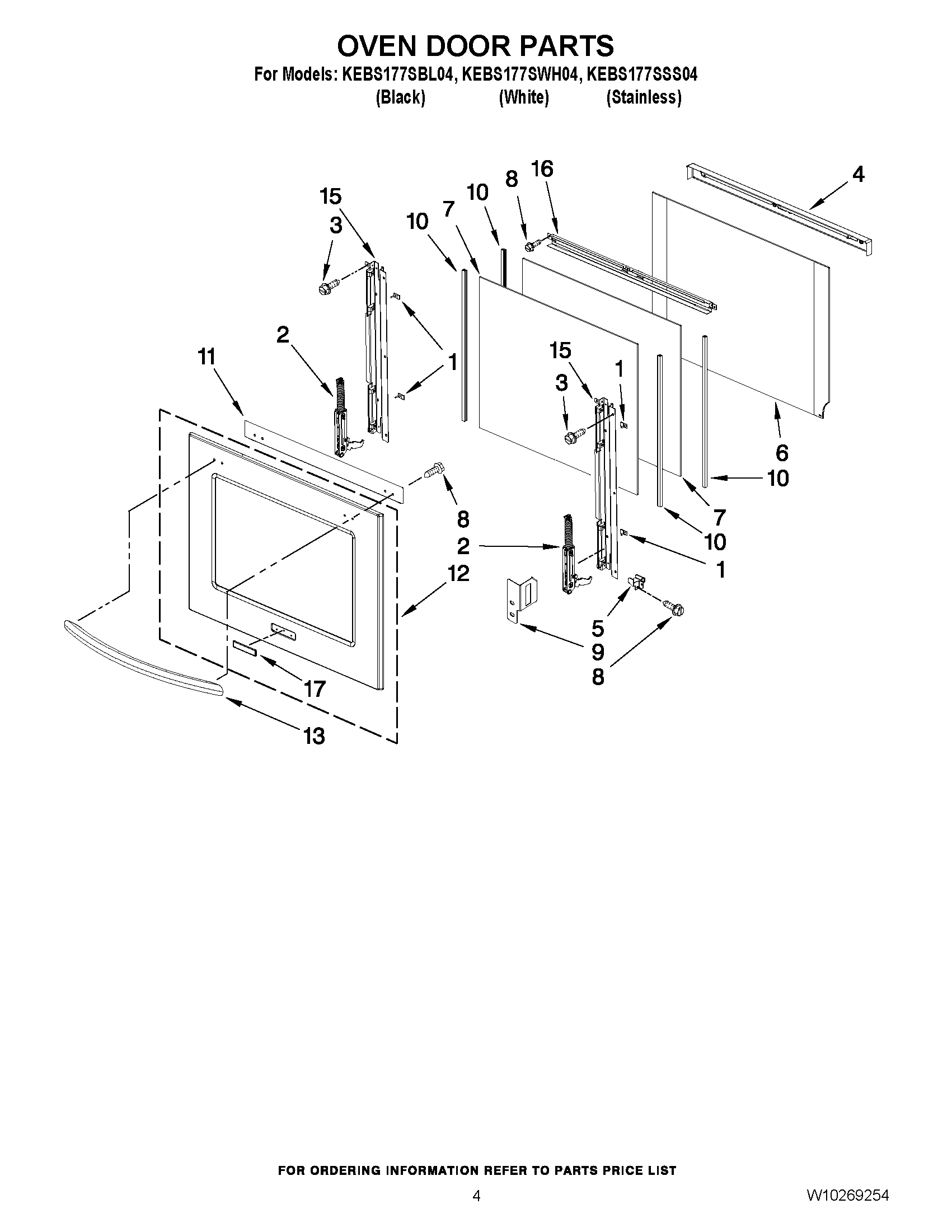

03 - OVEN DOOR PARTS

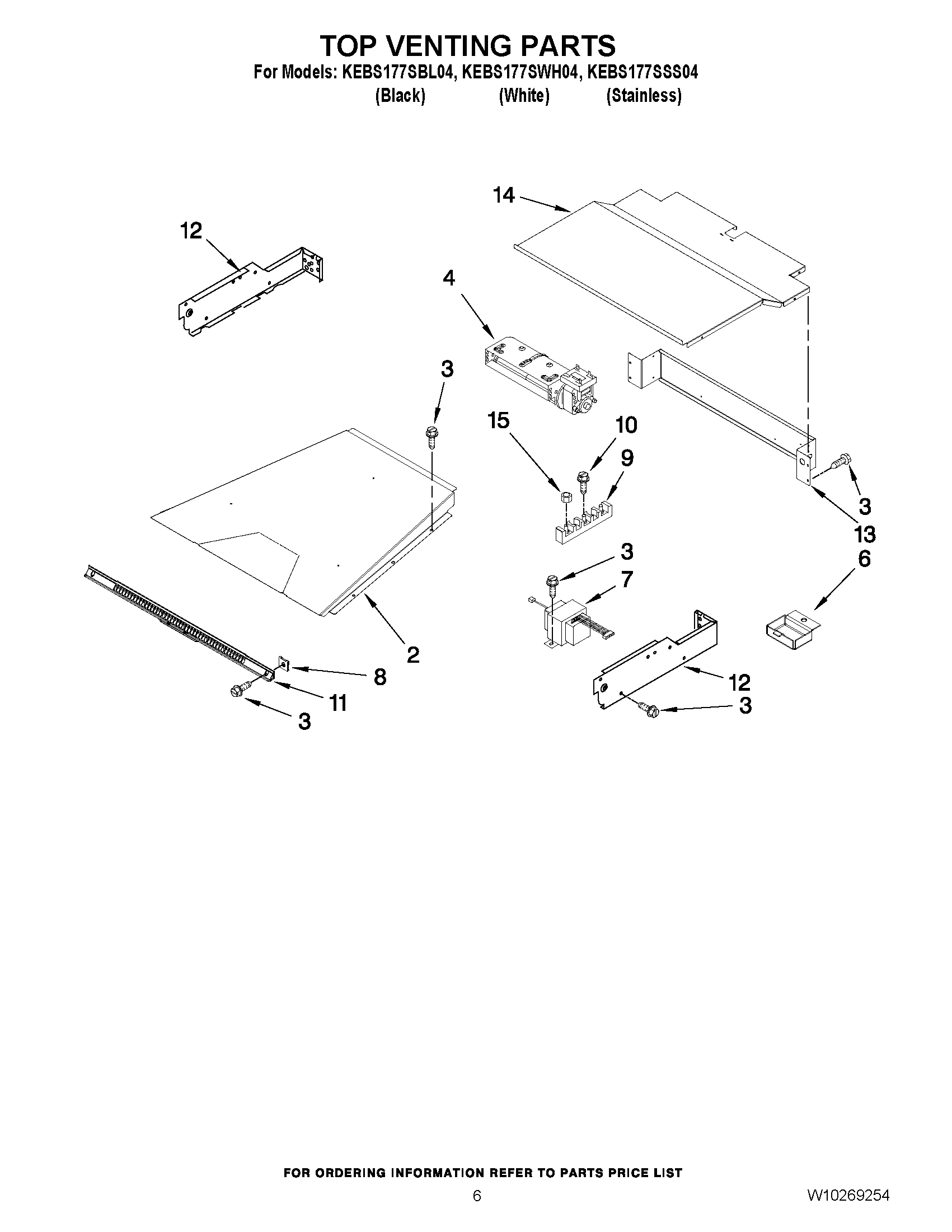

05 - TOP VENTING PARTS
Common parts from model Whirlpool KEBS177SSS04 27`` BUILT-IN ELECTRIC SINGLE OVEN THERMAL CONVECT
1
Bumper, Door WPL 8304522 Contact Us For Availability
1
Panel, Control (Black) WPL 8303717BL Contact Us For Availability
1
Panel, Control (White) WPL 8303717WH Contact Us For Availability
1
Panel, Control (Stainless) WPL W10165446 Contact Us For Availability
2
HINGE, DOOR WPL W10174288 Contact Us For Availability
2
Duct, Air Outlet WPL 8304643 Contact Us For Availability
2
Support Appliance Manager WPL 8303687 Contact Us For Availability
4
Vent, Door Top WPL 8304580BL Contact Us For Availability
4
Keyboard, Glass Touch WPL 8303879 Contact Us For Availability
5
User Inferface WPL W10118733 Contact Us For Availability
5
Bracket, Door (Right) WPL 8304377 Contact Us For Availability
6
Backer, Control WPL 8303720 Contact Us For Availability
6
Door Liner WPL 8303738BL Contact Us For Availability
7
Glass, Inner WPL 8303732 Contact Us For Availability
7
Bracket,Enclosure WPL 8303887 Contact Us For Availability
9
COVER,HINGE (LEFT) WPL W10137043 Contact Us For Availability
9
COVER,HINGE (RIGHT) WPL W10137044 Contact Us For Availability
10
Appliance Manager WPL W10119143 Contact Us For Availability
10
Screw WPL 3400080 Contact Us For Availability
11
Resistor, Drop WPL 8304441 Contact Us For Availability
11
Bracket, Handle WPL 8304361BL Contact Us For Availability
11
Vent, Control Panel WPL 8303722 Contact Us For Availability
12
DOOR GLASS, ASSEMBLY INCLUDES No.17 (WHITE) WPL 8304003 Contact Us For Availability
12
DOOR GLASS, ASSEMBLY INCLUDES No.17 (STAINLES WPL 8303999 Contact Us For Availability
12
DOOR GLASS, ASSEMBLY INCLUDES No.17 (BLACK) WPL 8304001 Contact Us For Availability
12
Side, Control Top (Right) WPL 8303518 Contact Us For Availability
12
Side, Control Top (Left) WPL 8304255 Contact Us For Availability
13
Door Handle (Black) WPL 8303775BL Contact Us For Availability
13
Door Handle (Stainless) WPL 8303775SS Contact Us For Availability
13
Door Handle (White) WPL 8303775WH Contact Us For Availability
13
Back, Control WPL 8303520 Contact Us For Availability
14
Cover, Top WPL 8304220 Contact Us For Availability
15
Gasket, Door WPL 8304494 Contact Us For Availability
15
Frame, Door Side WPL 8303745BL Contact Us For Availability
15
Nut WPL 7103P02760 Contact Us For Availability
16
Door, Top Bracket WPL 8303754 Contact Us For Availability
17
Badge (Stainless) WPL 8304603SS Contact Us For Availability
17
Screw WPL 4449040 Contact Us For Availability
17
Badge (Black) WPL 8304603BL Contact Us For Availability
17
Badge (White) WPL 8304603WH Contact Us For Availability
34
Trim, Bottom Vent (White) WPL 8303706WH Contact Us For Availability
34
Trim, Bottom Vent (Stainless) WPL W10165444 Contact Us For Availability
NI
Harness, Communication WPL 8304051 Contact Us For Availability
× ![]()
