Model Whirlpool KEBS177DBS8 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
04 - INTERNAL OVEN
03 - OVEN DOOR

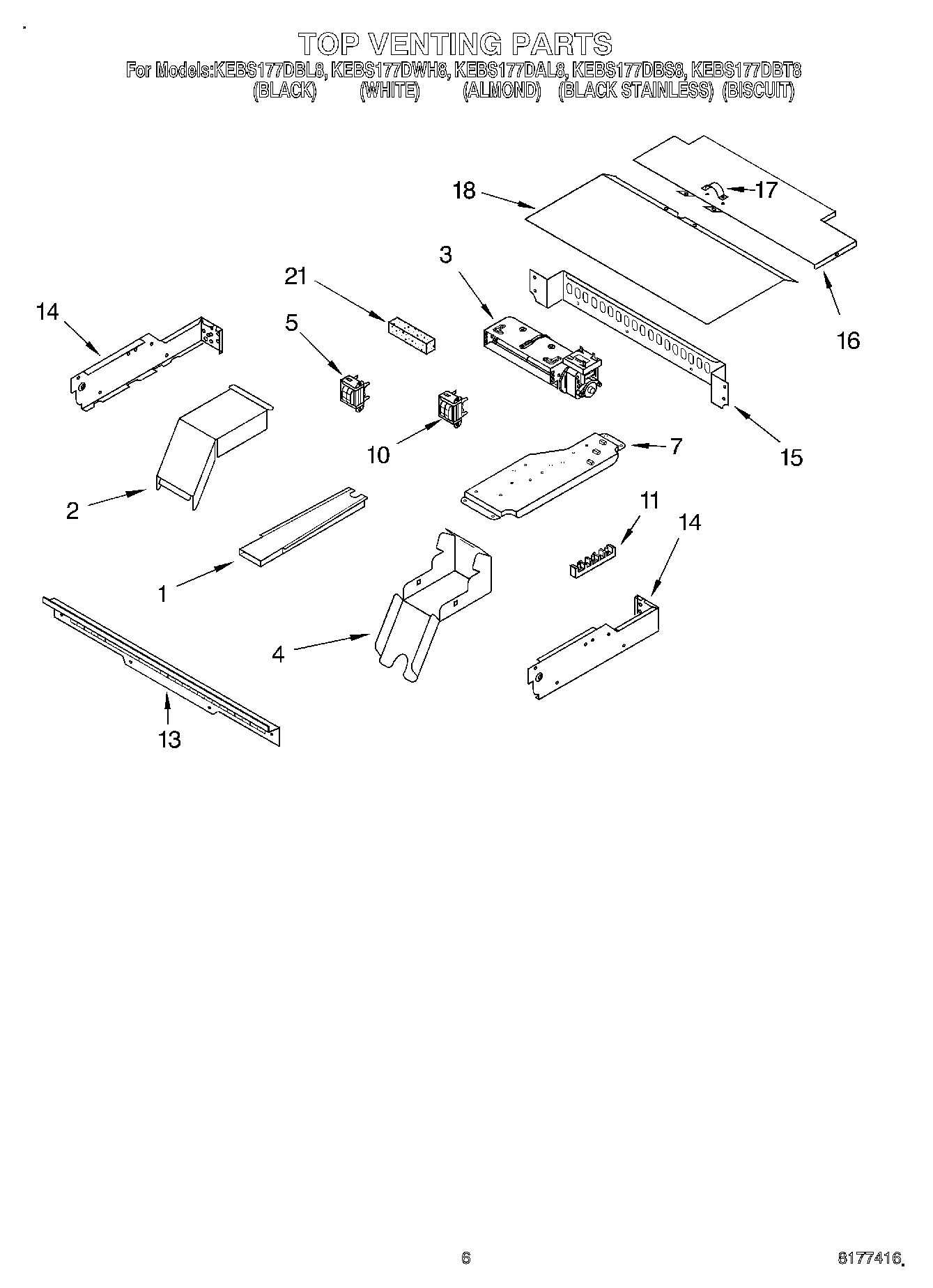

05 - TOP VENTING, OPTIONAL

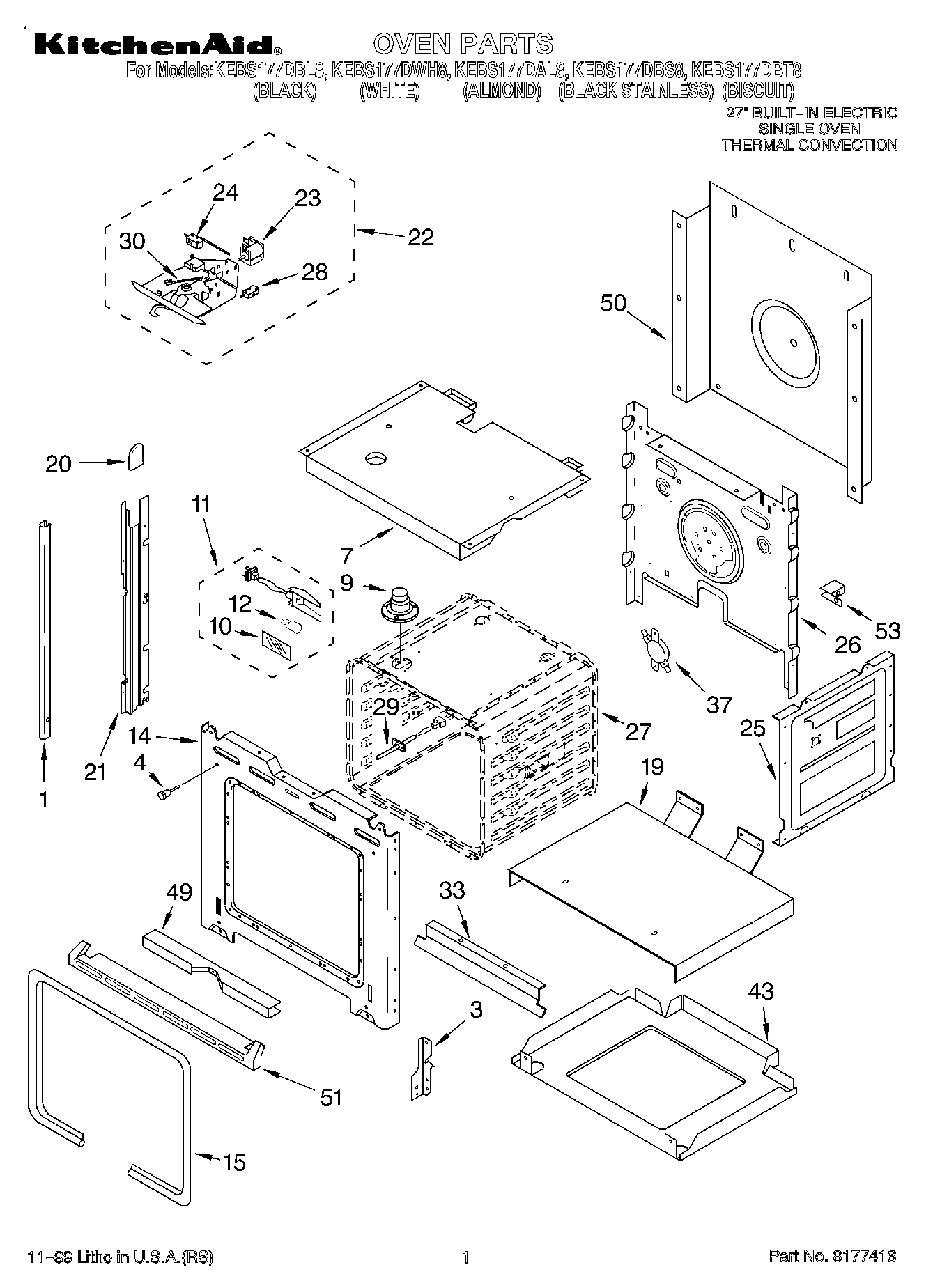

01 - OVEN

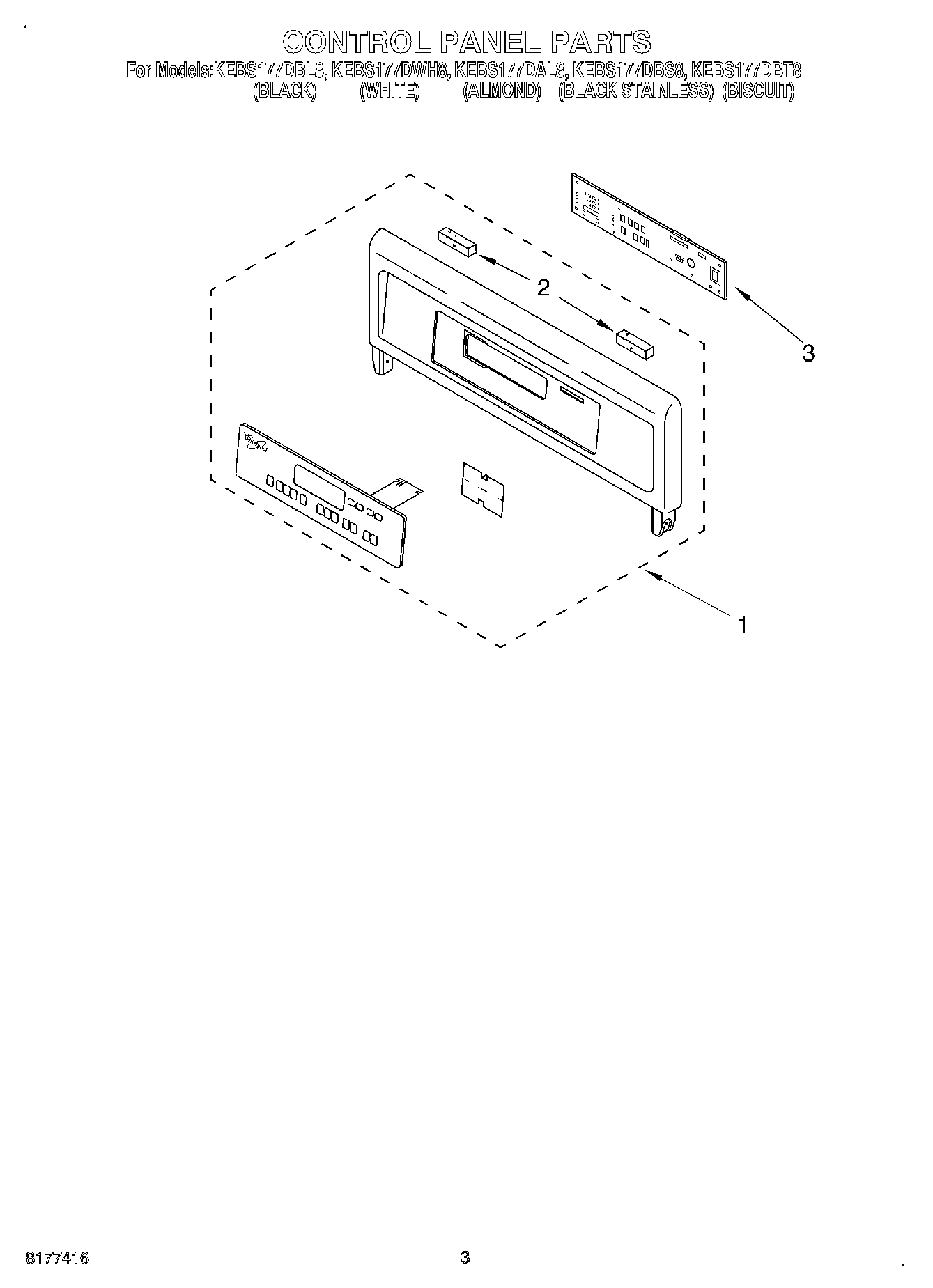

02 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool KEBS177DBS8 BUILT-IN ELECTRIC SINGLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation/ Undercounter WPL LIT3192225 Contact Us For Availability
Cookbook T/C WPL LIT4449066 Contact Us For Availability
Guide, Easy Set WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Installation, MWO Trim Kit WPL LIT4450841 Contact Us For Availability
Tech Sheet WPL LIT4451876 Contact Us For Availability
Use & Care Guide WPL LIT4451952 Contact Us For Availability
1
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450844 Contact Us For Availability
1
Trim, Side (White, Right) WPL 4450845 Contact Us For Availability
1
Trim, Side (Right Hand) (Almond Model) WPL 4450846 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450847 Contact Us For Availability
1
Trim, Side (LH White) WPL 4450848 Contact Us For Availability
1
Trim, Side (LH Almond) WPL 4450849 Contact Us For Availability
1
Trim, Side (Right Hand) (Biscuit Model) WPL 4452120 Contact Us For Availability
1
Trim, Side (LH Biscuit) WPL 4452121 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black) WPL 4451907 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White) WPL 4451910 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Almond WPL 4451912 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Biscui WPL 4451914 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Blower WPL 4455334 Contact Us For Availability
3
Insulation, Door WPL 4451721 Contact Us For Availability
3
Reciever, Hinge (Left Hand) WPL 4454664 Contact Us For Availability
3
Reciever, Hinge (Right Hand) WPL 4454665 Contact Us For Availability
3
Microcomputer WPL 4453163 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
7
Top, Chassis WPL 4455189 Contact Us For Availability
9
Fan, Convect. Assy WPL 4451583 Contact Us For Availability
9
Bracket, Handle WPL 4450813 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4451739 Contact Us For Availability
16
Retainer, Glass (2) for BS Model WPL 4451668 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Cover, Top Front WPL 4452366 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
21
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
21
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
21
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
21
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
21
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
21
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
21
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
21
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
21
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
21
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
21
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
21
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
21
Spacer, Harness WPL 4452222 Contact Us For Availability
21
Harness, Wire (Main) WPL 4452790 Contact Us For Availability
21
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Solenoid WPL 4452224 Contact Us For Availability
24
Microswitch N.C. WPL 4452312 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83173A2 Contact Us For Availability
28
Microswitch WPL 4451426 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
51
Trim, Bottom (Almond) WPL 4448861 Contact Us For Availability
51
Trim, Bottom (Biscuit Model) WPL 4452414 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
× ![]()
