Model Whirlpool KEBS177DAL8 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

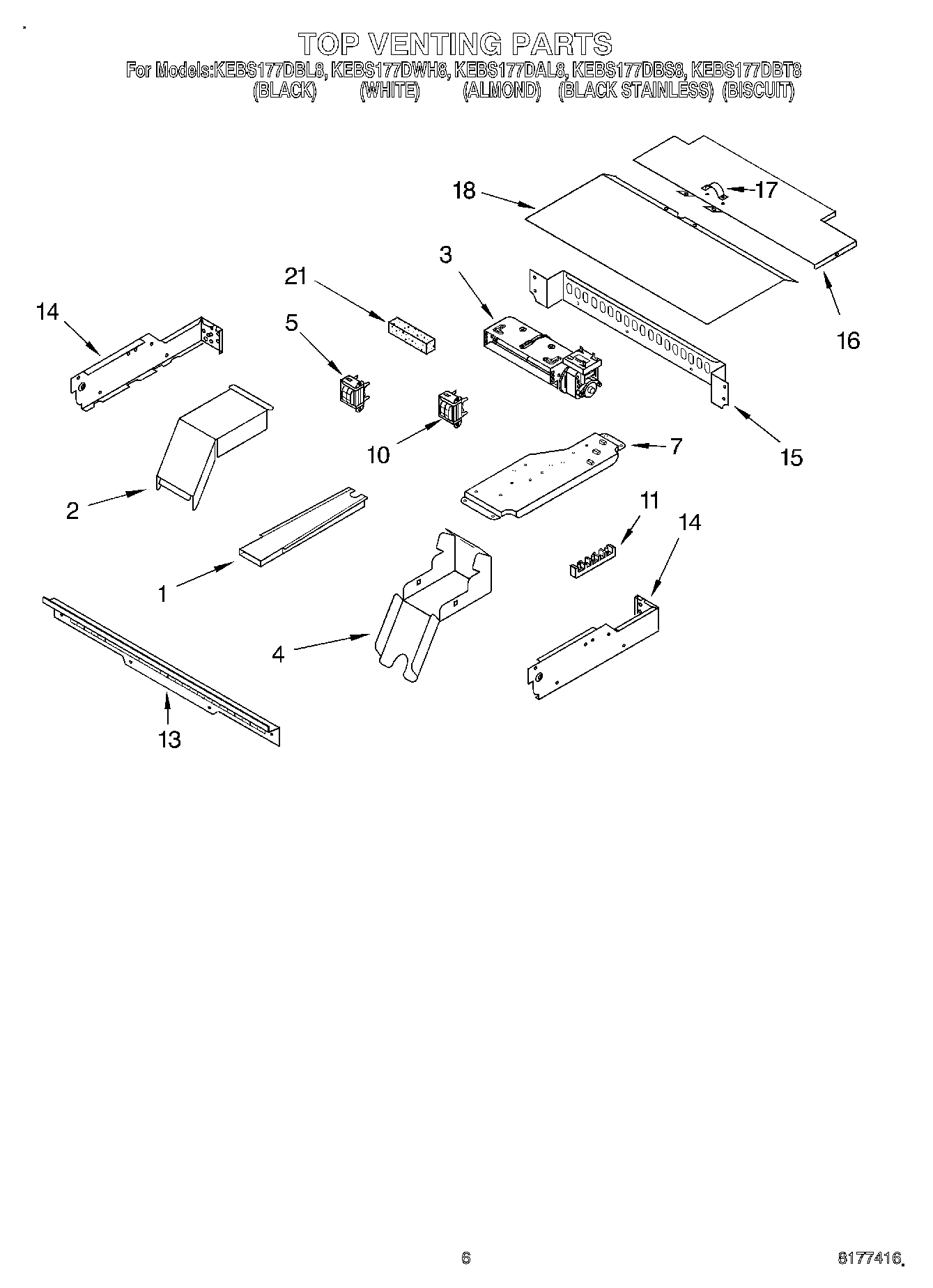

05 - TOP VENTING, OPTIONAL
01 - OVEN
03 - OVEN DOOR
02 - CONTROL PANEL, LITERATURE

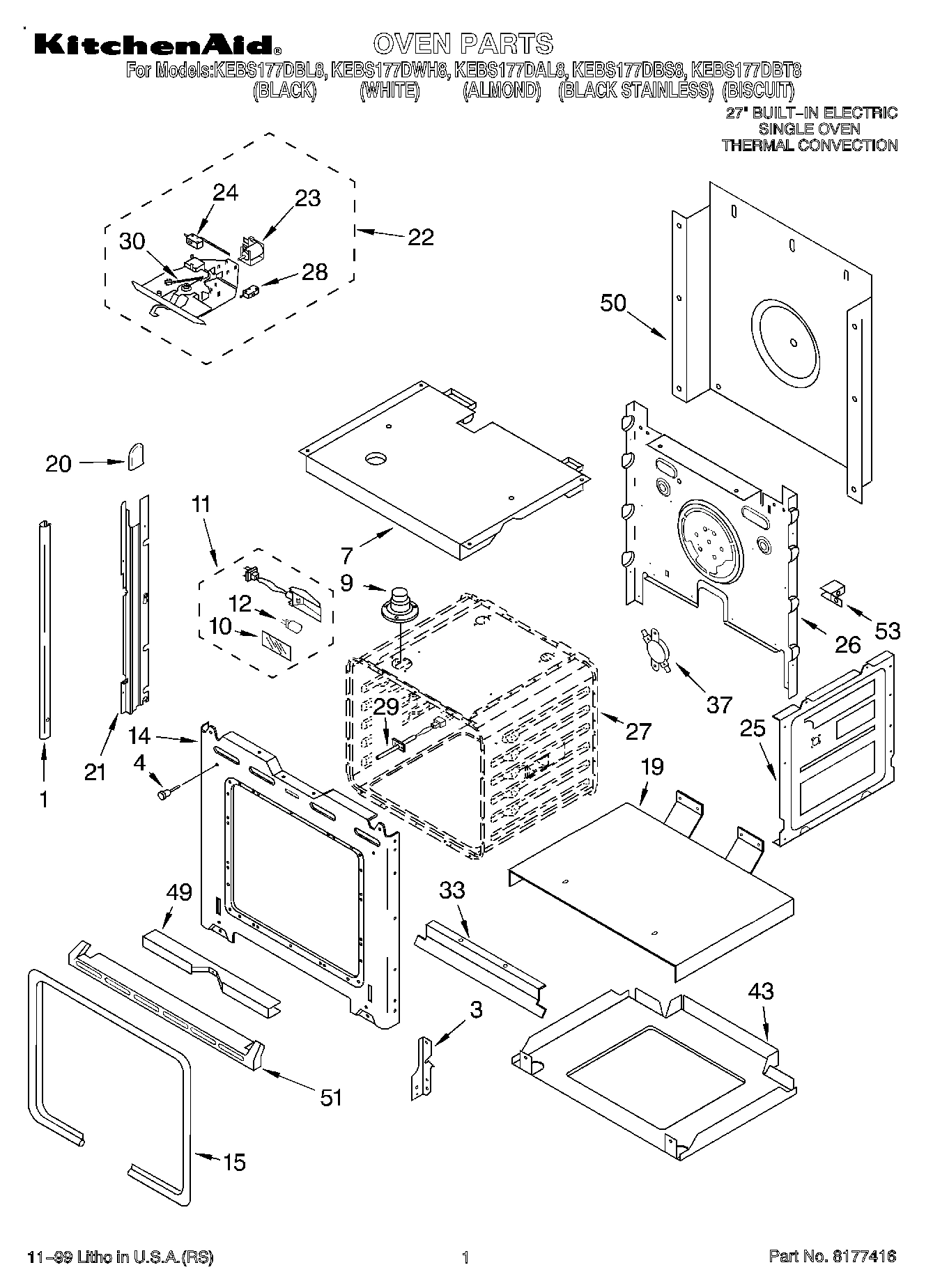

04 - INTERNAL OVEN
Common parts from model Whirlpool KEBS177DAL8 BUILT-IN ELECTRIC SINGLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation/ Undercounter WPL LIT3192225 Contact Us For Availability
Cookbook T/C WPL LIT4449066 Contact Us For Availability
Guide, Easy Set WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Installation, MWO Trim Kit WPL LIT4450841 Contact Us For Availability
Tech Sheet WPL LIT4451876 Contact Us For Availability
Use & Care Guide WPL LIT4451952 Contact Us For Availability
1
Screw WPL 4449040 Contact Us For Availability
1
Trim, Side (LH Almond) WPL 4450849 Contact Us For Availability
1
Trim, Side (Right Hand) (Biscuit Model) WPL 4452120 Contact Us For Availability
1
Trim, Side (LH Biscuit) WPL 4452121 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Door Liner WPL 4451718 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black) WPL 4451907 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White) WPL 4451910 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Almond WPL 4451912 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Biscui WPL 4451914 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Blower WPL 4455334 Contact Us For Availability
3
Insulation, Door WPL 4451721 Contact Us For Availability
3
Reciever, Hinge (Left Hand) WPL 4454664 Contact Us For Availability
3
Reciever, Hinge (Right Hand) WPL 4454665 Contact Us For Availability
3
Microcomputer WPL 4453163 Contact Us For Availability
5
Retainer, Glass WPL 4451670 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Shield, Heat WPL 4450361 Contact Us For Availability
7
Top, Chassis WPL 4455189 Contact Us For Availability
9
Fan, Convect. Assy WPL 4451583 Contact Us For Availability
9
Bracket, Handle WPL 4450813 Contact Us For Availability
9
Screw WPL 4451040 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Seal, Top WPL 4451673 Contact Us For Availability
11
Handle (Black) WPL 4448411 Contact Us For Availability
11
Handle (White) WPL 4448412 Contact Us For Availability
11
Handle (Almond) WPL 4448413 Contact Us For Availability
11
Handle (Biscuit) WPL 4452128 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
13
Door Glass, Assy (Black Model) WPL 4452071 Contact Us For Availability
13
Door Glass, Assy (White Model) WPL 4452072 Contact Us For Availability
13
Door Glass, Assy (Almond) WPL 4452073 Contact Us For Availability
13
Door Glass, Assy (Biscuit) WPL 4452146 Contact Us For Availability
13
Door Glass, Assy (Black-Stainless) WPL 4452476 Contact Us For Availability
14
Frame, Front WPL 4451739 Contact Us For Availability
15
Tray, Bake WPL 4455036 Contact Us For Availability
16
Retainer, Glass (2) for BS Model WPL 4451668 Contact Us For Availability
18
Clip, Retainer (Black) WPL 4450863 Contact Us For Availability
18
Clip, Retainer (White) WPL 4450864 Contact Us For Availability
18
Clip, Retainer (Almond) WPL 4450865 Contact Us For Availability
18
Clip, Retainer (Biscuit) WPL 4452119 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Solenoid WPL 4452224 Contact Us For Availability
24
Microswitch N.C. WPL 4452312 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83139A8 Contact Us For Availability
28
Microswitch WPL 4451426 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
51
Trim, Bottom (Almond) WPL 4448861 Contact Us For Availability
51
Trim, Bottom (Biscuit Model) WPL 4452414 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
× ![]()
