Model Whirlpool KEBS177BAL3 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

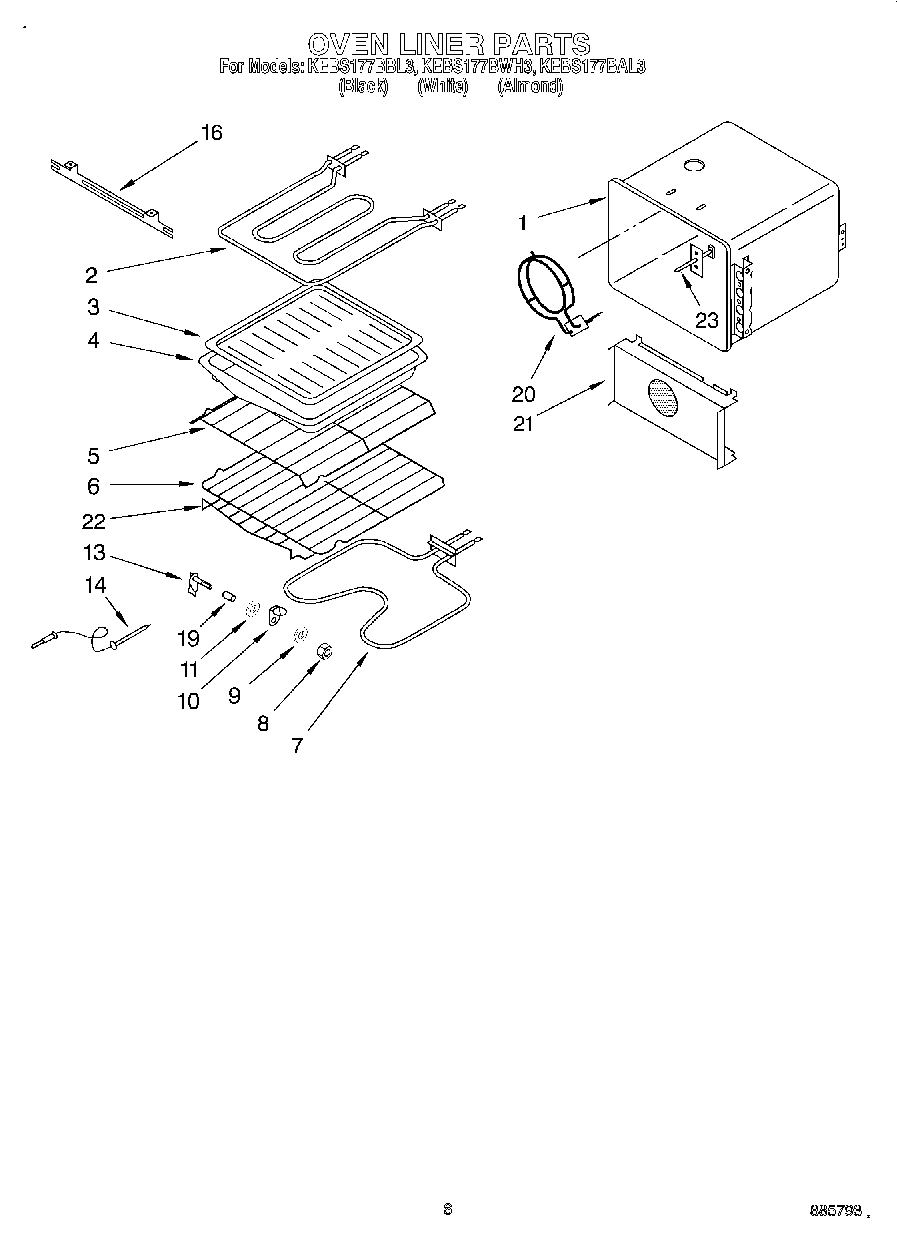

05 - OVEN LINER

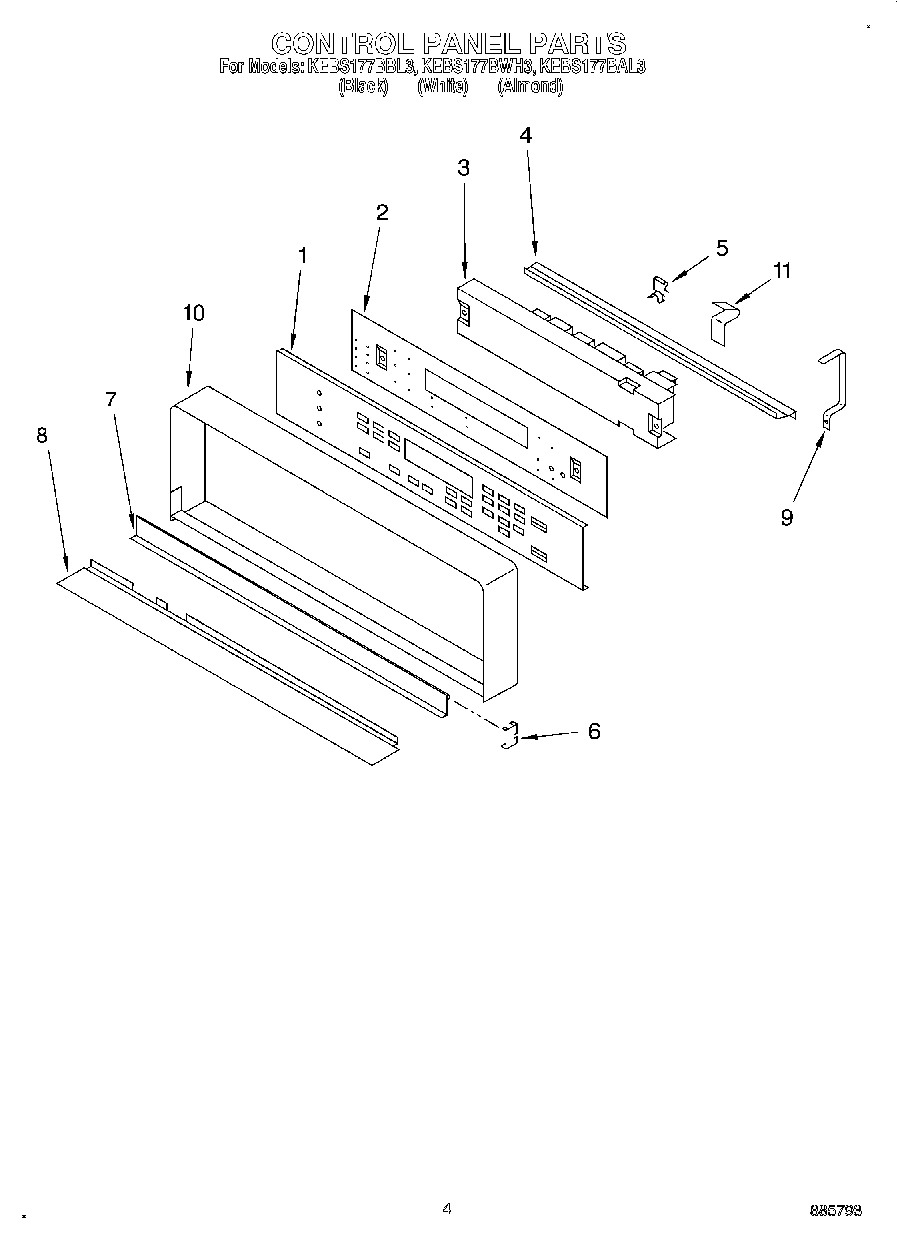

03 - CONTROL PANEL, LITERATURE

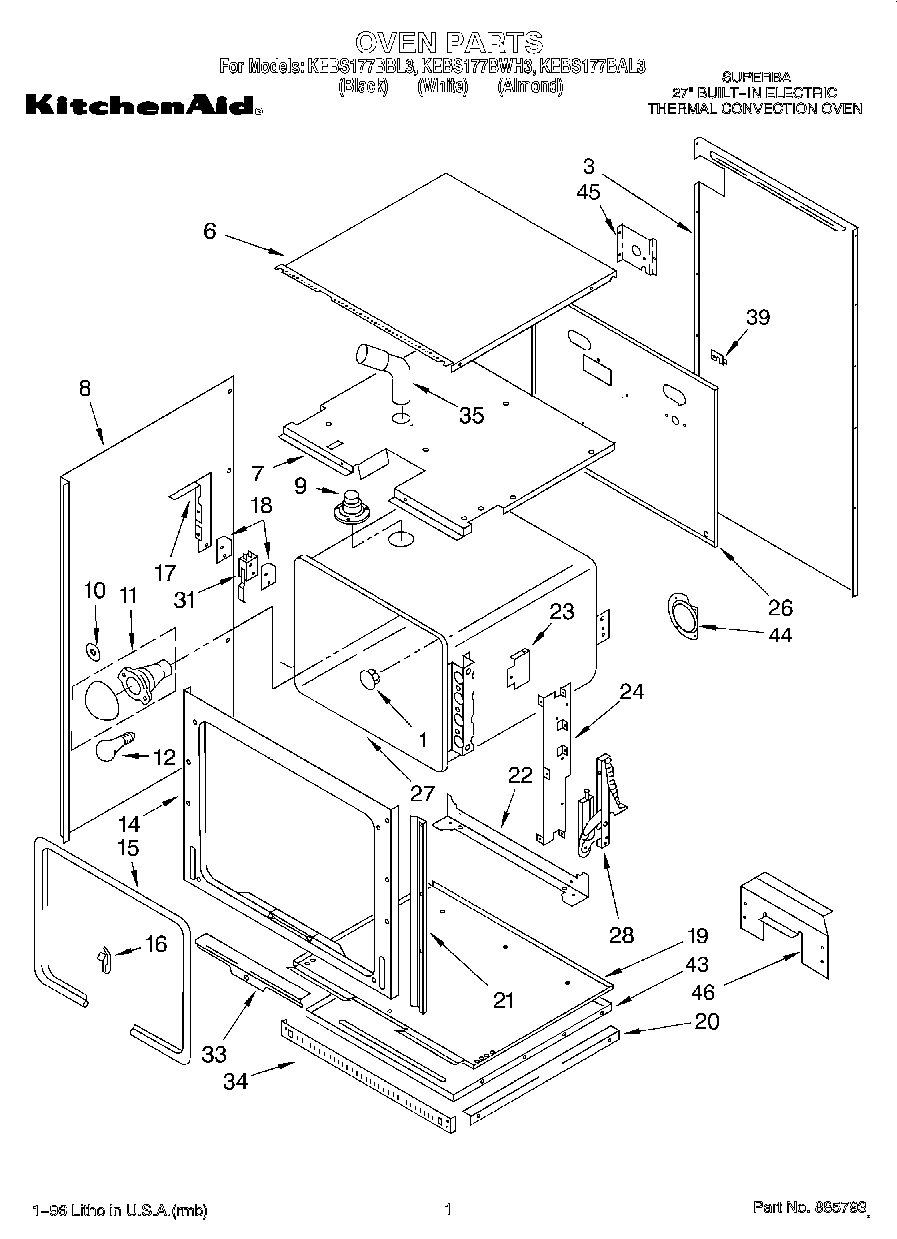

01 - OVEN

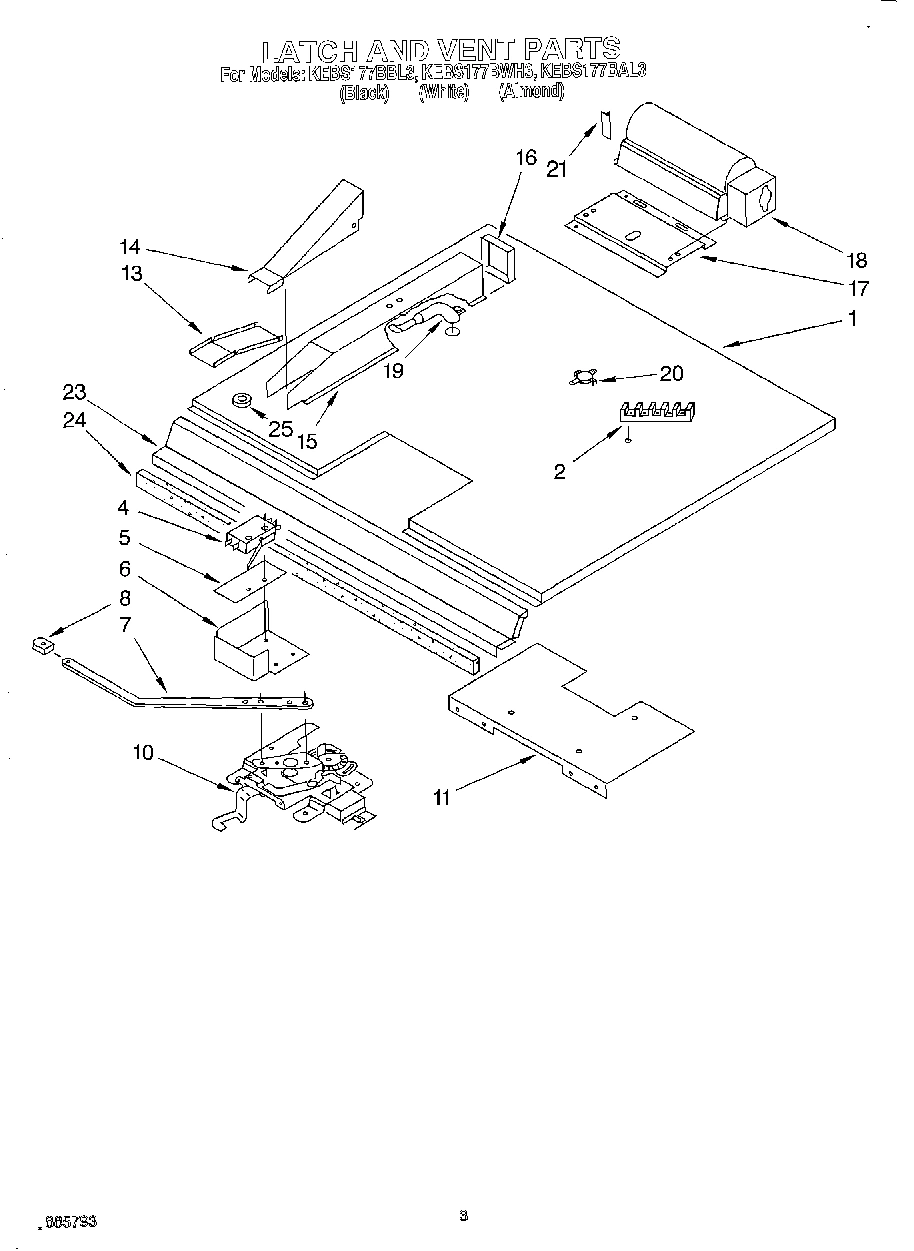

02 - LATCH AND VENT

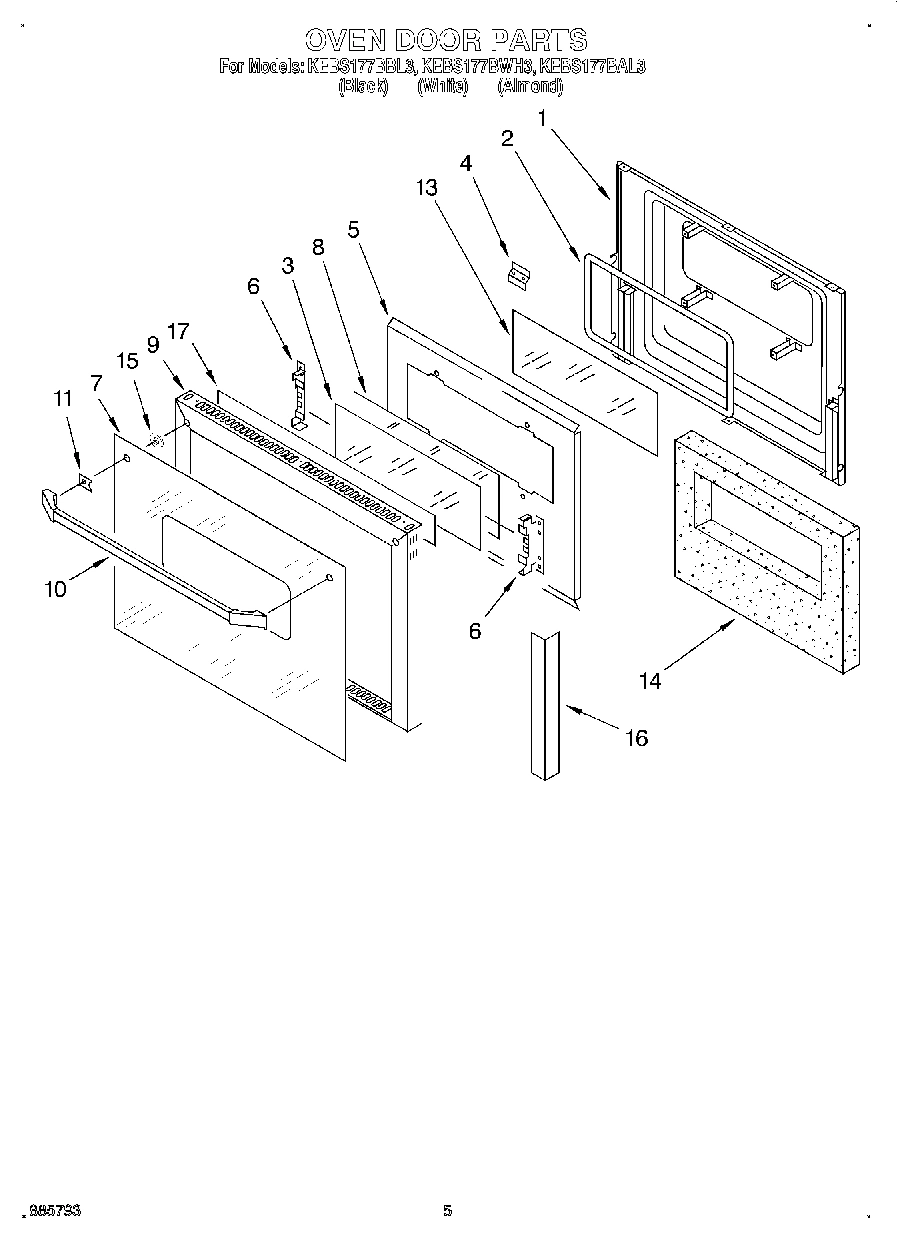

04 - OVEN DOOR

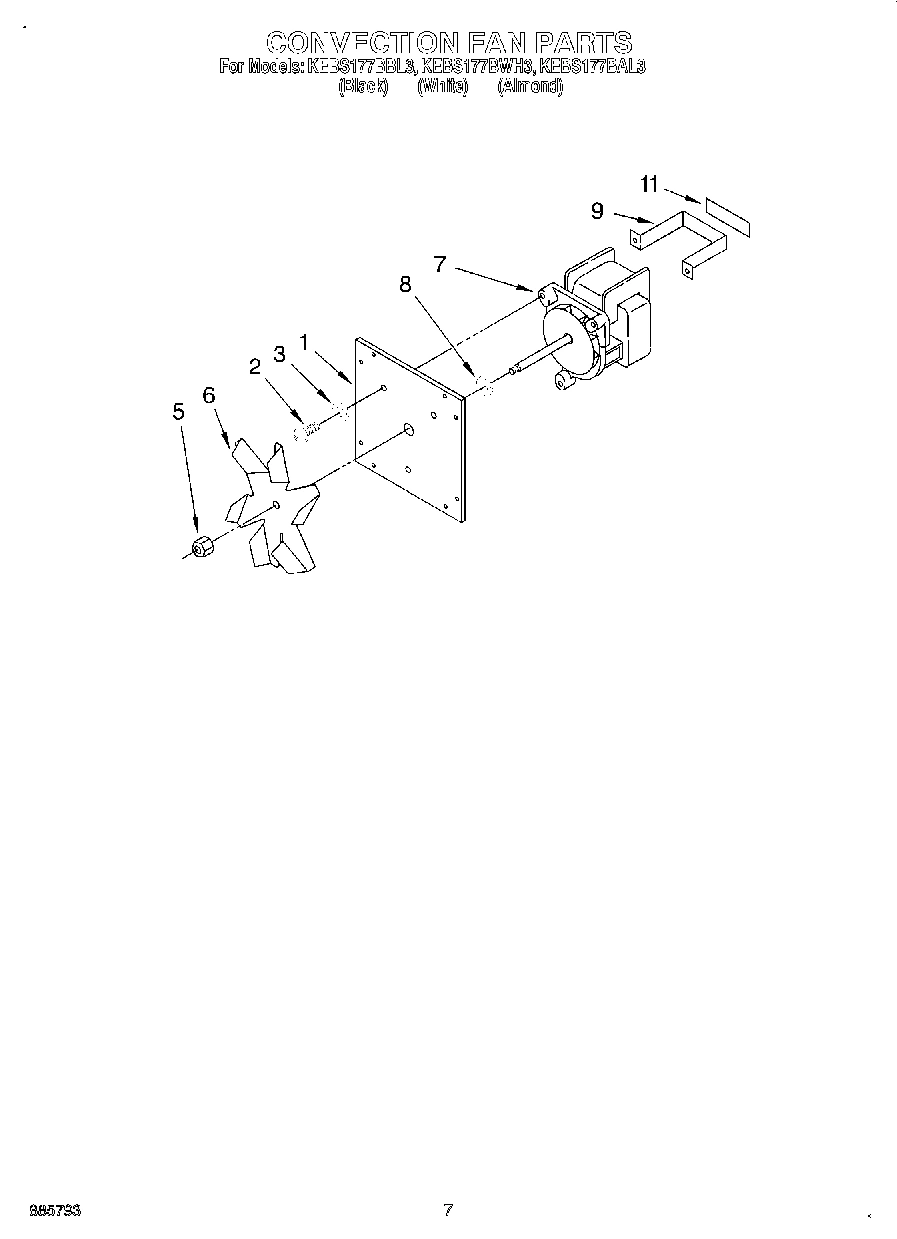

06 - CONVECTION FAN, OPTIONAL

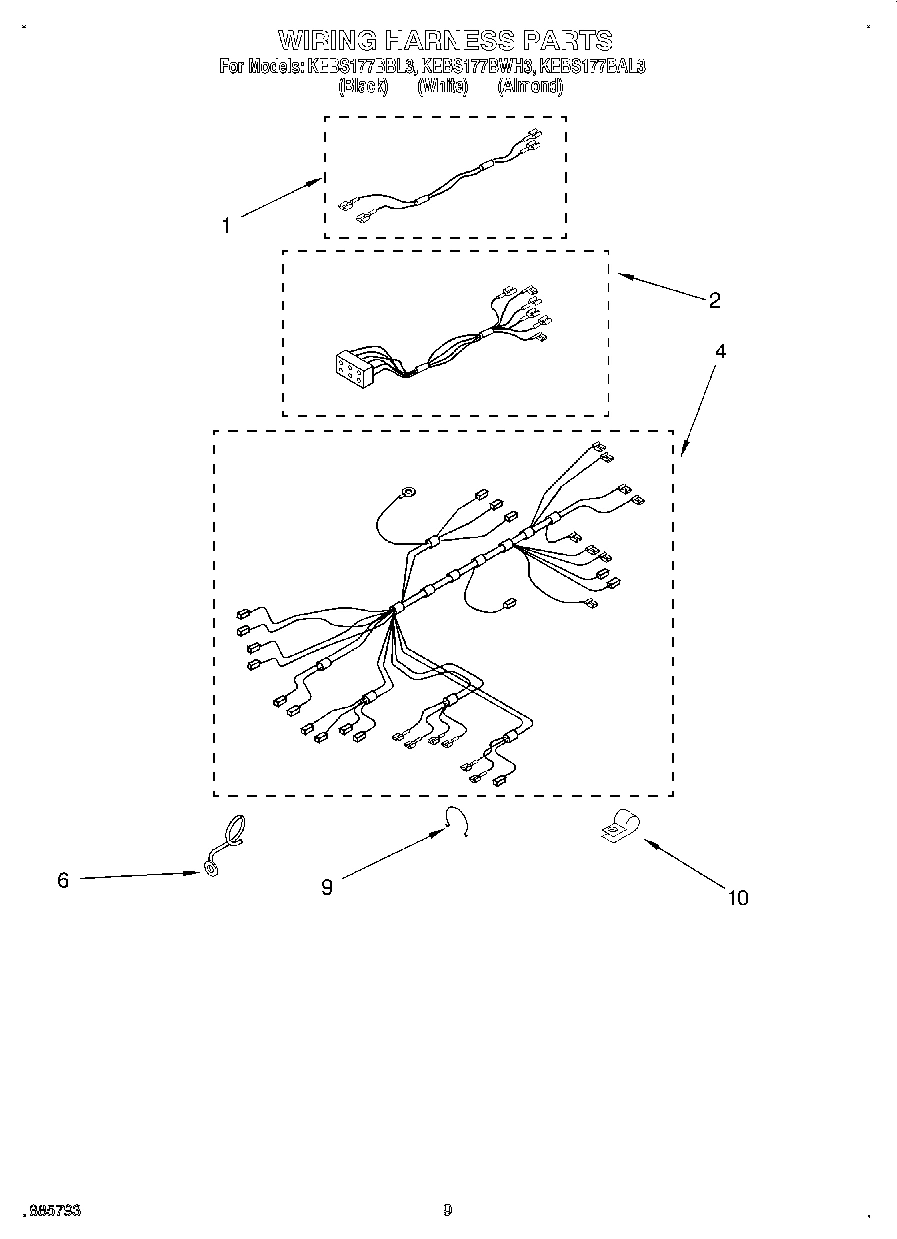

07 - WIRING HARNESS
Common parts from model Whirlpool KEBS177BAL3 BUILT-IN ELECTRIC SINGLE OVEN
Installation Instructions WPL LIT3183659 Contact Us For Availability
Video WPL LIT3183790 Contact Us For Availability
Guide, Auto Set WPL LIT3183987 Contact Us For Availability
Tech Sheet WPL LIT3185962 Contact Us For Availability
Use & Care Guide WPL LIT3188199 Contact Us For Availability
Cookbook WPL LIT4449066 Contact Us For Availability
1
Membrane, Switch (Black Model) WPL 4454358 Contact Us For Availability
1
Membrane, Switch (White, Model) WPL 4454359 Contact Us For Availability
1
Membrane, Switch (Almond, Model) WPL 4454360 Contact Us For Availability
1
Button, Plug WPL 3185085 Contact Us For Availability
1
Module, Top WPL 3183748 Contact Us For Availability
1
Liner, Door WPL 3185497 Contact Us For Availability
1
Plate, Mounting WPL 3178512 Contact Us For Availability
1
Harness Wire Door Light Switch WPL 3187607 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3183794 Contact Us For Availability
2
Screw WPL 308043 Contact Us For Availability
2
Gasket, Window WPL 3185462 Contact Us For Availability
2
Harness, Wire (Latch Assy.) WPL 3185952 Contact Us For Availability
3
Microcomputer WPL 3181703 Contact Us For Availability
3
Cabinet, Back WPL 3177738 Contact Us For Availability
3
Glass, Clear WPL 3185459 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
4
Retainer, Bracket WPL 3183705 Contact Us For Availability
4
Screw, WPL 254225 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw WPL 98106 Contact Us For Availability
4
Latch, Strike WPL 3185438 Contact Us For Availability
4
Harness Wire Main WPL 3185949 Contact Us For Availability
5
Clip, Retainer (3) WPL 3182985 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Retainer, Insulation WPL 3188815 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
6
Trim, Door (2) WPL 3182162 Contact Us For Availability
6
Screw (4) WPL 3185647 Contact Us For Availability
6
Cabinet, Top WPL 3178143 Contact Us For Availability
6
Guard, Switch WPL 3177662 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 3185439 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
7
Door, Latch Handle (Black) WPL 3182151 Contact Us For Availability
7
Door, Latch Handle (White) WPL 3182154 Contact Us For Availability
7
Door, Latch Handle (Almond) WPL 3182157 Contact Us For Availability
7
Screw WPL 3185414 Contact Us For Availability
7
Handle, Latch WPL 3186998 Contact Us For Availability
7
Glass, Door (Black Model) WPL 3187863 Contact Us For Availability
7
Glass, Door (White Model) WPL 3187865 Contact Us For Availability
7
Glass, Door (Almond Model) WPL 3187867 Contact Us For Availability
7
Screw WPL 4173193 Contact Us For Availability
7
Motor WPL 3182088 Contact Us For Availability
8
Trim, Panel WPL 3183702 Contact Us For Availability
8
Side, Cabinet (Left Hand) WPL 3177441 Contact Us For Availability
8
Side, Cabinet (Right Hand) WPL 3177442 Contact Us For Availability
8
Screw WPL 3179116 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Glass, Reflective WPL 3185458 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
9
Screw WPL 3185648 Contact Us For Availability
9
Screw WPL 98520 Contact Us For Availability
9
Bracket WPL 3184321 Contact Us For Availability
9
Smoke Eliminator WPL 3186684 Contact Us For Availability
9
Frame, Door (Black Model) WPL 3187850 Contact Us For Availability
9
Frame, Door (White Model) WPL 3187852 Contact Us For Availability
9
Frame, Door (Almond Model) WPL 3187854 Contact Us For Availability
9
Bracket Guard WPL 4173185 Contact Us For Availability
10
Frame, Control Panel (Black Model) WPL 3187954 Contact Us For Availability
10
Frame, Control Panel (White Model) WPL 3187955 Contact Us For Availability
10
Frame, Control Panel (Almond Model) WPL 3187956 Contact Us For Availability
10
Handle, Door (Screw (2)) WPL 3184037 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Handle, Door (Black Model) WPL 3185986 Contact Us For Availability
10
Handle, Door (White Model) WPL 3185987 Contact Us For Availability
10
Handle, Door (Almond Model) WPL 3185988 Contact Us For Availability
10
Clamp, Wire WPL 3184792 Contact Us For Availability
11
Screw WPL 309133 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Spacer, Door Handle WPL 3182138 Contact Us For Availability
11
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
11
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
11
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
11
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
11
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
11
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
11
White 14 Ga. 150~c Rating WPL 242826 Contact Us For Availability
11
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
11
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
11
Red 12 Ga. 150~c Rating WPL 242829 Contact Us For Availability
11
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
11
Yellow 14 Ga. 200~c Rating WPL 242832 Contact Us For Availability
11
Harvest Gold WPL 261890 Contact Us For Availability
11
Harvest Gold WPL 261891 Contact Us For Availability
11
Toast WPL 285365 Contact Us For Availability
11
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
11
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
11
Platinum WPL 285368 Contact Us For Availability
11
Mounting Hardware WPL 3171507 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
11
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
11
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
11
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
11
KIT, PORCELAIN REPA WPL 799832 Contact Us For Availability
11
WPL 832985 WPL 832985 Contact Us For Availability
11
WPL 978883 WPL 978883 Contact Us For Availability
13
Glass, Clear WPL 3185457 Contact Us For Availability
13
Nozzle, Vent Bottom WPL 3183954 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Screw, Black (2) WPL 3178001 Contact Us For Availability
14
Frame, Front WPL 4454458 Contact Us For Availability
14
Nozzle, Vent Top WPL 3183955 Contact Us For Availability
14
Insulation, Door WPL 3185460 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
15
Box, Vent WPL 3183999 Contact Us For Availability
15
Screw WPL 4173231 Contact Us For Availability
15
Bushing WPL 3188599 Contact Us For Availability
15
Screw WPL 342043 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
16
Foil-Adhesive WPL 3188635 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Screw WPL 4173601 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
17
Foil, Adhesive WPL 3188633 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
19
Tube, Vent WPL 3183791 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
21
Trim, Door Side (2) (Black Model) WPL 3187873 Contact Us For Availability
21
Side Trim, Door (2) (White Model) WPL 3187876 Contact Us For Availability
21
Side Trim, Door (2) (Almond Model) WPL 3187879 Contact Us For Availability
21
Screw WPL 311773 Contact Us For Availability
21
Baffle WPL 3185455 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Screw (6) WPL 3179795 Contact Us For Availability
23
Shield, Heat WPL 3183785 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Seal, foam WPL 313755 Contact Us For Availability
25
Bushing WPL 4159035 Contact Us For Availability
26
Back, Module WPL 3177561 Contact Us For Availability
27
Liner, Oven WPL 3185563 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Vent, Lower Trim (Screw (2)) WPL 4168863 Contact Us For Availability
34
Vent, Lower Trim (Black Model) WPL 3177783 Contact Us For Availability
34
Vent, Lower Trim (Screw (4)) WPL 3180022 Contact Us For Availability
34
Trim, Lower Vent (White Model) WPL 3187957 Contact Us For Availability
34
Vent, Lower Trim (Almond Model) WPL 3187959 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
43
Bottom, Oven WPL 3177551 Contact Us For Availability
44
Cover, Probe WPL 4163883 Contact Us For Availability
45
Bracket, Conduit WPL 3177545 Contact Us For Availability
46
Insulation, Back WPL 3177872 Contact Us For Availability
46
Bracket, Mounting Control Panel WPL 3183752 Contact Us For Availability
46
Insulation, Wrap WPL 4454418 Contact Us For Availability
× ![]()
