Model Whirlpool KEBS176SBL3 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

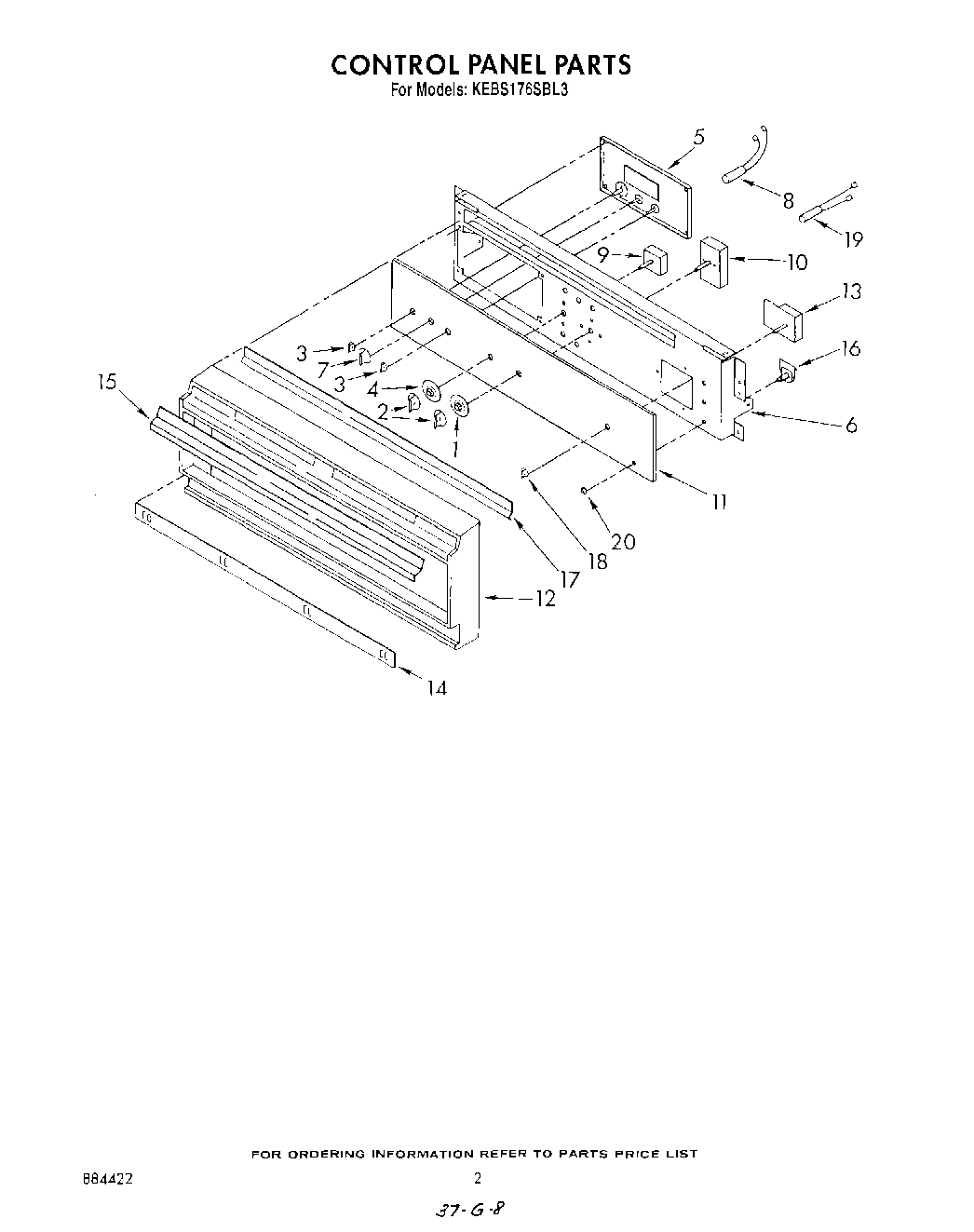

02 - CONTROL PANEL , LIT/OPTIONAL

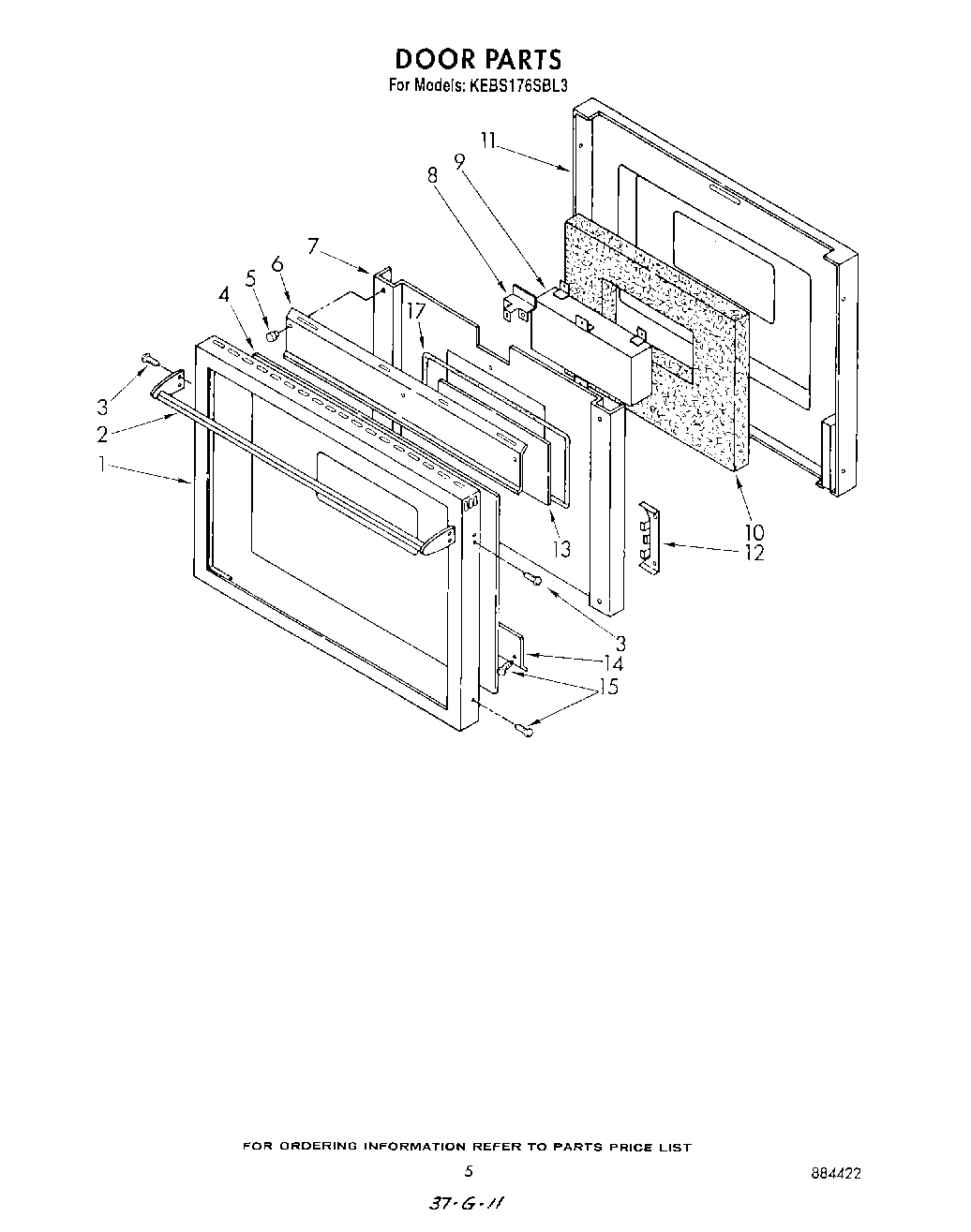

05 - DOOR

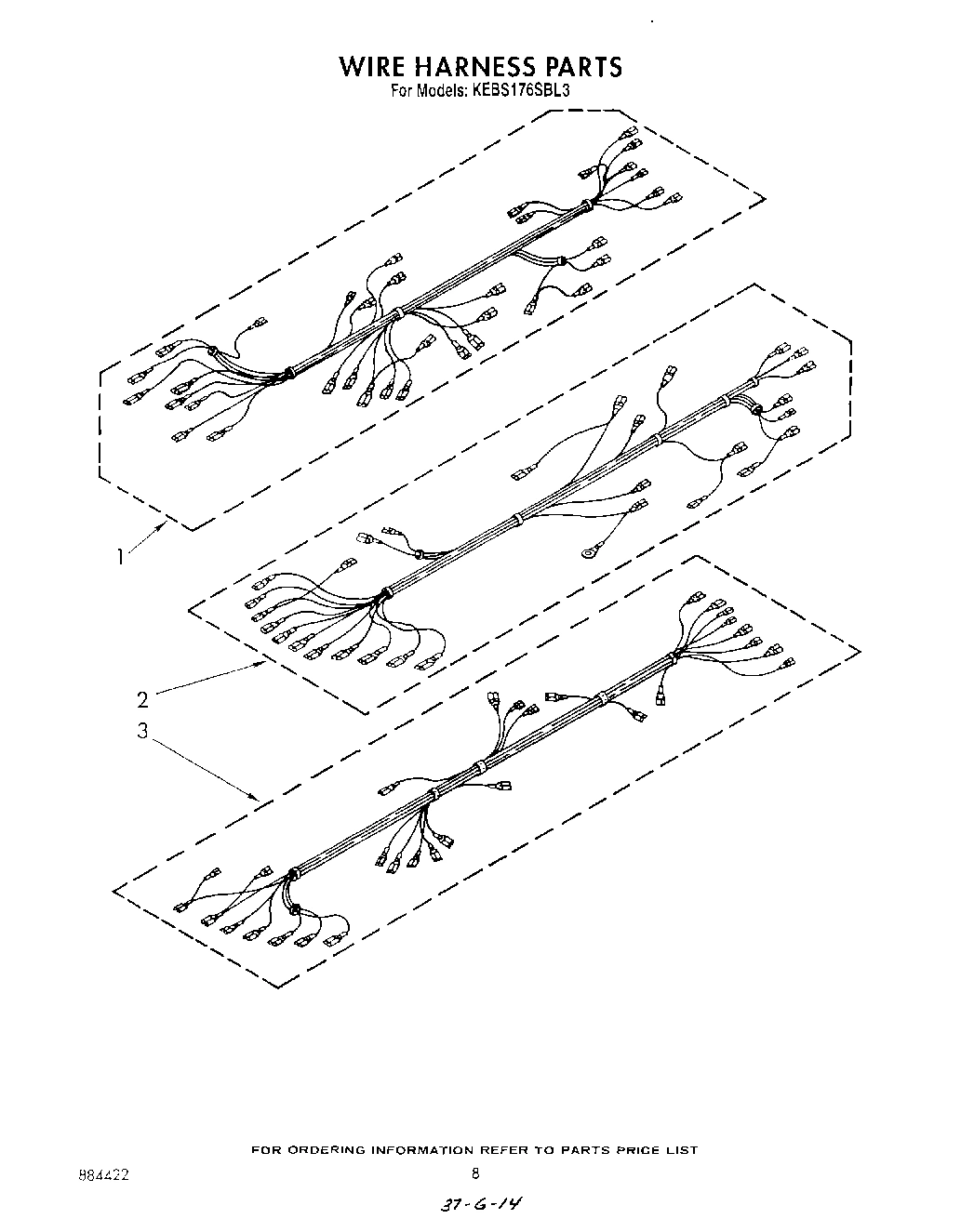

07 - WIRE HARNESS

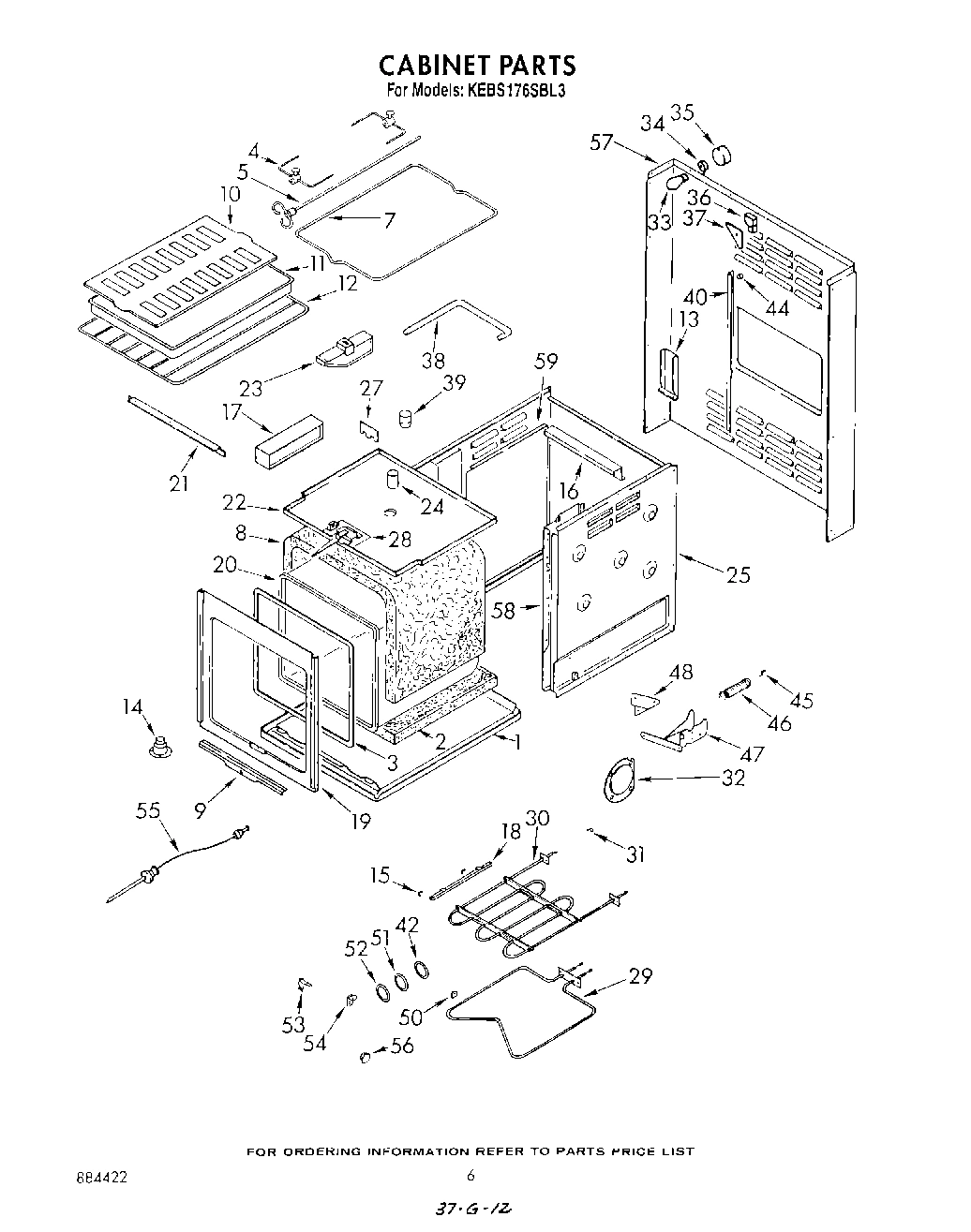

06 - CABINET

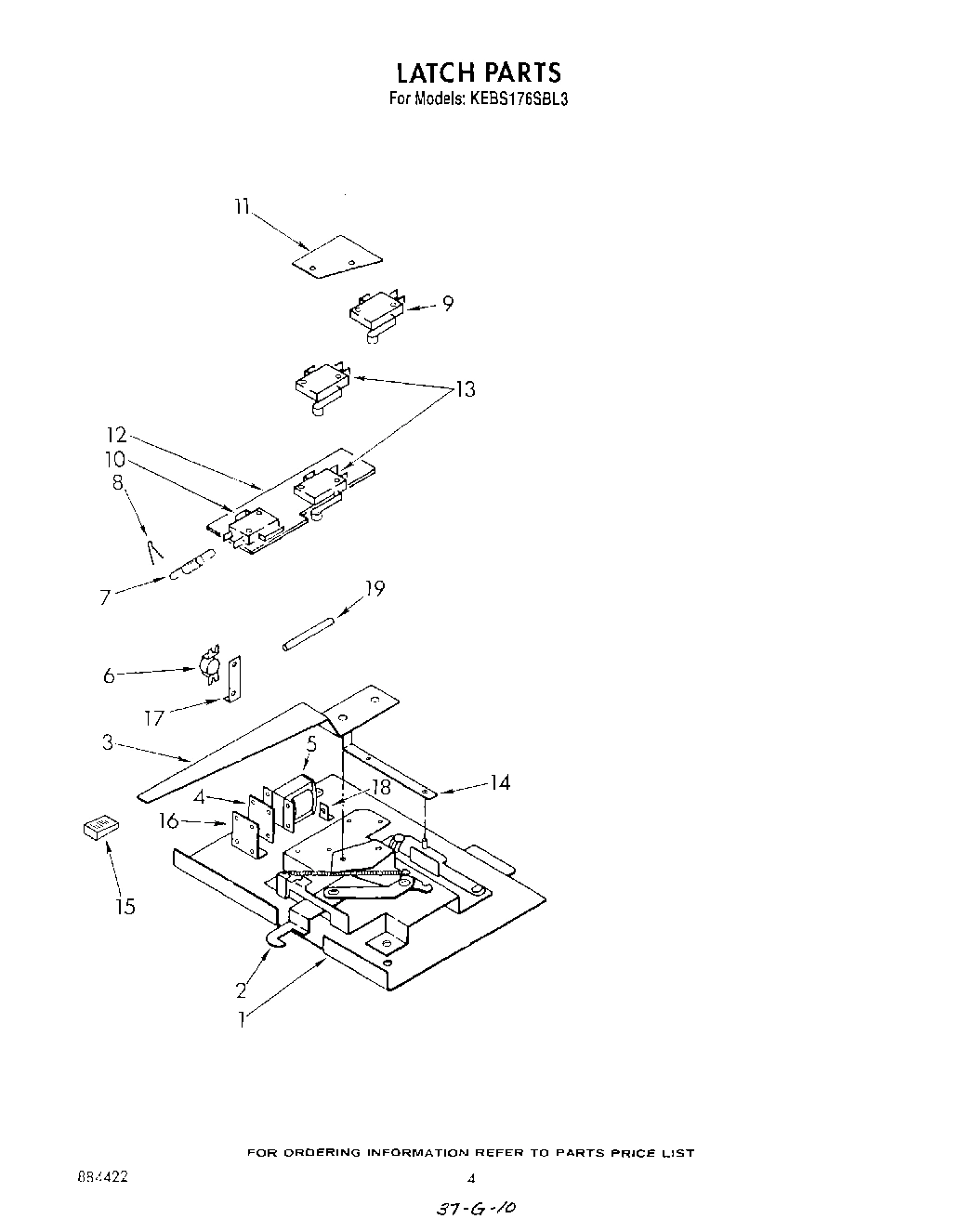

04 - LATCH

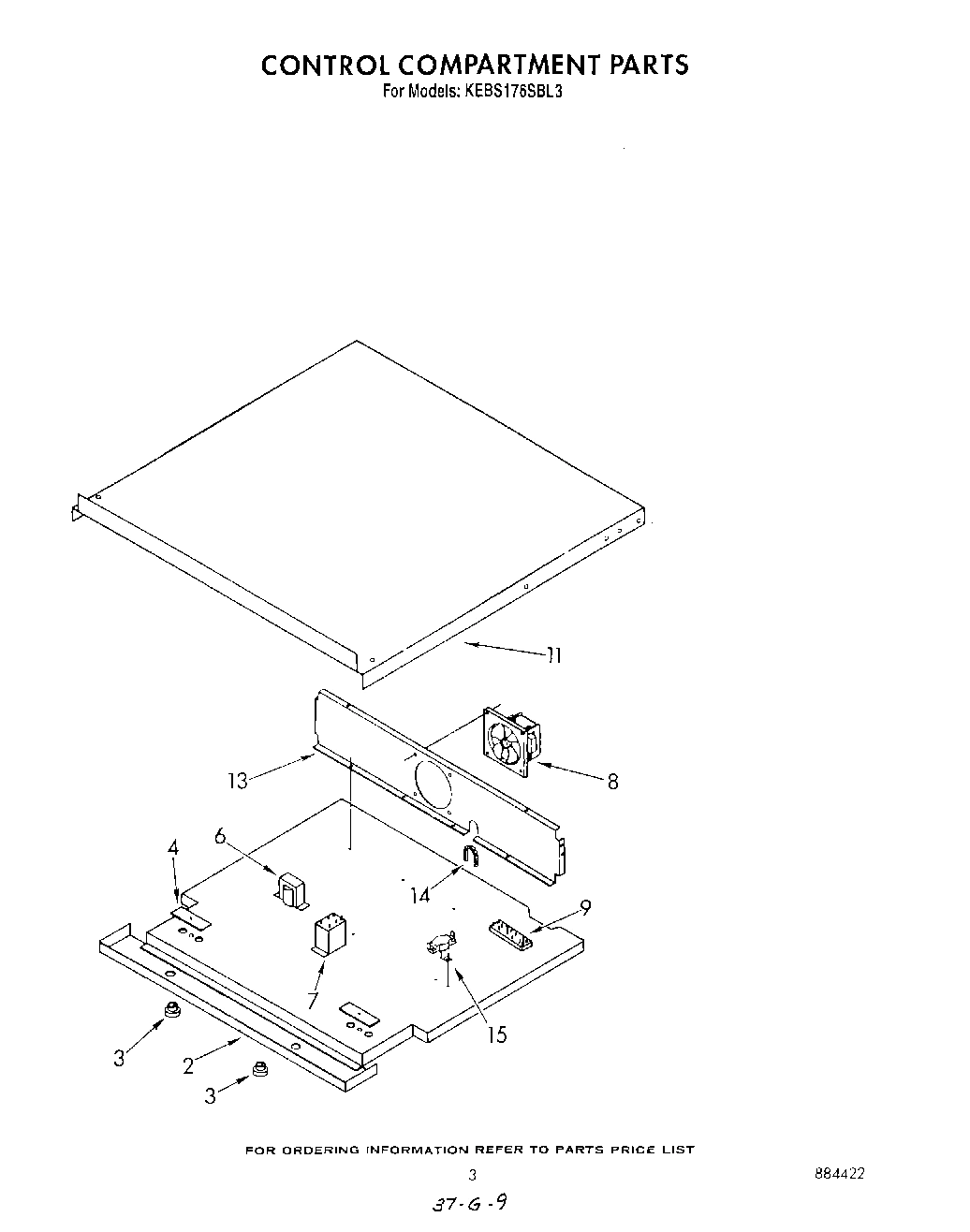

03 - CONTROL COMPARTMENT
Common parts from model Whirlpool KEBS176SBL3 BUILT-IN ELECTRIC SINGLE OVEN
List, Repair Parts WPL LIT884422 Contact Us For Availability
1
Disc, Thermostat (2) WPL 3179678 Contact Us For Availability
1
Door Frame WPL 4164391 Contact Us For Availability
1
Low Temperature WPL 3178617 Contact Us For Availability
1
Main Bottom WPL 4163966 Contact Us For Availability
2
Insert, Screw WPL 3179716 Contact Us For Availability
2
Door Handle WPL 4173018 Contact Us For Availability
2
Upper Latch WPL 3178615 Contact Us For Availability
2
Insulation, Bottom WPL 4164191 Contact Us For Availability
2
Sandwich Panel WPL 4173054 Contact Us For Availability
3
Knob, Timer (2) (Start & Stop) WPL 3177121 Contact Us For Availability
3
High Temperature WPL 3178618 Contact Us For Availability
3
Door Gasket WPL 3178580 Contact Us For Availability
3
Bushing (2) WPL 4173043 Contact Us For Availability
4
Disc, Selector WPL 4163800 Contact Us For Availability
4
Clip WPL 4175379 Contact Us For Availability
4
Door Glass WPL 4164241 Contact Us For Availability
4
Skewer, Rotisserie (2) WPL 4166352 Contact Us For Availability
4
hole cover (2) WPL 4168257 Contact Us For Availability
5
nut (4) WPL 4164360 Contact Us For Availability
5
Electronic Timer WPL 4173071 Contact Us For Availability
5
Rubber Bumper WPL 4168826 Contact Us For Availability
5
Spear WPL 4168724 Contact Us For Availability
6
bracket, control WPL 4164218 Contact Us For Availability
6
air baffle top WPL 4163857 Contact Us For Availability
6
Cover, Seal End WPL 4167588 Contact Us For Availability
6
Transformer WPL 4166561 Contact Us For Availability
7
Knob, Timer WPL 3177122 Contact Us For Availability
7
Retainer, Insulation WPL 4169357 Contact Us For Availability
7
Rack WPL 4168412 Contact Us For Availability
7
Relay, Probe WPL 4163731 Contact Us For Availability
8
Clean On WPL 4163867 Contact Us For Availability
8
Bracket, Lock WPL 4163852 Contact Us For Availability
8
Insulation, Rear WPL 4164192 Contact Us For Availability
8
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
8
Blower WPL 4173004 Contact Us For Availability
9
Switch, Selector WPL 3177174 Contact Us For Availability
9
Window Package WPL 4164235 Contact Us For Availability
9
screw (7) WPL 4168863 Contact Us For Availability
9
Retainer-Gasket WPL 3177549 Contact Us For Availability
9
Wire 10 G.A. 70`` WPL 4168001 Contact Us For Availability
9
Wire 10 G.A. 70`` WPL 4168002 Contact Us For Availability
9
Terminal Block WPL 4168735 Contact Us For Availability
9
Wire 10 G.A. 70`` WPL 4168800 Contact Us For Availability
10
Thermostat WPL 4164361 Contact Us For Availability
10
Insulation WPL 4163987 Contact Us For Availability
10
Switch, Safety WPL 4164366 Contact Us For Availability
11
Glass, Panel WPL 4164345 Contact Us For Availability
11
Door Liner WPL 3178761 Contact Us For Availability
11
Insulator, Switch WPL 4163746 Contact Us For Availability
11
Cabinet Top WPL 4173276 Contact Us For Availability
12
frame, control WPL 4164363 Contact Us For Availability
12
Glass Mounting Bracket WPL 4163855 Contact Us For Availability
12
Rack, Oven WPL 4168401 Contact Us For Availability
12
Insulator (2) WPL 4168522 Contact Us For Availability
13
Indicator, Probe WPL 4163730 Contact Us For Availability
13
Glass Panel WPL 4164243 Contact Us For Availability
13
Rear Anchor WPL 4167526 Contact Us For Availability
13
Nut (2) WPL 4159117 Contact Us For Availability
13
Screw (2) WPL 4173053 Contact Us For Availability
13
Latch Switch (2) WPL 4168517 Contact Us For Availability
13
Panel, Blower WPL 4173166 Contact Us For Availability
14
Vent Insert WPL 4168717 Contact Us For Availability
14
Screw 8A x 1/2 (5) WPL 4170323 Contact Us For Availability
14
Air Baffle, Bottom WPL 4163859 Contact Us For Availability
14
Eliminator, Smoke WPL 4168492 Contact Us For Availability
14
Retaining Ring WPL 4159160 Contact Us For Availability
14
Washer, Flat WPL 4159603 Contact Us For Availability
14
Arm, Actuator WPL 4168058 Contact Us For Availability
14
Spacer WPL 4168553 Contact Us For Availability
14
Screw (2) WPL 4168554 Contact Us For Availability
14
Flexible Bushing WPL 4173165 Contact Us For Availability
15
Screw, (2) WPL 4159465 Contact Us For Availability
15
Insert, Top WPL 4173385 Contact Us For Availability
15
Bulb, Thermostat WPL 4173275 Contact Us For Availability
15
Nut (4) WPL 4159109 Contact Us For Availability
15
lever, latch WPL 3177965 Contact Us For Availability
15
Cotter Pin WPL 4159129 Contact Us For Availability
15
Screw (4) WPL 4159186 Contact Us For Availability
15
Screw, Machine WPL 4159201 Contact Us For Availability
15
Screw (4) WPL 4159287 Contact Us For Availability
15
Knob, Lock WPL 4163821 Contact Us For Availability
15
Latch, Plate WPL 4168063 Contact Us For Availability
15
Solenoid Spacer WPL 4168169 Contact Us For Availability
15
Switch, Latch WPL 4168514 Contact Us For Availability
15
Mechanism, Latch WPL 4168538 Contact Us For Availability
15
Solenoid Spring WPL 4168560 Contact Us For Availability
15
Screw (4) WPL 4168579 Contact Us For Availability
15
Thermal Switch WPL 4173007 Contact Us For Availability
15
Solenoid WPL 4173081 Contact Us For Availability
15
Switch, Fan WPL 4173008 Contact Us For Availability
16
Screw (2) WPL 4159470 Contact Us For Availability
16
screw (2) WPL 254225 Contact Us For Availability
16
Switch, Light WPL 4167332 Contact Us For Availability
16
Support, Frame WPL 4168266 Contact Us For Availability
16
Bracket WPL 4168292 Contact Us For Availability
17
Retainer, Glass (2) WPL 4167590 Contact Us For Availability
17
Screw, (6) WPL 4169465 Contact Us For Availability
17
Gasket, Window WPL 3178584 Contact Us For Availability
17
Collector Box WPL 4168681 Contact Us For Availability
17
Screw, (2) WPL 4159445 Contact Us For Availability
17
Bracket Mtg. WPL 4173170 Contact Us For Availability
18
Knob, Probe Control WPL 4163840 Contact Us For Availability
18
Support, Element (Screw (4)) WPL 4159564 Contact Us For Availability
18
Support, Element (Right Side) WPL 4168217 Contact Us For Availability
18
Support, Element (Left Side) WPL 4168218 Contact Us For Availability
18
Bracket, Harness WPL 4173168 Contact Us For Availability
19
Light, Indicator (3) (Oven On) WPL 4168597 Contact Us For Availability
19
front frame WPL 3178717 Contact Us For Availability
19
Sleeve WPL 3178555 Contact Us For Availability
20
Bezel, Knob WPL 4169372 Contact Us For Availability
20
Liner, Oven WPL 3178745 Contact Us For Availability
21
Control Frame Support WPL 4169336 Contact Us For Availability
22
Compartment Top WPL 4169314 Contact Us For Availability
23
Nut, Tinnerman (4) WPL 4168838 Contact Us For Availability
23
Vent Box WPL 4163941 Contact Us For Availability
23
Nut, 8-32 (4) WPL 4166262 Contact Us For Availability
24
Vent Tube WPL 4168494 Contact Us For Availability
25
Cabinet Side WPL 4173055 Contact Us For Availability
27
Bracket, Vent WPL 4168242 Contact Us For Availability
30
Broiler Element WPL 3177405 Contact Us For Availability
31
Cover, Cap WPL 4168203 Contact Us For Availability
32
Plate, Cover WPL 4163883 Contact Us For Availability
33
Bulb, 40 Watt WPL 311225 Contact Us For Availability
34
Socket, Lamp WPL 4168755 Contact Us For Availability
35
Light Shield WPL 4167579 Contact Us For Availability
36
Rotisserie Motor WPL 4163836 Contact Us For Availability
37
Plate, Motor WPL 4167469 Contact Us For Availability
38
Retainer, Tube WPL 4168140 Contact Us For Availability
38
Vent Tube WPL 4168592 Contact Us For Availability
39
Vent Tube Extension WPL 4168126 Contact Us For Availability
40
Cabinet, Support (Right Side) WPL 4163759 Contact Us For Availability
40
Cabinet, Support (Left Side) WPL 4163760 Contact Us For Availability
42
Gasket, Oven Light WPL 4166868 Contact Us For Availability
44
Spacer WPL 4168590 Contact Us For Availability
45
Spring, Anchor WPL 4167599 Contact Us For Availability
46
Door Spring WPL 4173048 Contact Us For Availability
47
Hinge Assembly WPL 4167596 Contact Us For Availability
48
Cam Plate (Ri WPL 4167597 Contact Us For Availability
49
WPL 4159188 WPL 4159188 Contact Us For Availability
49
WPL 4167598 WPL 4167598 Contact Us For Availability
50
WPL 4167518 WPL 4167518 Contact Us For Availability
50
WPL 4168874 WPL 4168874 Contact Us For Availability
51
WPL 4166866 WPL 4166866 Contact Us For Availability
52
WPL 4167938 WPL 4167938 Contact Us For Availability
53
WPL 4159557 WPL 4159557 Contact Us For Availability
53
WPL 4163975 WPL 4163975 Contact Us For Availability
53
WPL 4164293 WPL 4164293 Contact Us For Availability
53
WPL 4167277 WPL 4167277 Contact Us For Availability
53
WPL 4173084 WPL 4173084 Contact Us For Availability
53
WPL 4173438 WPL 4173438 Contact Us For Availability
54
WPL 4167266 WPL 4167266 Contact Us For Availability
55
WPL 4167267 WPL 4167267 Contact Us For Availability
56
WPL 4159122 WPL 4159122 Contact Us For Availability
57
WPL 4159456 WPL 4159456 Contact Us For Availability
57
WPL 4169313 WPL 4169313 Contact Us For Availability
58
WPL 4163752 WPL 4163752 Contact Us For Availability
58
WPL 4163753 WPL 4163753 Contact Us For Availability
59
WPL 4173016 WPL 4173016 Contact Us For Availability
59
WPL 4173017 WPL 4173017 Contact Us For Availability
× ![]()
