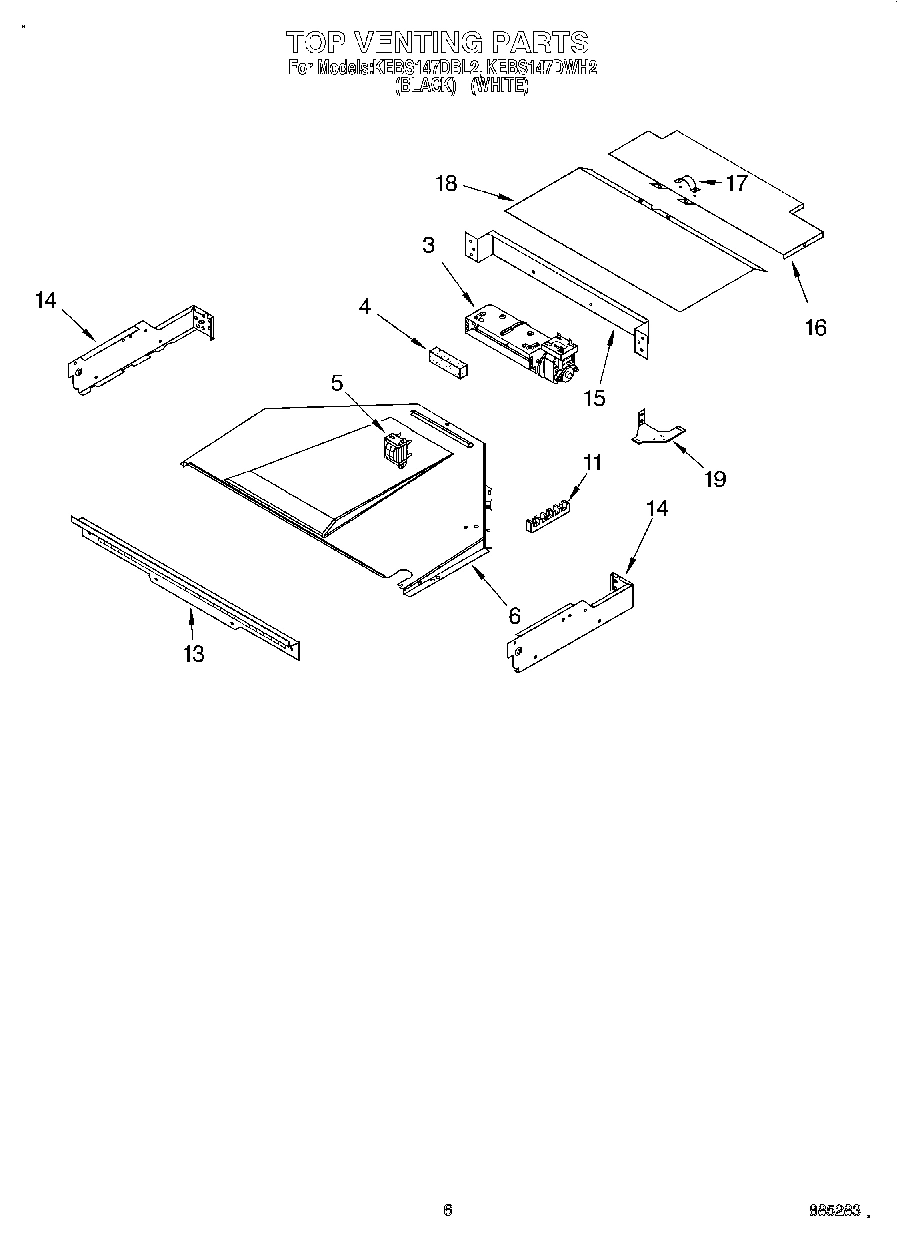

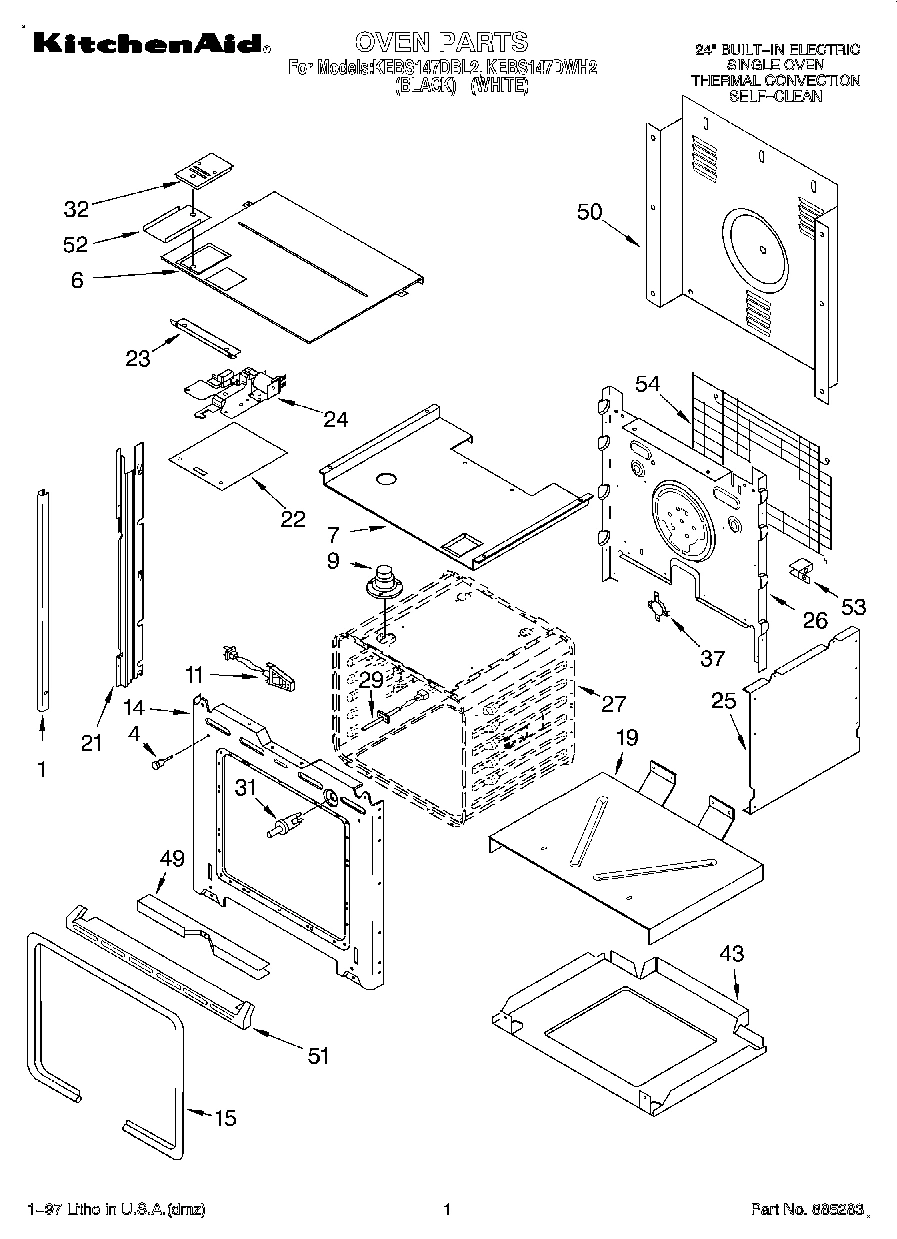

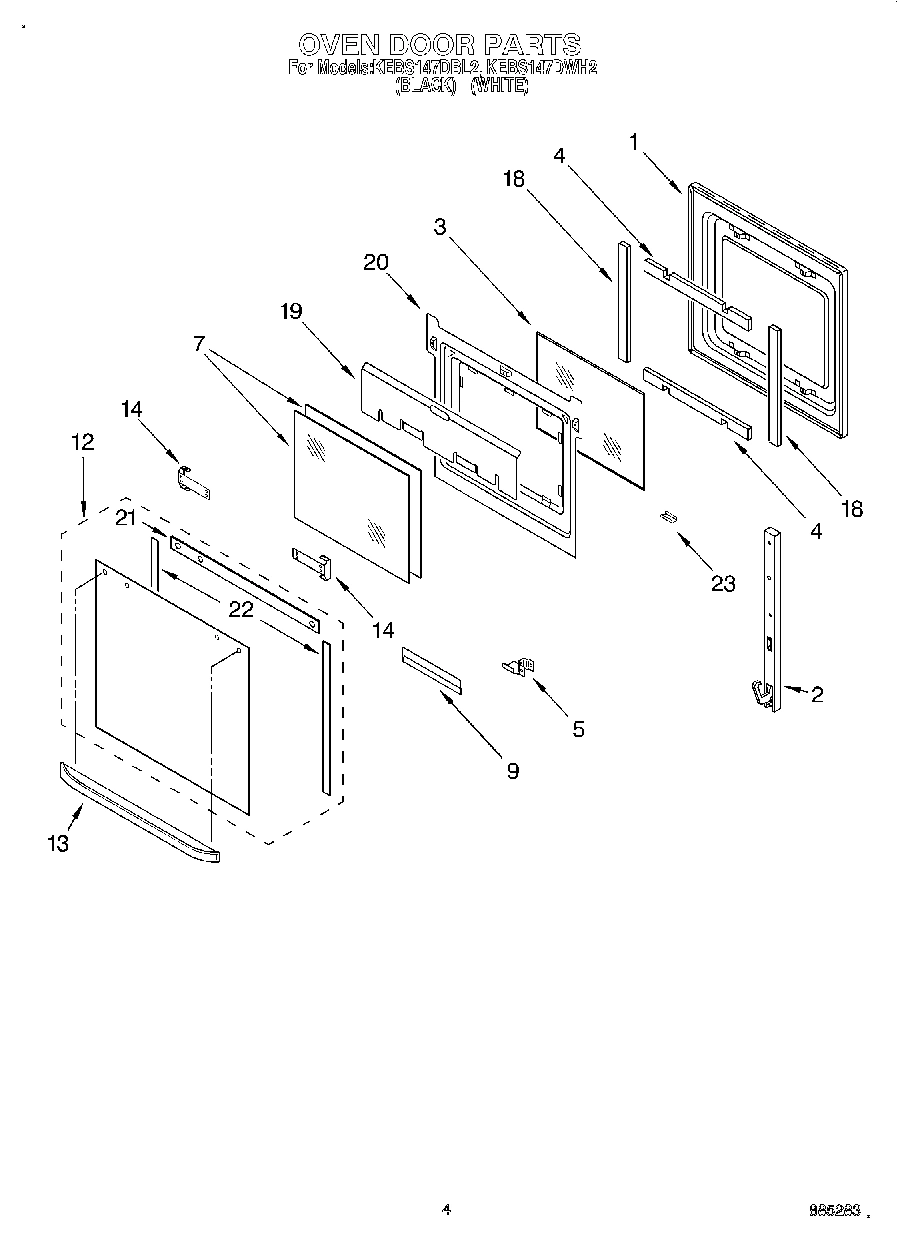

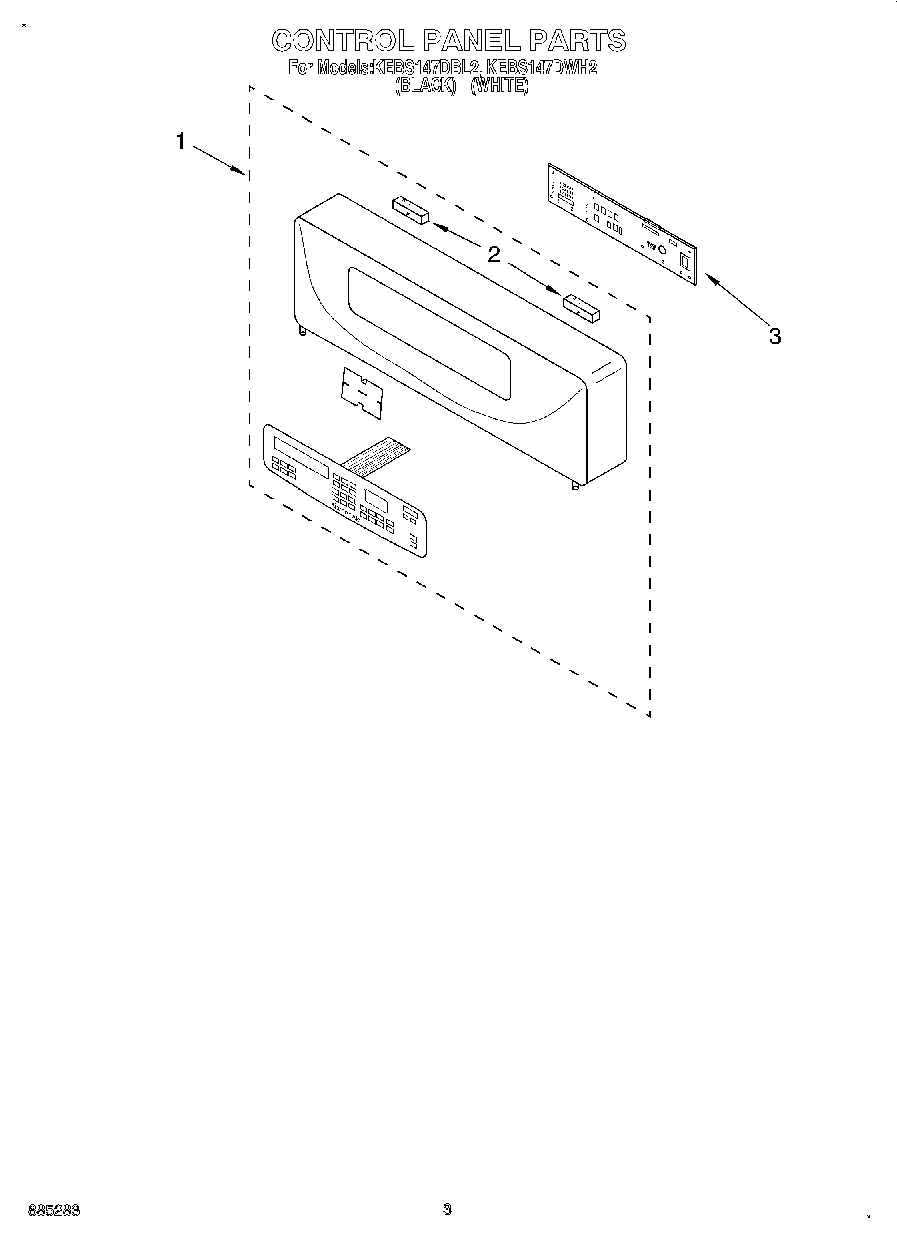

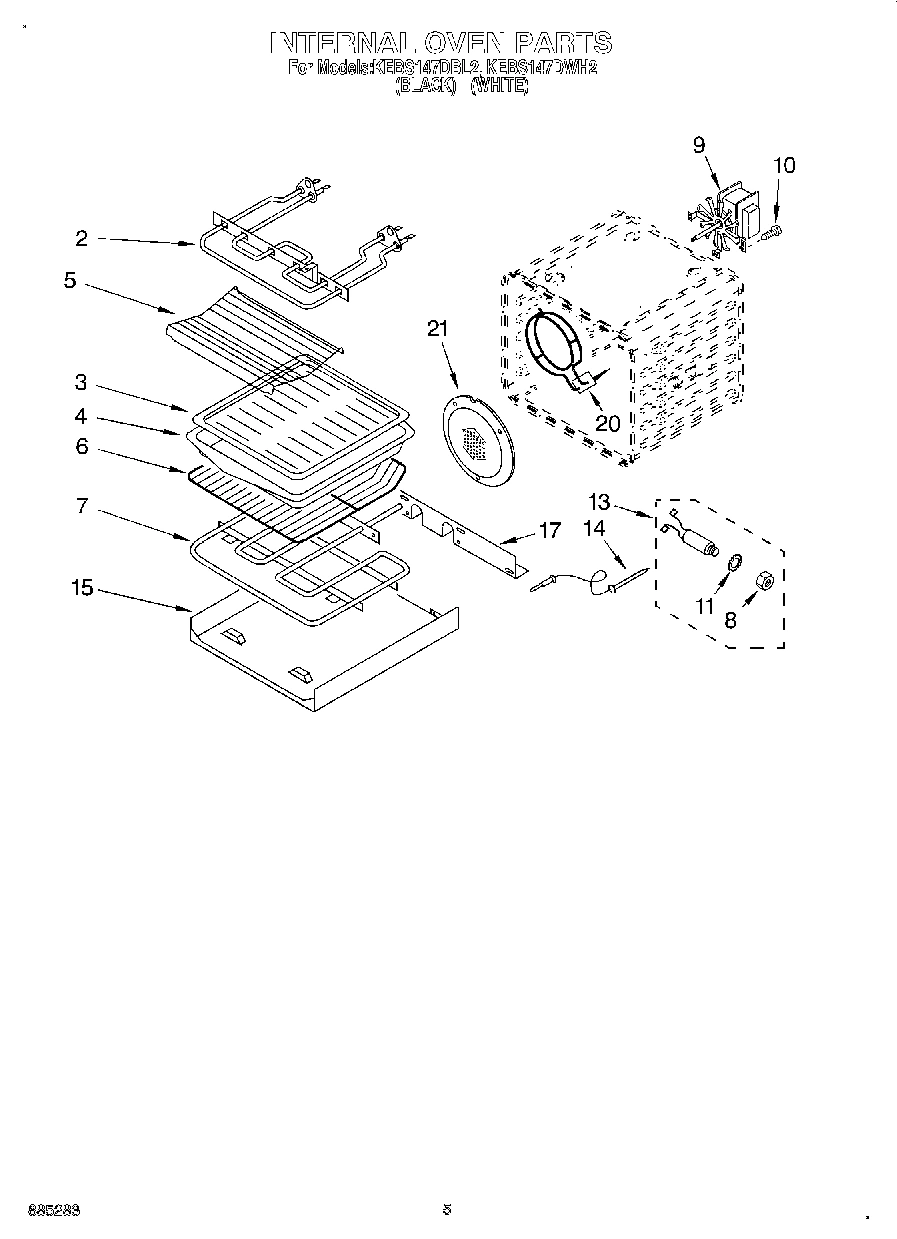

Model Whirlpool KEBS147DBL2 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

Trim, Side (Screw) (White Model) WPL 4449041 Contact Us For Availability

1

Trim, Side (RH Black) WPL 4450844 Contact Us For Availability

1

Trim, Side (White, Right) WPL 4450845 Contact Us For Availability

1

Trim, Side (LH Black) WPL 4450847 Contact Us For Availability

1

Trim, Side (LH White) WPL 4450848 Contact Us For Availability

1

Liner, Door WPL 4450427 Contact Us For Availability

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455523 Whirlpool Oven Door Hinge In Stock WPL WP4455523 $31.90

3

WP4449247 Whirlpool Inner Door Glass In Stock WPL WP4449247 $64.91

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Insulation, Top and Bottom Door WPL 4448678 Contact Us For Availability

5

Retainer, Glass WPL 4450470 Contact Us For Availability

6

4448716 Whirlpool Oven Rack 24" Backorder WPL 4448716 $39.95

6

Divider, Vent WPL 4451037 Contact Us For Availability

7

Glass, Inner (2) WPL 4449251 Contact Us For Availability

7

Partition WPL 4451164 Contact Us For Availability

9

Tube, Vent WPL 4449009 Contact Us For Availability

9

Retainer, Glass WPL 4449031 Contact Us For Availability

11

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

11

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

12

Door Glass (Black Model) WPL 4450693 Contact Us For Availability

12

Door Glass (White Model) WPL 4450694 Contact Us For Availability

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

13

Door Handle (Black Model) WPL 4448408 Contact Us For Availability

13

Door Handle (White Model) WPL 4448409 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4450415 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

WP4455380 Whirlpool Door Gasket Backorder WPL WP4455380 $59.75

15

Back, Control WPL 4450658 Contact Us For Availability

16

4450549 Whirlpool Oven Top Cover Backorder WPL 4450549 $26.21

18

W11688413 Whirlpool Insulation Backorder WPL W11688413 $9.10

18

Cover, Top Front WPL 4450552 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451476 Whirlpool Support Backorder WPL 4451476 $35.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4450952 Whirlpool Conduit Backorder WPL WP4450952 $86.84

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Bracket, Blower WPL 4450545 Contact Us For Availability

Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability

Harness, Wire (Main) WPL 4454704 Contact Us For Availability

Harness, Wire (Latch) WPL 4454709 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

Roll Tape, Exhaust Duct WPL 814387 Contact Us For Availability

Shield, Heat WPL 4450360 Contact Us For Availability

20

Retainer, Glass WPL 4450421 Contact Us For Availability

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $38.69

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $40.88

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

Seal, Door Top WPL 4450835 Contact Us For Availability

22

Shield, Latch WPL 4451036 Contact Us For Availability

22

Seal, Side WPL 4450838 Contact Us For Availability

23

Deflector, Latch WPL 4450051 Contact Us For Availability

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

24

Latch Assy WPL 4454710 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability

26

4452232 Whirlpool Oven Rear Cover Backorder WPL 4452232 $44.03

27

Liner, Oven (Not a Serviceable Part) WPL ARI83097A9 Contact Us For Availability

29

Sensor WPL 4450026 Contact Us For Availability

31

Switch, Door WPL 4450819 Contact Us For Availability

32

Vent Box Assy WPL 4449369 Contact Us For Availability

37

WP4450934 Whirlpool Thermostat Assembly Backorder WPL WP4450934 $77.29

43

4450525 Whirlpool Oven Bottom Assembly Backorder WPL 4450525 $52.25

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

Cover, Back WPL 4450544 Contact Us For Availability

51

Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability

51

Trim, Bottom (Black Model) WPL 4448455 Contact Us For Availability

51

Trim, Bottom (White Model) WPL 4448456 Contact Us For Availability

52

Extention, Vent WPL 4450795 Contact Us For Availability

53

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

WP4449314 Whirlpool Insulation Backorder WPL WP4449314 $66.64

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WP4450363 Whirlpool Insulation Backorder WPL WP4450363 $66.64

Spacer, Harness WPL 4451002 Contact Us For Availability
