Model Whirlpool KEBS146WBL2 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
01 - COVER
05 - COMPONENT SHELF AND LATCH

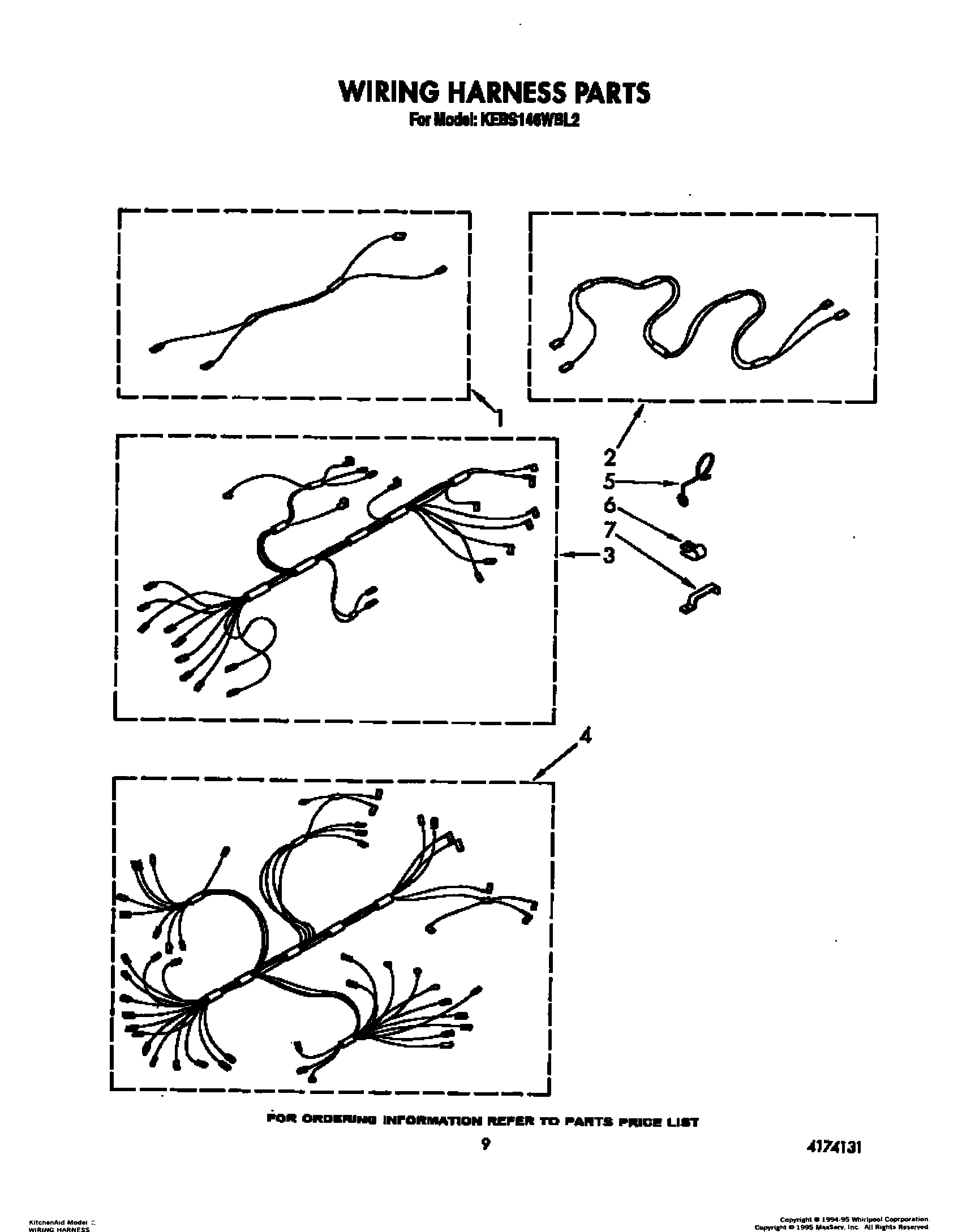

07 - WIRING HARNESS

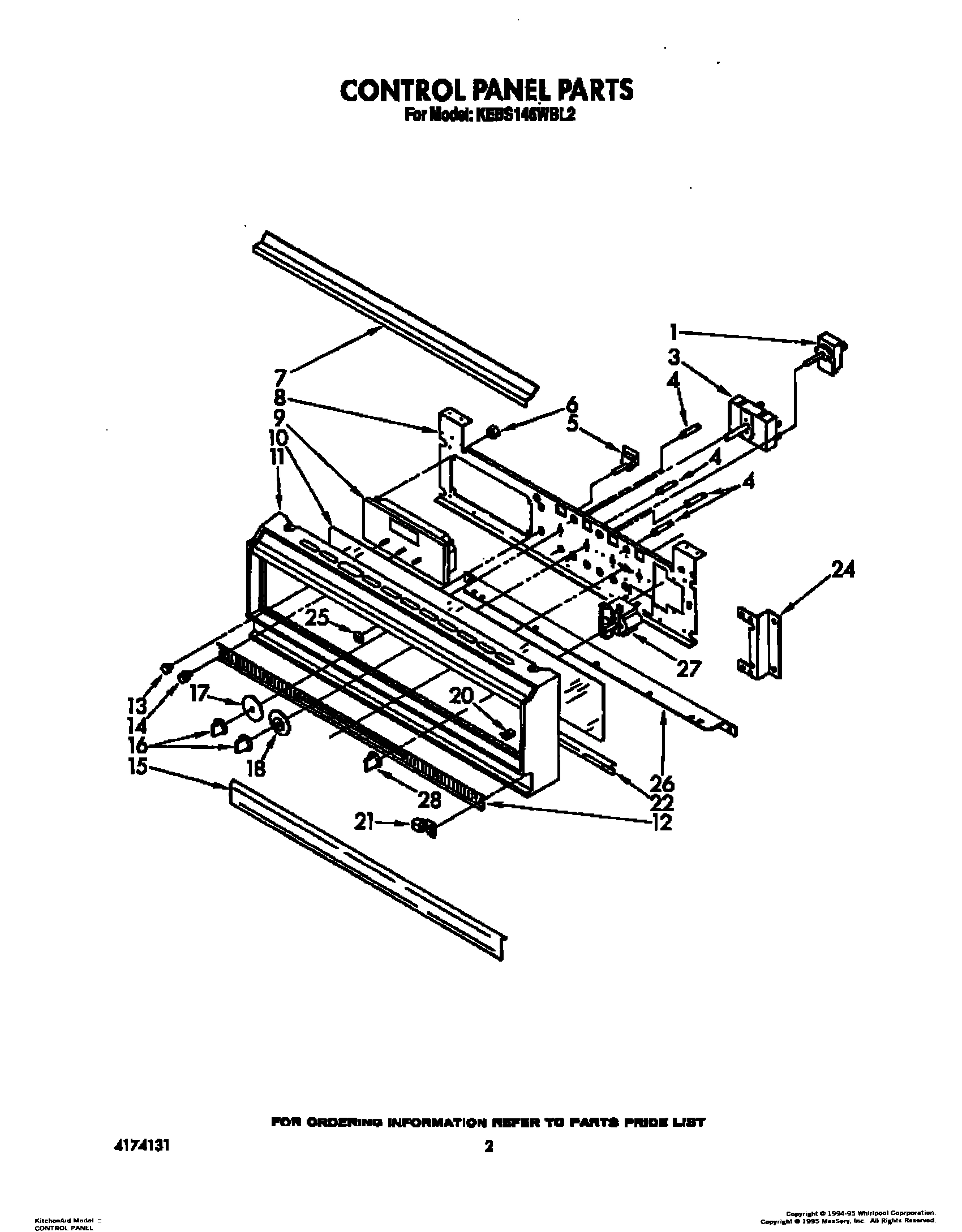

02 - CONTROL PANEL, LIT/OPTIONAL

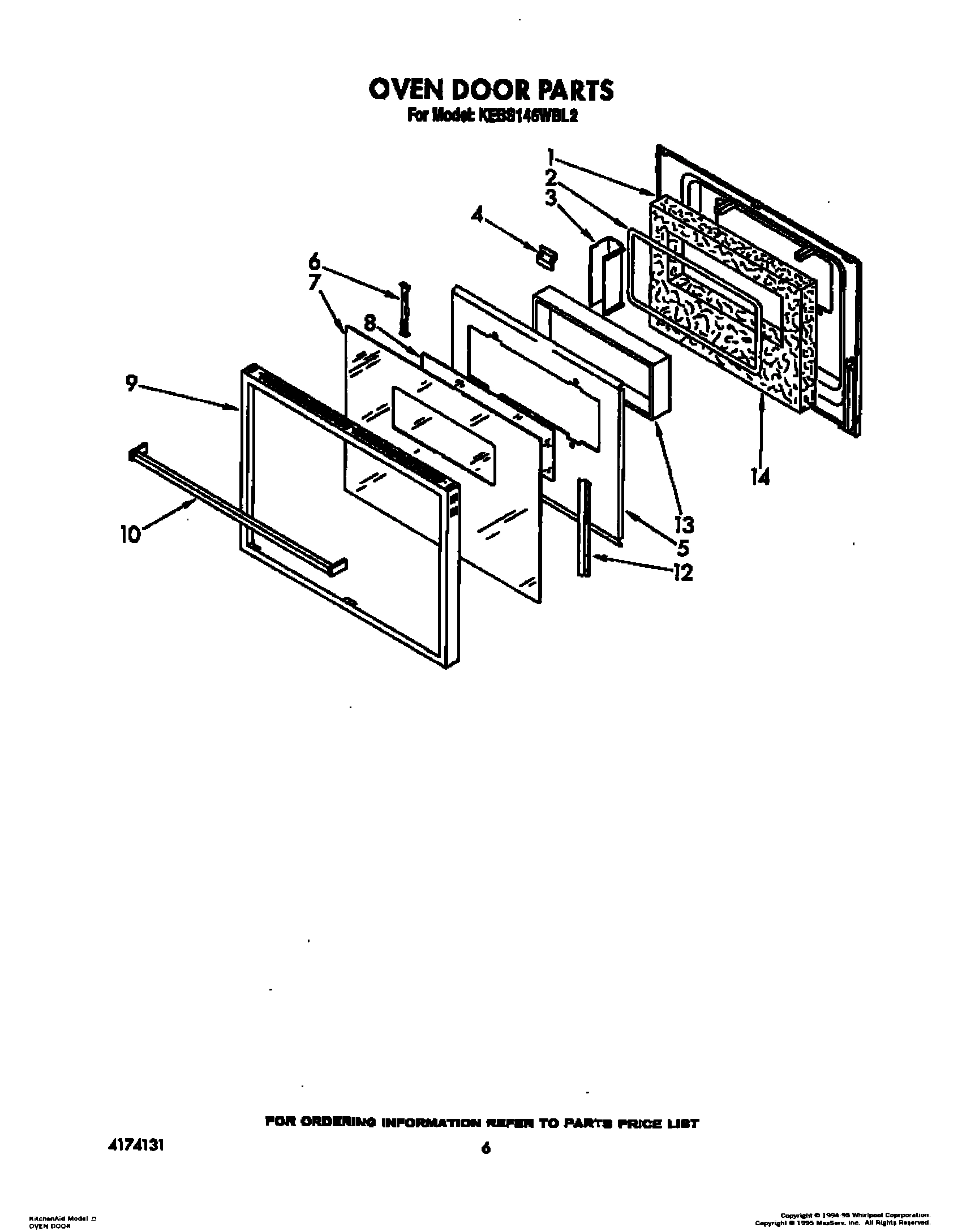

04 - OVEN DOOR

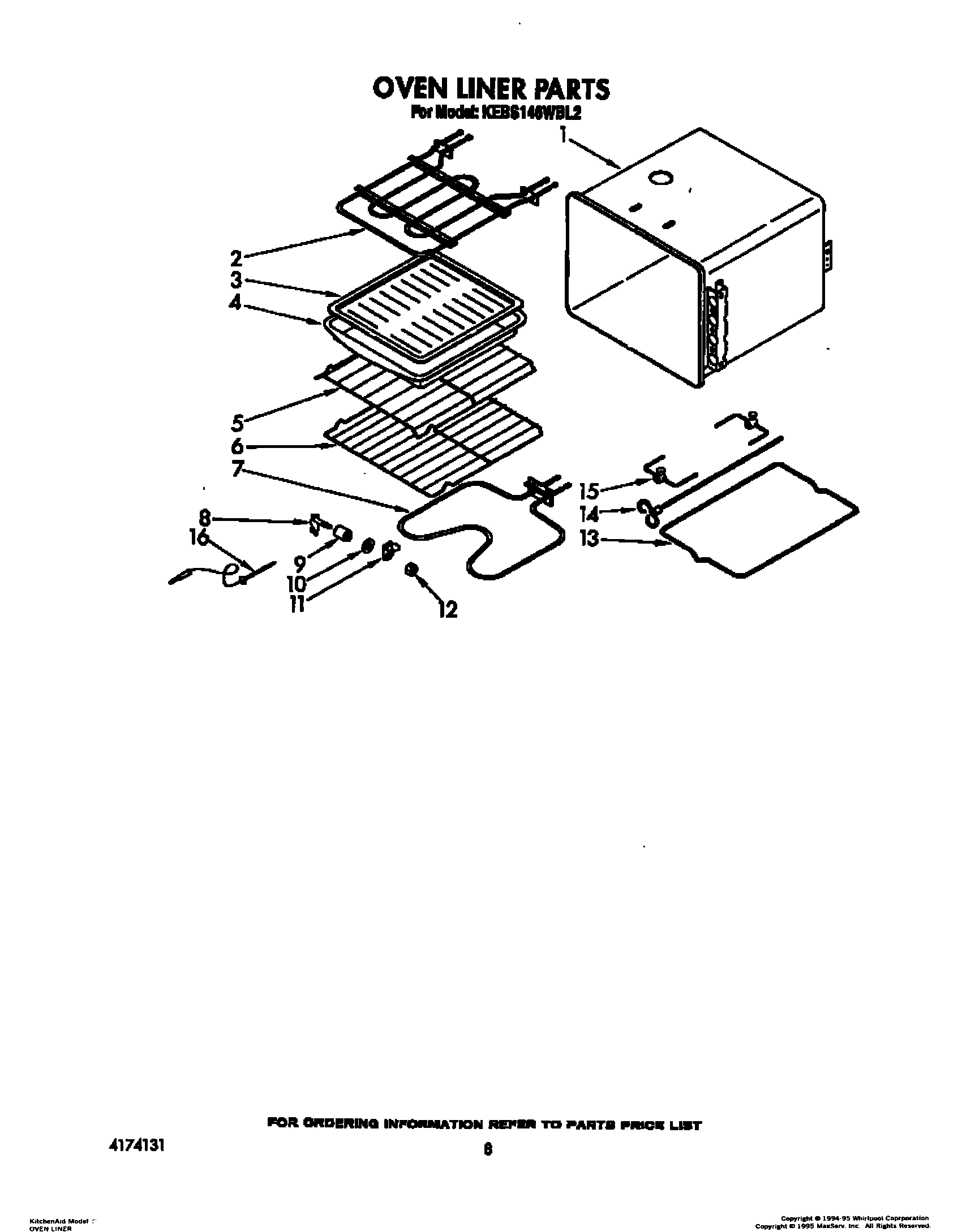

06 - OVEN LINER

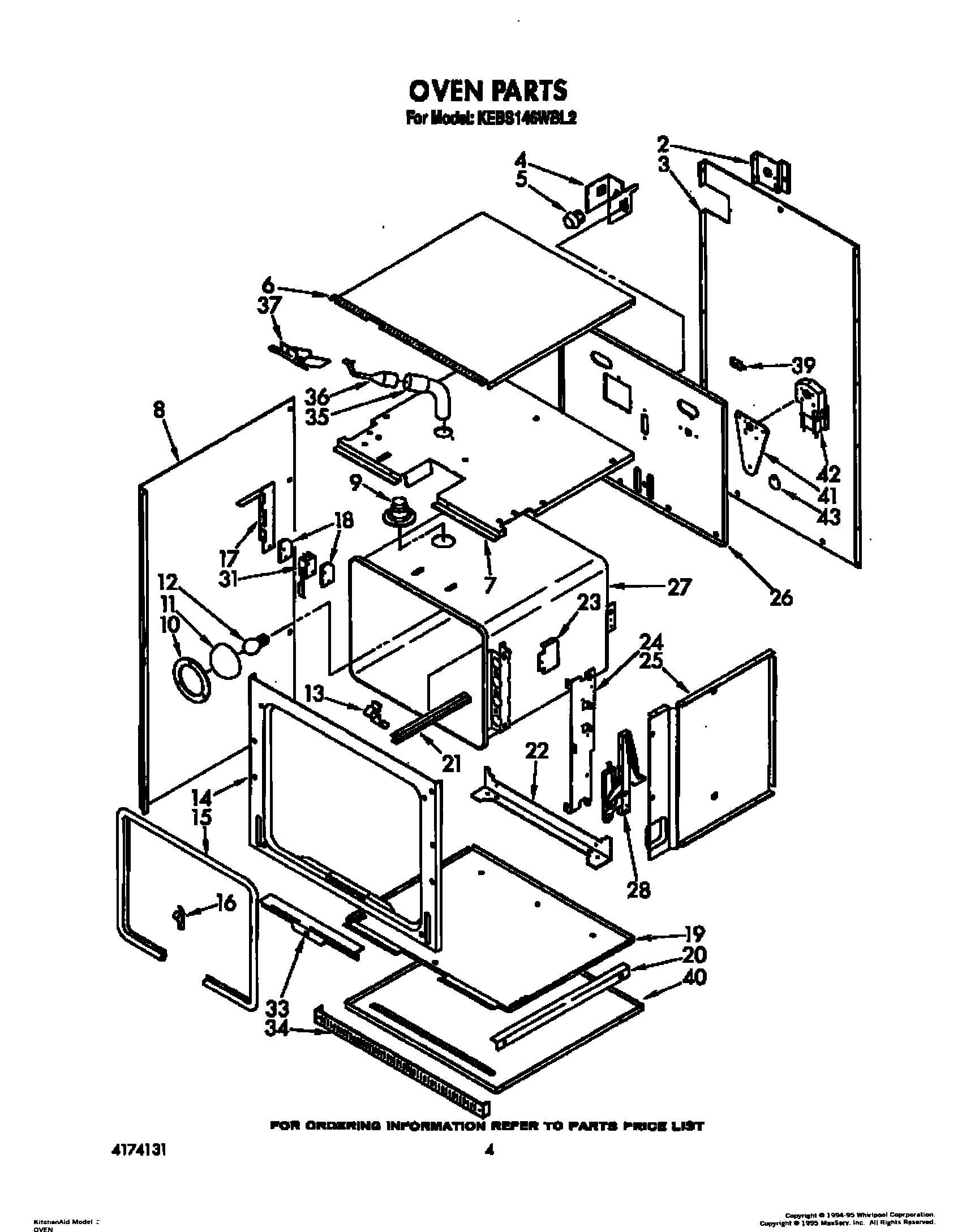

03 - OVEN, OPTIONAL
Common parts from model Whirlpool KEBS146WBL2 BUILT-IN ELECTRIC SINGLE OVEN
Guide, Use & Care WPL LIT3177059 Contact Us For Availability
Installation Instructions WPL LIT3178195 Contact Us For Availability
Tech Sheet WPL LIT3178197 Contact Us For Availability
Repair Parts List WPL LIT4174131 Contact Us For Availability
1
Harness Wire (Door Switch Upper) WPL 3179941 Contact Us For Availability
1
Thermostat, upper WPL 3178273 Contact Us For Availability
1
Liner, Door WPL 3177597 Contact Us For Availability
1
Screw (2) WPL 3178001 Contact Us For Availability
1
Liner, Oven WPL 3177456 Contact Us For Availability
2
Harness Adapter (Meat Probe) WPL 3179940 Contact Us For Availability
2
Seal, Window WPL 3178584 Contact Us For Availability
2
Element, Broil WPL 3180164 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
3
Harness Wire (Lower Oven) WPL 3179939 Contact Us For Availability
3
Switch, Selector WPL 3178233 Contact Us For Availability
3
Spacer, Window WPL 3179694 Contact Us For Availability
3
Cabinet, Back WPL 3177626 Contact Us For Availability
4
Harness Wire (Upper Oven) WPL 3179918 Contact Us For Availability
4
Light, Indicator (3) WPL 4168598 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Housing, Light WPL 3177446 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
5
Switch, Oven Light WPL 3179891 Contact Us For Availability
5
Retainer, Insulation WPL 3177719 Contact Us For Availability
5
Rack, Offset WPL 3178098 Contact Us For Availability
5
Socket, Light WPL 3177981 Contact Us For Availability
6
Nut, Timer (4) WPL 98788 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
6
Rack, Oven WPL 3178110 Contact Us For Availability
6
Cabinet, Top WPL 3178137 Contact Us For Availability
7
Insert, Top WPL 4173298 Contact Us For Availability
7
Glass, Door WPL 3177767 Contact Us For Availability
7
Top, Module WPL 3177437 Contact Us For Availability
8
Bracket, Control WPL 3177804 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
Receptacle, Meat Probe WPL 4164293 Contact Us For Availability
8
Side, Cabinet (R.H. & L.H.) WPL 3177442 Contact Us For Availability
9
Timer, Electronic WPL 3148111 Contact Us For Availability
9
Frame, Door WPL 3177672 Contact Us For Availability
9
Spacer - Tubing WPL 3179672 Contact Us For Availability
9
Tube, Vent WPL 4168492 Contact Us For Availability
10
Glass, Control Panel WPL 3177948 Contact Us For Availability
10
Handle, Door WPL 3178643 Contact Us For Availability
10
Screw (2) WPL 3179114 Contact Us For Availability
10
Gasket WPL 4163975 Contact Us For Availability
10
Retainer, Glass WPL 3177447 Contact Us For Availability
11
Frame, Control Panel WPL 3177761 Contact Us For Availability
11
Spacer (2) WPL 3178740 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
11
Glass, Oven Light WPL 4166866 Contact Us For Availability
12
Insert, Vent WPL 3179915 Contact Us For Availability
12
Retainer, Glass WPL 4167975 Contact Us For Availability
12
Cover, Lock Nut WPL 4167277 Contact Us For Availability
13
Extension, Shelf WPL 3178133 Contact Us For Availability
13
Knob, Timer (2) WPL 3177122 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
13
Rack, Rotisserie WPL 4168411 Contact Us For Availability
14
Support, Latch WPL 3178232 Contact Us For Availability
14
Knob, Timer WPL 3177121 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
14
Spear, Rotisserie WPL 4168724 Contact Us For Availability
14
Frame, Front WPL 3177698 Contact Us For Availability
15
Transformer WPL 3179532 Contact Us For Availability
15
Door, Latch Handle WPL 3177973 Contact Us For Availability
15
Screw (5) WPL 4170323 Contact Us For Availability
15
Skewer WPL 4166352 Contact Us For Availability
15
Seal, Door WPL 3179814 Contact Us For Availability
16
Knob, Control WPL 3178400 Contact Us For Availability
16
Screw (2) WPL 313806 Contact Us For Availability
16
Bracket, Buzzer WPL 3179695 Contact Us For Availability
16
Probe & Plug Assy. WPL 4167267 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
17
Buzzer, Meat Probe WPL 3179914 Contact Us For Availability
17
Disc, Selector WPL 3178264 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
18
Disc, Thermostat (Self Clean) WPL 3178477 Contact Us For Availability
19
Bottom, Module WPL 3177622 Contact Us For Availability
20
nut (3) WPL 4168838 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
Screw (2) WPL 3179847 Contact Us For Availability
21
Hinge, Door (2) WPL 3177971 Contact Us For Availability
21
Screw (2) WPL 3179117 Contact Us For Availability
21
Support, Element WPL 4168217 Contact Us For Availability
22
Screw (6) WPL 4159456 Contact Us For Availability
22
Retainer, Glass WPL 4167590 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Bracket, Control Panel WPL 3177747 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
25
Bezel, Switch WPL 4169372 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Support, Frame WPL 3177651 Contact Us For Availability
26
Back, Module WPL 3177558 Contact Us For Availability
27
screw (2) WPL 254225 Contact Us For Availability
27
Indicator, Meat Probe WPL 3180156 Contact Us For Availability
27
Liner, Oven WPL 3177465 Contact Us For Availability
28
Knob, Meat Probe WPL 4163840 Contact Us For Availability
28
Screw (4) WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Plug, Button WPL 3179777 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
32
Insulator, Switch WPL 3177923 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw (4) WPL 3179776 Contact Us For Availability
33
Screw WPL 4169450 Contact Us For Availability
34
Screw (2) WPL 4168863 Contact Us For Availability
34
Vent, Lower Trim WPL 3177788 Contact Us For Availability
34
Screw (4) WPL 3180022 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3180891 Contact Us For Availability
37
Shield, Vent WPL 3180890 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Bottom, Oven WPL 3177552 Contact Us For Availability
41
Plate, Mounting Rotisserie WPL 4167469 Contact Us For Availability
42
Washer, Lock WPL 4159501 Contact Us For Availability
42
Motor, Rotisserie WPL 4163836 Contact Us For Availability
43
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
43
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
43
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
43
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
43
Wire WPL 242824 Contact Us For Availability
43
WPL 242825 WPL 242825 Contact Us For Availability
43
WPL 242826 WPL 242826 Contact Us For Availability
43
WPL 242827 WPL 242827 Contact Us For Availability
43
WPL 242828 WPL 242828 Contact Us For Availability
43
WPL 242829 WPL 242829 Contact Us For Availability
43
WPL 242830 WPL 242830 Contact Us For Availability
43
WPL 242832 WPL 242832 Contact Us For Availability
43
WPL 261881 WPL 261881 Contact Us For Availability
43
WPL 261890 WPL 261890 Contact Us For Availability
43
WPL 261891 WPL 261891 Contact Us For Availability
43
WPL 285365 WPL 285365 Contact Us For Availability
43
WPL 285366 WPL 285366 Contact Us For Availability
43
WPL 285367 WPL 285367 Contact Us For Availability
43
WPL 285368 WPL 285368 Contact Us For Availability
43
WPL 3177865 WPL 3177865 Contact Us For Availability
43
WPL 3177870 WPL 3177870 Contact Us For Availability
43
WPL 350806 WPL 350806 Contact Us For Availability
43
WPL 350941 WPL 350941 Contact Us For Availability
43
WPL 4167518 WPL 4167518 Contact Us For Availability
43
WPL 4168874 WPL 4168874 Contact Us For Availability
43
WPL 591014 WPL 591014 Contact Us For Availability
43
WPL 72112 WPL 72112 Contact Us For Availability
43
WPL 786020 WPL 786020 Contact Us For Availability
43
WPL 786032 WPL 786032 Contact Us For Availability
43
WPL 799832 WPL 799832 Contact Us For Availability
43
WPL 832985 WPL 832985 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
