Model Whirlpool KEBS146SBL2 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
04 - CONTROL COMPARTMENT
05 - OVEN DOOR

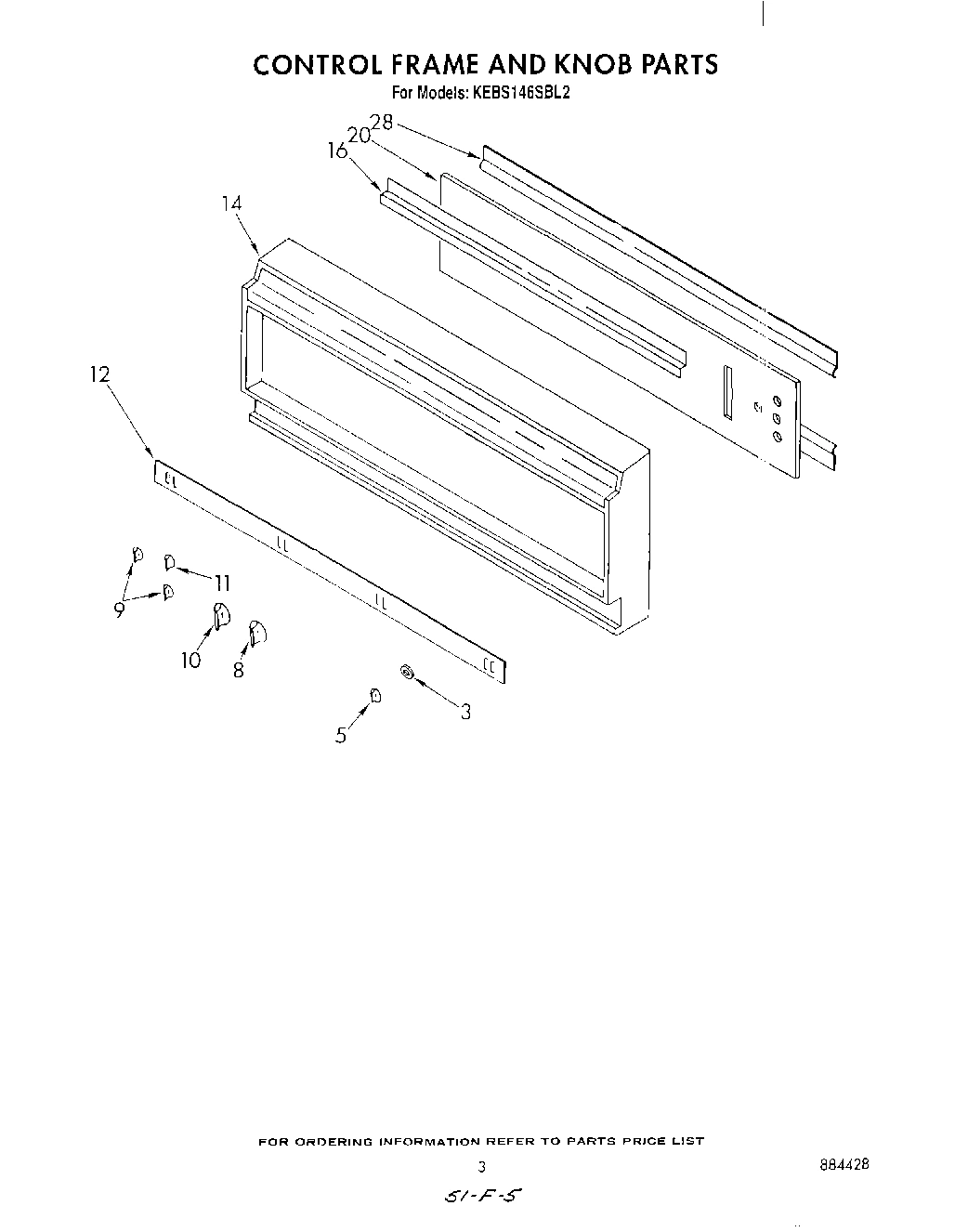

03 - CONTROL FRAME AND KNOB

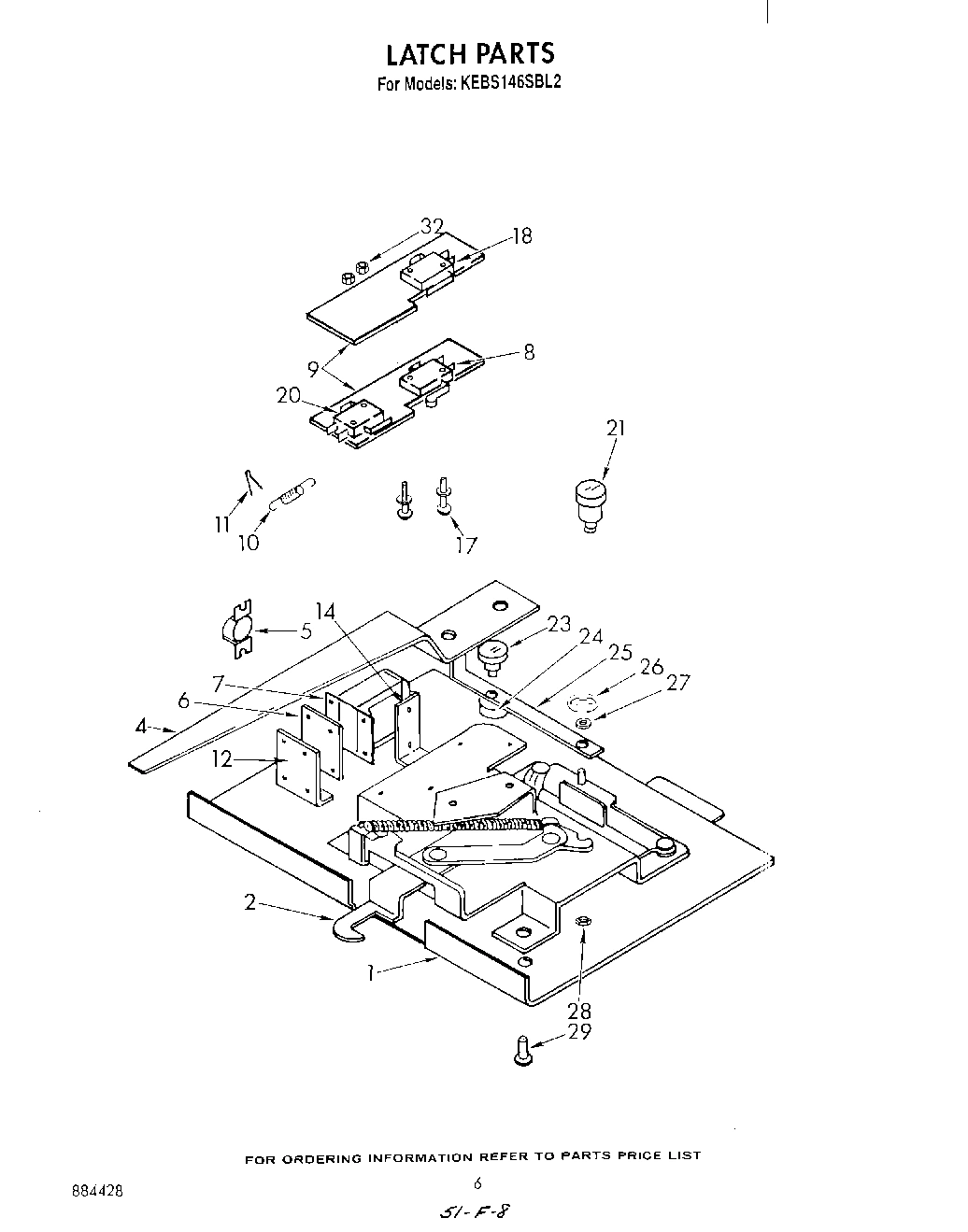

06 - LATCH

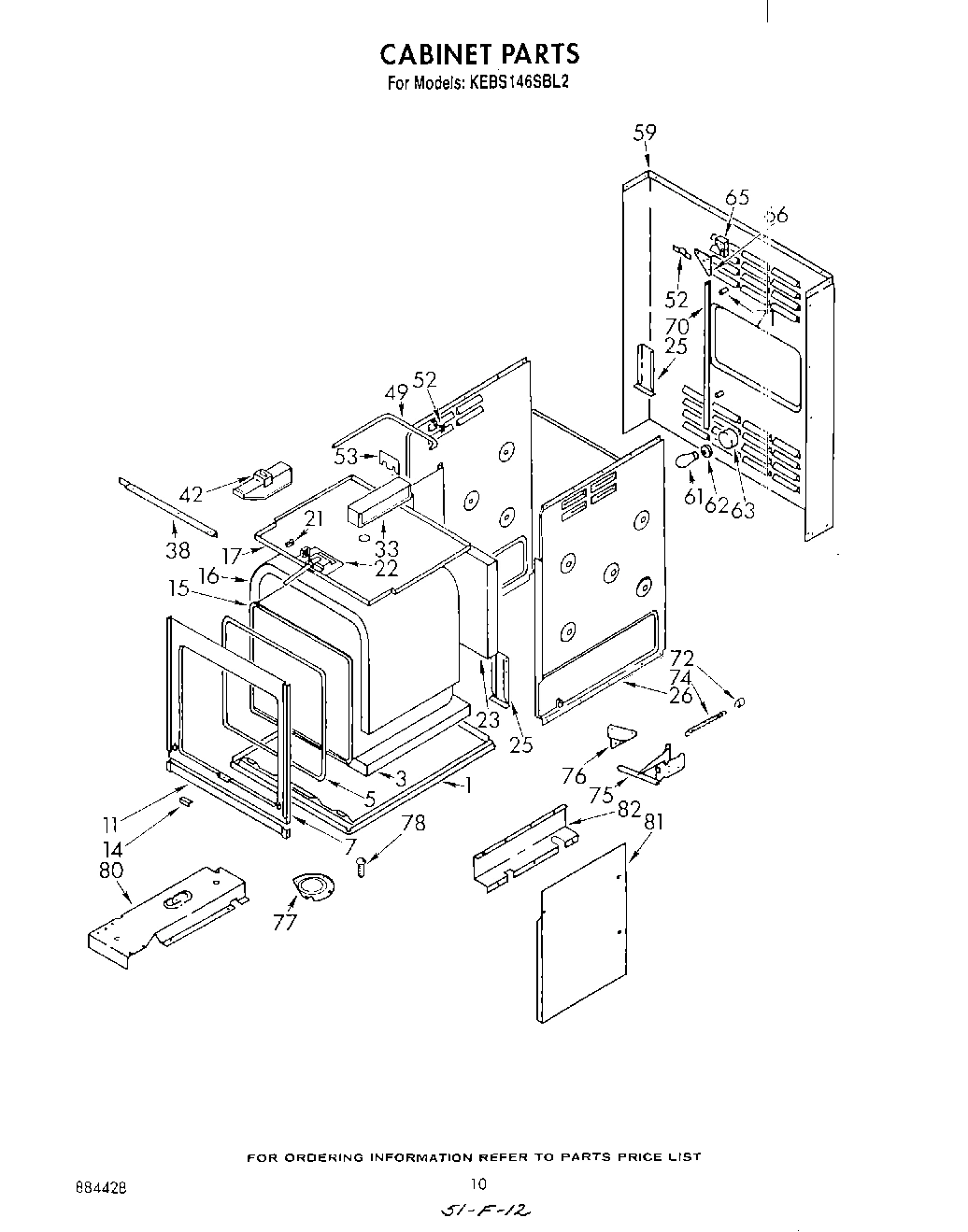

08 - CABINET

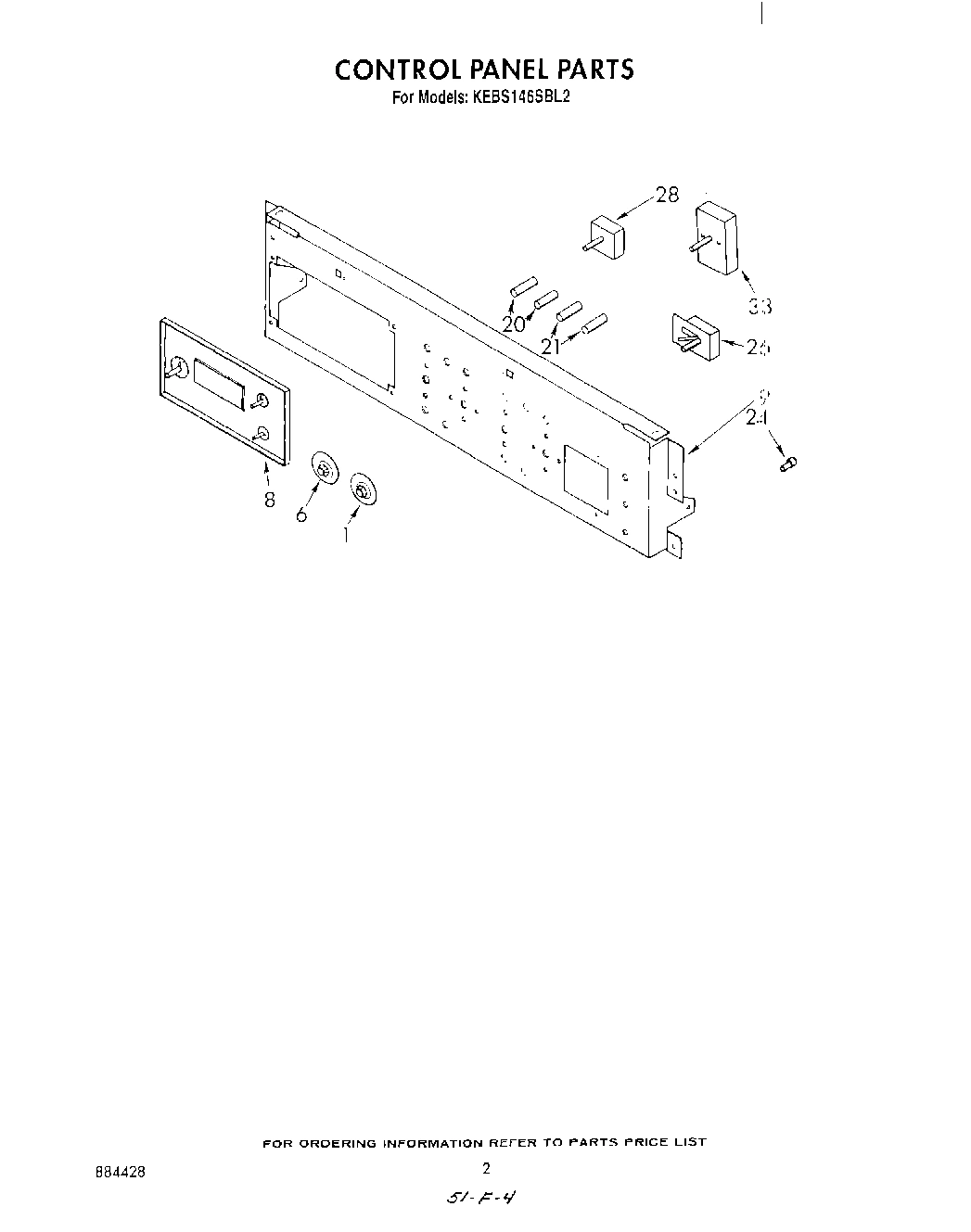

02 - CONTROL PANEL , LIT/OPTIONAL

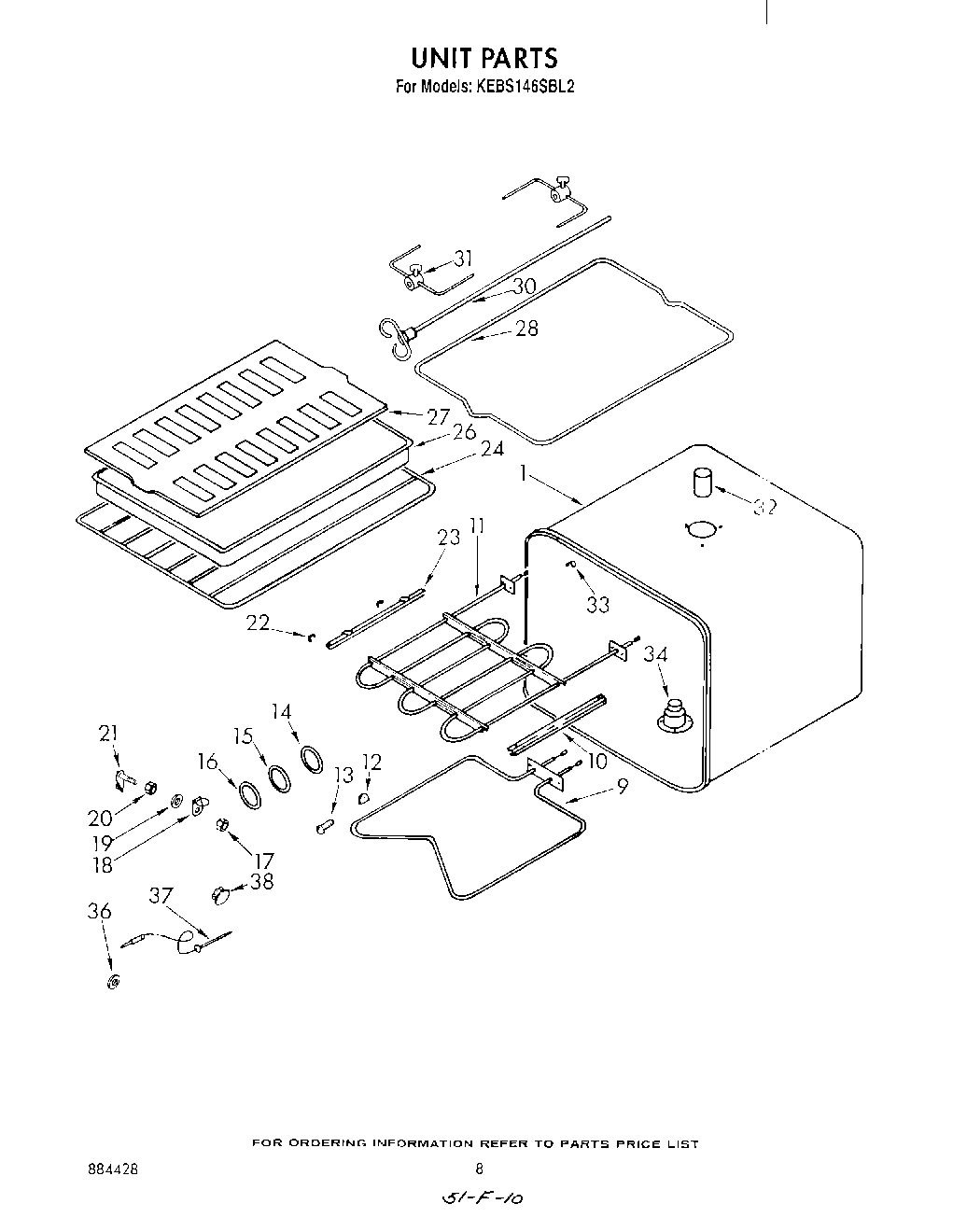

07 - UNIT

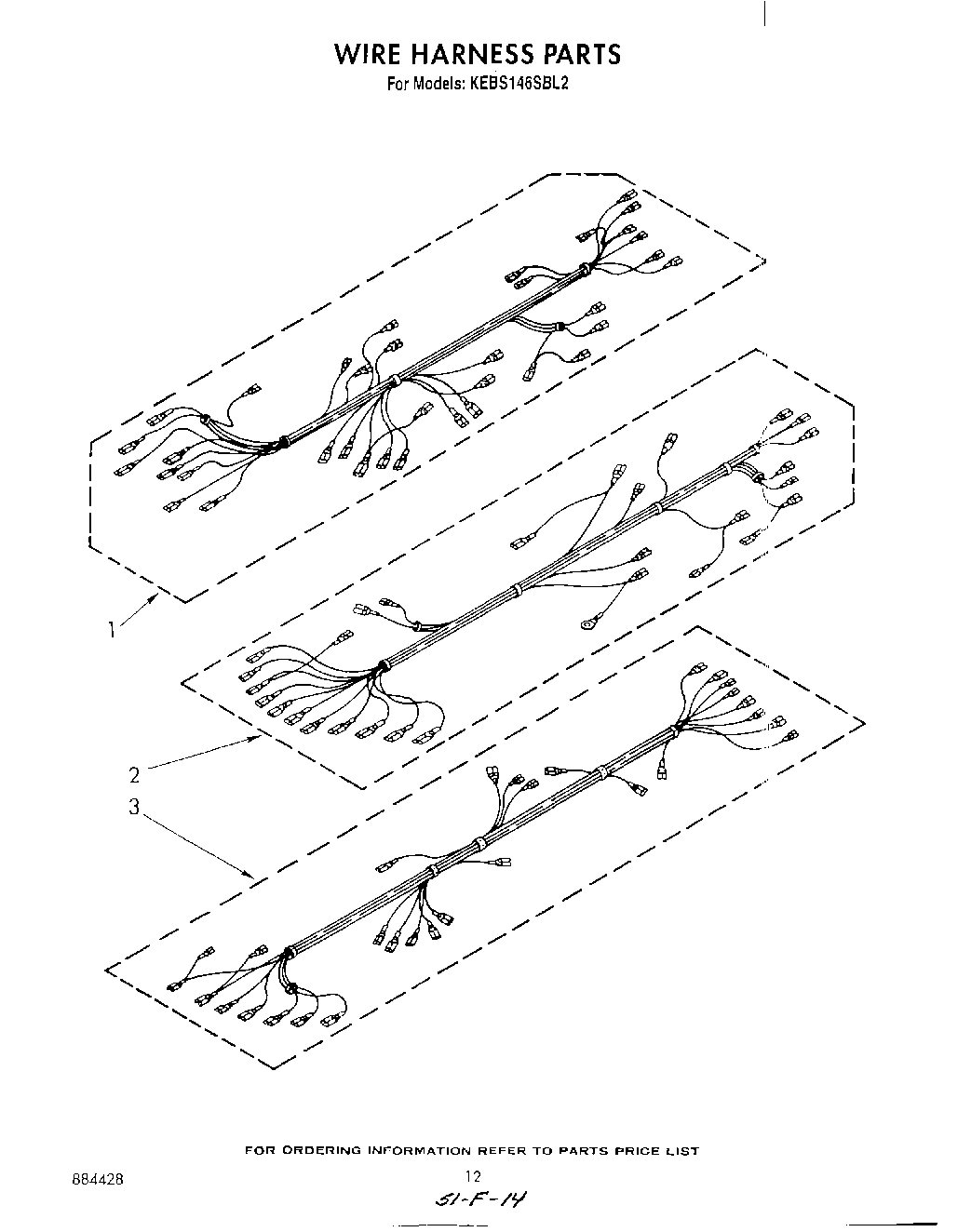

09 - WIRE HARNESS
Common parts from model Whirlpool KEBS146SBL2 BUILT-IN ELECTRIC SINGLE OVEN
Use & Care Guide WPL LIT3177054 Contact Us For Availability
Installation Instructions WPL LIT3177123 Contact Us For Availability
Cookbook WPL LIT4177808 Contact Us For Availability
List, Repair Parts WPL LIT884428 Contact Us For Availability
1
Door Frame WPL 4169519 Contact Us For Availability
1
Latch Mounting Plate WPL 4168063 Contact Us For Availability
1
Main Bottom WPL 4163967 Contact Us For Availability
1
Thermostat Disc Single Oven WPL 4163809 Contact Us For Availability
1
Liner, Oven WPL 3178746 Contact Us For Availability
1
Wiring Harness High Temperature WPL 3178618 Contact Us For Availability
2
Mechanism, Latch WPL 4168538 Contact Us For Availability
2
Wiring Harness Low Temperature WPL 3178617 Contact Us For Availability
3
door handle WPL 4169520 Contact Us For Availability
3
Bezel, Oven Light Switch WPL 4169372 Contact Us For Availability
3
Insulation, Bottom WPL 4169309 Contact Us For Availability
3
Wiring Harness Latch WPL 3178615 Contact Us For Availability
4
Latch Lever WPL 3177965 Contact Us For Availability
5
Screw, No.8-32 X 3/8`` PFHMS WPL 4159330 Contact Us For Availability
5
Knob, Meat Probe Indicator WPL 4163840 Contact Us For Availability
5
Insulator Sleeve WPL 3178555 Contact Us For Availability
5
Thermal Switch WPL 4173007 Contact Us For Availability
5
Bracket WPL 4173170 Contact Us For Availability
5
Door Gasket WPL 3178581 Contact Us For Availability
6
Solenoid Spacer WPL 4168169 Contact Us For Availability
6
selector disc single oven WPL 4163800 Contact Us For Availability
7
Door Glass WPL 4164240 Contact Us For Availability
7
Solenoid WPL 4169323 Contact Us For Availability
7
Front Frame WPL 4163824 Contact Us For Availability
8
Nut, Tinnerman WPL 4168838 Contact Us For Availability
8
Screw (4) WPL 4159470 Contact Us For Availability
8
Latch Switch With Roller WPL 4168514 Contact Us For Availability
8
Nut, Washer (4) WPL 4164360 Contact Us For Availability
8
Clock WPL 4173071 Contact Us For Availability
9
Rubber Bumper WPL 4168826 Contact Us For Availability
9
knob, clock thermostat WPL 3177121 Contact Us For Availability
9
Insulator (2) WPL 4168522 Contact Us For Availability
9
Screw, 8BT x 1/4 WPL 254225 Contact Us For Availability
9
Control Mounting Panel WPL 4173293 Contact Us For Availability
10
Air Baffle WPL 4163856 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Broiler Element Support-Right WPL 4168217 Contact Us For Availability
11
Knob, Clock WPL 3177122 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Retainer-Gasket WPL 3177549 Contact Us For Availability
11
Bottom Trim WPL 3178732 Contact Us For Availability
11
Element, Broil WPL 4164185 Contact Us For Availability
12
Insulation Retainer WPL 4169356 Contact Us For Availability
12
Nut, 8-32 (4) WPL 4166262 Contact Us For Availability
12
Vent Insert WPL 4168718 Contact Us For Availability
12
Screw (2) WPL 4159167 Contact Us For Availability
12
Bracket, Mounting WPL 4168292 Contact Us For Availability
12
Rotisserie Cover WPL 4167518 Contact Us For Availability
13
Relay, Meat Probe WPL 4163731 Contact Us For Availability
13
Shoulder Screw WPL 4168874 Contact Us For Availability
14
Bracket, Lock WPL 4163852 Contact Us For Availability
14
Frame, Control WPL 4173181 Contact Us For Availability
14
Bracket, Harness WPL 4173168 Contact Us For Availability
14
Cover, Seal End WPL 4167588 Contact Us For Availability
14
Light Lens Gasket WPL 4166868 Contact Us For Availability
15
Transformer, Meat Probe WPL 4166561 Contact Us For Availability
15
Wire Clamp WPL 4170330 Contact Us For Availability
15
Window Package WPL 4164235 Contact Us For Availability
15
Oven Liners (See Pages 8 & 9 For Further Brea WPL ARI83092A9 Contact Us For Availability
15
Light Lens WPL 4166866 Contact Us For Availability
16
Blower WPL 4173004 Contact Us For Availability
16
Insulation WPL 4163986 Contact Us For Availability
16
Screw (5) WPL 4170323 Contact Us For Availability
16
Insert, Top WPL 4173298 Contact Us For Availability
16
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
16
Light Lens Retainer WPL 4167938 Contact Us For Availability
16
Screw (3) WPL 4169445 Contact Us For Availability
17
Terminal Block, Power Supply WPL 4168735 Contact Us For Availability
17
Wire, Bare 10 GA. 65`` WPL 4168783 Contact Us For Availability
17
Wire Assembly 10 GA. 70`` WPL 4168800 Contact Us For Availability
17
Wire Assembly 10 GA. 70`` WPL 4168801 Contact Us For Availability
17
Wire Assembly 10 GA. 70`` WPL 4168802 Contact Us For Availability
17
Top Compartment WPL 4169315 Contact Us For Availability
17
Nut, Meat Probe WPL 4167277 Contact Us For Availability
18
Liner, Door WPL 3178760 Contact Us For Availability
18
Latch Switch WPL 4164366 Contact Us For Availability
18
Probe, Jack Cover WPL 4167266 Contact Us For Availability
19
Washer WPL 4163438 Contact Us For Availability
20
Glass Mounting Bracket WPL 4163855 Contact Us For Availability
20
control panel glass WPL 4173300 Contact Us For Availability
20
Screw 4-40 x 1.250 WPL 4173053 Contact Us For Availability
20
Latch Switch SPDT WPL 4168517 Contact Us For Availability
20
indicator light (2) WPL 4168597 Contact Us For Availability
20
Nut, Hex Jam WPL 4173084 Contact Us For Availability
21
Glass Panel WPL 4164243 Contact Us For Availability
21
Shoulder Screw, Latch Lever WPL 4168579 Contact Us For Availability
21
Screw WPL 4159201 Contact Us For Availability
21
Knob, Latch Lever WPL 4163821 Contact Us For Availability
21
Indicator Light (2) WPL 4163869 Contact Us For Availability
21
Meat Probe Jack WPL 4164293 Contact Us For Availability
22
Air Baffle Bottom WPL 4163858 Contact Us For Availability
22
Latch Assembly (See Latch Parts On Pages 6 & WPL ARI83093A9 Contact Us For Availability
22
Clip, Thermostat Bulb WPL 4173275 Contact Us For Availability
23
Cabinet Top WPL 4173290 Contact Us For Availability
23
Gasket, Window WPL 3178584 Contact Us For Availability
23
Shoulder Screw, Actuator Arm WPL 4168554 Contact Us For Availability
23
Insulation, Rear WPL 4169311 Contact Us For Availability
23
Broiler Element Support-Left WPL 4168218 Contact Us For Availability
24
Panel, Blower Mounting WPL 4173005 Contact Us For Availability
24
Spacer, Actuator Arm WPL 4168553 Contact Us For Availability
24
Oven Light Switch WPL 4167332 Contact Us For Availability
24
Rack, Oven WPL 4168400 Contact Us For Availability
25
screw WPL 4159461 Contact Us For Availability
25
Bushing, Flexible WPL 4173165 Contact Us For Availability
25
Actuator Arm WPL 4168058 Contact Us For Availability
25
Rear Anchor WPL 4167526 Contact Us For Availability
26
Switch, Fan WPL 4173008 Contact Us For Availability
26
Retaining Ring WPL 4159160 Contact Us For Availability
26
Cabinet Side WPL 4173047 Contact Us For Availability
26
Meat Probe Indicator WPL 4163730 Contact Us For Availability
27
Washer, Flat WPL 4159603 Contact Us For Availability
28
Screw (6) WPL 4159456 Contact Us For Availability
28
Retainer WPL 4167590 Contact Us For Availability
28
Nut, No.10-24 Hex Kep (4) WPL 4159109 Contact Us For Availability
28
Switch, Selector WPL 3177174 Contact Us For Availability
28
Rotisserie Rack WPL 4168411 Contact Us For Availability
29
Screw, No.10-24 X 3/8`` PTHMS WPL 4159287 Contact Us For Availability
30
Rotisserie Spear WPL 4168724 Contact Us For Availability
31
Rotisserie Skewer WPL 4166352 Contact Us For Availability
32
Screw (3) WPL 4159465 Contact Us For Availability
32
Nut, Lock WPL 4159117 Contact Us For Availability
32
Vent Tube WPL 4168126 Contact Us For Availability
33
Screw WPL 4159445 Contact Us For Availability
33
Collector Box WPL 4168681 Contact Us For Availability
33
Thermostat WPL 4164361 Contact Us For Availability
33
Capillary Cover WPL 4168203 Contact Us For Availability
34
Smoke Eliminator WPL 4168492 Contact Us For Availability
36
Gasket, Meat Probe Jack WPL 4163975 Contact Us For Availability
37
Meat Probe WPL 4167267 Contact Us For Availability
38
Control Frame WPL 4169335 Contact Us For Availability
38
Plug Button (5/8`` Hole) WPL 4159122 Contact Us For Availability
42
Vent Box WPL 4163941 Contact Us For Availability
49
Vent Tube WPL 4168494 Contact Us For Availability
52
Clamp, Conduit WPL 4167593 Contact Us For Availability
53
Vent Tube Mounting Bracket WPL 4168242 Contact Us For Availability
59
Cabinet, Back WPL 4173064 Contact Us For Availability
62
Socket, Lamp WPL 4168755 Contact Us For Availability
63
Light Shield WPL 4167579 Contact Us For Availability
65
Rotisserie Motor WPL 4163836 Contact Us For Availability
66
washer, lock (4) WPL 4159501 Contact Us For Availability
66
Rotisserie Motor WPL 4167469 Contact Us For Availability
70
Cabinet Support (Right) WPL 4163759 Contact Us For Availability
70
Cabinet Support (Left) WPL 4163760 Contact Us For Availability
70
Cabinet Support (Spacer (4)) WPL 4168590 Contact Us For Availability
72
Spring, Anchor WPL 4167599 Contact Us For Availability
74
Door Spring WPL 4173048 Contact Us For Availability
75
Hinge Assembly WPL 4167596 Contact Us For Availability
76
Cam Plate (Screw (6)) WPL 4159188 Contact Us For Availability
76
Cam Plate (Right) WPL 4167597 Contact Us For Availability
76
Cam Plate (Left) WPL 4167598 Contact Us For Availability
77
Probe Cover WPL 4163883 Contact Us For Availability
78
Screw, 8A X 3/8`` PKESMS WPL 4168863 Contact Us For Availability
80
Air Duct (Left) WPL 4163752 Contact Us For Availability
80
WPL 4163753 WPL 4163753 Contact Us For Availability
81
WPL 4173016 WPL 4173016 Contact Us For Availability
81
WPL 4173017 WPL 4173017 Contact Us For Availability
82
WPL 4173015 WPL 4173015 Contact Us For Availability
× ![]()
