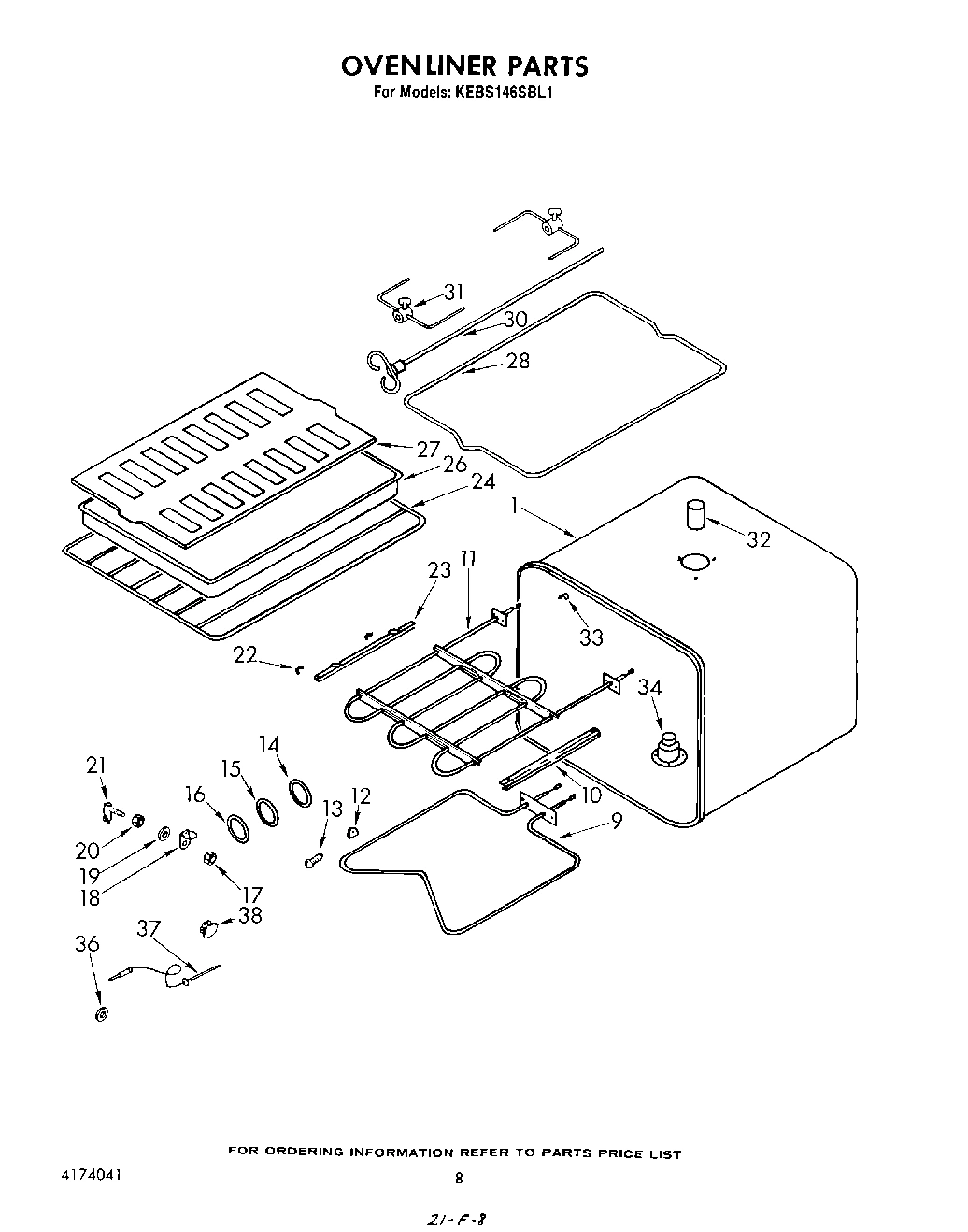

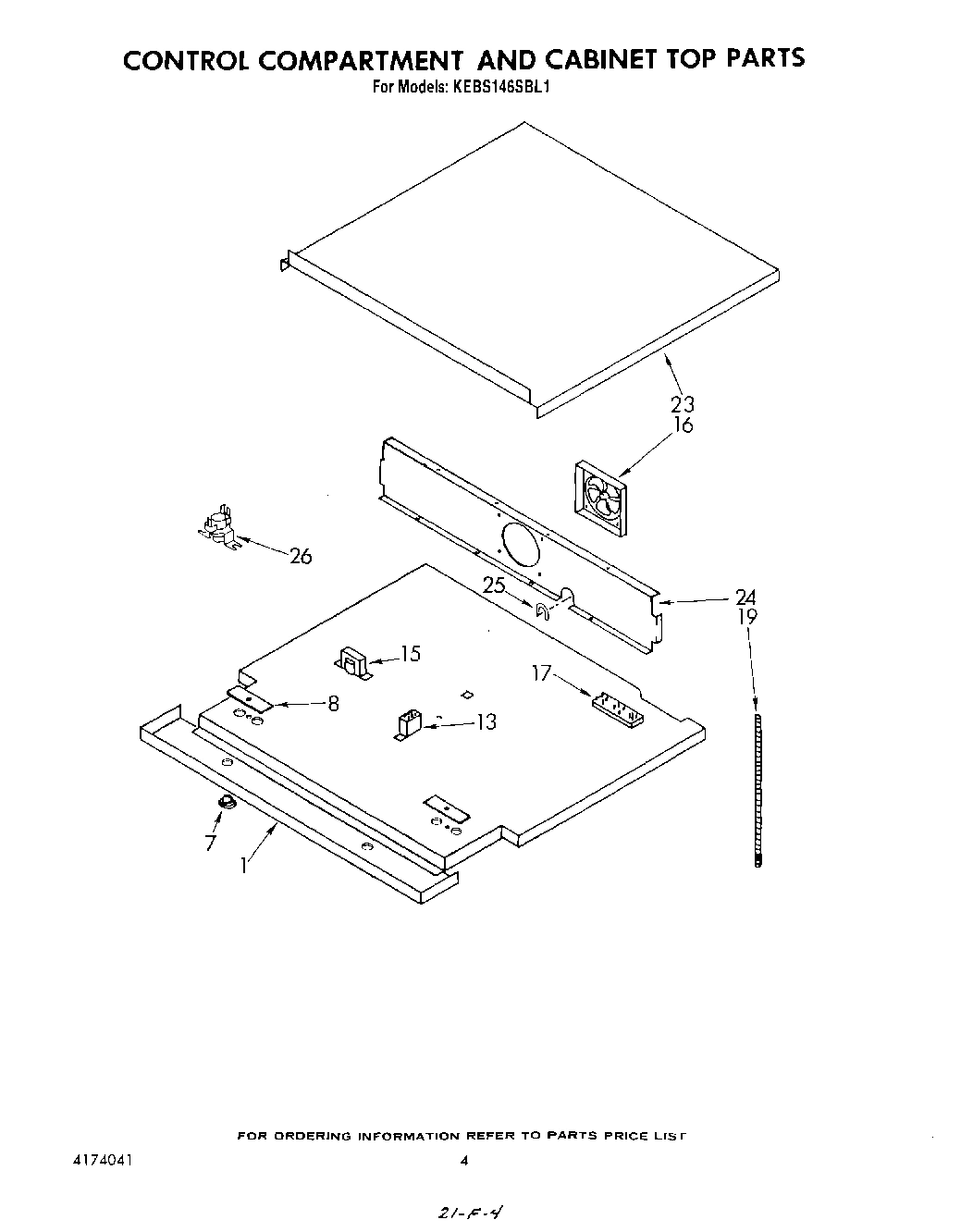

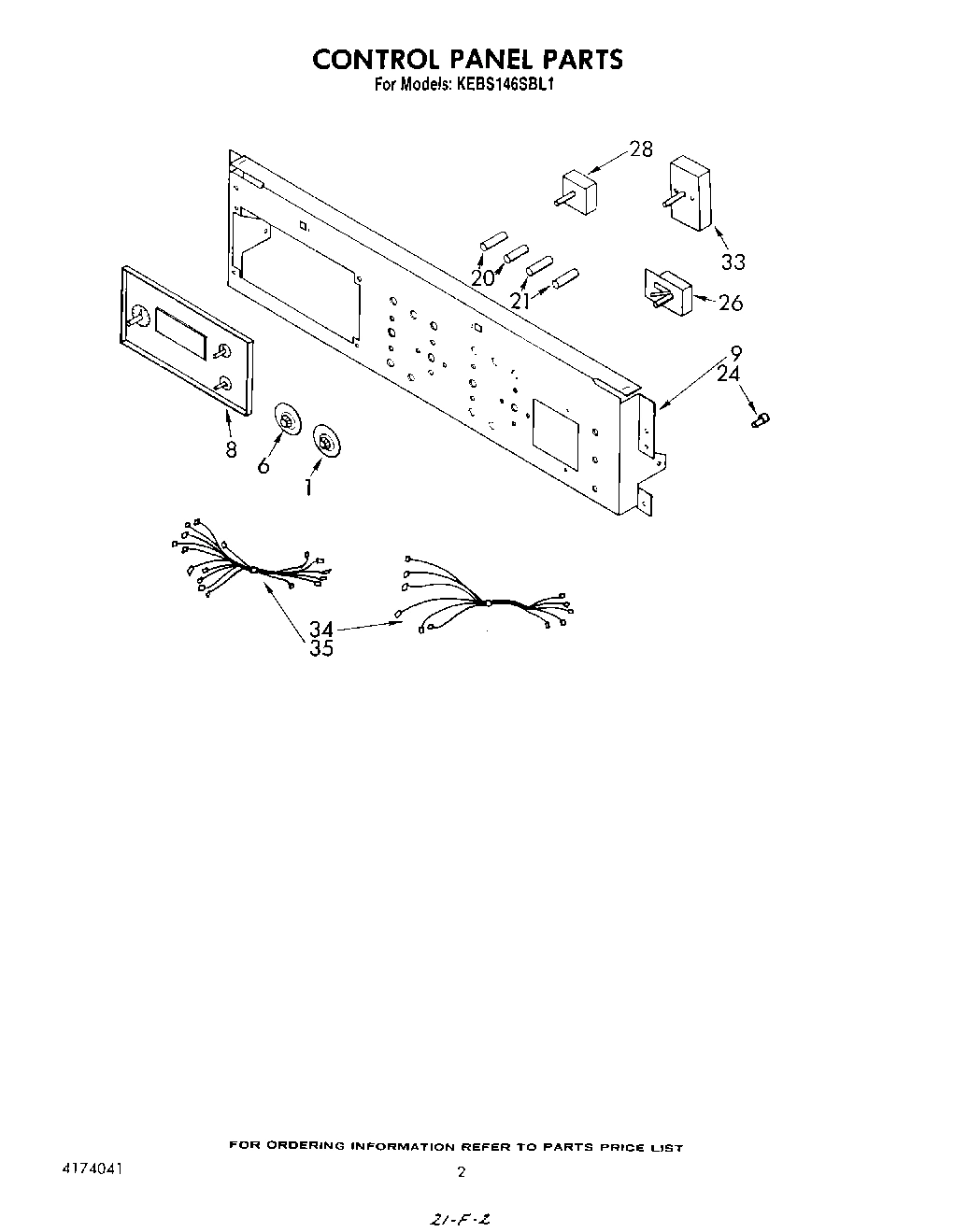

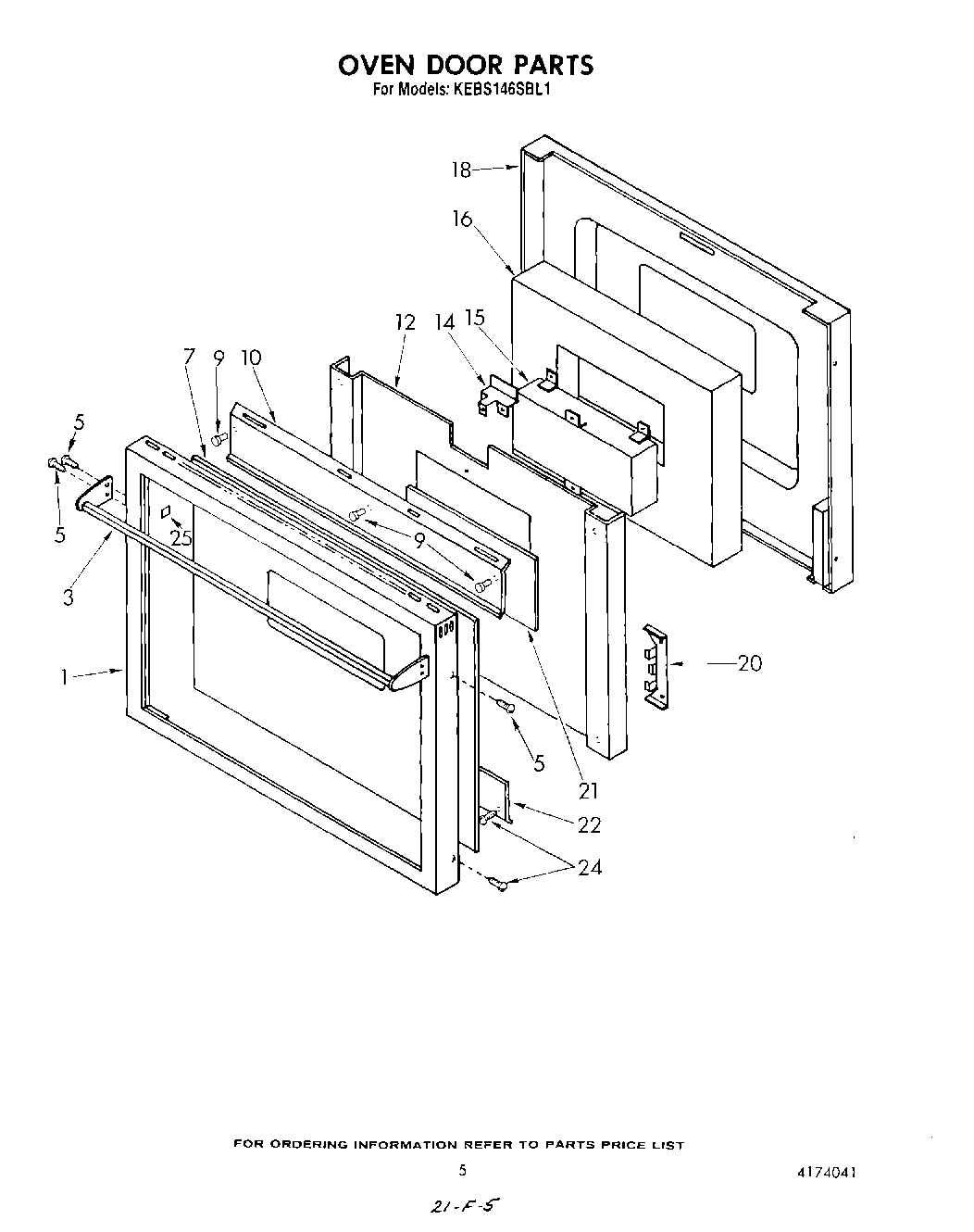

Model Whirlpool KEBS146SBL1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

1
Door Frame
Door Frame WPL 4169519 Contact Us For Availability
View on Model
1
Thermostat Disc Single Oven
Thermostat Disc Single Oven WPL 4163809 Contact Us For Availability
View on Model
1
Sandwich Panel
Sandwich Panel WPL 4173011 Contact Us For Availability
View on Model
1
Main Bottom
Main Bottom WPL 4163967 Contact Us For Availability
View on Model
1
Liner, Oven
Liner, Oven WPL 4163863 Contact Us For Availability
View on Model
2
bezel, panel light switch
bezel, panel light switch WPL 4163831 Contact Us For Availability
View on Model
3
Screw, No.10-24 X 3/8`` Hex TCS
Screw, No.10-24 X 3/8`` Hex TCS WPL 4159186 Contact Us For Availability
View on Model
3
Bezel, Oven Light Switch
Bezel, Oven Light Switch WPL 4169372 Contact Us For Availability
View on Model
3
door handle
door handle WPL 4169520 Contact Us For Availability
View on Model
3
Insulation, Bottom
Insulation, Bottom WPL 4169309 Contact Us For Availability
View on Model
4
Latch Lever
Latch Lever WPL 4163838 Contact Us For Availability
View on Model
5
Thermal Switch
Thermal Switch WPL 4173007 Contact Us For Availability
View on Model
5
Knob, Meat Probe Indicator
Knob, Meat Probe Indicator WPL 4163840 Contact Us For Availability
View on Model
5
Screw, No.8-32 X 3/8`` PFHMS
Screw, No.8-32 X 3/8`` PFHMS WPL 4159330 Contact Us For Availability
View on Model
5
Door Gasket
Door Gasket WPL 4168828 Contact Us For Availability
View on Model
6
Solenoid Spacer
Solenoid Spacer WPL 4168169 Contact Us For Availability
View on Model
6
selector disc single oven
selector disc single oven WPL 4163800 Contact Us For Availability
View on Model
7
Solenoid
Solenoid WPL 4173081 Contact Us For Availability
View on Model
7
Door Glass
Door Glass WPL 4164240 Contact Us For Availability
View on Model
7
Bushing
Bushing WPL 4173043 Contact Us For Availability
View on Model
7
Front Frame
Front Frame WPL 4163824 Contact Us For Availability
View on Model
8
Latch Switch With Roller
Latch Switch With Roller WPL 4168514 Contact Us For Availability
View on Model
8
Clock
Clock WPL 4173071 Contact Us For Availability
View on Model
8
Hole Cover
Hole Cover WPL 4168527 Contact Us For Availability
View on Model
9
Insulator (2)
Insulator (2) WPL 4168522 Contact Us For Availability
View on Model
9
knob, clock thermostat
knob, clock thermostat WPL 3177121 Contact Us For Availability
View on Model
9
Rubber Bumper
Rubber Bumper WPL 4168826 Contact Us For Availability
View on Model
9
Control Mounting Panel
Control Mounting Panel WPL 4173293 Contact Us For Availability
View on Model
10
Solenoid Spring
Solenoid Spring WPL 4168560 Contact Us For Availability
View on Model
10
Air Baffle
Air Baffle WPL 4163856 Contact Us For Availability
View on Model
10
Broiler Element Support-Right
Broiler Element Support-Right WPL 4168217 Contact Us For Availability
View on Model
11
Cotter Pin
Cotter Pin WPL 4159129 Contact Us For Availability
View on Model
11
Knob, Clock
Knob, Clock WPL 3177122 Contact Us For Availability
View on Model
11
Bottom Trim
Bottom Trim WPL 4164197 Contact Us For Availability
View on Model
11
Element, Broil
Element, Broil WPL 4164185 Contact Us For Availability
View on Model
12
Vent Insert
Vent Insert WPL 4168718 Contact Us For Availability
View on Model
12
Insulation Retainer
Insulation Retainer WPL 4169356 Contact Us For Availability
View on Model
12
Rotisserie Cover
Rotisserie Cover WPL 4167518 Contact Us For Availability
View on Model
13
Relay, Meat Probe
Relay, Meat Probe WPL 4163731 Contact Us For Availability
View on Model
13
Shoulder Screw
Shoulder Screw WPL 4168874 Contact Us For Availability
View on Model
14
screw, No.4-40 x 13/4`` hex
screw, No.4-40 x 13/4`` hex WPL 4173075 Contact Us For Availability
View on Model
14
Frame, Control
Frame, Control WPL 4173181 Contact Us For Availability
View on Model
14
Bracket, Lock
Bracket, Lock WPL 4163852 Contact Us For Availability
View on Model
14
Cover, Seal End
Cover, Seal End WPL 4167588 Contact Us For Availability
View on Model
14
Light Lens Gasket
Light Lens Gasket WPL 4166868 Contact Us For Availability
View on Model
15
Insulator
Insulator WPL 4163746 Contact Us For Availability
View on Model
15
Window Pack
Window Pack WPL 4173280 Contact Us For Availability
View on Model
15
Transformer, Meat Probe
Transformer, Meat Probe WPL 4166561 Contact Us For Availability
View on Model
15
Oven Liners (See Pages 8 & 9 For Further Brea
Oven Liners (See Pages 8 & 9 For Further Brea WPL ARI83090A8 Contact Us For Availability
View on Model
15
Light Lens
Light Lens WPL 4166866 Contact Us For Availability
View on Model
16
Insert, Top
Insert, Top WPL 4173298 Contact Us For Availability
View on Model
16
Insulation
Insulation WPL 4163986 Contact Us For Availability
View on Model
16
Blower
Blower WPL 4173004 Contact Us For Availability
View on Model
16
Insulation, Top and Sides
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
View on Model
16
Light Lens Retainer
Light Lens Retainer WPL 4167938 Contact Us For Availability
View on Model
17
Screw, No.4-40 X 1 1/4`` Hex
Screw, No.4-40 X 1 1/4`` Hex WPL 4173053 Contact Us For Availability
View on Model
17
Terminal Block, Power Supply
Terminal Block, Power Supply WPL 4168735 Contact Us For Availability
View on Model
17
Top Compartment
Top Compartment WPL 4169315 Contact Us For Availability
View on Model
17
Nut, Meat Probe
Nut, Meat Probe WPL 4167277 Contact Us For Availability
View on Model
18
Latch Switch
Latch Switch WPL 4164366 Contact Us For Availability
View on Model
18
Door Liner
Door Liner WPL 4164236 Contact Us For Availability
View on Model
18
Probe, Jack Cover
Probe, Jack Cover WPL 4167266 Contact Us For Availability
View on Model
19
latch switch (SPNO)
latch switch (SPNO) WPL 4168515 Contact Us For Availability
View on Model
19
Conduit, 1/2`` X 56``
Conduit, 1/2`` X 56`` WPL 4167614 Contact Us For Availability
View on Model
19
Washer
Washer WPL 4159557 Contact Us For Availability
View on Model
20
Latch Switch SPDT
Latch Switch SPDT WPL 4168517 Contact Us For Availability
View on Model
20
control panel glass
control panel glass WPL 4173300 Contact Us For Availability
View on Model
20
Glass Mounting Bracket
Glass Mounting Bracket WPL 4163855 Contact Us For Availability
View on Model
20
indicator light (2)
indicator light (2) WPL 4168597 Contact Us For Availability
View on Model
20
Nut, Hex Jam
Nut, Hex Jam WPL 4173084 Contact Us For Availability
View on Model
21
Shoulder Screw, Latch Lever
Shoulder Screw, Latch Lever WPL 4168579 Contact Us For Availability
View on Model
21
Glass Panel
Glass Panel WPL 4164243 Contact Us For Availability
View on Model
21
indicator light (2)
indicator light (2) WPL 4168369 Contact Us For Availability
View on Model
21
Knob, Latch Lever
Knob, Latch Lever WPL 4163821 Contact Us For Availability
View on Model
21
Meat Probe Jack
Meat Probe Jack WPL 4164293 Contact Us For Availability
View on Model
22
Latch Switch (SPNO)
Latch Switch (SPNO) WPL 4164367 Contact Us For Availability
View on Model
22
Air Baffle Bottom
Air Baffle Bottom WPL 4163858 Contact Us For Availability
View on Model
22
Latch Assembly (See Latch Parts On Pages 6 &
Latch Assembly (See Latch Parts On Pages 6 & WPL ARI83091A2 Contact Us For Availability
View on Model
22
Clip, Thermostat Bulb
Clip, Thermostat Bulb WPL 4173275 Contact Us For Availability
View on Model
23
Shoulder Screw, Actuator Arm
Shoulder Screw, Actuator Arm WPL 4168554 Contact Us For Availability
View on Model
23
Cabinet Top
Cabinet Top WPL 4173290 Contact Us For Availability
View on Model
23
Insulation, Rear
Insulation, Rear WPL 4169311 Contact Us For Availability
View on Model
23
Broiler Element Support-Left
Broiler Element Support-Left WPL 4168218 Contact Us For Availability
View on Model
24
Spacer, Actuator Arm
Spacer, Actuator Arm WPL 4168553 Contact Us For Availability
View on Model
24
Oven Light Switch
Oven Light Switch WPL 4167332 Contact Us For Availability
View on Model
24
Panel, Blower Mounting
Panel, Blower Mounting WPL 4173005 Contact Us For Availability
View on Model
24
Rack, Oven
Rack, Oven WPL 4168400 Contact Us For Availability
View on Model
25
Actuator Arm
Actuator Arm WPL 4168058 Contact Us For Availability
View on Model
25
Insert
Insert WPL 4164131 Contact Us For Availability
View on Model
25
Bushing, Flexible
Bushing, Flexible WPL 4173165 Contact Us For Availability
View on Model
25
Rear Anchor
Rear Anchor WPL 4167526 Contact Us For Availability
View on Model
26
Retaining Ring
Retaining Ring WPL 4159160 Contact Us For Availability
View on Model
26
Meat Probe Indicator
Meat Probe Indicator WPL 4163730 Contact Us For Availability
View on Model
26
Switch, Fan
Switch, Fan WPL 4173008 Contact Us For Availability
View on Model
26
Cabinet Side
Cabinet Side WPL 4173057 Contact Us For Availability
View on Model
27
Washer, Flat
Washer, Flat WPL 4159603 Contact Us For Availability
View on Model
28
Nut, No.10-24 Hex Kep
Nut, No.10-24 Hex Kep WPL 4159109 Contact Us For Availability
View on Model
28
Retainer
Retainer WPL 4167590 Contact Us For Availability
View on Model
28
Switch, Selector
Switch, Selector WPL 3177174 Contact Us For Availability
View on Model
28
Rotisserie Rack
Rotisserie Rack WPL 4168411 Contact Us For Availability
View on Model
29
Screw, No.10-24 X 3/8`` PTHMS
Screw, No.10-24 X 3/8`` PTHMS WPL 4159287 Contact Us For Availability
View on Model
30
wiring harness, upper latch
wiring harness, upper latch WPL 4173291 Contact Us For Availability
View on Model
30
Rotisserie Spear
Rotisserie Spear WPL 4168724 Contact Us For Availability
View on Model
31
Rotisserie Skewer
Rotisserie Skewer WPL 4166352 Contact Us For Availability
View on Model
32
Nut, Lock
Nut, Lock WPL 4159117 Contact Us For Availability
View on Model
32
Vent Tube Extension
Vent Tube Extension WPL 4168126 Contact Us For Availability
View on Model
33
Thermostat
Thermostat WPL 4164361 Contact Us For Availability
View on Model
33
Collector Box
Collector Box WPL 4168681 Contact Us For Availability
View on Model
33
Capillary Cover
Capillary Cover WPL 4168203 Contact Us For Availability
View on Model
34
wiring harness high temp
wiring harness high temp WPL 4173260 Contact Us For Availability
View on Model
34
Smoke Eliminator
Smoke Eliminator WPL 4168492 Contact Us For Availability
View on Model
35
wiring harness, low temp
wiring harness, low temp WPL 4173299 Contact Us For Availability
View on Model
36
Gasket, Meat Probe Jack
Gasket, Meat Probe Jack WPL 4163975 Contact Us For Availability
View on Model
37
Meat Probe
Meat Probe WPL 4167267 Contact Us For Availability
View on Model
38
Control Frame Support
Control Frame Support WPL 4169335 Contact Us For Availability
View on Model
38
Plug Button (3/8`` Hole)
Plug Button (3/8`` Hole) WPL 4159120 Contact Us For Availability
View on Model
38
Plug Button (5/8`` Hole)
Plug Button (5/8`` Hole) WPL 4159122 Contact Us For Availability
View on Model
38
Plug Button (3/4`` Hole)
Plug Button (3/4`` Hole) WPL 4159123 Contact Us For Availability
View on Model
42
Vent Box
Vent Box WPL 4163941 Contact Us For Availability
View on Model
49
Vent Tube
Vent Tube WPL 4168494 Contact Us For Availability
View on Model
52
Clamp, Conduit
Clamp, Conduit WPL 4167593 Contact Us For Availability
View on Model
53
Vent Tube Mounting Bracket
Vent Tube Mounting Bracket WPL 4168242 Contact Us For Availability
View on Model

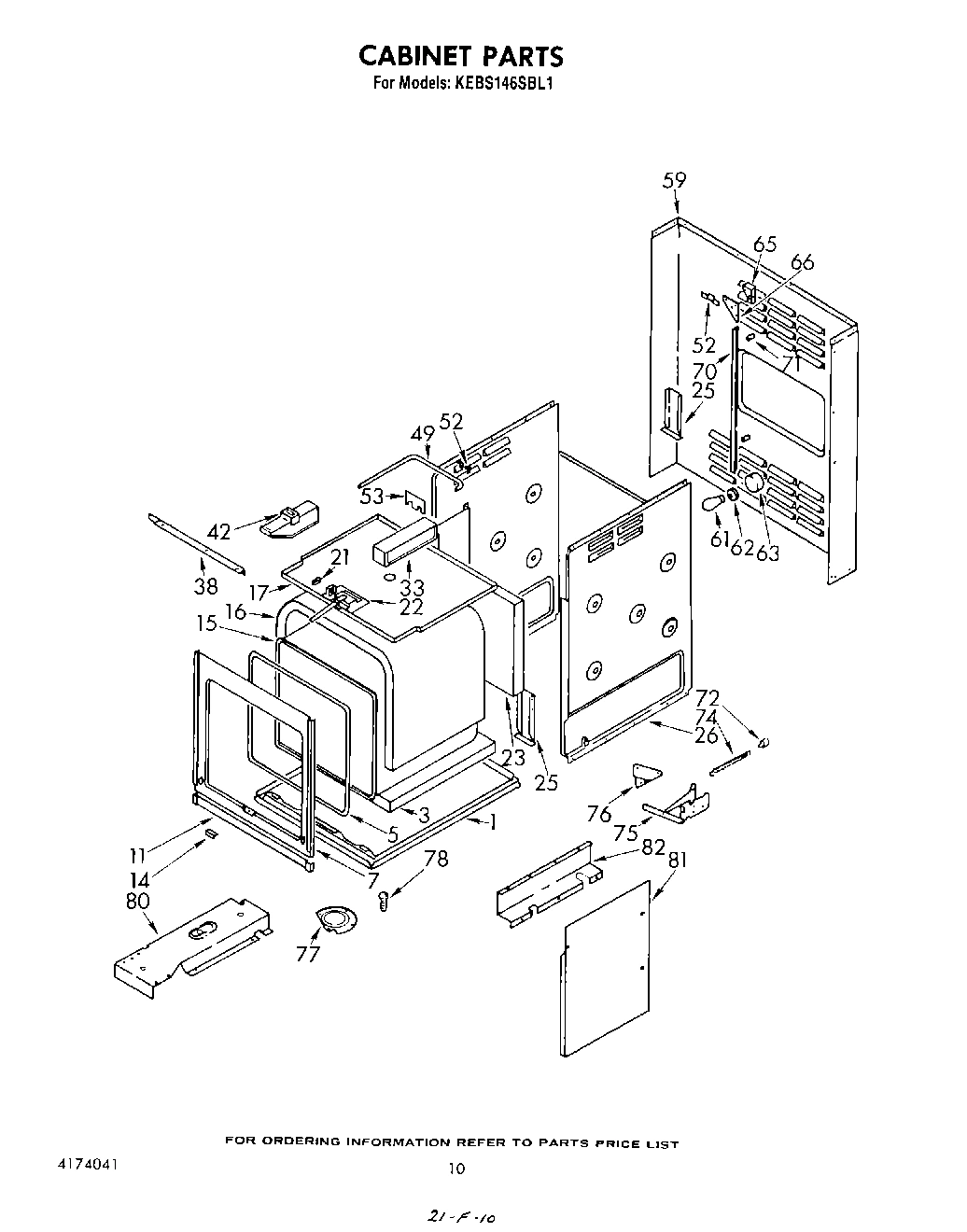

59
Cabinet, Back
Cabinet, Back WPL 4173064 Contact Us For Availability
View on Model
62
Socket, Lamp
Socket, Lamp WPL 4168755 Contact Us For Availability
View on Model
63
Light Shield
Light Shield WPL 4167579 Contact Us For Availability
View on Model
65
Rotisserie Motor
Rotisserie Motor WPL 4173277 Contact Us For Availability
View on Model
66
Mounting Plate (Rotisserie Motor)
Mounting Plate (Rotisserie Motor) WPL 4173278 Contact Us For Availability
View on Model
70
Cabinet Support (Right)
Cabinet Support (Right) WPL 4163759 Contact Us For Availability
View on Model
71
Spacer
Spacer WPL 4168590 Contact Us For Availability
View on Model
72
Spring, Anchor
Spring, Anchor WPL 4167599 Contact Us For Availability
View on Model
74
Door Spring
Door Spring WPL 4173048 Contact Us For Availability
View on Model
75
Hinge Assembly
Hinge Assembly WPL 4167596 Contact Us For Availability
View on Model
76
cam plate (left)
cam plate (left) WPL 4163760 Contact Us For Availability
View on Model
76
Cam Plate (Right)
Cam Plate (Right) WPL 4167597 Contact Us For Availability
View on Model
77
Probe Cover
Probe Cover WPL 4163883 Contact Us For Availability
View on Model
78
Screw, 8A X 3/8`` PKESMS
Screw, 8A X 3/8`` PKESMS WPL 4168863 Contact Us For Availability
View on Model
80
Air Duct (Left)
Air Duct (Left) WPL 4163752 Contact Us For Availability
View on Model
80
Air Duct (Right)
Air Duct (Right) WPL 4163753 Contact Us For Availability
View on Model
81
Extension, Air Duct (Left Hand)
Extension, Air Duct (Left Hand) WPL 4173016 Contact Us For Availability
View on Model
81
Extension, Air Duct (Right Hand)
Extension, Air Duct (Right Hand) WPL 4173017 Contact Us For Availability
View on Model
82
Air Baffle Channel
Air Baffle Channel WPL 4173015 Contact Us For Availability
View on Model
