Model Whirlpool KEBS145SBL1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
06 - LATCH ASSEMBLY

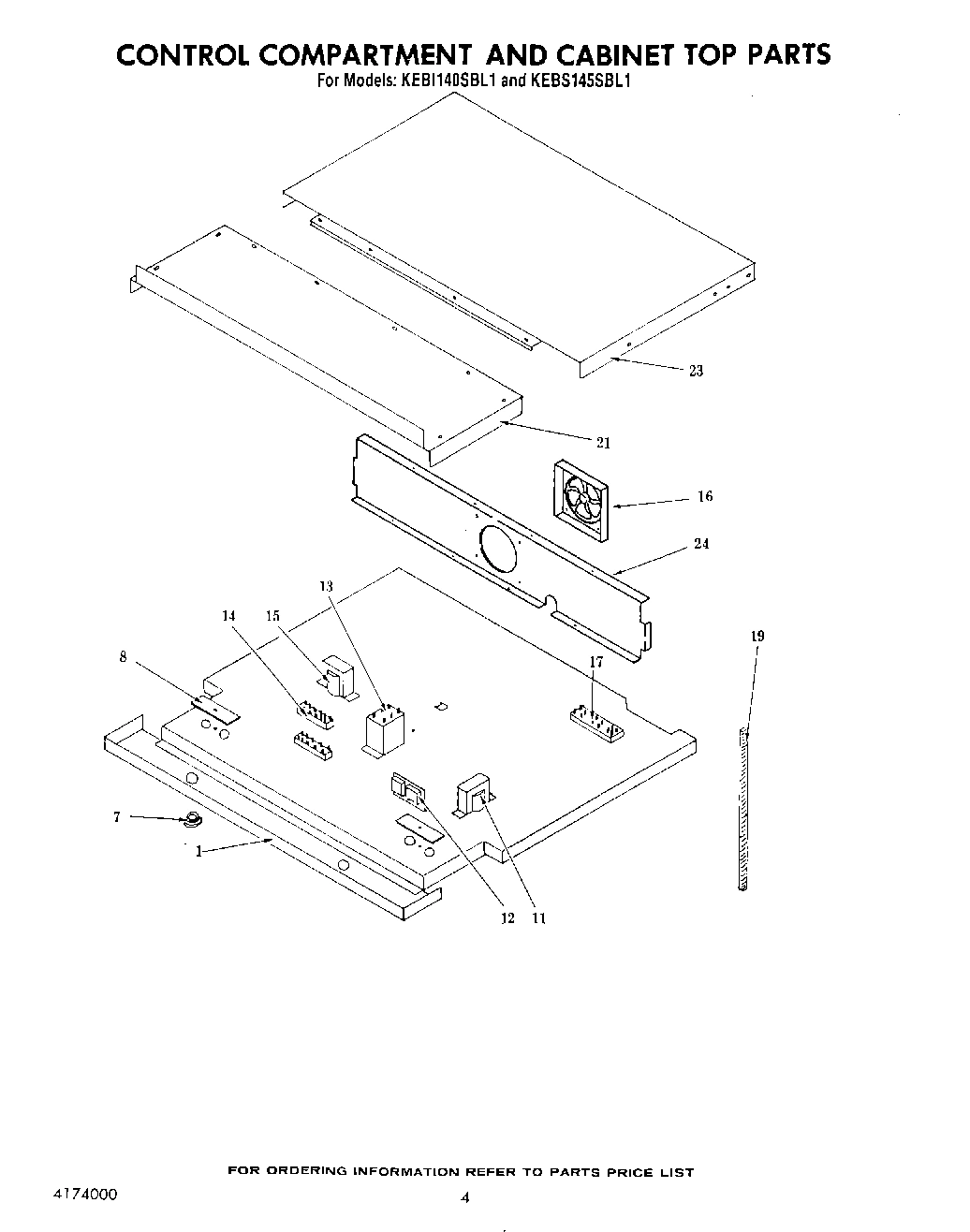

04 - CONTROL COMPARTMENT AND CABINET TOP

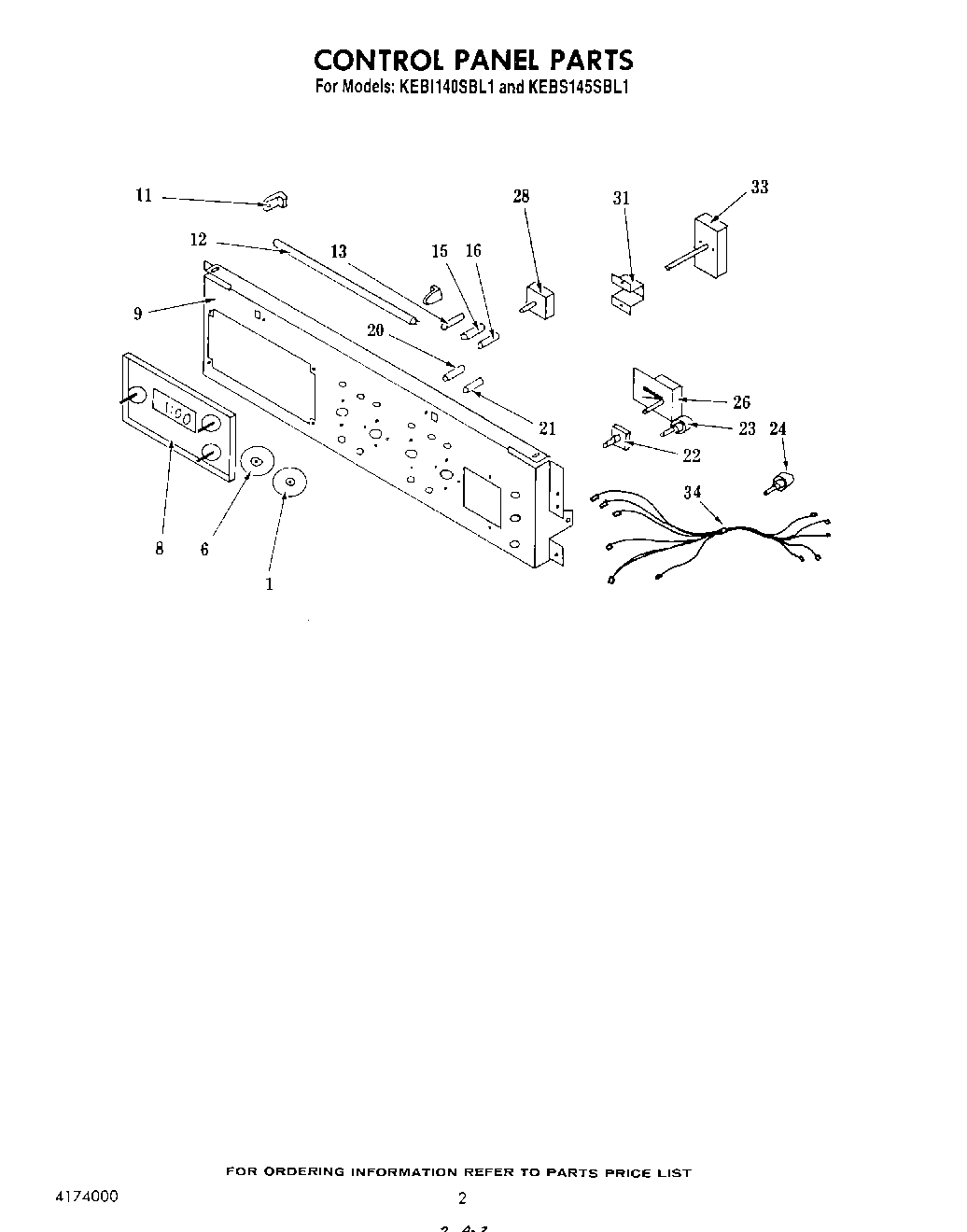

02 - CONTROL PANEL

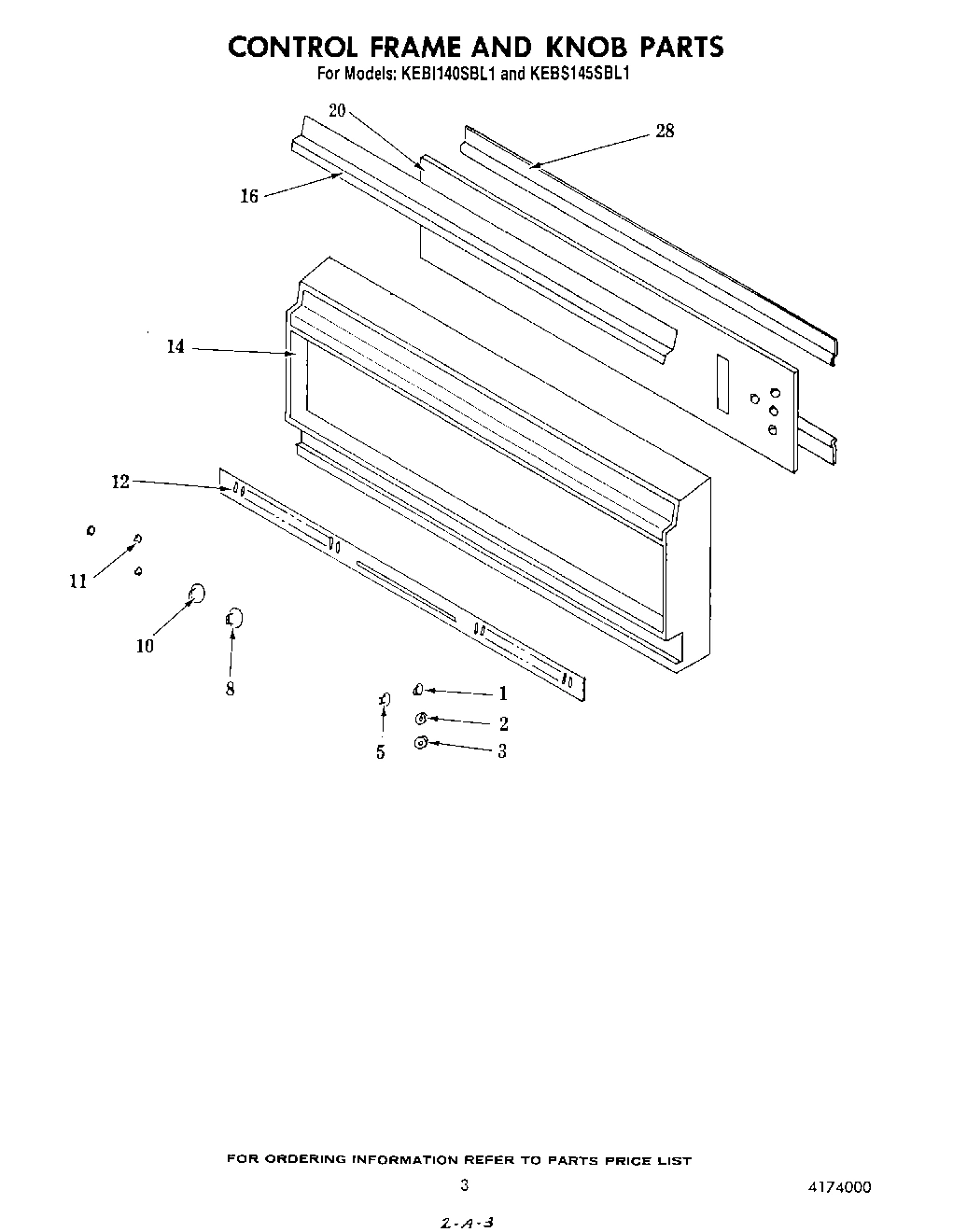

03 - CONTROL FRAME AND KNOB

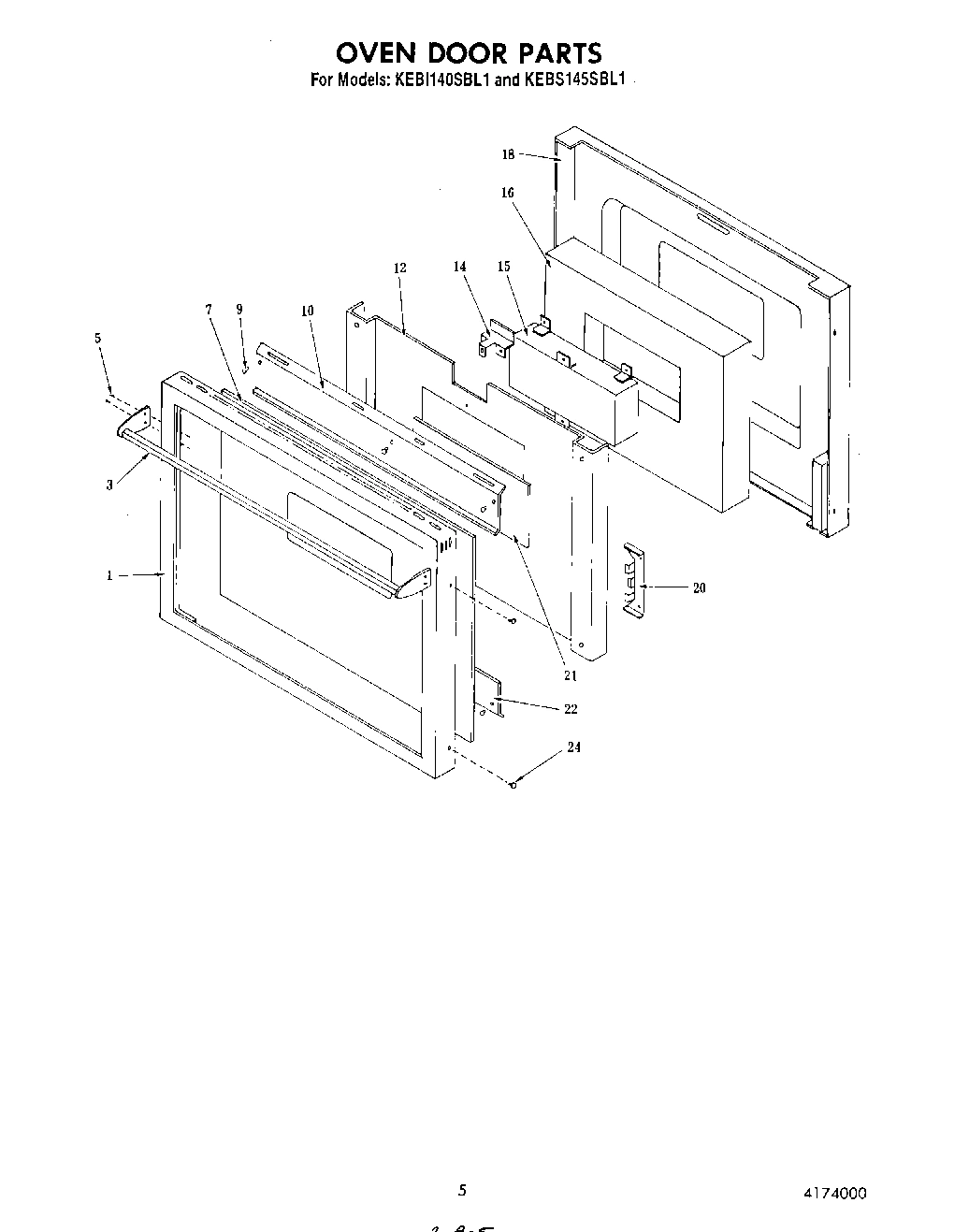

05 - OVEN DOOR

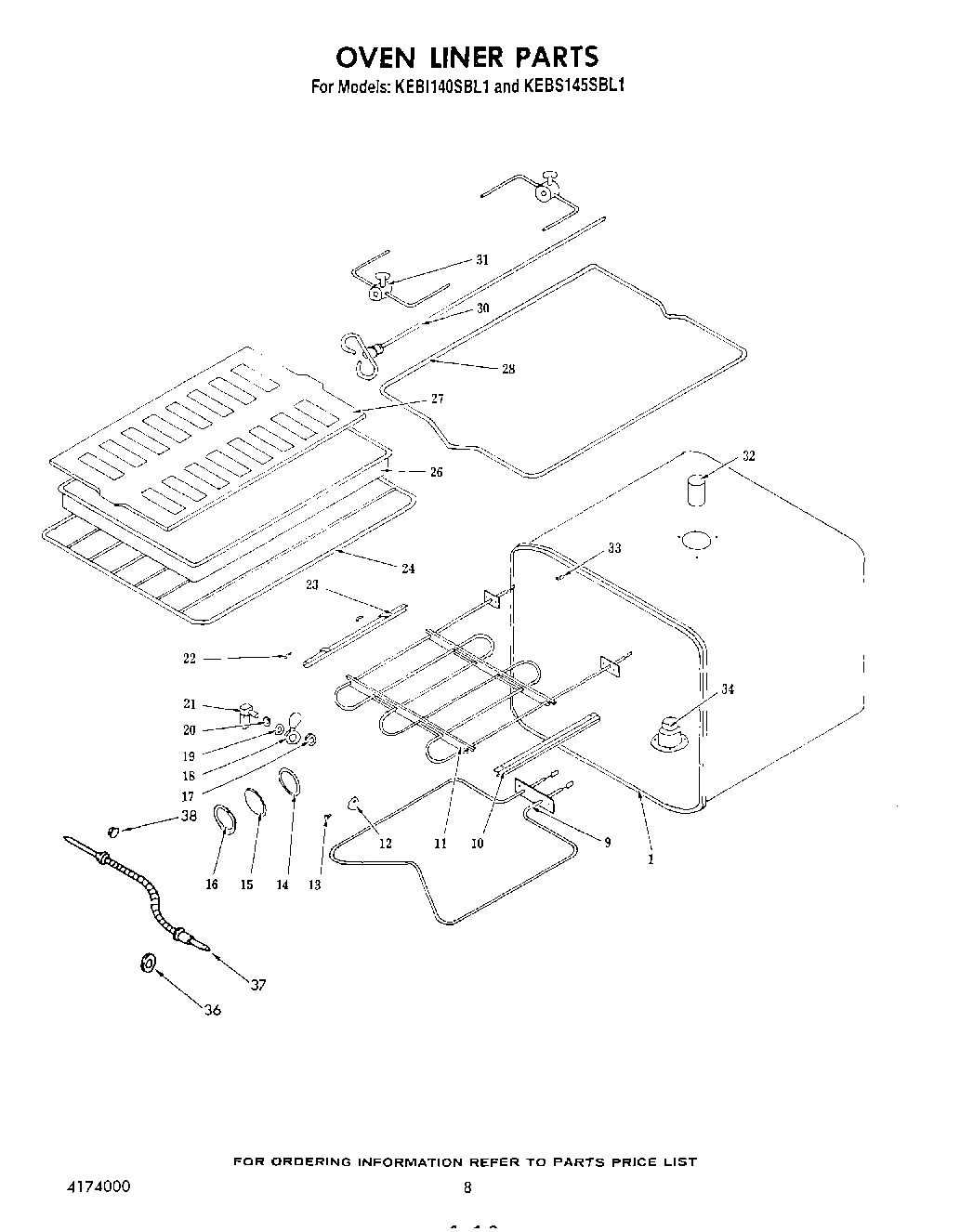

07 - OVEN LINER

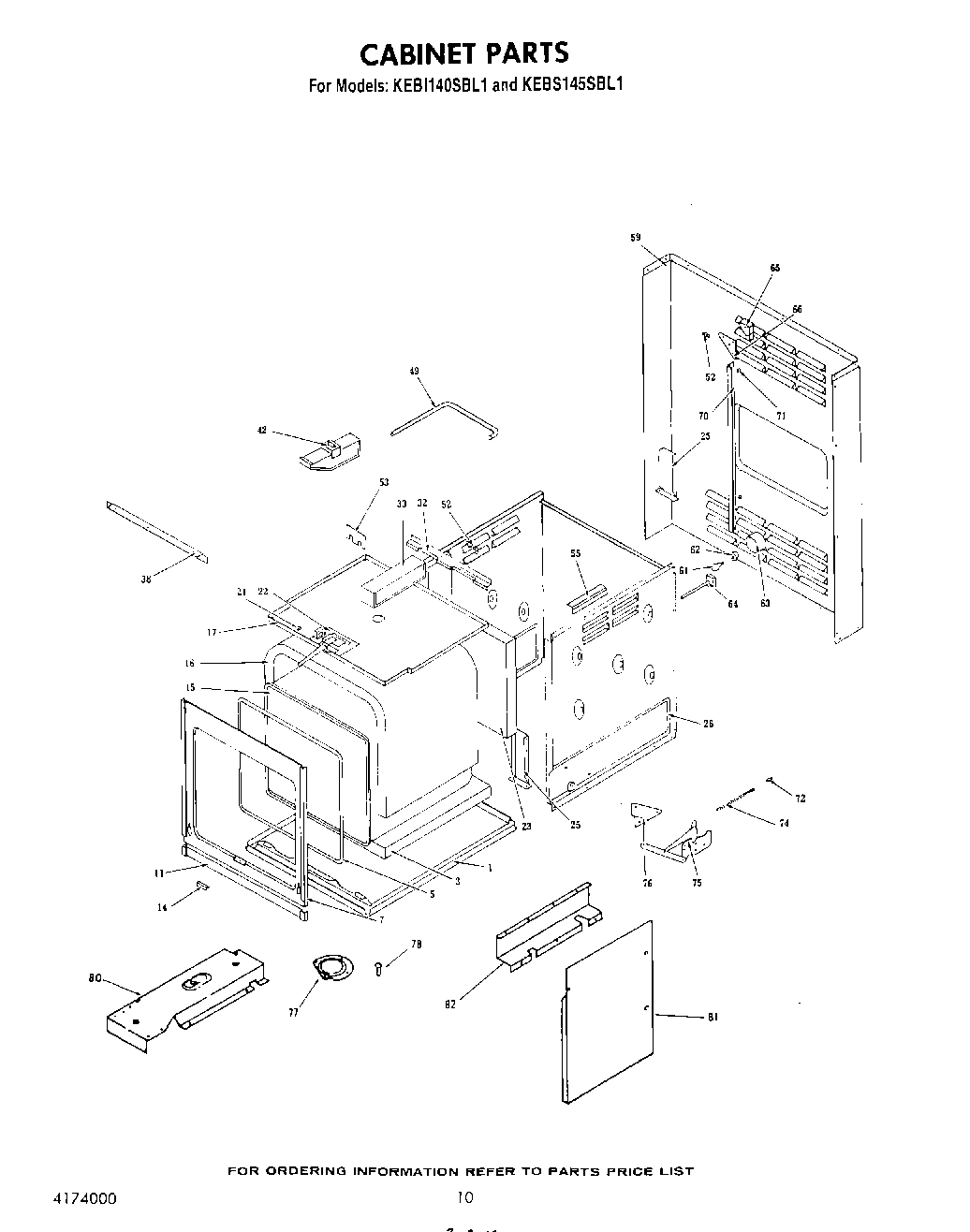

08 - CABINET
Common parts from model Whirlpool KEBS145SBL1 BUILT-IN ELECTRIC SINGLE OVEN
List, Repair Parts WPL LIT4174000 Contact Us For Availability
Installation Instructions WPL LIT4174007 Contact Us For Availability
Cookbook, Retained Heat Model KEBS145SBL1 WPL LIT417708 Contact Us For Availability
Use & Care Guide Model KEBI140SBL1 WPL LIT4177630 Contact Us For Availability
Use & Care Guide Model KEBS145SBL1 WPL LIT4177639 Contact Us For Availability
1
Sandwich Panel WPL 4173011 Contact Us For Availability
1
Model KEBS145SBL1 WPL 4163805 Contact Us For Availability
1
Model KEBI140SBL1 WPL 4163809 Contact Us For Availability
1
Door Frame WPL 4164383 Contact Us For Availability
1
Liner, Oven WPL 4163863 Contact Us For Availability
1
Main Bottom WPL 4163967 Contact Us For Availability
3
Screw, No.10-24 X 3/8`` Hex TCS WPL 4159186 Contact Us For Availability
3
Bezel, Oven Light Switch (Model KEBS145SBL1) WPL 4163831 Contact Us For Availability
3
Bezel, Oven Light Switch (Model KEBI140SBL1) WPL 4169372 Contact Us For Availability
3
Door Handle WPL 4173049 Contact Us For Availability
3
Insulation, Bottom WPL 4169309 Contact Us For Availability
4
Latch Lever WPL 4163838 Contact Us For Availability
5
Thermal Switch WPL 4173007 Contact Us For Availability
5
Knob, Meat Probe Indicator Model KEBS145SBL1 WPL 4163840 Contact Us For Availability
5
Screw, No.8-32 X 3/8`` PFHMS WPL 4159330 Contact Us For Availability
5
Door Gasket WPL 4168828 Contact Us For Availability
6
Solenoid Spacer WPL 4168169 Contact Us For Availability
6
Selector Disc Single Oven (Model KEBI140SBL1) WPL 4163799 Contact Us For Availability
6
Selector Disc Single Oven (Model KEBS145SBL1) WPL 4163800 Contact Us For Availability
7
Solenoid WPL 4169323 Contact Us For Availability
7
Bushing WPL 4173043 Contact Us For Availability
7
Door Glass WPL 4164240 Contact Us For Availability
7
Front Frame WPL 4163824 Contact Us For Availability
8
Latch Switch With Roller WPL 4168514 Contact Us For Availability
8
Hole Cover WPL 4168527 Contact Us For Availability
8
Clock WPL 4163729 Contact Us For Availability
8
Knob, Thermostat (Model KEBS145SBL1 (Use With WPL 4168624 Contact Us For Availability
9
Insulator WPL 4168522 Contact Us For Availability
9
Control Mounting Panel WPL 4163749 Contact Us For Availability
9
Rubber Bumper WPL 4168826 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Air Baffle WPL 4163856 Contact Us For Availability
10
Broiler Element Support-Right WPL 4168217 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Ballast WPL 4168687 Contact Us For Availability
11
Lamp Socket (Model KEBS145SBL1) WPL 4164892 Contact Us For Availability
11
Knob, Clock WPL 4165050 Contact Us For Availability
11
Element, Broil WPL 4164185 Contact Us For Availability
11
Bottom Trim WPL 4168059 Contact Us For Availability
12
Thermal Relay Model KEBS145SBL1 WPL 4168696 Contact Us For Availability
12
Vent Insert WPL 4168718 Contact Us For Availability
12
Insulation Retainer WPL 4169356 Contact Us For Availability
12
Rotisserie Cover Model KEBS145SBL1 WPL 4167518 Contact Us For Availability
13
Relay, Meat Probe WPL 4163731 Contact Us For Availability
13
Shoulder Screw Model KEBS145SBL1 WPL 4168874 Contact Us For Availability
14
Screw, No.4-40 X 5/8 Hex WPL 4173045 Contact Us For Availability
14
Terminal Block, Distribution Model KEBS145SBL WPL 4168561 Contact Us For Availability
14
Control Frame WPL 4168631 Contact Us For Availability
14
Bracket, Lock WPL 4163852 Contact Us For Availability
14
Light Lens Gasket WPL 4166868 Contact Us For Availability
14
Cover, Seal End WPL 4167588 Contact Us For Availability
15
Insulator WPL 4163746 Contact Us For Availability
15
Transformer, Meat Probe Model KEBS145SBL1 WPL 4166561 Contact Us For Availability
15
Window Package WPL 4164235 Contact Us For Availability
15
Light Lens WPL 4166866 Contact Us For Availability
15
Oven Liners (See Pages 8 & 9 For Further Brea WPL ARI83088A1 Contact Us For Availability
16
Blower WPL 4173004 Contact Us For Availability
16
Indicator Light, Lock WPL 4168597 Contact Us For Availability
16
Top Insert (Model KEBS145SBL1) WPL 4163740 Contact Us For Availability
16
Top Insert (Model KESI140SBL1) WPL 4163742 Contact Us For Availability
16
Insulation WPL 4163986 Contact Us For Availability
16
Light Lens Retainer WPL 4167938 Contact Us For Availability
16
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
17
Screw, No.4-40 X 1 1/4`` Hex WPL 4173053 Contact Us For Availability
17
Terminal Block, Power Supply WPL 4168735 Contact Us For Availability
17
Nut, Meat Probe Model KEBS145SBL1 WPL 4167277 Contact Us For Availability
17
Top Compartment WPL 4169315 Contact Us For Availability
18
Door Liner WPL 4164236 Contact Us For Availability
18
Probe Jack Cover Model KEBS145SBL1 WPL 4167266 Contact Us For Availability
19
Conduit, 1/2`` X 56`` WPL 4167614 Contact Us For Availability
19
Washer Model KEBS145SBL1 WPL 4159557 Contact Us For Availability
20
Latch Switch ((SPDT) For Model KEBI140SBL1) WPL 4168517 Contact Us For Availability
20
Latch Switch ((SPNO) For Model KEBS145SBL1) WPL 4168515 Contact Us For Availability
20
Control Panel Glass (Model KEBI140SBL1) WPL 4163884 Contact Us For Availability
20
Control Panel Glass (Model KEBS145SBL1) WPL 4163885 Contact Us For Availability
20
Glass Mounting Bracket WPL 4163855 Contact Us For Availability
20
Nut, Hex Jam Model KEBS145SBL1 WPL 4159113 Contact Us For Availability
21
Shoulder Screw, Latch Lever WPL 4168579 Contact Us For Availability
21
Cabinet Top, Front WPL 4169316 Contact Us For Availability
21
Indicator Light, Serve (Model KEBS145SBL1) WPL 4168598 Contact Us For Availability
21
Glass Panel WPL 4164243 Contact Us For Availability
21
Meat Probe Jack Model KEBI145SBL1 WPL 4164293 Contact Us For Availability
21
Knob, Latch Lever WPL 4163821 Contact Us For Availability
22
Retained Heat Switch (Model KEBS145SBL1) WPL 4168533 Contact Us For Availability
22
Air Baffle Bottom WPL 4163858 Contact Us For Availability
22
Thermostat Bulb Clip WPL 4166287 Contact Us For Availability
22
Latch Assembly (See Latch Parts On Pages 6 & WPL ARI83089A3 Contact Us For Availability
23
Shoulder Screw, Actuator Arm WPL 4168554 Contact Us For Availability
23
Cabinet Top, Rear WPL 4168261 Contact Us For Availability
23
Panel Light Switch (Model KEBS145SBL1) WPL 4166934 Contact Us For Availability
23
Broiler Element Support-Left WPL 4168218 Contact Us For Availability
23
Insulation, Rear WPL 4169311 Contact Us For Availability
24
Spacer, Actuator Arm WPL 4168553 Contact Us For Availability
24
Panel, Blower Mounting WPL 4173005 Contact Us For Availability
24
Oven Light Switch WPL 4169365 Contact Us For Availability
24
Rack, Oven WPL 4168400 Contact Us For Availability
25
Actuator Arm WPL 4168058 Contact Us For Availability
25
Rear Anchor WPL 4167526 Contact Us For Availability
26
Retaining Ring WPL 4159160 Contact Us For Availability
26
Meat Probe Indicator (Model KEBS145SBL1) WPL 4163730 Contact Us For Availability
26
Cabinet Side WPL 4173047 Contact Us For Availability
27
Washer, Flat WPL 4159603 Contact Us For Availability
28
Nut, No.10-24 Hex Kep WPL 4159109 Contact Us For Availability
28
Selector Switch (Model KEBS145SBL1) WPL 4163727 Contact Us For Availability
28
Selector Switch (Model KEBI140SBL1) WPL 4168451 Contact Us For Availability
28
Retainer WPL 4167590 Contact Us For Availability
28
Rotisserie Rack Model KEBS145SBL1 WPL 4168411 Contact Us For Availability
29
Screw, No.10-24 X 3/8`` PTHMS WPL 4159287 Contact Us For Availability
30
Wiring Harness, Latch Switch ((Use With Rober WPL 4173050 Contact Us For Availability
30
Wiring Harness, Latch Switch ((Use With G.E. WPL 4173051 Contact Us For Availability
30
Rotisserie Spear Model KEBS145SBL1 WPL 4168724 Contact Us For Availability
31
Wiring Harness, Latch Switch Model KEBI140SBL WPL 4173046 Contact Us For Availability
31
Thermostat Mounting Bracket Model KEBS145SBL1 WPL 4168150 Contact Us For Availability
31
Rotisserie Skewer Model KEBS145SBL1 WPL 4166352 Contact Us For Availability
32
Nut, Lock WPL 4159117 Contact Us For Availability
32
Vent Tube Extension WPL 4168126 Contact Us For Availability
32
Front Frame Support WPL 4168275 Contact Us For Availability
33
Thermostat (Model KEBS145SBL1) WPL 4164245 Contact Us For Availability
33
Thermostat (Model KEBI140SBL1) WPL 4164361 Contact Us For Availability
33
Capillary Cover WPL 4168203 Contact Us For Availability
33
Collector Box WPL 4168135 Contact Us For Availability
34
Wiring Harness Element WPL 4173042 Contact Us For Availability
34
Smoke Eliminator WPL 4168492 Contact Us For Availability
36
Gasket, Meat Probe Jack Model KEBS145SBL1 WPL 4163975 Contact Us For Availability
37
Meat Probe Model KEBS145SBL1 WPL 4167267 Contact Us For Availability
38
Plug Button (3/8`` Hole) WPL 4159120 Contact Us For Availability
38
Plug Button (5/8`` Hole) WPL 4159122 Contact Us For Availability
38
Plug Button (3/4`` Hole) WPL 4159123 Contact Us For Availability
38
Control Frame Support WPL 4169335 Contact Us For Availability
42
Vent Box WPL 4163941 Contact Us For Availability
49
Vent Tube WPL 4168494 Contact Us For Availability
52
Conduit Clamp WPL 4167775 Contact Us For Availability
53
Vent Tube Mounting Bracket WPL 4168242 Contact Us For Availability
55
Cabinet Side Extension WPL 4168311 Contact Us For Availability
59
Cabinet Back WPL 4173014 Contact Us For Availability
61
Bulb, 40 Watt WPL 4173041 Contact Us For Availability
62
Socket, Lamp WPL 4168755 Contact Us For Availability
63
Light Shield WPL 4167579 Contact Us For Availability
64
RT Thermostat WPL 4168550 Contact Us For Availability
65
Rotisserie Motor Model KEBS145SBL1 WPL 4163836 Contact Us For Availability
66
Rotisserie Motor Mounting Plate Model KEBS145 WPL 4167469 Contact Us For Availability
70
Cabinet Support (Right) WPL 4163759 Contact Us For Availability
70
Cabinet Support (Left) WPL 4163760 Contact Us For Availability
71
Spacer WPL 4168590 Contact Us For Availability
72
Spring, Anchor WPL 4167599 Contact Us For Availability
74
Door Spring WPL 4173048 Contact Us For Availability
75
Hinge Assembly WPL 4167596 Contact Us For Availability
76
Cam Plate (Right) WPL 4167597 Contact Us For Availability
76
Cam Plate (Left) WPL 4167598 Contact Us For Availability
77
Probe Cover WPL 4163883 Contact Us For Availability
78
Screw, 8A X 3/8`` PKESMS WPL 4168863 Contact Us For Availability
80
Air Duct (Left) WPL 4163752 Contact Us For Availability
80
Air Duct (Right) WPL 4163753 Contact Us For Availability
81
Extension, Air Duct (Left Hand) WPL 4173016 Contact Us For Availability
81
Extension, Air Duct (Right Hand) WPL 4173017 Contact Us For Availability
82
Air Baffle Channel WPL 4173061 Contact Us For Availability
× ![]()
