Model Whirlpool KEBS107YAL0 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

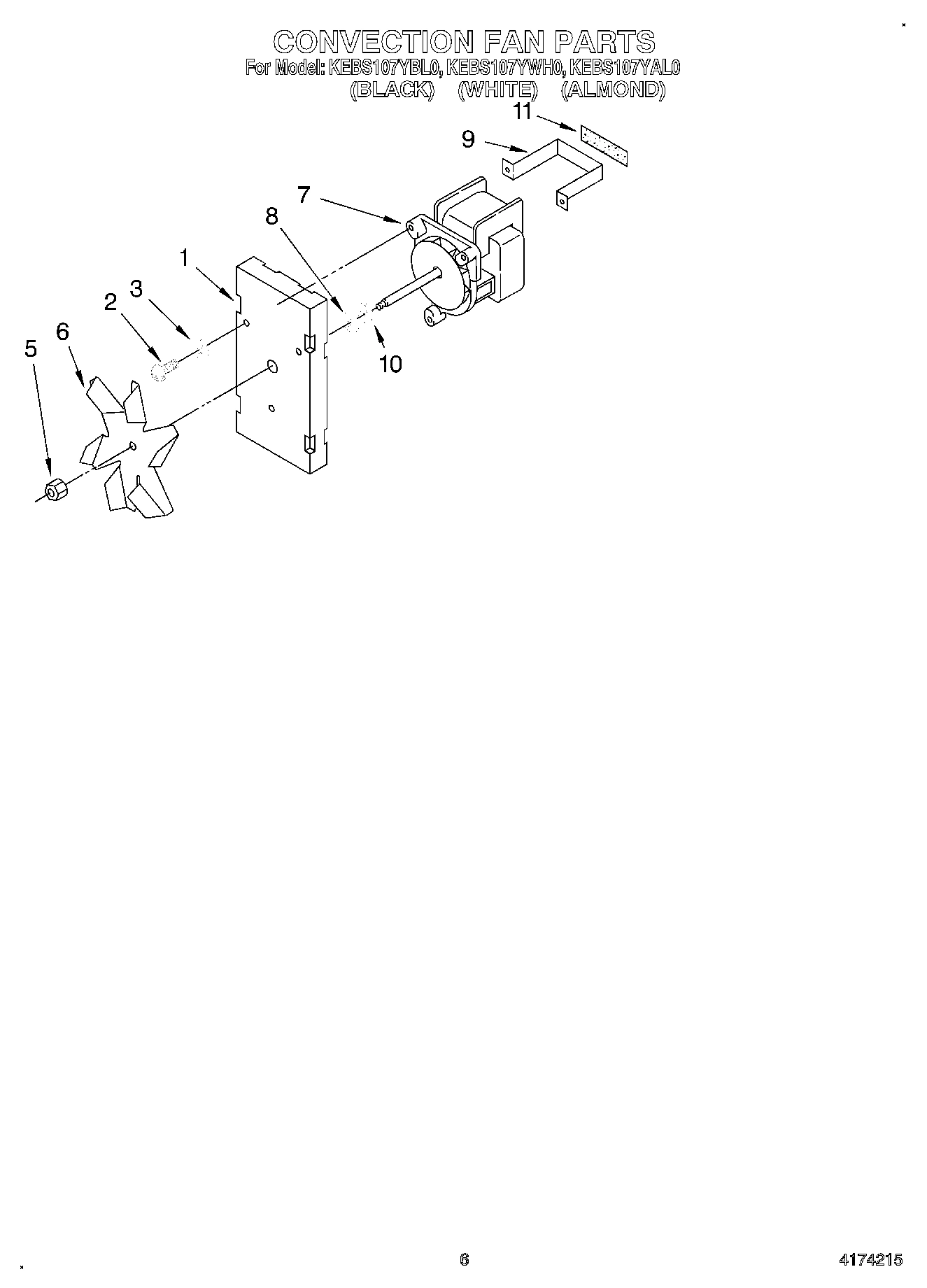

05 - CONVECTION FAN, OPTIONAL

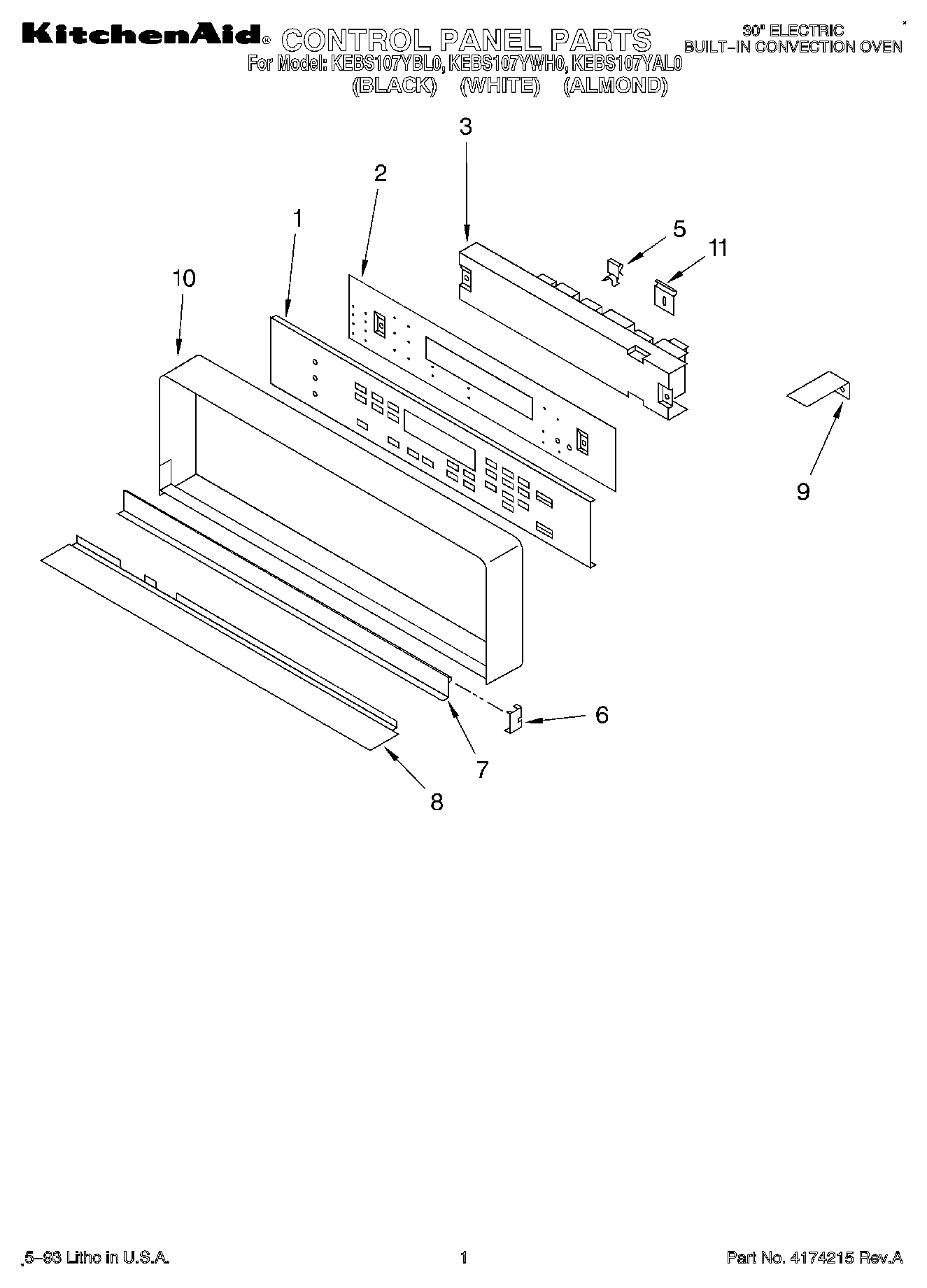

01 - CONTROL PANEL

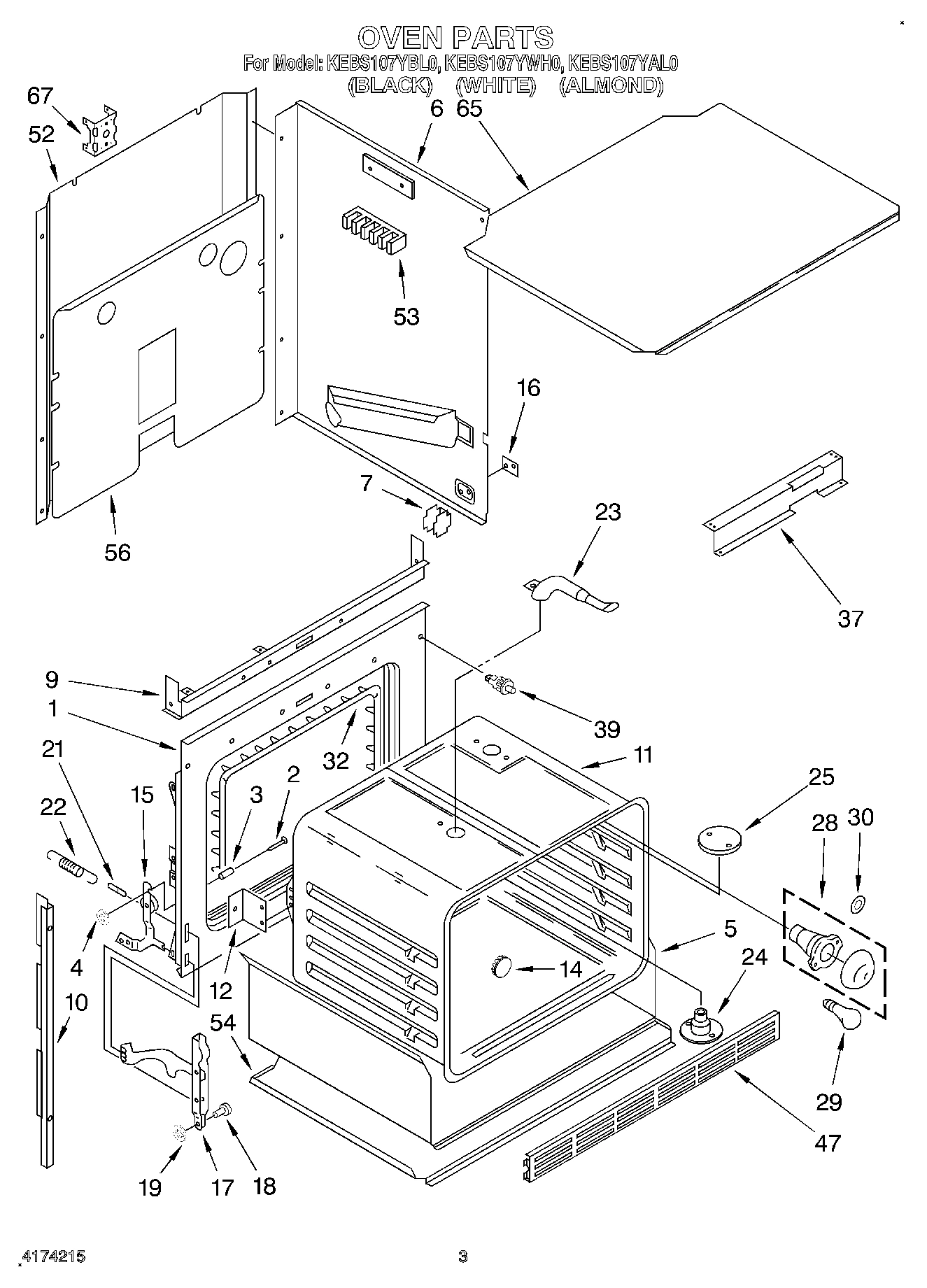

03 - OVEN, LIT/OPTIONAL

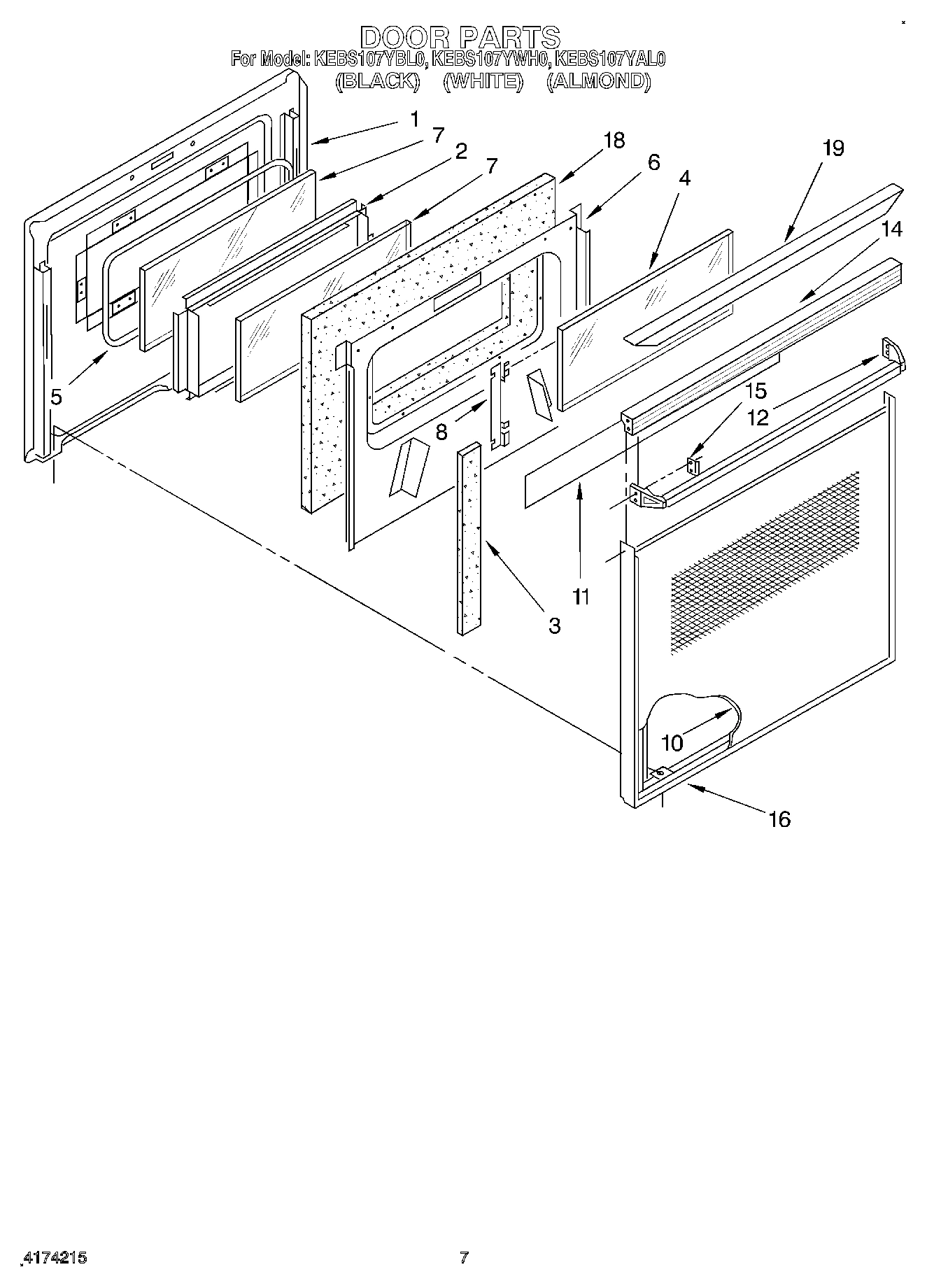

06 - DOOR

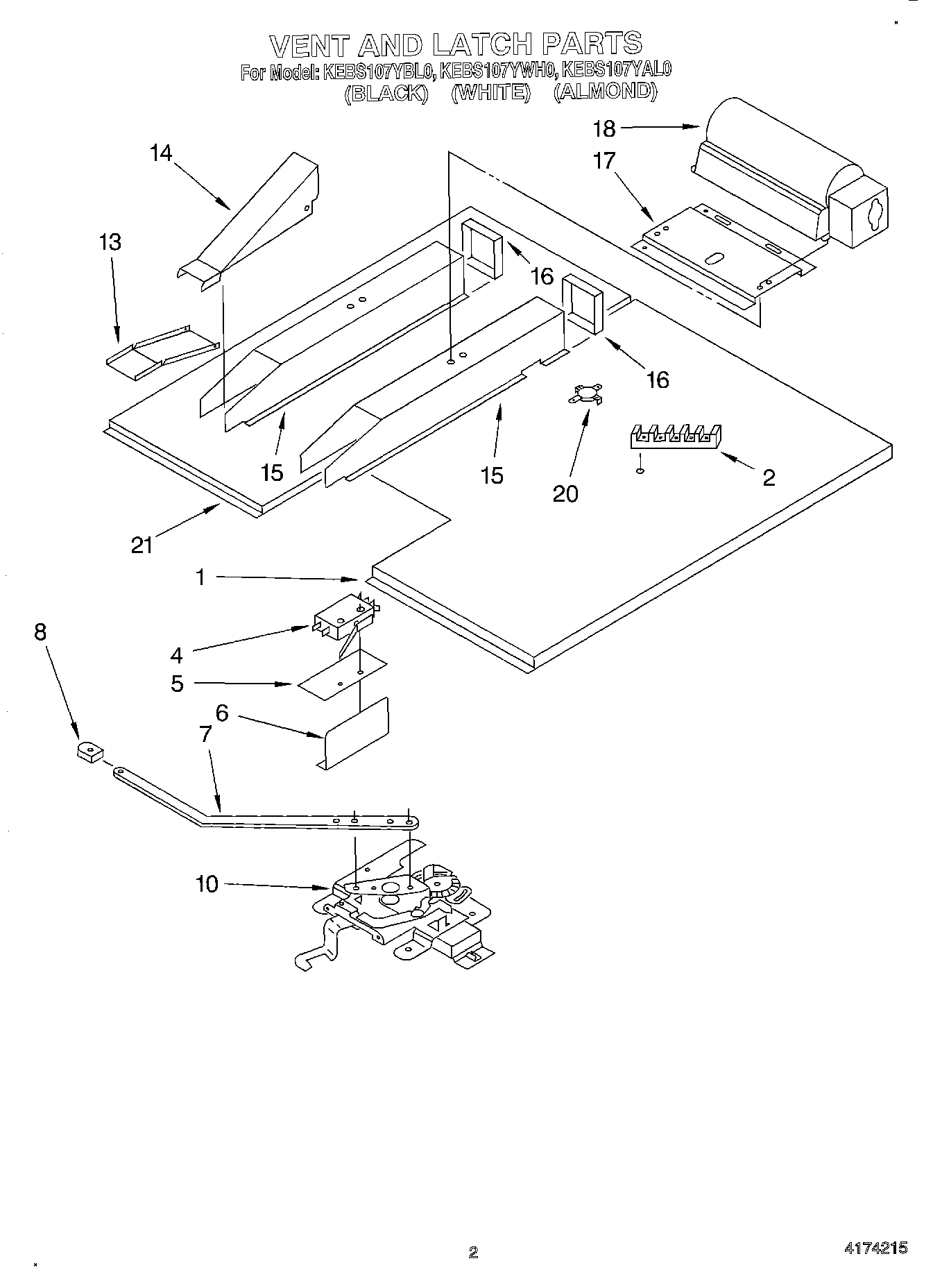

02 - VENT AND LATCH

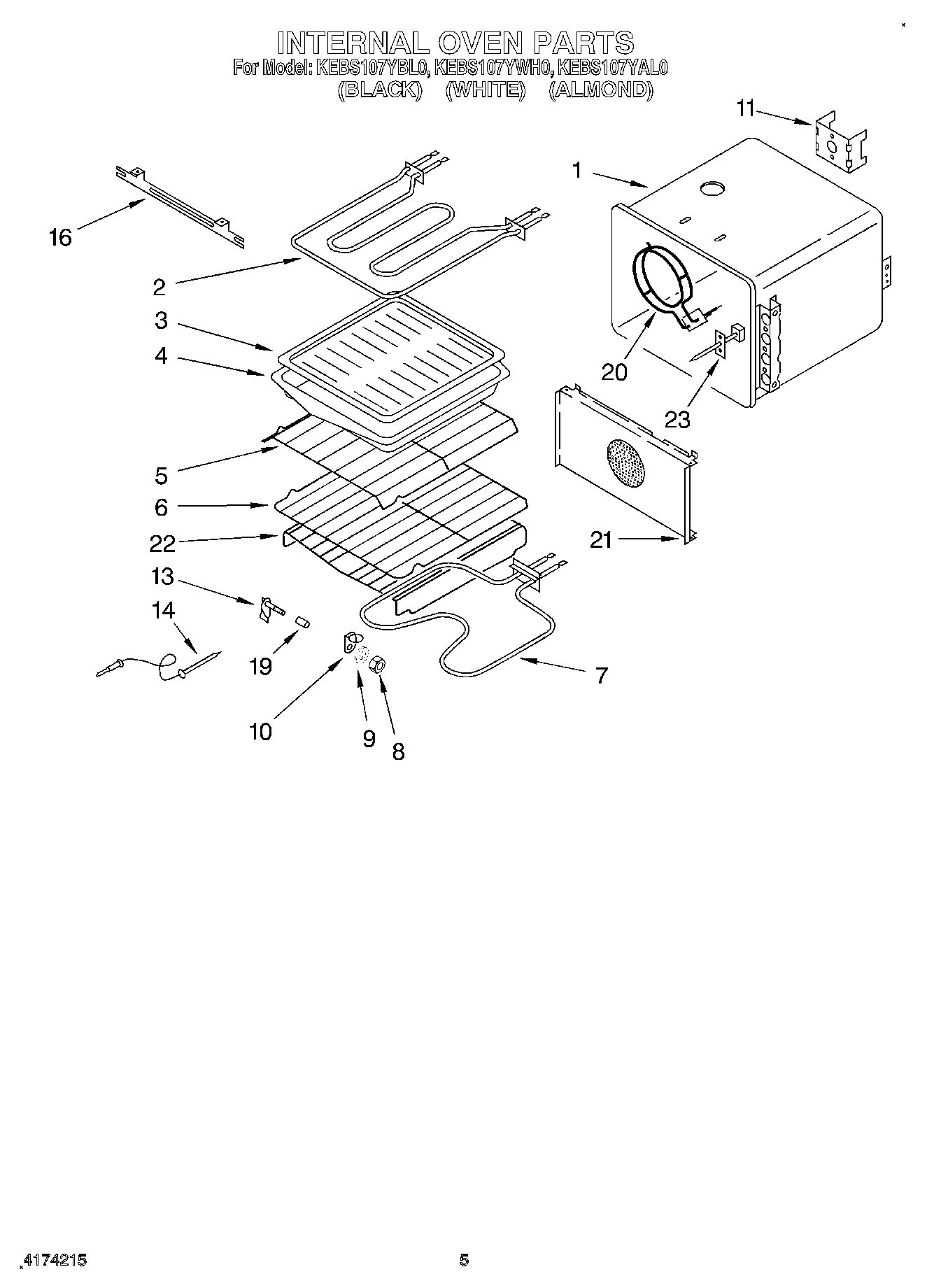

04 - INTERNAL OVEN

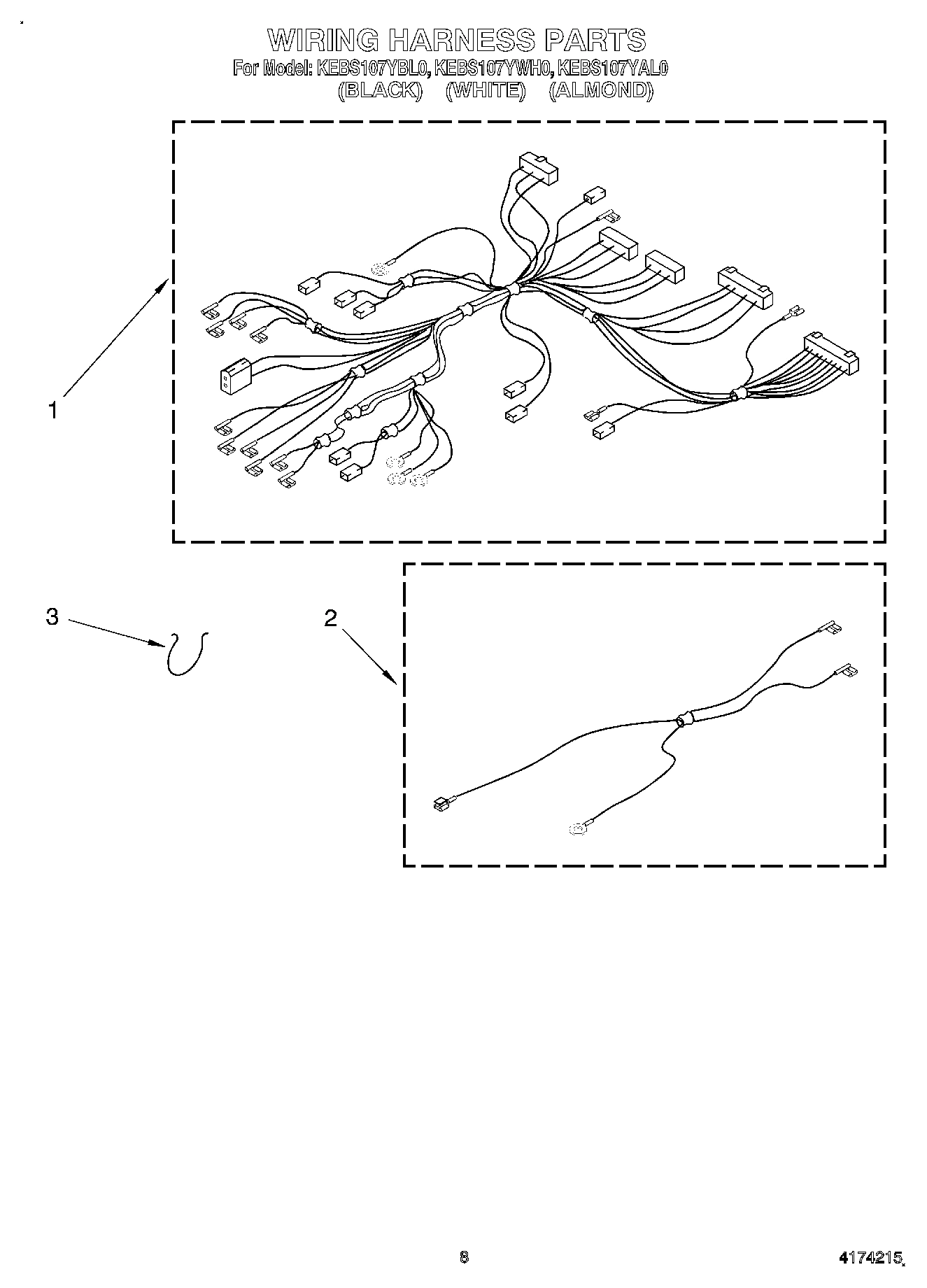

07 - WIRING HARNESS
Common parts from model Whirlpool KEBS107YAL0 BUILT-IN ELECTRIC SINGLE OVEN
Cookbook WPL LIT3150693 Contact Us For Availability
Tech Sheet WPL LIT3182131 Contact Us For Availability
Installation Instructions WPL LIT3182137 Contact Us For Availability
Guide, Auto Set WPL LIT3183987 Contact Us For Availability
Use & Care Gu WPL LIT3185643 Contact Us For Availability
WPL LIT4174215 WPL LIT4174215 Contact Us For Availability
1
Switch, Membrane (Black) WPL 3183526 Contact Us For Availability
1
Switch, Membrane (White) WPL 3183527 Contact Us For Availability
1
Switch, Membrane (Almond) WPL 3183528 Contact Us For Availability
1
Frame, Front WPL 3176698 Contact Us For Availability
1
Liner, Oven WPL 3182031 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Extension, Baffle WPL 3183949 Contact Us For Availability
1
Harness, Wire (Main Oven) WPL 3183985 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3183794 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Frame, Window WPL 3148234 Contact Us For Availability
2
Element, Broil WPL 3182451 Contact Us For Availability
2
Harness, Wire (Blower Fan) WPL 3183657 Contact Us For Availability
3
Microcomputer WPL 3181703 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Switch, latch WPL 3183784 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Clip, Retainer WPL 3182985 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Insulator, Switch WPL 309245 Contact Us For Availability
5
Rack, Offset WPL 3181639 Contact Us For Availability
6
Trim, Door WPL 3182162 Contact Us For Availability
6
Side Wrapper (R.H.) WPL 311005 Contact Us For Availability
6
Side Wrapper (L.H.) WPL 311008 Contact Us For Availability
6
Screw (4) WPL 3148443 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw WPL 309258 Contact Us For Availability
6
Shield, Terminal WPL 313035 Contact Us For Availability
6
Rack, Oven WPL 3181638 Contact Us For Availability
7
Door, Latch Handle (Screw) WPL 3179847 Contact Us For Availability
7
Door, Latch Handle (Black) WPL 3182152 Contact Us For Availability
7
Door, Latch Handle (White) WPL 3182155 Contact Us For Availability
7
Door, Latch handle (Almond) WPL 3182158 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Screw WPL 308422 Contact Us For Availability
7
Handle, Latch WPL 3184002 Contact Us For Availability
8
Trim, Panel WPL 3183703 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
9
Screw WPL 3182939 Contact Us For Availability
9
Bracket WPL 3185424 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
10
Frame, Control Panel WPL 3182149 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Glass, Panel (Black Model) WPL 3148185 Contact Us For Availability
10
Glass, Panel (White Model) WPL 3150347 Contact Us For Availability
10
Glass, Panel (Almond Model) WPL 3150348 Contact Us For Availability
10
Latch, Mechanism WPL 3183800 Contact Us For Availability
10
Probe Cover WPL 4167266 Contact Us For Availability
11
Harvest Gold WPL 261890 Contact Us For Availability
11
Harvest Gold WPL 261891 Contact Us For Availability
11
Toast WPL 285365 Contact Us For Availability
11
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
11
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
11
Platinum WPL 285368 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
11
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
11
Leveler (Primer) WPL 350941 Contact Us For Availability
11
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
11
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
11
WPL 799832 WPL 799832 Contact Us For Availability
11
WPL 832985 WPL 832985 Contact Us For Availability
11
WPL 978883 WPL 978883 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
11
Screw (3) WPL 311056 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Bracket, Support Motor WPL 3182042 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Oven Door (Black Model) WPL 3183402 Contact Us For Availability
12
Handle, Oven Door (White Model) WPL 3183403 Contact Us For Availability
12
Handle, Oven Door (Almond Model) WPL 3183404 Contact Us For Availability
13
Nozzle, Vent Bottom WPL 3183954 Contact Us For Availability
13
Receptacle, Probe WPL 3150107 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Button, Plug WPL 3185086 Contact Us For Availability
14
Top, Door (Black Model) WPL 3148223 Contact Us For Availability
14
Top, Door (White & Almond) WPL 3149355 Contact Us For Availability
14
Nozzle, Vent Top WPL 3183955 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Box, Vent (2) WPL 3184078 Contact Us For Availability
15
Screw, Mounting WPL 4173231 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Frame, Door WPL 3148235 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
16
Screw (2) WPL 3150532 Contact Us For Availability
16
Bracket, Element WPL 3180694 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Insulation, Door WPL 3147951 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Cap, Top WPL 3181363 Contact Us For Availability
19
Spacer - Tubing WPL 3179672 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
20
Element, Convection WPL 3183003 Contact Us For Availability
21
Baffle, Vent Mtg. WPL 3183948 Contact Us For Availability
21
Cover, Fan WPL 3181724 Contact Us For Availability
22
Rack, Roasting WPL 3181534 Contact Us For Availability
23
Screw WPL 3179117 Contact Us For Availability
23
Tube, Vent Extension WPL 3183792 Contact Us For Availability
23
Sensor, Heat WPL 3148440 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
32
Seal, Front WPL 3185197 Contact Us For Availability
37
Bracket, Mounting Control Frame WPL 3182585 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
47
Bottom Grill (Black Model) WPL 3150349 Contact Us For Availability
47
Bottom Grill (White Model) WPL 3150350 Contact Us For Availability
47
Bottom Grill (Almond Model) WPL 3150351 Contact Us For Availability
52
Cover, Rear WPL 311011 Contact Us For Availability
53
Screw (2) WPL 308043 Contact Us For Availability
54
Cover, Bottom WPL 310458 Contact Us For Availability
56
Panel, Back WPL 3182052 Contact Us For Availability
65
Cover, Top WPL 3184099 Contact Us For Availability
67
Insulation, Wrap WPL 310433 Contact Us For Availability
67
Insulation, Oven WPL 310435 Contact Us For Availability
67
Insulation, Top WPL 3149328 Contact Us For Availability
67
Mounting Hardware WPL 3171507 Contact Us For Availability
67
Bracket, Motor WPL 3182045 Contact Us For Availability
× ![]()
