Model Whirlpool KEBS107BAL2 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
01 - CONTROL PANEL
03 - VENT AND LATCH

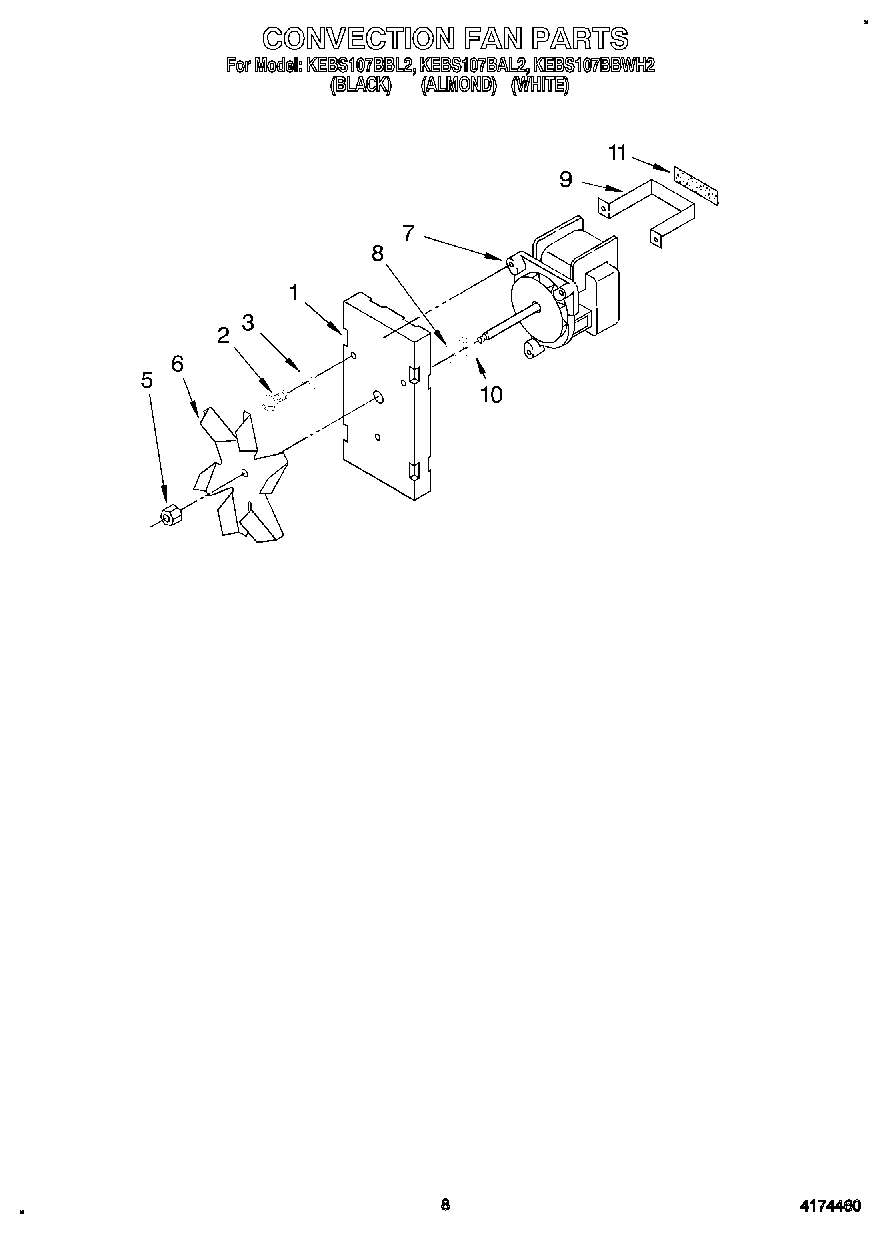

06 - CONVECTION FAN

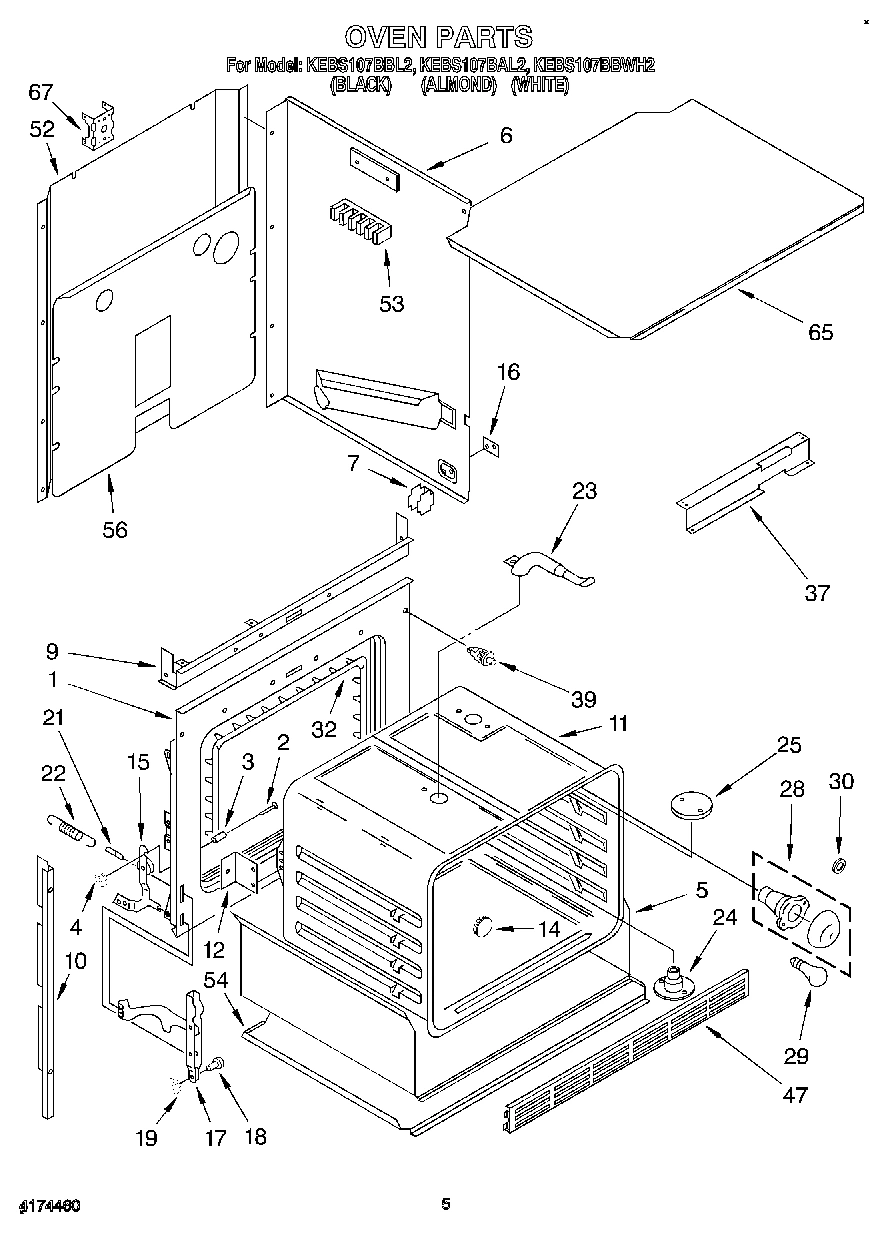

04 - OVEN, LITERATURE

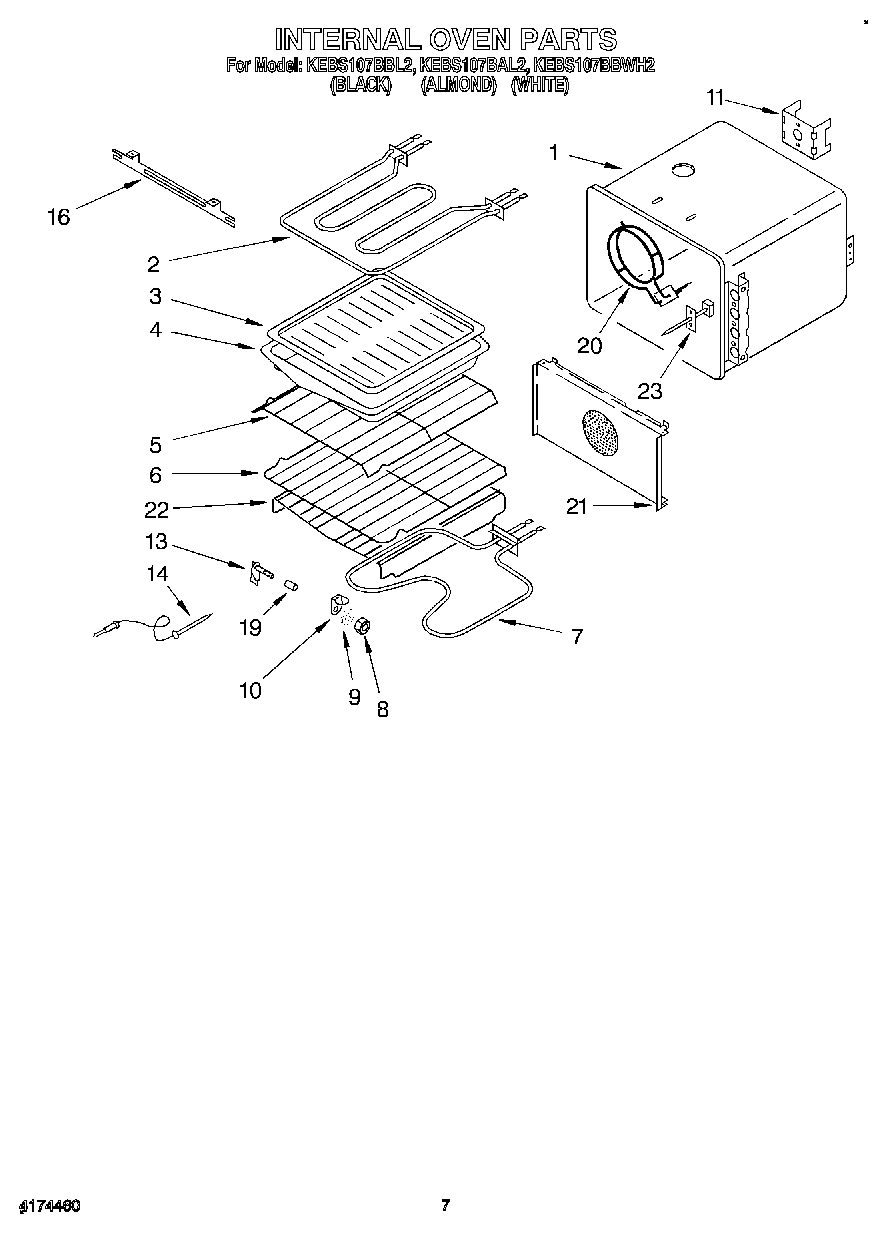

05 - INTERNAL OVEN

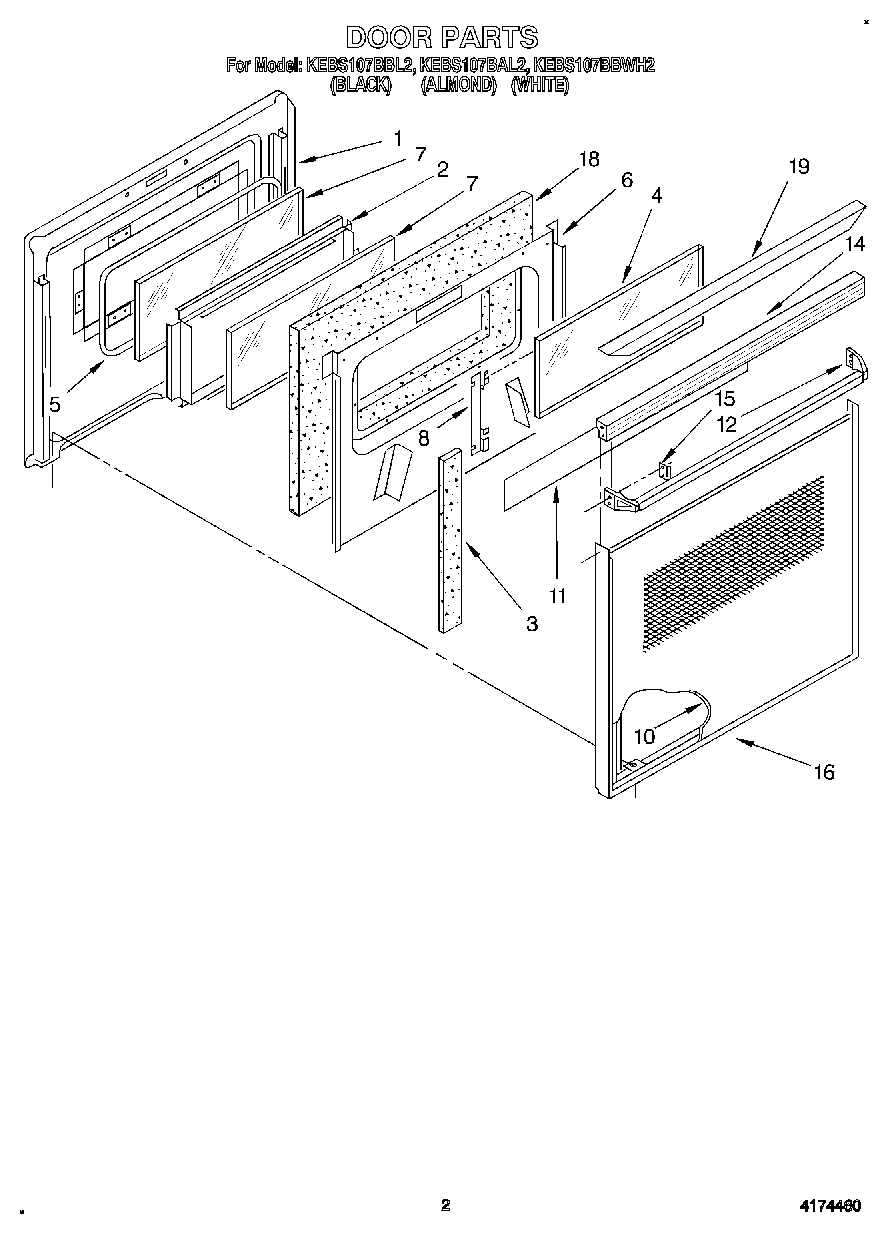

02 - DOOR

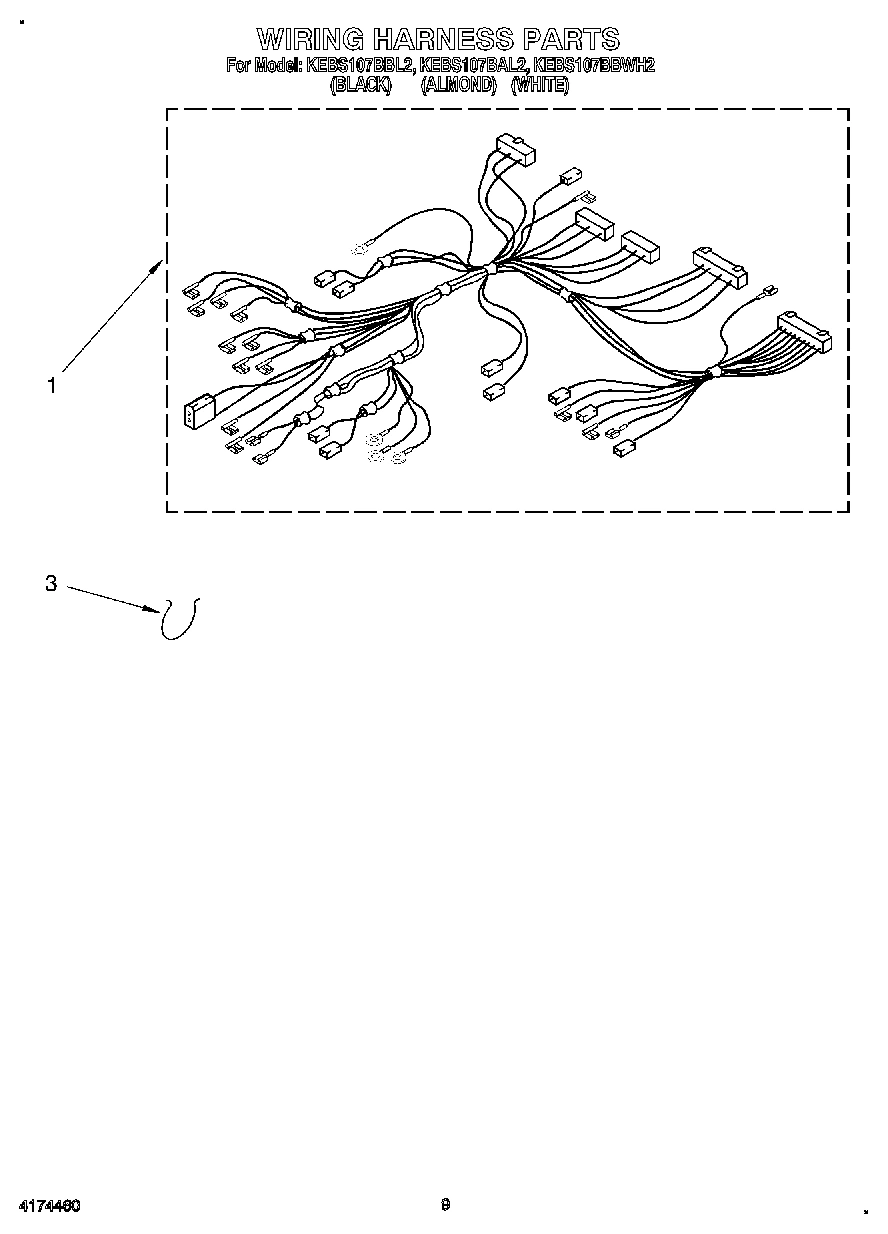

07 - WIRING HARNESS, OPTIONAL
Common parts from model Whirlpool KEBS107BAL2 BUILT-IN ELECTRIC SINGLE OVEN
WPL LIT3150693 WPL LIT3150693 Contact Us For Availability
WPL LIT3182137 WPL LIT3182137 Contact Us For Availability
WPL LIT3183987 WPL LIT3183987 Contact Us For Availability
WPL LIT3185962 WPL LIT3185962 Contact Us For Availability
WPL LIT3188199 WPL LIT3188199 Contact Us For Availability
1
Front Frame WPL 3186975 Contact Us For Availability
1
Liner, Oven WPL 3182031 Contact Us For Availability
1
Screw WPL 3148443 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Harness, Wire (Main Oven) WPL 3185942 Contact Us For Availability
2
Screw, Fan Mounting WPL 4173193 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Element, Broil WPL 661417 Contact Us For Availability
2
Frame, Window WPL 3148234 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
3
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
3
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
3
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
3
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
3
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
3
White 14 Ga. 150~c Rating WPL 242826 Contact Us For Availability
3
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
3
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
3
Blue 16 Ga. 80~c Rating WPL 242829 Contact Us For Availability
3
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
3
Yellow 14 Ga. 200~c Rating WPL 242832 Contact Us For Availability
3
Screw, WPL 254225 Contact Us For Availability
3
Harvest Gold WPL 261890 Contact Us For Availability
3
Harvest Gold WPL 261891 Contact Us For Availability
3
Toast WPL 285365 Contact Us For Availability
3
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
3
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
3
Platinum WPL 285368 Contact Us For Availability
3
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
3
Leveler (Primer) WPL 350941 Contact Us For Availability
3
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
3
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
3
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
3
Rack, Cooking (Bi-Level) WPL 832985 Contact Us For Availability
3
Almond WPL 978883 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Screw (4) WPL 3185647 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
Rack, Offset WPL 3181639 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Side Wrapper (R.H.) WPL 3185953 Contact Us For Availability
6
Side Wrapper (L.H.) WPL 3185956 Contact Us For Availability
6
Rack, Oven WPL 3181638 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw (4) WPL 4173601 Contact Us For Availability
7
Handle, Latch WPL 3184002 Contact Us For Availability
7
Motor WPL 3183220 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
8
Retainer, Glass (2) WPL 3188720 Contact Us For Availability
9
Bracket, Guard WPL 3181750 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
10
Latch Mechanism WPL 3187081 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Side Trim (Black Model, LH) WPL 3149236 Contact Us For Availability
10
Side Trim (Black Model, RH) WPL 3149237 Contact Us For Availability
10
Side Trim (White Model, R.H.) WPL 3187906 Contact Us For Availability
10
Side Trim (Almond Model, RH) WPL 3187907 Contact Us For Availability
10
Side Trim (White Model, LH) WPL 3187912 Contact Us For Availability
10
Side Trim (Almond Model, LH) WPL 3187913 Contact Us For Availability
10
Probe Cover WPL 4167266 Contact Us For Availability
10
Glass, Panel (White Model) WPL 3188050 Contact Us For Availability
10
Glass, Panel (Almond Model) WPL 3188051 Contact Us For Availability
10
Glass, Panel (Black Model) WPL 3188052 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
11
Screw (3) WPL 311056 Contact Us For Availability
11
Bracket, Support Motor WPL 3182042 Contact Us For Availability
11
Foil, Door WPL 3188706 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Oven Door (Screw (4)) WPL 3149253 Contact Us For Availability
12
Handle, Oven Door (Black Model) WPL 3186524 Contact Us For Availability
12
Handle, Oven Door (White Model) WPL 3186525 Contact Us For Availability
12
Handle, Oven Door (Almond Model) WPL 3186526 Contact Us For Availability
13
Nozzle, Vent Bottom WPL 3183954 Contact Us For Availability
13
Receptacle, Probe WPL 3150107 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Nozzle, Vent Top WPL 3183955 Contact Us For Availability
14
Button, Plug WPL 3185086 Contact Us For Availability
14
Top, Door (Black Model) WPL 3148223 Contact Us For Availability
14
Top, Door (White/Almond Model) WPL 3149355 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Box, Vent (2) WPL 3184078 Contact Us For Availability
15
Screw, Mounting WPL 4173231 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Screw (2) WPL 3150532 Contact Us For Availability
16
Bracket, Element WPL 3180694 Contact Us For Availability
16
Frame, Door (Black Model) WPL 3171530 Contact Us For Availability
16
Frame, Door (White Model) WPL 3187920 Contact Us For Availability
16
Frame, Door (Almond Model) WPL 3187921 Contact Us For Availability
17
Channel Arm WPL 3185664 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
18
Insulation, Door WPL 3147951 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Spacer - Tubing WPL 3179672 Contact Us For Availability
19
Cap, Top (Black Model) WPL 3181366 Contact Us For Availability
19
Cap, Top (White Model) WPL 3181367 Contact Us For Availability
19
Cap, Top (Almond Model) WPL 3188375 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
20
Element, Convection WPL 661460 Contact Us For Availability
21
Baffle, Vent Mtg. WPL 3183948 Contact Us For Availability
21
Cover, Fan WPL 3181724 Contact Us For Availability
22
Rack, Roasting WPL 3181534 Contact Us For Availability
23
Screw WPL 3179117 Contact Us For Availability
23
Tube, Vent Extension WPL 3183792 Contact Us For Availability
23
Sensor, Heat WPL 3148440 Contact Us For Availability
24
Smoke Eliminator WPL 3186684 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
32
Seal, Front WPL 3185197 Contact Us For Availability
37
screw WPL 312713 Contact Us For Availability
37
Bracket, Mounting Control Frame WPL 3182585 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
47
Bottom Grill (Black Model) WPL 3150349 Contact Us For Availability
47
Bottom Grill (White Model) WPL 3150350 Contact Us For Availability
47
Bottom Grill (Almond Model) WPL 3150351 Contact Us For Availability
52
Screw WPL 247326 Contact Us For Availability
52
Cover, Rear WPL 3185961 Contact Us For Availability
53
Screw (2) WPL 308043 Contact Us For Availability
54
Cover, Bottom WPL 3185945 Contact Us For Availability
56
Panel, Back WPL 3182052 Contact Us For Availability
65
Cover, Top WPL 3184099 Contact Us For Availability
67
WPL 3182045 WPL 3182045 Contact Us For Availability
67
Ins WPL 310433 Contact Us For Availability
67
WPL 310435 WPL 310435 Contact Us For Availability
67
WPL 3149328 WPL 3149328 Contact Us For Availability
67
WPL 3171507 WPL 3171507 Contact Us For Availability
× ![]()
