Model Whirlpool KEBK171SWH04 27`` BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

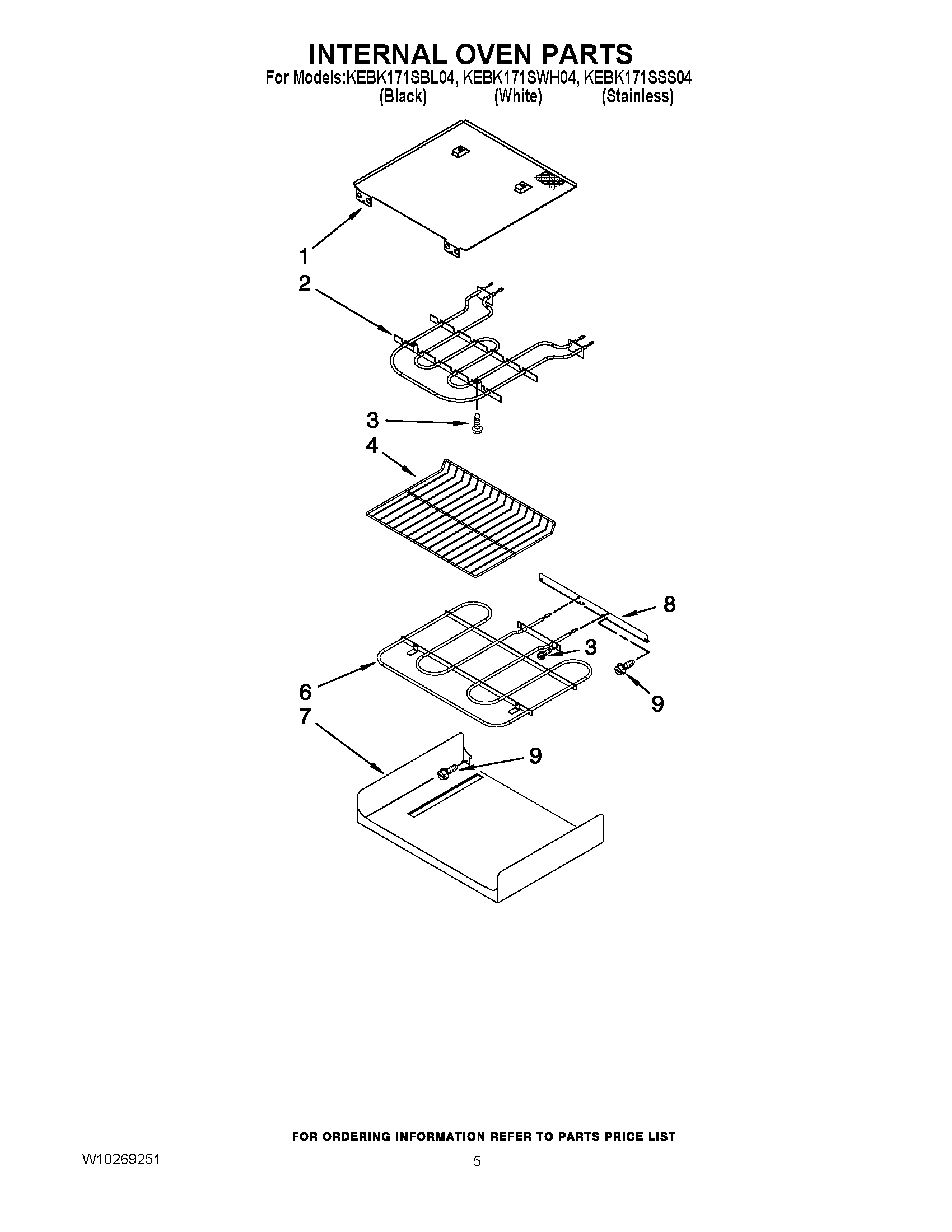

04 - INTERNAL OVEN PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

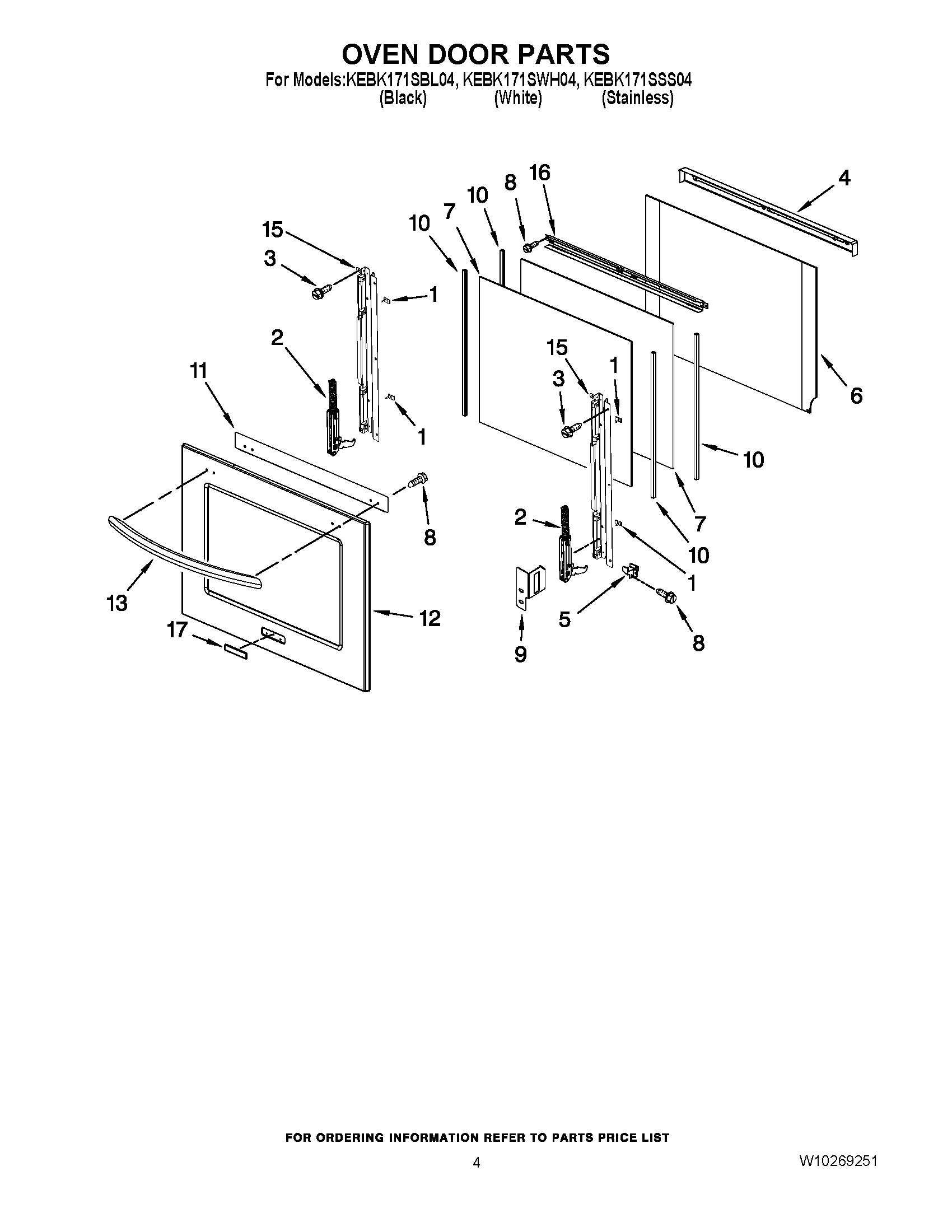

03 - OVEN DOOR PARTS

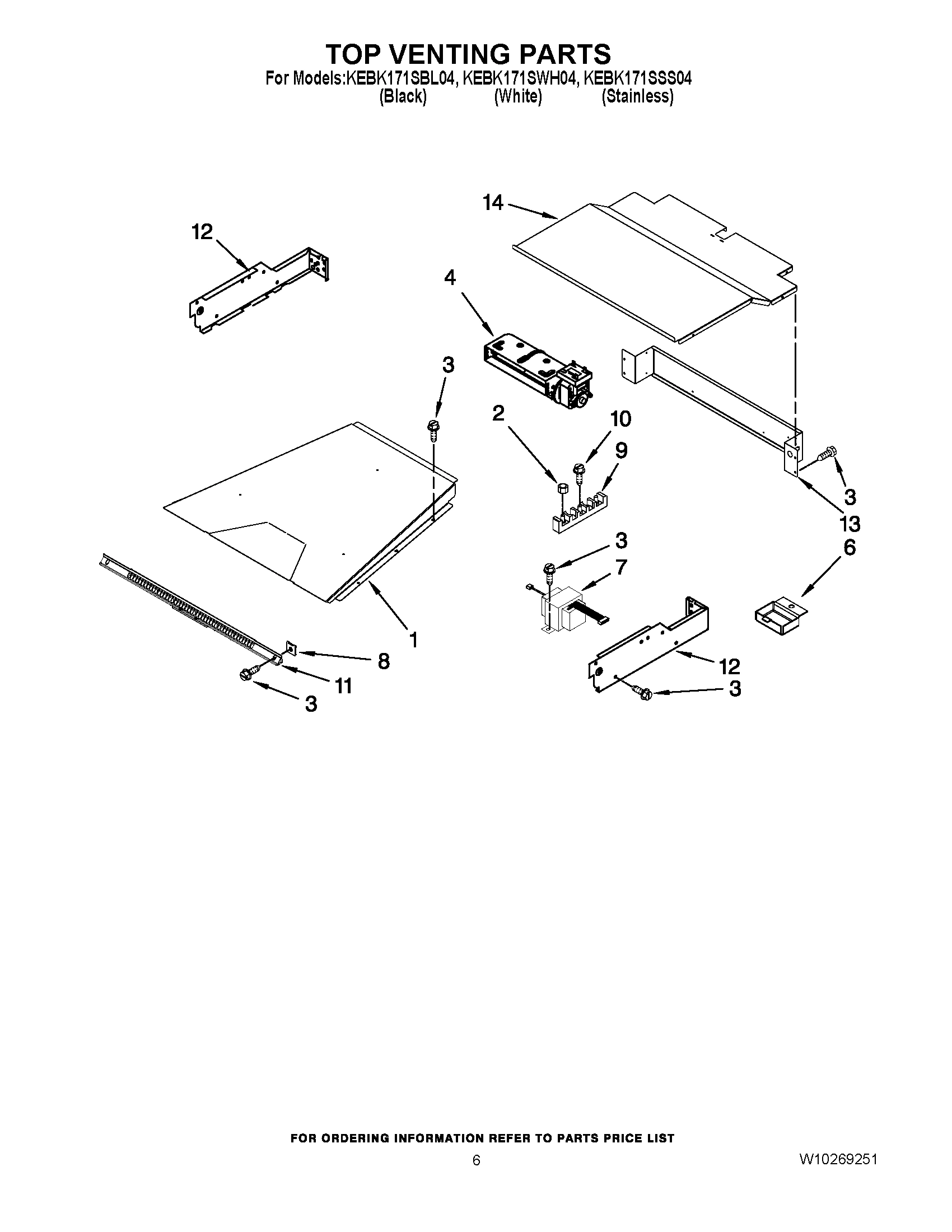

05 - TOP VENTING PARTS

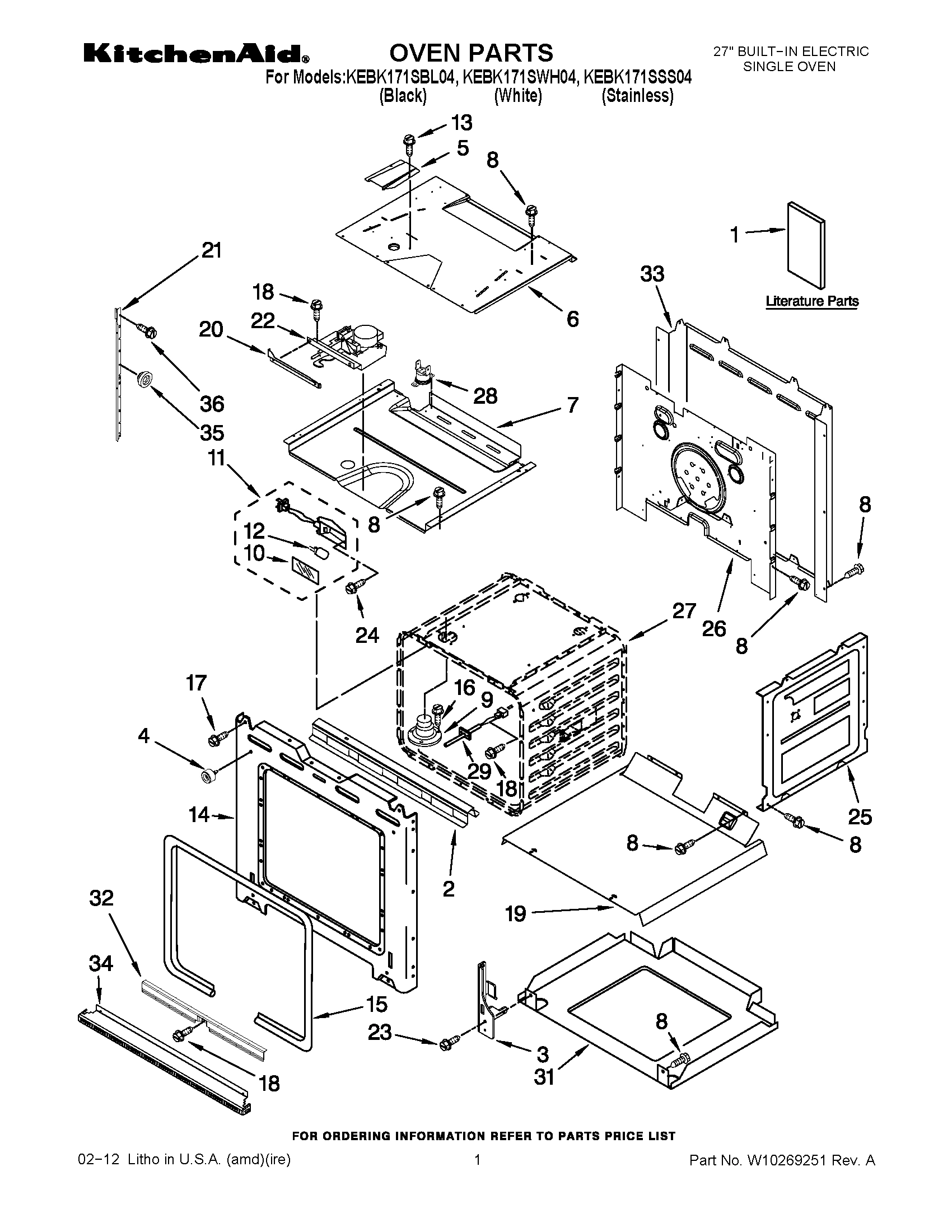

01 - OVEN PARTS

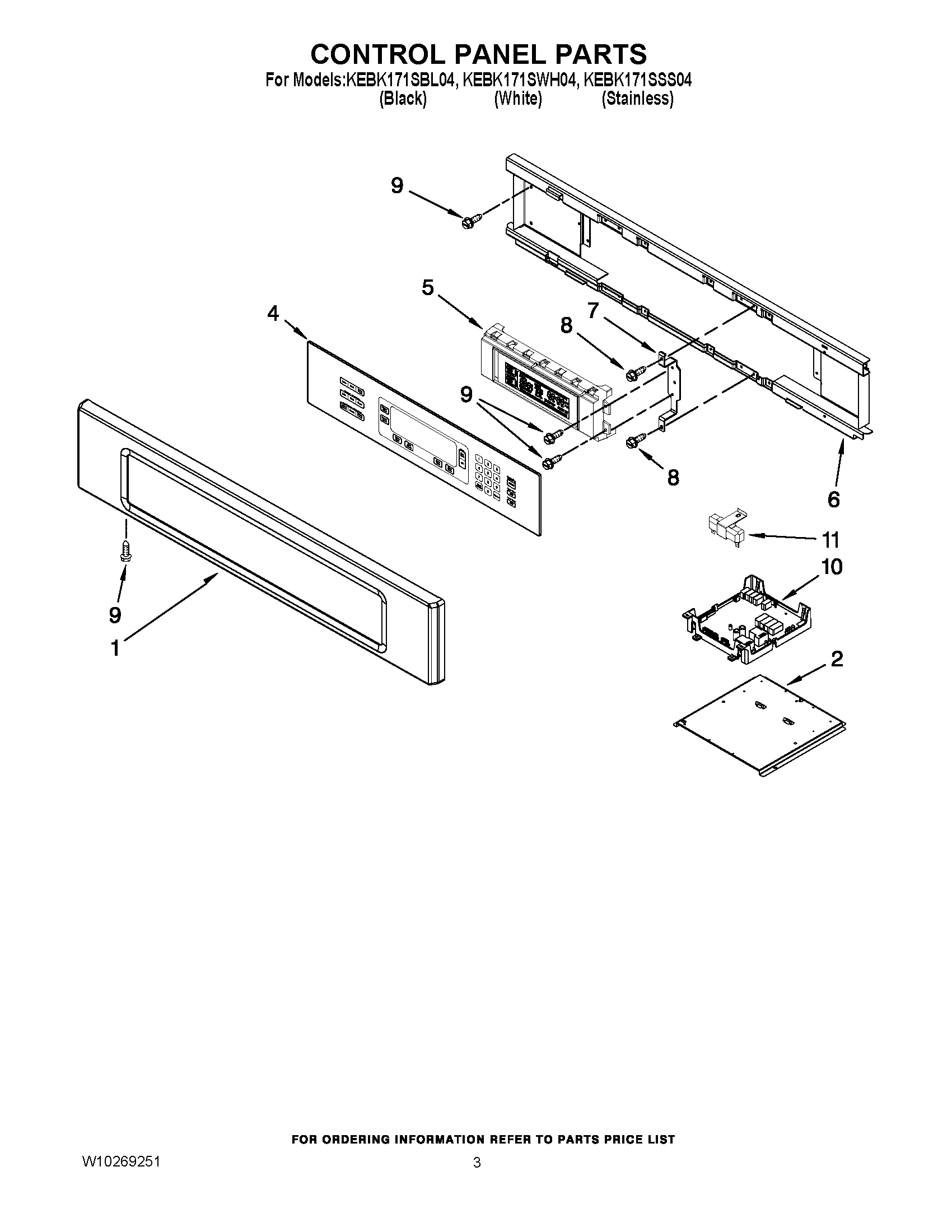

02 - CONTROL PANEL PARTS
Common parts from model Whirlpool KEBK171SWH04 27`` BUILT-IN ELECTRIC SINGLE OVEN
1
Bumper, Door WPL 8304522 Contact Us For Availability
1
Duct, Air Outlet WPL 8304643 Contact Us For Availability
1
PANEL, CONTROL (STAINLESS) WPL W10216220 Contact Us For Availability
1
Panel, Control (Black) WPL 8303717BL Contact Us For Availability
1
Panel, Control (White) WPL 8303717WH Contact Us For Availability
2
Hinge, Door (2) WPL W10174288 Contact Us For Availability
2
Support Appliance Manager WPL 8303687 Contact Us For Availability
4
Rack, Oven WPL 4448715 Contact Us For Availability
4
Vent, Door Top WPL 8304580BL Contact Us For Availability
4
Keyboard, Glass Touch WPL 8304331 Contact Us For Availability
5
Bracket, Door (Left) WPL 8304378 Contact Us For Availability
5
User Inferface WPL W10118733 Contact Us For Availability
6
Backer, Control WPL 8303720 Contact Us For Availability
7
Glass, Inner WPL 8303732 Contact Us For Availability
7
Bracket, Enclosure (2) WPL 8303887 Contact Us For Availability
10
Appliance Manager WPL W10119143 Contact Us For Availability
10
Screw WPL 3400080 Contact Us For Availability
11
Resistor, Drop WPL 8304441 Contact Us For Availability
11
Bracket, Handle WPL 8304361BL Contact Us For Availability
12
DOOR GLASS, ASSEMBLY INCLUDES No.17 (WHITE) WPL 8304003 Contact Us For Availability
14
Frame, Front WPL 8304629 Contact Us For Availability
15
Gasket, Door WPL 8304494 Contact Us For Availability
16
Door, Top Bracket WPL 8303754 Contact Us For Availability
17
Badge (Stainless) WPL 8304603SS Contact Us For Availability
17
Screw WPL 4449040 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
Thermostat, Bracket WPL W10169348 Contact Us For Availability
21
Mounting Rail, Side Right (Black) WPL 8303675BL Contact Us For Availability
21
Mounting Rail, Side Right (White) WPL 8303675WH Contact Us For Availability
21
Mounting Rail, Side Left (Black) WPL 8303676BL Contact Us For Availability
21
Mounting Rail, Side Left (White) WPL 8303676WH Contact Us For Availability
26
Back, Chassis WPL 8304304 Contact Us For Availability
27
LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability
31
Base, Chassis WPL 8303772 Contact Us For Availability
32
Retainer, Gasket WPL 8304478 Contact Us For Availability
33
Cover, Back WPL 8303517 Contact Us For Availability
34
Trim, Bottom Vent (White) WPL 8303706WH Contact Us For Availability
34
Trim, Bottom Vent (Black) WPL 8303706BL Contact Us For Availability
34
TRIM, BOTTOM VENT (STAINLESS) WPL W10216231 Contact Us For Availability
NI
Harness, Communication WPL 8304051 Contact Us For Availability
NI
Insulation, Wrap WPL 8303966 Contact Us For Availability
NI
Insulation, Back WPL 8303968 Contact Us For Availability
× ![]()
