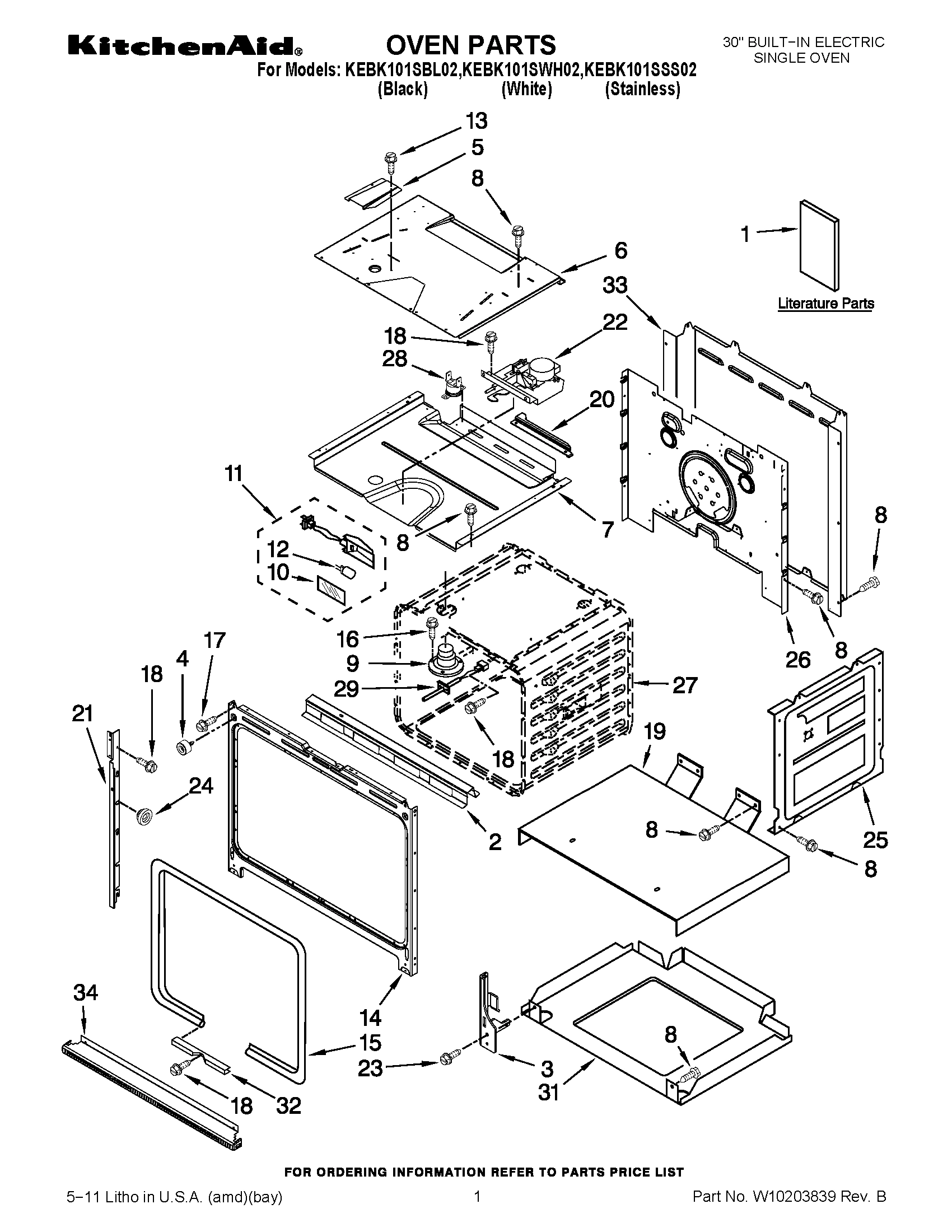

Model Whirlpool KEBK101SWH02 30`` BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

Tech Sheet (English) WPL W10185201 Contact Us For Availability

1

Tech Sheet (French) WPL W10185202 Contact Us For Availability

2

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

2

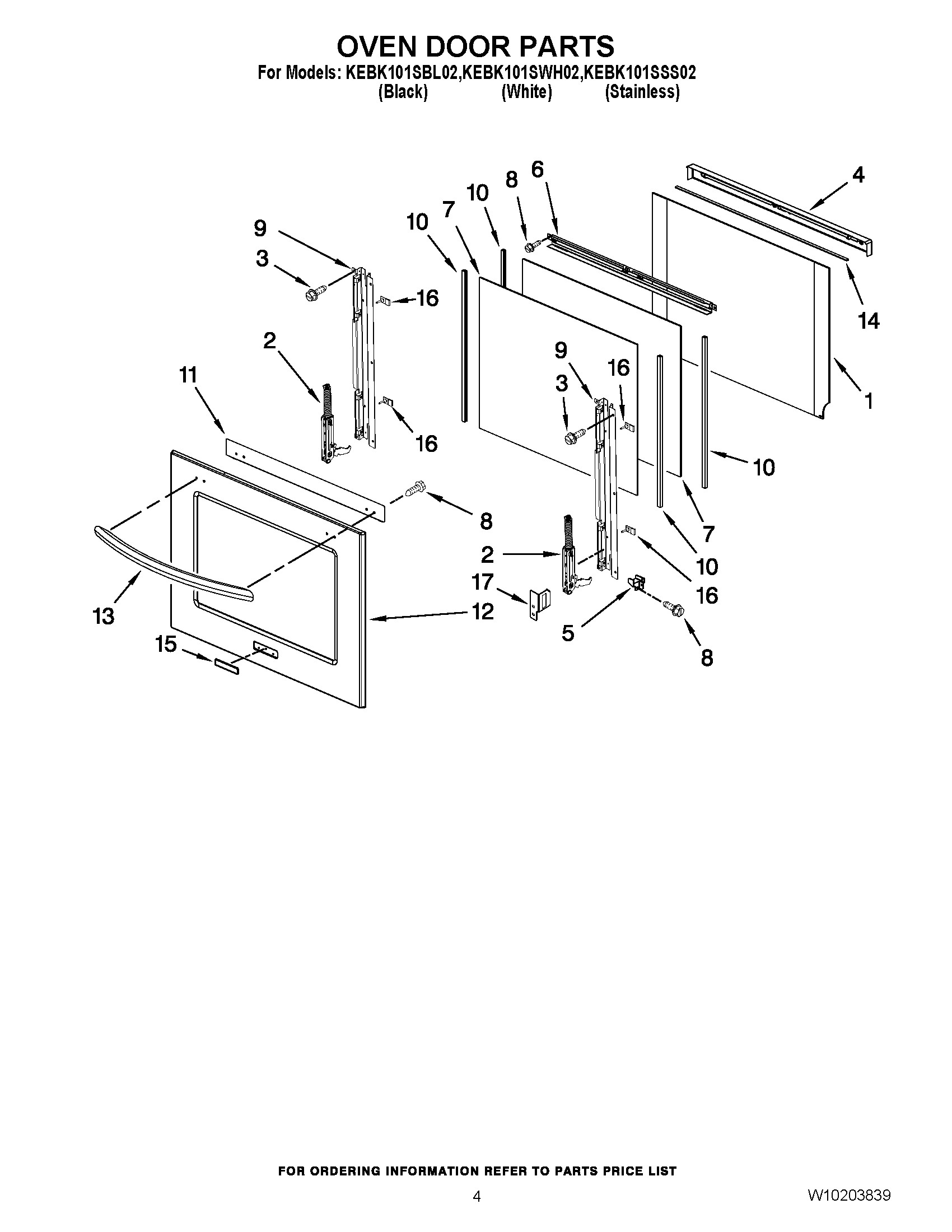

Hinge, Door WPL W10174285 Contact Us For Availability

2

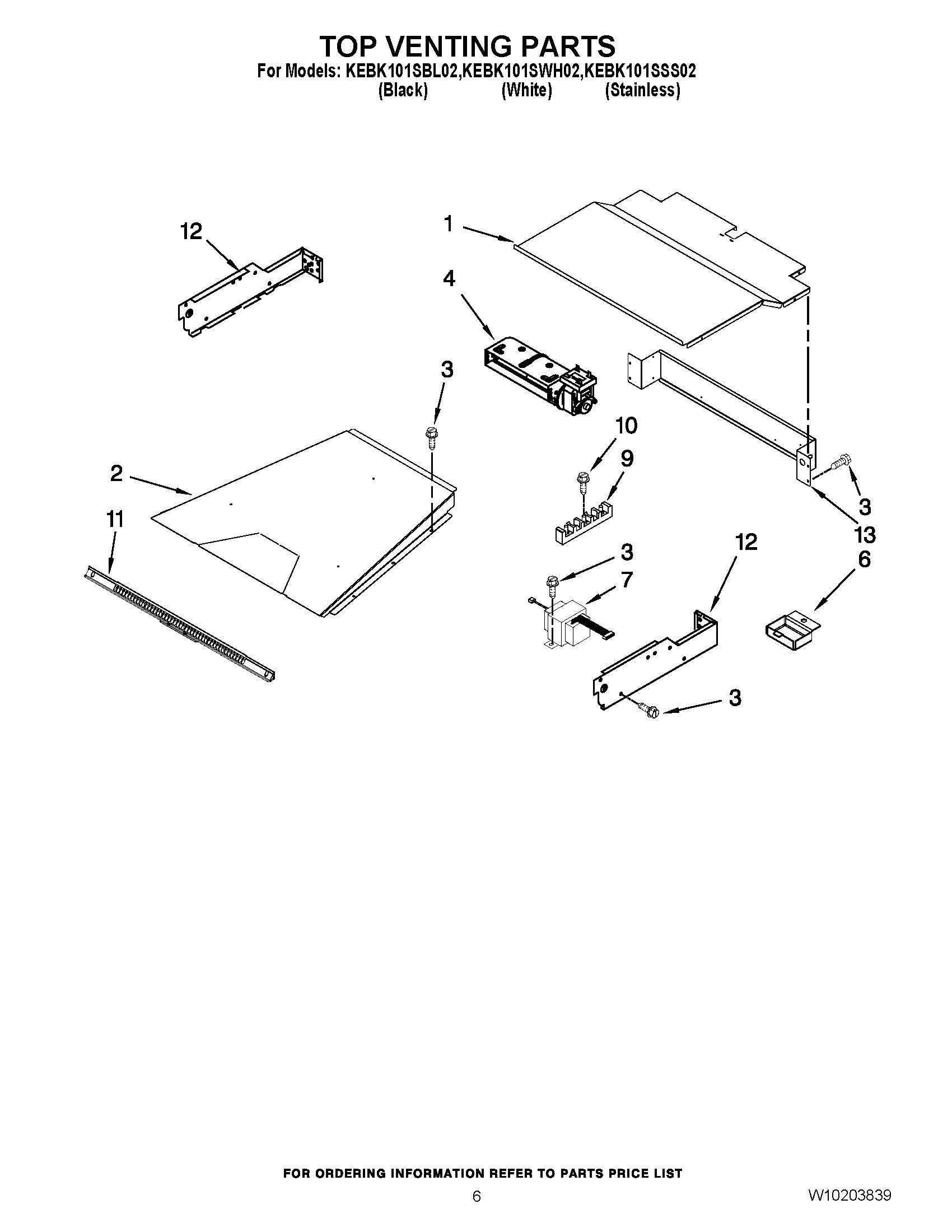

Duct, Air Outlet WPL 8304643 Contact Us For Availability

2

Bracket, Base WPL W10153090 Contact Us For Availability

3

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

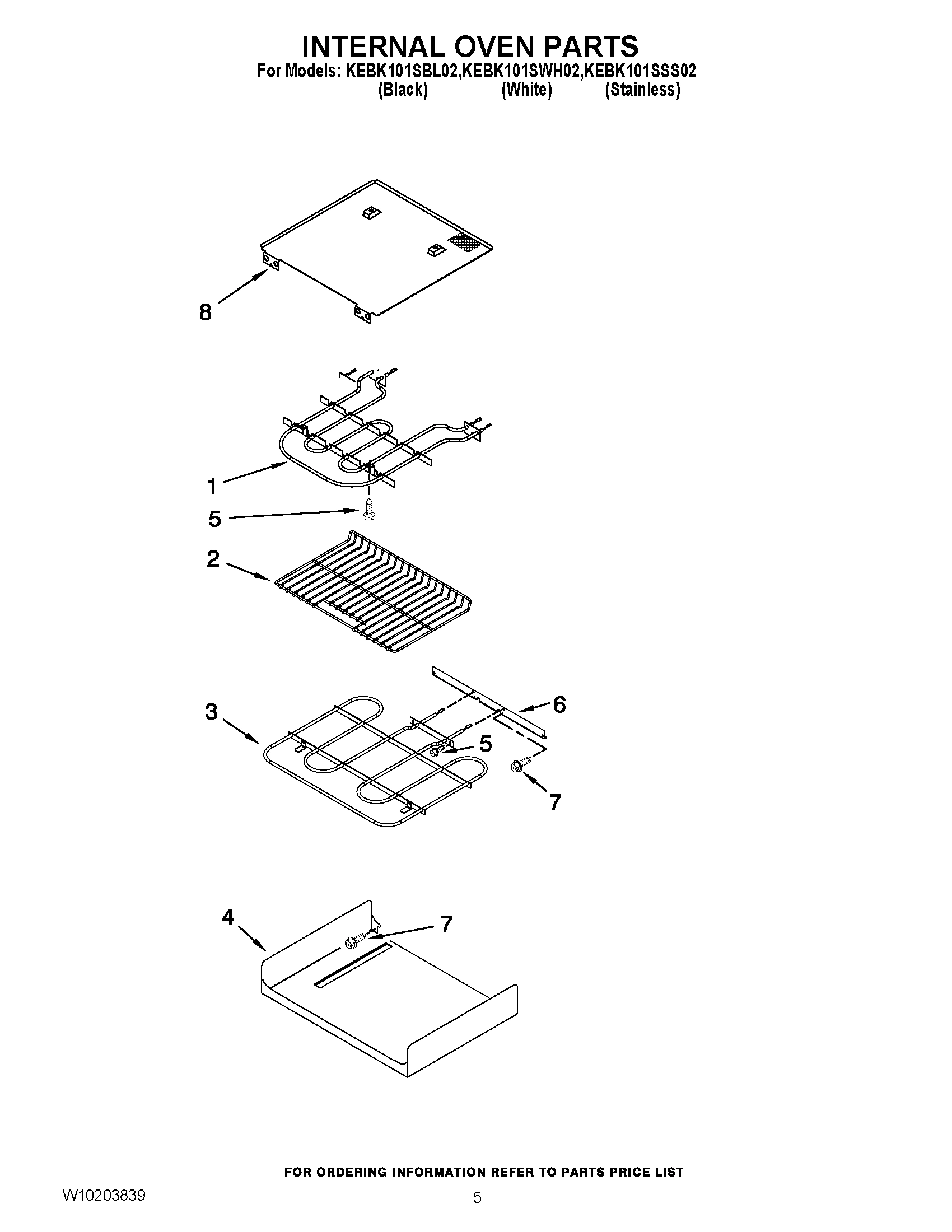

WPW10207398 Whirlpool Range Oven Bake Element In Stock WPL WPW10207398 $84.06

4

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

4

WP8303972 Whirlpool Blower In Stock WPL WP8303972 $149.43

4

Vent, Door Top WPL 8304581BL Contact Us For Availability

4

Control Panel, Glass Touch WPL 8304331 Contact Us For Availability

4

Tray, Bake WPL 4455037 Contact Us For Availability

5

8304378 Whirlpool Oven Support Bracket Backorder WPL 8304378 $27.18

5

Exhaust,Vent Slope WPL 8303829 Contact Us For Availability

6

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

6

8303746 Whirlpool Bracket Support Backorder WPL 8303746 $27.18

6

Divider, Vent Center WPL W10181196 Contact Us For Availability

7

WPW10111628 Whirlpool Transformer In Stock WPL WPW10111628 $105.29

7

Glass, Inner WPL 8303731 Contact Us For Availability

7

Top Chassis WPL 8303511 Contact Us For Availability

8

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

8

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

8

WP8304602 Whirlpool Heat Shield Assembly Backorder WPL WP8304602 $33.73

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

10

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

10

Appliance Manager WPL W10119143 Contact Us For Availability

10

Screw WPL 3400080 Contact Us For Availability

11

WPW10307114 Whirlpool Light Backorder WPL WPW10307114 $48.62

11

Resistor, Drop WPL 8304441 Contact Us For Availability

12

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

12

Door Glass, Assembly (Stainless) WPL 8303991 Contact Us For Availability

13

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

14

Frame, Front WPL 8304627 Contact Us For Availability

15

WP8304493 Whirlpool Door Gasket In Stock WPL WP8304493 $60.13

15

Badge (Stainless) WPL 8304603SS Contact Us For Availability

16

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

16

Bumper, Glass WPL 8304522 Contact Us For Availability

17

Screw WPL 4449040 Contact Us For Availability

18

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

19

Support, Insulation WPL 4451478 Contact Us For Availability

20

Thermostat, Bracket WPL W10169348 Contact Us For Availability

Mounting Rail, Side Right (Black) WPL 8303675BL Contact Us For Availability

Mounting Rail, Side Right (White) WPL 8303675WH Contact Us For Availability

Mounting Rail, Side Left (Black) WPL 8303676BL Contact Us For Availability

Mounting Rail, Side Left (White) WPL 8303676WH Contact Us For Availability

22

W11029221 Whirlpool Door Latch In Stock WPL W11029221 $109.81

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

24

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

Back, Chassis WPL 8304303 Contact Us For Availability

27

LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability

28

WP8304452 Whirlpool Range Thermal Fuse In Stock WPL WP8304452 $65.32

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

31

Base, Chassis WPL 8303516 Contact Us For Availability

32

Retainer, Gasket WPL 8304478 Contact Us For Availability

33

Cover, Back WPL 8303517 Contact Us For Availability

34

Trim, Bottom Vent (Black) WPL 8303705BL Contact Us For Availability

34

Trim, Bottom Vent (Stainless) WPL 8303705SS Contact Us For Availability

34

Trim, Bottom Vent (White) WPL 8303705WH Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W11209404 Whirlpool Wire Harness Backorder WPL W11209404 $78.81

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Communication, Harness WPL 8304051 Contact Us For Availability

Insulation, Wrap WPL 8303965 Contact Us For Availability

Insulation, Back WPL 8303967 Contact Us For Availability
