Model Whirlpool KEBK101SSS03 30`` BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

Communication, Harness
Communication, Harness WPL 8304051 Contact Us For Availability
View on Model
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
Nut
Nut WPL 7103P02760 Contact Us For Availability
View on Model
Conduit, Single
Conduit, Single WPL 8304438 Contact Us For Availability
View on Model
ADHESIVE
ADHESIVE WPL ARI82830A8 Contact Us For Availability
View on Model
WIRING HARNESS PARTS
WIRING HARNESS PARTS WPL ARI82831A4 Contact Us For Availability
View on Model
Miscellaneous
Miscellaneous WPL ARI82832A7 Contact Us For Availability
View on Model
Harness, Main
Harness, Main WPL W10171561 Contact Us For Availability
View on Model
1

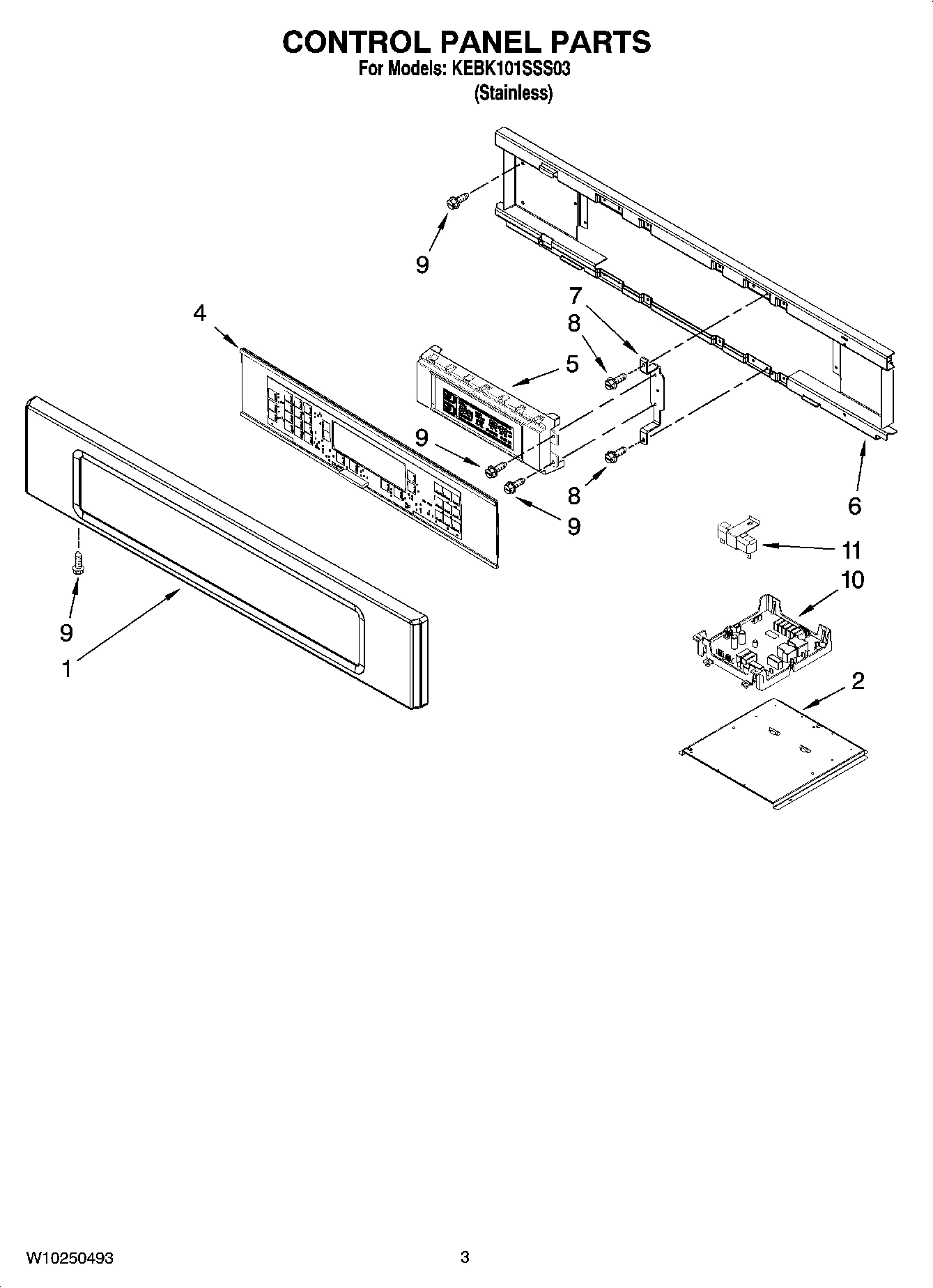

Panel, Control
Panel, Control WPL W10216219 Contact Us For Availability
View on Model
1
Cover, Top
Cover, Top WPL 8304219 Contact Us For Availability
View on Model
2

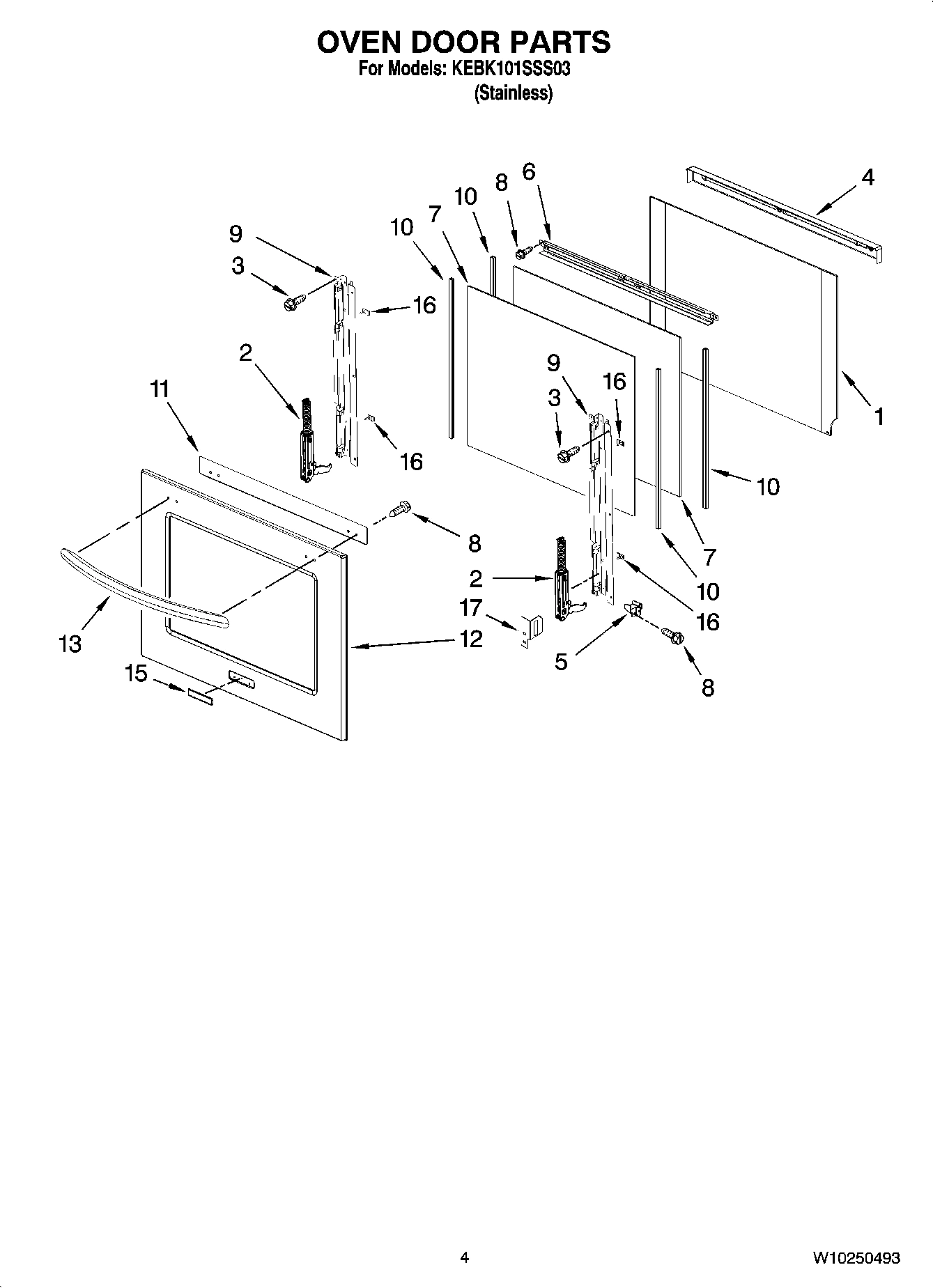

Hinge, Door (2)
Hinge, Door (2) WPL W10174285 Contact Us For Availability
View on Model
2
Duct, Air Outlet
Duct, Air Outlet WPL 8304643 Contact Us For Availability
View on Model
4
Vent, Door Top
Vent, Door Top WPL 8304581BL Contact Us For Availability
View on Model
4
Control Panel, Glass Touch
Control Panel, Glass Touch WPL 8304331 Contact Us For Availability
View on Model
4
Tray, Bake
Tray, Bake WPL 4455037 Contact Us For Availability
View on Model
5
Bracket, Door (Left)
Bracket, Door (Left) WPL 8304378 Contact Us For Availability
View on Model
6
Door, Top Bracket
Door, Top Bracket WPL 8303746 Contact Us For Availability
View on Model
7
Glass, Inner
Glass, Inner WPL 8303731 Contact Us For Availability
View on Model
10
Appliance Manager
Appliance Manager WPL W10119143 Contact Us For Availability
View on Model
10
Screw
Screw WPL 3400080 Contact Us For Availability
View on Model
11
Resistor, Drop
Resistor, Drop WPL 8304441 Contact Us For Availability
View on Model
11
Vent, Control Panel
Vent, Control Panel WPL 8303684 Contact Us For Availability
View on Model
12
Side, Control Top (Right)
Side, Control Top (Right) WPL 8303518 Contact Us For Availability
View on Model
12
Side, Control Top (Left)
Side, Control Top (Left) WPL 8304255 Contact Us For Availability
View on Model
13
Door Handle
Door Handle WPL 8303774SS Contact Us For Availability
View on Model
13
Back, Control
Back, Control WPL 8303520 Contact Us For Availability
View on Model
15
Badge
Badge WPL 8304603SS Contact Us For Availability
View on Model
16
Bumper, Glass
Bumper, Glass WPL 8304522 Contact Us For Availability
View on Model
17
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
17
Cover, Door Hinge (Left)
Cover, Door Hinge (Left) WPL W10137043 Contact Us For Availability
View on Model
17
Cover, Door Hinge (Right)
Cover, Door Hinge (Right) WPL W10137044 Contact Us For Availability
View on Model
34
Trim, Bottom Vent
Trim, Bottom Vent WPL W10216230 Contact Us For Availability
View on Model
