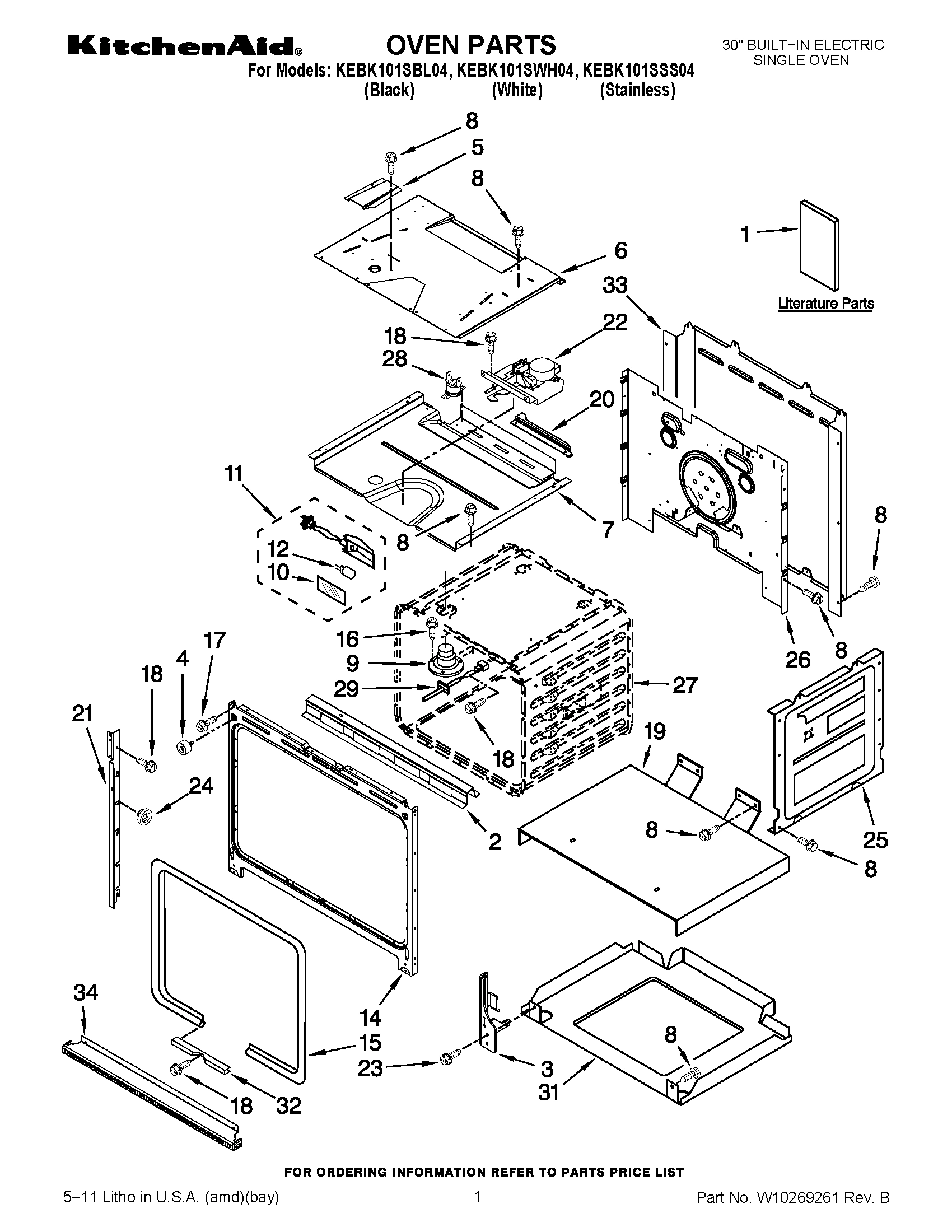

Model Whirlpool KEBK101SBL04 30`` BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

PANEL, CONTROL (STAINLESS) WPL W10216219 Contact Us For Availability

1

Panel, Control (Black) WPL 8303716BL Contact Us For Availability

1

Panel, Control (White) WPL 8303716WH Contact Us For Availability

1

Cover, Top WPL 8304219 Contact Us For Availability

2

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

2

Hinge, Door WPL W10174285 Contact Us For Availability

2

Duct, Air Outlet WPL 8304643 Contact Us For Availability

2

Support Appliance Manager WPL 8303687 Contact Us For Availability

3

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

WPW10207398 Whirlpool Range Oven Bake Element In Stock WPL WPW10207398 $84.06

3

SCREW WPL 7101P42660 Contact Us For Availability

4

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

4

WP8303972 Whirlpool Blower In Stock WPL WP8303972 $149.43

4

Vent, Door Top WPL 8304581BL Contact Us For Availability

4

Control Panel, Glass Touch WPL 8304331 Contact Us For Availability

4

Tray, Bake WPL 4455037 Contact Us For Availability

5

8304378 Whirlpool Oven Support Bracket Backorder WPL 8304378 $27.18

5

USER INTERFACE WPL W10312207 Contact Us For Availability

6

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

6

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $32.13

6

8303746 Whirlpool Bracket Support Backorder WPL 8303746 $27.18

6

Backer, Control WPL 8303719 Contact Us For Availability

7

WPW10111628 Whirlpool Transformer In Stock WPL WPW10111628 $105.29

7

Glass, Inner WPL 8303731 Contact Us For Availability

7

Bracket,Enclosure WPL 8303887 Contact Us For Availability

8

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

8

WP8304602 Whirlpool Heat Shield Assembly Backorder WPL WP8304602 $33.73

9

BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability

10

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

10

Appliance Manager WPL W10119143 Contact Us For Availability

10

Screw WPL 3400080 Contact Us For Availability

11

8303684 Whirlpool Oven Vent Control Backorder WPL 8303684 $29.43

11

WPW10307114 Whirlpool Light Backorder WPL WPW10307114 $48.62

11

Resistor, Drop WPL 8304441 Contact Us For Availability

12

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

12

Side, Control Top (Right) WPL 8303518 Contact Us For Availability

12

Side, Control Top (Left) WPL 8304255 Contact Us For Availability

13

DOOR HANDLE (STAINLESS) WPL W10292380 Contact Us For Availability

13

DOOR HANDLE (BLACK) WPL W10292381 Contact Us For Availability

13

Back, Control WPL 8303520 Contact Us For Availability

WP8304493 Whirlpool Door Gasket In Stock WPL WP8304493 $60.13

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $26.90

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

16

Bumper, Glass WPL 8304522 Contact Us For Availability

17

Screw WPL 4449040 Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

28

WP8304452 Whirlpool Range Thermal Fuse In Stock WPL WP8304452 $65.32

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

31

Base, Chassis WPL 8303516 Contact Us For Availability

32

Retainer, Gasket WPL 8304478 Contact Us For Availability

33

Cover, Back WPL 8303517 Contact Us For Availability

34

TRIM, BOTTOM VENT (STAINLESS) WPL W10216230 Contact Us For Availability

34

Trim, Bottom Vent (Black) WPL 8303705BL Contact Us For Availability

34

Trim, Bottom Vent (White) WPL 8303705WH Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10237644 Whirlpool Wire Harness Backorder WPL WPW10237644 $54.26

Communication, Harness WPL 8304051 Contact Us For Availability

Insulation, Wrap WPL 8303965 Contact Us For Availability

Insulation, Back WPL 8303967 Contact Us For Availability
