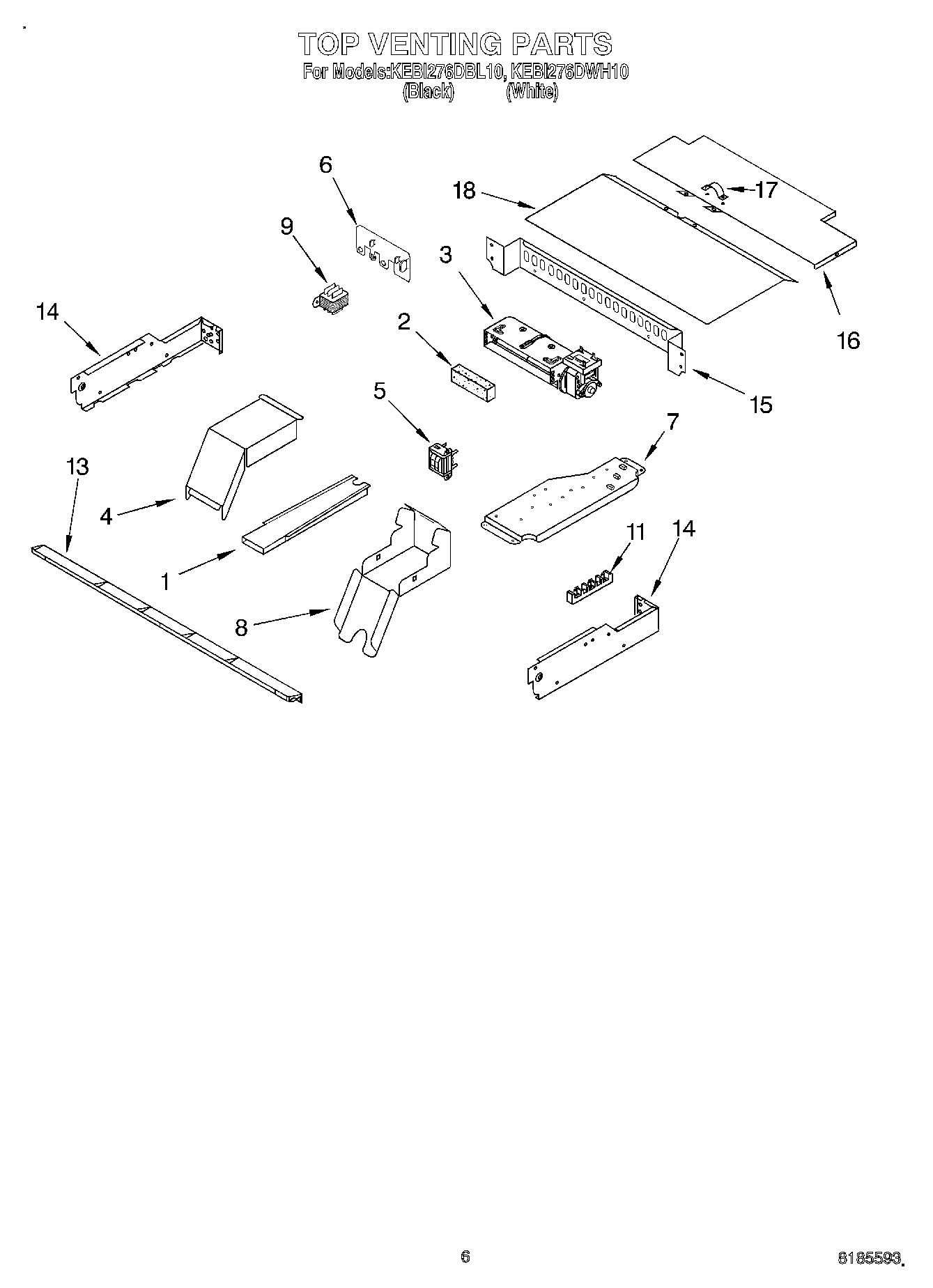

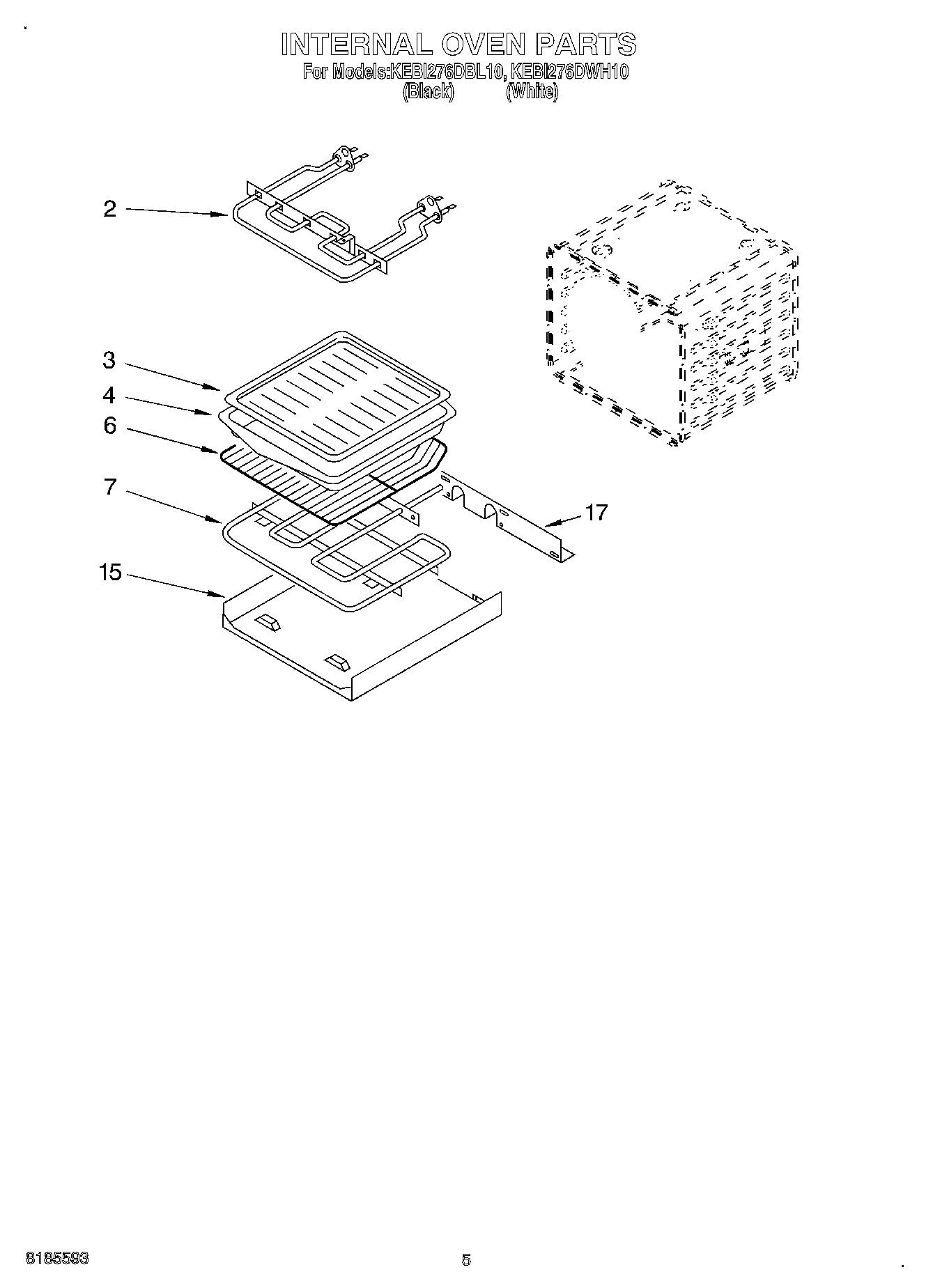

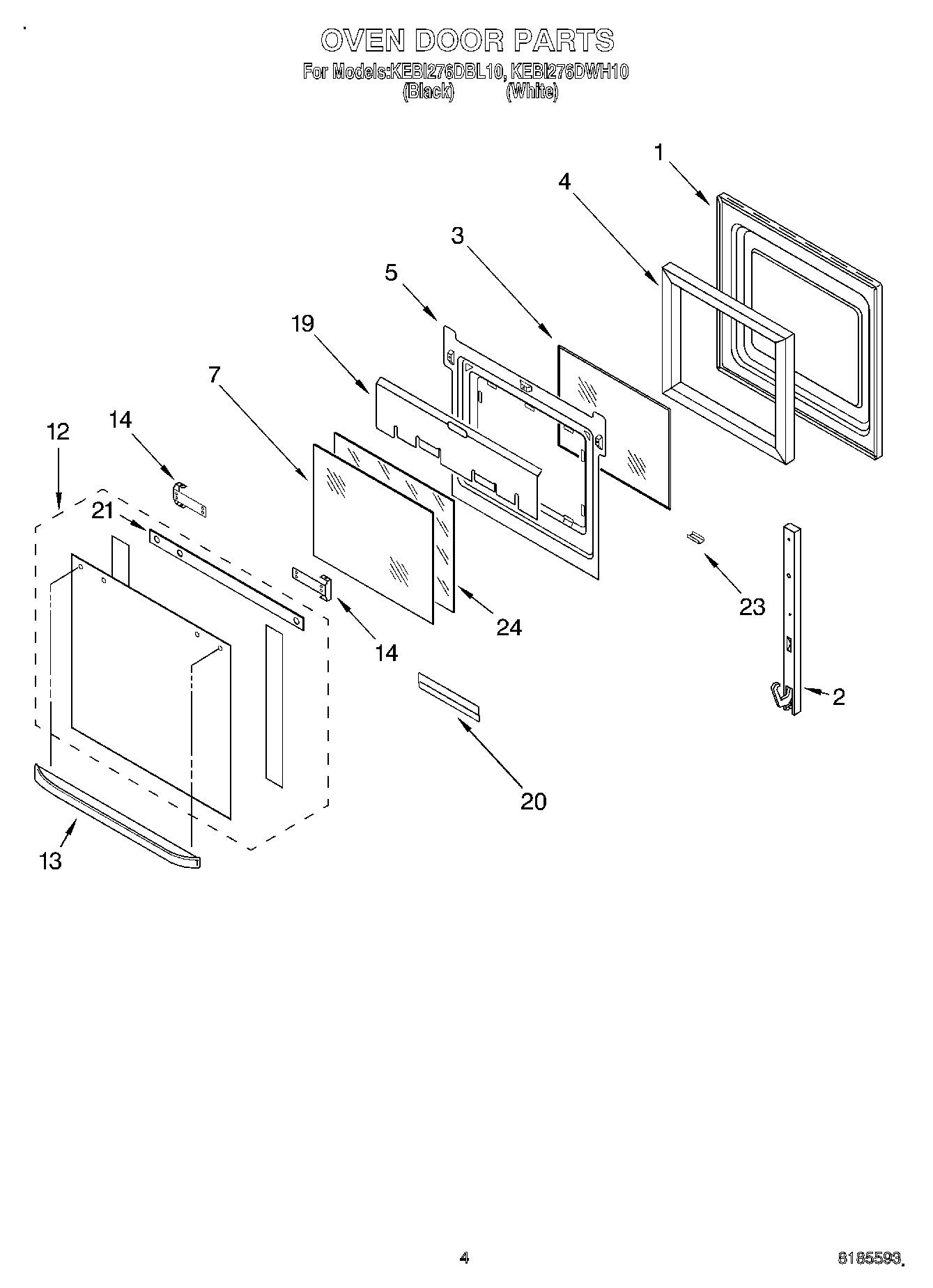

Model Whirlpool KEBI276DBL10 COOKTOP – Common Parts &amp; Diagrams

1

Door Liner WPL 4451718 Contact Us For Availability

2

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455524 Whirlpool Door Hinge In Stock WPL WP4455524 $39.05

3

4455191 Whirlpool Oven Mounting Plate In Stock WPL 4455191 $8.69

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $74.43

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $124.66

3

Blower (Upper Oven 60MM) WPL 4455334 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455723 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455722 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $95.80

5

Retainer, Glass WPL 4451670 Contact Us For Availability

6

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $58.95

6

Rack, Oven WPL 4448715 Contact Us For Availability

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $96.15

7

Plate, Mounting WPL 4451789 Contact Us For Availability

8

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

9

Transformer WPL 4451891 Contact Us For Availability

10

Lens, Light WPL 4452163 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $50.93

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

Screw WPL 3400080 Contact Us For Availability

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

12

Door Glass, Assy (Black Model) WPL 4452071 Contact Us For Availability

12

Door Glass, Assy (White Model) WPL 4452072 Contact Us For Availability

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

Door Handle (Black Model) WPL 4448411 Contact Us For Availability

Door Handle (White Model) WPL 4448412 Contact Us For Availability

Vent, (Control Panel) WPL 4448551 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $35.63

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $30.23

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $71.22

15

Tray, Bake WPL 4455036 Contact Us For Availability

15

Back, Control WPL 4452244 Contact Us For Availability

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $30.25

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Conduit WPL 4450953 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Harness, Wire (Latch) WPL 4451926 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Cover, Top Front WPL 4452366 Contact Us For Availability

WPL 4455743 WPL 4455743 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

19

Shield, Heat WPL 4450361 Contact Us For Availability

20

Retainer, Glass WPL 4451668 Contact Us For Availability

21

Seal, Door WPL 4451673 Contact Us For Availability

22

Latch Assembly WPL 4451896 Contact Us For Availability

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

24

Glass, Inner WPL 4455256 Contact Us For Availability

43

Base, Chassis WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

53

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64
