Model Whirlpool KEBI271XBL3 – Common Parts & Diagrams
07 - COMPONENT SHELF AND LATCH
03 - UPPER OVEN, OPTIONAL

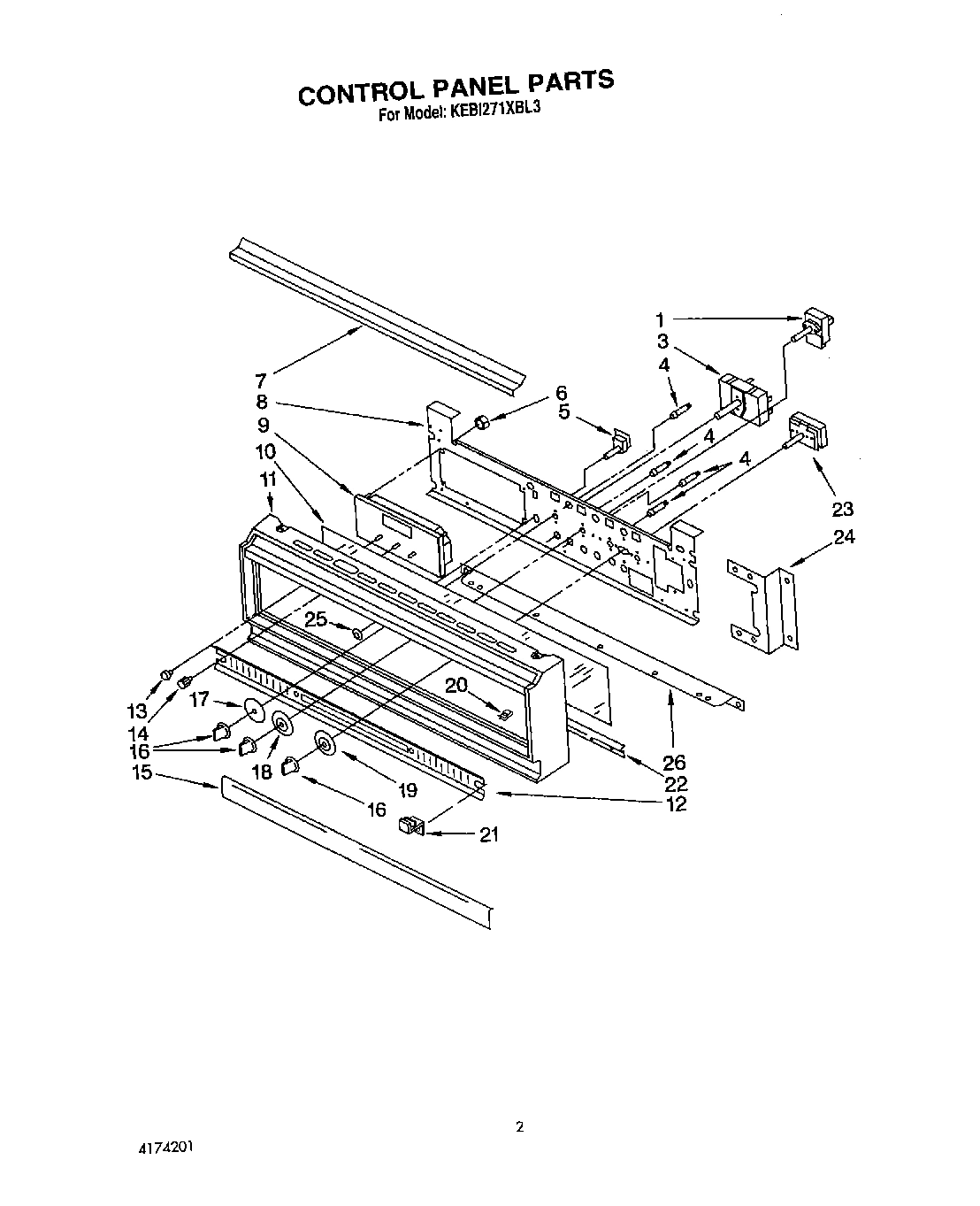

02 - CONTROL PANEL, LIT/OPTIONAL
08 - OVEN LINER

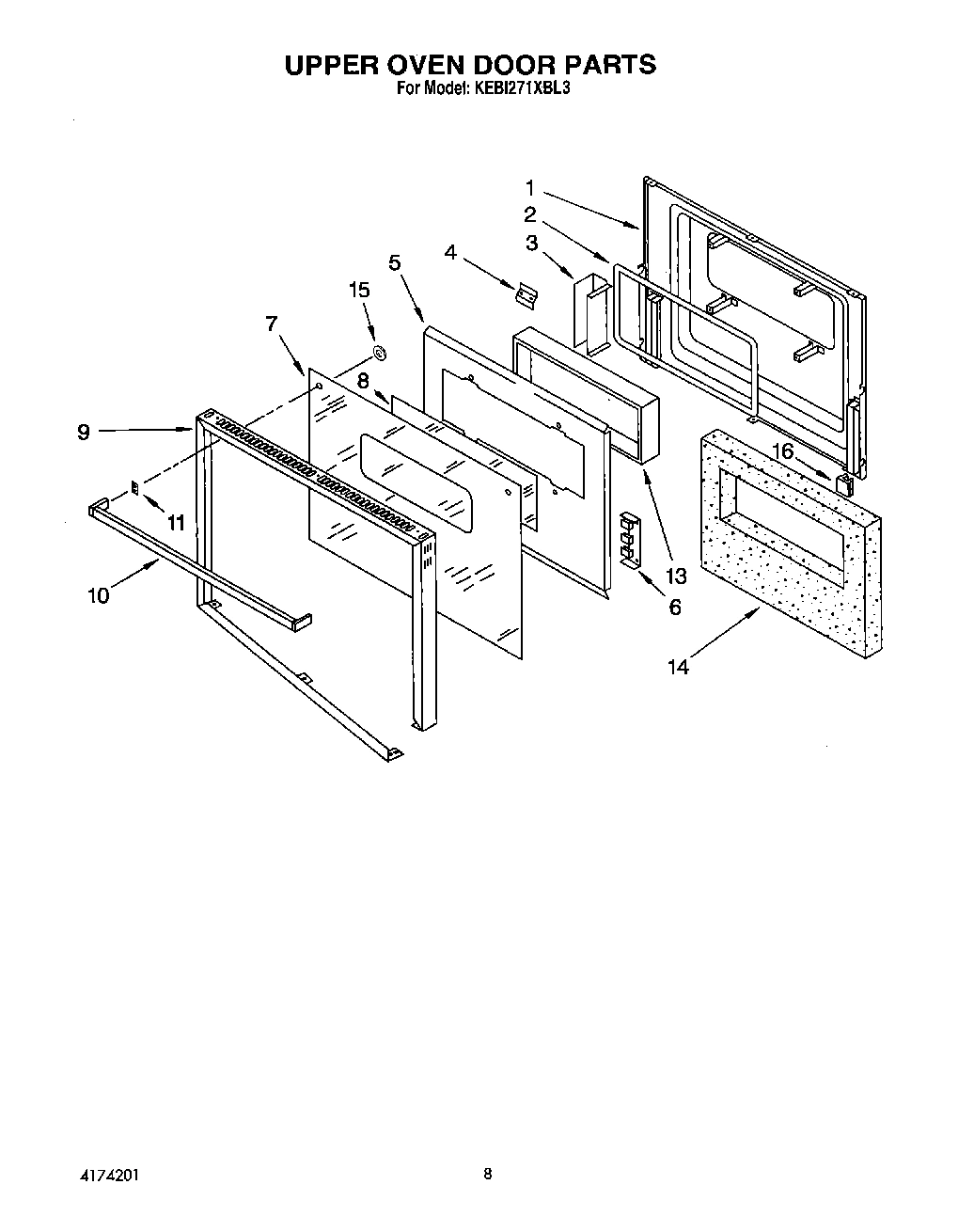

05 - UPPER OVEN DOOR

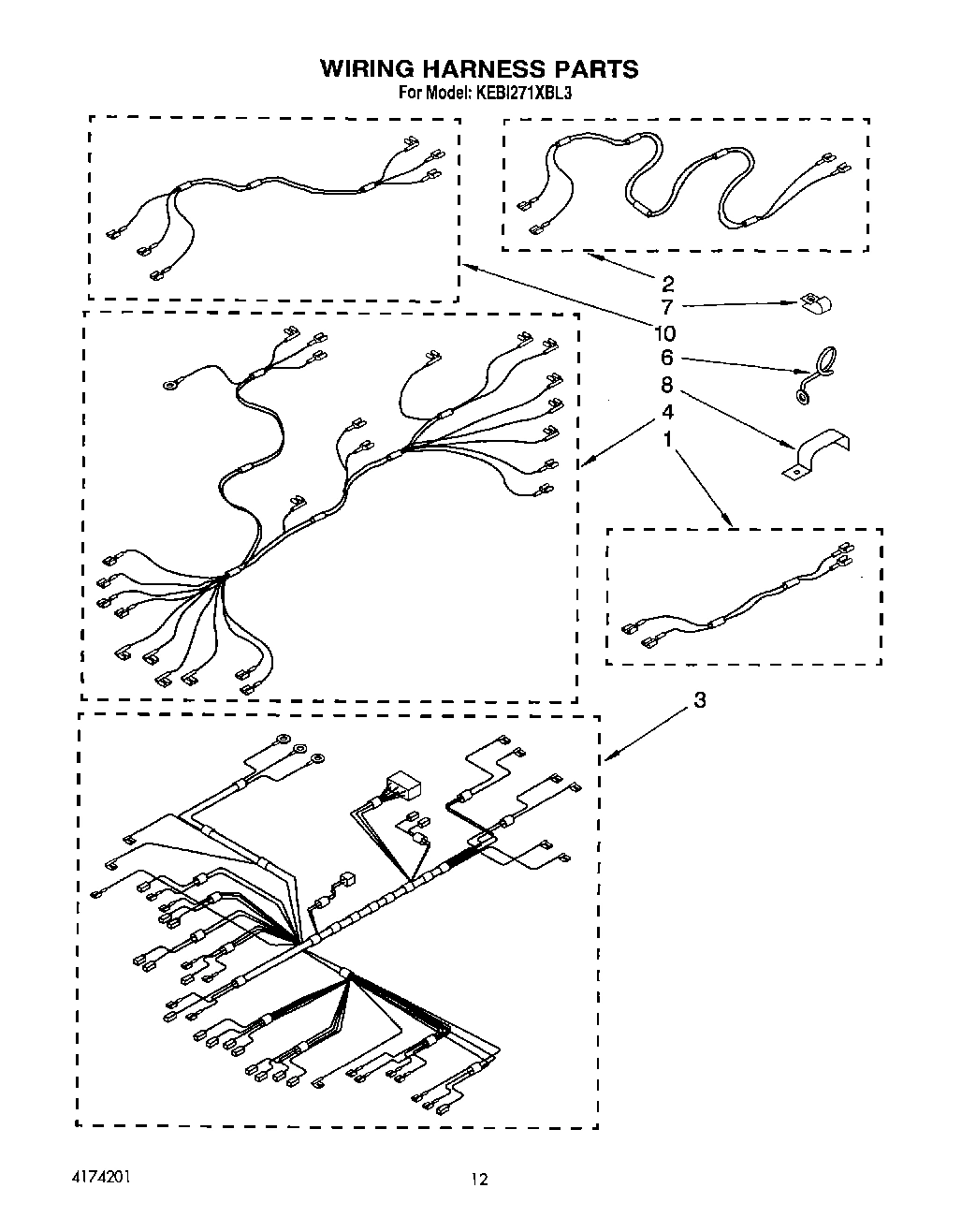

09 - WIRING HARNESS
04 - LOWER OVEN

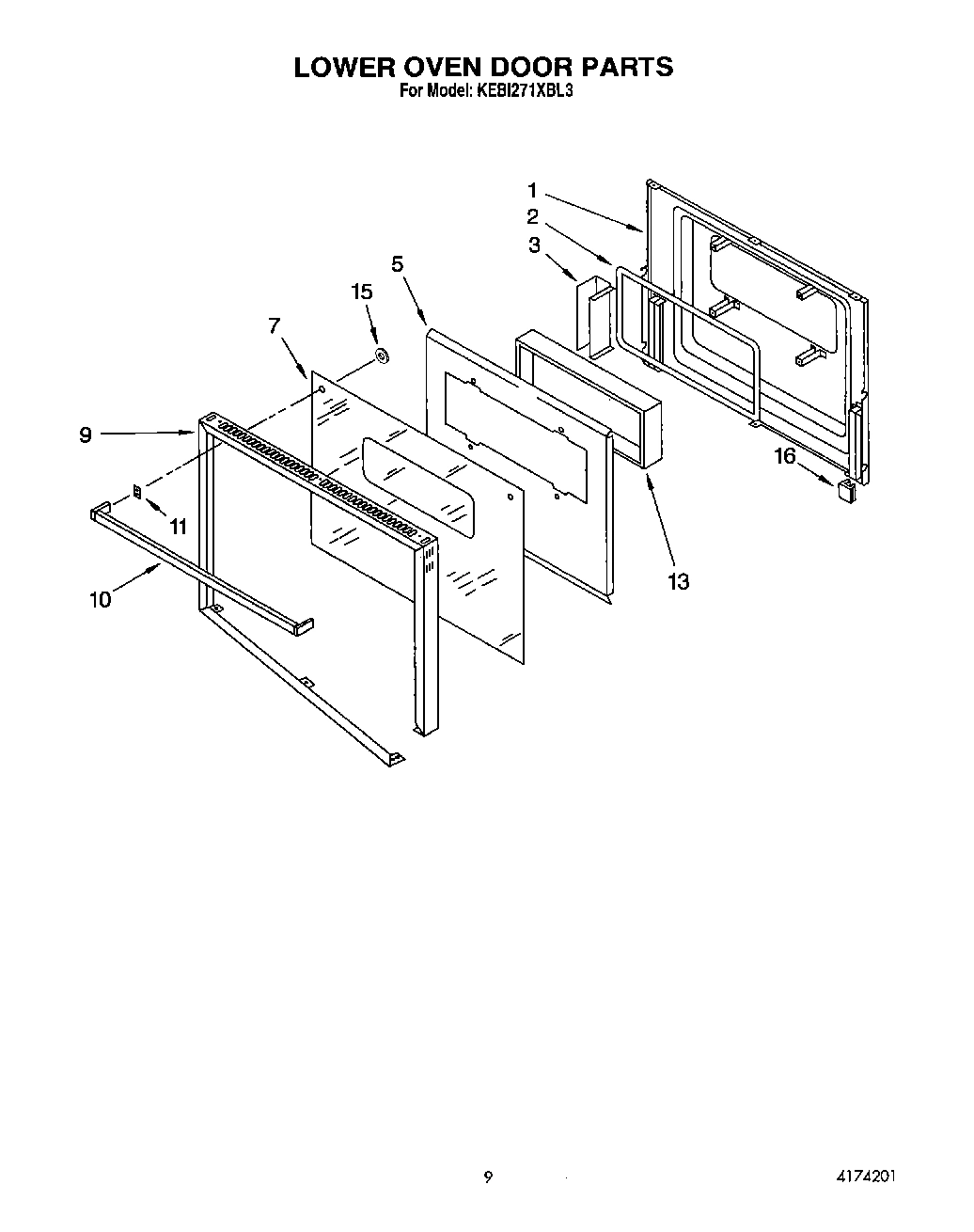

06 - LOWER OVEN DOOR
Common parts from model Whirlpool KEBI271XBL3
Installation Instructions WPL LIT3178195 Contact Us For Availability
Use & Care Guide WPL LIT3181350 Contact Us For Availability
Tech Sheet WPL LIT3185203 Contact Us For Availability
Repair Parts List WPL LIT4174201 Contact Us For Availability
1
Screw (6) WPL 4168863 Contact Us For Availability
1
Thermostat, upper WPL 3178273 Contact Us For Availability
1
Liner, Door WPL 3177599 Contact Us For Availability
1
Screw, Black (2) WPL 3178001 Contact Us For Availability
1
Harness Wire (Door Switch Upper) WPL 3179941 Contact Us For Availability
1
Liner, Door WPL 3177600 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Gasket, Window WPL 3178584 Contact Us For Availability
2
Harness Wire (Door Switch Lower) WPL 3185130 Contact Us For Availability
3
Cabinet, Back WPL 3177623 Contact Us For Availability
3
Top, Module WPL 3177436 Contact Us For Availability
3
Switch, Selector WPL 3178234 Contact Us For Availability
3
Spacer, Window WPL 3179693 Contact Us For Availability
3
Harness Wire (Lower Oven) WPL 3185169 Contact Us For Availability
4
Light, Indicator WPL 4168598 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Harness Wire (Upper Oven) WPL 3185171 Contact Us For Availability
4
Tube, Vent WPL 3181700 Contact Us For Availability
5
Liner, Oven WPL 3180828 Contact Us For Availability
5
Switch, Oven Light WPL 3179891 Contact Us For Availability
5
Rack, Offset WPL 3180865 Contact Us For Availability
5
Insulation, Retainer WPL 3177718 Contact Us For Availability
6
Cabinet, Top WPL 3178136 Contact Us For Availability
6
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
6
Nut, Timer (4) WPL 98788 Contact Us For Availability
6
Rack, Oven WPL 3180864 Contact Us For Availability
6
Bracket, Glass Mounting WPL 4163855 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
7
Insert, Top WPL 4173307 Contact Us For Availability
7
Glass, Door WPL 3181548 Contact Us For Availability
8
Side, Cabinet WPL 3177440 Contact Us For Availability
8
Bracket, Control WPL 3177804 Contact Us For Availability
8
Bracket, Element WPL 3180694 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Timer, Electronic WPL 3148111 Contact Us For Availability
9
Frame, Door WPL 3181402 Contact Us For Availability
10
Glass, Control Panel WPL 3181288 Contact Us For Availability
10
Handle, Door WPL 3178646 Contact Us For Availability
10
Screw (2) WPL 3181637 Contact Us For Availability
10
Harness, Wire (Latch Assy.) WPL 3185090 Contact Us For Availability
11
Frame, Control Panel WPL 3177760 Contact Us For Availability
11
Spacer, Handle WPL 3178740 Contact Us For Availability
12
Insert, Vent WPL 3179916 Contact Us For Availability
12
Frame, Front WPL 3177686 Contact Us For Availability
12
Screw (8) WPL 3179776 Contact Us For Availability
13
Seal, Door WPL 3179813 Contact Us For Availability
13
Knob, Timer (2) WPL 3179704 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Support, Latch WPL 3178232 Contact Us For Availability
14
Frame, Front WPL 3177682 Contact Us For Availability
14
Bracket, Switch WPL 3177681 Contact Us For Availability
14
Knob, Timer WPL 3179705 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
15
Insulator, Switch WPL 3177923 Contact Us For Availability
15
Door, Latch Handle WPL 3177972 Contact Us For Availability
15
Bushing, Handle WPL 3181651 Contact Us For Availability
16
Knob, Control (3) WPL 3178400 Contact Us For Availability
16
Bumper, Door Glass WPL 3181701 Contact Us For Availability
16
Bottom, Oven WPL 3177551 Contact Us For Availability
17
Rail, Support (2) WPL 3179220 Contact Us For Availability
17
Disc, Selector WPL 3178262 Contact Us For Availability
18
Bracket, Hinge (2) WPL 3177433 Contact Us For Availability
18
Disc, Self Clean WPL 3178477 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
19
Disc, Stnd. Clean WPL 3178480 Contact Us For Availability
20
Shield, Radiation WPL 3178612 Contact Us For Availability
20
Screw (6) WPL 3179795 Contact Us For Availability
20
nut (3) WPL 4168838 Contact Us For Availability
21
Support, Oven WPL 3177434 Contact Us For Availability
21
Screw (2) WPL 3179847 Contact Us For Availability
21
Hinge, Door (2) WPL 3177971 Contact Us For Availability
22
Back, Module WPL 3177556 Contact Us For Availability
22
Screw (6) WPL 4159456 Contact Us For Availability
22
Retainer, Glass WPL 4167590 Contact Us For Availability
23
Screw (2) WPL 3179117 Contact Us For Availability
23
Screw (2) WPL 3178002 Contact Us For Availability
23
Thermostat, Lower WPL 3178283 Contact Us For Availability
23
Cover, Latch Mtg. WPL 3180126 Contact Us For Availability
24
Clip, Seal (3) WPL 3179848 Contact Us For Availability
24
Bracket, Control Panel WPL 3177747 Contact Us For Availability
25
Screw (4) WPL 3178000 Contact Us For Availability
25
Hinge, Door (2) WPL 3178298 Contact Us For Availability
25
Bezel, Switch WPL 4169372 Contact Us For Availability
26
Button, Plug WPL 3185108 Contact Us For Availability
26
Support, Frame WPL 3177650 Contact Us For Availability
27
Button, Plug WPL 3185109 Contact Us For Availability
28
Tube, Vent Male WPL 3179945 Contact Us For Availability
29
Tube, Vent Female WPL 3181964 Contact Us For Availability
30
Screw (2) WPL 313489 Contact Us For Availability
30
Nut (2) WPL 4159117 Contact Us For Availability
30
Switch, Door WPL 4173553 Contact Us For Availability
32
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw WPL 4159445 Contact Us For Availability
33
Cover, Cap Tube WPL 4168203 Contact Us For Availability
34
Screw (4) WPL 3180022 Contact Us For Availability
34
Vent, Middle Trim WPL 3181965 Contact Us For Availability
34
Insulation, Wrap WPL 3177862 Contact Us For Availability
34
Insulation, Back WPL 3177872 Contact Us For Availability
34
Trim, Lower Vent WPL 3177787 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3180891 Contact Us For Availability
37
Shield, Vent WPL 3180890 Contact Us For Availability
38
Extension, Shelf WPL 3178132 Contact Us For Availability
40
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
40
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
40
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
40
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
40
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
40
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
40
14 Ga. 150~c Rating (White) WPL 242826 Contact Us For Availability
40
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
40
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
40
16 Ga. 80~c Rating WPL 242829 Contact Us For Availability
40
WPL 242830 WPL 242830 Contact Us For Availability
40
WPL 242832 WPL 242832 Contact Us For Availability
40
WPL 261881 WPL 261881 Contact Us For Availability
40
WPL 261890 WPL 261890 Contact Us For Availability
40
WPL 261891 WPL 261891 Contact Us For Availability
40
WPL 285365 WPL 285365 Contact Us For Availability
40
WPL 285366 WPL 285366 Contact Us For Availability
40
WPL 285367 WPL 285367 Contact Us For Availability
40
WPL 285368 WPL 285368 Contact Us For Availability
40
WPL 3171507 WPL 3171507 Contact Us For Availability
40
WPL 3181733 WPL 3181733 Contact Us For Availability
40
WPL 350806 WPL 350806 Contact Us For Availability
40
WPL 350941 WPL 350941 Contact Us For Availability
40
WPL 4173601 WPL 4173601 Contact Us For Availability
40
WPL 591014 WPL 591014 Contact Us For Availability
40
WPL 72112 WPL 72112 Contact Us For Availability
40
WPL 799832 WPL 799832 Contact Us For Availability
40
WPL 832985 WPL 832985 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
