Model Whirlpool KEBI271SBL0 – Common Parts & Diagrams

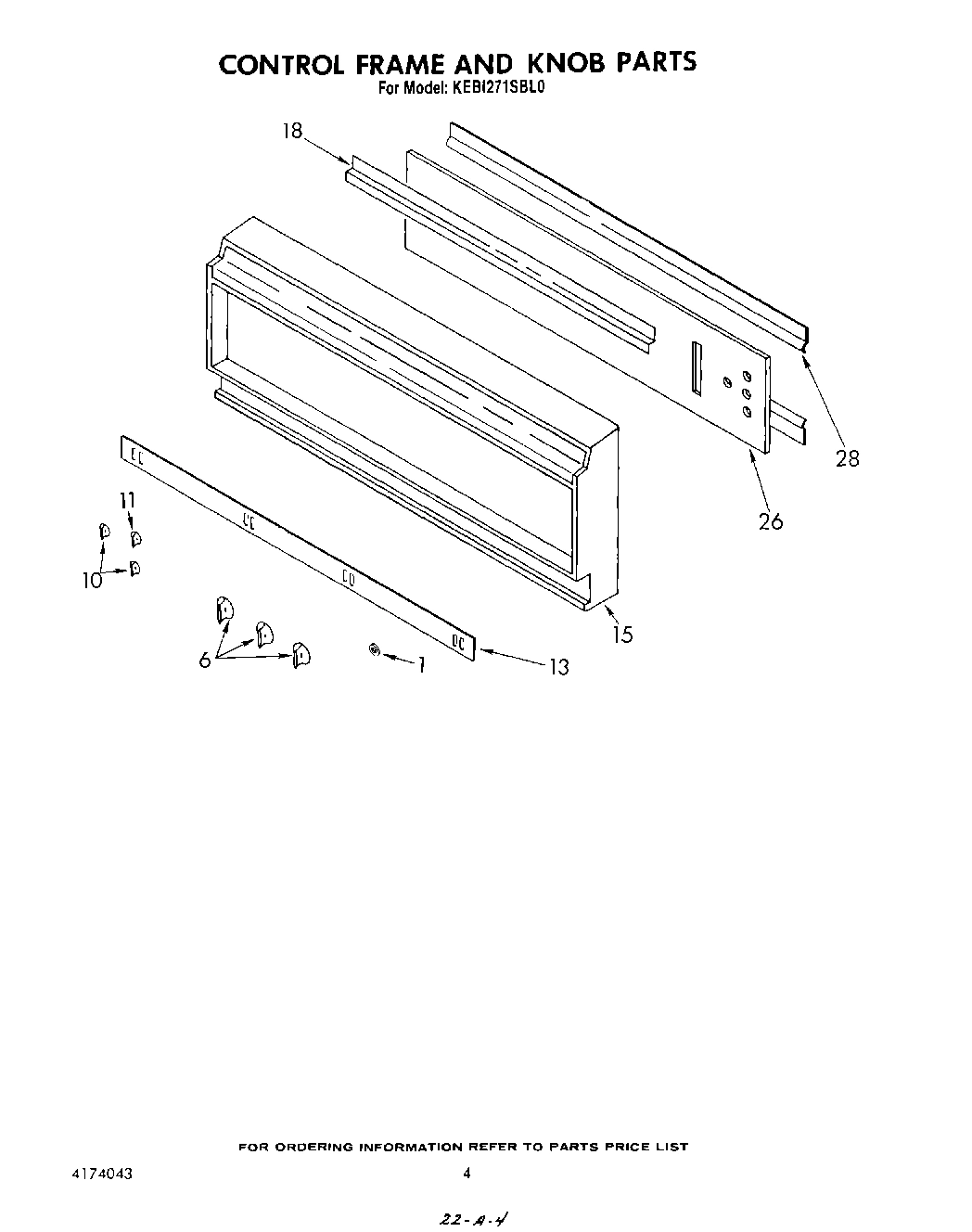

04 - CONTROL FRAME AND KNOB

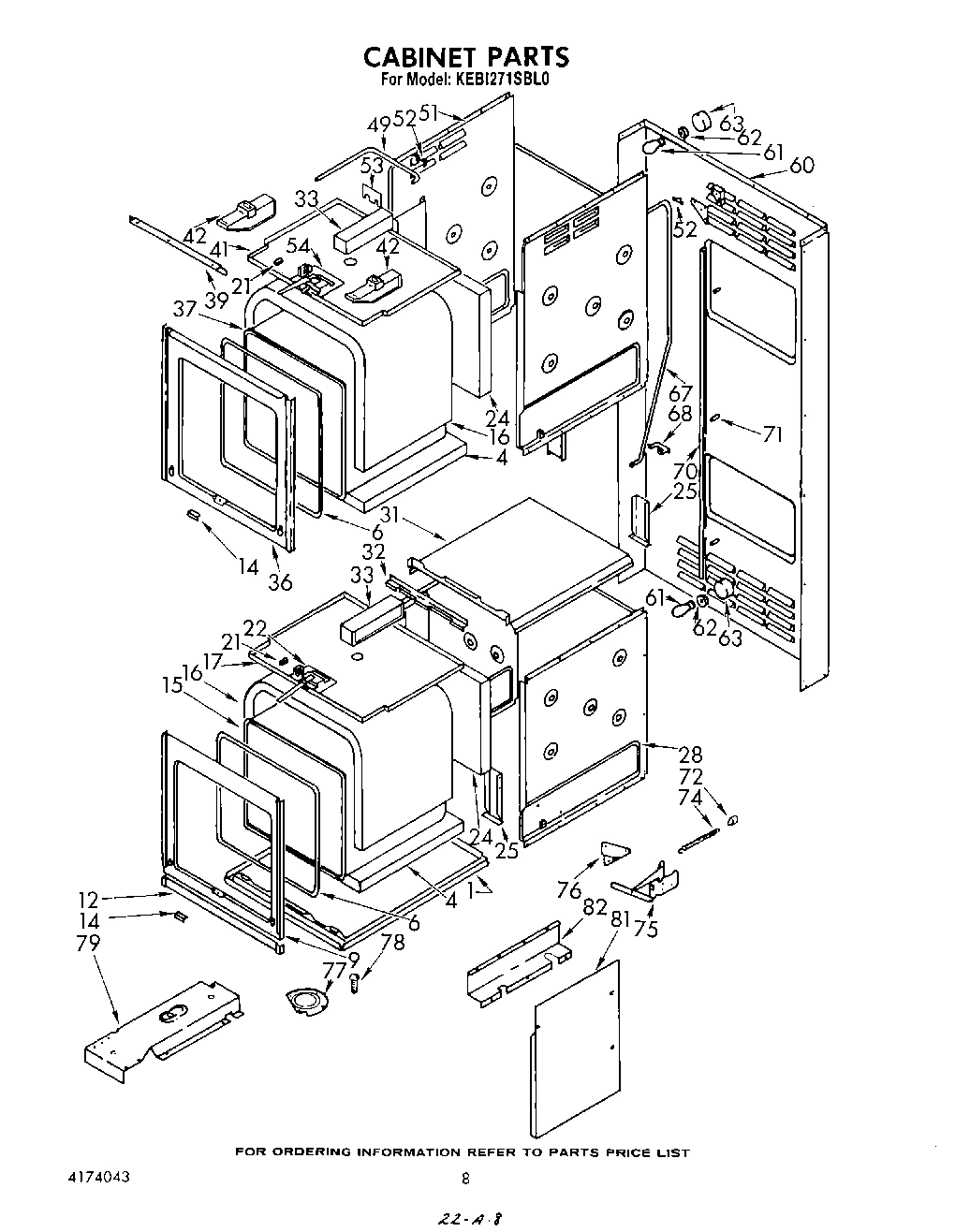

07 - CABINET
09 - LOWER OVEN DOOR
02 - CONTROL PANEL
06 - LATCH
08 - UPPER OVEN DOOR , LIT/OPTIONAL
03 - OVEN LINER
05 - CONTROL COMPARTMENT AND CABINET TOP
Common parts from model Whirlpool KEBI271SBL0
Use and Care Guide WPL LIT3177053 Contact Us For Availability
Installation Instructions WPL LIT3177123 Contact Us For Availability
List, Repair Parts WPL LIT4174043 Contact Us For Availability
1
Main Bottom WPL 4163966 Contact Us For Availability
1
Door Frame WPL 4164391 Contact Us For Availability
1
Thermostat Disc WPL 4163809 Contact Us For Availability
1
Latch Mounting Plate WPL 4173044 Contact Us For Availability
1
Liner, Oven (Upper Oven) WPL 4163862 Contact Us For Availability
1
Sandwich Panel WPL 4173054 Contact Us For Availability
2
Mechanism, Latch WPL 4168538 Contact Us For Availability
3
Screw, No.10-24 X 3/8`` Hex TCS WPL 4159186 Contact Us For Availability
4
Insulation, Bottom WPL 4164191 Contact Us For Availability
4
Door Handle WPL 4173018 Contact Us For Availability
4
Thermostat Disc Upper Oven WPL 4173305 Contact Us For Availability
4
Latch Lever WPL 4163838 Contact Us For Availability
5
Screw, No.8-32 X 3/8`` PFHMS WPL 4159330 Contact Us For Availability
5
Thermal Switch WPL 4173007 Contact Us For Availability
6
Door Gasket WPL 4168829 Contact Us For Availability
6
Selector Disc (Upper Oven) WPL 4163799 Contact Us For Availability
6
Solenoid Spacer WPL 4168169 Contact Us For Availability
7
Solenoid WPL 4169323 Contact Us For Availability
7
Bushing WPL 4173043 Contact Us For Availability
8
Door Glass WPL 4164241 Contact Us For Availability
8
Clock WPL 4173071 Contact Us For Availability
8
Latch Switch With Roller WPL 4168514 Contact Us For Availability
8
Hole Cover WPL 4168527 Contact Us For Availability
9
Front Frame (Lower Oven) WPL 4164201 Contact Us For Availability
9
Rubber Bumper WPL 4168826 Contact Us For Availability
10
Control Mounting Panel WPL 4164218 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Broiler Element Support-Right WPL 4168217 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Air Baffle WPL 4163857 Contact Us For Availability
11
Element, Broil WPL 4164185 Contact Us For Availability
12
Bottom Trim WPL 4164196 Contact Us For Availability
12
Window Pack WPL 4169572 Contact Us For Availability
13
Vent Insert WPL 4168717 Contact Us For Availability
13
Retainer, Insulation WPL 4169357 Contact Us For Availability
14
Cover, Seal End WPL 4167588 Contact Us For Availability
14
Screw, No.4-40 X 5/8 WPL 4173045 Contact Us For Availability
14
Bracket, Lock WPL 4163852 Contact Us For Availability
14
Light Lens Gasket WPL 4166868 Contact Us For Availability
15
Control Frame WPL 4164363 Contact Us For Availability
15
Oven Liner (Lower Oven) (See Page 3 For Furth WPL ARI82787A6 Contact Us For Availability
15
Insulator WPL 4163746 Contact Us For Availability
15
Window Pack WPL 4173280 Contact Us For Availability
15
Light Lens WPL 4166866 Contact Us For Availability
16
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
16
Door Liner WPL 4164239 Contact Us For Availability
16
Indicator Light (Upper Oven) WPL 4168597 Contact Us For Availability
16
Light Lens Retainer WPL 4167938 Contact Us For Availability
16
Blower WPL 4173004 Contact Us For Availability
17
Insulation WPL 4163987 Contact Us For Availability
17
Indicator Light, Oven (Lower Oven) WPL 4168598 Contact Us For Availability
17
Screw, No.4-40 X 1 1/4`` Hex WPL 4173053 Contact Us For Availability
17
Terminal Block, Power Supply WPL 4168735 Contact Us For Availability
18
Top Insert WPL 4173307 Contact Us For Availability
18
Latch Switch WPL 4164366 Contact Us For Availability
19
Door Liner WPL 4164237 Contact Us For Availability
19
Conduit, 1/2`` X 56`` WPL 4167614 Contact Us For Availability
20
Latch Switch (2) WPL 4168517 Contact Us For Availability
20
Glass Mounting Bracket WPL 4163855 Contact Us For Availability
21
Knob, Latch Lever WPL 4163821 Contact Us For Availability
21
Glass Panel WPL 4164243 Contact Us For Availability
22
Latch Assembly (Lower Oven) (See Latch Parts WPL ARI82788A9 Contact Us For Availability
22
Clip, Thermostat Bulb WPL 4173275 Contact Us For Availability
22
Cabinet Top WPL 4173290 Contact Us For Availability
23
Shoulder Screw, Actuator Arm WPL 4168554 Contact Us For Availability
23
Air Baffle, Bottom WPL 4163859 Contact Us For Availability
23
Broiler Element Support-Left WPL 4168218 Contact Us For Availability
24
Insulation, Rear WPL 4164192 Contact Us For Availability
24
Screw, 8A X 3/8`` PKESMS WPL 4168863 Contact Us For Availability
24
Oven Light Switch WPL 4167332 Contact Us For Availability
24
Spacer, Actuator Arm WPL 4168553 Contact Us For Availability
25
Rear Anchor WPL 4167526 Contact Us For Availability
25
Insert (4) WPL 4164131 Contact Us For Availability
25
Actuator Arm WPL 4168058 Contact Us For Availability
25
Oven Rack WPL 4168401 Contact Us For Availability
25
Blower Mounting Panel WPL 4173166 Contact Us For Availability
26
Control Panel Glass WPL 4173306 Contact Us For Availability
26
Retaining Ring WPL 4159160 Contact Us For Availability
26
Bushing, Flexible WPL 4173165 Contact Us For Availability
27
Washer, Flat WPL 4159603 Contact Us For Availability
27
Switch, Fan WPL 4173008 Contact Us For Availability
28
Retainer WPL 4167590 Contact Us For Availability
28
Cabinet Side (Lower Oven) WPL 4163962 Contact Us For Availability
28
Selector Switch, (Upper Oven) WPL 4173151 Contact Us For Availability
28
Nut, No.10-24 Hex Kep WPL 4159109 Contact Us For Availability
29
Screw, No.10-24 X 3/8`` PTHMS WPL 4159287 Contact Us For Availability
30
Wiring Harness, Latch Switch WPL 4173303 Contact Us For Availability
31
Upper Oven Support WPL 4164295 Contact Us For Availability
31
Nut, Lock WPL 4159117 Contact Us For Availability
32
Front Frame Support WPL 4168266 Contact Us For Availability
32
Vent Tube Extension WPL 4168126 Contact Us For Availability
33
Collector Box WPL 4168681 Contact Us For Availability
33
Thermostat, Upper Oven WPL 4164361 Contact Us For Availability
33
Capillary Cover WPL 4168203 Contact Us For Availability
34
Smoke Eliminator (Upper Oven) WPL 4168492 Contact Us For Availability
35
Thermostat, Lower Oven WPL 4173304 Contact Us For Availability
35
Vent Tube (Lower Oven) WPL 4168491 Contact Us For Availability
36
Front Frame (Upper Oven) WPL 4164204 Contact Us For Availability
36
Plug Button (3/8`` Hole) WPL 4159120 Contact Us For Availability
36
Plug Button (5/8`` Hole) WPL 4159122 Contact Us For Availability
36
Plug Button (3/4`` Hole) WPL 4159123 Contact Us For Availability
37
Oven Liners (Upper Oven) (See Pages 8 & 9 For WPL ARI82789A7 Contact Us For Availability
37
Wiring Harness, Element (Upper Oven) WPL 4173042 Contact Us For Availability
39
Control Frame Support WPL 4169336 Contact Us For Availability
39
Light, Indicator (2) WPL 4163869 Contact Us For Availability
41
Compartment Top (Upper Oven) WPL 4169314 Contact Us For Availability
42
Vent Box WPL 4163941 Contact Us For Availability
49
Vent Tube (Upper Oven) WPL 4168494 Contact Us For Availability
51
Cabinet Side (Upper Oven) WPL 4173055 Contact Us For Availability
51
Cabinet Side (Lower Oven) WPL 4173080 Contact Us For Availability
52
Clamp, Conduit WPL 4167593 Contact Us For Availability
53
Vent Tube Mounting Bracket WPL 4168242 Contact Us For Availability
54
Latch Parts (Upper Oven) (See Pages 6 & 7 For WPL ARI82790A4 Contact Us For Availability
60
Cabinet Back WPL 4173060 Contact Us For Availability
62
Socket, Lamp WPL 4168755 Contact Us For Availability
63
Light Shield WPL 4167579 Contact Us For Availability
67
Vent Tube, Lower Oven WPL 4168592 Contact Us For Availability
68
Vent Tube, Retainer WPL 4168140 Contact Us For Availability
70
Cabinet Support (Right) WPL 4163763 Contact Us For Availability
70
Cabinet Support (Left) WPL 4163764 Contact Us For Availability
71
Spacer WPL 4168590 Contact Us For Availability
72
Spring, Anchor WPL 4167599 Contact Us For Availability
74
Door Spring (Self Cleaning Oven) WPL 4173048 Contact Us For Availability
74
Door Spring (Easy Clean Oven) WPL 4173267 Contact Us For Availability
75
Hinge Assembly WPL 4167596 Contact Us For Availability
76
Cam Plate (Right) WPL 4167597 Contact Us For Availability
76
Cam Plate (Lef WPL 4167598 Contact Us For Availability
77
WPL 4163883 WPL 4163883 Contact Us For Availability
79
WPL 4163752 WPL 4163752 Contact Us For Availability
79
WPL 4163753 WPL 4163753 Contact Us For Availability
79
WPL 4163754 WPL 4163754 Contact Us For Availability
79
WPL 4163755 WPL 4163755 Contact Us For Availability
81
WPL 4173016 WPL 4173016 Contact Us For Availability
81
WPL 4173017 WPL 4173017 Contact Us For Availability
82
WPL 4173061 WPL 4173061 Contact Us For Availability
× ![]()
