Model Whirlpool KEBI241YBL0 – Common Parts & Diagrams

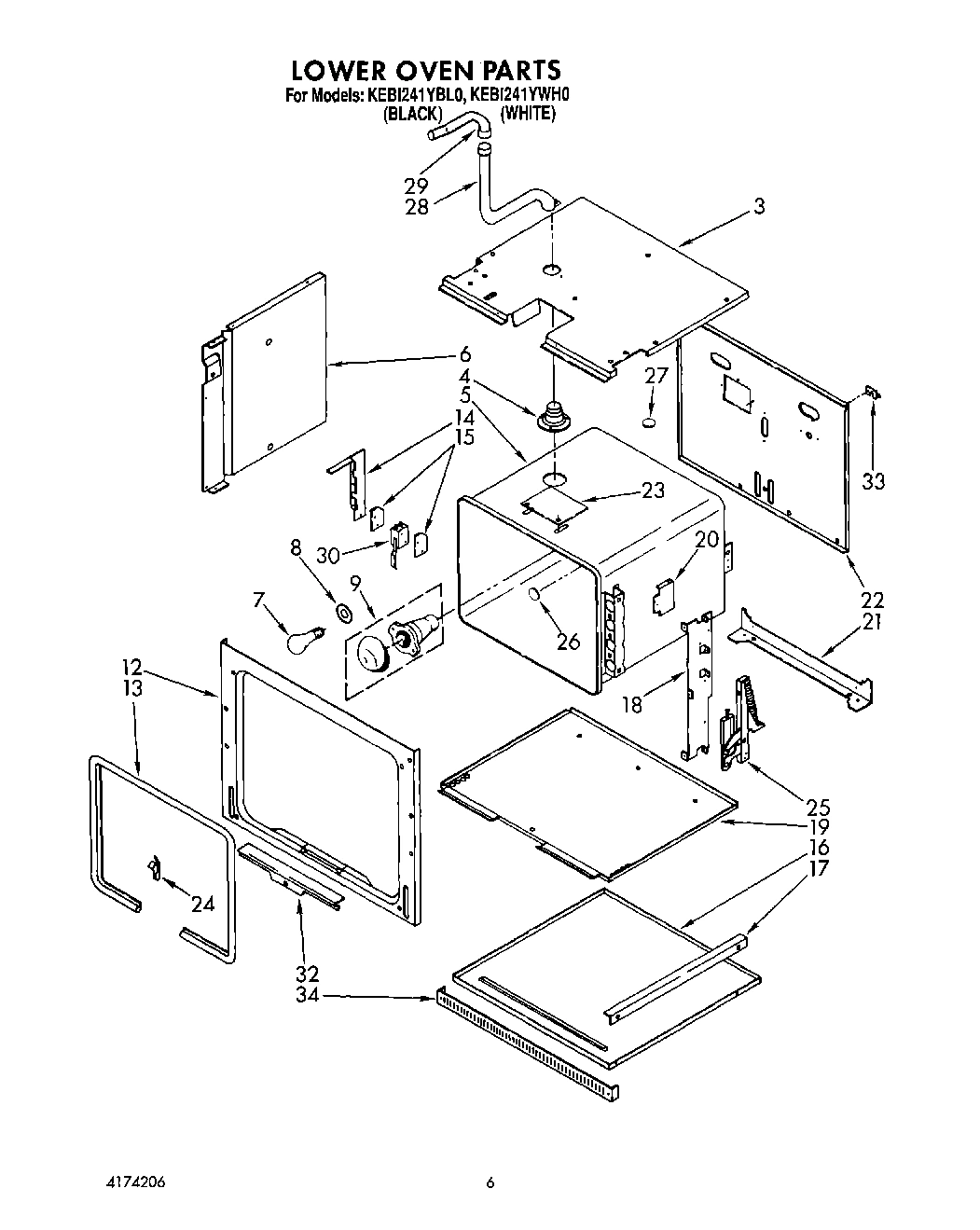

04 - LOWER OVEN

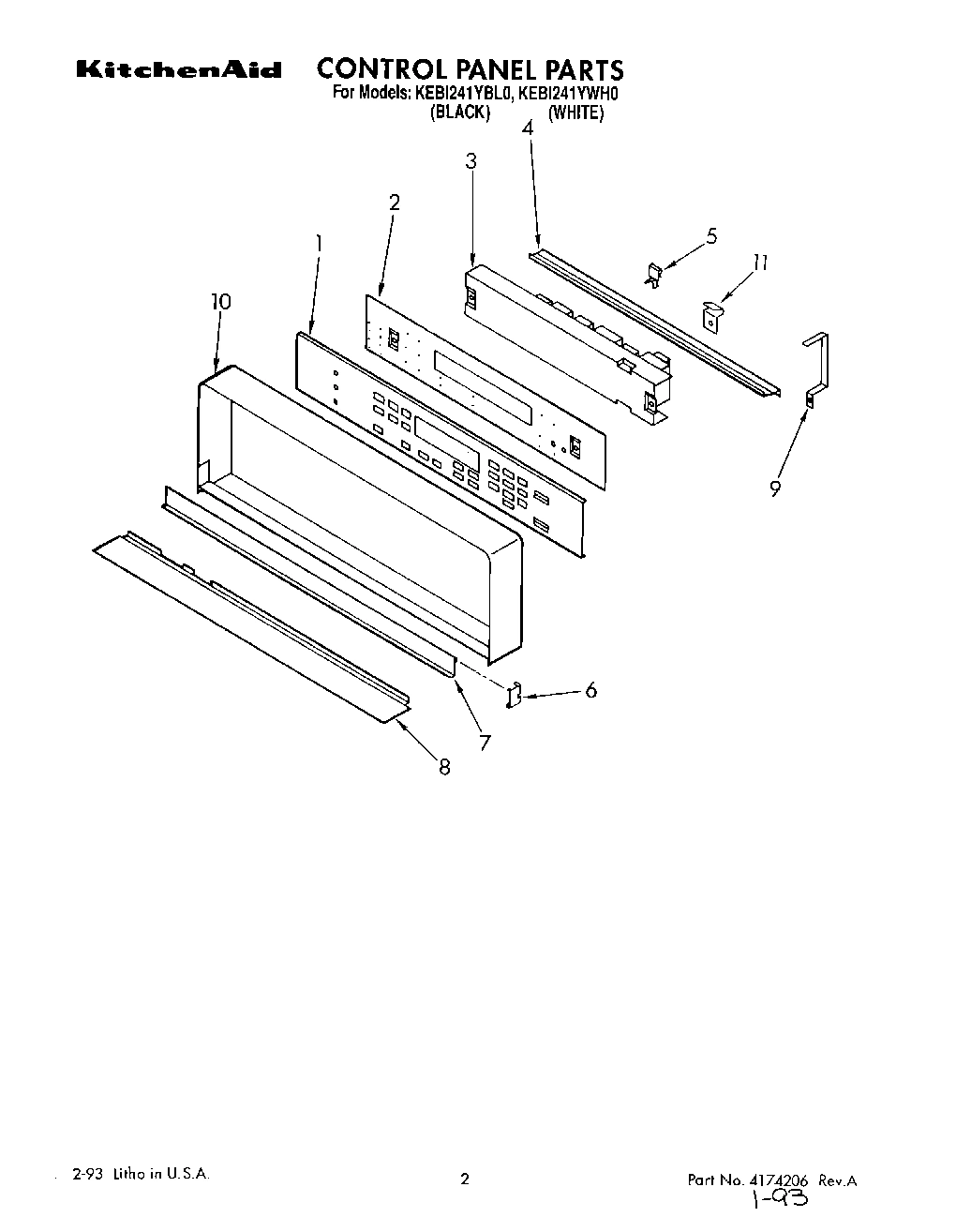

01 - CONTROL PANEL, LIT/OPTIONAL

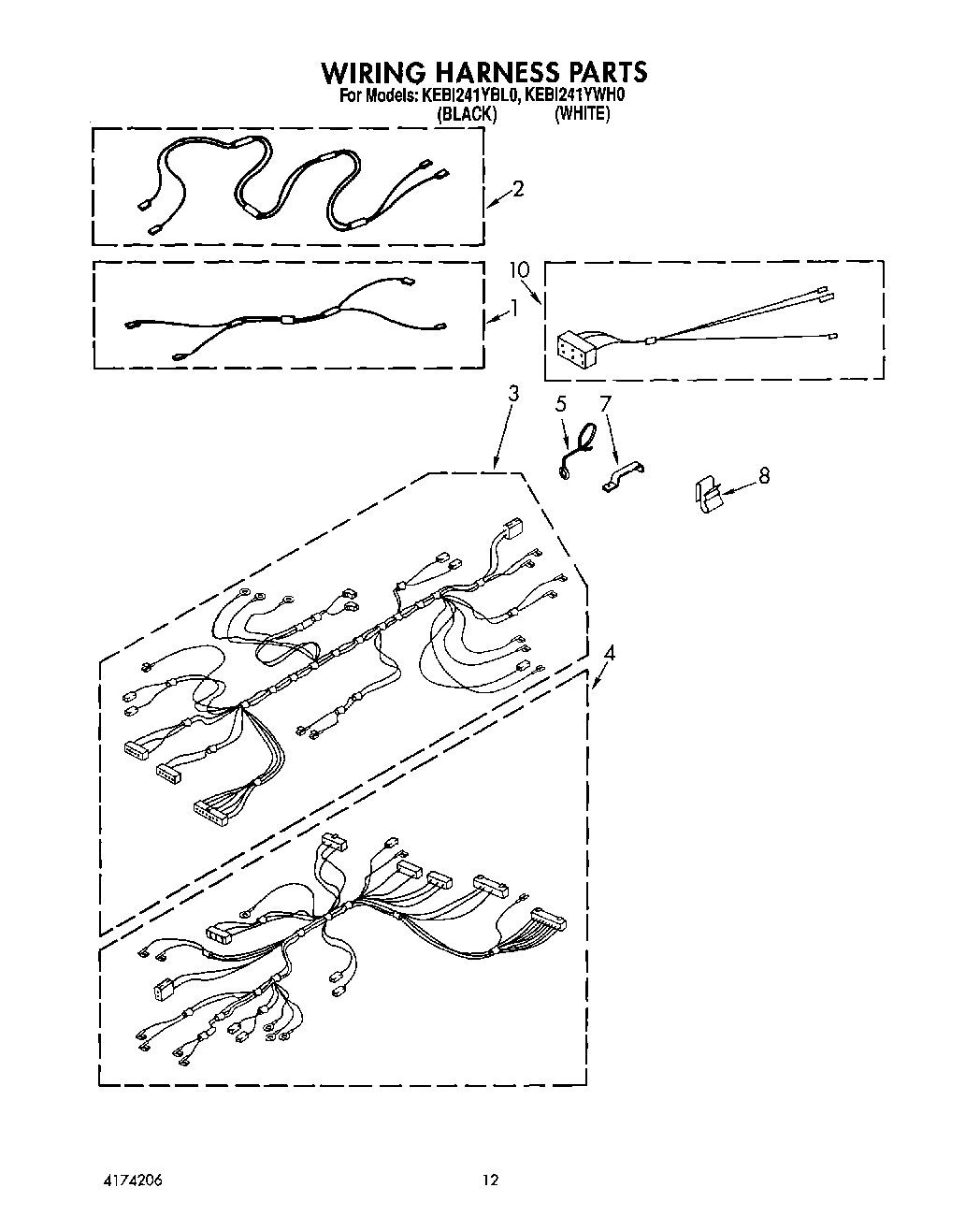

08 - WIRING HARNESS

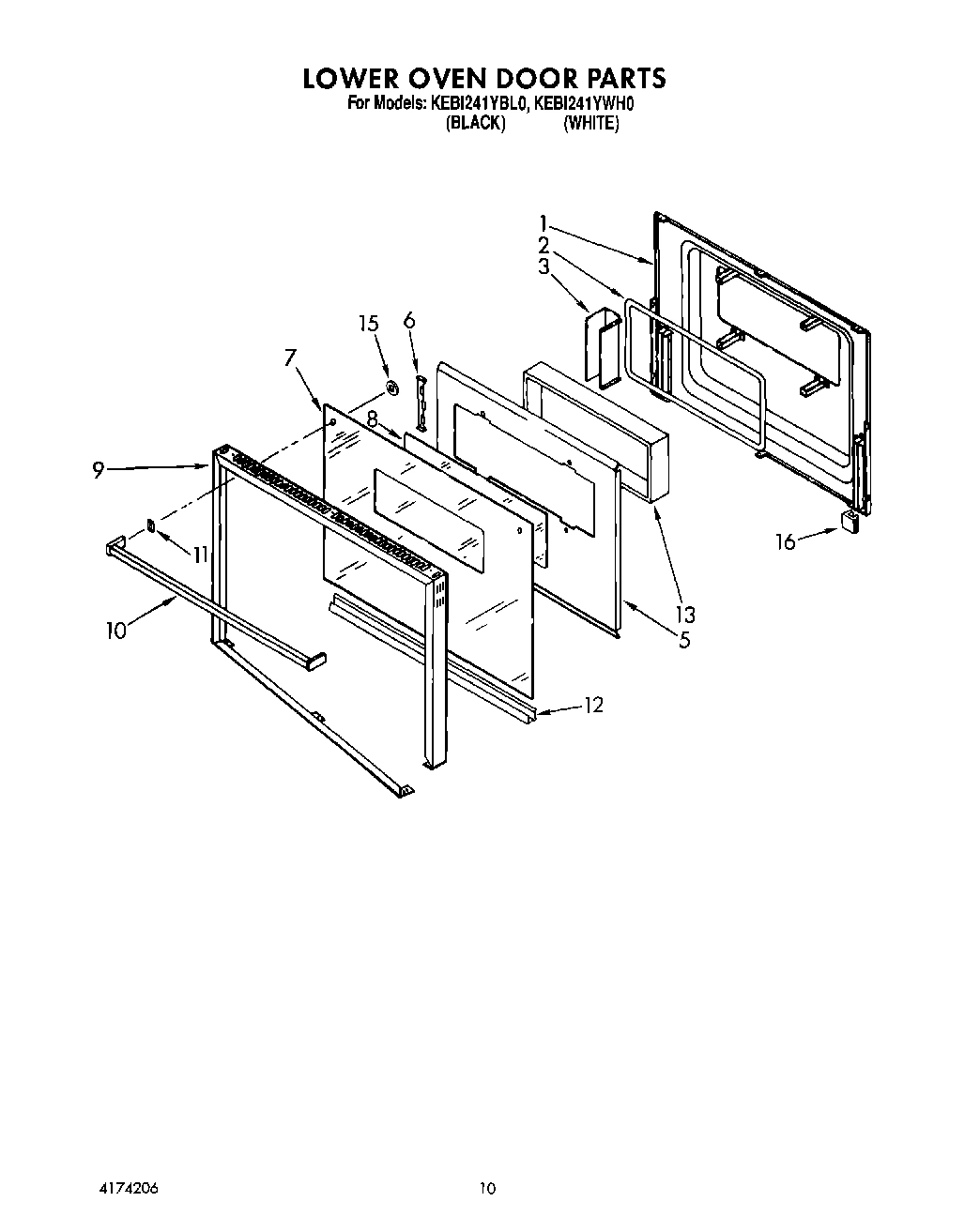

06 - LOWER OVEN DOOR

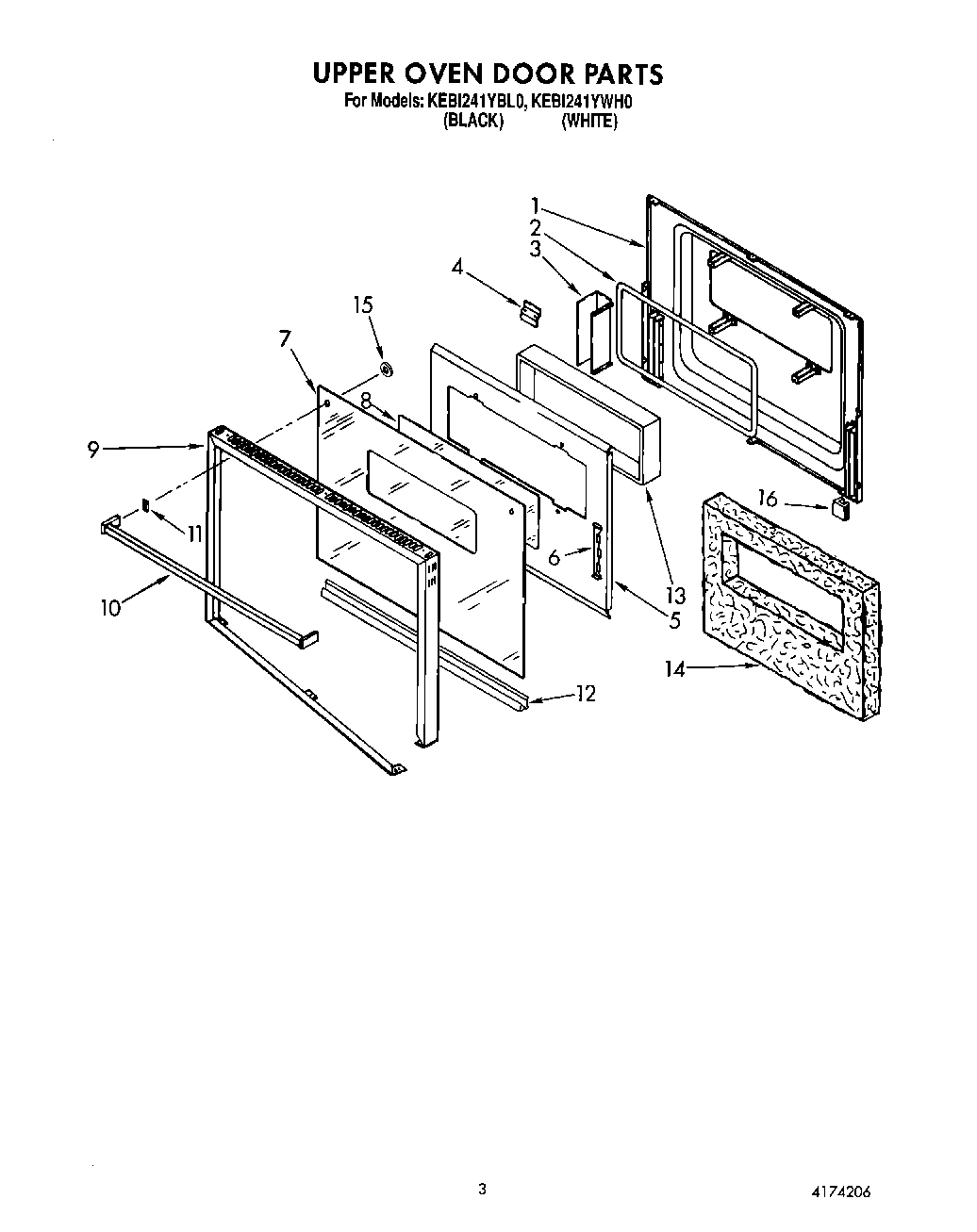

02 - UPPER OVEN DOOR

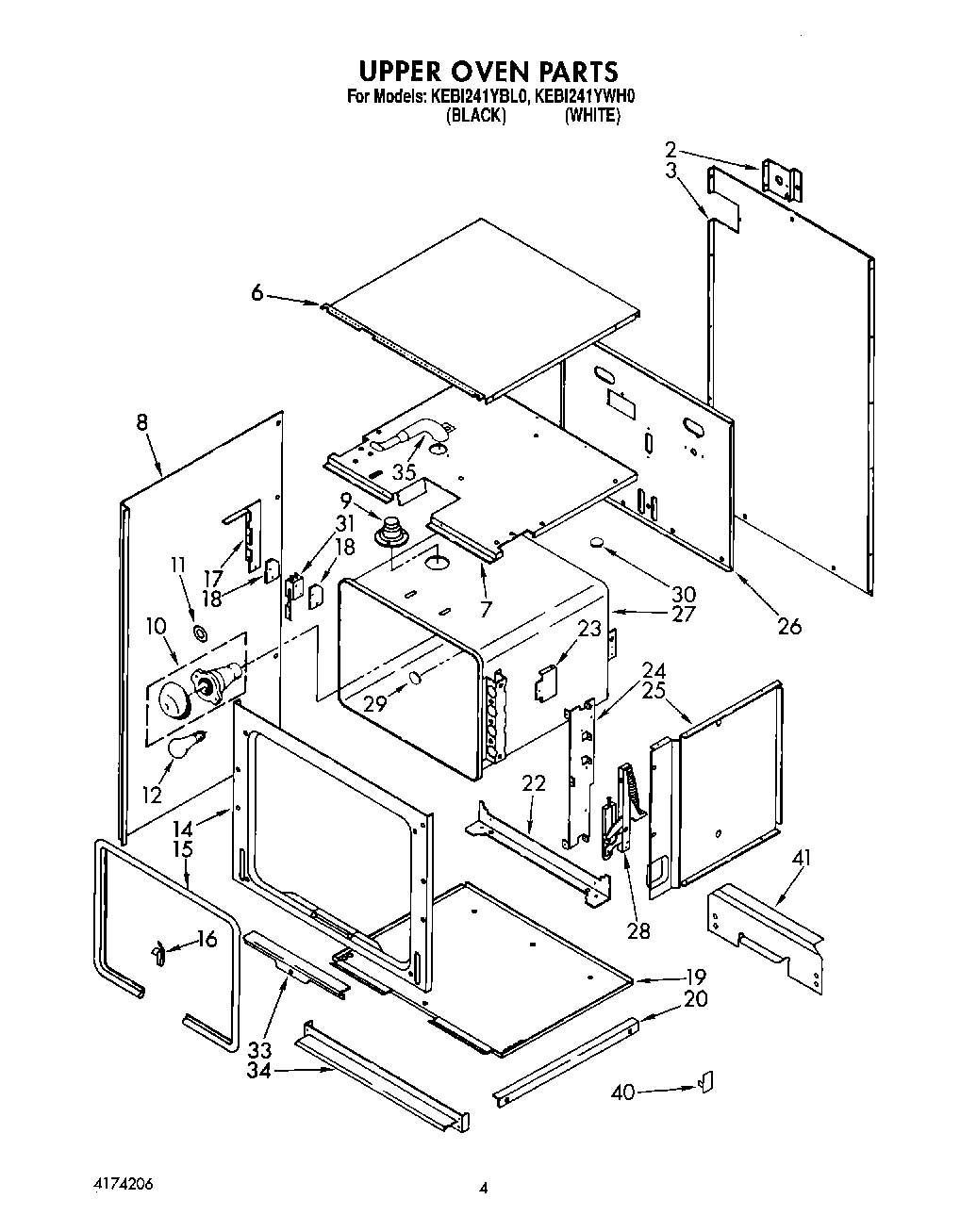

03 - UPPER OVEN, OPTIONAL

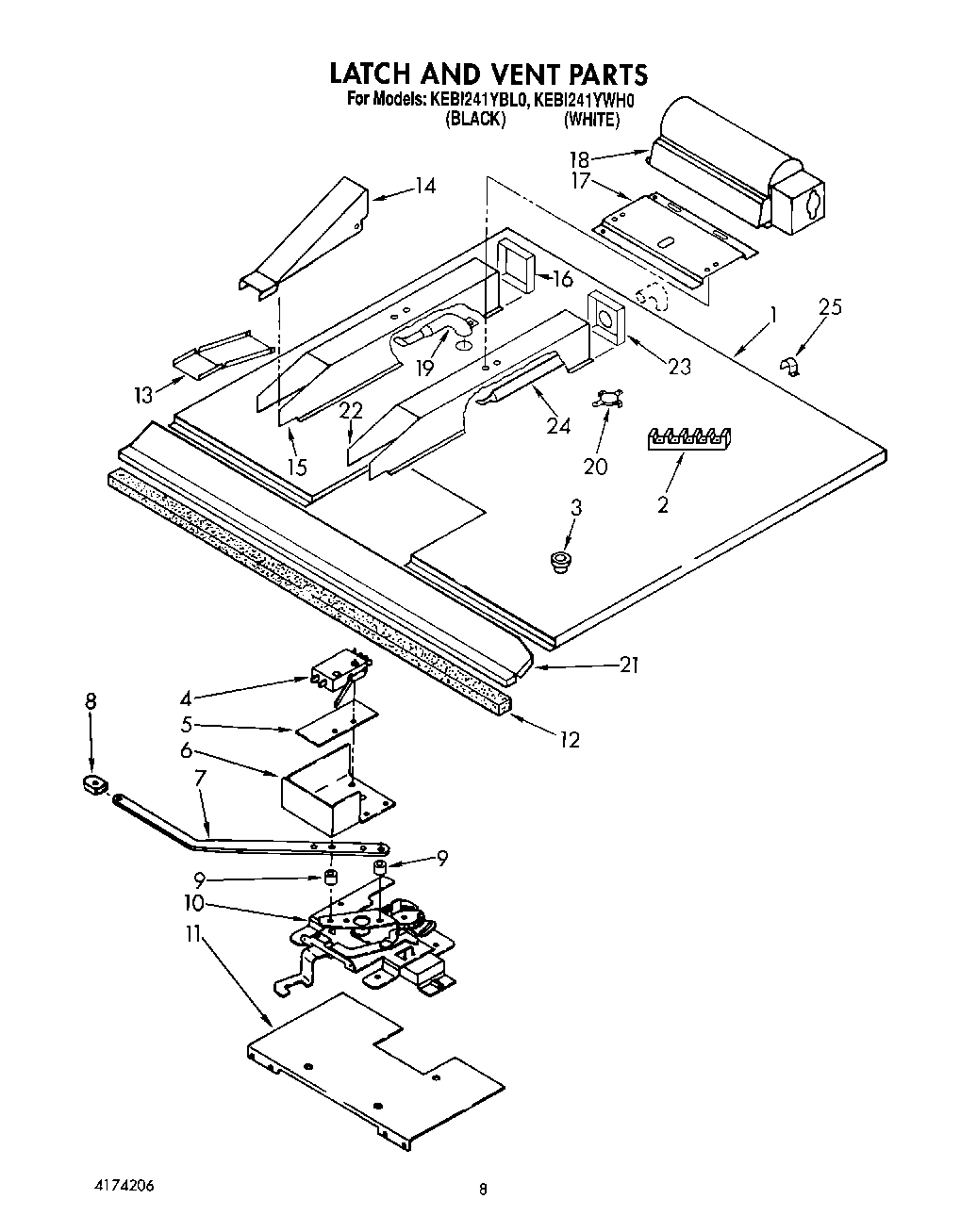

05 - LATCH AND VENT

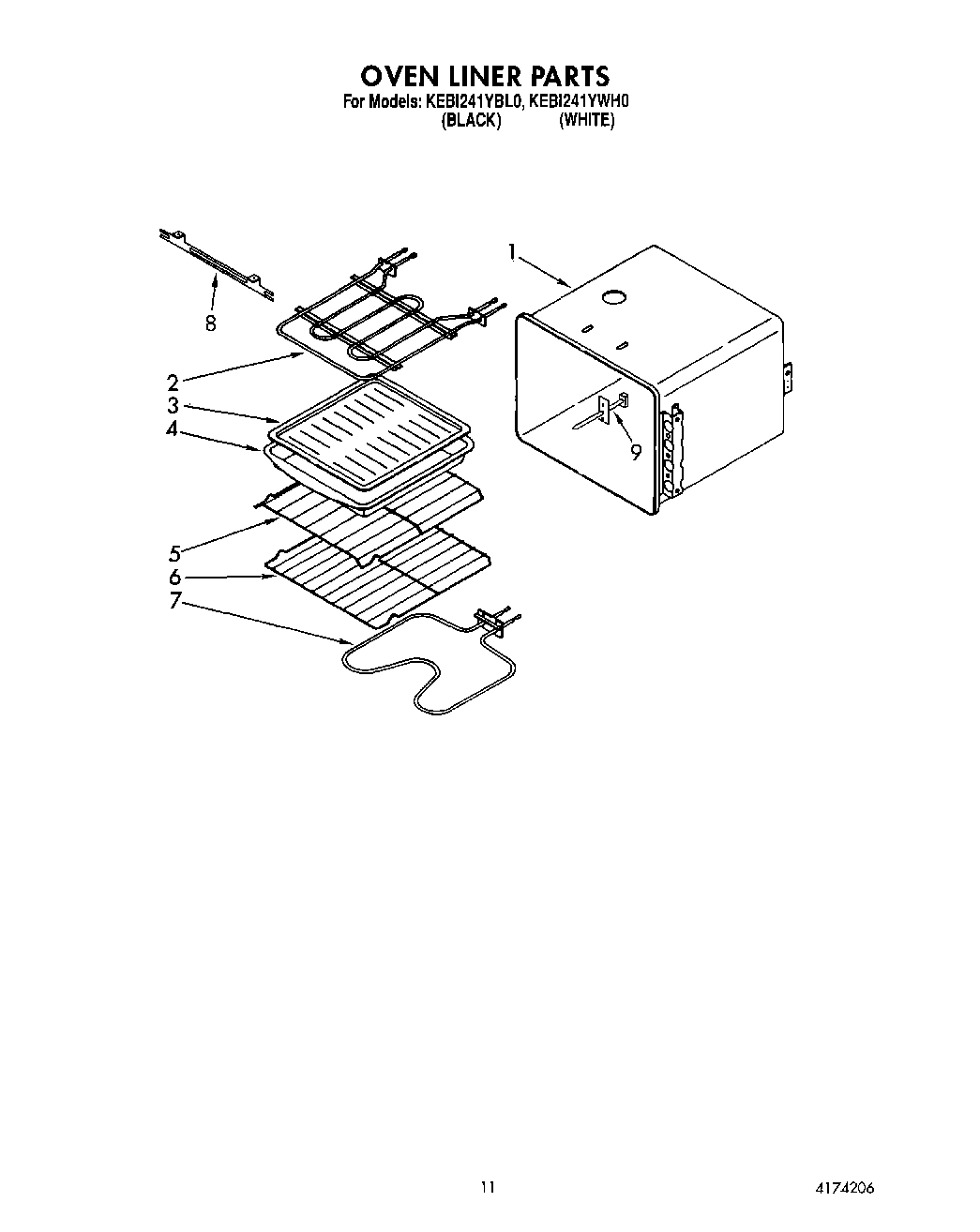

07 - OVEN LINER
Common parts from model Whirlpool KEBI241YBL0
Tech Sheet WPL LIT3182129 Contact Us For Availability
Use & Care Guide WPL LIT3182134 Contact Us For Availability
Installation Instructions WPL LIT3183659 Contact Us For Availability
Repair Parts List WPL LIT4174206 Contact Us For Availability
1
Membrane, Switch (Black) WPL 3181774 Contact Us For Availability
1
Membrane, Switch (White) WPL 3184776 Contact Us For Availability
1
Wiring Harness (Door Switch) Upper) WPL 3183655 Contact Us For Availability
1
Liner, Door WPL 3177598 Contact Us For Availability
1
Screw, Black (2) WPL 3178001 Contact Us For Availability
1
Liner, Door WPL 3177597 Contact Us For Availability
1
Module, Top WPL 3183747 Contact Us For Availability
1
Liner, Oven WPL 3177491 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3181889 Contact Us For Availability
2
Wiring Harness (Door Switch) Lower) WPL 3183656 Contact Us For Availability
2
Seal, Window WPL 3178584 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Screw (2) WPL 308043 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
3
Microcomputer WPL 3181704 Contact Us For Availability
3
Wiring Harness (Lower Oven) WPL 3183362 Contact Us For Availability
3
Spacer, Window WPL 3179694 Contact Us For Availability
3
Cabinet, Back WPL 3177624 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
4
Retainer, Bracket WPL 3183705 Contact Us For Availability
4
Wiring Harness (Upper Oven) WPL 3184220 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Switch, latch WPL 3183784 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
5
Clip, Retainer (3) WPL 3182985 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
5
Retainer, Insulation WPL 3177719 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Rack, Offset WPL 3185310 Contact Us For Availability
6
Trim, Door (2) WPL 3182162 Contact Us For Availability
6
Bracket, Glass Mtg. WPL 4163855 Contact Us For Availability
6
Cabinet, Top WPL 3178139 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Rack, Oven WPL 3185309 Contact Us For Availability
7
Door, Latch Handle (Screw (2)) WPL 3179847 Contact Us For Availability
7
Door, Latch Handle (Black) WPL 3182150 Contact Us For Availability
7
Door, Latch Handle (White) WPL 3182153 Contact Us For Availability
7
Glass, Panel (Black) WPL 3181549 Contact Us For Availability
7
Glass, Panel (White) WPL 3181551 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
8
Trim, Panel WPL 3183701 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
Side, Cabinet (R.H. & L.H.) WPL 3177440 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Bracket, Element WPL 3180694 Contact Us For Availability
9
Screw (2) WPL 3179117 Contact Us For Availability
9
Screw (2) WPL 3182939 Contact Us For Availability
9
Bracket (2) WPL 3184321 Contact Us For Availability
9
Frame, Door WPL 3181403 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Screw (2) WPL 3184037 Contact Us For Availability
9
Spacer, Latch Handle WPL 3184040 Contact Us For Availability
9
Sensor, Heat WPL 3148440 Contact Us For Availability
10
Frame, Control Panel WPL 3182147 Contact Us For Availability
10
Harness, Wire (Latch Assy.) WPL 3183976 Contact Us For Availability
10
Handle, Door (Screw (2)) WPL 3181637 Contact Us For Availability
10
Handle, Door (Black) WPL 3182164 Contact Us For Availability
10
Handle, Door (White) WPL 3182167 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
11
Screw (3) WPL 4159445 Contact Us For Availability
11
Spacer (2) WPL 3182138 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
12
Clip, Channel Glass (Sides) WPL 3179507 Contact Us For Availability
12
Clip, Channel Glass (Bottom) WPL 3179508 Contact Us For Availability
12
Seal, foam WPL 313755 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
13
Nozzel, Vent Bottom (2) WPL 3183954 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
14
Frame, Front WPL 3177698 Contact Us For Availability
14
Nozzel, Vent Top (2) WPL 3183955 Contact Us For Availability
15
Bushing, Door Handle WPL 3181651 Contact Us For Availability
15
Seal, Door WPL 3179814 Contact Us For Availability
15
Box, Vent WPL 3183999 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
Bumper, Door Glass WPL 3181701 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
19
Bottom, Module WPL 3177622 Contact Us For Availability
19
Tube, Vent WPL 3183791 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
21
Shield, Heat WPL 3183799 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
22
Screw, 8-18 X 3/4 (4) WPL 3179116 Contact Us For Availability
22
Screw, Drive WPL 4173231 Contact Us For Availability
22
Box, Vent Lower Oven WPL 3183953 Contact Us For Availability
23
Cover, Latch Mtg. WPL 3180126 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
End, Box Vent WPL 3183965 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Screw (6) WPL 3179795 Contact Us For Availability
24
Tube, Vent Lower Oven WPL 3183793 Contact Us For Availability
25
Screw WPL 3148443 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
25
Clamp, Tube WPL 3183532 Contact Us For Availability
26
Back, Module WPL 3177559 Contact Us For Availability
27
Liner, Oven WPL 3177470 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
28
Tube, Vent Male WPL 3182159 Contact Us For Availability
28
Screw (4) WPL 3178000 Contact Us For Availability
29
Button, Plug WPL 3185109 Contact Us For Availability
29
Tube, Vent Female WPL 3182160 Contact Us For Availability
30
Button, Plug WPL 3185085 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Cover, Cap Tube WPL 4168203 Contact Us For Availability
33
Screw (8) WPL 3179776 Contact Us For Availability
34
Vent, Middle Trim (Screw (2)) WPL 4168863 Contact Us For Availability
34
Trim, Lower Vent WPL 3177788 Contact Us For Availability
34
Vent, Middle Trim (Screw (4)) WPL 3180022 Contact Us For Availability
34
Vent, Middle Trim (Black) WPL 3181966 Contact Us For Availability
34
Vent, Middle Trim (White) WPL 3181969 Contact Us For Availability
40
Insert, Middle Vent Trim WPL 3181733 Contact Us For Availability
40
Screw, Black (2) WPL 4173601 Contact Us For Availability
41
WPL 3177865 WPL 3177865 Contact Us For Availability
41
WPL 3177870 WPL 3177870 Contact Us For Availability
41
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
41
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
41
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
41
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
41
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
41
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
41
14 Ga. 150~c Rating (White) WPL 242826 Contact Us For Availability
41
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
41
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
41
16 Ga. 80~c Rating (Blue) WPL 242829 Contact Us For Availability
41
Wir WPL 242830 Contact Us For Availability
41
WPL 242832 WPL 242832 Contact Us For Availability
41
WPL 261890 WPL 261890 Contact Us For Availability
41
WPL 261891 WPL 261891 Contact Us For Availability
41
WPL 285365 WPL 285365 Contact Us For Availability
41
WPL 285366 WPL 285366 Contact Us For Availability
41
WPL 285367 WPL 285367 Contact Us For Availability
41
WPL 285368 WPL 285368 Contact Us For Availability
41
WPL 3171507 WPL 3171507 Contact Us For Availability
41
WPL 3182584 WPL 3182584 Contact Us For Availability
41
WPL 350806 WPL 350806 Contact Us For Availability
41
WPL 350941 WPL 350941 Contact Us For Availability
41
WPL 591014 WPL 591014 Contact Us For Availability
41
WPL 72112 WPL 72112 Contact Us For Availability
41
WPL 799832 WPL 799832 Contact Us For Availability
41
WPL 832985 WPL 832985 Contact Us For Availability
41
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
