Model Whirlpool KEBI241XBL0 – Common Parts & Diagrams
04 - LOWER OVEN
07 - COMPONENT SHELF AND LATCH

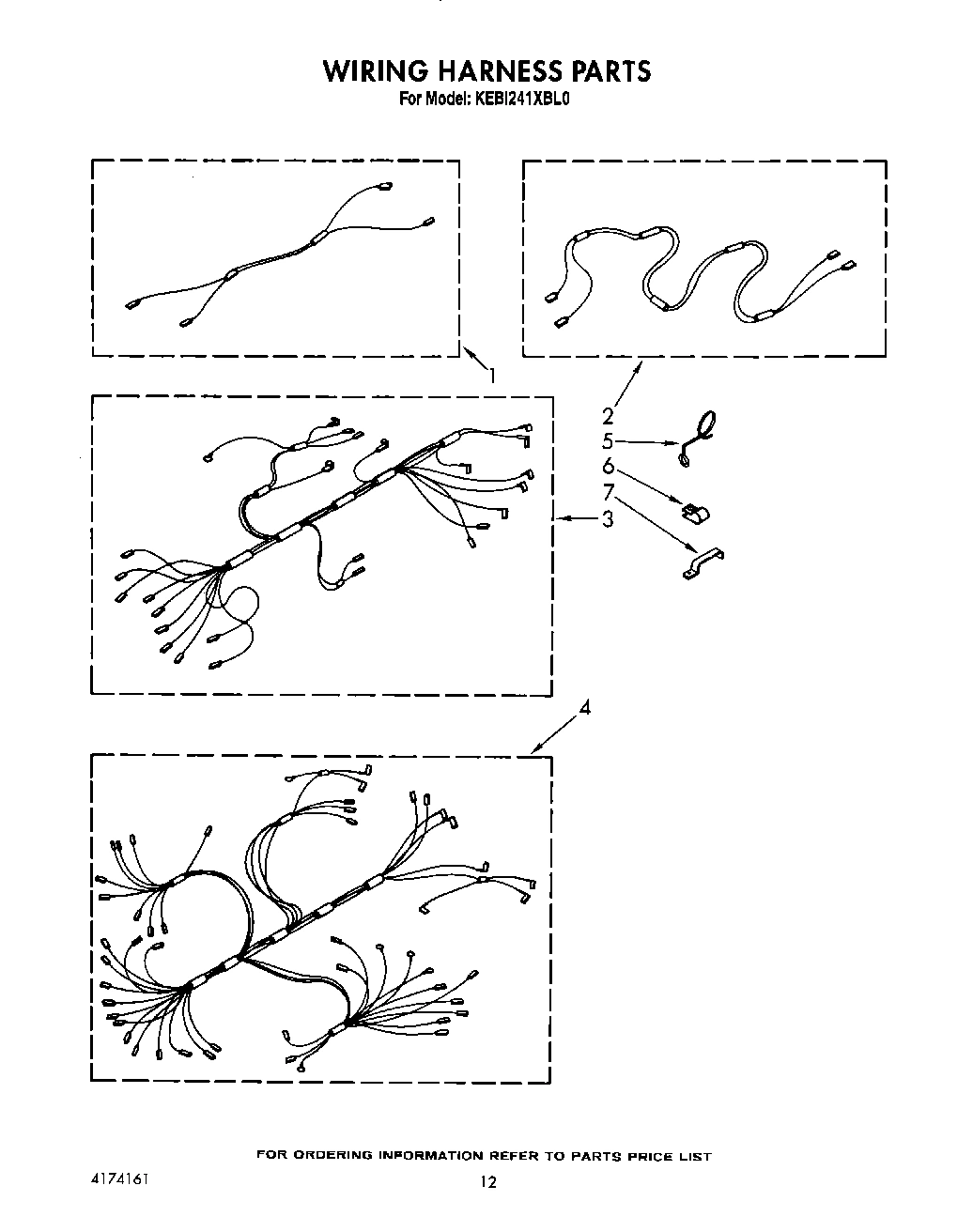

09 - WIRING HARNESS

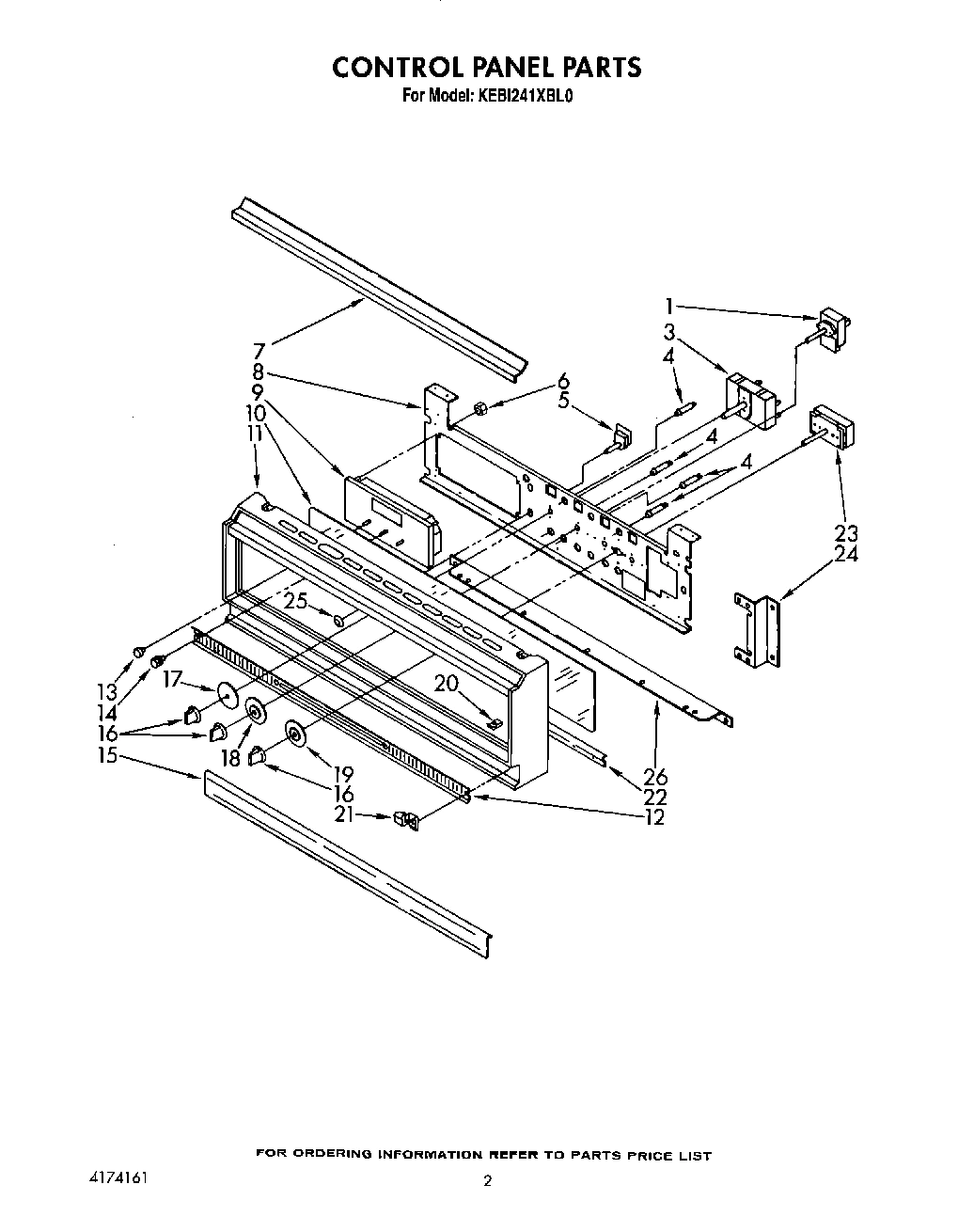

02 - CONTROL PANEL, LIT/OPTIONAL

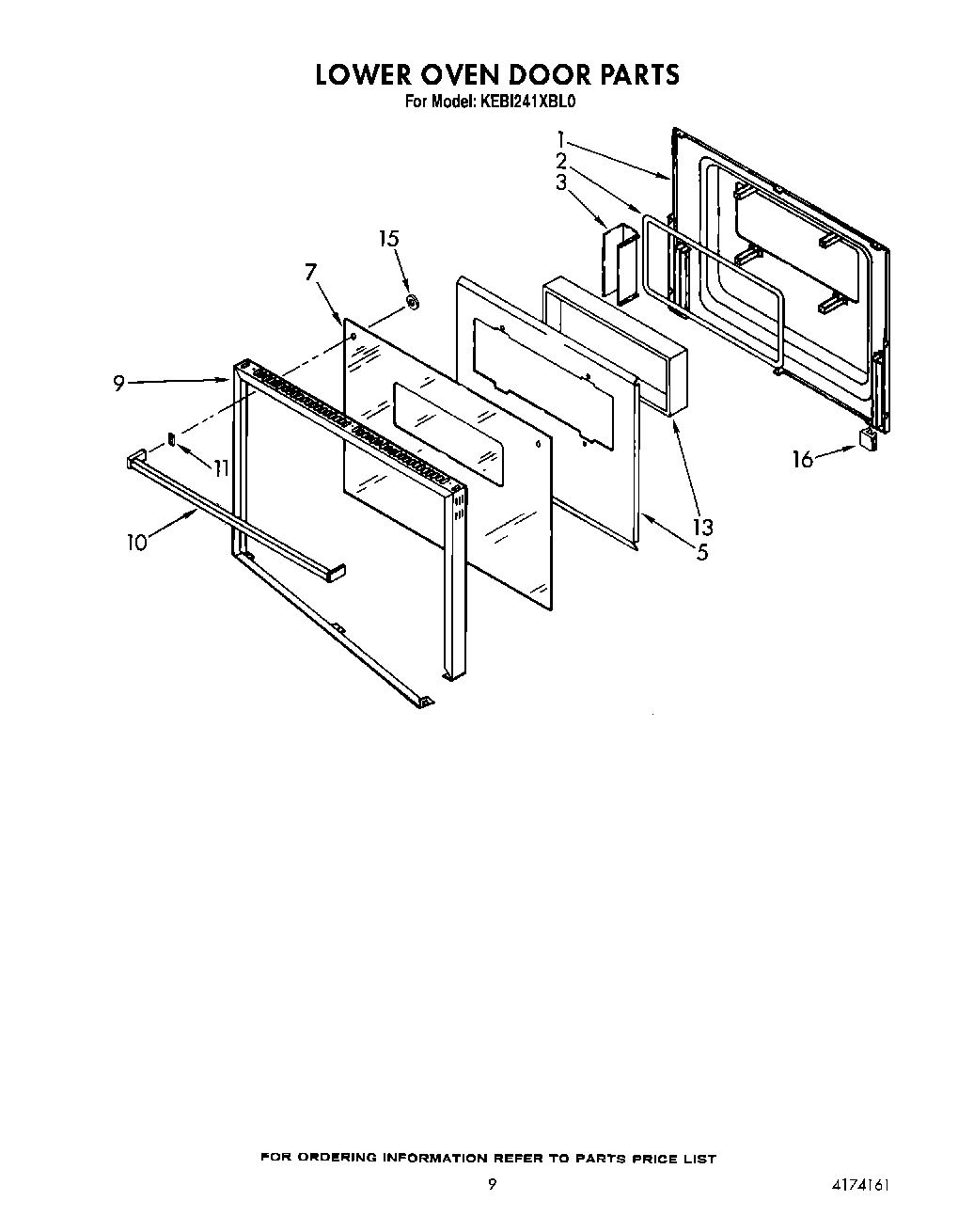

06 - LOWER OVEN DOOR

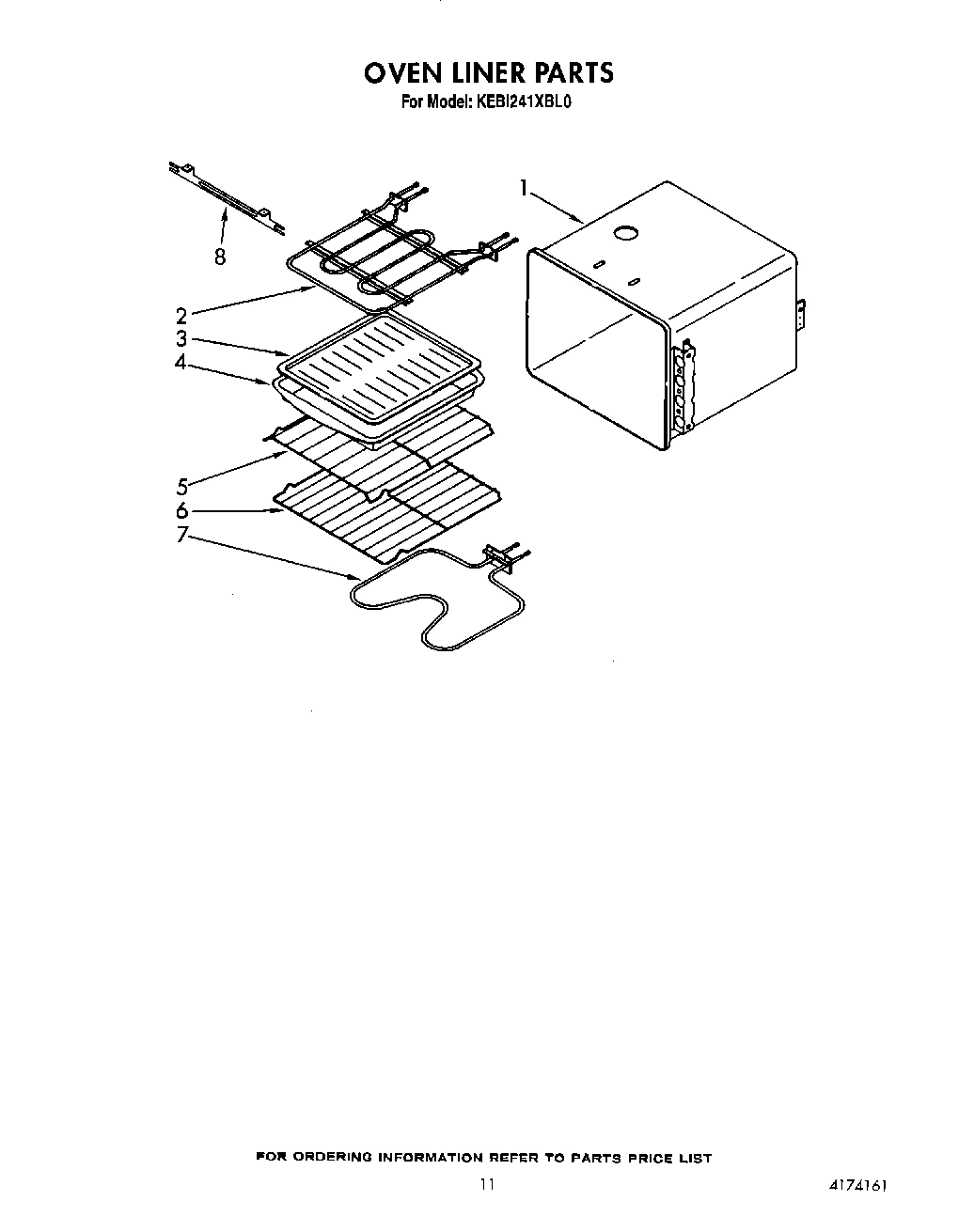

08 - OVEN LINER

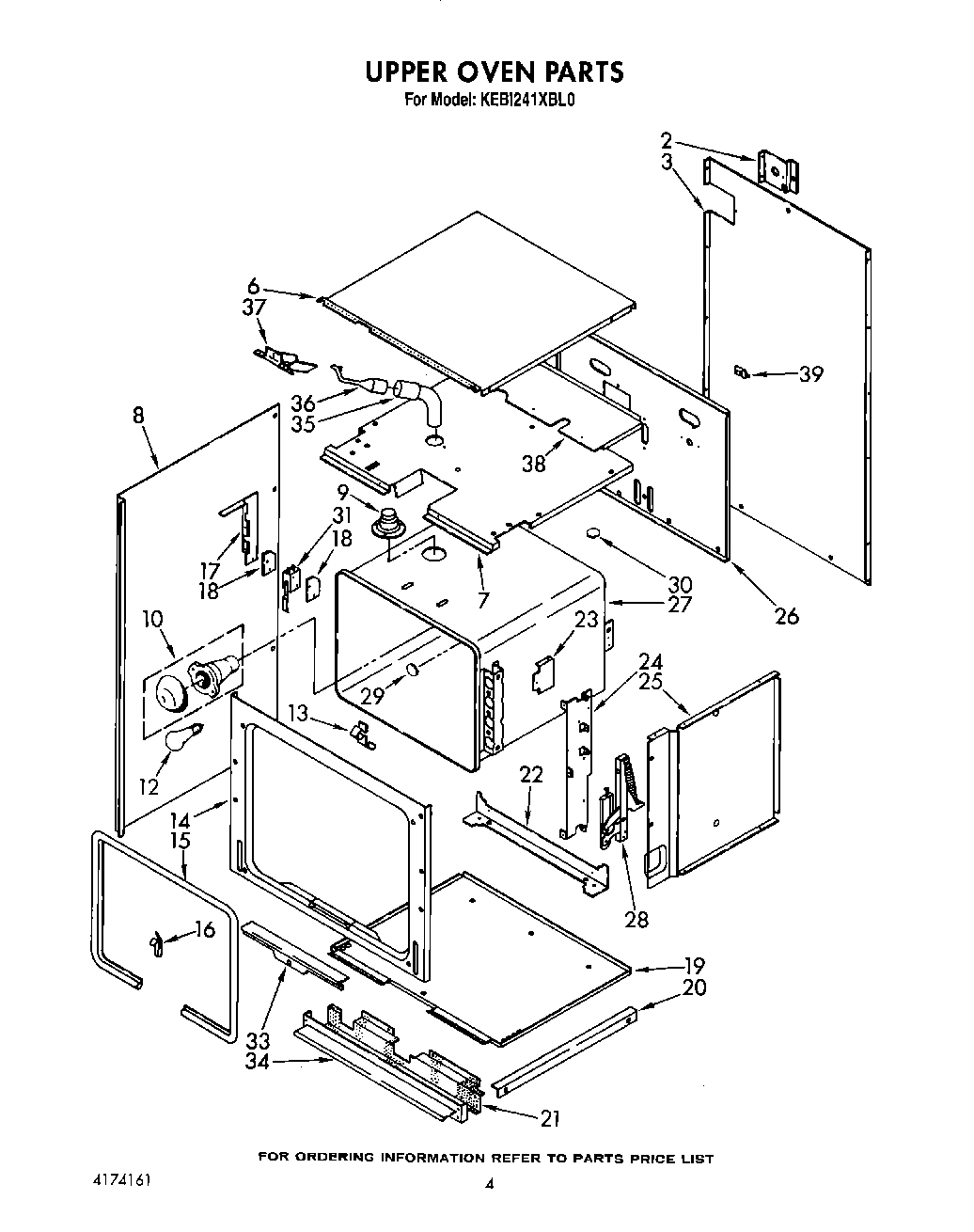

03 - UPPER OVEN, OPTIONAL

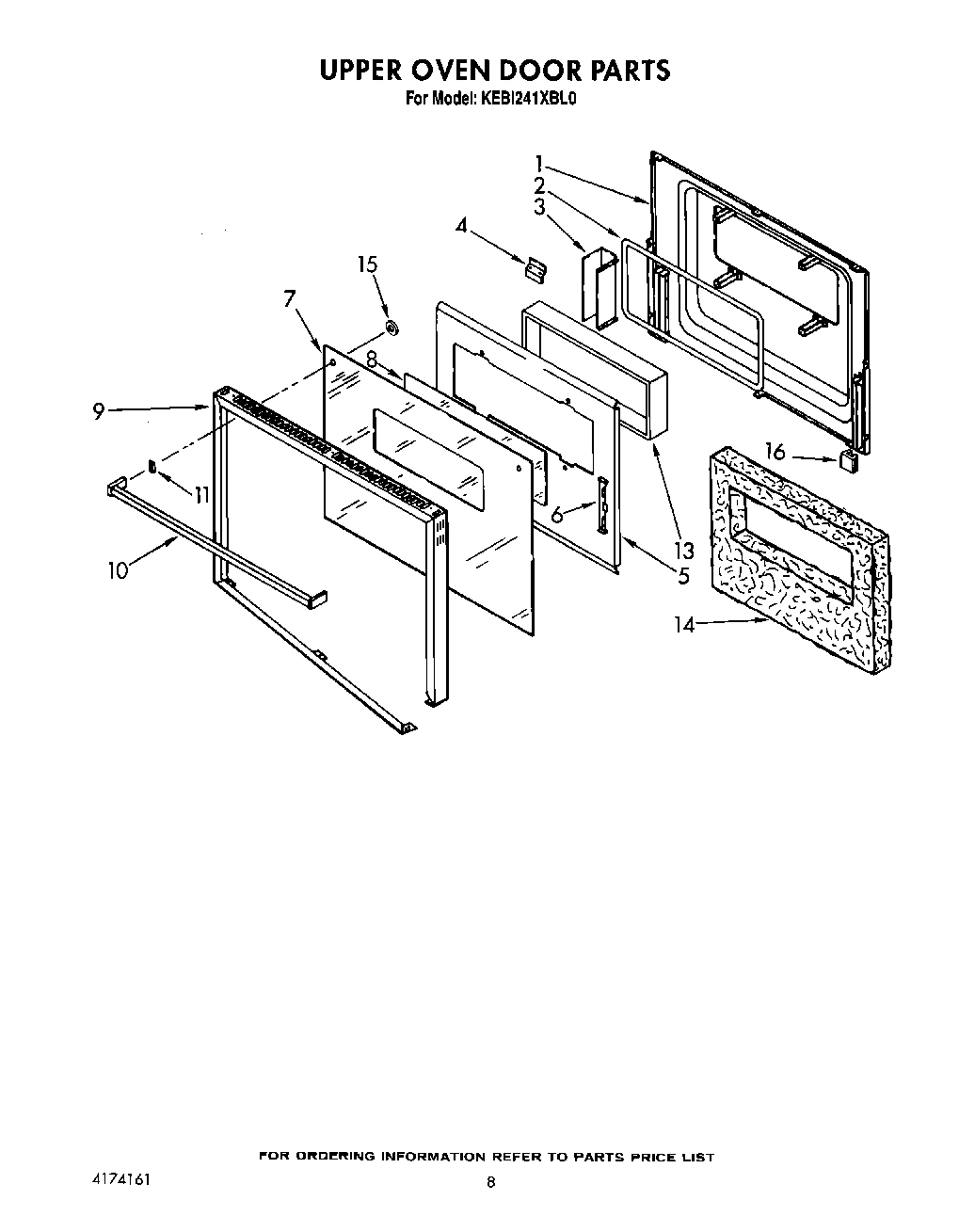

05 - UPPER OVEN DOOR
Common parts from model Whirlpool KEBI241XBL0
Installation Instructions WPL LIT3178195 Contact Us For Availability
Tech Sheet WPL LIT3178202 Contact Us For Availability
Use & Care Guide WPL LIT3181350 Contact Us For Availability
Repair Parts List WPL LIT4174161 Contact Us For Availability
1
Screw (6) WPL 4168863 Contact Us For Availability
1
Shelf, Component WPL 3178090 Contact Us For Availability
1
Wiring Harness (Door Switch) Upper) WPL 3179941 Contact Us For Availability
1
Thermostat, upper WPL 3178273 Contact Us For Availability
1
Liner, Door WPL 3177598 Contact Us For Availability
1
Screw, Black (2) WPL 3178001 Contact Us For Availability
1
Liner, Door WPL 3177597 Contact Us For Availability
2
Wiring Harness (Door Switch) Lower) WPL 3179962 Contact Us For Availability
2
Seal, Window WPL 3178584 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
3
Wiring Harness (Lower Oven) WPL 3179917 Contact Us For Availability
3
Switch, Selector WPL 3178234 Contact Us For Availability
3
Spacer, Window WPL 3179694 Contact Us For Availability
3
Cabinet, Back WPL 3177624 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Wiring Harness (Upper Oven) WPL 3179918 Contact Us For Availability
4
Light, Indicator WPL 4168598 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
5
Switch, Oven Light WPL 3179891 Contact Us For Availability
5
Retainer, Insulation WPL 3177719 Contact Us For Availability
5
Rack, Offset WPL 3180867 Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Nut, Timer (4) WPL 98788 Contact Us For Availability
6
Rack, Oven WPL 3180866 Contact Us For Availability
6
Cabinet, Top WPL 3178137 Contact Us For Availability
6
Bracket, Glass Mtg. WPL 4163855 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
7
Screw (2) WPL 3179950 Contact Us For Availability
7
Insert, Top WPL 4173312 Contact Us For Availability
7
Glass, Door WPL 3181549 Contact Us For Availability
7
Top, Module WPL 3177437 Contact Us For Availability
8
Knob, Latch Handle WPL 311253 Contact Us For Availability
8
Bracket, Control WPL 3177804 Contact Us For Availability
8
Bracket, Element WPL 3180694 Contact Us For Availability
8
Side, Cabinet (R.H. & L.H.) WPL 3177440 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
9
Spacer, Handle WPL 3177986 Contact Us For Availability
9
Timer, Electronic WPL 3148111 Contact Us For Availability
9
Frame, Door WPL 3181403 Contact Us For Availability
9
Screw (3) WPL 3179117 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Glass, Control Panel WPL 3181290 Contact Us For Availability
10
Handle, Door WPL 3178647 Contact Us For Availability
10
Screw (2) WPL 3181637 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Frame, Control Panel WPL 3177761 Contact Us For Availability
11
Spacer (2) WPL 3178740 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Insert, Vent WPL 3179915 Contact Us For Availability
13
Knob, Timer WPL 3179705 Contact Us For Availability
13
Window Pack WPL 4169572 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Support, Latch WPL 3178232 Contact Us For Availability
14
Knob, Timer (2) WPL 3179704 Contact Us For Availability
14
Frame, Front WPL 3177698 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
15
Door, Latch Handle WPL 3177973 Contact Us For Availability
15
Bushing, Door Handle WPL 3181651 Contact Us For Availability
15
Seal, Door WPL 3179814 Contact Us For Availability
16
Knob, Control WPL 3178400 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
Bumper, Door Glass WPL 3171701 Contact Us For Availability
17
Disc, Selector WPL 3178262 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
18
Disc, Thermostat (Self Clean) WPL 3178477 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Disc, Thermostat (Standard Clean) WPL 3178480 Contact Us For Availability
19
Bottom, Module WPL 3177622 Contact Us For Availability
20
nut (3) WPL 4168838 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
Screw (2) WPL 3179847 Contact Us For Availability
21
Hinge, Door (2) WPL 3177971 Contact Us For Availability
21
Screen, Wire Mesh WPL 3180889 Contact Us For Availability
22
Screw (6) WPL 4159456 Contact Us For Availability
22
Retainer, Glass WPL 4167590 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Screw (2) WPL 3178002 Contact Us For Availability
23
Thermostat, Lower WPL 3178283 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Bracket, Control Panel WPL 3177747 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
25
Bezel, Switch WPL 4169372 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Support, Frame WPL 3177651 Contact Us For Availability
26
Back, Module WPL 3177558 Contact Us For Availability
27
Liner, Oven WPL 3180803 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
28
Tube, Vent WPL 3179945 Contact Us For Availability
28
Screw (4) WPL 3178000 Contact Us For Availability
29
Button, Plug WPL 3185109 Contact Us For Availability
29
Tube, Vent WPL 3179944 Contact Us For Availability
30
Button, Plug WPL 3185108 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
32
Screw (8) WPL 3179776 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Trim, Lower Vent WPL 3177788 Contact Us For Availability
34
Vent, Middle Trim WPL 3177756 Contact Us For Availability
34
Screw (4) WPL 3180022 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3180891 Contact Us For Availability
37
Shield, Vent WPL 3180890 Contact Us For Availability
38
Extension, Shelf WPL 3178133 Contact Us For Availability
39
WPL 799344 WPL 799344 Contact Us For Availability
39
WPL 4159445 WPL 4159445 Contact Us For Availability
39
WPL 4168203 WPL 4168203 Contact Us For Availability
39
WPL 3177865 WPL 3177865 Contact Us For Availability
39
WPL 3177870 WPL 3177870 Contact Us For Availability
39
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
39
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
39
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
39
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
39
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
39
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
39
14 Ga. 150~c Rating (White) WPL 242826 Contact Us For Availability
39
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
39
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
39
12 WPL 242829 Contact Us For Availability
39
WPL 242830 WPL 242830 Contact Us For Availability
39
WPL 242832 WPL 242832 Contact Us For Availability
39
WPL 261881 WPL 261881 Contact Us For Availability
39
WPL 261890 WPL 261890 Contact Us For Availability
39
WPL 261891 WPL 261891 Contact Us For Availability
39
WPL 285365 WPL 285365 Contact Us For Availability
39
WPL 285366 WPL 285366 Contact Us For Availability
39
WPL 285367 WPL 285367 Contact Us For Availability
39
WPL 285368 WPL 285368 Contact Us For Availability
39
WPL 317150 WPL 317150 Contact Us For Availability
39
WPL 350806 WPL 350806 Contact Us For Availability
39
WPL 350941 WPL 350941 Contact Us For Availability
39
WPL 591014 WPL 591014 Contact Us For Availability
39
WPL 72112 WPL 72112 Contact Us For Availability
39
WPL 799832 WPL 799832 Contact Us For Availability
39
WPL 832985 WPL 832985 Contact Us For Availability
39
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
