Model Whirlpool KEBI241WBL1 – Common Parts & Diagrams

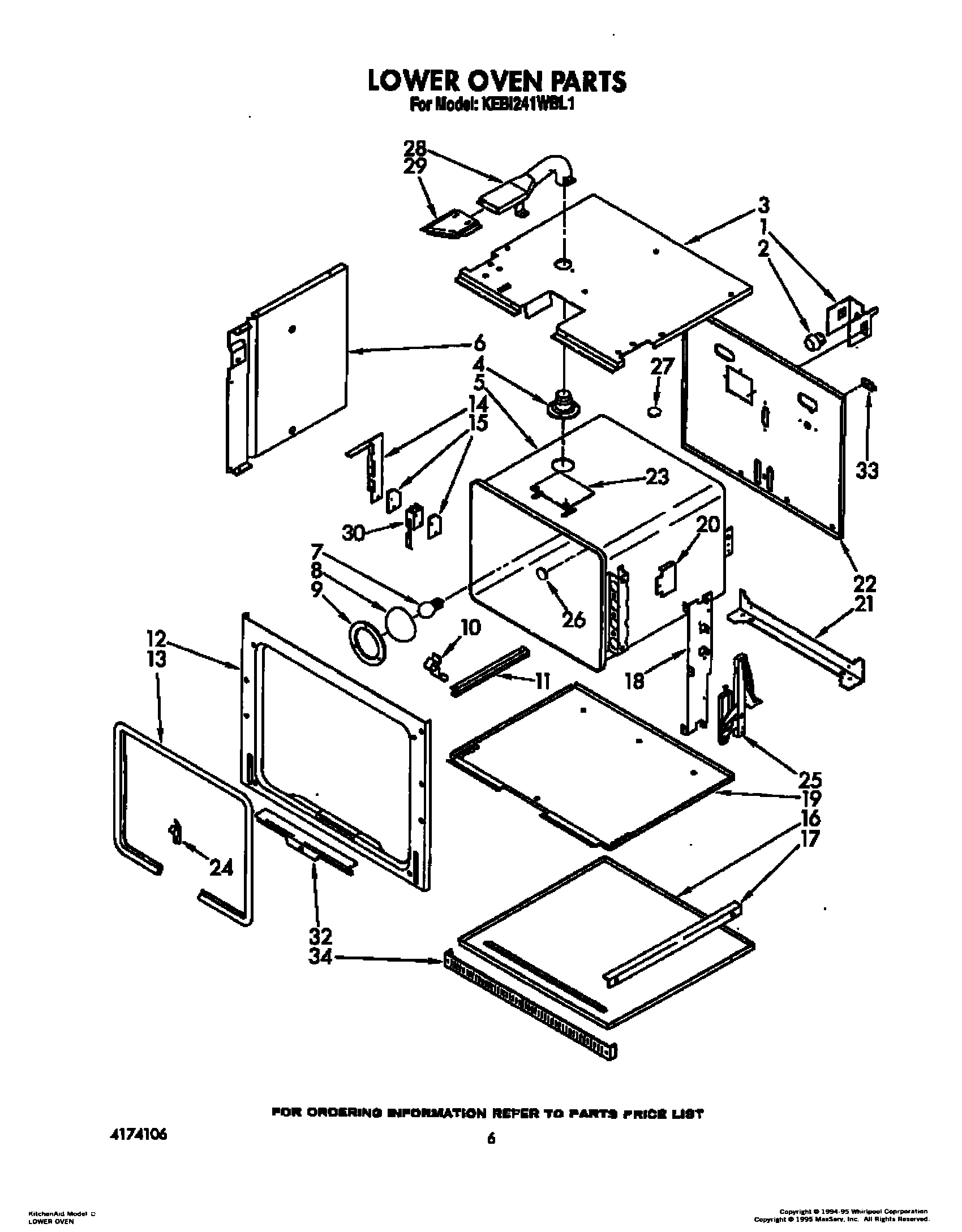

04 - LOWER OVEN

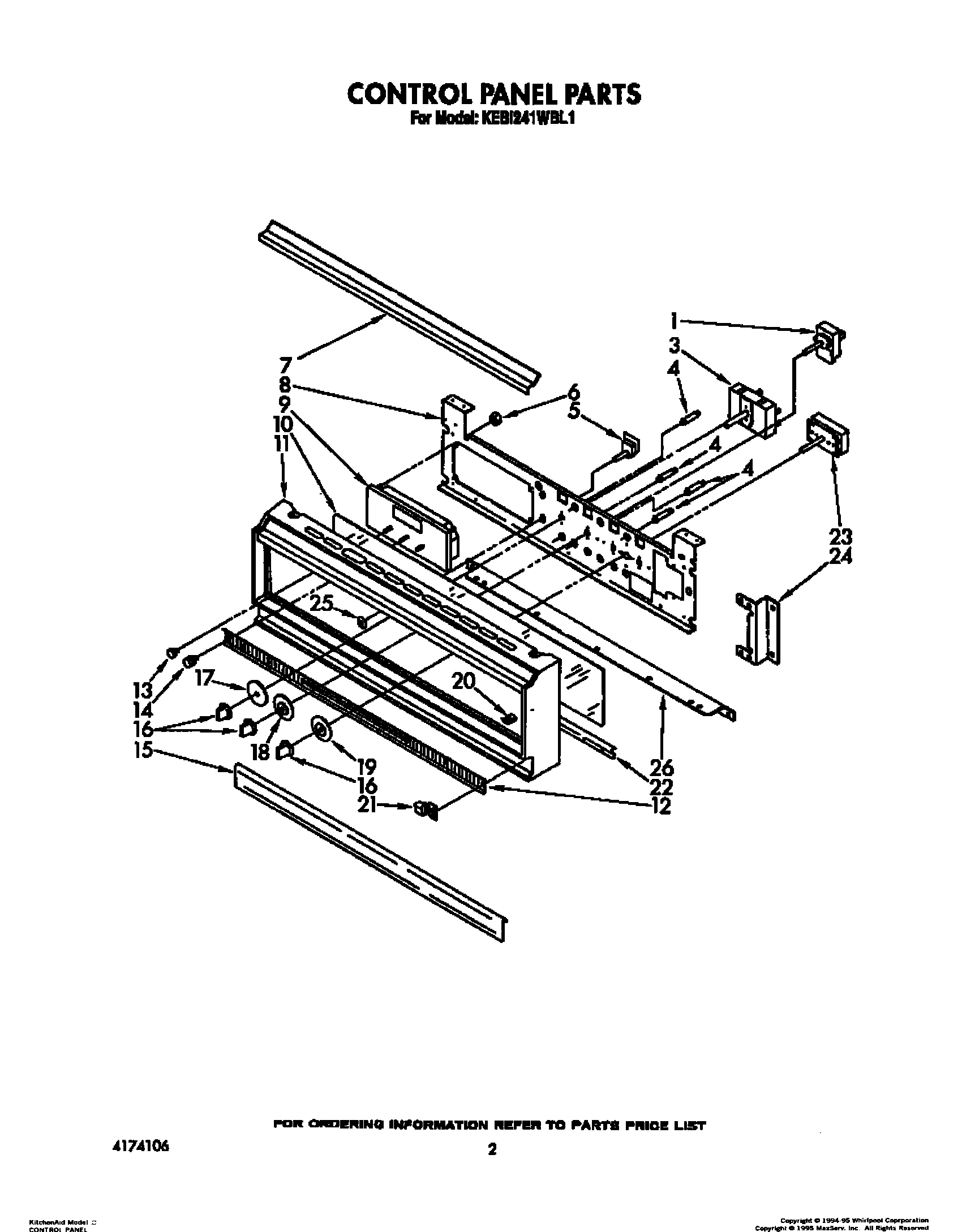

02 - CONTROL PANEL, LIT/OPTIONAL
07 - COMPONENT SHELF AND LATCH
08 - OVEN LINER
09 - WIRING HARNESS
03 - UPPER OVEN
05 - UPPER OVEN DOOR
06 - LOWER OVEN DOOR
01 - COVER
Common parts from model Whirlpool KEBI241WBL1
Guide, Use & Care WPL LIT3177058 Contact Us For Availability
Installation Instructions WPL LIT3178195 Contact Us For Availability
Tech Sheet WPL LIT3178202 Contact Us For Availability
Repair Parts List WPL LIT4174106 Contact Us For Availability
1
Screw (6) WPL 4168863 Contact Us For Availability
1
Thermostat, upper WPL 3178273 Contact Us For Availability
1
Shelf, Component WPL 3178090 Contact Us For Availability
1
Harness Wire (Door Switch Upper) WPL 3179941 Contact Us For Availability
1
Liner, Door WPL 3177598 Contact Us For Availability
1
Screw (2) WPL 3178001 Contact Us For Availability
1
Liner, Door WPL 3177597 Contact Us For Availability
2
Element, Broil WPL 3180164 Contact Us For Availability
2
Harness Wire (Door Switch Lower) WPL 3179962 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Seal, Window WPL 3178584 Contact Us For Availability
3
Switch, Selector WPL 3178234 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
3
Wiring Harness (Lower Oven) WPL 3179917 Contact Us For Availability
3
Cabinet, Back WPL 3177624 Contact Us For Availability
3
Spacer, Window WPL 3179694 Contact Us For Availability
4
Light, Indicator WPL 4168598 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Harness Wire (Upper Oven) WPL 3179918 Contact Us For Availability
4
Housing, Light WPL 3177446 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Window Pack WPL 4169572 Contact Us For Availability
5
Switch, Oven Light WPL 3179891 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Rack, Offset WPL 3178098 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
5
Socket, Light WPL 3177981 Contact Us For Availability
5
Retainer, Insulation WPL 3177719 Contact Us For Availability
6
Nut, Timer (4) WPL 307143 Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Rack, Oven WPL 3178110 Contact Us For Availability
6
Cabinet, Top WPL 3178137 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
6
Glass, Door WPL 3177767 Contact Us For Availability
7
Insert, Top WPL 4173312 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
7
Screw (2) WPL 3179950 Contact Us For Availability
7
Top, Module WPL 3177437 Contact Us For Availability
7
Frame, Door WPL 3177672 Contact Us For Availability
8
Bracket, Control WPL 3177804 Contact Us For Availability
8
Knob, Latch Handle WPL 311253 Contact Us For Availability
8
Side, Cabinet (R.H. & L.H.) WPL 3177440 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
Handle, Door WPL 3178643 Contact Us For Availability
8
Screw (2) WPL 3179114 Contact Us For Availability
9
Timer, Electronic WPL 4173071 Contact Us For Availability
9
Spacer, Handle WPL 3177986 Contact Us For Availability
9
Tube, Vent WPL 4168126 Contact Us For Availability
10
Screw (12) WPL 3179795 Contact Us For Availability
10
Glass, Control Panel WPL 3177947 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Retainer, Glass WPL 3177447 Contact Us For Availability
10
Retainer, Glass WPL 4167975 Contact Us For Availability
11
Frame, Control Panel WPL 3177759 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Glass, Oven Light WPL 4166866 Contact Us For Availability
12
Frame, Door WPL 3177702 Contact Us For Availability
12
Insert, Vent WPL 3179915 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
13
Knob, Timer WPL 3177122 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Knob, Timer (2) WPL 3177121 Contact Us For Availability
14
Support, Latch WPL 3178232 Contact Us For Availability
14
Frame, Front WPL 3177698 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
15
Seal, Door WPL 3179814 Contact Us For Availability
15
Door, Latch Handle WPL 3177973 Contact Us For Availability
16
Knob, Control WPL 3178400 Contact Us For Availability
16
Bottom, Oven WPL 3177552 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Disc, Selector WPL 3178262 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
18
Disc, Thermostat (Self Clean) WPL 3178477 Contact Us For Availability
19
Bottom, Modual WPL 3177622 Contact Us For Availability
19
Disc, Thermostat (Standard Clean) WPL 3178480 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
20
nut (3) WPL 4168838 Contact Us For Availability
21
Support, Element WPL 4168217 Contact Us For Availability
21
Screw (2) WPL 3179117 Contact Us For Availability
21
Screw (2) WPL 3179847 Contact Us For Availability
21
Hinge, Door (2) WPL 3177971 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
22
Screw (6) WPL 4159456 Contact Us For Availability
22
Retainer, Glass WPL 4167590 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Cover, Latch Mtg. WPL 3180126 Contact Us For Availability
23
Screw (2) WPL 3178002 Contact Us For Availability
23
Thermostat, Lower WPL 3178283 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Bracket, Control Panel WPL 3177747 Contact Us For Availability
25
Bezel, Switch WPL 4169372 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Back, Module WPL 3177558 Contact Us For Availability
26
Support, Frame WPL 3177651 Contact Us For Availability
27
Liner, Oven WPL 3177465 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
28
Tube, Vent WPL 3179945 Contact Us For Availability
29
Button, Plug WPL 3185108 Contact Us For Availability
29
Tube, Vent WPL 3179944 Contact Us For Availability
30
Button, Plug WPL 3185109 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
32
Screw (8) WPL 3179776 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Trim, Lower Vent WPL 3177788 Contact Us For Availability
34
Vent, Middle Trim WPL 3177756 Contact Us For Availability
34
Screw (4) WPL 3180022 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3179923 Contact Us For Availability
37
Shield, Vent WPL 3178614 Contact Us For Availability
38
Extension, Shelf WPL 3178133 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
39
Insulation, Wrap WPL 3177865 Contact Us For Availability
39
Insulation, Back WPL 3177870 Contact Us For Availability
× ![]()
