Model Whirlpool KEBI241BWH2 – Common Parts & Diagrams

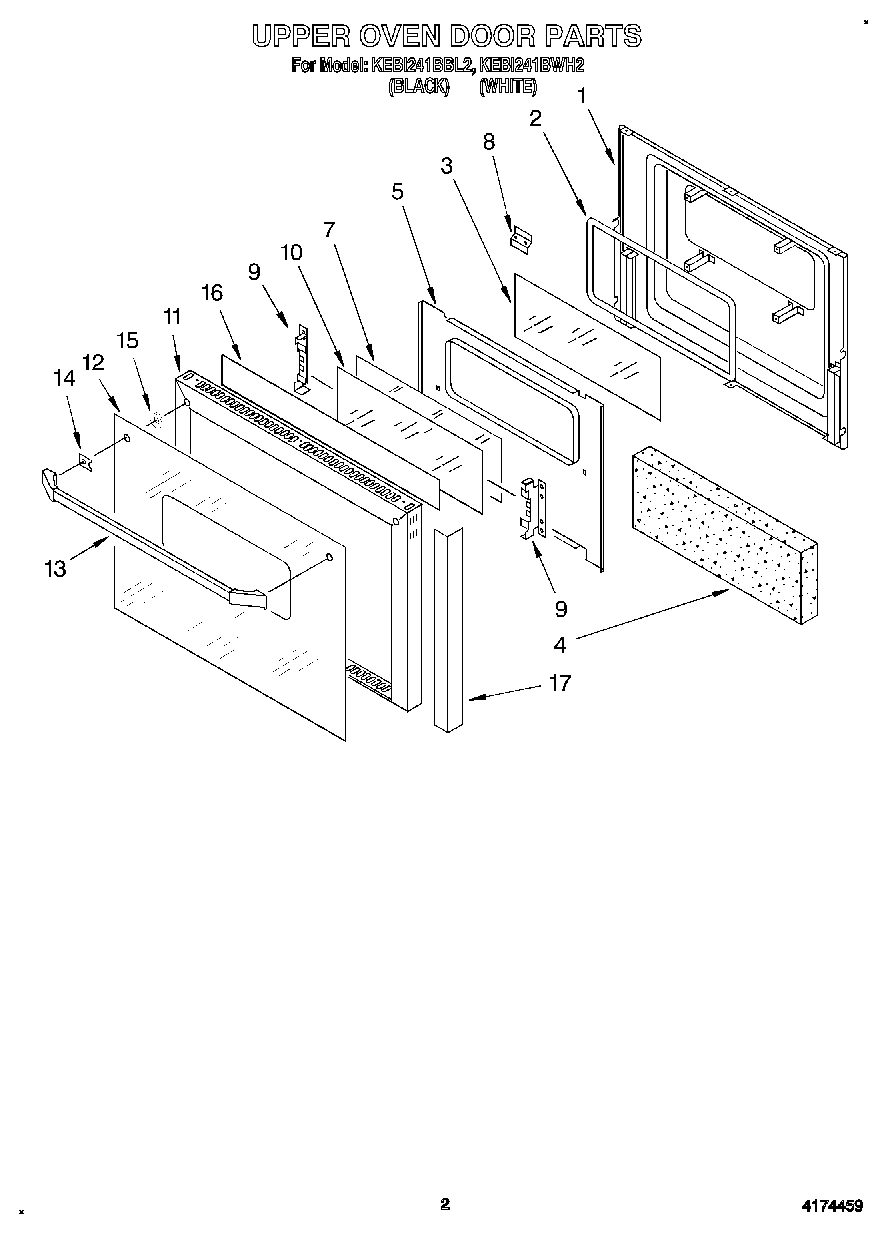

02 - UPPER OVEN DOOR

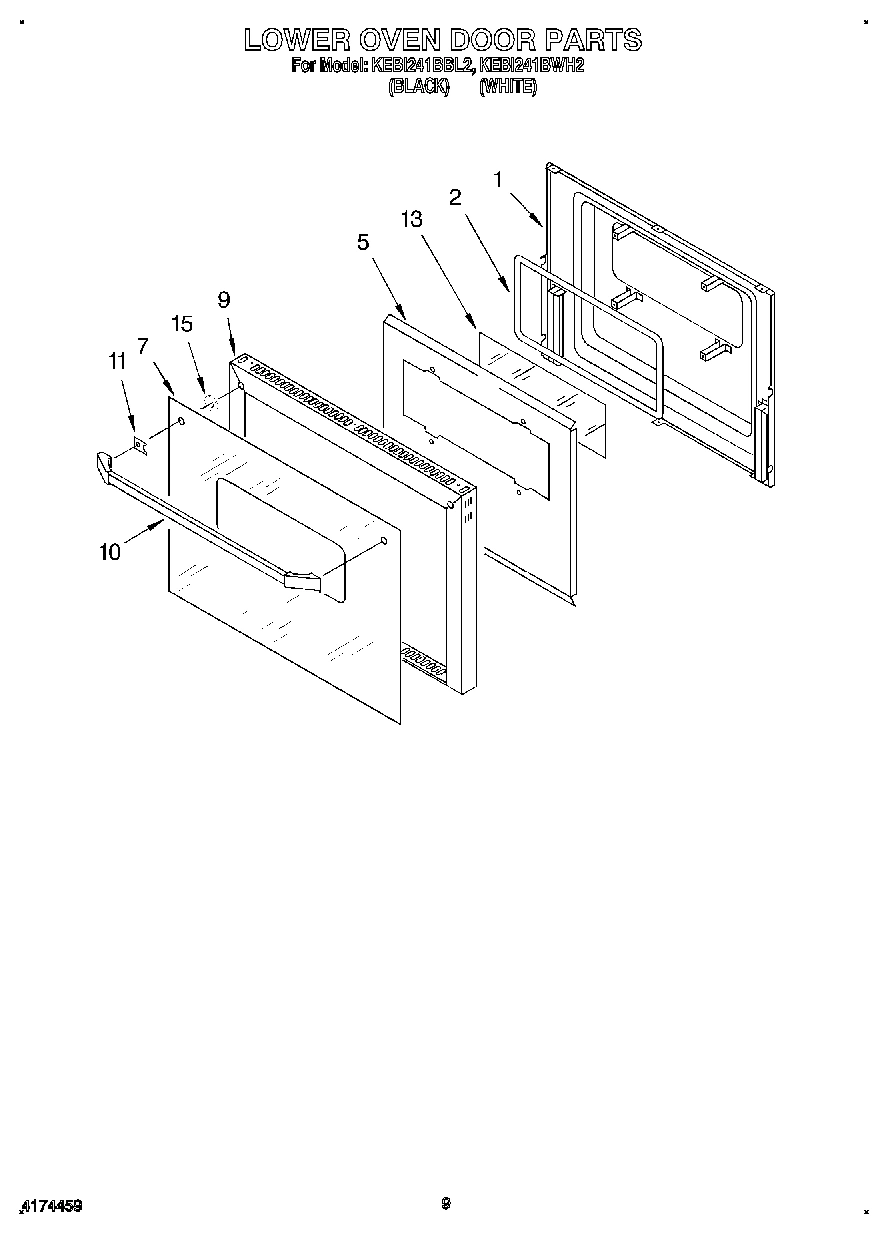

06 - LOWER OVEN DOOR

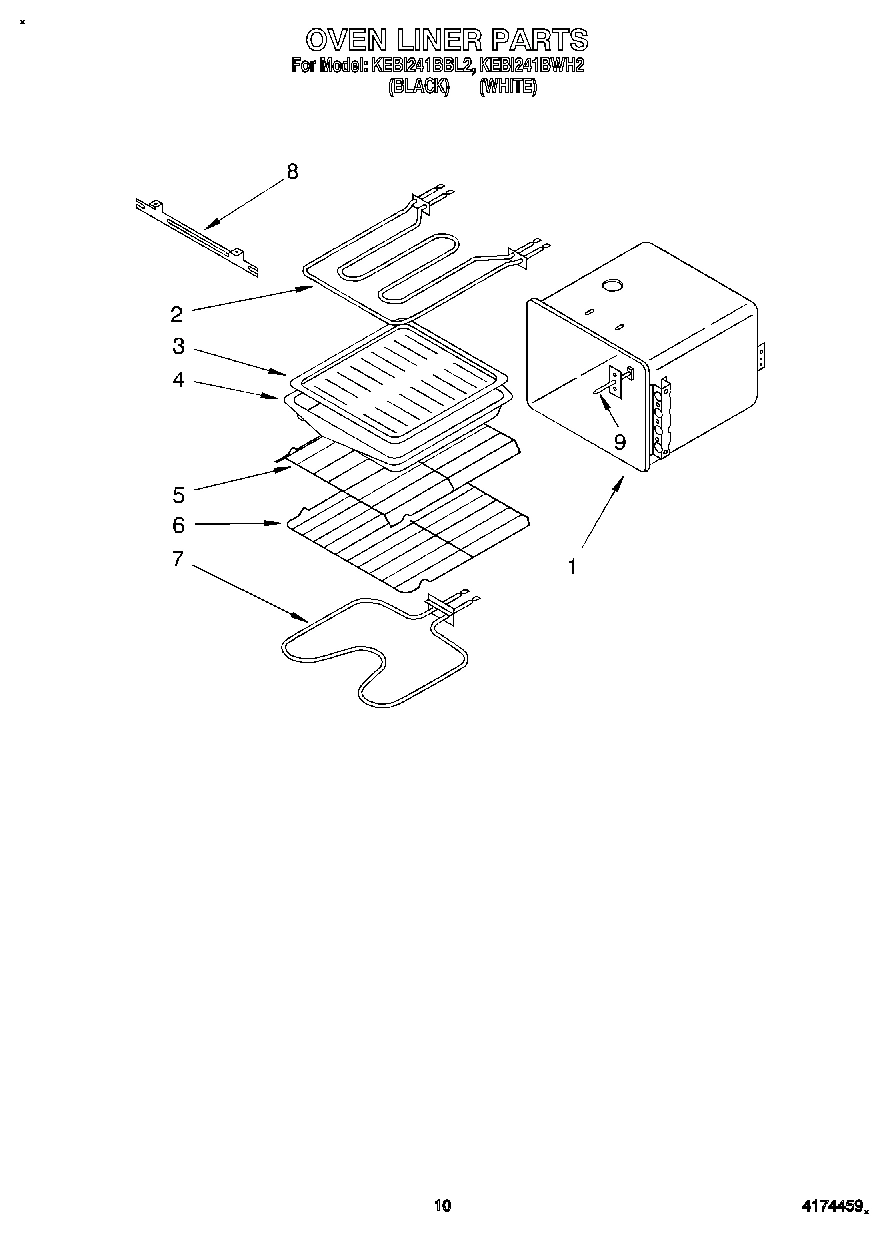

07 - OVEN LINER

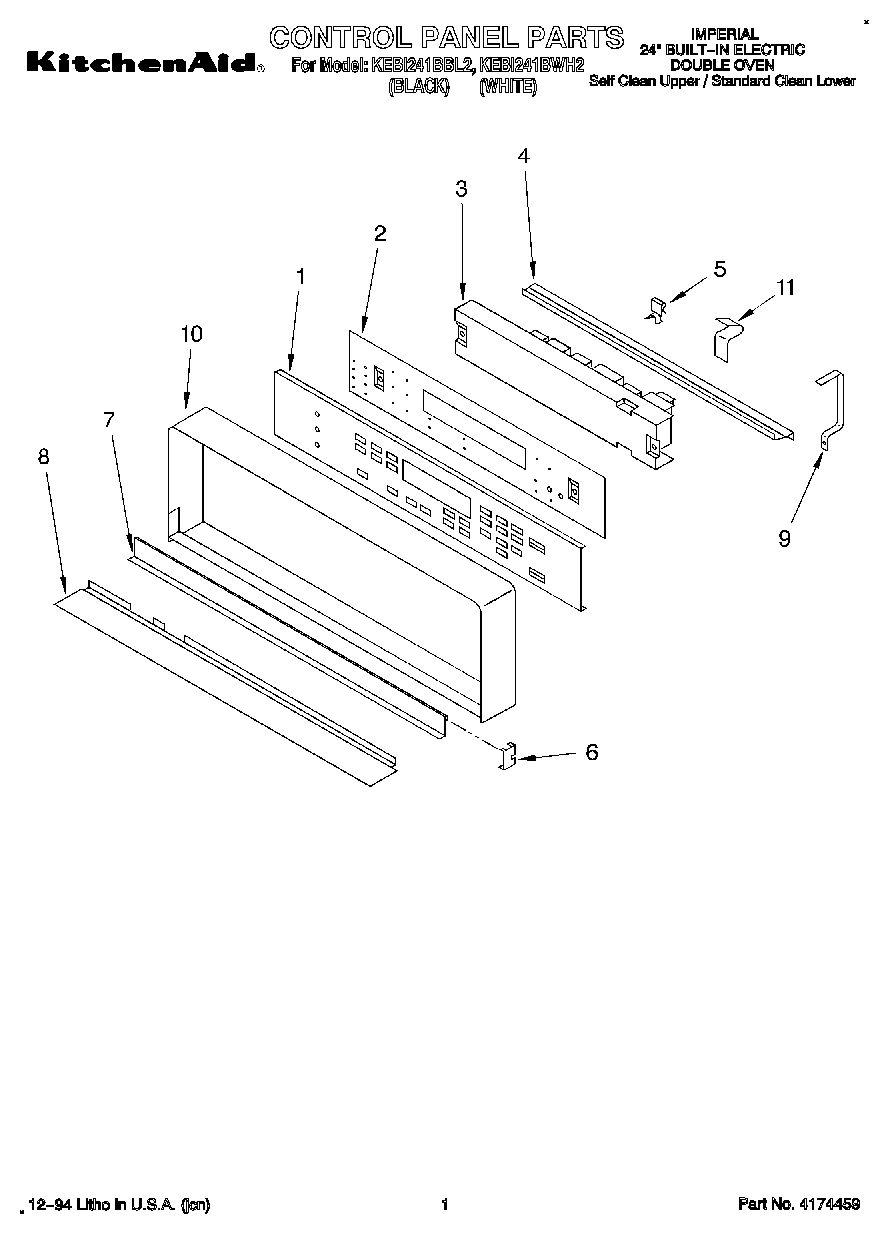

01 - CONTROL PANEL

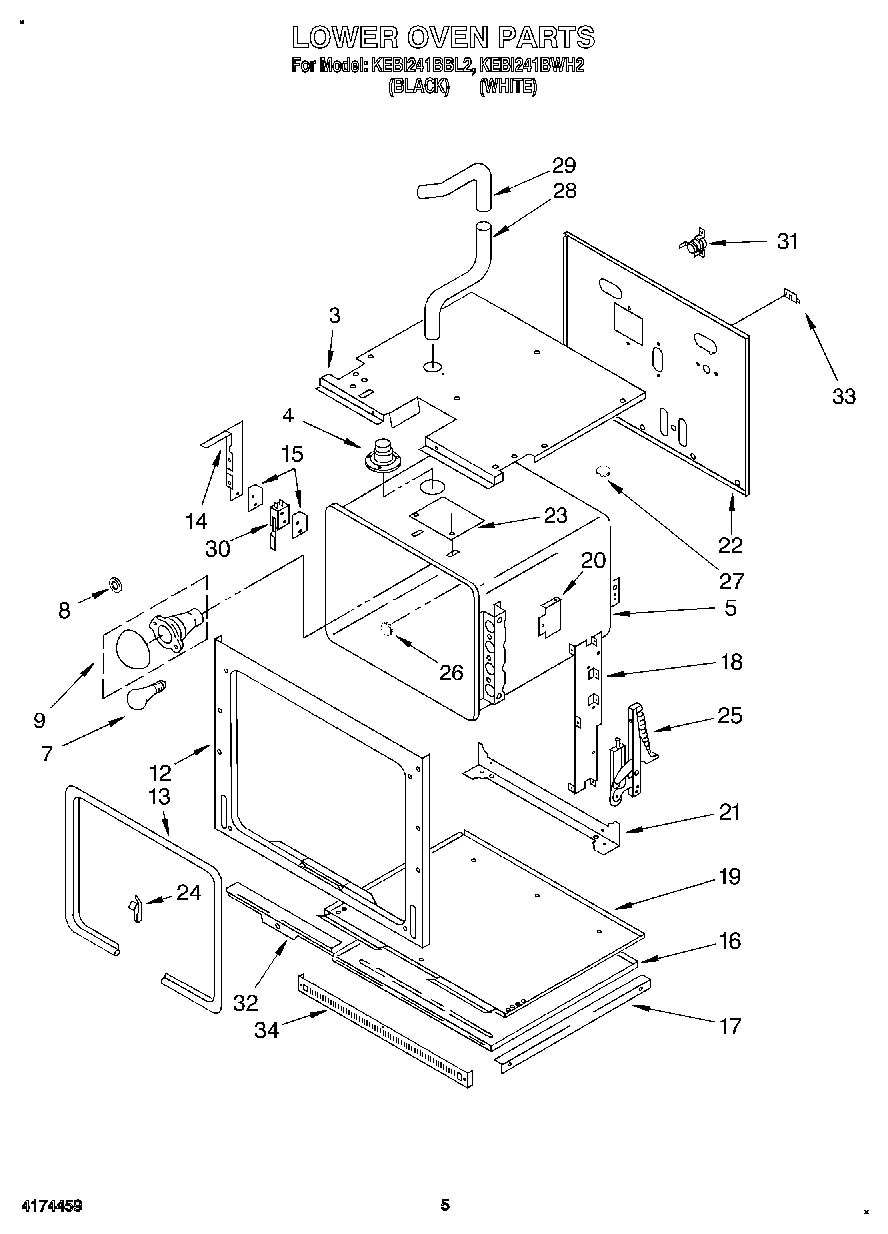

04 - LOWER OVEN

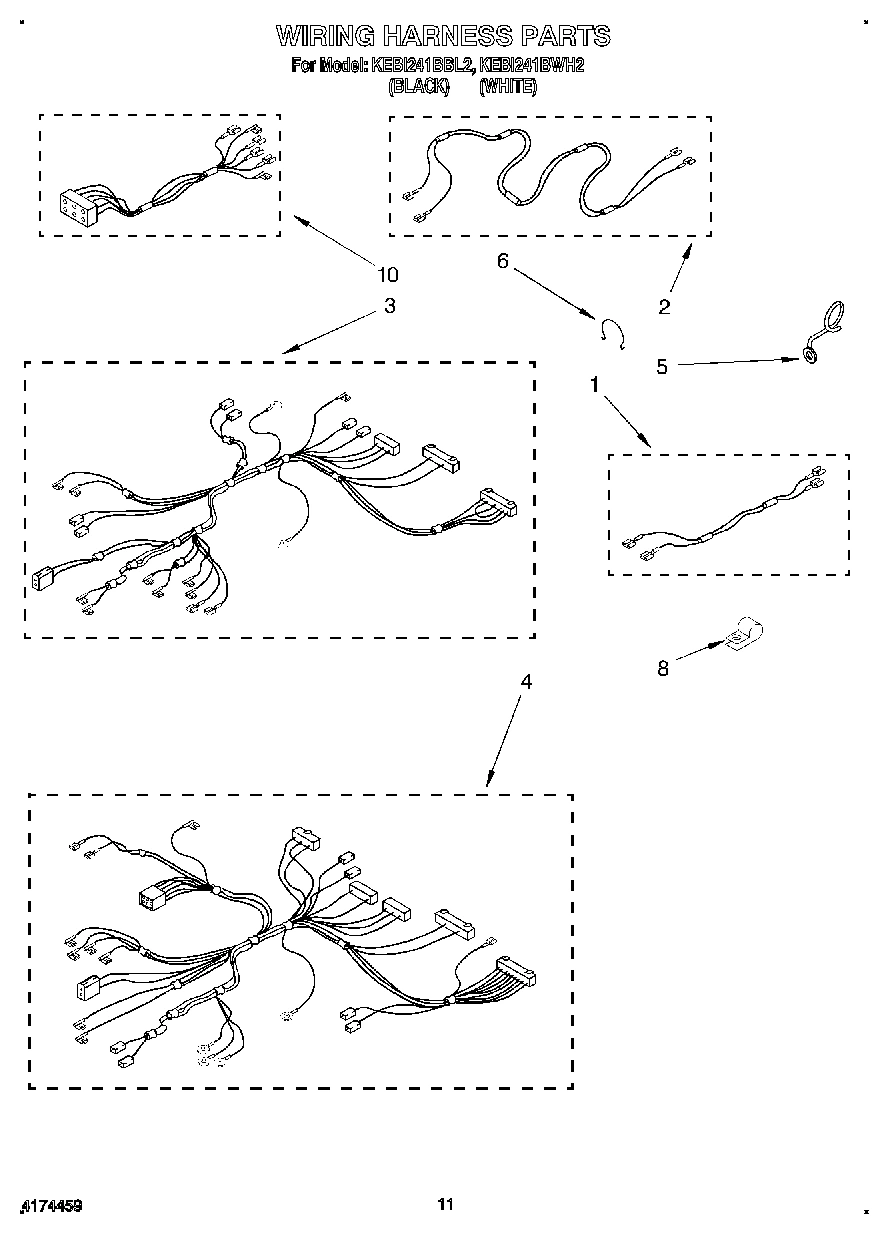

08 - WIRING HARNESS, OPTIONAL

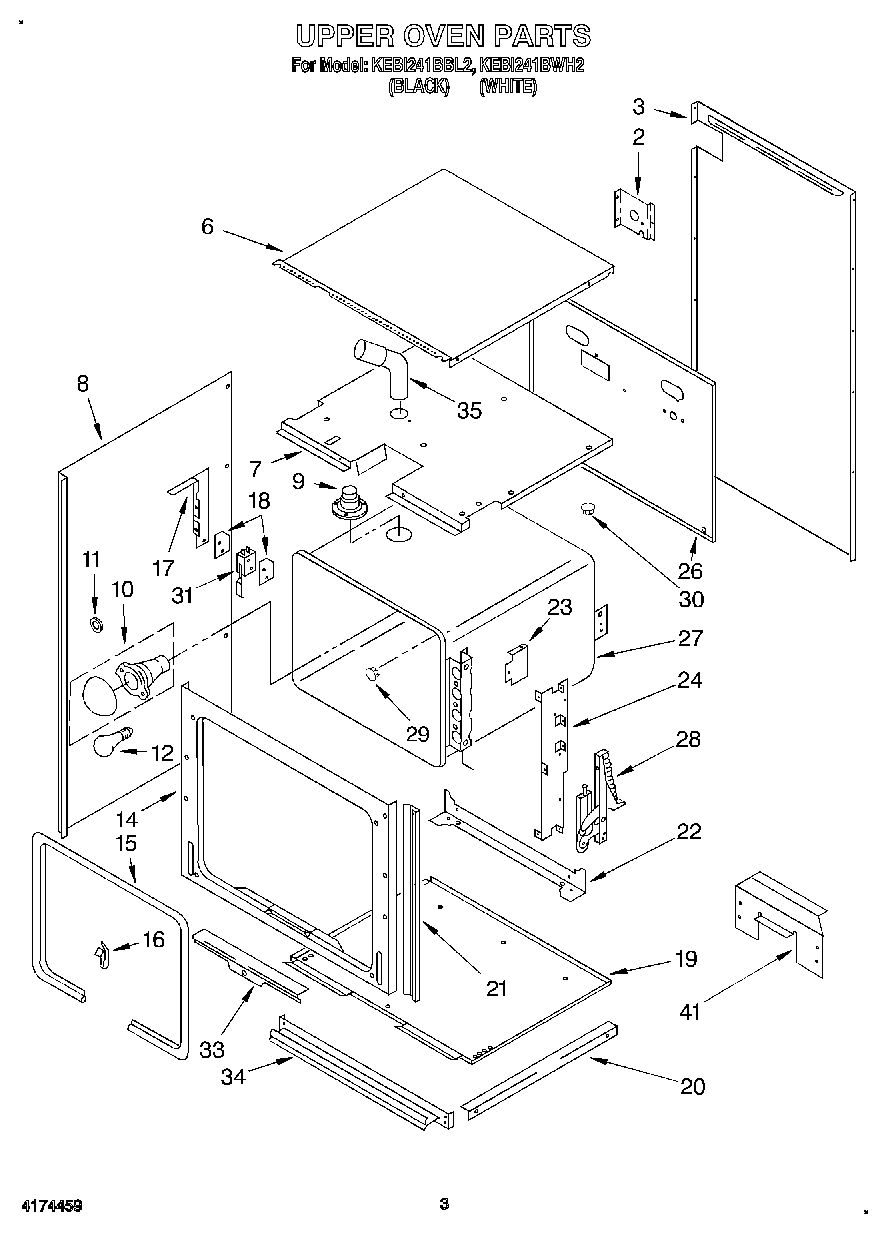

03 - UPPER OVEN, LITERATURE

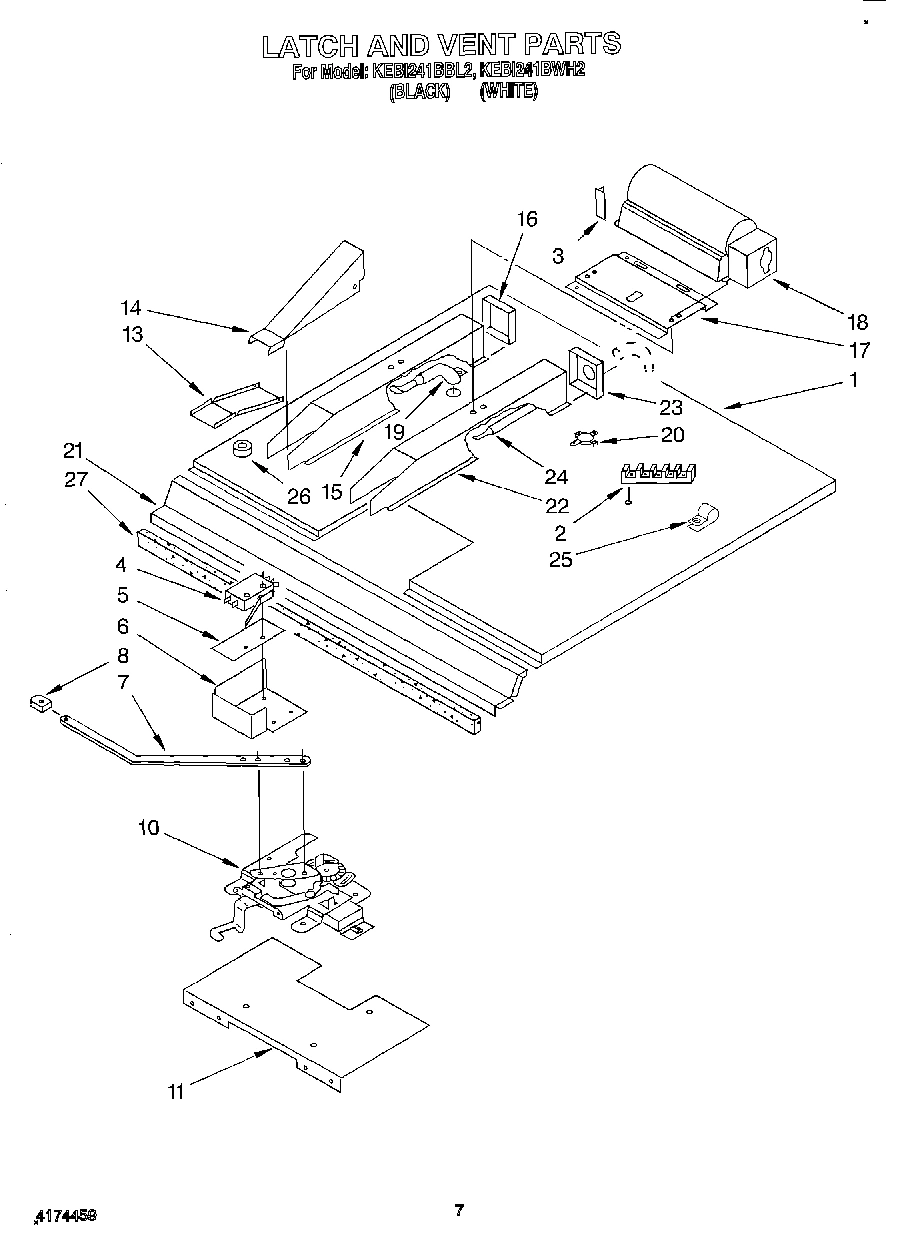

05 - LATCH AND VENT
Common parts from model Whirlpool KEBI241BWH2
Installation Instructions WPL LIT3183659 Contact Us For Availability
Tech Sheet WPL LIT3186938 Contact Us For Availability
Use & Care Guide WPL LIT3188198 Contact Us For Availability
1
Screw, Black (2) WPL 3178001 Contact Us For Availability
1
Liner, Door WPL 3185500 Contact Us For Availability
1
Membrane, Switch (Black Model) WPL 4454352 Contact Us For Availability
1
Membrane, Switch (White Model) WPL 4454353 Contact Us For Availability
1
Module, Top WPL 3183747 Contact Us For Availability
1
Wiring Harness (Door Switch) (Upper) WPL 3187607 Contact Us For Availability
2
Seal, Window WPL 3185462 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3181889 Contact Us For Availability
2
Wiring Harness (Door Switch) Lower) WPL 3183656 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Screw (2) WPL 308043 Contact Us For Availability
3
Microcomputer WPL 3181704 Contact Us For Availability
3
Wiring Harness (Main) WPL 3186939 Contact Us For Availability
3
Cabinet, Back WPL 3177624 Contact Us For Availability
3
Screw WPL 311773 Contact Us For Availability
3
Baffle WPL 3185455 Contact Us For Availability
4
Retainer, Bracket WPL 3183705 Contact Us For Availability
4
Screw (3) WPL 3185383 Contact Us For Availability
4
Tube, Vent WPL 3186933 Contact Us For Availability
4
Wiring Harness (Upper Oven) WPL 3185966 Contact Us For Availability
4
Screw, WPL 254225 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
5
Retainer, Insulation WPL 3188815 Contact Us For Availability
5
Rack, Offset WPL 3185369 Contact Us For Availability
5
Clip, Retainer (3) WPL 3182985 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
6
Rack, Oven WPL 3185370 Contact Us For Availability
6
Trim, Door (2) WPL 3182162 Contact Us For Availability
6
Cabinet, Top WPL 3178141 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
7
Glass, Door (Black Model) WPL 3187864 Contact Us For Availability
7
Glass, Door (White Model) WPL 3187866 Contact Us For Availability
7
Door, Latch Handle (Black Model) WPL 3182150 Contact Us For Availability
7
Door, Latch Handle (White Model) WPL 3182153 Contact Us For Availability
7
Door, Latch Handle (Screw (2)) WPL 3188409 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
7
Screw WPL 3185414 Contact Us For Availability
8
Bracket, Element WPL 3180694 Contact Us For Availability
8
Trim, Panel WPL 3183701 Contact Us For Availability
8
Side, Cabinet (R.H. & L.H.) WPL 3177440 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
9
Frame, Door (Black Model) WPL 3187851 Contact Us For Availability
9
Frame, Door (White Model) WPL 3187853 Contact Us For Availability
9
Screw (3) WPL 3185648 Contact Us For Availability
9
Sensor, Heat WPL 3148440 Contact Us For Availability
9
Screw (2) WPL 3182939 Contact Us For Availability
9
Bracket (2) WPL 3184321 Contact Us For Availability
9
Tube, Vent WPL 3186684 Contact Us For Availability
10
WPL 799344 WPL 799344 Contact Us For Availability
10
Handle, Door (Screw (2)) WPL 3181637 Contact Us For Availability
10
Handle, Door (Black Model) WPL 3185989 Contact Us For Availability
10
Handle, Door (White Model) WPL 3185990 Contact Us For Availability
10
Frame, Control Panel (Black Model) WPL 3187951 Contact Us For Availability
10
Frame, Control Panel (White Model) WPL 3187952 Contact Us For Availability
10
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
10
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
10
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
10
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
10
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
10
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
10
White 14 Ga. 150~c Rating WPL 242826 Contact Us For Availability
10
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
10
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
10
Red 12 Ga. 150~c Rating WPL 242829 Contact Us For Availability
10
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
10
Yellow 14 Ga. 200~c Rating WPL 242832 Contact Us For Availability
10
Harvest Gold WPL 261890 Contact Us For Availability
10
Harvest Gold WPL 261891 Contact Us For Availability
10
Toast WPL 285365 Contact Us For Availability
10
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
10
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
10
Platinum WPL 285368 Contact Us For Availability
10
Harness, Wire (Latch Assy.) WPL 3185952 Contact Us For Availability
10
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
10
Leveler (Primer) WPL 350941 Contact Us For Availability
10
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
10
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
10
WPL 799832 WPL 799832 Contact Us For Availability
10
WPL 832985 WPL 832985 Contact Us For Availability
10
WPL 978883 WPL 978883 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
11
Spacer (2) WPL 3182138 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
12
Frame, Door WPL 3177704 Contact Us For Availability
13
Glass, Clear WPL 3185457 Contact Us For Availability
13
Nozzel, Vent Bottom (2) WPL 3183954 Contact Us For Availability
14
Frame, Front WPL 3186952 Contact Us For Availability
14
Nozzel, Vent Top (2) WPL 3183955 Contact Us For Availability
15
Bushing, Door Handle WPL 3188599 Contact Us For Availability
15
Seal, Door WPL 3179814 Contact Us For Availability
15
Box, Vent WPL 3183999 Contact Us For Availability
16
Foil-Adhesive WPL 3188634 Contact Us For Availability
16
Bottom, Oven WPL 3177552 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
17
Foil-Adhesive WPL 3188635 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
19
Bottom, Module WPL 3177622 Contact Us For Availability
19
Tube, Vent WPL 3183791 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
21
Trim, Door Side (2) (Black Model) WPL 3187875 Contact Us For Availability
21
Side Trim, Door (2) (White Model) WPL 3187878 Contact Us For Availability
21
Shield, Heat WPL 3183799 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
22
Screw, 8-18 X 3/4 (4) WPL 3179116 Contact Us For Availability
22
Screw, Drive WPL 4173231 Contact Us For Availability
22
Box, Vent Lower Oven WPL 3183953 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Cover, Latch Mtg. WPL 3180126 Contact Us For Availability
23
End, Box Vent WPL 3183965 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Tube, Vent Lower Oven WPL 3183793 Contact Us For Availability
25
Screw WPL 3185647 Contact Us For Availability
25
Clamp, Tube WPL 3183532 Contact Us For Availability
26
Back, Module WPL 3177559 Contact Us For Availability
26
Bushing WPL 4159035 Contact Us For Availability
27
Liner, Oven WPL 3185561 Contact Us For Availability
27
Seal, foam WPL 313755 Contact Us For Availability
28
Screw WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
28
Tube, Vent Male WPL 3182159 Contact Us For Availability
29
Button, Plug WPL 3182814 Contact Us For Availability
29
Tube, Vent Female WPL 3182160 Contact Us For Availability
30
Button, Plug WPL 3185085 Contact Us For Availability
31
Thermostat WPL 3149653 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
32
Screw WPL 3179776 Contact Us For Availability
33
Screw WPL 4168863 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw WPL 4159445 Contact Us For Availability
33
Cover, Cap Tube WPL 4168203 Contact Us For Availability
34
Trim, Lower Vent (Black Model) WPL 3177784 Contact Us For Availability
34
Trim, Lower Vent (White Model) WPL 3187958 Contact Us For Availability
34
Vent, Middle Trim (Screw (4)) WPL 3180022 Contact Us For Availability
34
Vent, Middle Trim (Black Model) WPL 3187884 Contact Us For Availability
34
Vent, Middle Trim (White Model) WPL 3187886 Contact Us For Availability
34
Vent, Middle Trim (Screw (2)) WPL 3188645 Contact Us For Availability
41
Insulation, Back WPL 3177870 Contact Us For Availability
41
Insulation, Wrap WPL 3185550 Contact Us For Availability
41
Support, Control Frame WPL 3182584 Contact Us For Availability
× ![]()
