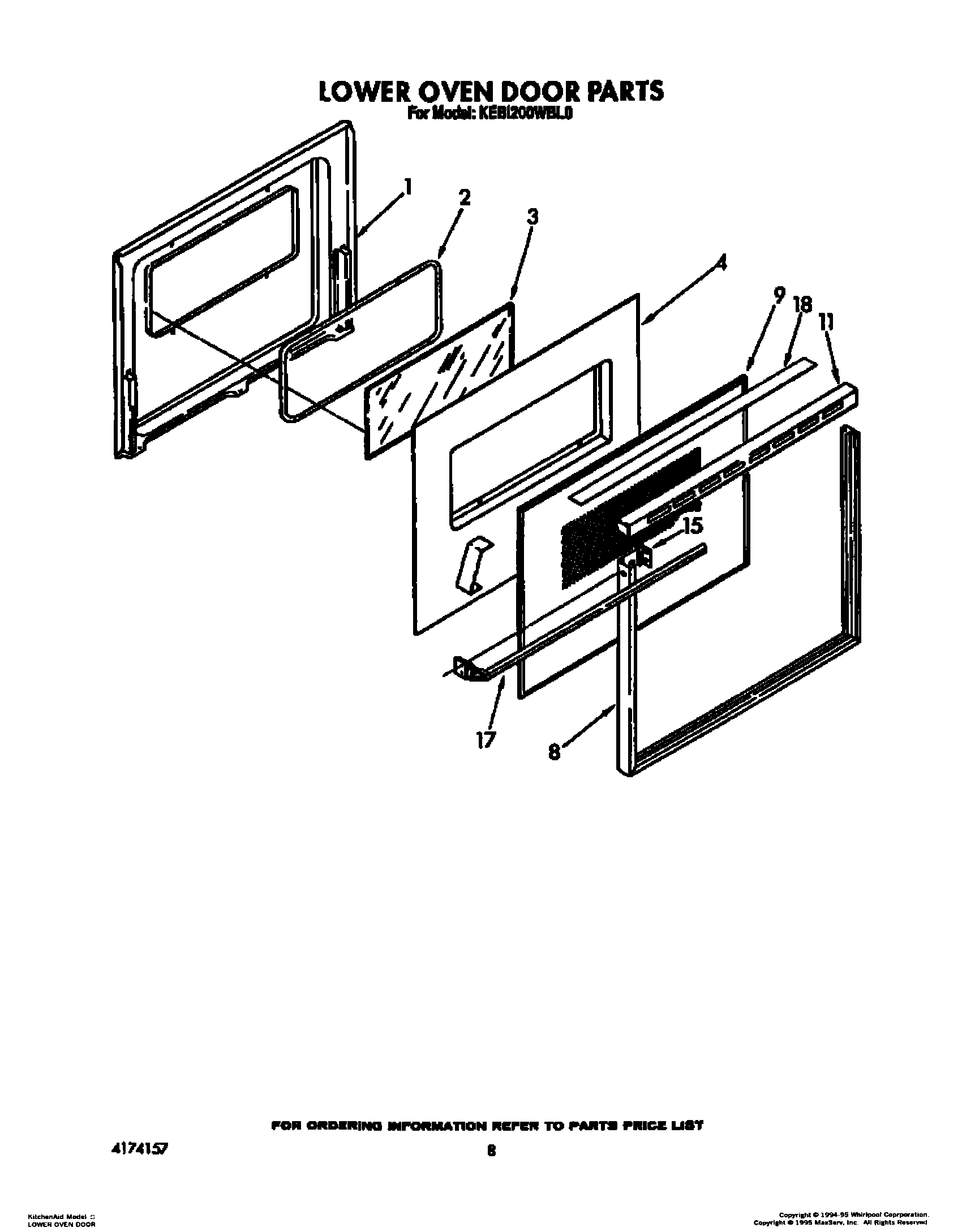

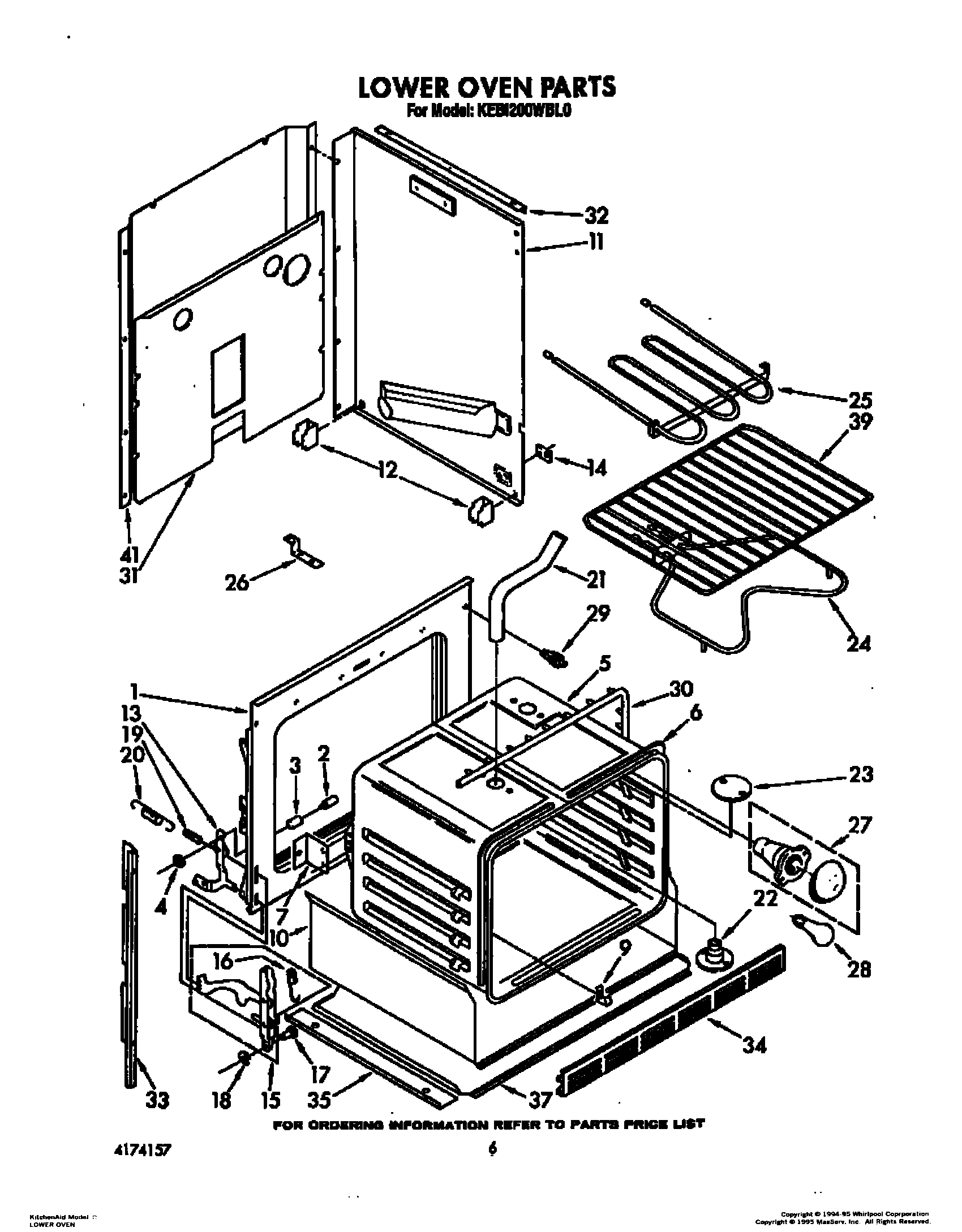

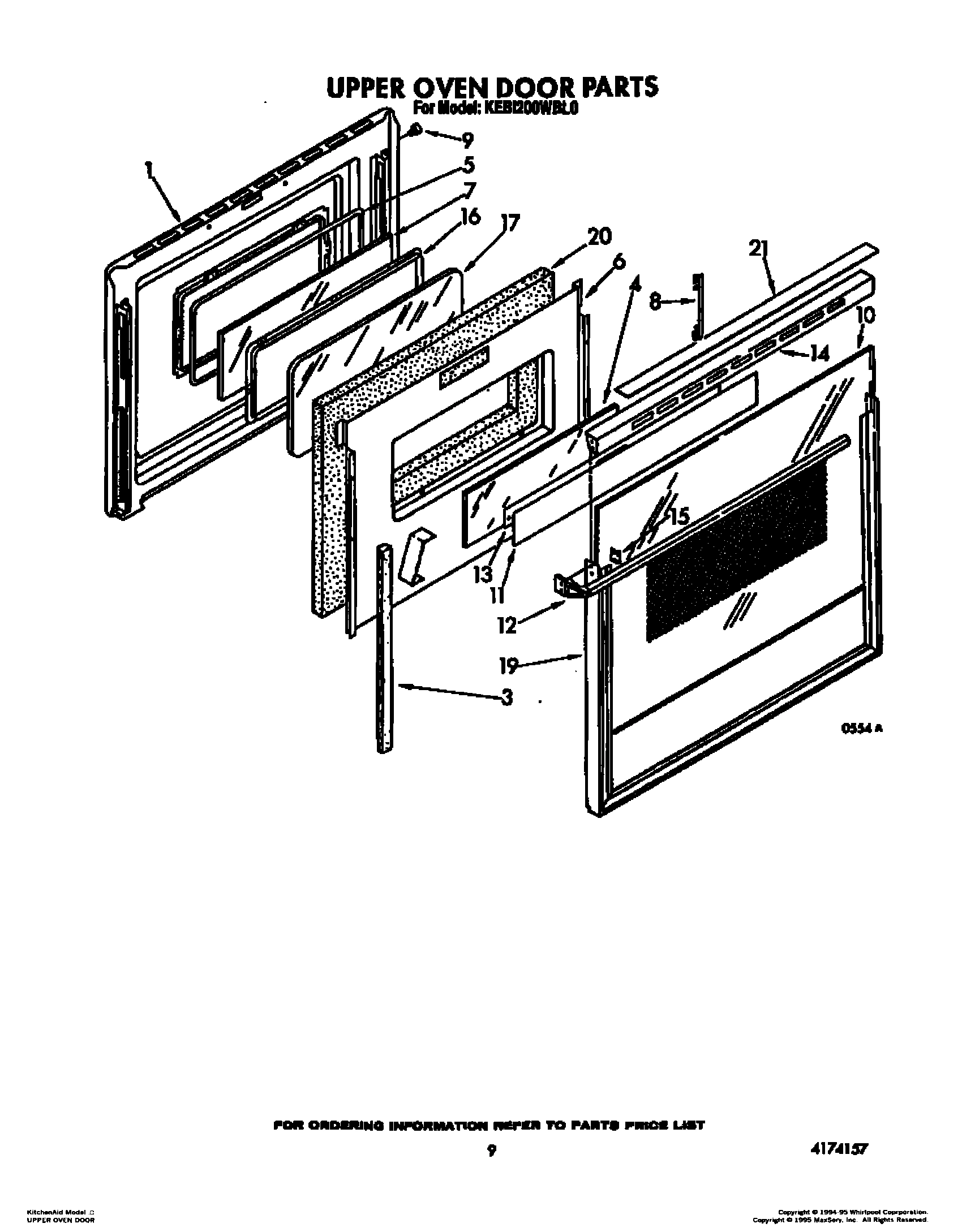

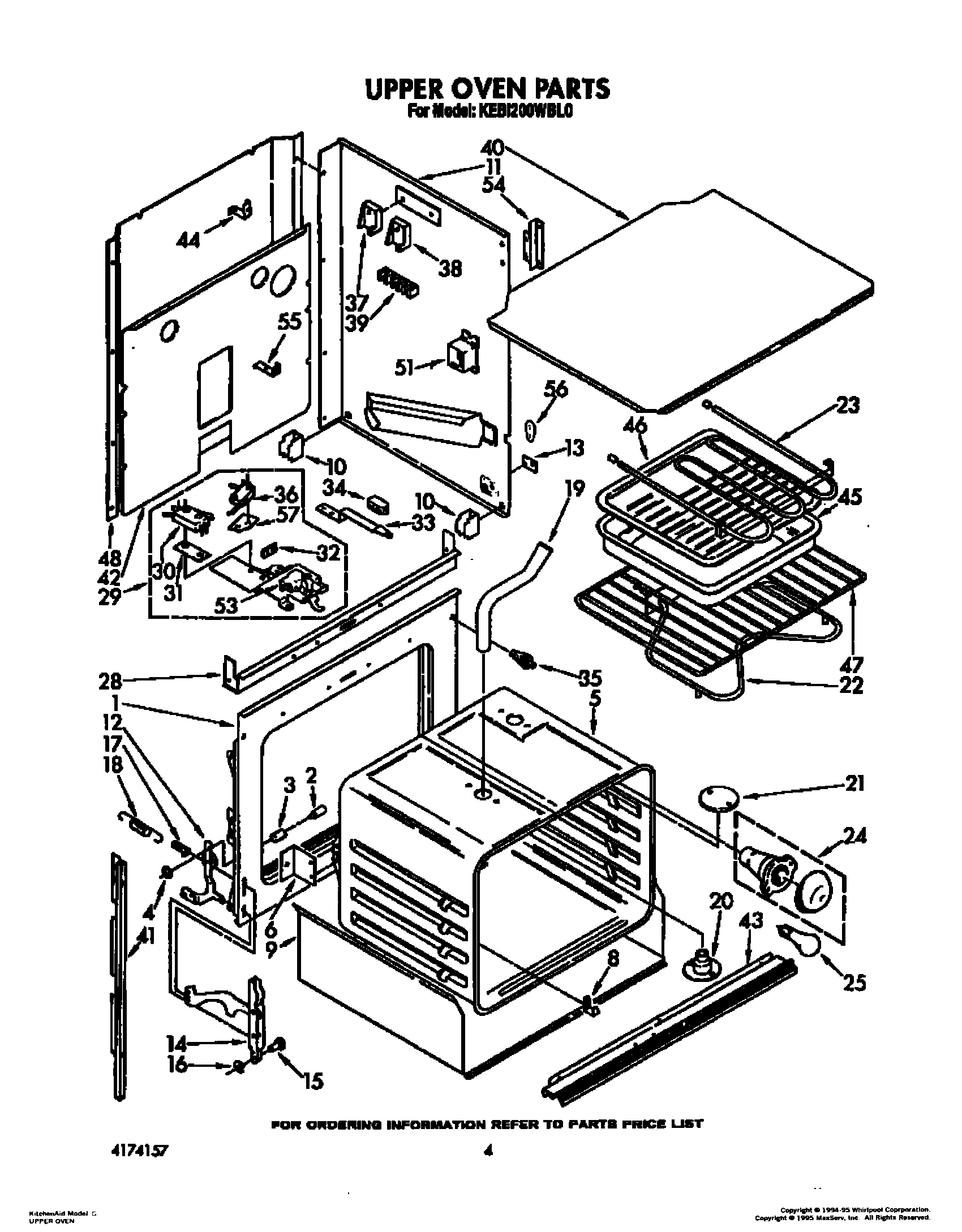

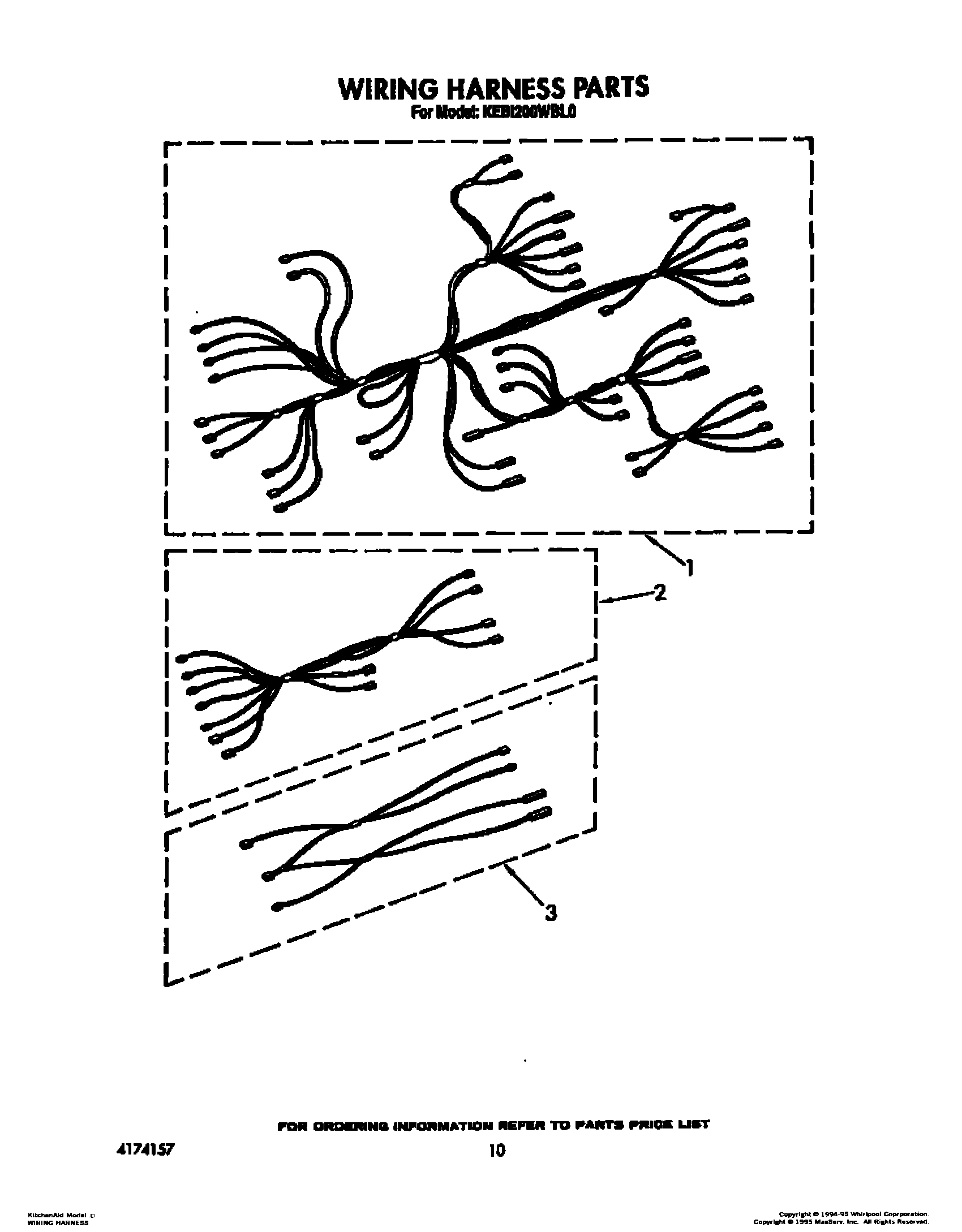

Model Whirlpool KEBI200WBL0 – Common Parts &amp; Diagrams

1

Liner, Door WPL 3172220 Contact Us For Availability

1

Frame, Front WPL 3172204 Contact Us For Availability

1

Frame, Front WPL 3172196 Contact Us For Availability

1

Liner, Door WPL 3172218 Contact Us For Availability

2

Seal, Door WPL 3148183 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

3

Glass, Inner WPL 3148179 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Seal, Flange (2) WPL 3148441 Contact Us For Availability

4

Retainer, Insulation WPL 3148287 Contact Us For Availability

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

Glass, Reflective WPL 3148178 Contact Us For Availability

5

Screw (3) WPL 311056 Contact Us For Availability

5

Oven, 30`` WPL 3185062 Contact Us For Availability

5

Oven 30`` Standard Clean WPL 3185063 Contact Us For Availability

6

Heat Seal WPL 309107 Contact Us For Availability

6

Retainer, WPL 3148159 Contact Us For Availability

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $61.02

7

Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability

8

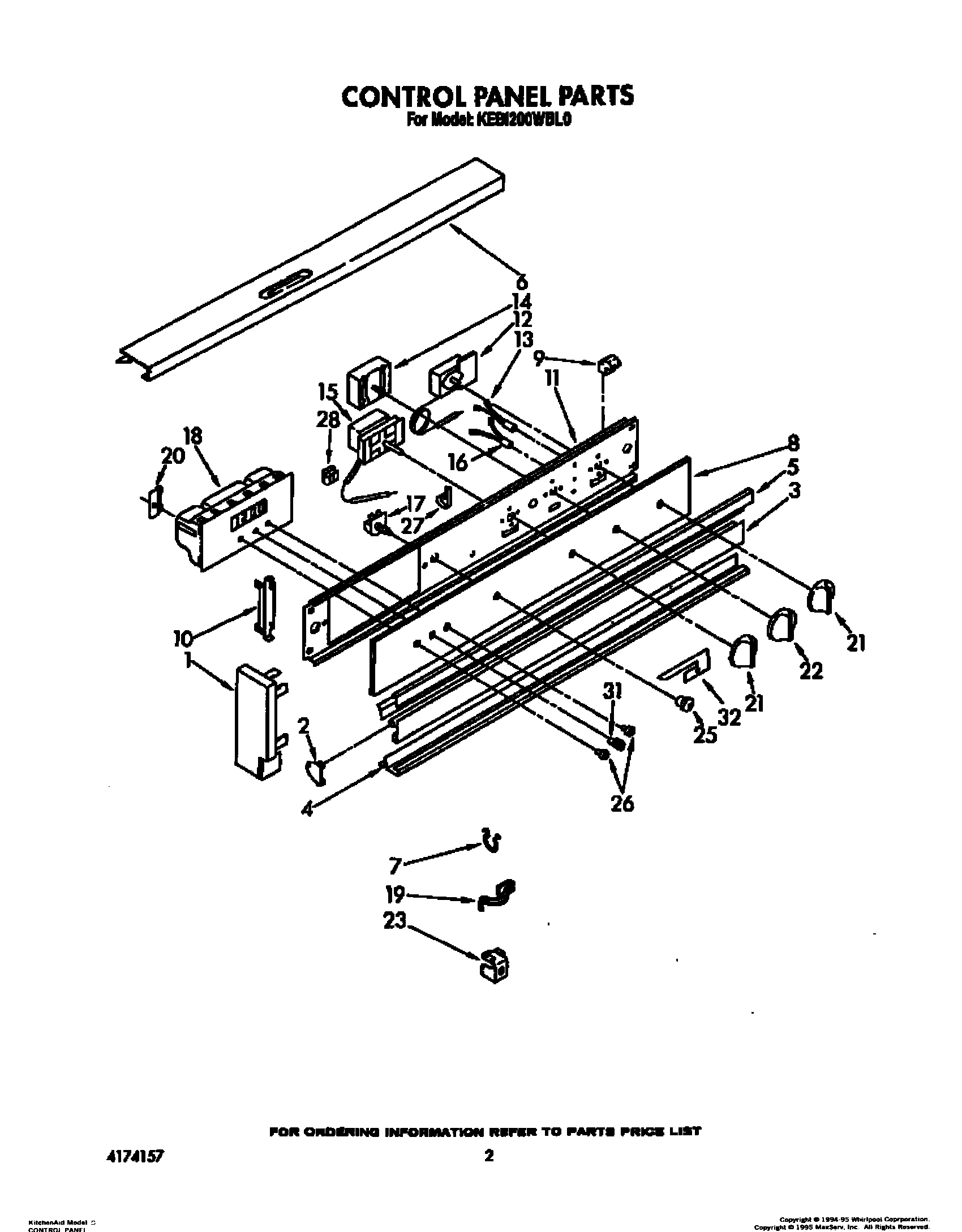

Control Panel, Glass WPL 3150149 Contact Us For Availability

8

Retainer, Glass (2) WPL 3148187 Contact Us For Availability

9

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

9

Retainer, Glass (4) WPL 3149882 Contact Us For Availability

9

Bumper (4) WPL 3148182 Contact Us For Availability

10

Bracket, Control Panel (2) WPL 310720 Contact Us For Availability

10

Glass, Panel WPL 3148185 Contact Us For Availability

10

Insulation Tray WPL 310770 Contact Us For Availability

Bracket, Control WPL 3148110 Contact Us For Availability

Side Wrapper (R.H.) WPL 311005 Contact Us For Availability

Side Wrapper (L.H.) WPL 311008 Contact Us For Availability

Side Wrapper (Right Side) WPL 311007 Contact Us For Availability

Side Wrapper (Left Side) WPL 311010 Contact Us For Availability

Foil, Door WPL 3148184 Contact Us For Availability

12

Thermostat, Oven Pyro WPL 3148937 Contact Us For Availability

12

Handle, Oven Door WPL 3181318 Contact Us For Availability

12

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

Light, Indicator Surface On Upper Oven On Low WPL 311802 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

screw (2) WPL 254225 Contact Us For Availability

Sheild, Door WPL 3148680 Contact Us For Availability

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Selector Switch WPL 3148119 Contact Us For Availability

Top, Door WPL 3148223 Contact Us For Availability

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

Channel Arm (2) WPL 329713 Contact Us For Availability

15

Clip (2) WPL 3148282 Contact Us For Availability

15

Thermostat, Oven WPL 311481 Contact Us For Availability

15

Channel Arm (2) WPL 329714 Contact Us For Availability

Screw (2) WPL 311491 Contact Us For Availability

Light, Indicator Standard Clean WPL 3148720 Contact Us For Availability

screw (6) WPL 3148443 Contact Us For Availability

Spring, Door Stop (2) WPL 311092 Contact Us For Availability

Frame, Inner WPL 3148234 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

Screw (5) WPL 3149333 Contact Us For Availability

Switch, Oven Light WPL 312581 Contact Us For Availability

Lockwasher WPL 312796 Contact Us For Availability

18

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

18

Timer, Digital WPL 3148656 Contact Us For Availability

18

Retainer, Ring WPL 307594 Contact Us For Availability

19

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

19

Frame, Panel WPL 3148235 Contact Us For Availability

19

Vent, Extension (2) WPL 310836 Contact Us For Availability

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

Bracket, Timer WPL 3148108 Contact Us For Availability

Nut (4) WPL 98788 Contact Us For Availability

Eliminator, Smoke WPL 310839 Contact Us For Availability

Insulation, Door WPL 3147951 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Knob, Control WPL 3149106 Contact Us For Availability

Cap, Top WPL 3181363 Contact Us For Availability

Tube, Lower Vent WPL 311259 Contact Us For Availability

22

Knob, Control WPL 3149116 Contact Us For Availability

22

Eliminator, Smoke WPL 310840 Contact Us For Availability

23

Adapter, 3-Way WPL 3147832 Contact Us For Availability

23

Plate, Cover WPL 310662 Contact Us For Availability

24

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

25

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

25

Bezel Switch (1) WPL 313030 Contact Us For Availability

25

Screw (4) WPL 3150532 Contact Us For Availability

26

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

26

Knob, Push Button (2) WPL 3177121 Contact Us For Availability

26

Bracket, Control Mounting WPL 314178 Contact Us For Availability

27

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

27

Strain Relief (3) WPL 308609 Contact Us For Availability

28

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

28

Clip, Tube WPL 313570 Contact Us For Availability

28

Baffle, Top Insulation WPL 310693 Contact Us For Availability

29

Switch, Door WPL 310345 Contact Us For Availability

29

Latch Assembly WPL 3171148 Contact Us For Availability

30

Safety Switch WPL 308185 Contact Us For Availability

30

Screw (2) WPL 98106 Contact Us For Availability

30

Seal, Door WPL 3148284 Contact Us For Availability

Screw (2) WPL 98520 Contact Us For Availability

Knob, WPL 3177122 Contact Us For Availability

Insulator, Switch WPL 309245 Contact Us For Availability

Panel, Back WPL 3149542 Contact Us For Availability

Shield, Air WPL 3149142 Contact Us For Availability

Screw (2) WPL 309258 Contact Us For Availability

Terminal, Shield WPL 313035 Contact Us For Availability

Support Angle (2) WPL 255095 Contact Us For Availability

Screw (2) WPL 308422 Contact Us For Availability

Latch, Handle WPL 310825 Contact Us For Availability

Side Trim (Left Side) WPL 310685 Contact Us For Availability

Side Trim (Right Side) WPL 310689 Contact Us For Availability

Screw WPL 246135 Contact Us For Availability

Knob, Latch Handle WPL 311253 Contact Us For Availability

Screw, 8-15 x 1/2 Black (3) WPL 309029 Contact Us For Availability

Grill, Bottom WPL 310668 Contact Us For Availability

35

Angle, Support (2) WPL 311592 Contact Us For Availability

36

Switch, Lock WPL 3148669 Contact Us For Availability

37

Switch, Percentage Broil WPL 314209 Contact Us For Availability

37

Cover, Bottom WPL 310458 Contact Us For Availability

38

screw WPL 314215 Contact Us For Availability

38

Switch, Bake WPL 314210 Contact Us For Availability

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

Screw WPL 308043 Contact Us For Availability

Rack, Straight WPL 308173 Contact Us For Availability

Side Trim (Left Side) WPL 310686 Contact Us For Availability

Side Trim (Right Side) WPL 310690 Contact Us For Availability

Insulation, Wrap WPL 310433 Contact Us For Availability

Insulation, Oven WPL 310434 Contact Us For Availability

Cover, Rear WPL 311013 Contact Us For Availability

43

Screw (3) WPL 309133 Contact Us For Availability

43

Hood, Lower Vent WPL 329019 Contact Us For Availability

44

Stand Off WPL 311582 Contact Us For Availability

46

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

47

Rack WPL 308172 Contact Us For Availability

48

WPL 311011 WPL 311011 Contact Us For Availability

51

WPL 3148688 WPL 3148688 Contact Us For Availability

53

WPL 3149270 WPL 3149270 Contact Us For Availability

54

WPL 310719 WPL 310719 Contact Us For Availability

55

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

55

WPL 309102 WPL 309102 Contact Us For Availability

56

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

56

WPL 311982 WPL 311982 Contact Us For Availability

57

WPL 3147864 WPL 3147864 Contact Us For Availability

57

WPL 3149328 WPL 3149328 Contact Us For Availability
