Model Whirlpool KEBI200VBL2 – Common Parts & Diagrams
03 - UPPER OVEN
02 - CONTROL PANEL , LIT/OPTIONAL

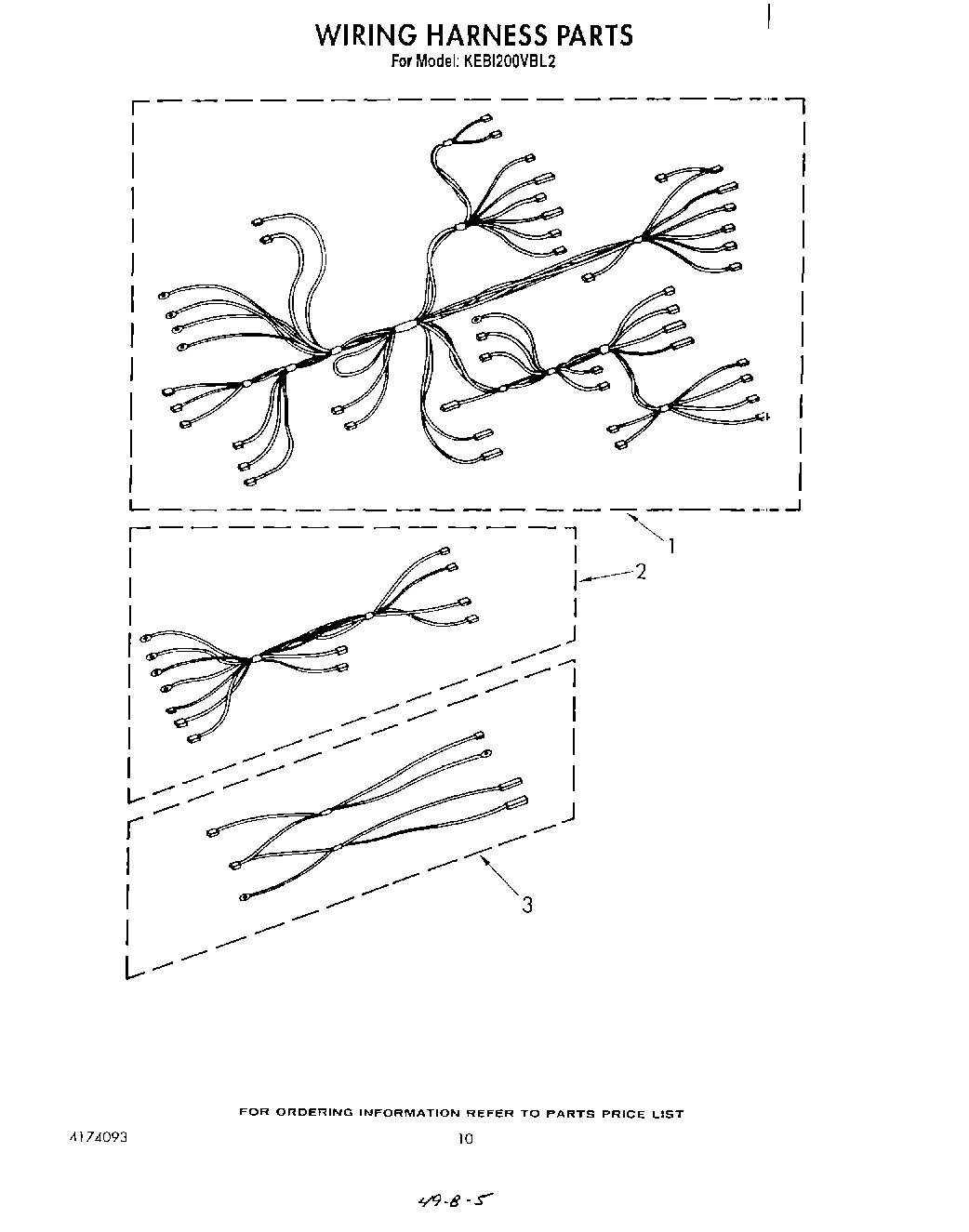

07 - WIRING HARNESS

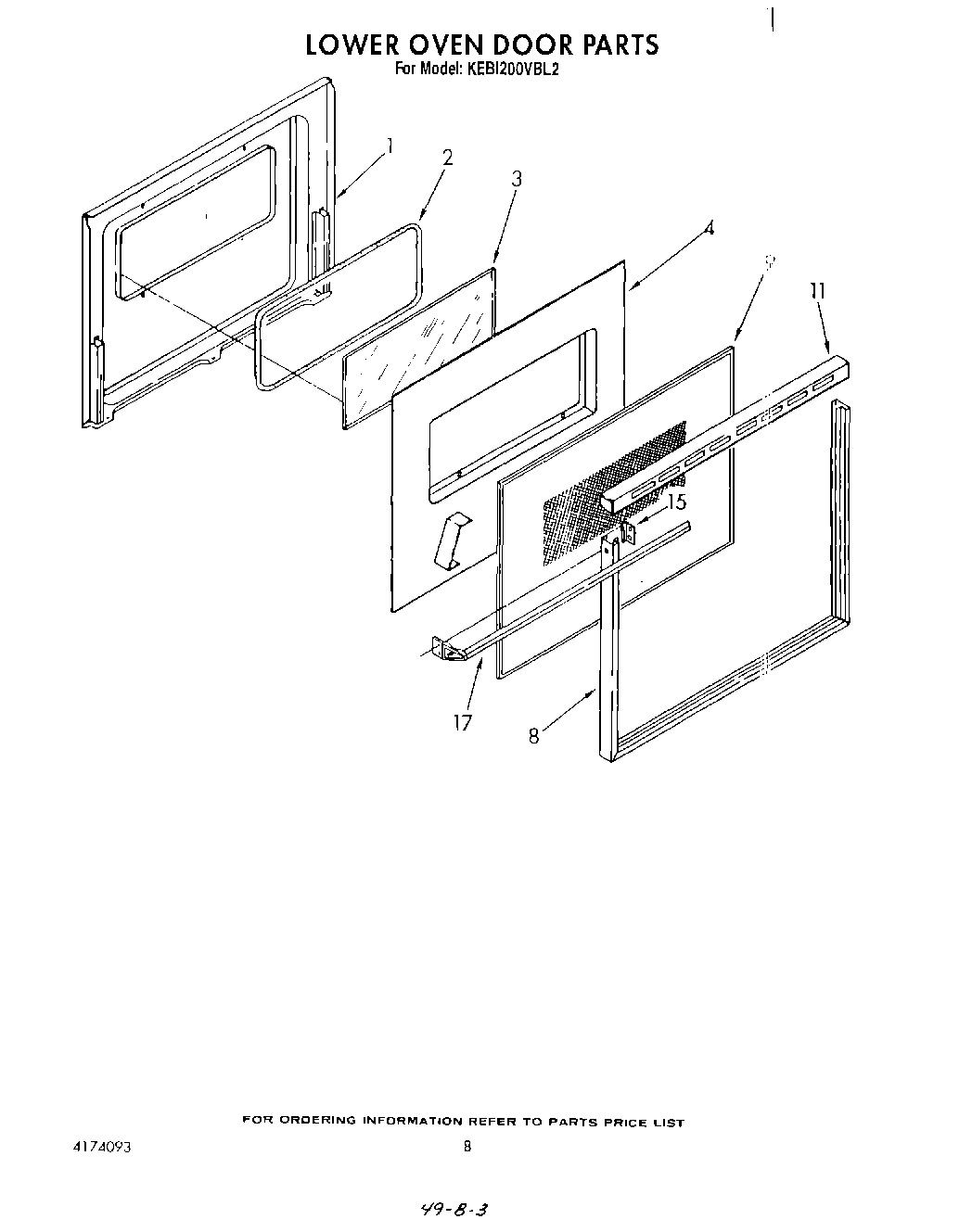

05 - LOWER OVEN DOOR

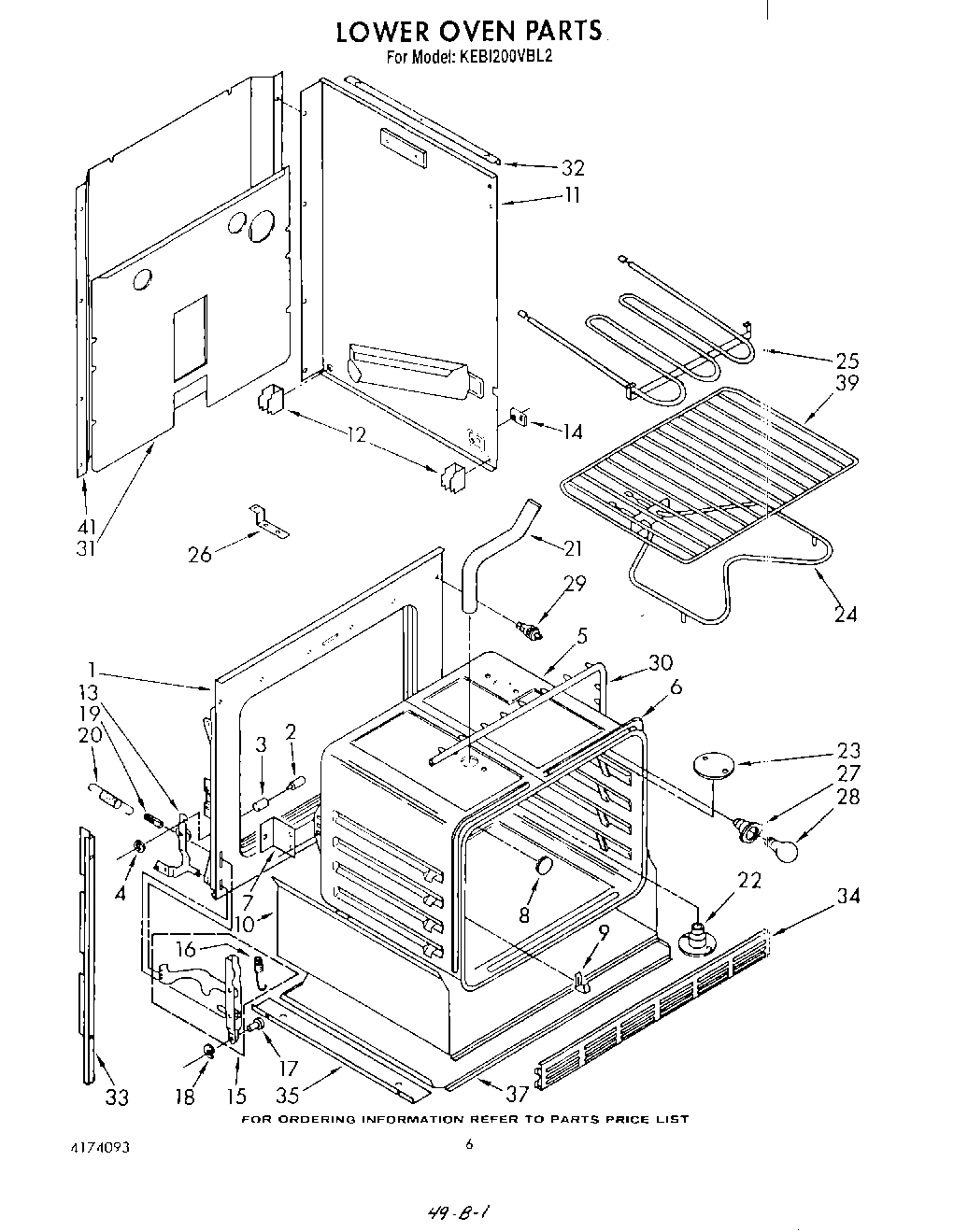

04 - LOWER OVEN

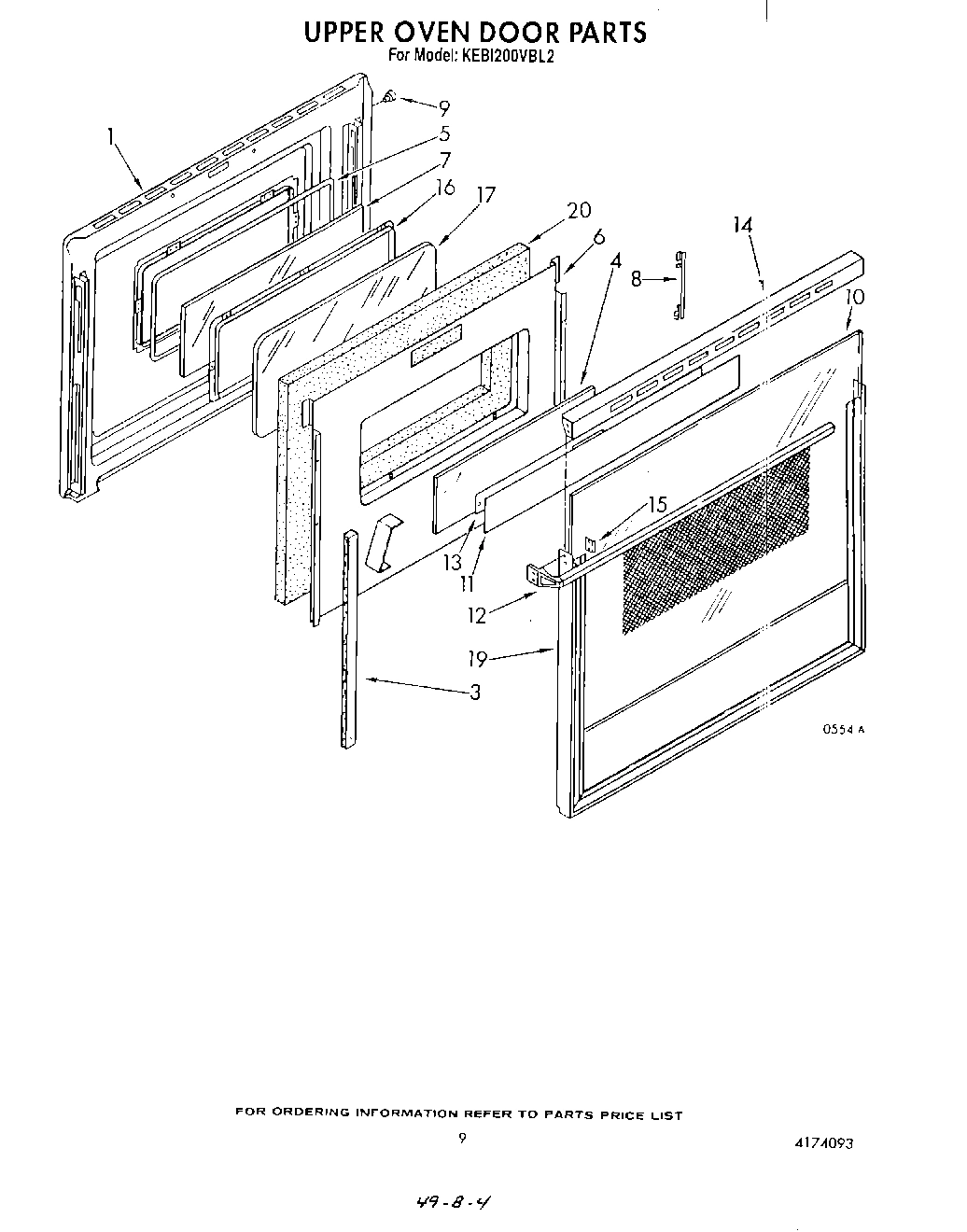

06 - UPPER OVER DOOR
Common parts from model Whirlpool KEBI200VBL2
Instructions, Installation WPL LIT3147385 Contact Us For Availability
Guide, Use & Care WPL LIT3147434 Contact Us For Availability
Tech Sheet WPL LIT3149134 Contact Us For Availability
Cookbook WPL LIT3149670 Contact Us For Availability
Repair Parts List WPL LIT4174093 Contact Us For Availability
1
End Cap. L.H. WPL 3148014 Contact Us For Availability
1
End Cap R.H. WPL 3148015 Contact Us For Availability
1
End Cap (Washer) WPL 3148905 Contact Us For Availability
1
Wire Harness Main WPL 3149263 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Frame, Front WPL 3172194 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
2
Seal, Door WPL 3148183 Contact Us For Availability
2
End Trim, Vent (Left Side) WPL 3148697 Contact Us For Availability
2
End Trim, Vent (Right Side) WPL 3148698 Contact Us For Availability
2
Harness, Wire (Lower Oven) WPL 311472 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
Door, Vent WPL 314190 Contact Us For Availability
3
Wire Harness Lower Oven Light WPL 311471 Contact Us For Availability
3
Glass, Inner WPL 3148179 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Trim, Bottom WPL 314184 Contact Us For Availability
4
screw (2) WPL 342043 Contact Us For Availability
4
Retainer, Insulation WPL 3148793 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
5
Trim, Center WPL 314179 Contact Us For Availability
5
Screw (3) WPL 311056 Contact Us For Availability
5
Oven 30`` Standard Clean WPL 3172451 Contact Us For Availability
6
Heat Seal WPL 309107 Contact Us For Availability
6
Trim, Top WPL 3149437 Contact Us For Availability
6
Retainer, WPL 3148723 Contact Us For Availability
7
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
8
Control Panel, Glass WPL 3150149 Contact Us For Availability
8
Plug Button WPL 257314 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
9
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
10
Glass, Panel WPL 3148185 Contact Us For Availability
10
Insulation Tray WPL 310770 Contact Us For Availability
11
Bracket, Control WPL 3148110 Contact Us For Availability
11
Side Wrapper (Right Side) WPL 311007 Contact Us For Availability
11
Side Wrapper (Left Side) WPL 311010 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
12
Thermostat, Oven Pyro WPL 3148937 Contact Us For Availability
12
Handle, Oven Door WPL 3147636 Contact Us For Availability
12
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
13
Light, Indicator Surface On Upper Oven On Low WPL 311802 Contact Us For Availability
13
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
13
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
13
screw (2) WPL 254225 Contact Us For Availability
13
Sheild, Door WPL 3148680 Contact Us For Availability
14
Selector Switch WPL 3148119 Contact Us For Availability
14
Top, Door WPL 3148606 Contact Us For Availability
14
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
15
Thermostat, Oven WPL 311481 Contact Us For Availability
15
Clip, Mtg.(2) WPL 314235 Contact Us For Availability
15
Channel Arm (2) WPL 329714 Contact Us For Availability
16
Screw (2) WPL 311491 Contact Us For Availability
16
Light, Indicator Standard Clean WPL 3148720 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
16
Frame, WPL 3148234 Contact Us For Availability
17
Screw (5) WPL 3149333 Contact Us For Availability
17
Switch, Oven Light WPL 312581 Contact Us For Availability
17
Lockwasher WPL 312796 Contact Us For Availability
18
Retainer, Ring WPL 307594 Contact Us For Availability
18
Timer, Digital WPL 3148656 Contact Us For Availability
19
Vent, Extension (2) WPL 310836 Contact Us For Availability
19
Frame, Panel WPL 3148784 Contact Us For Availability
20
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
20
Eliminator, Smoke WPL 310839 Contact Us For Availability
20
Bracket, Timer WPL 3148108 Contact Us For Availability
20
Nut (4) WPL 98788 Contact Us For Availability
20
Insulation, Door WPL 3147951 Contact Us For Availability
21
Knob, Control WPL 3149106 Contact Us For Availability
21
Tube, Lower Vent WPL 311259 Contact Us For Availability
22
Knob, Control WPL 3149116 Contact Us For Availability
22
Eliminator, Smoke WPL 310840 Contact Us For Availability
23
Plate, Cover WPL 310662 Contact Us For Availability
23
Adapter, 3-Way WPL 3147832 Contact Us For Availability
25
Screw (4) WPL 3150532 Contact Us For Availability
25
Bezel Switch (1) WPL 313030 Contact Us For Availability
26
Cover, Light WPL 308039 Contact Us For Availability
26
Knob, Push Button (2) WPL 3177121 Contact Us For Availability
26
Bracket, Control Mounting WPL 314178 Contact Us For Availability
27
Socket, Oven Light WPL 660556 Contact Us For Availability
27
Retainer, Light WPL 308038 Contact Us For Availability
27
Screw (2) WPL 308043 Contact Us For Availability
27
Strain Relief (3) WPL 308609 Contact Us For Availability
28
Baffle, Top Insulation WPL 310693 Contact Us For Availability
28
Clip, Tube WPL 313570 Contact Us For Availability
29
Latch Assembly WPL 3171148 Contact Us For Availability
30
Safety Switch WPL 308185 Contact Us For Availability
30
Screw (2) WPL 98106 Contact Us For Availability
30
Seal, Door WPL 3148284 Contact Us For Availability
31
Insulator, Switch WPL 309245 Contact Us For Availability
31
Panel, Back WPL 3149542 Contact Us For Availability
31
Screw (2) WPL 98520 Contact Us For Availability
31
Knob, WPL 3177122 Contact Us For Availability
32
Screw (2) WPL 309258 Contact Us For Availability
32
Terminal, Shield WPL 313035 Contact Us For Availability
32
Shield, Air WPL 3149142 Contact Us For Availability
32
Support Angle (2) WPL 255095 Contact Us For Availability
33
Screw (2) WPL 308422 Contact Us For Availability
33
Latch, Handle WPL 310825 Contact Us For Availability
33
Side Trim (Left Side) WPL 310685 Contact Us For Availability
33
Side Trim (Right Side) WPL 310689 Contact Us For Availability
34
Screw WPL 246135 Contact Us For Availability
34
Knob, Latch Handle WPL 311253 Contact Us For Availability
34
Screw, 8-15 x 1/2 Black (3) WPL 309029 Contact Us For Availability
34
Grill, Bottom WPL 310668 Contact Us For Availability
35
Switch, Door WPL 310345 Contact Us For Availability
35
Angle, Support (2) WPL 311592 Contact Us For Availability
36
Switch, Lock WPL 3148669 Contact Us For Availability
37
Switch, Percentage Broil WPL 314209 Contact Us For Availability
37
Cover, Bottom WPL 310458 Contact Us For Availability
38
screw WPL 314215 Contact Us For Availability
38
Switch, Bake WPL 314210 Contact Us For Availability
39
Rack, Straight WPL 308173 Contact Us For Availability
41
Side Trim (Left Side) WPL 310686 Contact Us For Availability
41
Side Trim (Right Side) WPL 310690 Contact Us For Availability
41
Insulation, Wrap WPL 310433 Contact Us For Availability
41
Insulation, Oven WPL 310434 Contact Us For Availability
41
Cover, Rear WPL 311013 Contact Us For Availability
43
Screw (3) WPL 309133 Contact Us For Availability
43
Hood, WPL 329019 Contact Us For Availability
44
WPL 311582 WPL 311582 Contact Us For Availability
47
WPL 308172 WPL 308172 Contact Us For Availability
48
WPL 311011 WPL 311011 Contact Us For Availability
51
WPL 3148688 WPL 3148688 Contact Us For Availability
53
WPL 3149270 WPL 3149270 Contact Us For Availability
54
WPL 310719 WPL 310719 Contact Us For Availability
55
WPL 309102 WPL 309102 Contact Us For Availability
56
WPL 311982 WPL 311982 Contact Us For Availability
56
WPL 312318 WPL 312318 Contact Us For Availability
57
WPL 3147864 WPL 3147864 Contact Us For Availability
57
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
