Model Whirlpool KEBI200VBL0 – Common Parts & Diagrams
02 - CONTROL PANEL
04 - LOWER OVEN

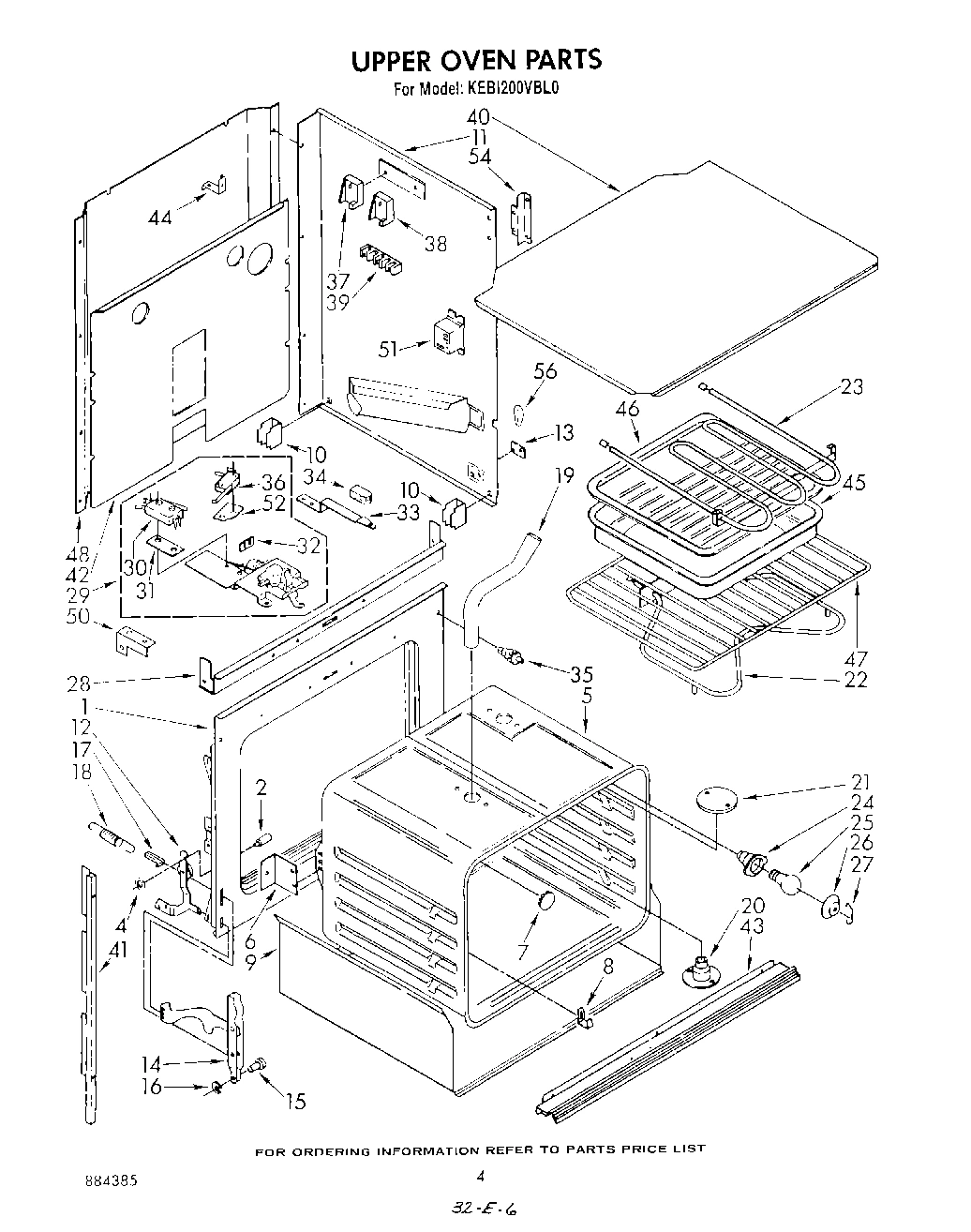

03 - UPPER OVEN

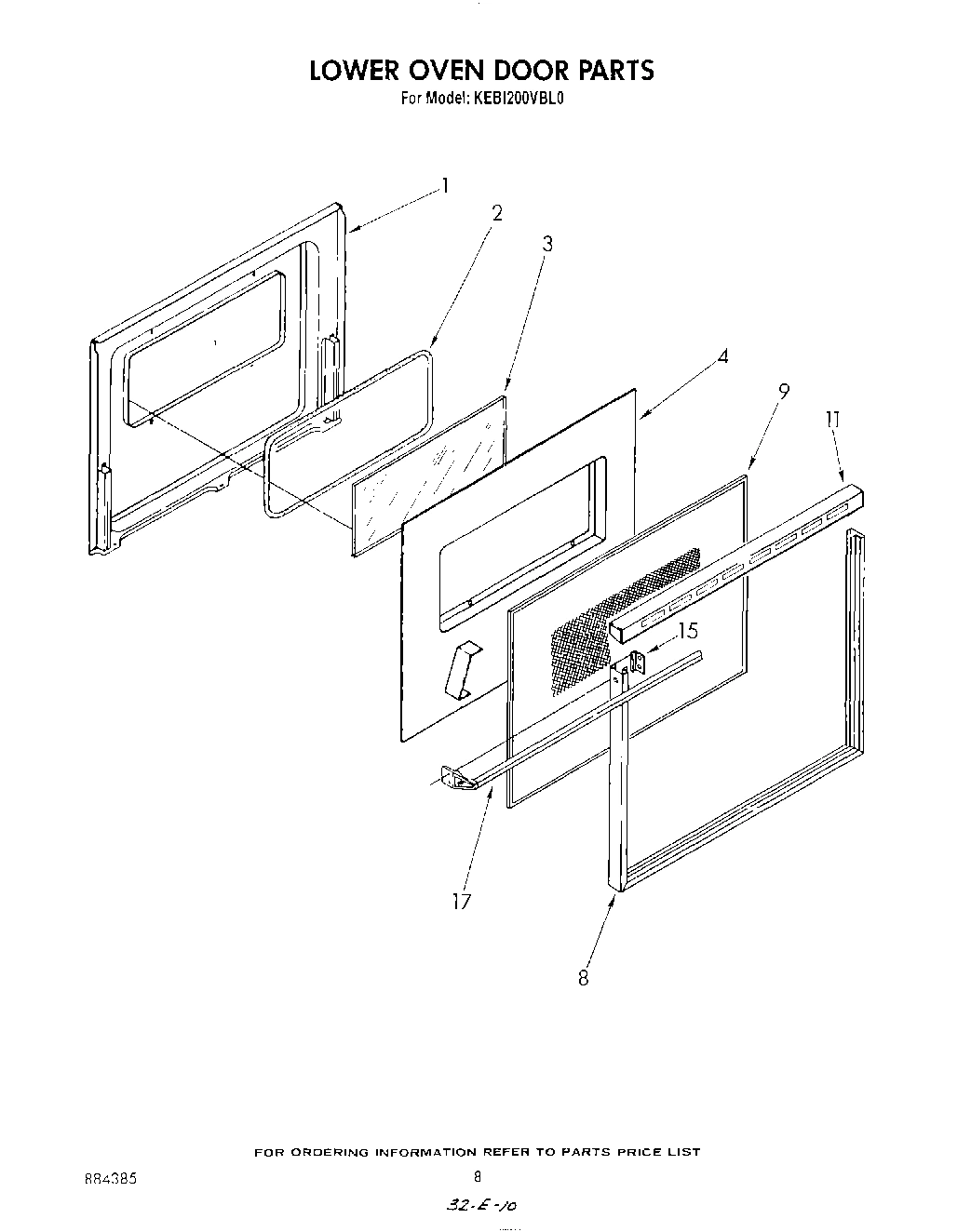

05 - LOWER OVEN DOOR , LIT/OPTIONAL

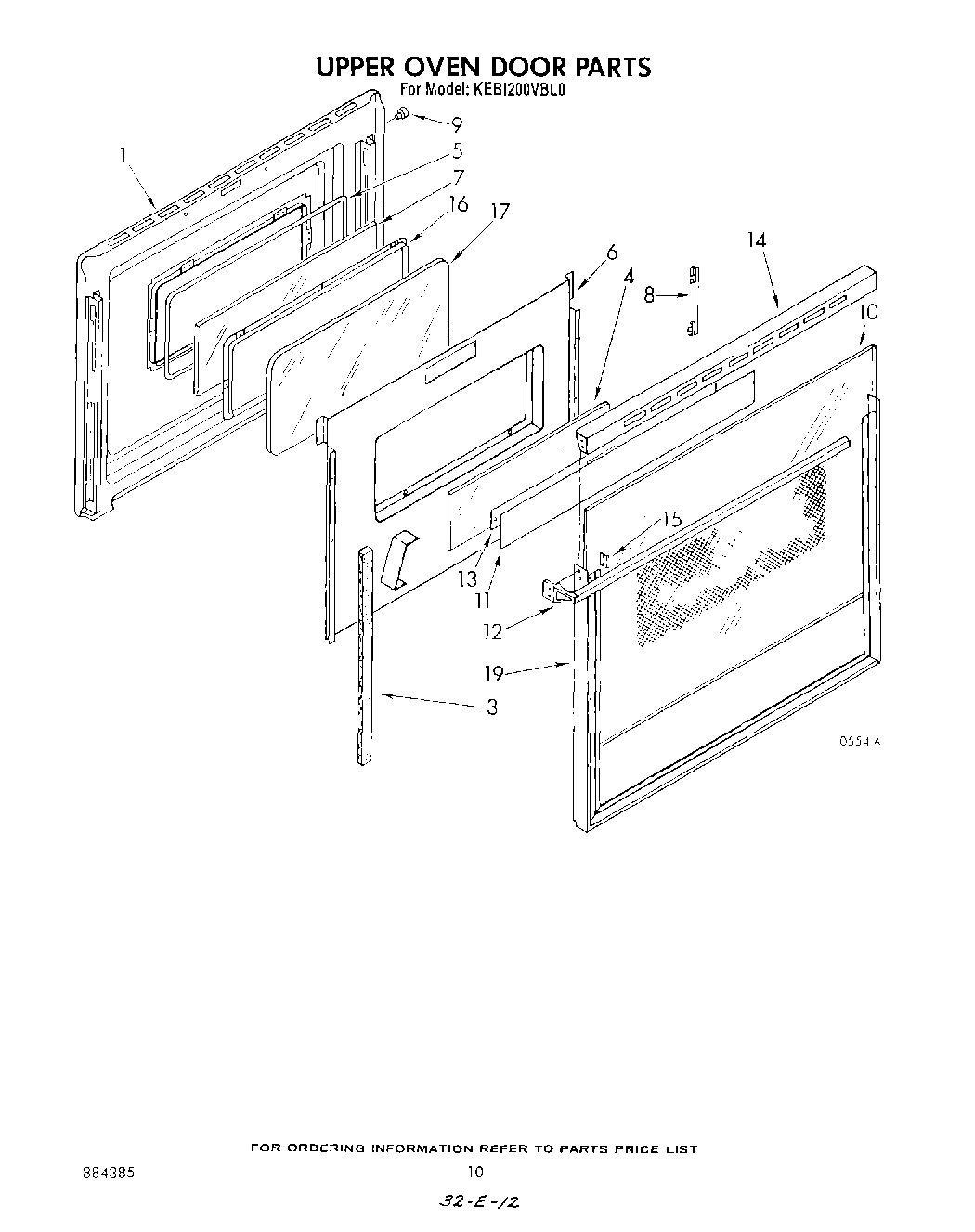

06 - UPPER OVEN DOOR
Common parts from model Whirlpool KEBI200VBL0
WPL 308043 WPL 308043 Contact Us For Availability
1
Frame, Front WPL 3170855 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
Frame, Front WPL 328747 Contact Us For Availability
1
Liner, Door WPL 3170708 Contact Us For Availability
1
Liner, Door WPL 3170706 Contact Us For Availability
2
Seal, Door WPL 3148183 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Glass, Inner WPL 3148179 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Retainer, Insulation WPL 3148793 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
5
Oven, 30`` Standard Clean WPL 328758 Contact Us For Availability
5
Oven, 30`` WPL 328756 Contact Us For Availability
6
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
6
Retainer, WPL 3148723 Contact Us For Availability
7
Plug Button WPL 257314 Contact Us For Availability
7
glass, inside WPL 313003 Contact Us For Availability
8
Frame, Door WPL 3148784 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
9
Insulation Tray WPL 310770 Contact Us For Availability
9
Glass, Outer WPL 3148185 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
10
glass panel WPL 148185 Contact Us For Availability
11
Side Wrapper (Right Side) WPL 311007 Contact Us For Availability
11
Side Wrapper (Left Side) WPL 311010 Contact Us For Availability
11
Side Wrapper (R.H.) WPL 311005 Contact Us For Availability
11
Side Wrapper (L.H.) WPL 311008 Contact Us For Availability
11
Screw, 10A x 1/2 Black (2) WPL 307748 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
12
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
12
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
12
Handle, Oven Door WPL 3147636 Contact Us For Availability
13
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
13
sheild, door WPL 3148223 Contact Us For Availability
14
Channel Arm (2) WPL 329713 Contact Us For Availability
14
Top, Door WPL 3148606 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Channel Arm (2) WPL 329714 Contact Us For Availability
15
Clip (2) WPL 314235 Contact Us For Availability
16
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
16
Retainer Ring (2) WPL 307594 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
17
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
white WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
16 ga. 80oc rating WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Yellow WPL 242832 Contact Us For Availability
17
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
17
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
19
Vent, Extension (2) WPL 310836 Contact Us For Availability
19
Frame, Panel WPL 3148235 Contact Us For Availability
20
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
20
Bracket, Timer WPL 3148108 Contact Us For Availability
20
Eliminator, Smoke WPL 310839 Contact Us For Availability
21
Knob, Control WPL 3149106 Contact Us For Availability
21
Tube, Lower Vent WPL 311259 Contact Us For Availability
21
Plate, Cover WPL 310662 Contact Us For Availability
22
WPL 799344 WPL 799344 Contact Us For Availability
22
WPL 3149116 WPL 3149116 Contact Us For Availability
22
Eliminator, Smoke WPL 310840 Contact Us For Availability
22
Paint, Touch-Up 1 Oz. (Oven Liner) (Light Gra WPL 242757 Contact Us For Availability
22
Blue Gray WPL 242860 Contact Us For Availability
22
Grease WPL 261582 Contact Us For Availability
22
Rotisserie Kit (RCK 79) WPL 261881 Contact Us For Availability
22
Harvest Gold WPL 261890 Contact Us For Availability
22
Harvest Gold WPL 261891 Contact Us For Availability
22
Toast WPL 285365 Contact Us For Availability
22
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
22
En WPL 285367 Contact Us For Availability
22
WPL 285368 WPL 285368 Contact Us For Availability
22
WPL 350941 WPL 350941 Contact Us For Availability
22
WPL 591014 WPL 591014 Contact Us For Availability
22
WPL 786020 WPL 786020 Contact Us For Availability
22
WPL 786032 WPL 786032 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 832925 WPL 832925 Contact Us For Availability
22
WPL 978849 WPL 978849 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
23
Adapter, 3-Way WPL 3147832 Contact Us For Availability
23
Screw, 10-32 x 5/8 (4) WPL 246127 Contact Us For Availability
24
Socket, Oven Light WPL 660556 Contact Us For Availability
24
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
24
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
25
Bezel Switch (1) WPL 313030 Contact Us For Availability
26
Knob, Push Button (2) WPL 3177121 Contact Us For Availability
26
Cover, Light WPL 308039 Contact Us For Availability
27
Retainer, Light WPL 308038 Contact Us For Availability
28
Knob, Rotary WPL 3177122 Contact Us For Availability
28
Baffle, Top Insulation WPL 310693 Contact Us For Availability
29
Switch, Door WPL 310345 Contact Us For Availability
29
Latch Assembly WPL 3171148 Contact Us For Availability
30
Seal, Door WPL 3148284 Contact Us For Availability
30
Safety Switch WPL 308185 Contact Us For Availability
30
screw (2) WPL 98016 Contact Us For Availability
31
Clip, Tube WPL 313570 Contact Us For Availability
31
Panel, Back WPL 3149542 Contact Us For Availability
31
Insulator, Switch WPL 309245 Contact Us For Availability
32
Support Angle (2) WPL 255095 Contact Us For Availability
32
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
32
Terminal, Shield WPL 313035 Contact Us For Availability
33
Side Trim (Left Side) WPL 310685 Contact Us For Availability
33
Side Trim (Right Side) WPL 310689 Contact Us For Availability
33
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
33
Latch, Handle WPL 310825 Contact Us For Availability
34
Screw, 8-15 x 1/2 Black (3) WPL 309029 Contact Us For Availability
34
Grill, Bottom WPL 310668 Contact Us For Availability
34
Screw, 80 x 5/16 WPL 246135 Contact Us For Availability
34
Knob, Latch Handle WPL 311253 Contact Us For Availability
35
Angle, Support (2) WPL 311592 Contact Us For Availability
36
Switch, Lock WPL 3148669 Contact Us For Availability
37
Switch, Percentage Bro WPL 314209 Contact Us For Availability
38
WPL 314215 WPL 314215 Contact Us For Availability
38
WPL 314210 WPL 314210 Contact Us For Availability
40
WPL 310458 WPL 310458 Contact Us For Availability
41
WPL 311013 WPL 311013 Contact Us For Availability
41
WPL 310686 WPL 310686 Contact Us For Availability
41
WPL 310690 WPL 310690 Contact Us For Availability
42
WPL 310459 WPL 310459 Contact Us For Availability
43
WPL 329019 WPL 329019 Contact Us For Availability
44
WPL 311582 WPL 311582 Contact Us For Availability
47
WPL 308173 WPL 308173 Contact Us For Availability
47
WPL 308172 WPL 308172 Contact Us For Availability
48
WPL 311011 WPL 311011 Contact Us For Availability
50
WPL 312320 WPL 312320 Contact Us For Availability
51
WPL 3147001 WPL 3147001 Contact Us For Availability
51
WPL 3148688 WPL 3148688 Contact Us For Availability
52
WPL 3147864 WPL 3147864 Contact Us For Availability
54
WPL 310719 WPL 310719 Contact Us For Availability
56
WPL 311982 WPL 311982 Contact Us For Availability
× ![]()
