Model Whirlpool KEBI200BBL1 – Common Parts & Diagrams

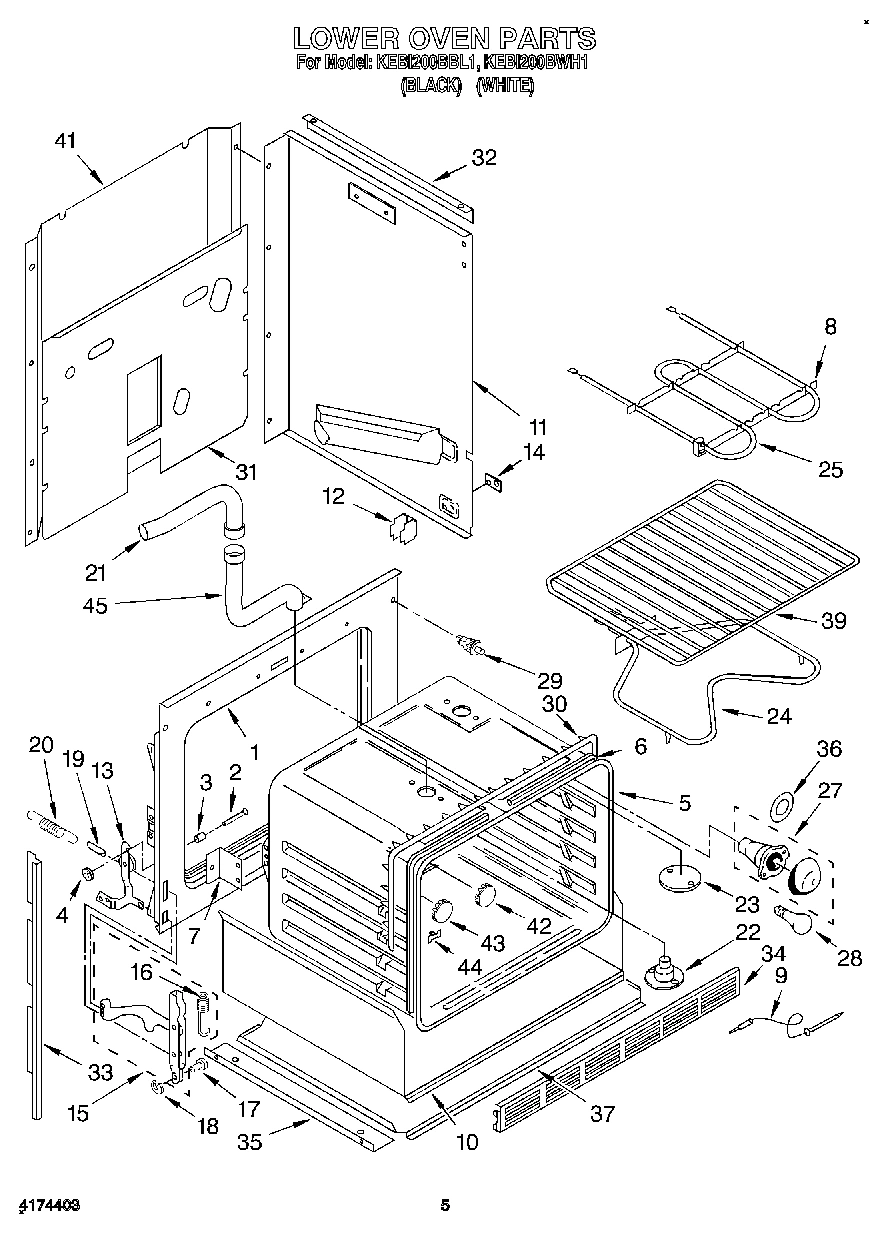

03 - LOWER OVEN

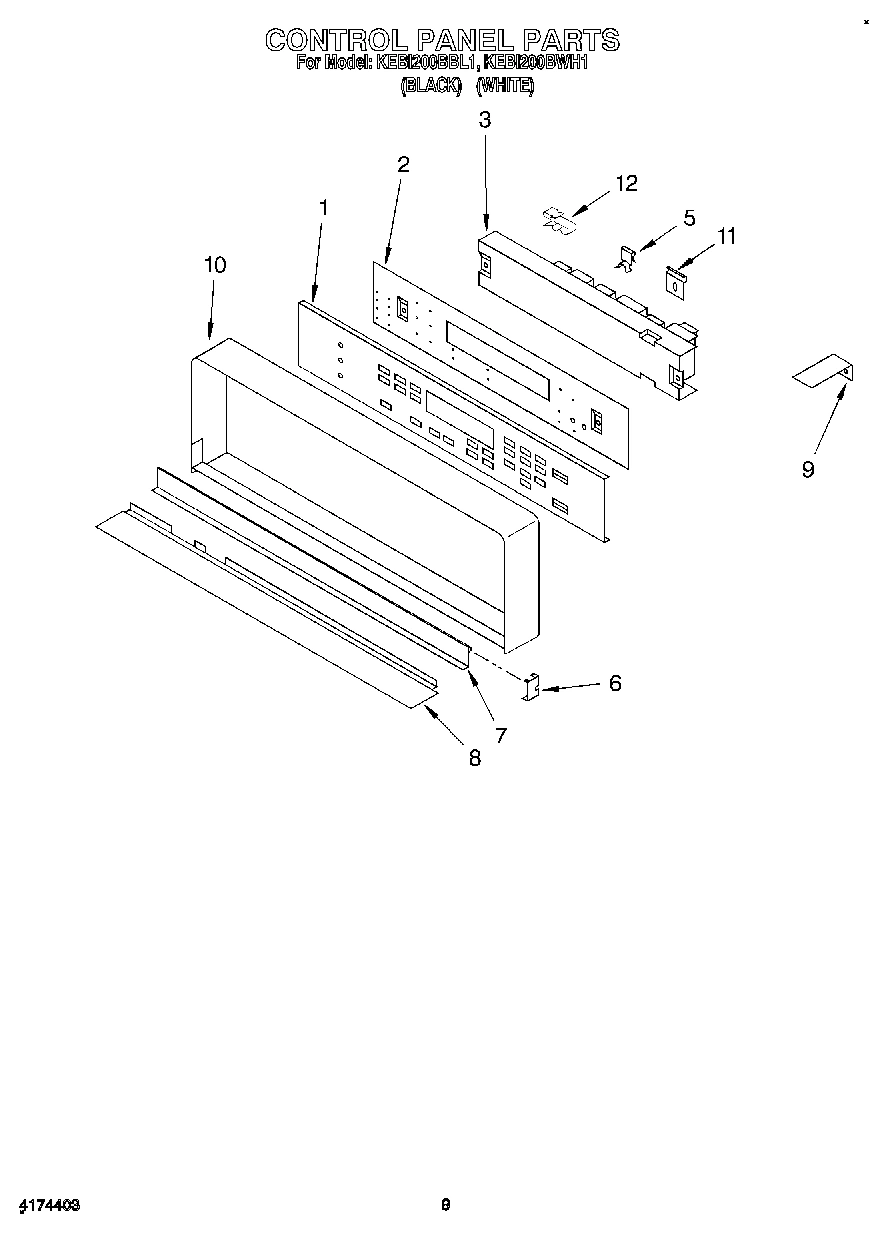

06 - CONTROL PANEL

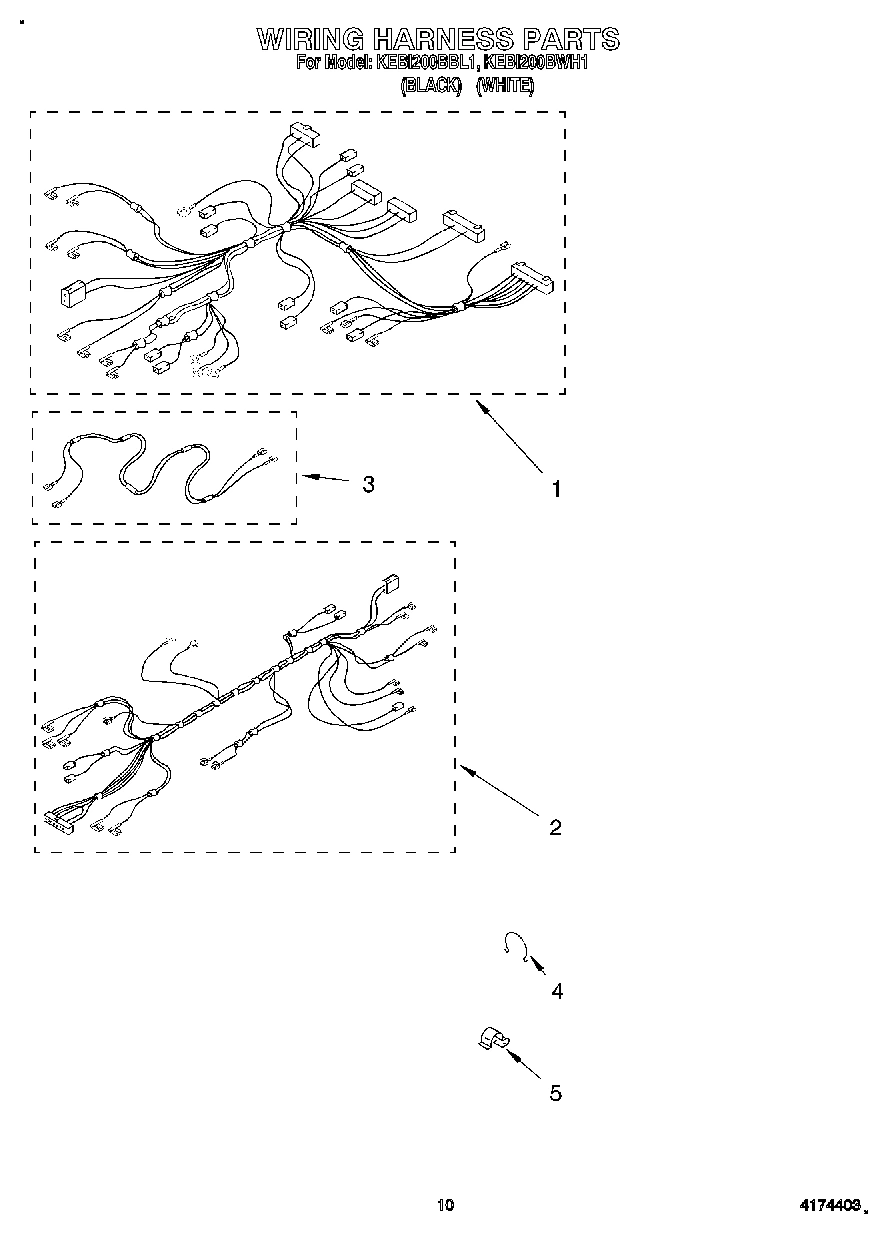

07 - WIRING HARNESS

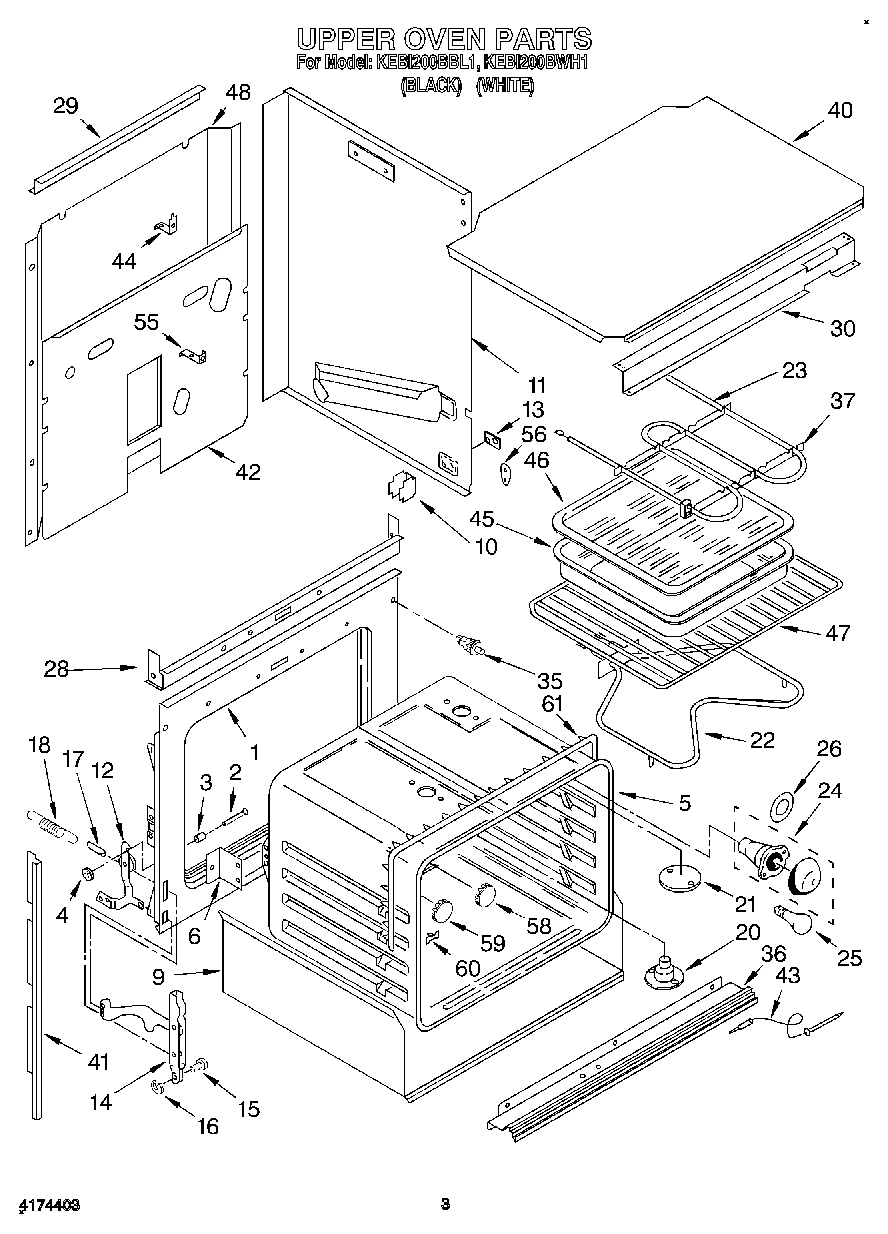

02 - UPPER OVEN

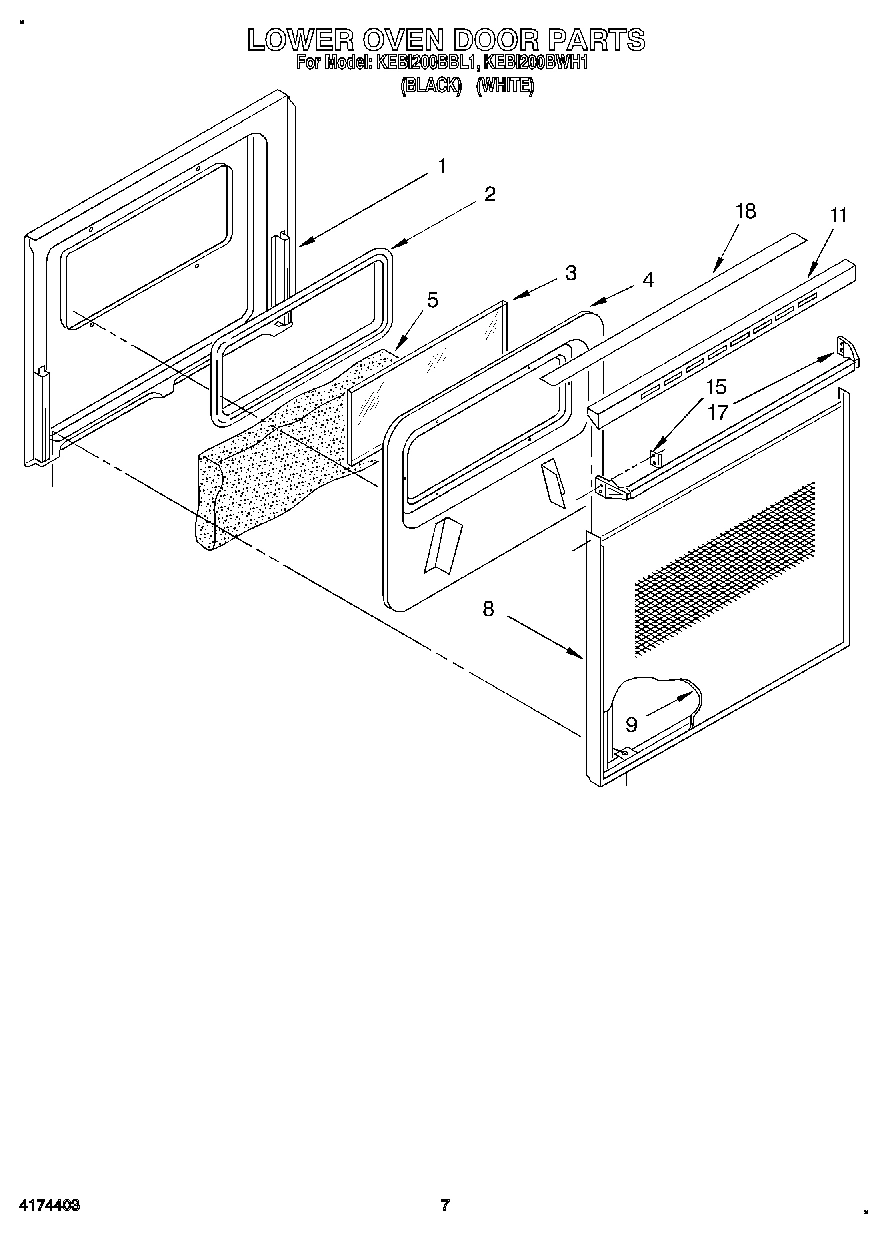

04 - LOWER OVEN DOOR

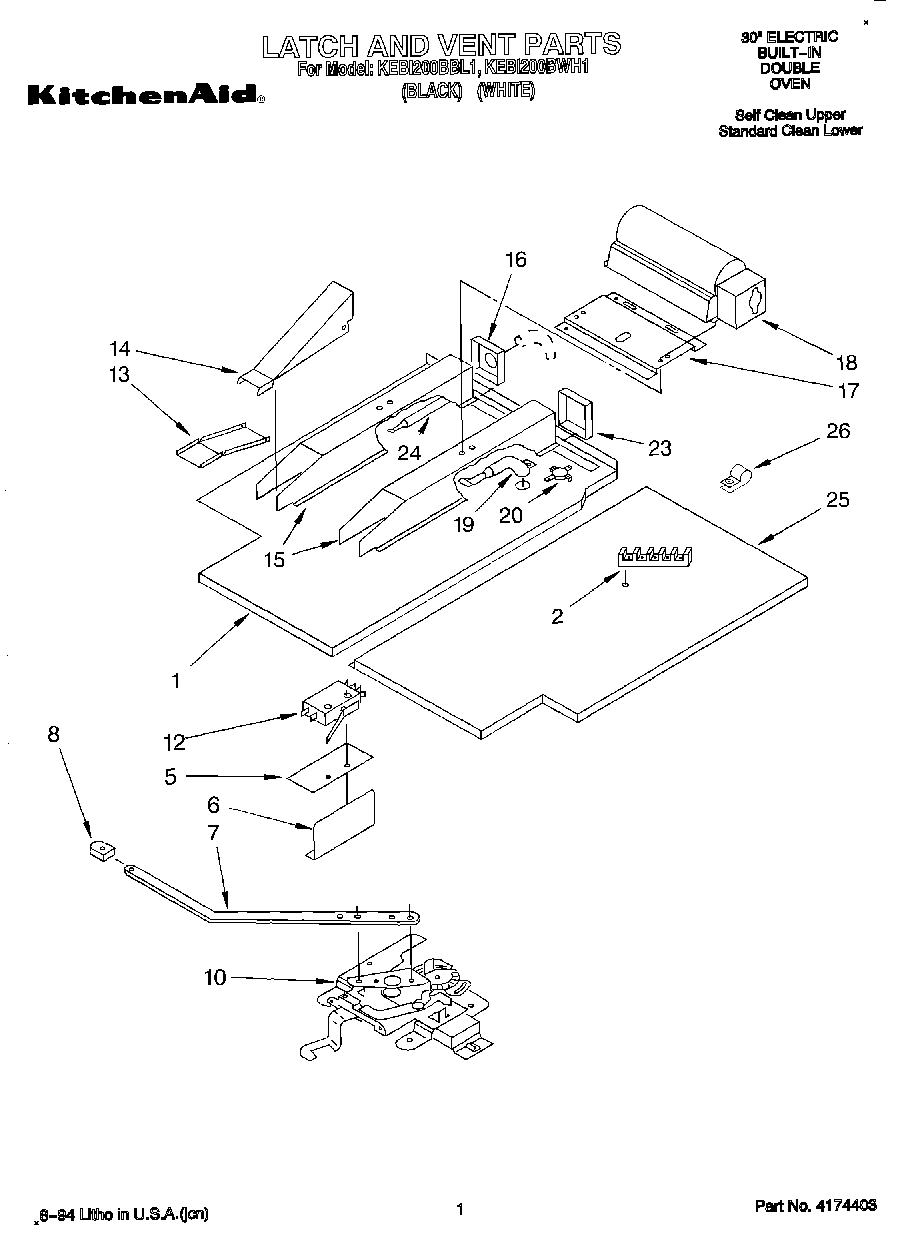

01 - LATCH AND VENT, LITERATURE

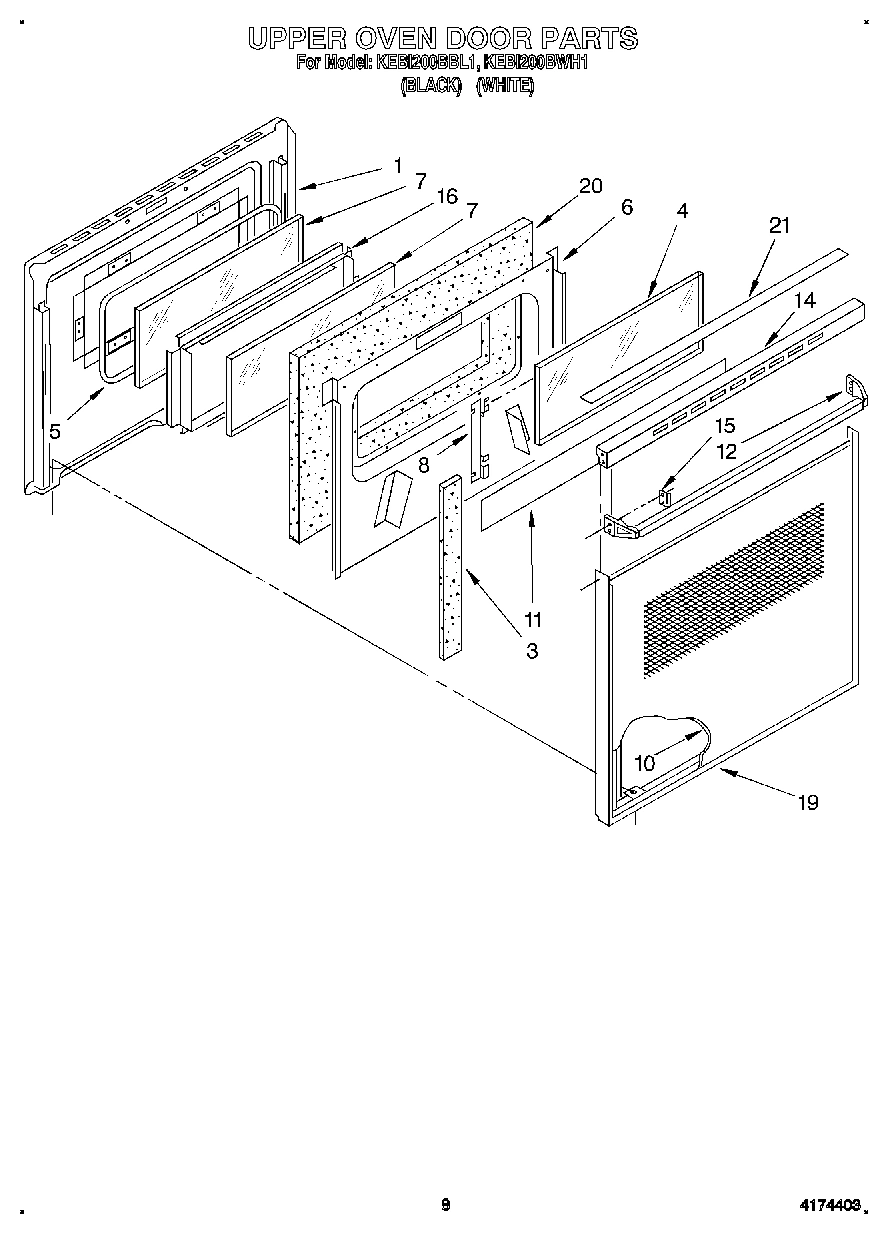

05 - UPPER OVEN DOOR
Common parts from model Whirlpool KEBI200BBL1
Installation Instructions WPL LIT3182137 Contact Us For Availability
Tech Sheet WPL LIT3186506 Contact Us For Availability
Use & Care Guide WPL LIT3188198 Contact Us For Availability
1
Membrane, Switch (Black) WPL 3181788 Contact Us For Availability
1
Membrane, Switch (White) WPL 3183525 Contact Us For Availability
1
Harness, Wire Upper Oven WPL 3185968 Contact Us For Availability
1
Frame Front WPL 3186975 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Baffle, Vent WPL 3183949 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
2
Seal, Door WPL 3148183 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3181889 Contact Us For Availability
2
Harness, Wire Lower Oven WPL 3185985 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Screw (2) WPL 308043 Contact Us For Availability
3
Microcomputer WPL 3181704 Contact Us For Availability
3
Wire Harness Lower Oven Light WPL 3183751 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Screw, WPL 254225 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Retainer, Insulation WPL 3148287 Contact Us For Availability
5
Clip, Retainer (3) WPL 3182985 Contact Us For Availability
5
Oven 30`` WPL 3182032 Contact Us For Availability
5
Insulation WPL 3147954 Contact Us For Availability
5
Insulator, Switch WPL 309245 Contact Us For Availability
5
Screw WPL 98106 Contact Us For Availability
6
Hinge, Door (2) WPL 3182162 Contact Us For Availability
6
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
6
Screw WPL 309258 Contact Us For Availability
6
Shield, Latch WPL 313035 Contact Us For Availability
6
Retainer, WPL 3148159 Contact Us For Availability
6
Screw WPL 4173601 Contact Us For Availability
7
Door, Latch Handle (Screw (2)) WPL 3179847 Contact Us For Availability
7
Door, Latch Handle (Black) WPL 3182152 Contact Us For Availability
7
Door, Latch Handle (White) WPL 3182155 Contact Us For Availability
7
Screw WPL 308422 Contact Us For Availability
7
Handle, Latch WPL 3184002 Contact Us For Availability
8
Trim, Panel WPL 3183703 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Retainer, Glass (2) WPL 3188553 Contact Us For Availability
9
Screw (2) WPL 3182939 Contact Us For Availability
9
Bracket (2) WPL 3185424 Contact Us For Availability
9
Insulation Tray WPL 3185944 Contact Us For Availability
10
Frame, Control Panel (Black Model) WPL 3187948 Contact Us For Availability
10
Frame, Control Panel (White Model) WPL 3187949 Contact Us For Availability
10
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
10
Glass, Panel (White Model) WPL 3188050 Contact Us For Availability
10
Glass, Panel (Black Model) WPL 3188052 Contact Us For Availability
10
Latch Mechanism WPL 3187081 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
11
Side Wrapper (R.H.) WPL 3185953 Contact Us For Availability
11
Side Wrapper (L.H.) WPL 3185956 Contact Us For Availability
11
Foil, Door WPL 3188706 Contact Us For Availability
12
Clip, Tube WPL 313570 Contact Us For Availability
12
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
12
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
12
Handle, Door (Screw, Black) WPL 3149253 Contact Us For Availability
12
Handle, Door (Black) WPL 3186524 Contact Us For Availability
12
Handle, Door (White) WPL 3186525 Contact Us For Availability
12
Switch, Latch WPL 3178668 Contact Us For Availability
12
Handle, Door (Screw, White) WPL 3188403 Contact Us For Availability
13
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
13
Nozzel, Vent Bottom (2) WPL 3183954 Contact Us For Availability
14
Channel Arm (2) WPL 3185664 Contact Us For Availability
14
Top, Door (Black Model) WPL 3148223 Contact Us For Availability
14
Top, Door (White Model) WPL 3149355 Contact Us For Availability
14
Nozzel, Vent Top (2) WPL 3183955 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Screw WPL 3185918 Contact Us For Availability
15
Screw WPL 3179116 Contact Us For Availability
15
Box, Vent (2) WPL 3184078 Contact Us For Availability
15
Screw WPL 4173231 Contact Us For Availability
16
Retainer Ring (2) WPL 307594 Contact Us For Availability
16
Screw (6) WPL 3185647 Contact Us For Availability
16
End, Vent Box WPL 3183965 Contact Us For Availability
16
Frame, Inner WPL 3148234 Contact Us For Availability
17
Handle, Oven Door (Screw (5)) WPL 3149333 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
19
Frame, Panel (Black Model) WPL 3171530 Contact Us For Availability
19
Frame, Panel (White Model) WPL 3187920 Contact Us For Availability
19
Tube, Vent WPL 3183792 Contact Us For Availability
20
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
20
Eliminator, Smoke WPL 310839 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
20
Insulation, Door WPL 3147951 Contact Us For Availability
21
Cap, Top (Black Model) WPL 3181366 Contact Us For Availability
21
Cap, Top (White Model) WPL 3181367 Contact Us For Availability
23
Unit, Broil WPL 3182451 Contact Us For Availability
23
End, Vent Box WPL 3183964 Contact Us For Availability
24
Tube, Vent Lower Oven WPL 3183793 Contact Us For Availability
25
Baffle, Vent Mtg. WPL 3183948 Contact Us For Availability
26
Clamp, Tube WPL 3183532 Contact Us For Availability
28
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
29
Switch, Door WPL 310345 Contact Us For Availability
30
Bracket, Mounting Control Frame WPL 3182585 Contact Us For Availability
30
screw WPL 312713 Contact Us For Availability
32
Support Angle (2) WPL 255095 Contact Us For Availability
33
Side Trim (Black Model, R.H.) WPL 3187905 Contact Us For Availability
33
Side Trim (White Model, R.H.) WPL 3187906 Contact Us For Availability
33
Side Trim (Black Model, L.H.) WPL 3187911 Contact Us For Availability
33
Side Trim (White Model, LH) WPL 3187912 Contact Us For Availability
34
Grill, Bottom (Screw (3)) WPL 309029 Contact Us For Availability
34
Grill, Bottom (Black) WPL 3150349 Contact Us For Availability
34
Grill, Bottom (White) WPL 3150350 Contact Us For Availability
35
Angle, Support (2) WPL 311592 Contact Us For Availability
36
Vent, Center Trim (Screw) WPL 309133 Contact Us For Availability
36
Trim, Center vent (Black Model) WPL 3188144 Contact Us For Availability
36
Trim, Center vent (White Model) WPL 3188145 Contact Us For Availability
37
Cover, Bottom WPL 3185945 Contact Us For Availability
37
Screw (2) WPL 3150532 Contact Us For Availability
37
Bracket, Element WPL 3180694 Contact Us For Availability
39
Rack, Strai WPL 3185641 Contact Us For Availability
40
Cover, Top WPL 3184099 Contact Us For Availability
41
WPL 3185959 WPL 3185959 Contact Us For Availability
41
Side Trim (Black Model, R.H.) WPL 3187902 Contact Us For Availability
41
Side Trim (White Model, RH) WPL 3187903 Contact Us For Availability
41
Side Trim (Black Model, L.H.) WPL 3187908 Contact Us For Availability
41
Side Trim (White Model, LH) WPL 3187909 Contact Us For Availability
42
Panel, Back WPL 3182052 Contact Us For Availability
43
Sensor, Heat WPL 3148440 Contact Us For Availability
44
Stand Off WPL 311582 Contact Us For Availability
45
WPL 3182159 WPL 3182159 Contact Us For Availability
47
Rack, Oven Offset WPL 3185640 Contact Us For Availability
48
WPL 3185961 WPL 3185961 Contact Us For Availability
55
WPL 309102 WPL 309102 Contact Us For Availability
56
WPL 310662 WPL 310662 Contact Us For Availability
58
WPL 3182814 WPL 3182814 Contact Us For Availability
59
WPL 3185086 WPL 3185086 Contact Us For Availability
60
WPL 3169107 WPL 3169107 Contact Us For Availability
61
WPL 3185197 WPL 3185197 Contact Us For Availability
61
WPL 310433 WPL 310433 Contact Us For Availability
61
WPL 310435 WPL 310435 Contact Us For Availability
61
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
