Model Whirlpool KEBI171YBL0 – Common Parts & Diagrams
03 - OVEN
07 - WIRING HARNESS

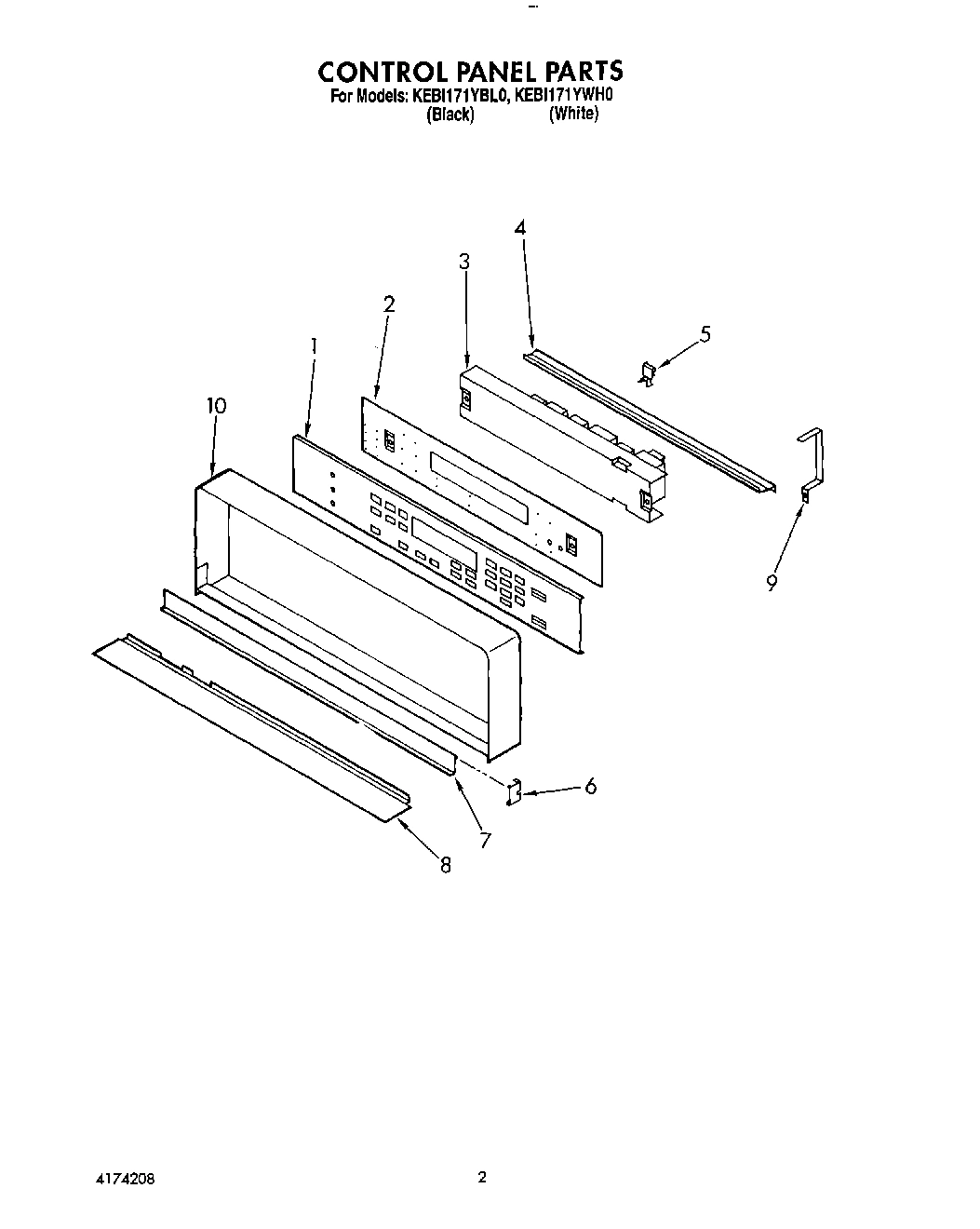

02 - CONTROL PANEL, LIT/OPTIONAL

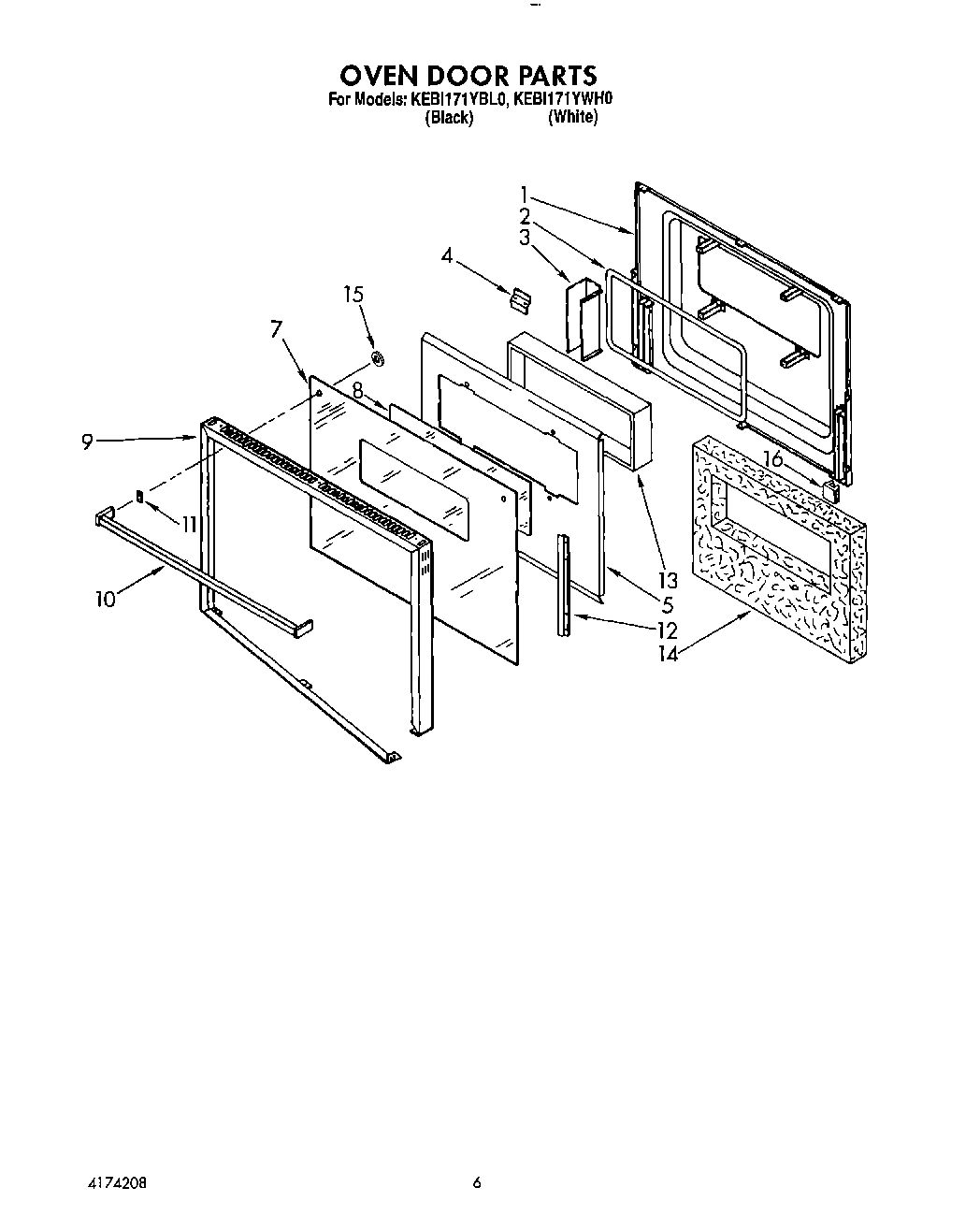

04 - OVEN DOOR

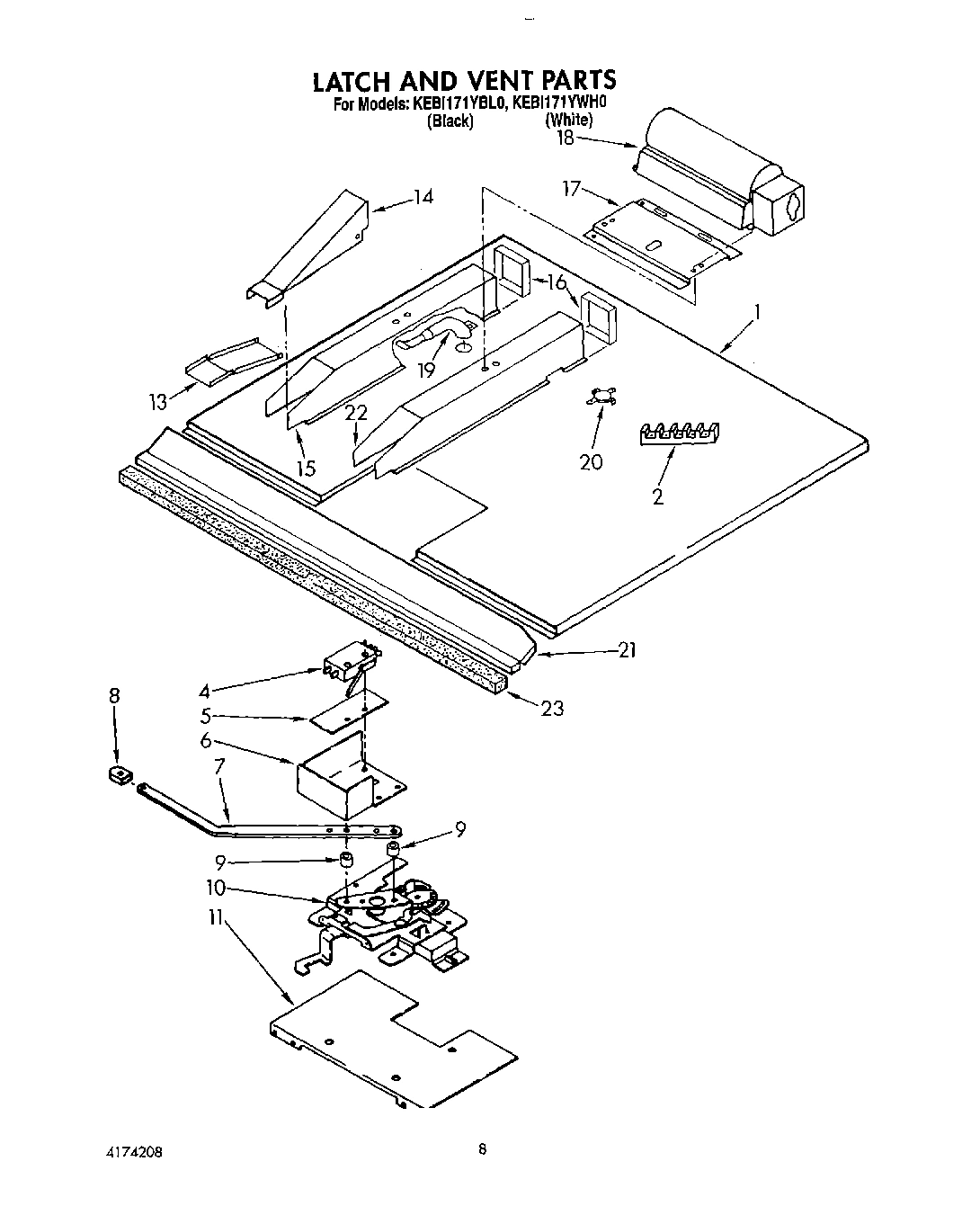

06 - LATCH AND VENT

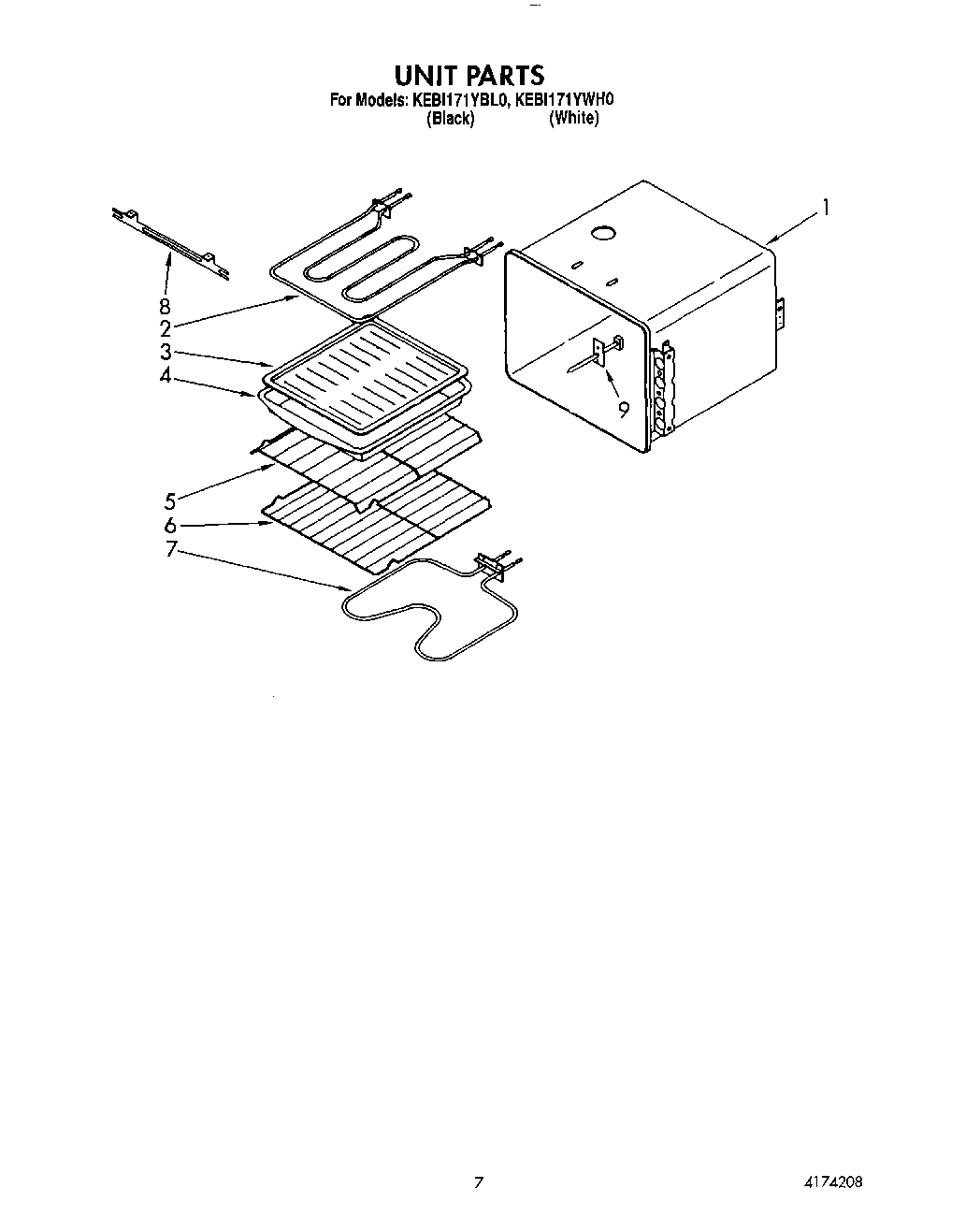

05 - UNIT
Common parts from model Whirlpool KEBI171YBL0
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
14 Ga. 150~c Rating (White) WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16 Ga. 80~c Rating (Blue) WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14 Ga. 200~c Rating (Yellow) WPL 242832 Contact Us For Availability
Harvest Gold WPL 261890 Contact Us For Availability
Harvest Gold WPL 261891 Contact Us For Availability
Toast WPL 285365 Contact Us For Availability
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
Platinum WPL 285368 Contact Us For Availability
Mounting Hardware WPL 3171507 Contact Us For Availability
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
Leveler (Primer) WPL 350941 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
WPL 72112 WPL 72112 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL 832985 WPL 832985 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT3182129 WPL LIT3182129 Contact Us For Availability
WPL LIT3182134 WPL LIT3182134 Contact Us For Availability
WPL LIT3183659 WPL LIT3183659 Contact Us For Availability
WPL LIT4174208 WPL LIT4174208 Contact Us For Availability
1
Liner, Oven WPL 3177471 Contact Us For Availability
1
Harness Wire (Door Switch) WPL 3183655 Contact Us For Availability
1
Membrane, Switch (Black Model) WPL 3181776 Contact Us For Availability
1
Membrane, Switch (White, Model) WPL 3181777 Contact Us For Availability
1
Liner, Door WPL 3177599 Contact Us For Availability
1
Screw, Black (2) WPL 3178001 Contact Us For Availability
1
Module, Top WPL 3183748 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3183794 Contact Us For Availability
2
Gasket, Window WPL 3178584 Contact Us For Availability
2
Screw WPL 308043 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
3
Microcomputer WPL 3181702 Contact Us For Availability
3
Spacer, Window WPL 3179693 Contact Us For Availability
4
Harness Wire Main Oven WPL 3184220 Contact Us For Availability
4
Retainer, Bracket WPL 3183705 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Switch, latch WPL 3183784 Contact Us For Availability
4
Screw WPL 98106 Contact Us For Availability
5
Clip, Retainer (3) WPL 3182985 Contact Us For Availability
5
Insulation, Retainer WPL 3177718 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Rack, Offset WPL 3180865 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
6
Trim, Door WPL 3182162 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Rack, Oven WPL 3180864 Contact Us For Availability
7
Door, Latch Handle (Screw) WPL 3179847 Contact Us For Availability
7
Door, Latch Handle (Black) WPL 3182151 Contact Us For Availability
7
Door, Latch Handle (White) WPL 3182154 Contact Us For Availability
7
Glass, Door (Black) WPL 3181548 Contact Us For Availability
7
Glass, Door (White) WPL 3181550 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
8
Trim, Panel WPL 3183702 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Bracket, Element WPL 3180694 Contact Us For Availability
9
Harness, Wire (Latch Assy.) WPL 3183976 Contact Us For Availability
9
Screw WPL 3179117 Contact Us For Availability
9
Screw WPL 3182939 Contact Us For Availability
9
Bracket WPL 3184321 Contact Us For Availability
9
Frame, Door WPL 3181402 Contact Us For Availability
9
Screw WPL 3184037 Contact Us For Availability
9
Spacer, Latch Handle WPL 3184040 Contact Us For Availability
9
Sensor, Heat WPL 3148440 Contact Us For Availability
10
Harness, Wire (Blower Fan) WPL 3183657 Contact Us For Availability
10
Frame, Control Panel WPL 3182148 Contact Us For Availability
10
Handle, Door (Screw) WPL 3181637 Contact Us For Availability
10
Handle, Door (Black) WPL 3182165 Contact Us For Availability
10
Handle, Door (White) WPL 3182168 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
11
Spacer (2) WPL 3182138 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
12
Bracket, Glass Mounting WPL 4163855 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
13
Nozzle, Vent Bottom WPL 3183954 Contact Us For Availability
14
Screw (6) WPL 4168863 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
14
Nozzle, Vent Top WPL 3183955 Contact Us For Availability
15
Bushing, Handle WPL 3181651 Contact Us For Availability
15
Box, Vent WPL 3183999 Contact Us For Availability
16
Bumper, Door Glass WPL 3181701 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
19
Tube, Vent WPL 3183791 Contact Us For Availability
19
Screw WPL 4173231 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
21
Shield, Heat WPL 3183785 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
22
Box, Vent WPL 3183953 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Seal, foam WPL 313755 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Screw (6) WPL 3179795 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Back, Module WPL 3177560 Contact Us For Availability
28
Screw (4) WPL 3178000 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Button, Plug WPL 3185085 Contact Us For Availability
30
Button, Plug WPL 3185109 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Vent, Lower Trim (Black) WPL 3177787 Contact Us For Availability
34
Vent, Lower Trim (White) WPL 3177789 Contact Us For Availability
34
Vent, Lower Trim (Screw (4)) WPL 3180022 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
43
Bottom, Oven WPL 3177551 Contact Us For Availability
44
Plate, Cover WPL 4163883 Contact Us For Availability
45
Bracket, Conduit WPL 3177545 Contact Us For Availability
46
Insulation, Oven WPL 3177862 Contact Us For Availability
47
Insulation, Back WPL 3177872 Contact Us For Availability
48
Bracket, Mounting Control Panel WPL 3183752 Contact Us For Availability
× ![]()
