Model Whirlpool KEBI171WBL3 – Common Parts & Diagrams
06 - UNIT
02 - CONTROL PANEL, LIT/OPTIONAL

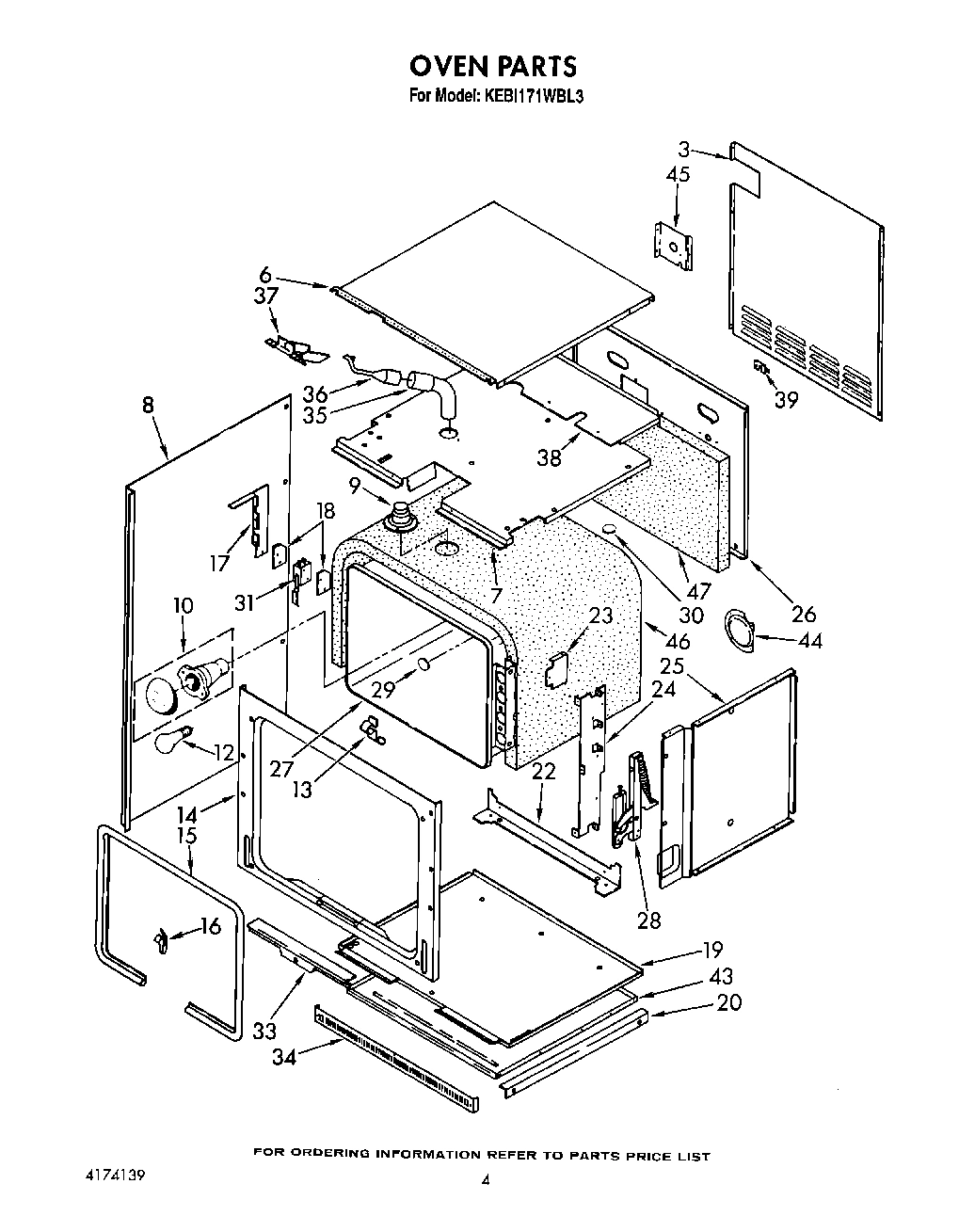

03 - OVEN, OPTIONAL

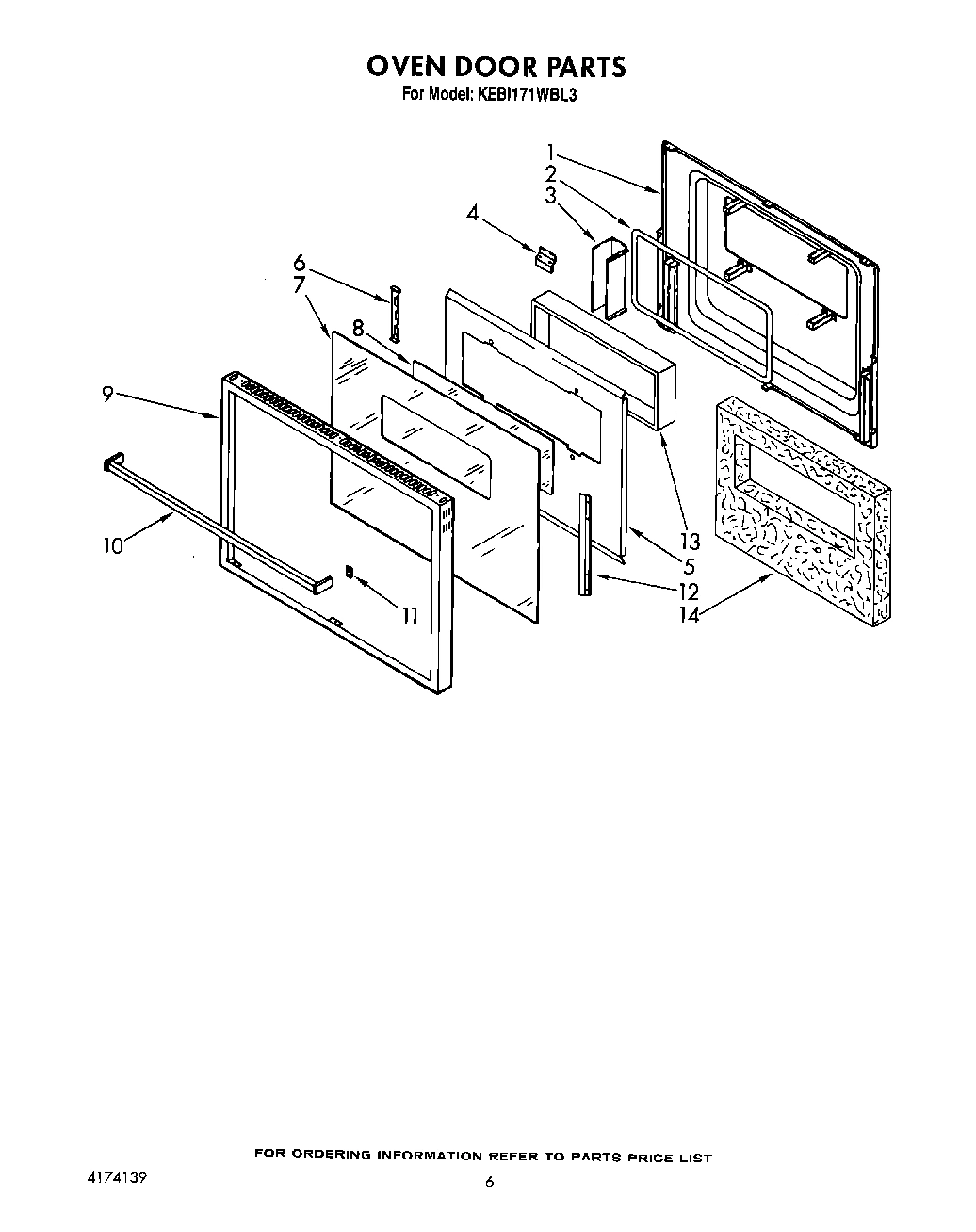

04 - OVEN DOOR

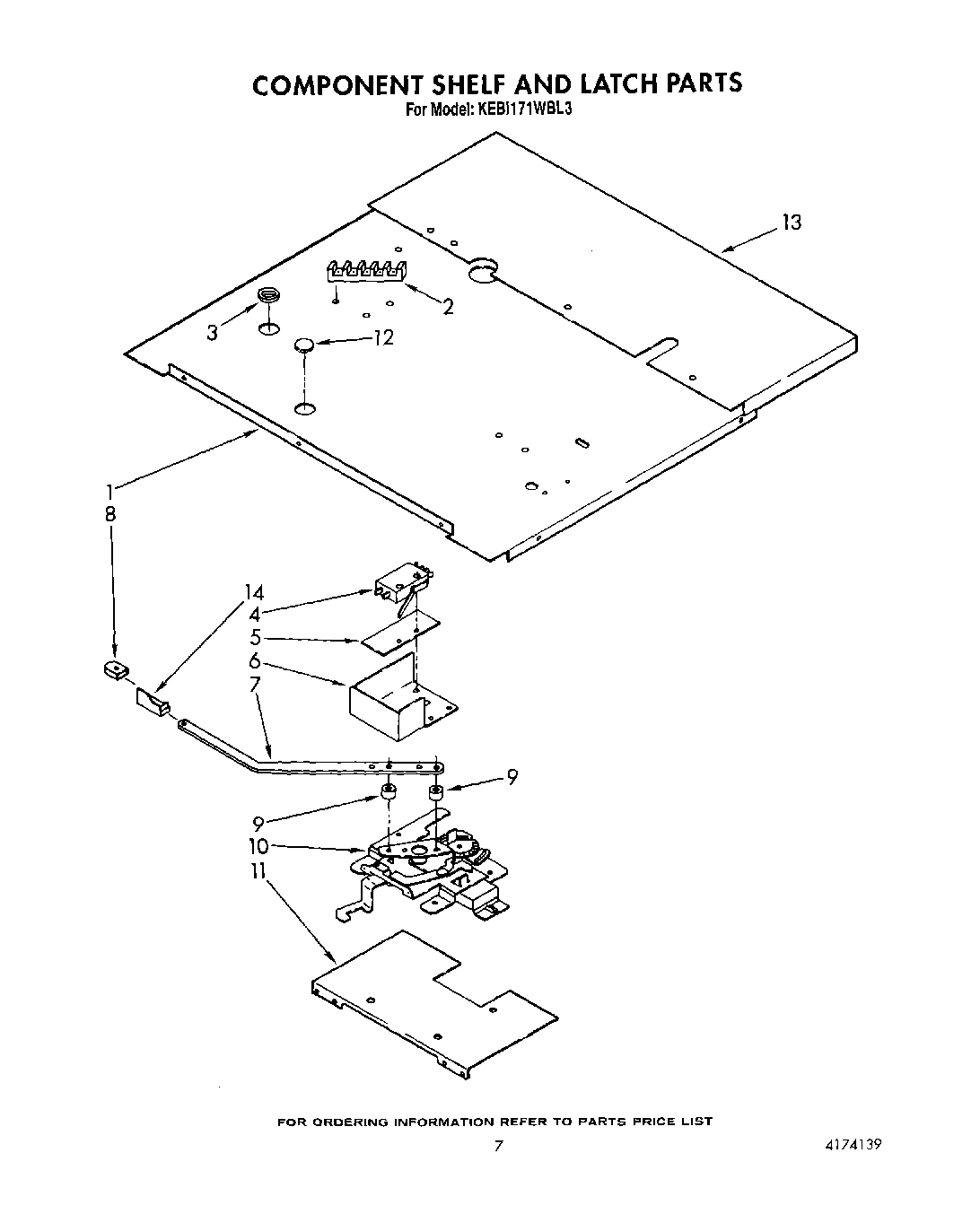

05 - COMPONENT SHELF AND LATCH

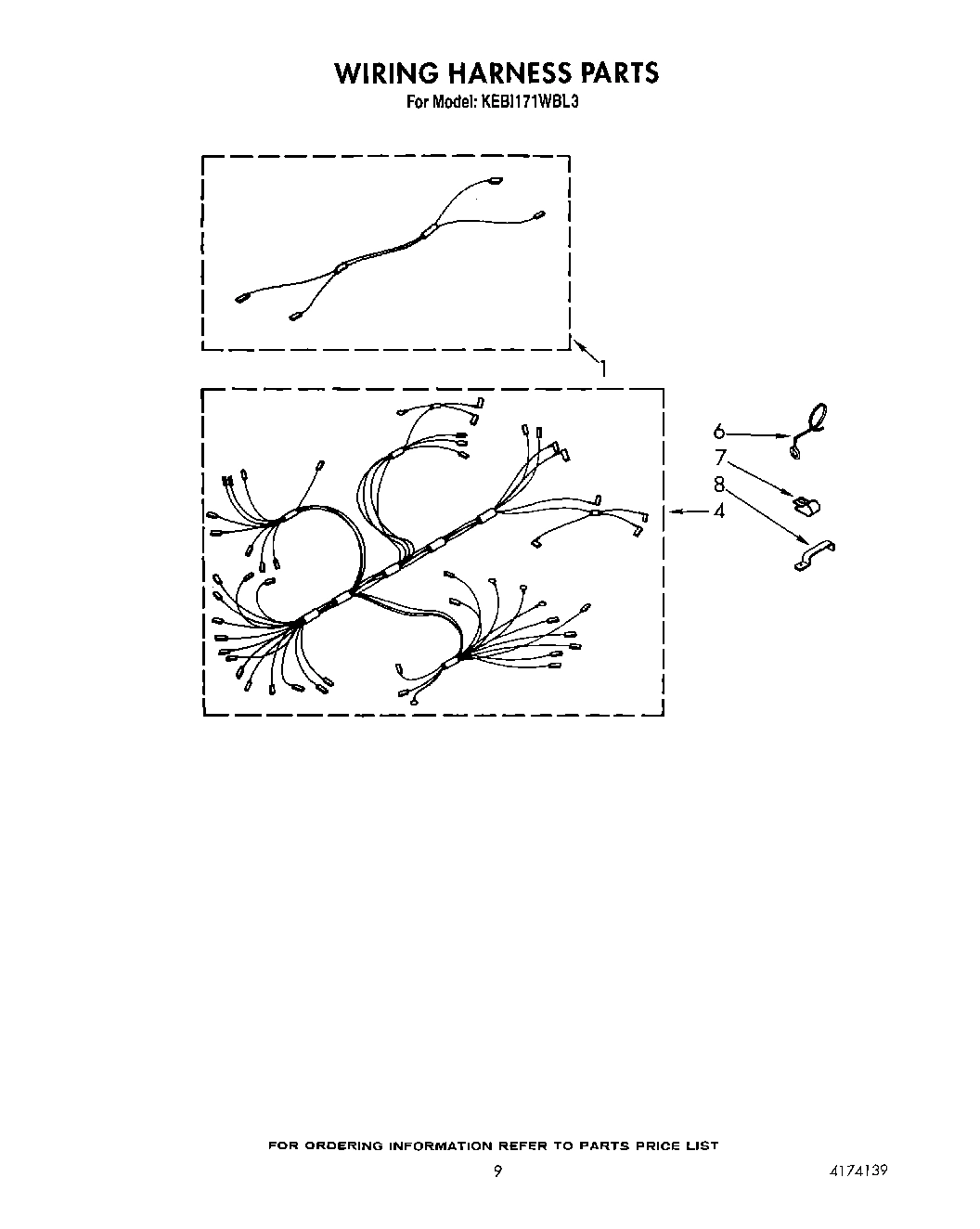

07 - WIRING HARNESS
Common parts from model Whirlpool KEBI171WBL3
1
Liner, Door WPL 3177599 Contact Us For Availability
1
Shelf, Component WPL 3178089 Contact Us For Availability
1
Harness Wire Door Switch WPL 3179941 Contact Us For Availability
2
Gasket, Window WPL 3178584 Contact Us For Availability
3
Cabinet, Back WPL 3177625 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Harness Wire WPL 3179918 Contact Us For Availability
5
Insulation, Retainer WPL 3177718 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
6
Cabinet, Top WPL 3178136 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
7
Insert, Top WPL 4173307 Contact Us For Availability
7
Top, Module WPL 3177436 Contact Us For Availability
7
Glass, Door WPL 3177768 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
8
Control Panel WPL 3177804 Contact Us For Availability
8
Side, Cabinet Left & Right Side WPL 3177442 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
Knob, Latch Handle WPL 311253 Contact Us For Availability
9
Timer, Electronic WPL 3148111 Contact Us For Availability
9
Screw (3) WPL 3179117 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Frame, Door WPL 3177671 Contact Us For Availability
9
Spacer, Handle WPL 3177986 Contact Us For Availability
9
Screw (2) WPL 3179116 Contact Us For Availability
9
Screw (2) WPL 3179950 Contact Us For Availability
10
Glass, Control Panel WPL 3177931 Contact Us For Availability
10
Handle, Door WPL 3178642 Contact Us For Availability
10
Screw (2) WPL 3179114 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
11
Frame, Control Panel WPL 3177760 Contact Us For Availability
11
Spacer (2) WPL 3179693 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
12
Insert, Vent WPL 3179916 Contact Us For Availability
12
Screw (12) WPL 3179795 Contact Us For Availability
12
Screw, Black (2) WPL 3178001 Contact Us For Availability
12
Retainer, Glass WPL 4167975 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
13
Knob, Timer WPL 3177122 Contact Us For Availability
13
Extension, Shelf WPL 3178132 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Knob, Timer WPL 3177121 Contact Us For Availability
14
Frame, Front WPL 3177682 Contact Us For Availability
14
Screw (6) WPL 4168863 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
14
Support, Latch WPL 3178232 Contact Us For Availability
15
Door, Latch Handle WPL 3177972 Contact Us For Availability
15
Screw (5) WPL 4170323 Contact Us For Availability
15
Screw (4) WPL 3179776 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
16
Knob, Control (4) WPL 3178400 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
17
Disc, Select WPL 3178262 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
18
Disc, Thermostat WPL 3178477 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Bottom, Modual WPL 3177621 Contact Us For Availability
20
nut (3) WPL 4168838 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
Hinge, Door WPL 3177971 Contact Us For Availability
21
Screw (2) WPL 3179847 Contact Us For Availability
22
Screw (6) WPL 4159456 Contact Us For Availability
22
Retainer, Glass WPL 4167590 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Bracket, Control Panel WPL 3177747 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
25
Bezel, Switch WPL 4169372 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Support, Frame WPL 3177650 Contact Us For Availability
26
Back, Module WPL 3177556 Contact Us For Availability
27
Liner, Oven WPL 3180828 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Button, Plug WPL 3185108 Contact Us For Availability
30
Button, Plug WPL 3185109 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Vent, Lower Trim WPL 3177787 Contact Us For Availability
34
Screw (4) WPL 3180022 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3180891 Contact Us For Availability
37
Shield, Vent WPL 3180890 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
43
Bottom, Oven WPL 3177551 Contact Us For Availability
44
Plate, Cover WPL 4163883 Contact Us For Availability
45
Bracket, Conduit WPL 3177545 Contact Us For Availability
46
Insulation, Oven WPL 3177862 Contact Us For Availability
47
WPL 799344 WPL 799344 Contact Us For Availability
47
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
47
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
47
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
47
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
47
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
47
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
47
4 Ga. 150~c Rating (White) WPL 242826 Contact Us For Availability
47
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
47
WPL 242828 WPL 242828 Contact Us For Availability
47
WPL 242829 WPL 242829 Contact Us For Availability
47
WPL 242830 WPL 242830 Contact Us For Availability
47
WPL 242832 WPL 242832 Contact Us For Availability
47
WPL 261890 WPL 261890 Contact Us For Availability
47
WPL 261891 WPL 261891 Contact Us For Availability
47
WPL 285365 WPL 285365 Contact Us For Availability
47
WPL 285366 WPL 285366 Contact Us For Availability
47
WPL 285367 WPL 285367 Contact Us For Availability
47
WPL 285368 WPL 285368 Contact Us For Availability
47
WPL 3177872 WPL 3177872 Contact Us For Availability
47
WPL 350806 WPL 350806 Contact Us For Availability
47
WPL 350941 WPL 350941 Contact Us For Availability
47
WPL 591014 WPL 591014 Contact Us For Availability
47
WPL 72112 WPL 72112 Contact Us For Availability
47
WPL 799832 WPL 799832 Contact Us For Availability
47
WPL 832985 WPL 832985 Contact Us For Availability
47
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
