Model Whirlpool KEBI171SBL1 – Common Parts & Diagrams

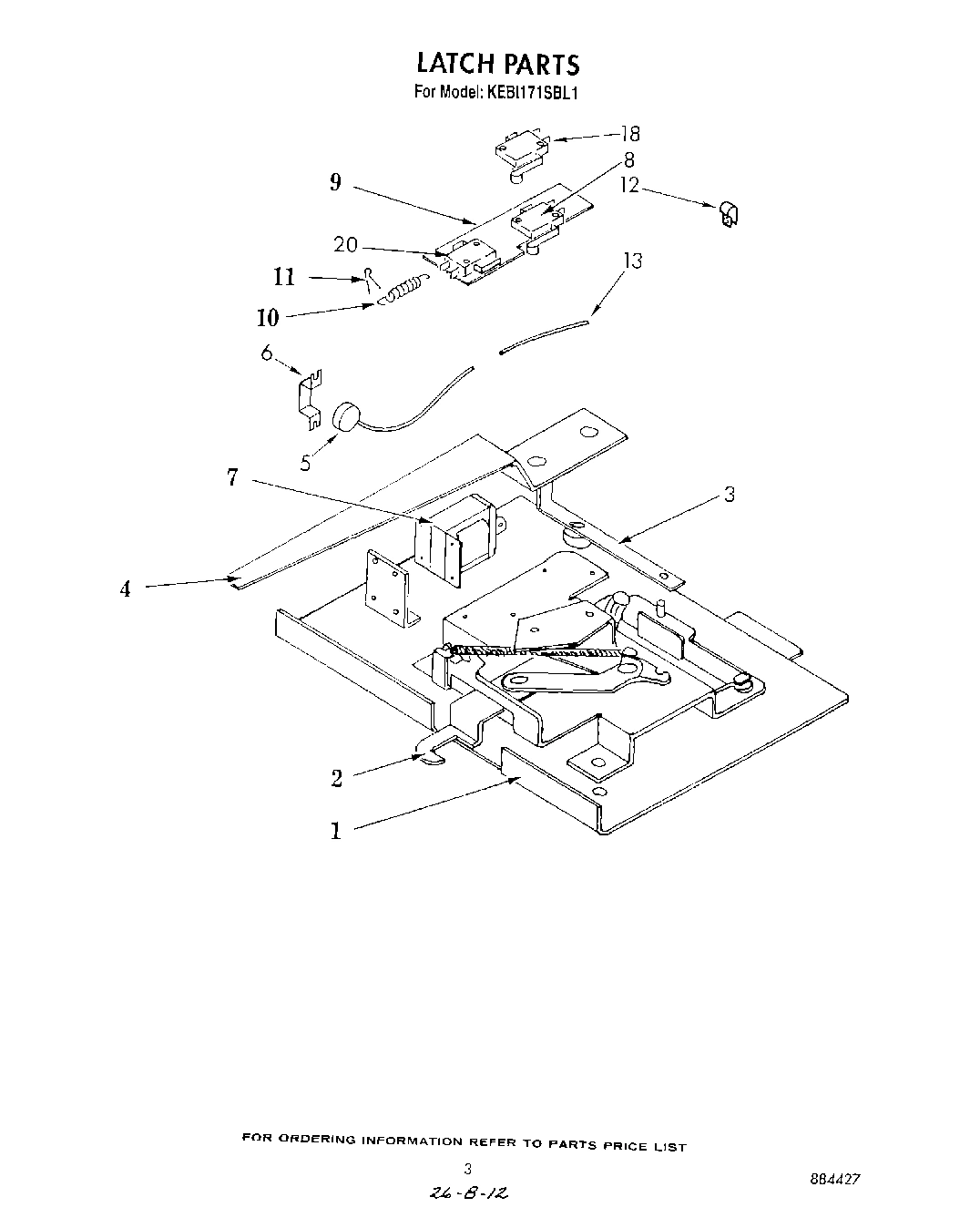

03 - LATCH

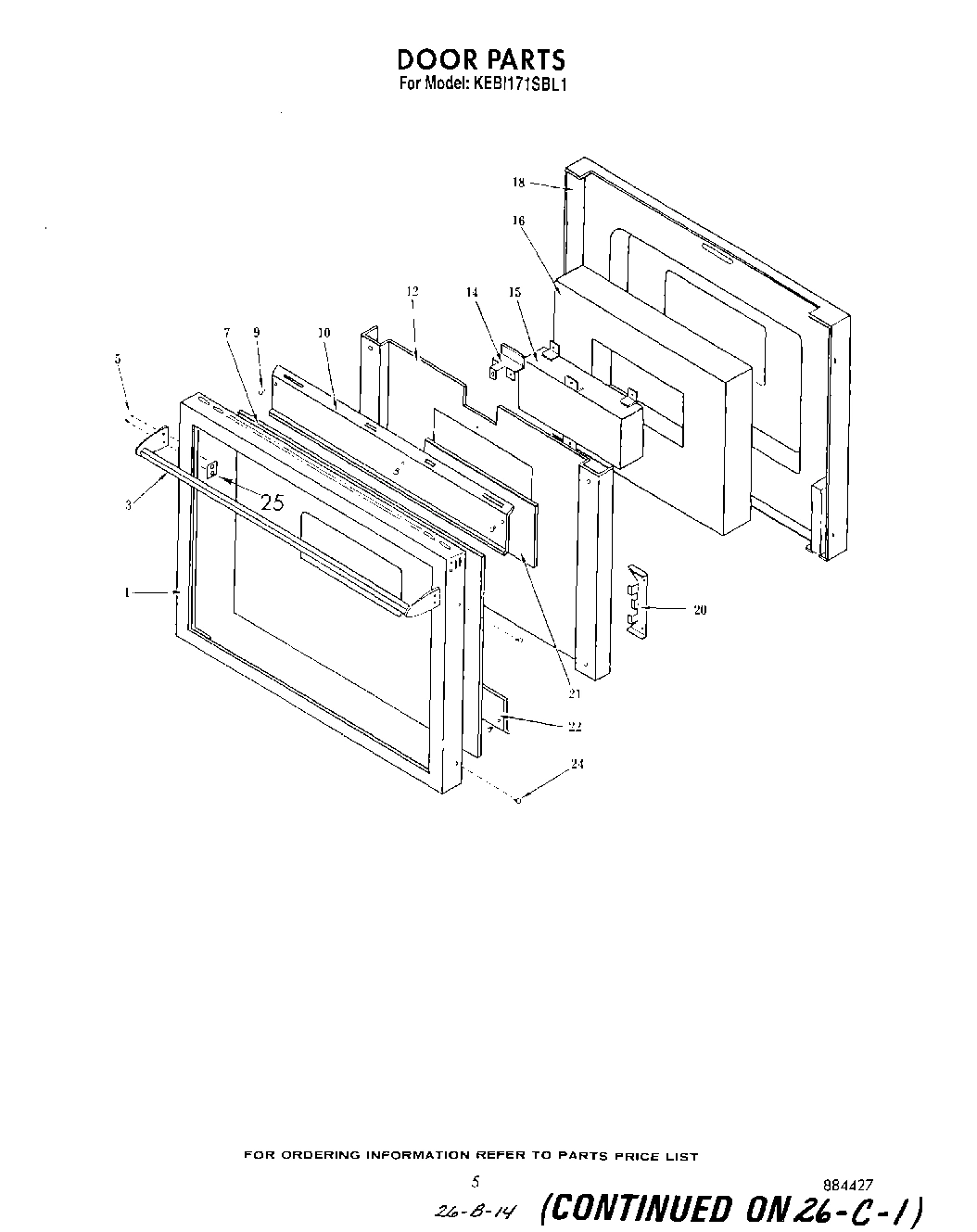

05 - DOOR

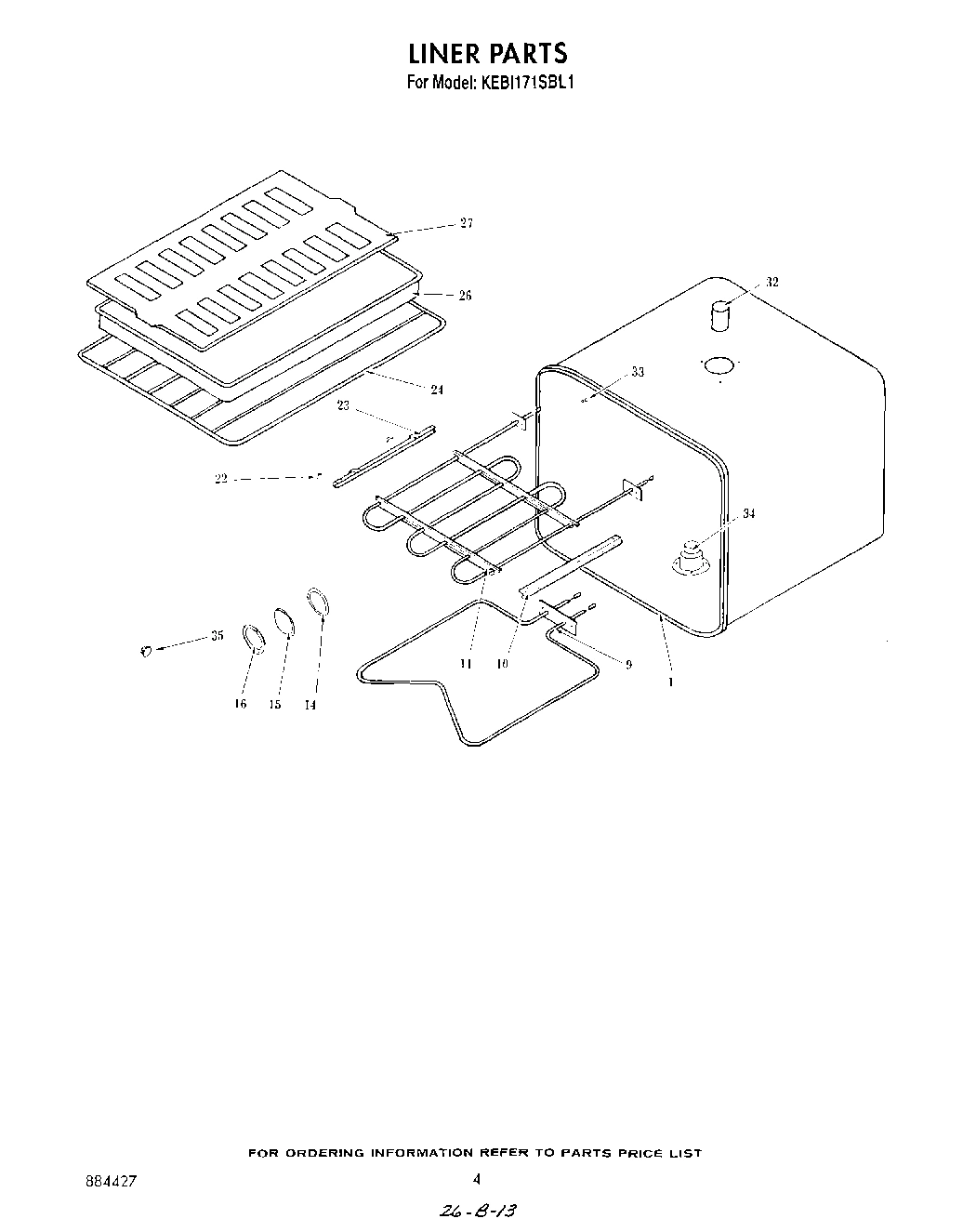

04 - LINER

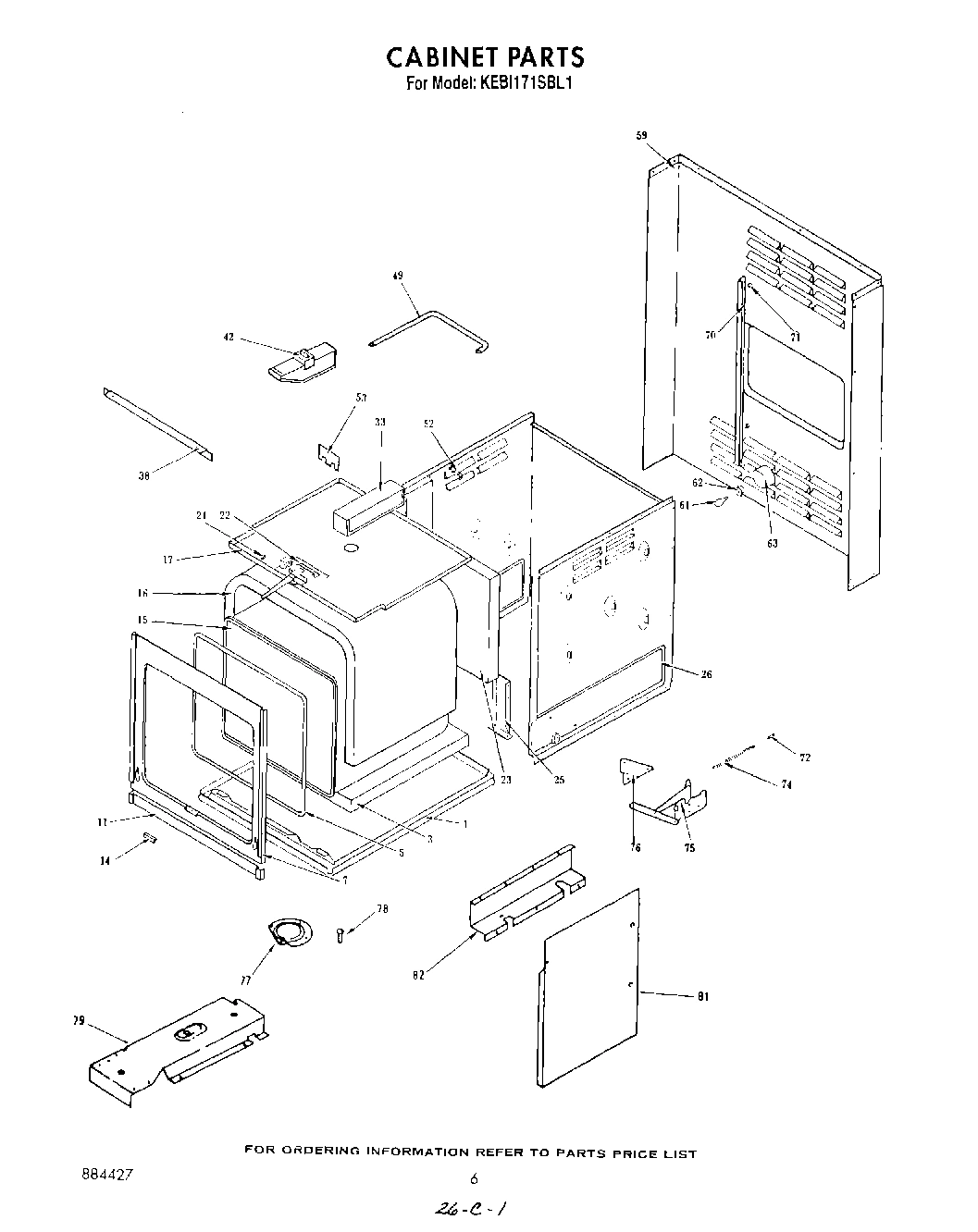

06 - CABINET , LITERATURE AND OPTIONAL

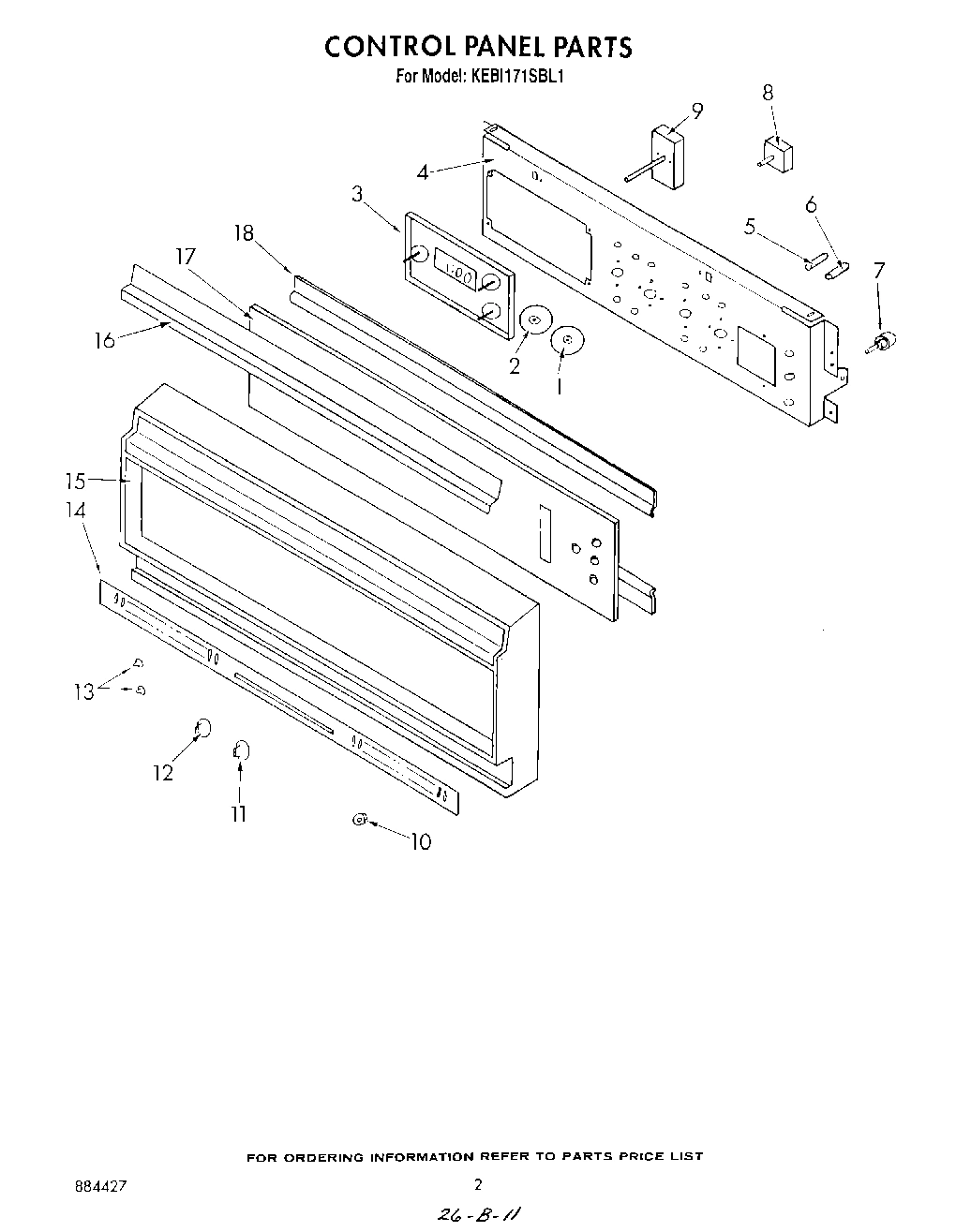

02 - CONTROL PANEL

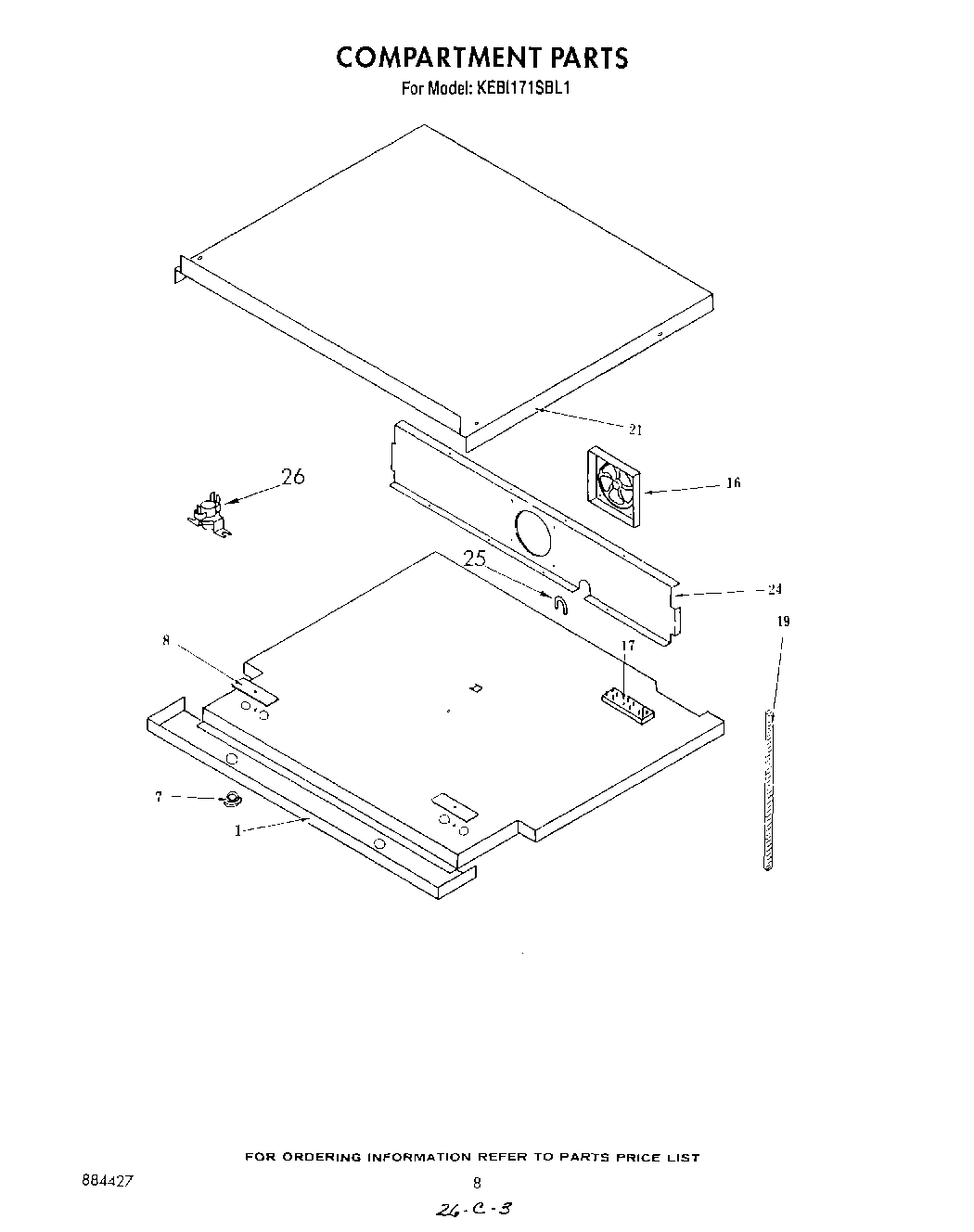

07 - COMPARTMENT
Common parts from model Whirlpool KEBI171SBL1
WPL LIT3177053 WPL LIT3177053 Contact Us For Availability
WPL LIT3177123 WPL LIT3177123 Contact Us For Availability
WPL LIT884427 WPL LIT884427 Contact Us For Availability
1
Door Frame WPL 4164391 Contact Us For Availability
1
Liner, Oven WPL 4163862 Contact Us For Availability
1
Main Bottom WPL 4163966 Contact Us For Availability
1
Thermostat Disc WPL 4163809 Contact Us For Availability
1
Sandwich Panel WPL 4173054 Contact Us For Availability
2
Selector Disc WPL 4163799 Contact Us For Availability
3
Door Handle WPL 4173018 Contact Us For Availability
3
Insulation, Bottom WPL 4164191 Contact Us For Availability
3
Clock WPL 4173071 Contact Us For Availability
4
Panel, Control WPL 4164218 Contact Us For Availability
5
Screw, No.8-32 X 3/8`` PFHMS WPL 4159330 Contact Us For Availability
5
Door Gasket WPL 4168829 Contact Us For Availability
5
Indicator Light, WPL 4168597 Contact Us For Availability
6
Indicator Light (2) WPL 4163869 Contact Us For Availability
7
Door Glass WPL 4164241 Contact Us For Availability
7
Front Frame WPL 4163823 Contact Us For Availability
7
Oven Light Switch WPL 4167332 Contact Us For Availability
7
Bushing WPL 4173043 Contact Us For Availability
8
Selector Switch WPL 4168451 Contact Us For Availability
8
Hole Cover WPL 4168527 Contact Us For Availability
9
Insulator (2) WPL 4168522 Contact Us For Availability
9
Rubber Bumper WPL 4168826 Contact Us For Availability
9
Thermostat WPL 4164361 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Air Baffle WPL 4163857 Contact Us For Availability
10
Broiler Element Support-Right WPL 4168217 Contact Us For Availability
10
Bezel, Switch WPL 4169372 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Element, Broil WPL 4164185 Contact Us For Availability
11
Bottom Trim WPL 4164196 Contact Us For Availability
12
Bracket, Harness WPL 4173168 Contact Us For Availability
12
Retainer, Insulation WPL 4169357 Contact Us For Availability
12
Knob, Clock (3) WPL 3177121 Contact Us For Availability
13
Sleeve, Bulb WPL 3178555 Contact Us For Availability
13
Knob, Clock WPL 3177122 Contact Us For Availability
14
Bracket, Lock WPL 4163852 Contact Us For Availability
14
Light Lens Gasket WPL 4166868 Contact Us For Availability
14
Cover, Seal End WPL 4167588 Contact Us For Availability
14
Vent Insert WPL 4168717 Contact Us For Availability
15
Window Pack WPL 4173280 Contact Us For Availability
15
Light Lens WPL 4166866 Contact Us For Availability
15
Oven Liners (See Page 6 For Further Breakdown WPL ARI82752A9 Contact Us For Availability
15
Control Frame WPL 4164363 Contact Us For Availability
16
Insulation WPL 4163987 Contact Us For Availability
16
Light Lens Retainer WPL 4167938 Contact Us For Availability
16
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
16
Top Insert WPL 4173307 Contact Us For Availability
16
Blower WPL 4173004 Contact Us For Availability
17
Top Compartment WPL 4169314 Contact Us For Availability
17
Control Panel Glass WPL 4173310 Contact Us For Availability
17
Terminal Block, Power Supply WPL 4168735 Contact Us For Availability
18
Screw (2) WPL 4173053 Contact Us For Availability
18
Nut (2) WPL 4159117 Contact Us For Availability
18
Latch Switch WPL 4164366 Contact Us For Availability
18
Door Liner WPL 4164237 Contact Us For Availability
18
Retainer WPL 4167590 Contact Us For Availability
19
Conduit, 1/2`` X 56`` WPL 4167614 Contact Us For Availability
20
Harness, Wiring (Latch Switch) WPL 3178621 Contact Us For Availability
20
Latch Switch (2) WPL 4168517 Contact Us For Availability
20
Glass Mounting Bracket WPL 4163855 Contact Us For Availability
21
Glass Panel WPL 4164243 Contact Us For Availability
21
Knob, Latch Lever WPL 4163821 Contact Us For Availability
21
Cabinet Top WPL 4173276 Contact Us For Availability
22
Air Baffle, Bottom WPL 4163859 Contact Us For Availability
22
Clip, Thermostat Bulb WPL 4173275 Contact Us For Availability
22
Latch Assembly (See Latch Parts On Pages 4 & WPL ARI82753A4 Contact Us For Availability
23
Broiler Element Support-Left WPL 4168218 Contact Us For Availability
23
Insulation, Rear WPL 4164192 Contact Us For Availability
24
Oven Rack WPL 4168401 Contact Us For Availability
24
Blower Mounting Panel WPL 4173166 Contact Us For Availability
25
Insert (4) WPL 4164131 Contact Us For Availability
25
Rear Anchor WPL 4167526 Contact Us For Availability
25
Bushing, Flexible WPL 4173165 Contact Us For Availability
26
Cabinet Side WPL 4173055 Contact Us For Availability
26
Switch, Fan WPL 4173008 Contact Us For Availability
32
Vent Tube Extension WPL 4168126 Contact Us For Availability
33
Capillary Cover WPL 4168203 Contact Us For Availability
33
Collector Box WPL 4168681 Contact Us For Availability
34
Smoke Eliminator WPL 4168492 Contact Us For Availability
35
Plug Button (3/8`` Hole) WPL 4159120 Contact Us For Availability
35
Plug Button (5/8`` Hole) WPL 4159122 Contact Us For Availability
35
Plug Button (3/4`` Hole) WPL 4159123 Contact Us For Availability
38
Control Frame Support WPL 4169336 Contact Us For Availability
42
Vent Box WPL 4163941 Contact Us For Availability
49
Vent Tube WPL 4168494 Contact Us For Availability
52
Clamp, Conduit WPL 4167593 Contact Us For Availability
53
Vent Tube Mounting Bracket WPL 4168242 Contact Us For Availability
59
Cabinet Back WPL 4169313 Contact Us For Availability
62
Socket, Lamp WPL 4168755 Contact Us For Availability
63
Light Shield WPL 4167579 Contact Us For Availability
70
Cabinet Support (Right) WPL 4163759 Contact Us For Availability
70
Cabinet Support (Left) WPL 4163760 Contact Us For Availability
71
Spacer WPL 4168590 Contact Us For Availability
72
Spring, Anchor WPL 4167599 Contact Us For Availability
74
Door Spring WPL 4173048 Contact Us For Availability
75
Hinge Assembly WPL 4167596 Contact Us For Availability
76
Cam Plate (Right) WPL 4167597 Contact Us For Availability
76
Cam Plate (Left) WPL 4167598 Contact Us For Availability
77
Probe Cover WPL 4163883 Contact Us For Availability
78
Screw, 8A X 3/8`` PKESMS WPL 4168863 Contact Us For Availability
79
Air Duct (Left) WPL 4163752 Contact Us For Availability
79
Air Duct (Right) WPL 4163753 Contact Us For Availability
81
Extension, Air Duct (Left Hand) WPL 4173016 Contact Us For Availability
81
Extension, Air Duct (Right Hand) WPL 4173017 Contact Us For Availability
82
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
82
Paint, Touch-Up 1 Oz. (Oven Liner) (Light Gra WPL 242757 Contact Us For Availability
82
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
82
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
82
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
82
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
82
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
82
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
82
18 Ga. 80~c Rating (W WPL 242826 Contact Us For Availability
82
WPL 242827 WPL 242827 Contact Us For Availability
82
WPL 242828 WPL 242828 Contact Us For Availability
82
WPL 242829 WPL 242829 Contact Us For Availability
82
WPL 242830 WPL 242830 Contact Us For Availability
82
WPL 242832 WPL 242832 Contact Us For Availability
82
WPL 242860 WPL 242860 Contact Us For Availability
82
WPL 261582 WPL 261582 Contact Us For Availability
82
WPL 261881 WPL 261881 Contact Us For Availability
82
WPL 261890 WPL 261890 Contact Us For Availability
82
WPL 261891 WPL 261891 Contact Us For Availability
82
WPL 282831 WPL 282831 Contact Us For Availability
82
WPL 285365 WPL 285365 Contact Us For Availability
82
WPL 285366 WPL 285366 Contact Us For Availability
82
WPL 285367 WPL 285367 Contact Us For Availability
82
WPL 285368 WPL 285368 Contact Us For Availability
82
WPL 350806 WPL 350806 Contact Us For Availability
82
WPL 350941 WPL 350941 Contact Us For Availability
82
WPL 4173061 WPL 4173061 Contact Us For Availability
82
WPL 591014 WPL 591014 Contact Us For Availability
82
WPL 72112 WPL 72112 Contact Us For Availability
82
WPL 786020 WPL 786020 Contact Us For Availability
82
WPL 786032 WPL 786032 Contact Us For Availability
82
WPL 799832 WPL 799832 Contact Us For Availability
82
WPL 832985 WPL 832985 Contact Us For Availability
82
WPL 978849 WPL 978849 Contact Us For Availability
82
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
