Model Whirlpool KEBI171DWH8 – Common Parts & Diagrams
04 - INTERNAL OVEN

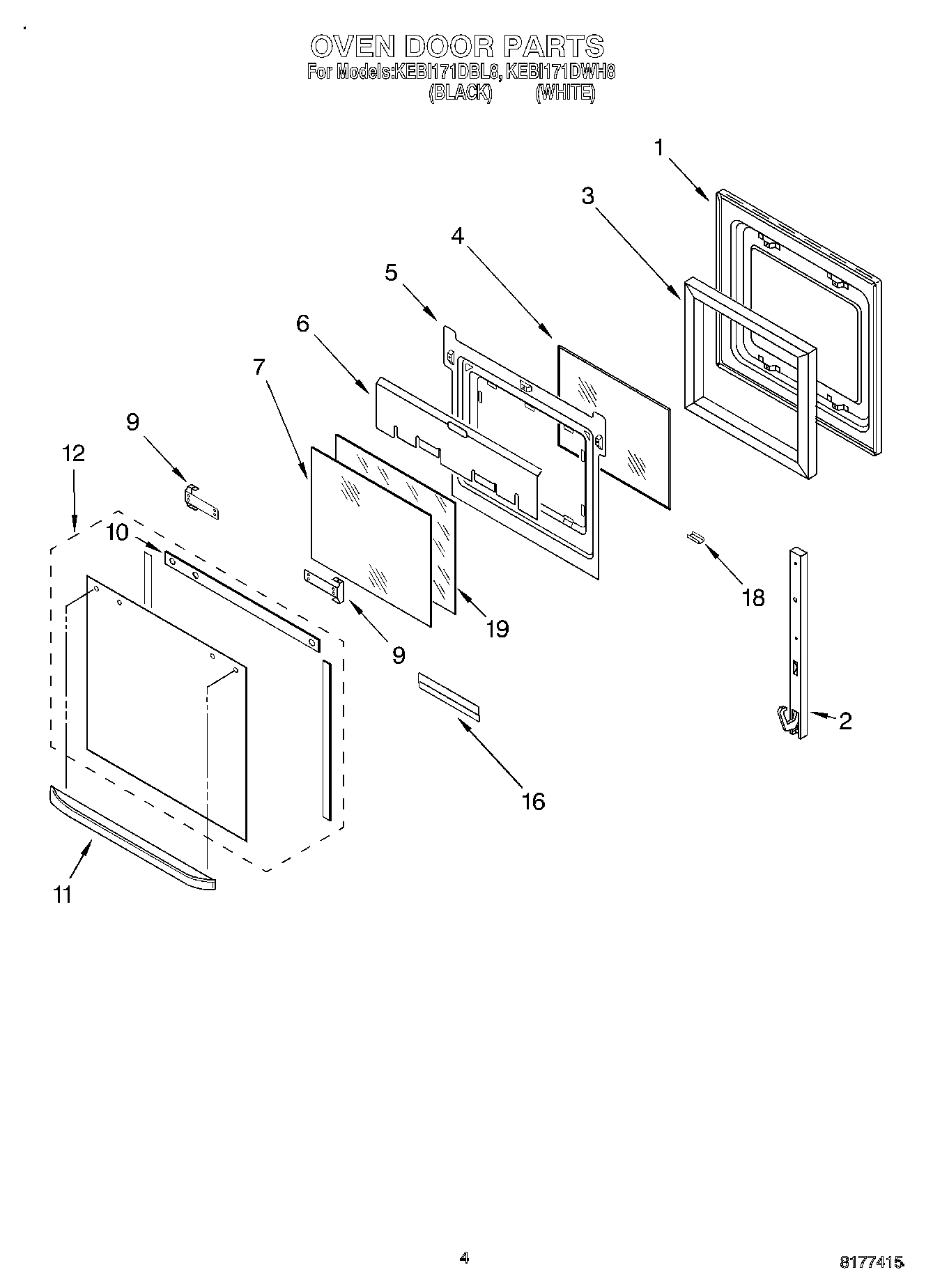

03 - OVEN DOOR
05 - TOP VENTING, OPTIONAL
01 - OVEN
02 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool KEBI171DWH8
Trim, Side (LH White) WPL 4450848 Contact Us For Availability
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation/ Undercounter WPL LIT3192225 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Installation, MWO Trim Kit WPL LIT4450841 Contact Us For Availability
Tech Sheet WPL LIT4451876 Contact Us For Availability
Use & Care Guide WPL LIT4451951 Contact Us For Availability
1
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450844 Contact Us For Availability
1
Trim, Side (White, Right) WPL 4450845 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450847 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451901 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451904 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Blower WPL 4455334 Contact Us For Availability
3
Insulation, Sides WPL 4451721 Contact Us For Availability
3
Reciever, Hinge (Left Hand) WPL 4454664 Contact Us For Availability
3
Reciever, Hinge (Right Hand) WPL 4454665 Contact Us For Availability
3
Microcomputer WPL 4453163 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
7
Top, Chassis WPL 4455189 Contact Us For Availability
9
Bracket, Handle WPL 4450813 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4451739 Contact Us For Availability
16
Retainer, Glass WPL 4451668 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
21
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
21
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
21
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
21
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
21
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
21
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
21
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
21
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
21
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
21
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
21
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
21
Spacer, Harness WPL 4452222 Contact Us For Availability
21
Harness, Wire (Main) WPL 4452791 Contact Us For Availability
21
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Solenoid WPL 4452224 Contact Us For Availability
24
Microswitch N.C. WPL 4452312 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI82748A3 Contact Us For Availability
28
Microswitch WPL 4451426 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
× ![]()
