Model Whirlpool KEBI171DWH2 – Common Parts & Diagrams
05 - TOP VENTING, OPTIONAL
01 - OVEN

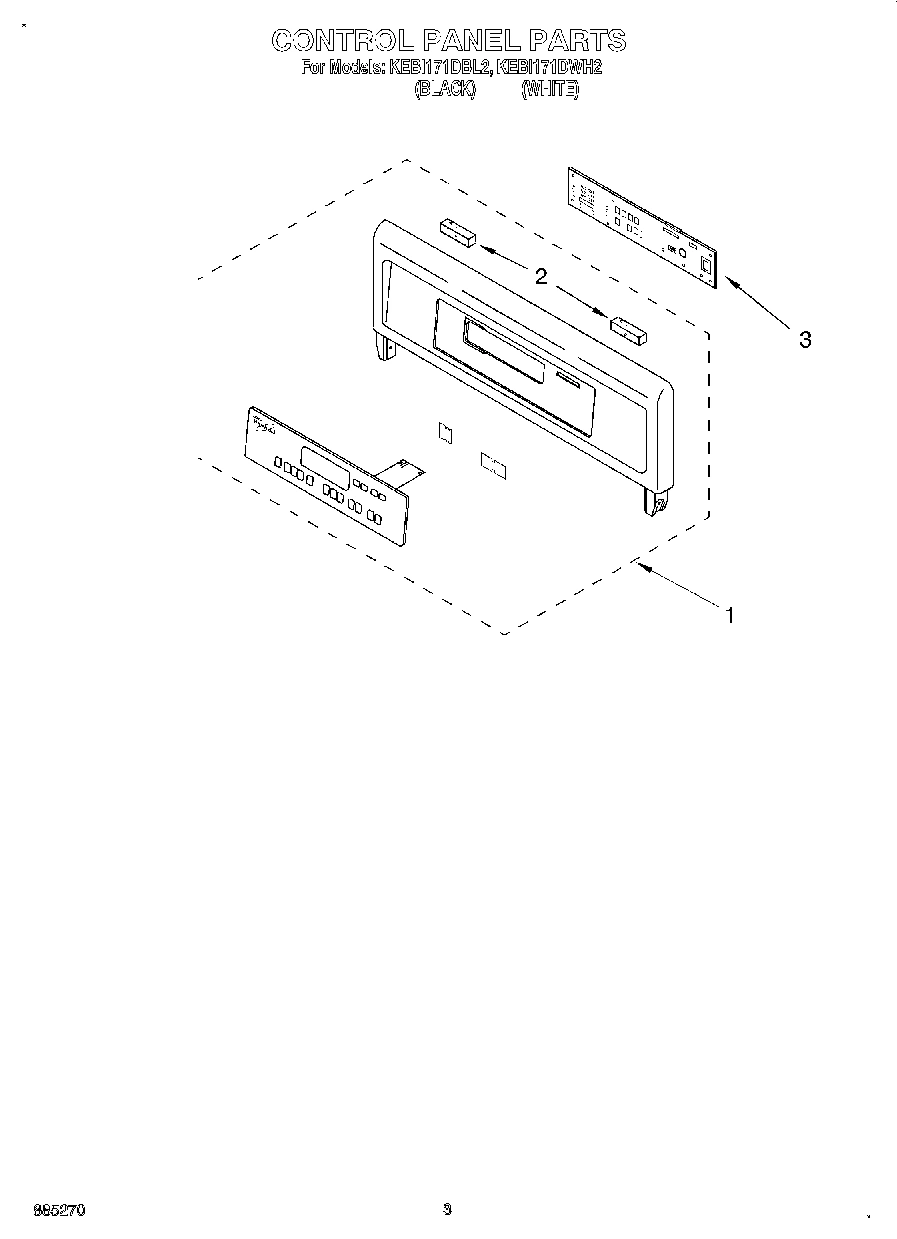

02 - CONTROL PANEL, LITERATURE

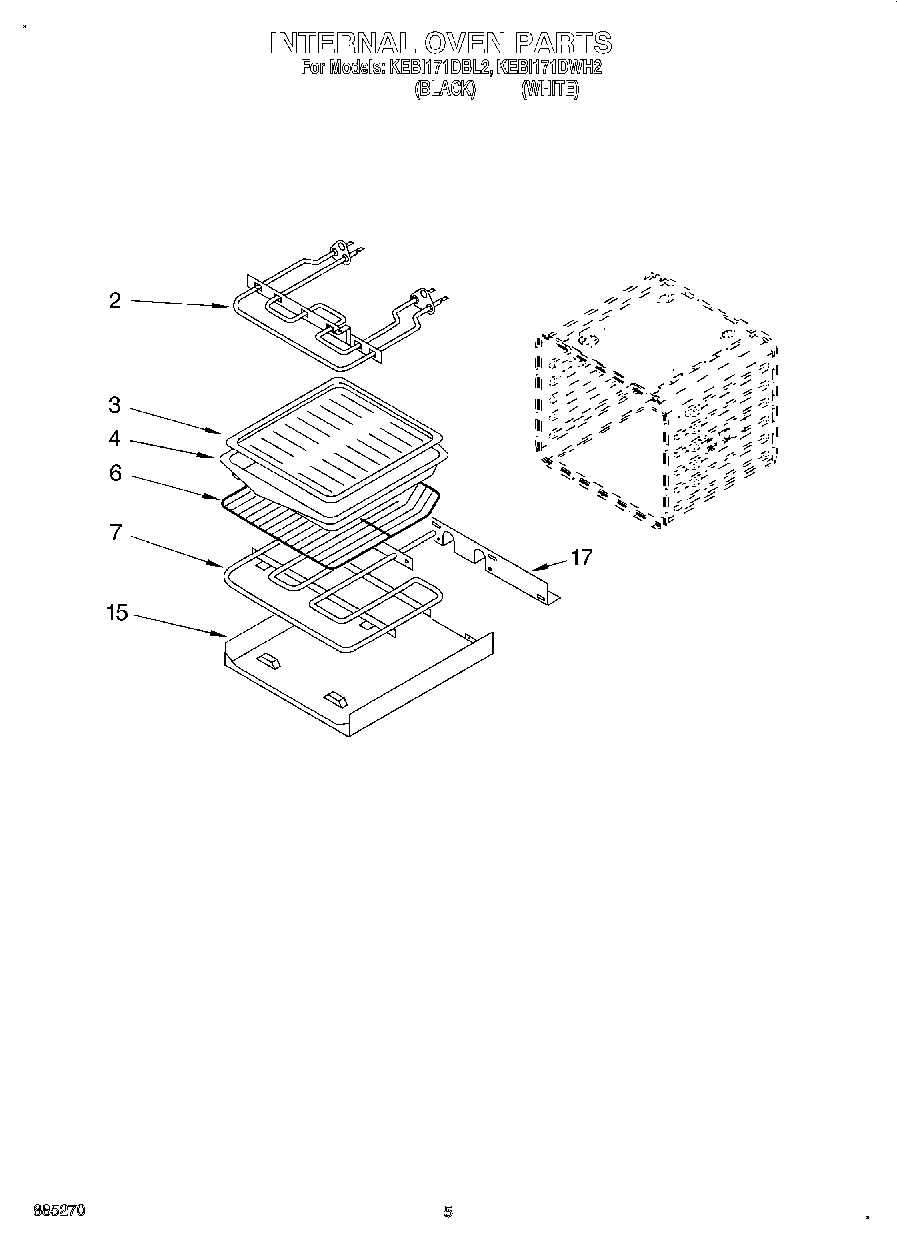

04 - INTERNAL OVEN

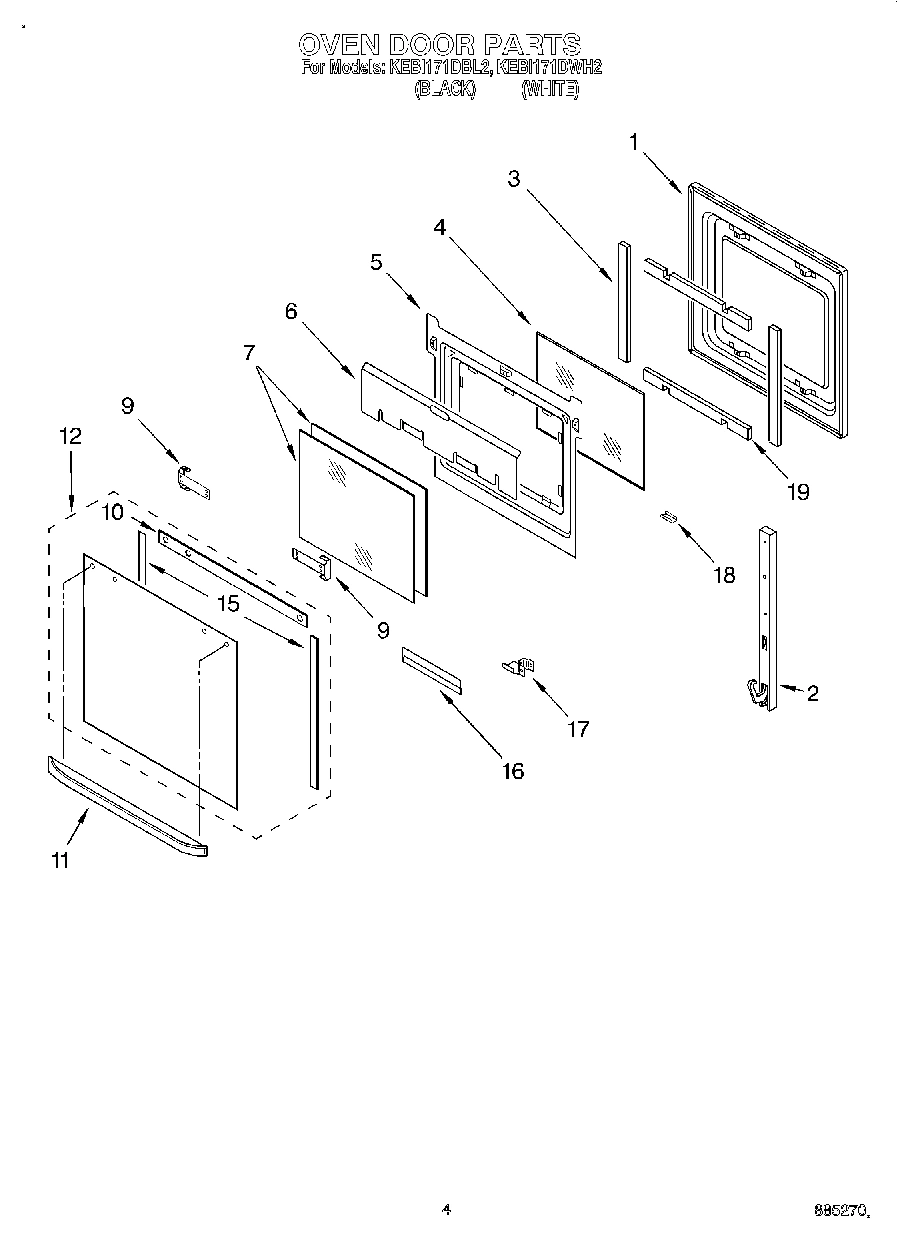

03 - OVEN DOOR
Common parts from model Whirlpool KEBI171DWH2
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide WPL LIT4450570 Contact Us For Availability
Tech Sheet WPL LIT4454768 Contact Us For Availability
1
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450844 Contact Us For Availability
1
Trim, Side (White, Right) WPL 4450845 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450847 Contact Us For Availability
1
Trim, Side (LH White) WPL 4450848 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451254 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451255 Contact Us For Availability
1
Door Liner WPL 4450428 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Microcomputer WPL 4448865 Contact Us For Availability
5
Retainer, Glass WPL 4450422 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Divider, Vent WPL 4451038 Contact Us For Availability
6
Shield, Heat WPL 4450361 Contact Us For Availability
7
Partition WPL 4451165 Contact Us For Availability
9
Bracket, Handle WPL 4450813 Contact Us For Availability
9
Tube, Vent WPL 4449009 Contact Us For Availability
9
Screw WPL 4451040 Contact Us For Availability
10
Seal, Top WPL 4450836 Contact Us For Availability
11
Handle (Black Model) WPL 4448411 Contact Us For Availability
11
Handle (White Model) WPL 4448412 Contact Us For Availability
12
Glass, Outer (Black Model) WPL 4450696 Contact Us For Availability
12
Glass, Outer (White Model) WPL 4450697 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4450416 Contact Us For Availability
15
Tray, Hidden Bake WPL 4448722 Contact Us For Availability
15
Seal, Sides WPL 4450838 Contact Us For Availability
16
Retainer, Glass WPL 4449031 Contact Us For Availability
17
Retainer, Glass WPL 4450470 Contact Us For Availability
18
Clip, Retainer (Black Model) WPL 4450863 Contact Us For Availability
18
Clip, Retainer (White Model) WPL 4450864 Contact Us For Availability
19
Support, Insulation WPL 4450541 Contact Us For Availability
19
Insulation Top and Bottom WPL 4448679 Contact Us For Availability
21
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
21
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
21
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
21
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
21
Seal, Foam WPL 3182384 Contact Us For Availability
21
Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability
21
Harness, Wire (Main) WPL 4454703 Contact Us For Availability
21
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
21
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
21
Roll Tape, Exhaust Duct WPL 814387 Contact Us For Availability
22
Shield, Latch WPL 4451036 Contact Us For Availability
23
Deflector, Latch WPL 4450051 Contact Us For Availability
24
Latch Assy WPL 4454710 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability
26
Back, Chassis WPL 4454728 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI82744A5 Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
43
Base, Chassis WPL 4450526 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448458 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448459 Contact Us For Availability
52
Vent Extension WPL 4450795 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Insulation, Wrap WPL 4449315 Contact Us For Availability
54
Insulation, Back WPL 4450364 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
