Model Whirlpool KEBI171DBL8 – Common Parts & Diagrams

Safer Cooking Tips
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
View on Model
Installation/ Undercounter
Installation/ Undercounter WPL LIT3192225 Contact Us For Availability
View on Model
Easy Set Guide
Easy Set Guide WPL LIT4449264 Contact Us For Availability
View on Model
Installation Instructions
Installation Instructions WPL LIT4450410 Contact Us For Availability
View on Model
Installation, MWO Trim Kit
Installation, MWO Trim Kit WPL LIT4450841 Contact Us For Availability
View on Model
Tech Sheet
Tech Sheet WPL LIT4451876 Contact Us For Availability
View on Model
Use & Care Guide
Use & Care Guide WPL LIT4451951 Contact Us For Availability
View on Model

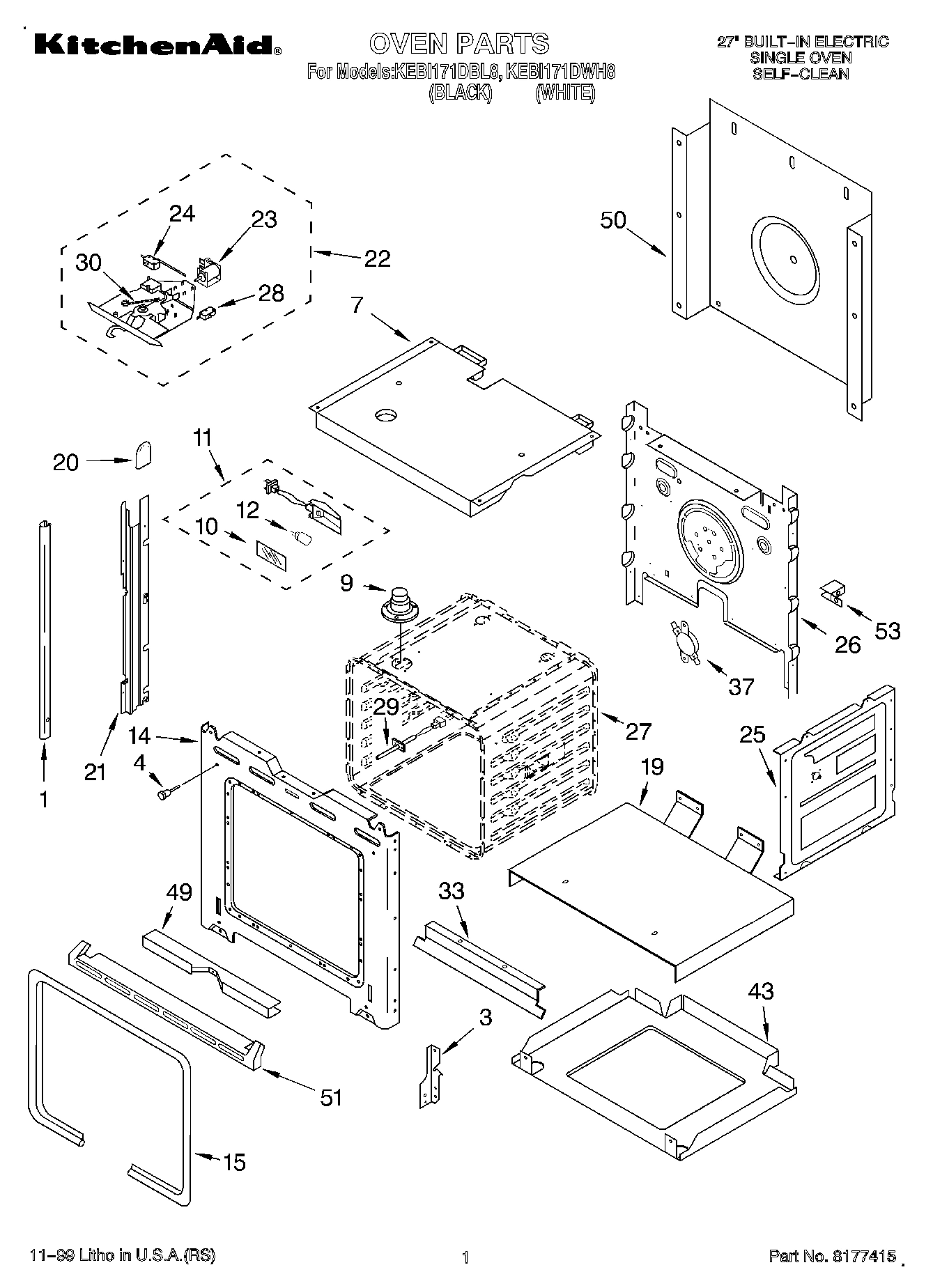

1
Trim, Side (White, Right)
Trim, Side (White, Right) WPL 4450845 Contact Us For Availability
View on Model
1
Trim, Side (LH Black)
Trim, Side (LH Black) WPL 4450847 Contact Us For Availability
View on Model
1

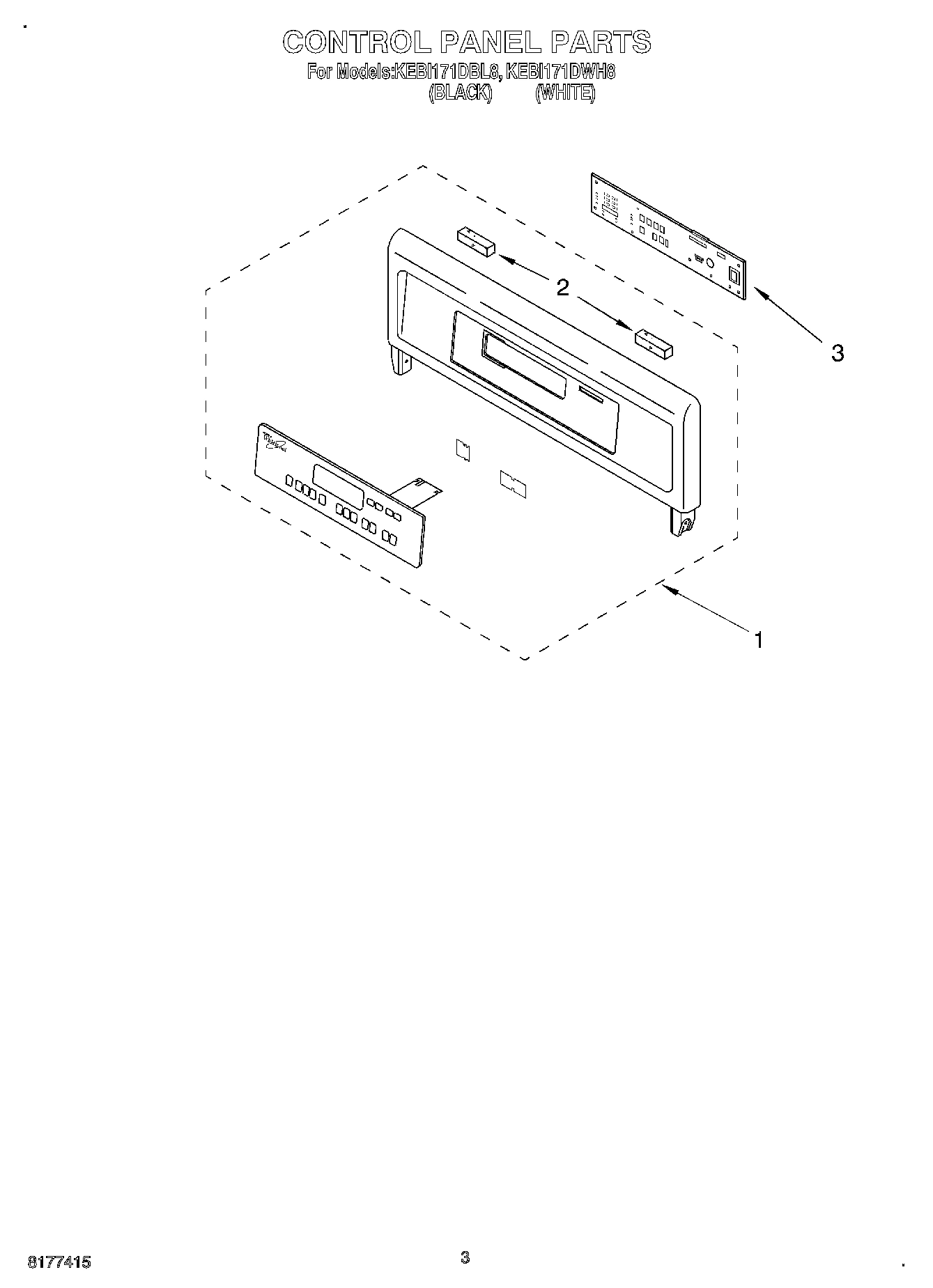

Control Panel Assy. W/Membrane Switch (Screw)
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
View on Model
1
Door Liner
Door Liner WPL 4451718 Contact Us For Availability
View on Model
1
Control Panel Assy. W/Membrane Switch (Black
Control Panel Assy. W/Membrane Switch (Black WPL 4451901 Contact Us For Availability
View on Model
1
Control Panel Assy. W/Membrane Switch (White
Control Panel Assy. W/Membrane Switch (White WPL 4451904 Contact Us For Availability
View on Model
2
Gasket, Control Panel
Gasket, Control Panel WPL 4451033 Contact Us For Availability
View on Model

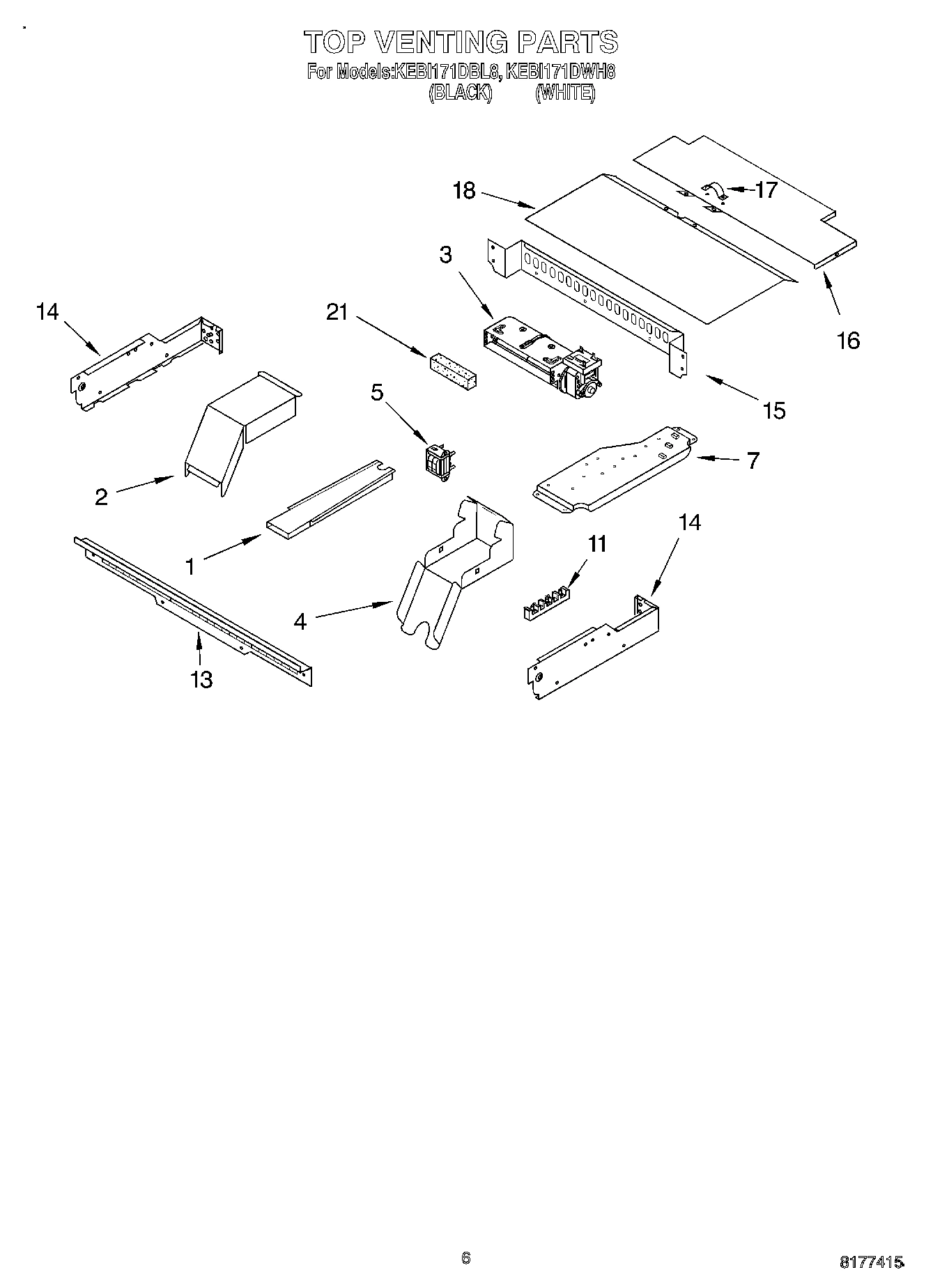

3
Blower
Blower WPL 4455334 Contact Us For Availability
View on Model
3
Insulation, Sides
Insulation, Sides WPL 4451721 Contact Us For Availability
View on Model
3
Reciever, Hinge (Left Hand)
Reciever, Hinge (Left Hand) WPL 4454664 Contact Us For Availability
View on Model
3
Reciever, Hinge (Right Hand)
Reciever, Hinge (Right Hand) WPL 4454665 Contact Us For Availability
View on Model
3
Microcomputer
Microcomputer WPL 4453163 Contact Us For Availability
View on Model
5
Retainer, Glass
Retainer, Glass WPL 4451670 Contact Us For Availability
View on Model

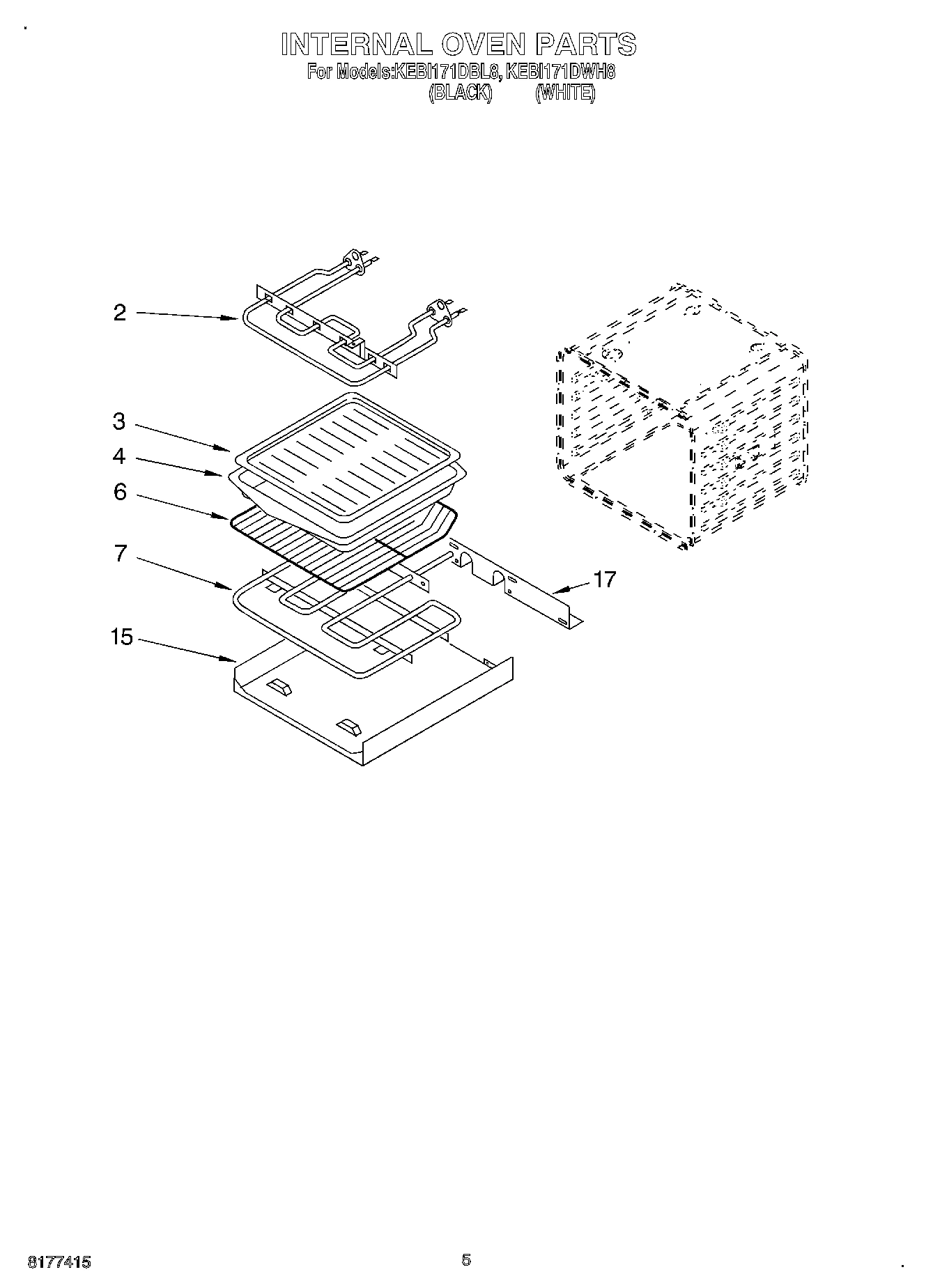

6
Rack, Oven
Rack, Oven WPL 4448715 Contact Us For Availability
View on Model
6
Shield, Heat
Shield, Heat WPL 4450361 Contact Us For Availability
View on Model
7
Top, Chassis
Top, Chassis WPL 4455189 Contact Us For Availability
View on Model
9
Bracket, Handle
Bracket, Handle WPL 4450813 Contact Us For Availability
View on Model
9
Screw
Screw WPL 4451040 Contact Us For Availability
View on Model
10
Lens, Light
Lens, Light WPL 4452163 Contact Us For Availability
View on Model
10
Seal, Top
Seal, Top WPL 4451673 Contact Us For Availability
View on Model
11
Handle (Black Model)
Handle (Black Model) WPL 4448411 Contact Us For Availability
View on Model
11
Handle (White Model)
Handle (White Model) WPL 4448412 Contact Us For Availability
View on Model
12

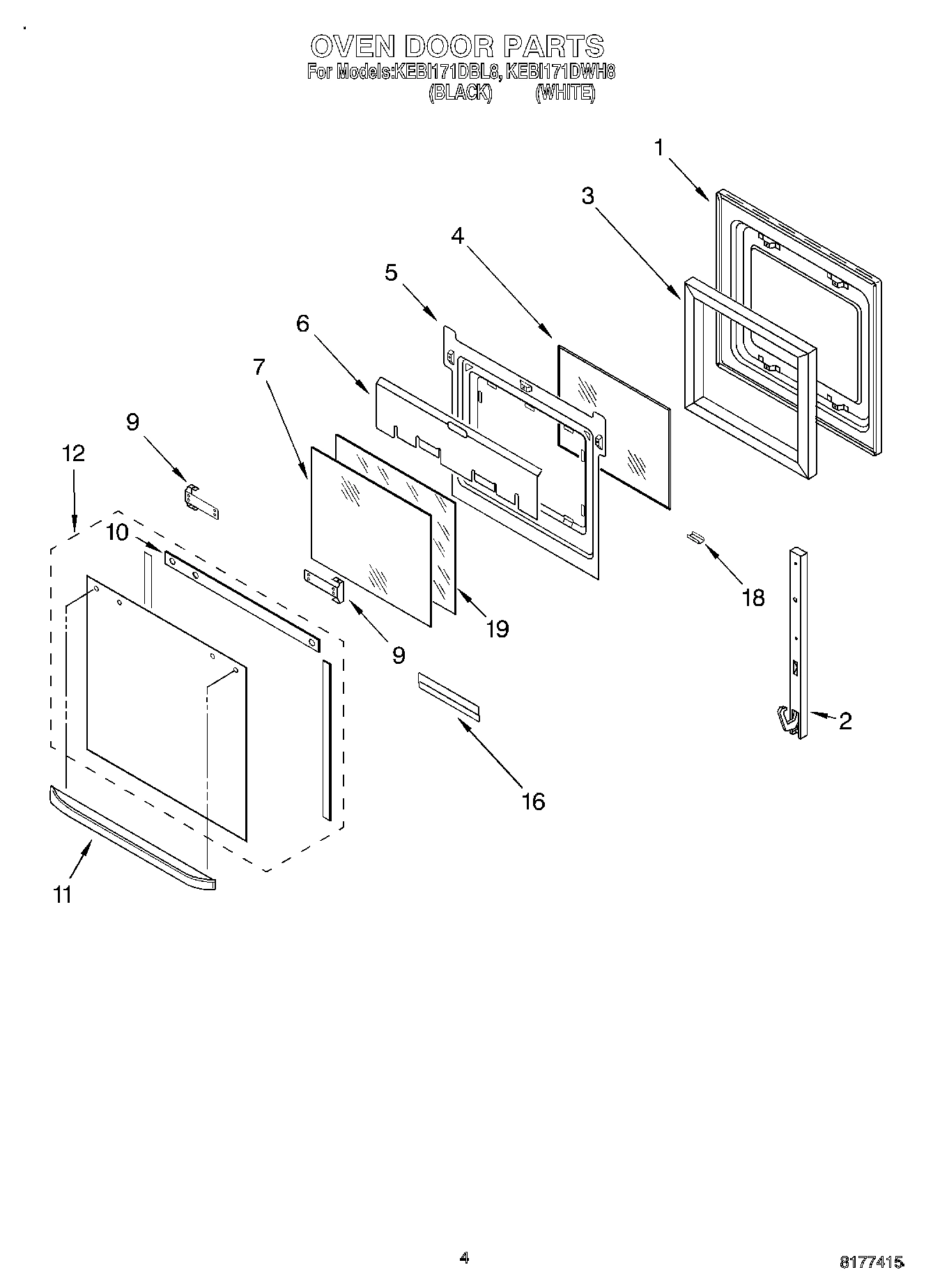

Door Glass, Assy (Black Model)
Door Glass, Assy (Black Model) WPL 4452071 Contact Us For Availability
View on Model
12
Door Glass, Assy (White Model)
Door Glass, Assy (White Model) WPL 4452072 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
14
Frame, Front
Frame, Front WPL 4451739 Contact Us For Availability
View on Model
16
Retainer, Glass
Retainer, Glass WPL 4451668 Contact Us For Availability
View on Model
18
Clip, Retainer (Black Model)
Clip, Retainer (Black Model) WPL 4450863 Contact Us For Availability
View on Model
18
Clip, Retainer (White Model)
Clip, Retainer (White Model) WPL 4450864 Contact Us For Availability
View on Model
19
Support, Insulation
Support, Insulation WPL 4451477 Contact Us For Availability
View on Model
19
Glass, Inner
Glass, Inner WPL 4455256 Contact Us For Availability
View on Model
20
Cap, Spacer
Cap, Spacer WPL 4451605 Contact Us For Availability
View on Model
22
Latch Assembly
Latch Assembly WPL 4451896 Contact Us For Availability
View on Model
23
Solenoid
Solenoid WPL 4452224 Contact Us For Availability
View on Model
24
Microswitch N.C.
Microswitch N.C. WPL 4452312 Contact Us For Availability
View on Model
25
Side, Chassis (R.H. & L.H.)
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
View on Model
26
Back, Chassis
Back, Chassis WPL 4452233 Contact Us For Availability
View on Model
27
Liner, Oven (Not a Serviceable Part)
Liner, Oven (Not a Serviceable Part) WPL ARI82739A8 Contact Us For Availability
View on Model
28
Microswitch
Microswitch WPL 4451426 Contact Us For Availability
View on Model
29
Sensor
Sensor WPL 4451665 Contact Us For Availability
View on Model
30
Spring, Latch
Spring, Latch WPL 4451537 Contact Us For Availability
View on Model
33
Deflector, Vent
Deflector, Vent WPL 4450280 Contact Us For Availability
View on Model
43
Base, Chassis
Base, Chassis WPL 4451397 Contact Us For Availability
View on Model
51
Trim, Bottom (Black Model)
Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability
View on Model
51
Trim, Bottom (White Model)
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
View on Model
53
Insulation, Wrap
Insulation, Wrap WPL 4449315 Contact Us For Availability
View on Model
53
BRACKET-SUPPORT
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
View on Model
53
Insulation, Back
Insulation, Back WPL 4450364 Contact Us For Availability
View on Model
