Model Whirlpool KEBI171DBL7 – Common Parts & Diagrams
03 - OVEN DOOR
05 - TOP VENTING, OPTIONAL

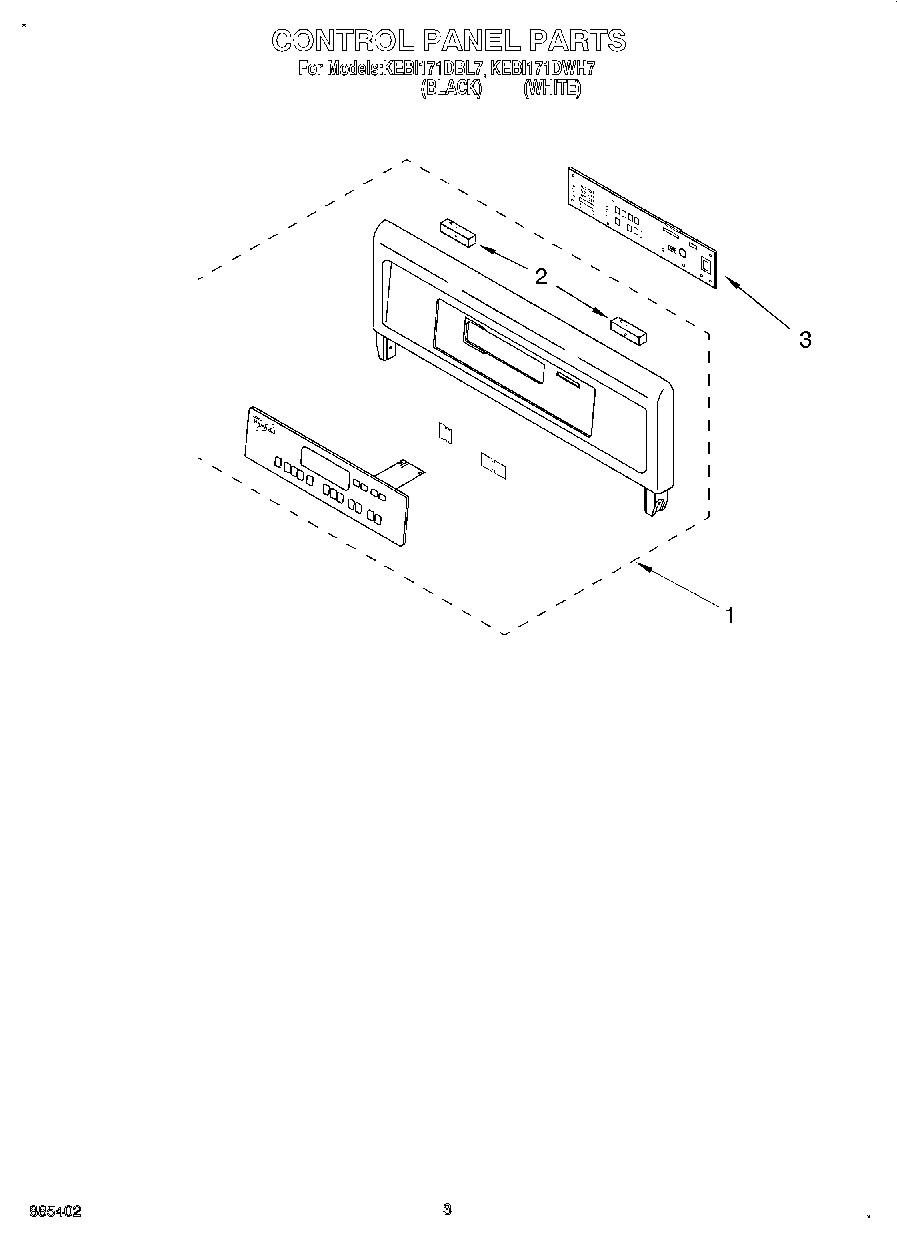

02 - CONTROL PANEL, LITERATURE

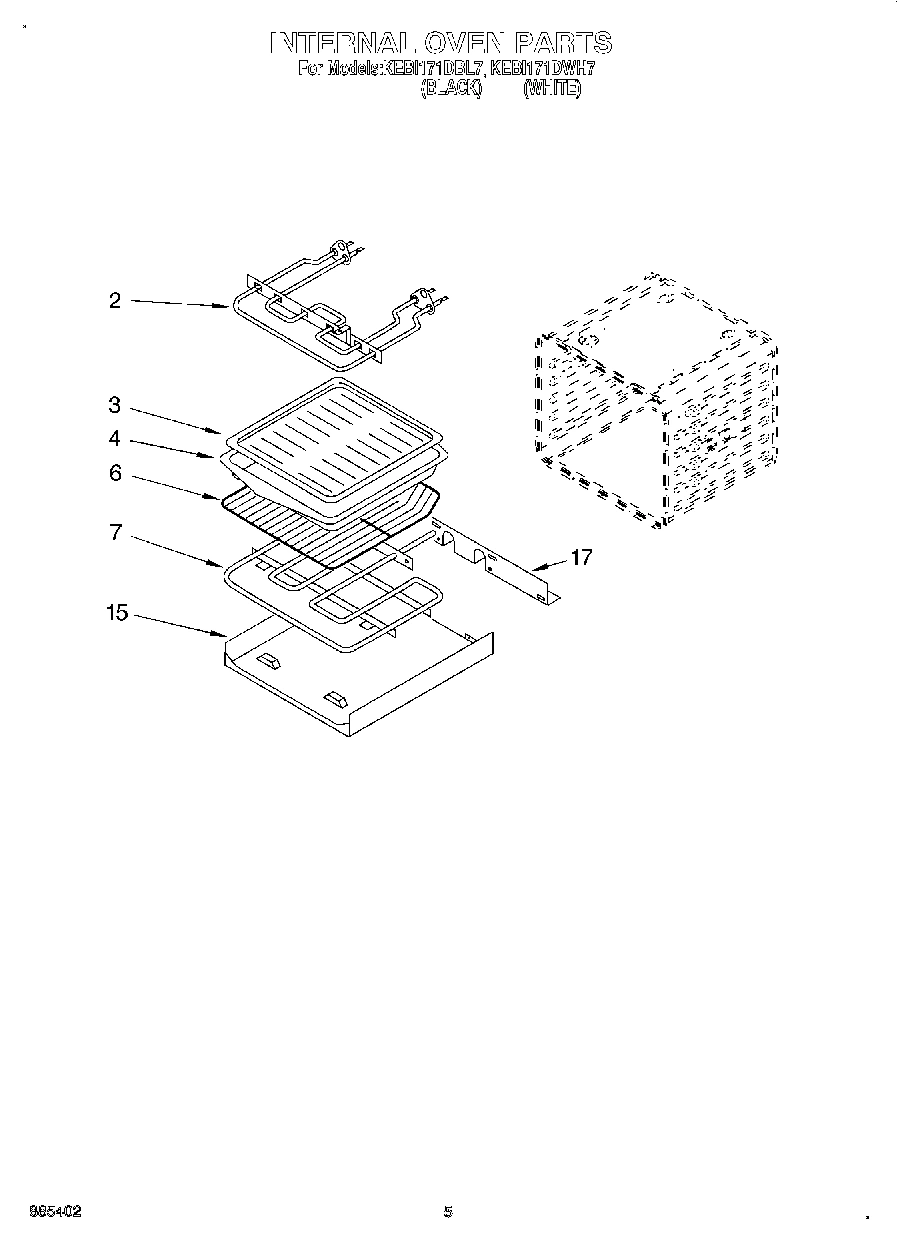

04 - INTERNAL OVEN

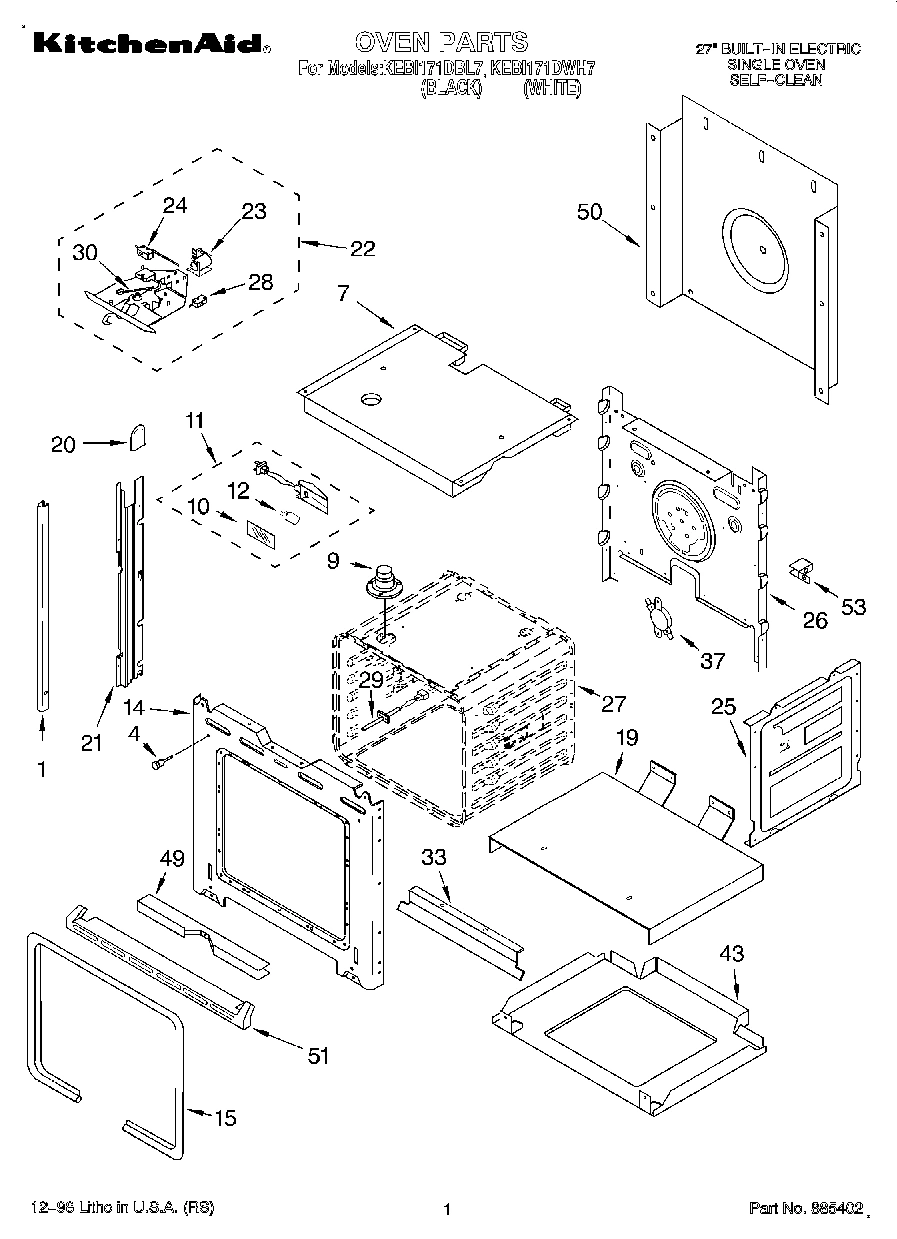

01 - OVEN
Common parts from model Whirlpool KEBI171DBL7
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide WPL LIT4450570 Contact Us For Availability
Installation/ Undercounter WPL LIT4450839 Contact Us For Availability
Tech Sheet WPL LIT4451876 Contact Us For Availability
1
Screw WPL 4449040 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451901 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451904 Contact Us For Availability
1
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450844 Contact Us For Availability
1
Trim, Side (White, Right) WPL 4450845 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450847 Contact Us For Availability
1
Trim, Side (LH White) WPL 4450848 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Insulation, Sides WPL 4451721 Contact Us For Availability
3
Microcomputer WPL 4451845 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
7
Top, Chassis WPL 4452236 Contact Us For Availability
9
Bracket, Handle WPL 4450813 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
14
Frame, Front WPL 4451739 Contact Us For Availability
15
Tray, Hidden Bake WPL 4448722 Contact Us For Availability
16
Retainer, Glass WPL 4451668 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
21
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
21
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
21
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
21
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
21
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
21
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
21
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
21
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
21
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
21
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
21
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
21
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
21
Harness, Wire (Main) WPL 4451860 Contact Us For Availability
21
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Solenoid, latch WPL 4452224 Contact Us For Availability
24
Switch, Latch N.C. WPL 4451422 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI82738A3 Contact Us For Availability
28
Switch, Latch Solenoid WPL 4451426 Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448458 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448459 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
× ![]()
