Model Whirlpool KEBI171BWH0 – Common Parts & Diagrams

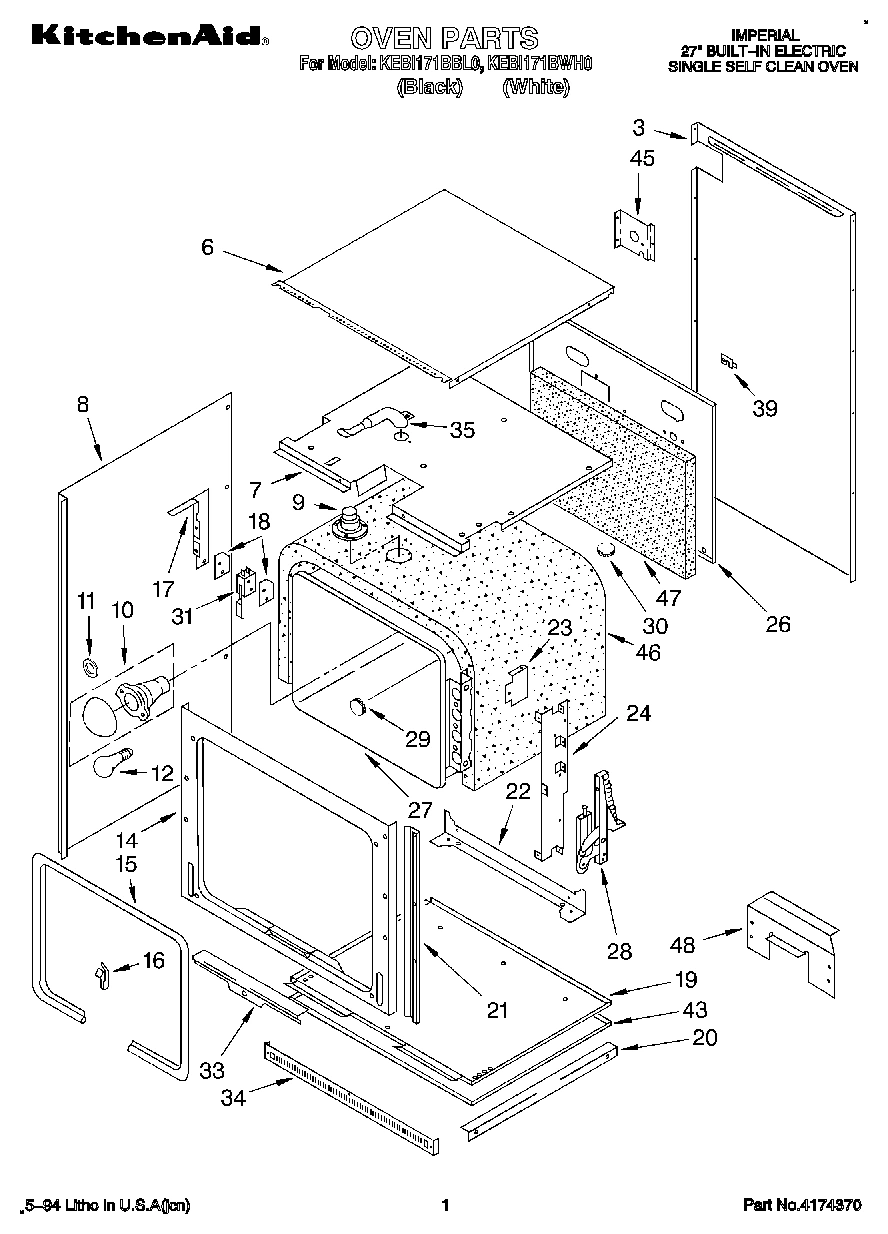

01 - OVEN, OPTIONAL

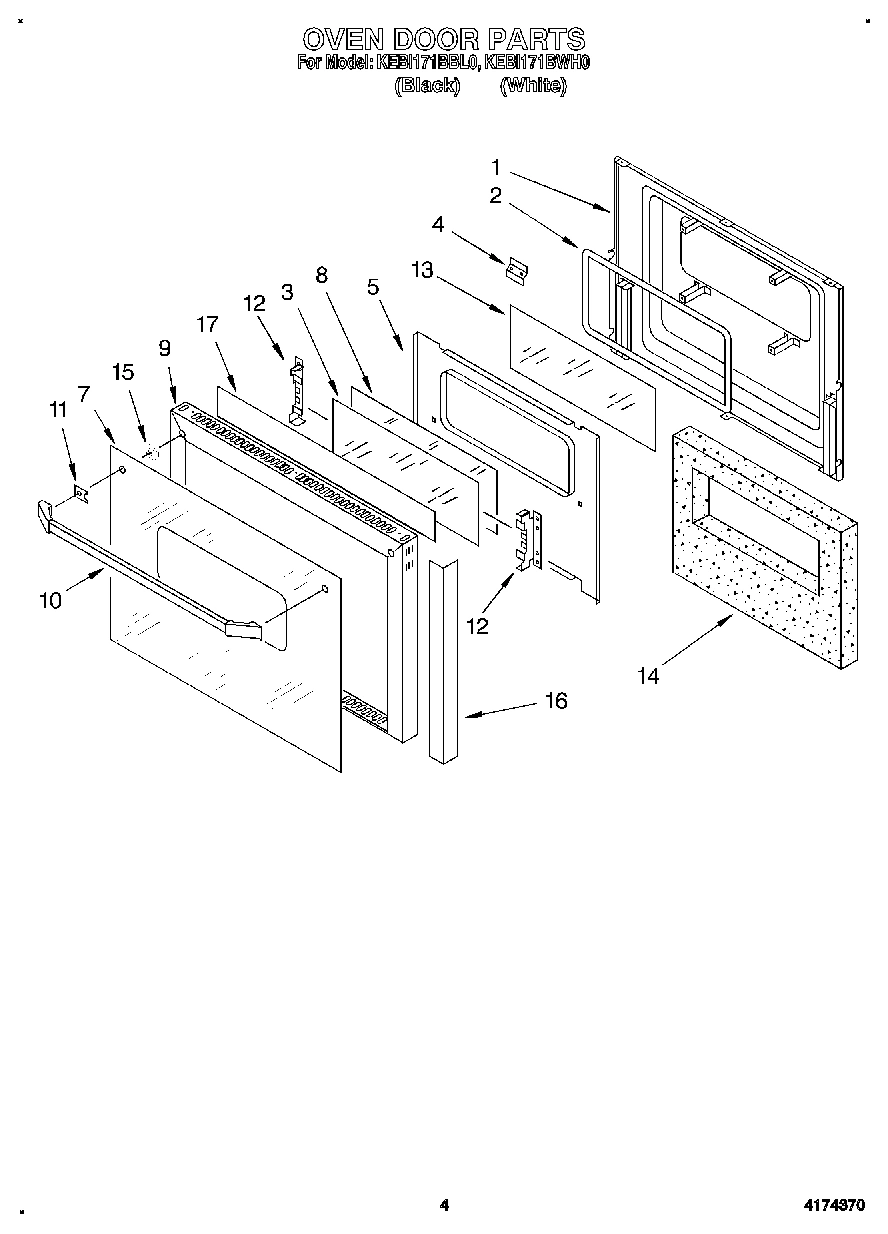

03 - OVEN DOOR

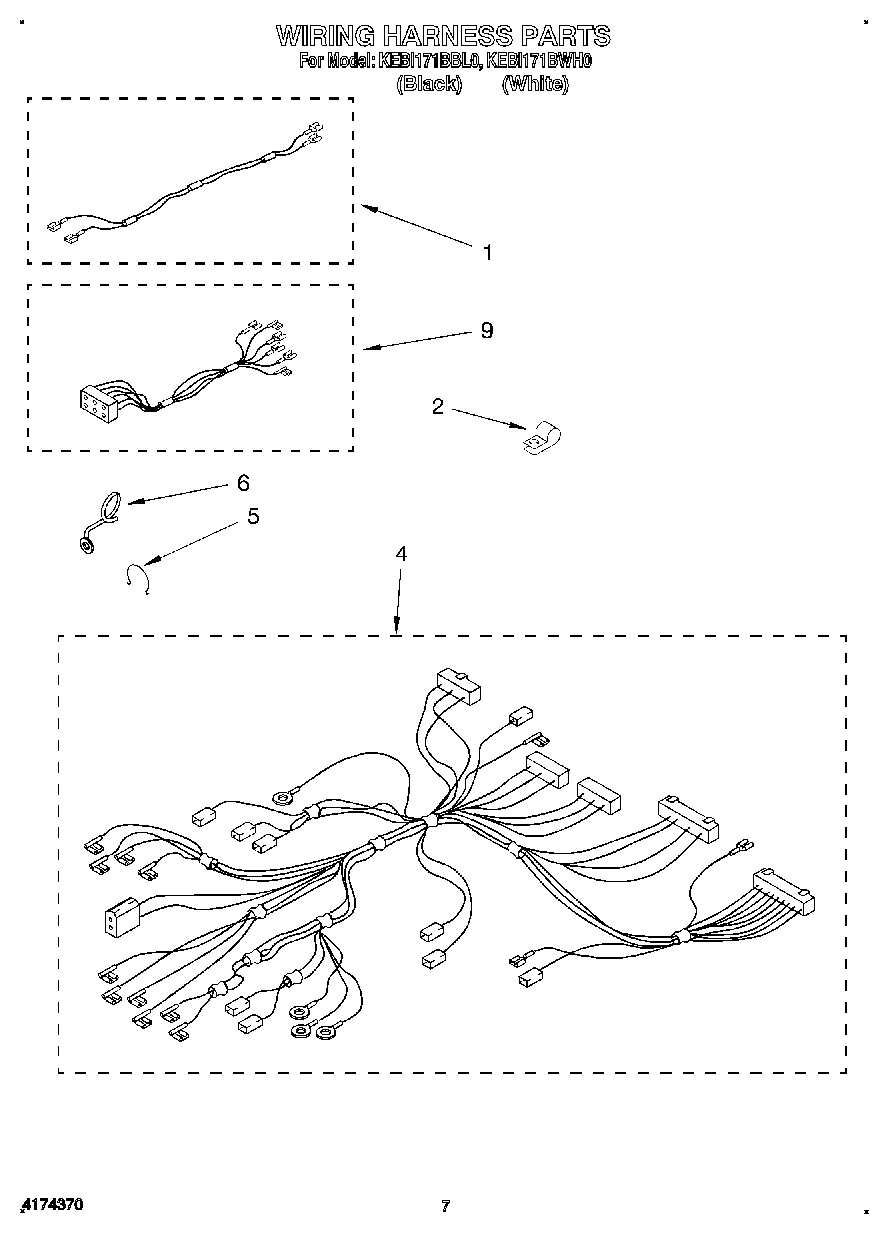

06 - WIRING HARNESS

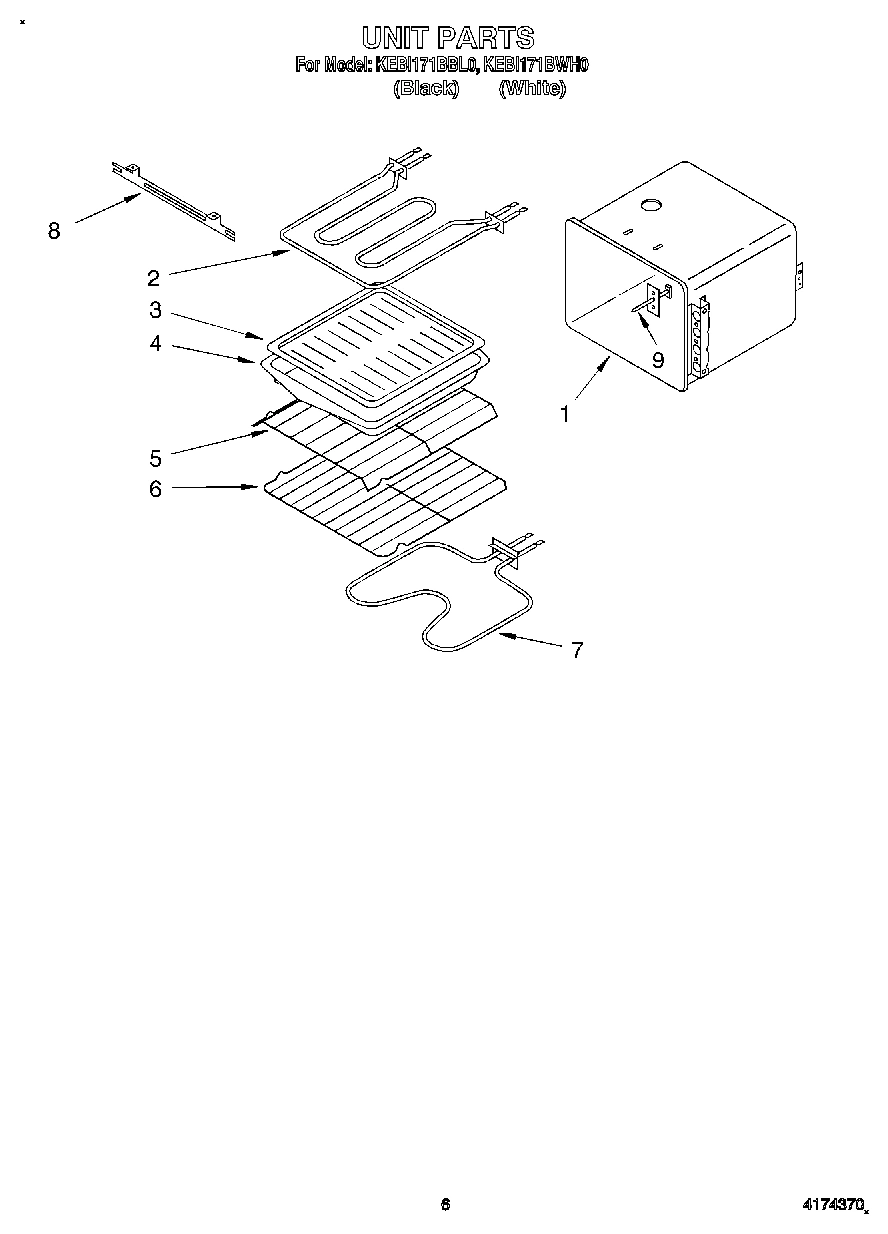

05 - UNIT

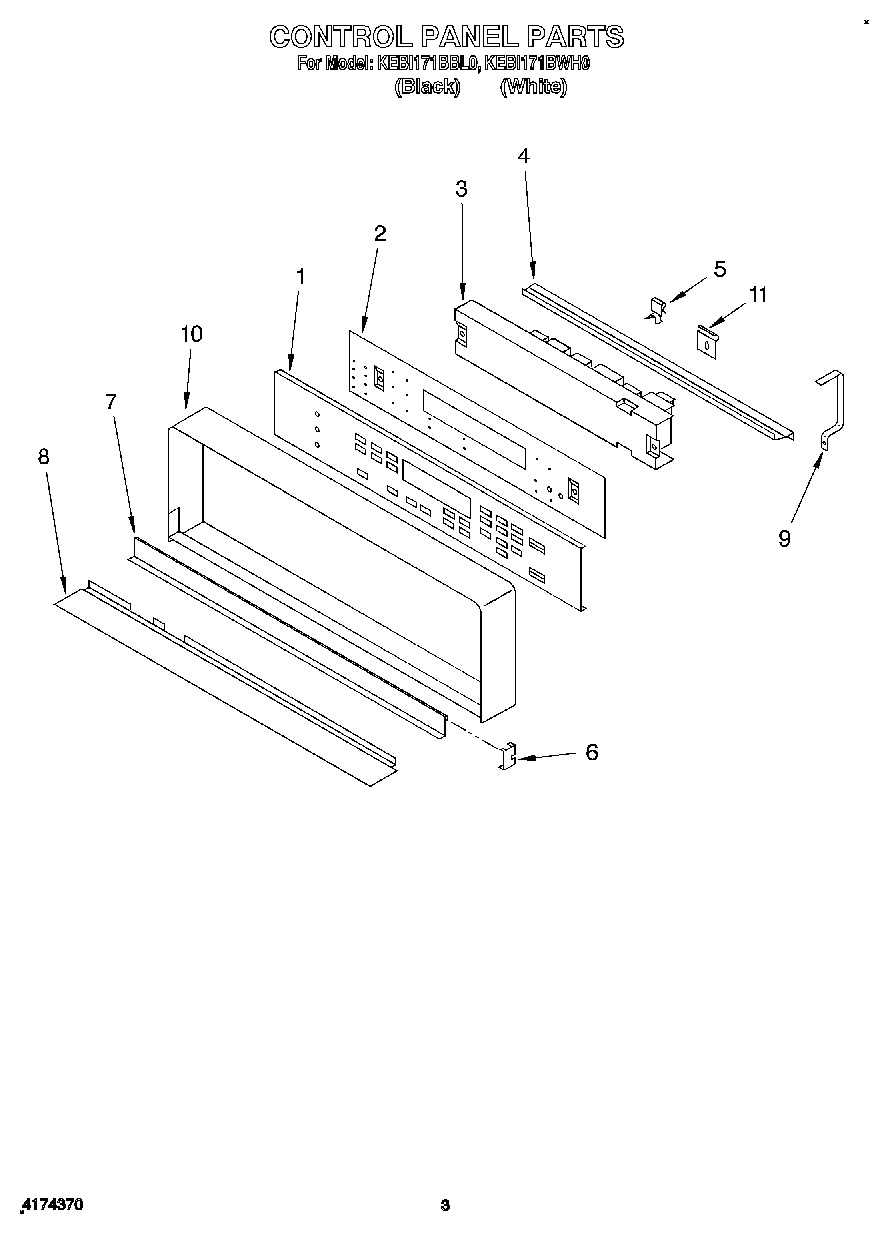

02 - CONTROL PANEL, LITERATURE

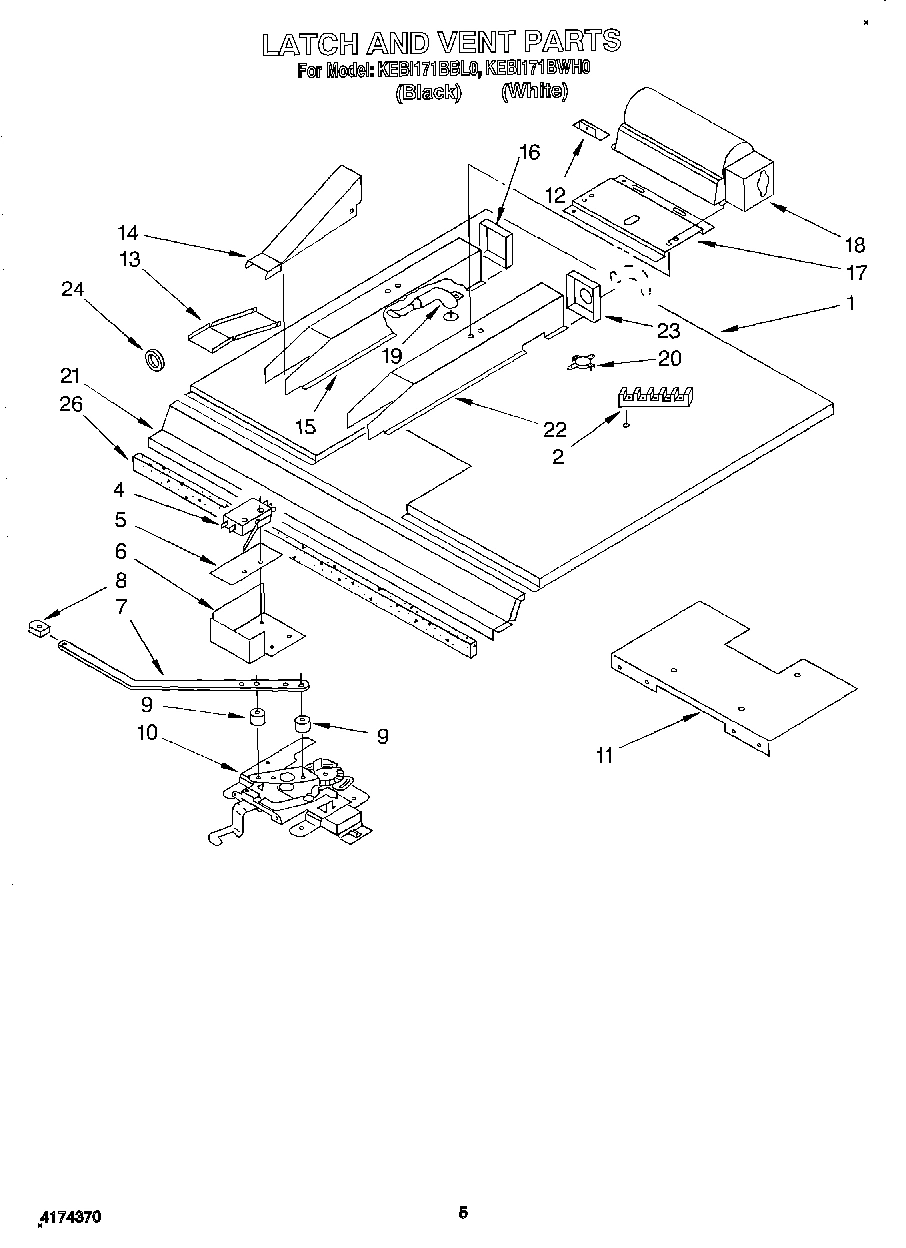

04 - LATCH AND VENT
Common parts from model Whirlpool KEBI171BWH0
Installation Instructions WPL LIT3183659 Contact Us For Availability
Tech Sheet WPL LIT3186506 Contact Us For Availability
Use & Care Guide WPL LIT3188198 Contact Us For Availability
1
Liner, Oven WPL 3185562 Contact Us For Availability
1
Screw, Black (2) WPL 3178001 Contact Us For Availability
1
Liner, Door WPL 3185497 Contact Us For Availability
1
Harness Wire (Door Switch) WPL 3187607 Contact Us For Availability
1
Membrane, Switch (Black Model) WPL 3181776 Contact Us For Availability
1
Membrane, Switch (White, Model) WPL 3181777 Contact Us For Availability
1
Module, Top WPL 3183748 Contact Us For Availability
2
Gasket, Window WPL 3185462 Contact Us For Availability
2
Clamp, Wire WPL 3184792 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3183794 Contact Us For Availability
2
Screw WPL 308043 Contact Us For Availability
3
Glass, Clear WPL 3185459 Contact Us For Availability
3
Screw WPL 3185648 Contact Us For Availability
3
Microcomputer WPL 3181702 Contact Us For Availability
4
Latch, Strike WPL 3185438 Contact Us For Availability
4
Harness Wire Main Oven WPL 3185966 Contact Us For Availability
4
Retainer, Bracket WPL 3183705 Contact Us For Availability
4
Screw, WPL 254225 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw WPL 98106 Contact Us For Availability
5
Screw WPL 4168863 Contact Us For Availability
5
Retainer, Insulation WPL 3185437 Contact Us For Availability
5
Rack, Offset WPL 3185307 Contact Us For Availability
5
Clip, Retainer (3) WPL 3182985 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
6
Rack, Oven WPL 3185308 Contact Us For Availability
6
Trim, Door WPL 3182162 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
7
Glass, Door (Black Model) WPL 3187863 Contact Us For Availability
7
Glass, Door (White Model) WPL 3187865 Contact Us For Availability
7
Door, Latch Handle (Black) WPL 3182151 Contact Us For Availability
7
Door, Latch Handle (White) WPL 3182154 Contact Us For Availability
7
Door, Latch Handle (Screw) WPL 3188409 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
8
Glass, Reflective WPL 3185458 Contact Us For Availability
8
Bracket, Element WPL 3180694 Contact Us For Availability
8
Trim, Panel WPL 3183702 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
9
Frame, Door (Black Model) WPL 3187850 Contact Us For Availability
9
Frame, Door (White Model) WPL 3187852 Contact Us For Availability
9
Harness, Wire (Latch Assy.) WPL 3185952 Contact Us For Availability
9
Sensor, Heat WPL 3148440 Contact Us For Availability
9
Screw WPL 3182939 Contact Us For Availability
9
Bracket WPL 3184321 Contact Us For Availability
9
Screw WPL 3179116 Contact Us For Availability
9
Screw WPL 3184037 Contact Us For Availability
9
Spacer, Latch Handle WPL 3184040 Contact Us For Availability
10
Handle, Door (Black Model) WPL 3185986 Contact Us For Availability
10
Handle, Door (White Model) WPL 3185987 Contact Us For Availability
10
Frame, Control Panel (Black Model) WPL 3187954 Contact Us For Availability
10
Frame, Control Panel (White Model) WPL 3187955 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
11
Spacer (2) WPL 3182138 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
12
Bracket, Glass Mounting WPL 3185439 Contact Us For Availability
12
Screw WPL 311773 Contact Us For Availability
12
Baffle WPL 3185455 Contact Us For Availability
13
Glass, Clear WPL 3185457 Contact Us For Availability
13
Nozzle, Vent Bottom WPL 3183954 Contact Us For Availability
14
Insulation, Door WPL 3185460 Contact Us For Availability
14
Nozzle, Vent Top WPL 3183955 Contact Us For Availability
15
Screw WPL 3181637 Contact Us For Availability
15
Bushing, Handle WPL 3188599 Contact Us For Availability
15
Box, Vent WPL 3183999 Contact Us For Availability
16
Foil-Adhesive WPL 3188635 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
17
Foil, Adhesive WPL 3188633 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
19
Tube, Vent WPL 3183791 Contact Us For Availability
20
Screw WPL 3185647 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
21
Side Trim, Door (2) (White Model) WPL 3187876 Contact Us For Availability
21
Shield, Heat WPL 3183785 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
22
Screw WPL 4173231 Contact Us For Availability
22
Box, Vent WPL 3183953 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Screw (6) WPL 3179795 Contact Us For Availability
24
Bushing WPL 4159035 Contact Us For Availability
26
Back, Module WPL 3177560 Contact Us For Availability
26
Seal, foam WPL 313755 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Button, Plug WPL 3185085 Contact Us For Availability
30
Button, Plug WPL 3182814 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Vent, Lower Trim (Black) WPL 3177783 Contact Us For Availability
34
Vent, Lower Trim (Screw (4)) WPL 3180022 Contact Us For Availability
34
Trim, Lower Vent (White Model) WPL 3187957 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
43
Bottom, Oven WPL 3177551 Contact Us For Availability
45
Bracket, Conduit WPL 3177545 Contact Us For Availability
46
Insulation, Oven WPL 3185551 Contact Us For Availability
47
Insulation, Back WPL 3177872 Contact Us For Availability
48
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
48
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
48
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
48
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
48
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
48
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
48
White 14 Ga. 150~c Rating WPL 242826 Contact Us For Availability
48
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
48
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
48
Red 12 Ga. WPL 242829 Contact Us For Availability
48
WPL 242830 WPL 242830 Contact Us For Availability
48
WPL 242832 WPL 242832 Contact Us For Availability
48
WPL 261890 WPL 261890 Contact Us For Availability
48
WPL 261891 WPL 261891 Contact Us For Availability
48
WPL 285365 WPL 285365 Contact Us For Availability
48
WPL 285366 WPL 285366 Contact Us For Availability
48
WPL 285367 WPL 285367 Contact Us For Availability
48
WPL 285368 WPL 285368 Contact Us For Availability
48
WPL 3183752 WPL 3183752 Contact Us For Availability
48
WPL 350806 WPL 350806 Contact Us For Availability
48
WPL 350941 WPL 350941 Contact Us For Availability
48
WPL 591014 WPL 591014 Contact Us For Availability
48
WPL 72112 WPL 72112 Contact Us For Availability
48
WPL 799832 WPL 799832 Contact Us For Availability
48
WPL 832985 WPL 832985 Contact Us For Availability
48
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
