Model Whirlpool KEBI141YBL3 – Common Parts & Diagrams
03 - LATCH AND VENT
06 - WIRING HARNESS
01 - OVEN, OPTIONAL

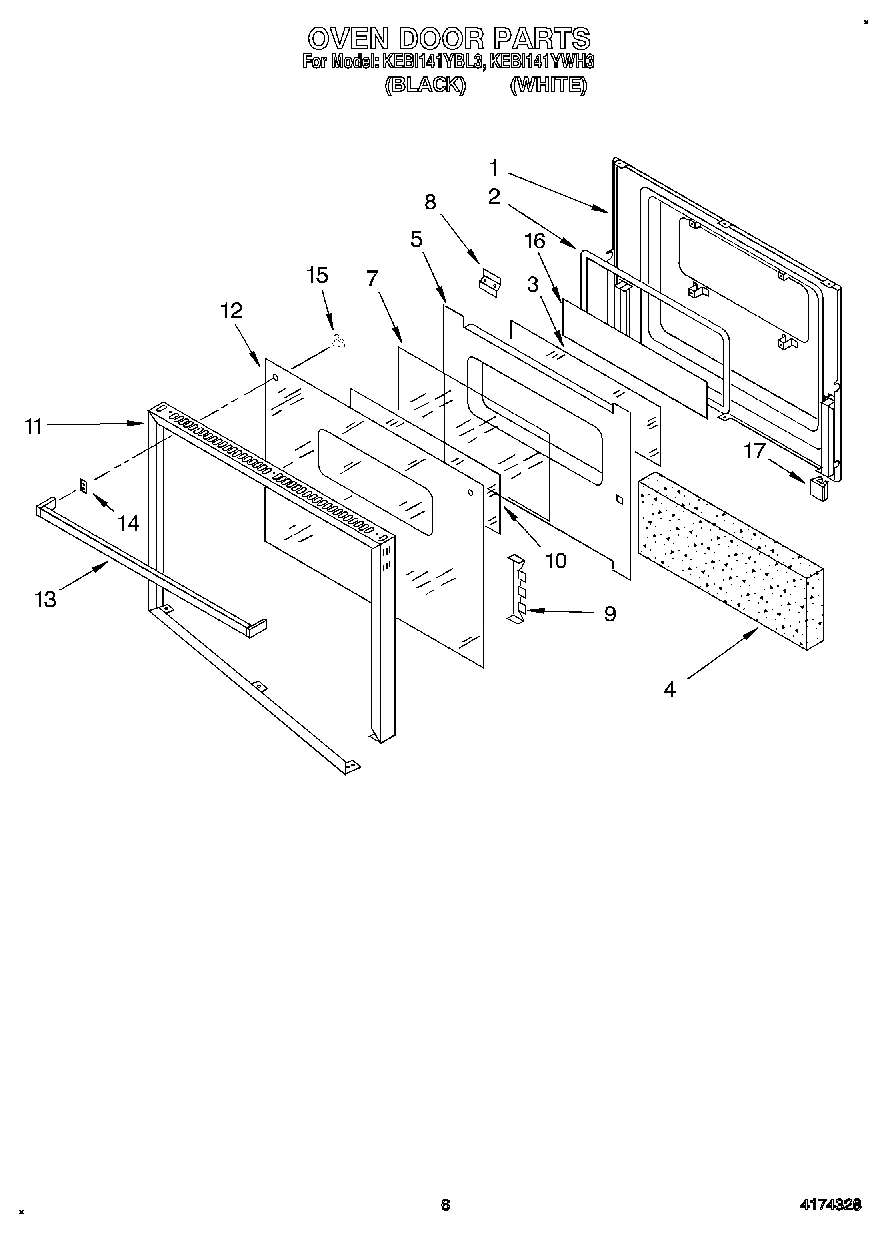

05 - OVEN DOOR

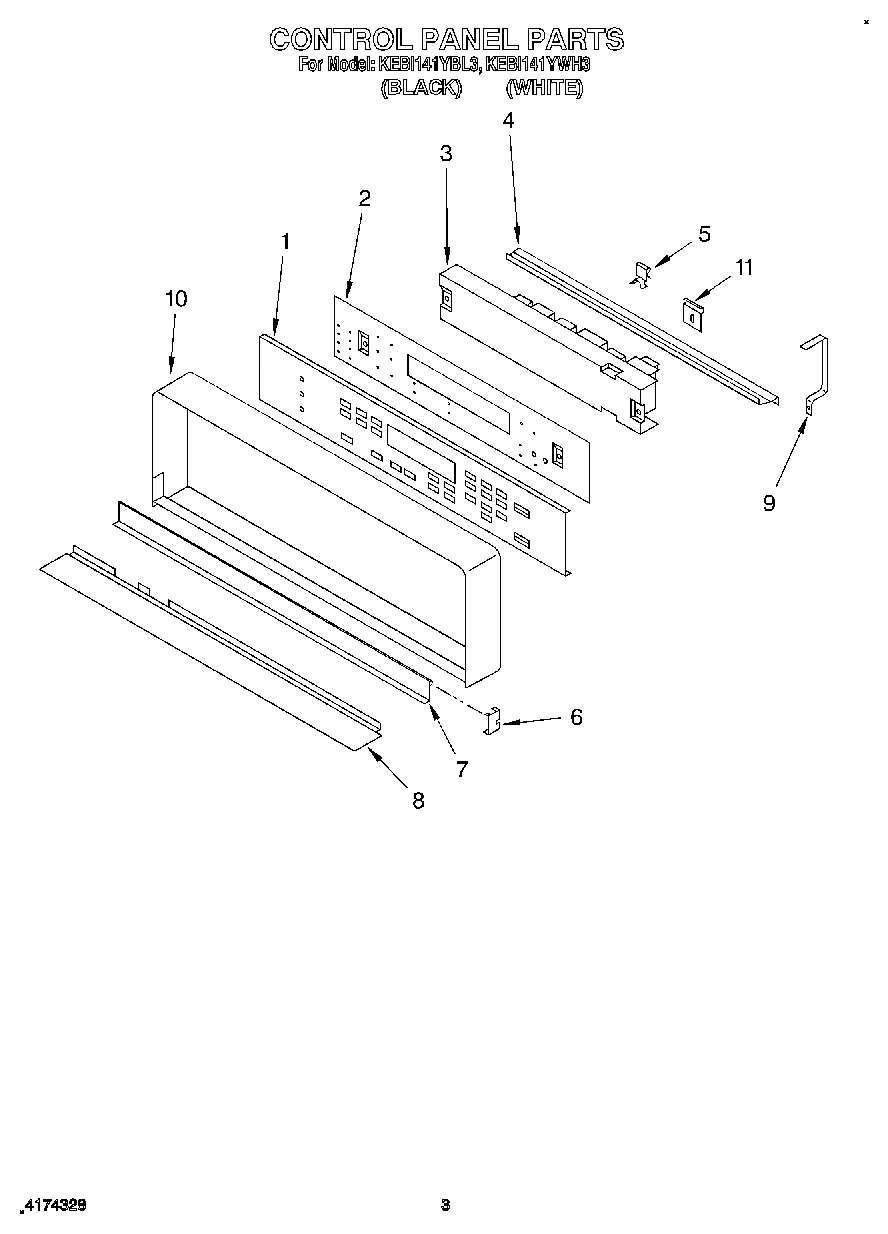

02 - CONTROL PANEL, LITERATURE

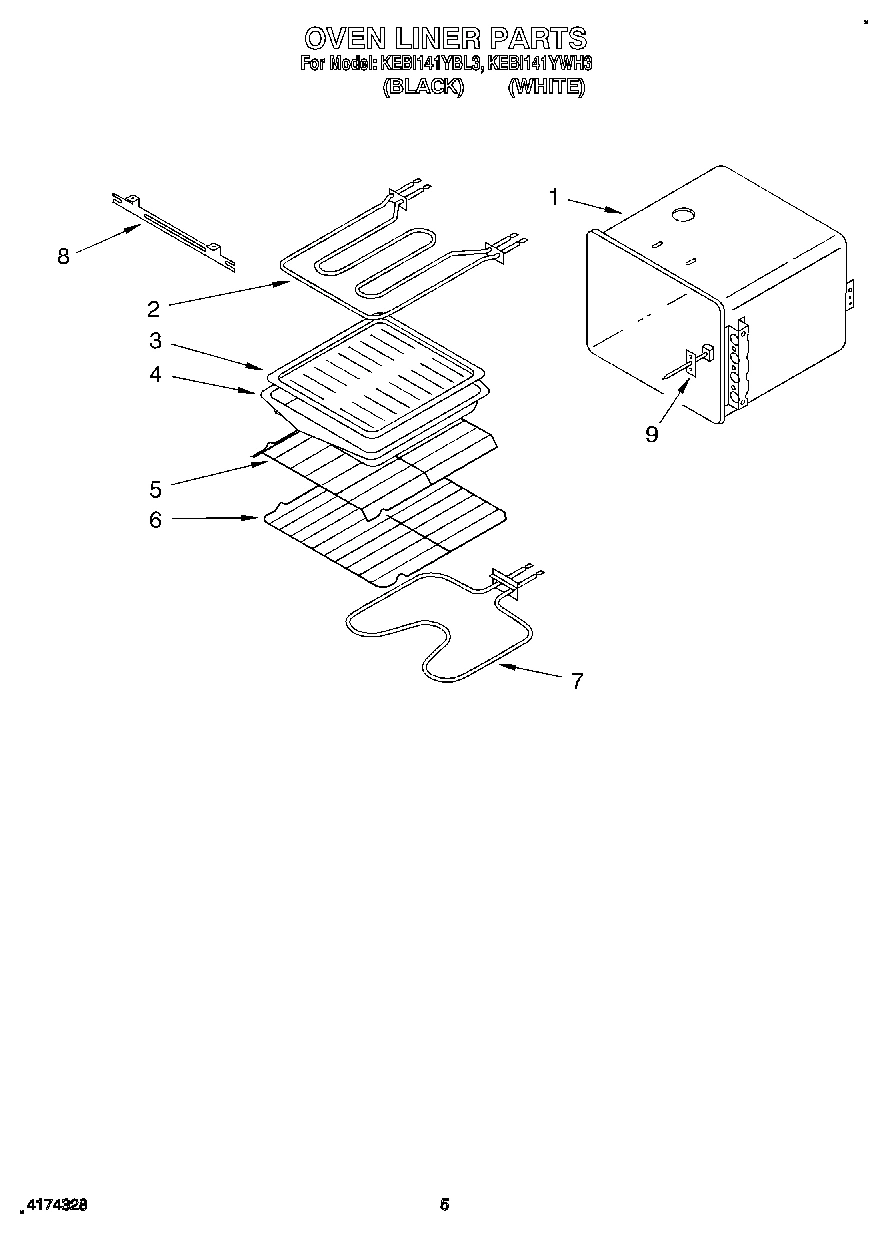

04 - OVEN LINER
Common parts from model Whirlpool KEBI141YBL3
Tech Sheet WPL LIT3182129 Contact Us For Availability
Installation Instructions WPL LIT3183659 Contact Us For Availability
Use & Care Guide WPL LIT3185642 Contact Us For Availability
1
Harness Wire (Door Switch) WPL 3183655 Contact Us For Availability
1
Liner, Oven WPL 3185561 Contact Us For Availability
1
Screw, Black (2) WPL 3178001 Contact Us For Availability
1
Liner, Door WPL 3185499 Contact Us For Availability
1
Membrane, Switch (Black Model) WPL 3181773 Contact Us For Availability
1
Membrane, Switch (White Model) WPL 3184775 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Seal, Window WPL 3185462 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3183794 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
3
Glass, Clear WPL 3185457 Contact Us For Availability
3
Cabinet, Back WPL 3177626 Contact Us For Availability
3
Microcomputer WPL 3181702 Contact Us For Availability
4
Harness Wire (Oven) WPL 3184220 Contact Us For Availability
4
Insulation, Door WPL 3185460 Contact Us For Availability
4
Retainer, Bracket WPL 3183705 Contact Us For Availability
5
Screw WPL 3148443 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
5
Retainer, Insulation WPL 3185437 Contact Us For Availability
5
Screw WPL 4173601 Contact Us For Availability
5
Clip, Retainer (3) WPL 3182985 Contact Us For Availability
5
Rack, Offset WPL 3185309 Contact Us For Availability
6
Cabinet, Top WPL 3178141 Contact Us For Availability
6
Trim, Door (2) WPL 3182162 Contact Us For Availability
6
Rack, Oven WPL 3185310 Contact Us For Availability
7
Harness, Wire (Switch) WPL 3185920 Contact Us For Availability
7
Module, Top WPL 3183747 Contact Us For Availability
7
Glass, Reflective WPL 3185458 Contact Us For Availability
7
Door, Latch Handle (Screw (2)) WPL 3179847 Contact Us For Availability
7
Door, Latch Handle (Black) WPL 3182150 Contact Us For Availability
7
Door, Latch Handle (White) WPL 3182153 Contact Us For Availability
8
Screw WPL 3185647 Contact Us For Availability
8
Harness, Wire (Latch Assy.) WPL 3183976 Contact Us For Availability
8
Side, Cabinet (R.H. & L.H.) WPL 3177442 Contact Us For Availability
8
Latch, Strike WPL 3185438 Contact Us For Availability
8
Trim, Panel WPL 3183701 Contact Us For Availability
8
Bracket, Element WPL 3180694 Contact Us For Availability
9
Harness, Wire (Blower Fan) WPL 3183657 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Screw (2) WPL 3185648 Contact Us For Availability
9
Retainer, Glass WPL 3185439 Contact Us For Availability
9
Screw (2) WPL 3182939 Contact Us For Availability
9
Bracket (2) WPL 3184321 Contact Us For Availability
9
Sensor, Heat WPL 3148440 Contact Us For Availability
10
Glass, Clear WPL 3185459 Contact Us For Availability
10
Frame, Control Panel WPL 3182147 Contact Us For Availability
11
Frame, Door WPL 3181403 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
12
Glass, Door (Black Model) WPL 3185475 Contact Us For Availability
12
Glass, Door (White Model) WPL 3185477 Contact Us For Availability
13
Nozzle, Vent Bottom WPL 3183954 Contact Us For Availability
13
Handle, Door (Black Model) WPL 3182164 Contact Us For Availability
13
Handle, Door (White Model) WPL 3182167 Contact Us For Availability
14
Nozzle, Vent Top WPL 3183955 Contact Us For Availability
14
Screw (4) WPL 3179776 Contact Us For Availability
14
Frame, Front WPL 3185863 Contact Us For Availability
14
Spacer, Door Handle WPL 3182138 Contact Us For Availability
15
Box, Vent WPL 3183999 Contact Us For Availability
15
Screw WPL 4173231 Contact Us For Availability
15
Seal, Door WPL 3179814 Contact Us For Availability
15
Screw WPL 247326 Contact Us For Availability
15
Screw WPL 3181637 Contact Us For Availability
15
Bushing, Door Handle WPL 3185456 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
Foil-Adhesive Backed WPL 3185471 Contact Us For Availability
17
Bracket, Mounting WPL 3183533 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Bumper, Door Glass WPL 3181701 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Bottom, Modual WPL 3177622 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
Shield, Heat WPL 3183799 Contact Us For Availability
22
Box, Vent WPL 3183953 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Bushing WPL 4159035 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Screw (6) WPL 3179795 Contact Us For Availability
24
Seal, foam WPL 313755 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
25
Screw WPL 311773 Contact Us For Availability
25
Baffle-Blower WPL 3185455 Contact Us For Availability
26
Back, Module WPL 3177559 Contact Us For Availability
28
Hinge, Door WPL 3178298 Contact Us For Availability
29
Button, Plug WPL 3182814 Contact Us For Availability
30
Button, Plug WPL 3185085 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Vent, Lower Trim (White Model) WPL 3177786 Contact Us For Availability
34
Vent, Lower Trim (Black Model) WPL 3177788 Contact Us For Availability
34
Vent, Lower Trim (Screw (4)) WPL 3180022 Contact Us For Availability
34
Vent, Lower Trim (Screw (2)) WPL 4168863 Contact Us For Availability
35
Tube, Vent WPL 3183791 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Bottom, Oven WPL 3177552 Contact Us For Availability
41
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
41
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
41
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
41
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
41
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
41
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
41
18 Ga. 80~c Rating (White) WPL 242826 Contact Us For Availability
41
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
41
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
41
18 Ga. 80~c Rating (Blue 14 Ga. 150~c Rating) WPL 242829 Contact Us For Availability
41
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
41
1 WPL 242832 Contact Us For Availability
41
WPL 261890 WPL 261890 Contact Us For Availability
41
WPL 285365 WPL 285365 Contact Us For Availability
41
WPL 285366 WPL 285366 Contact Us For Availability
41
WPL 3177870 WPL 3177870 Contact Us For Availability
41
WPL 3182584 WPL 3182584 Contact Us For Availability
41
WPL 3185550 WPL 3185550 Contact Us For Availability
41
WPL 350806 WPL 350806 Contact Us For Availability
41
WPL 350941 WPL 350941 Contact Us For Availability
41
WPL 591014 WPL 591014 Contact Us For Availability
41
WPL 72112 WPL 72112 Contact Us For Availability
41
WPL 799832 WPL 799832 Contact Us For Availability
41
WPL 832985 WPL 832985 Contact Us For Availability
× ![]()
