Model Whirlpool KEBI141SBL0 – Common Parts & Diagrams
04 - CONTROL COMPARTMENT AND CABINET TOP
05 - OVEN LINER

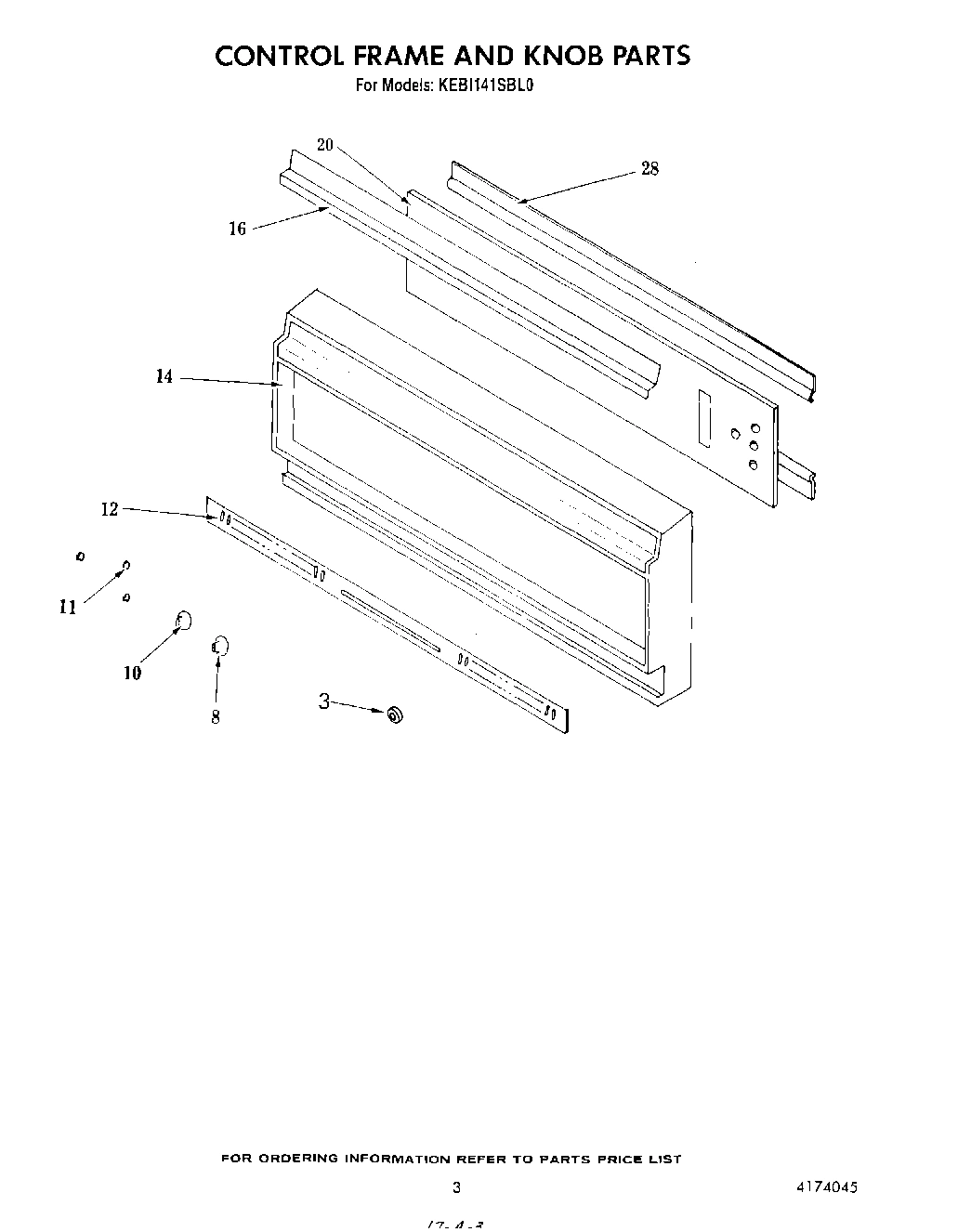

03 - CONTROL FRAME AND KNOB

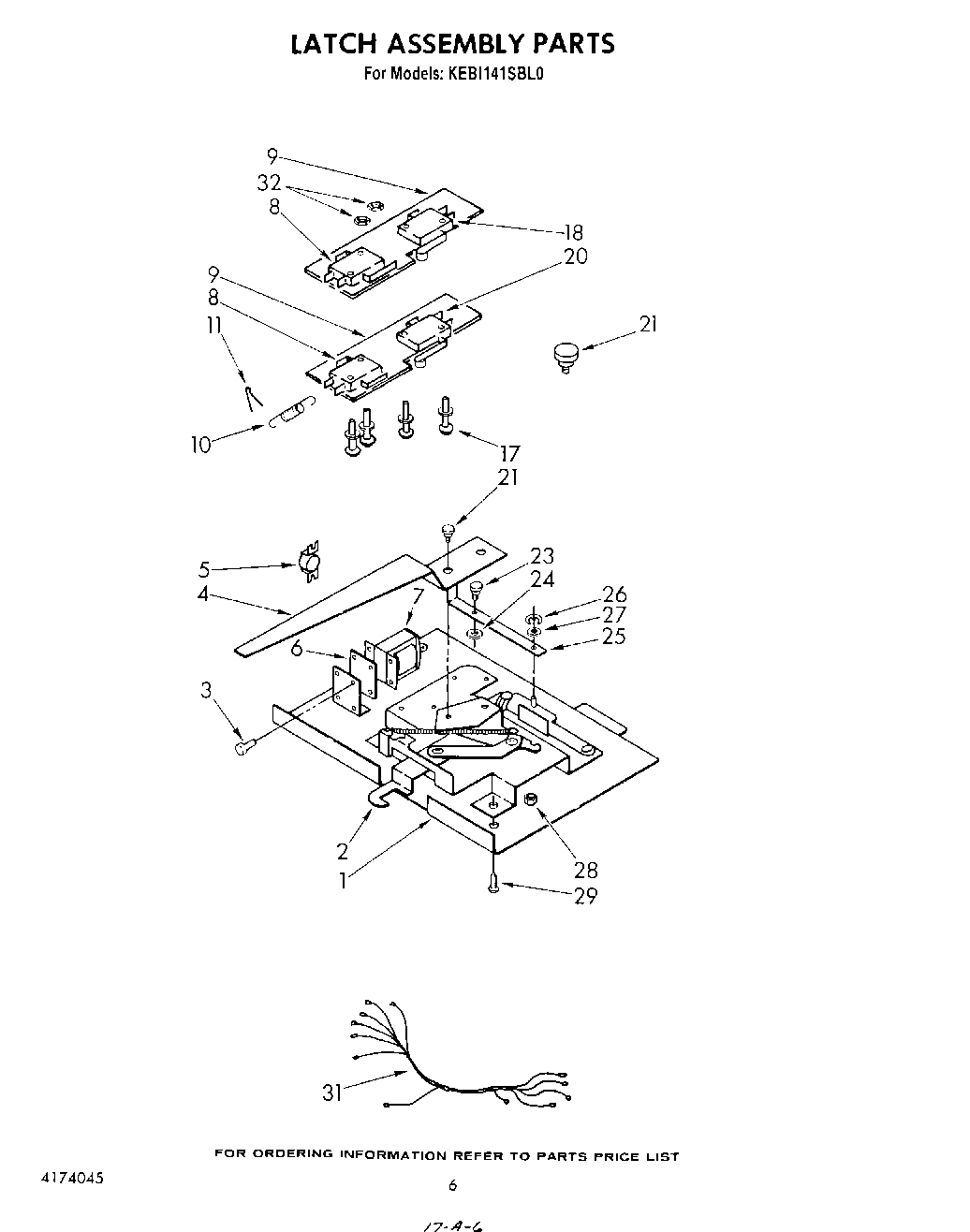

06 - LATCH ASSEMBLY

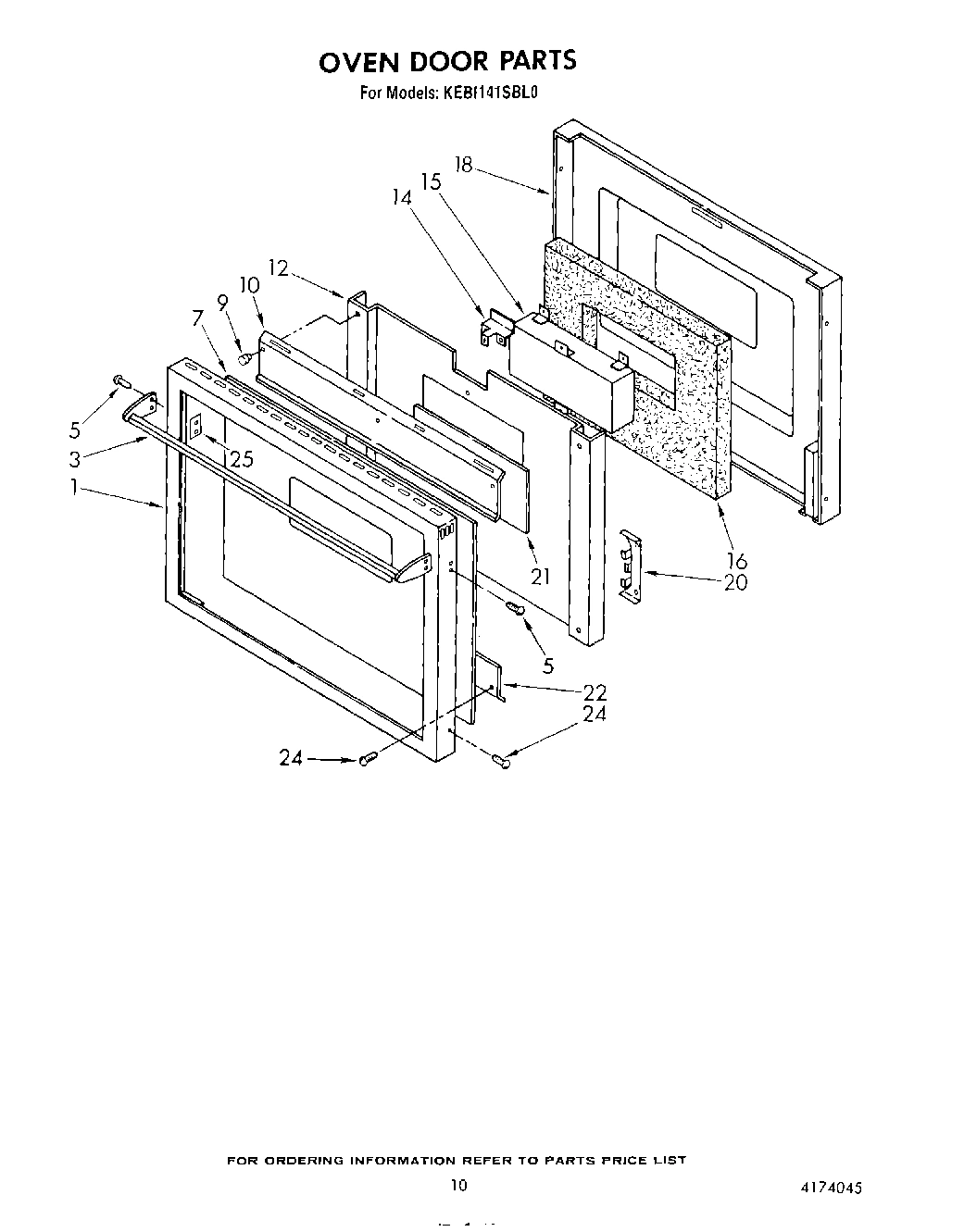

08 - OVEN DOOR , LIT/OPTIONAL

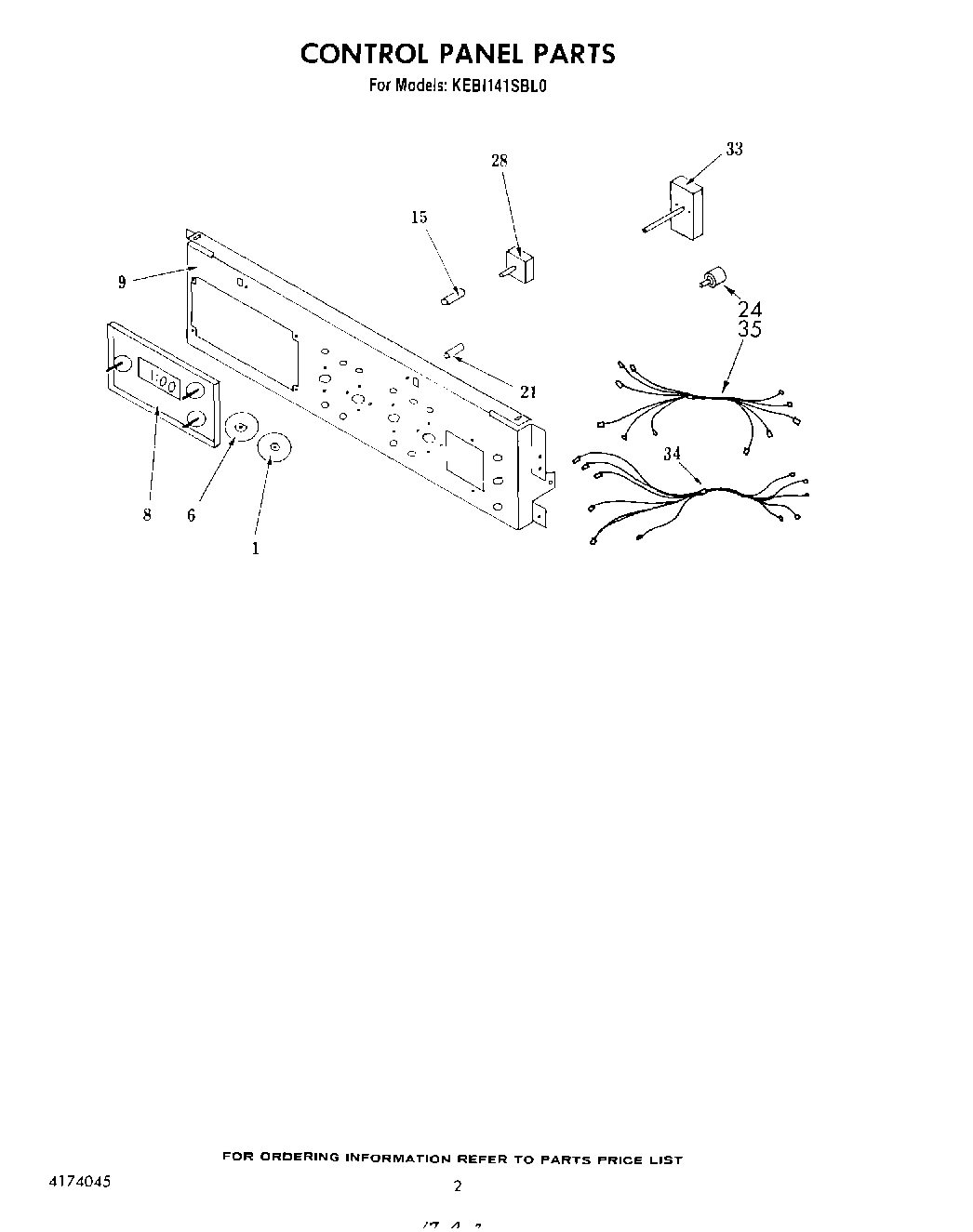

02 - CONTROL PANEL

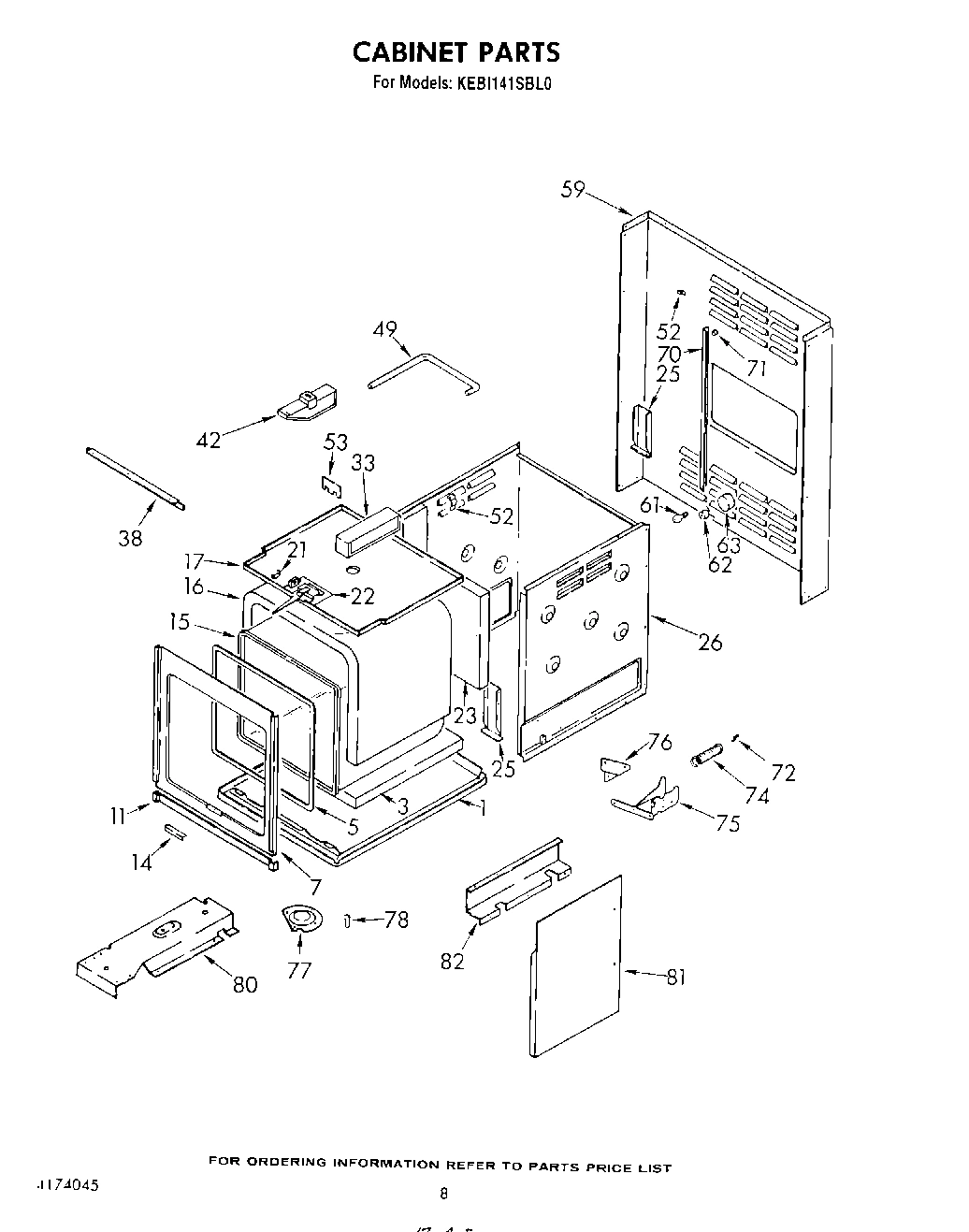

07 - CABINET
Common parts from model Whirlpool KEBI141SBL0
Use and Care Guide WPL LIT3177053 Contact Us For Availability
Installation Instructions WPL LIT3177123 Contact Us For Availability
List, Repair Parts WPL LIT4174045 Contact Us For Availability
Cookbook (Retained Heat) WPL LIT4177808 Contact Us For Availability
1
Liner, Oven WPL 4163863 Contact Us For Availability
1
Latch Mounting Plate WPL 4173044 Contact Us For Availability
1
Door Frame WPL 4169519 Contact Us For Availability
1
Thermostat Disc WPL 4163809 Contact Us For Availability
1
Main Bottom WPL 4163967 Contact Us For Availability
2
Mechanism, Latch WPL 4168538 Contact Us For Availability
3
Bezel, Oven Light Switch WPL 4169372 Contact Us For Availability
3
Screw, No.10-24 X 3/8`` Hex TCS WPL 4159186 Contact Us For Availability
3
Door Handle WPL 4173020 Contact Us For Availability
3
Insulation, Bottom WPL 4169309 Contact Us For Availability
4
Latch Lever WPL 4163838 Contact Us For Availability
5
Thermal Switch WPL 4173007 Contact Us For Availability
5
Screw, No.8-32 X 3/8`` PFHMS WPL 4159330 Contact Us For Availability
5
Door Gasket WPL 4168828 Contact Us For Availability
6
Solenoid Spacer WPL 4168169 Contact Us For Availability
6
Selector Disc WPL 4163799 Contact Us For Availability
7
Solenoid WPL 4173081 Contact Us For Availability
7
Door Glass WPL 4164240 Contact Us For Availability
7
Front Frame WPL 4163824 Contact Us For Availability
8
Hole Cover WPL 4168527 Contact Us For Availability
8
Latch Switch With Roller WPL 4168514 Contact Us For Availability
8
Clock WPL 4173071 Contact Us For Availability
9
Insulator WPL 4168522 Contact Us For Availability
9
Rubber Bumper WPL 4168826 Contact Us For Availability
9
Control Mounting Panel WPL 4173293 Contact Us For Availability
10
Broiler Element Support-Right WPL 4168217 Contact Us For Availability
10
Knob, Clock (2) WPL 3177121 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Air Baffle WPL 4163856 Contact Us For Availability
11
Element, Broil WPL 4164185 Contact Us For Availability
11
Knob, Clock WPL 3177122 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Bottom Trim WPL 4164197 Contact Us For Availability
12
Vent Insert WPL 4168718 Contact Us For Availability
12
Insulation Retainer WPL 4169356 Contact Us For Availability
14
Light Lens Gasket WPL 4166868 Contact Us For Availability
14
Frame, Control WPL 4173181 Contact Us For Availability
14
Bracket, Lock WPL 4163852 Contact Us For Availability
14
Cover, Seal End WPL 4167588 Contact Us For Availability
15
Light Lens WPL 4166866 Contact Us For Availability
15
Window Pack WPL 4173280 Contact Us For Availability
15
Indicator Light, WPL 4168597 Contact Us For Availability
15
Oven Liners (See Page 5 For Further Breakdown WPL ARI82724A7 Contact Us For Availability
16
Blower WPL 4173004 Contact Us For Availability
16
Light Lens Retainer WPL 4167938 Contact Us For Availability
16
Insert, Top WPL 4173312 Contact Us For Availability
16
Insulation WPL 4163986 Contact Us For Availability
16
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
17
Terminal Block, Power Supply WPL 4168735 Contact Us For Availability
17
Screw, No.4-40 X 1 1/4`` Hex WPL 4173053 Contact Us For Availability
17
Top Compartment WPL 4169315 Contact Us For Availability
18
Latch Switch, (SPDT) WPL 4164366 Contact Us For Availability
18
Door Liner WPL 4164236 Contact Us For Availability
19
Conduit, 1/2`` X 56`` WPL 4167614 Contact Us For Availability
20
Control Panel Glass WPL 4173311 Contact Us For Availability
20
Latch Switch (2) WPL 4168517 Contact Us For Availability
20
Glass Mounting Bracket WPL 4163855 Contact Us For Availability
21
Cabinet Top WPL 4173290 Contact Us For Availability
21
Shoulder Screw, Latch Lever WPL 4168579 Contact Us For Availability
21
Glass Panel WPL 4164243 Contact Us For Availability
21
Indicator Light (12) WPL 4163869 Contact Us For Availability
21
Knob, Latch Lever WPL 4163821 Contact Us For Availability
22
Clip, Thermostat Bulb WPL 4173275 Contact Us For Availability
22
Air Baffle Bottom WPL 4163858 Contact Us For Availability
22
Latch Assembly (See Latch Parts On Pages 6 & WPL ARI82725A7 Contact Us For Availability
23
Broiler Element Support-Left WPL 4168218 Contact Us For Availability
23
Shoulder Screw, Actuator Arm WPL 4168554 Contact Us For Availability
23
Insulation, Rear WPL 4169311 Contact Us For Availability
24
Panel, Blower Mounting WPL 4173005 Contact Us For Availability
24
Rack, Oven WPL 4168400 Contact Us For Availability
24
Spacer, Actuator Arm WPL 4168553 Contact Us For Availability
24
Oven Light Switch WPL 4167332 Contact Us For Availability
25
Bushing, Flexible WPL 4173165 Contact Us For Availability
25
Actuator Arm WPL 4168058 Contact Us For Availability
25
Insert WPL 4164131 Contact Us For Availability
25
Rear Anchor WPL 4167526 Contact Us For Availability
26
Switch, Fan WPL 4173008 Contact Us For Availability
26
Retaining Ring WPL 4159160 Contact Us For Availability
26
Cabinet Side WPL 4173047 Contact Us For Availability
27
Washer, Flat WPL 4159603 Contact Us For Availability
28
Retainer WPL 4167590 Contact Us For Availability
28
Nut, No.10-24 Hex Kep WPL 4159109 Contact Us For Availability
28
Selector Switch WPL 4168451 Contact Us For Availability
29
Screw, No.10-24 X 3/8`` PTHMS WPL 4159287 Contact Us For Availability
31
Wiring Harness, Latch Switch WPL 4173303 Contact Us For Availability
32
Vent Tube Extension WPL 4168126 Contact Us For Availability
32
Nut, Lock WPL 4159117 Contact Us For Availability
33
Capillary Cover WPL 4168203 Contact Us For Availability
33
Thermostat WPL 4164361 Contact Us For Availability
33
Collector Box WPL 4168681 Contact Us For Availability
34
Smoke Eliminator WPL 4168492 Contact Us For Availability
34
Wiring Harness High-Temp WPL 4173042 Contact Us For Availability
35
Wiring Harness Low Temp WPL 4173309 Contact Us For Availability
38
Plug Button (3/8`` Hole) WPL 4159120 Contact Us For Availability
38
Plug Button (5/8`` Hole) WPL 4159122 Contact Us For Availability
38
Plug Button (3/4`` Hole) WPL 4159123 Contact Us For Availability
38
Control Frame Support WPL 4169335 Contact Us For Availability
42
Vent Box WPL 4163941 Contact Us For Availability
49
Vent Tube WPL 4168494 Contact Us For Availability
52
Clamp, Conduit WPL 4167593 Contact Us For Availability
53
Vent Tube Mounting Bracket WPL 4168242 Contact Us For Availability
59
Cabinet, Back WPL 4173064 Contact Us For Availability
62
Socket, Lamp WPL 4168755 Contact Us For Availability
63
Light Shield WPL 4167579 Contact Us For Availability
70
Cabinet Support (Right) WPL 4163759 Contact Us For Availability
70
Cabinet Support (Left) WPL 4163760 Contact Us For Availability
71
Spacer WPL 4168590 Contact Us For Availability
72
Spring, Anchor WPL 4167599 Contact Us For Availability
74
Door Spring WPL 4173048 Contact Us For Availability
75
Hinge Assembly WPL 4167596 Contact Us For Availability
76
Cam Plate (Right) WPL 4167597 Contact Us For Availability
76
Cam Plate (Left) WPL 4167598 Contact Us For Availability
77
Probe Cover WPL 4163883 Contact Us For Availability
78
Screw, 8A X 3/8`` PKESMS WPL 4168863 Contact Us For Availability
80
Air Duct (Left) WPL 4163752 Contact Us For Availability
80
Air Duct (Right) WPL 4163753 Contact Us For Availability
81
Extension, Air Duct (Left Hand) WPL 4173016 Contact Us For Availability
81
Extension, Air Duct (Right Hand) WPL 4173017 Contact Us For Availability
82
Air Baffle Channel WPL 4173015 Contact Us For Availability
× ![]()
